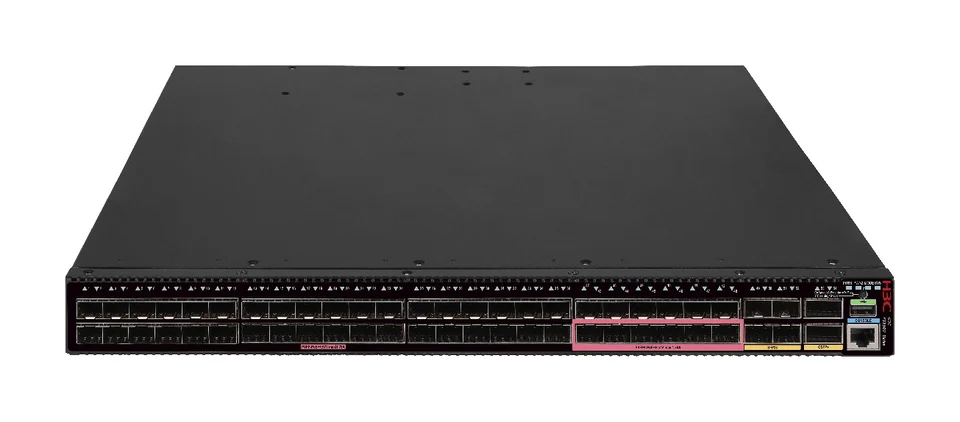

H3C LS-FS5500-48UXS4Y2Q-EI Layer 3 Ethernet Switch Chassis, supports 42 100/1000 PSFP PoE++ power supply ports, supports 6 1G/2.5G/10G PSFP Plus PoE++ power supply ports, supports 4 25G SFP28 ports, supports 2 40G QSFP+ ports, no power supply
Brand H3C
N/AVerified
H3C LS-FS5500-48UXS4Y2Q-EI
Model (MPN)
9801A4F0
Condition
Factory Sealed
Out of Stock
H3C LS-FS5500-48UXS4Y2Q-EI Layer 3 Ethernet Switch Chassis, supports 42 100/1000 PSFP PoE++ power supply ports, supports 6 1G/2.5G/10G PSFP Plus PoE++ power supply ports, supports 4 25G SFP28 ports, supports 2 40G QSFP+ ports, no power supply. Switching Capacity: 2.4Tbps/24Tbps. Packet Forwarding Rate: 660Mpps. Management Ethernet port: 10/100/1000Base-T Electrical Port: 1
Key Specifications
DescriptionH3C FS5500-48UXS4Y2Q-EI L3 Ethernet Switch Chassis, supports 42 100/1000 PSFP PoE++ power supply ports, supports 6 1G/2.5G/10G PSFP Plus PoE++ power supply ports, supports 4 25G SFP28 ports, supports 2 40G QSFP Plus ports, no power supply
Switching Capacity2.4Tbps/24Tbps
Packet Forwarding Rate660Mpps
Management Ethernet port10/100/1000Base-T Electrical Port: 1
GigabitPSFP42
10GPSFP6 units
Your Price
Best Value
$1,029.98
List Price: $14,714.00Save 93%
Availability Out of Stock
Quantity
Need configuration help?
Our CCIE certified engineers can help you verify compatibility.
Secure Payment
VISA
Pay
WIRE
Fast Dispatch
Global logistics network aiming for same-day handover.
48hrs
Avg. Shipping
99%
On-Time
Guaranteed Quality
Every unit undergoes rigorous 38-point inspection test.
3Year
Warranty
0.1%
RMA Rate
Global Reach
Trusted by enterprise clients across 6 continents.
85+
Countries
20k+
Clients
Expert Support
Certified network engineers ready to assist with configuration.
24/7
Assistance
CCIE
Certified
Overview
Specifications
| Catalog Description | |
|---|---|
| Description | H3C FS5500-48UXS4Y2Q-EI L3 Ethernet Switch Chassis, supports 42 100/1000 PSFP PoE++ power supply ports, supports 6 1G/2.5G/10G PSFP Plus PoE++ power supply ports, supports 4 25G SFP28 ports, supports 2 40G QSFP Plus ports, no power supply |
| Key Specifications | |
| Switching Capacity | 2.4Tbps/24Tbps |
| Packet Forwarding Rate | 660Mpps |
| Management Ethernet port | 10/100/1000Base-T Electrical Port: 1 |
| GigabitPSFP | 42 |
| 10GPSFP | 6 units |
| 10G/25G SFP28 | 4 ports |
| Product Specifications | |
| Switching Capacity | 2.4Tbps/24Tbps |
| Packet Forwarding Rate | 660Mpps |
| Dimensions (Width x Depth x Height) (Unit: mm) | 440×400×43.6 |
| Weight | ≤7.5kg |
| Console Port | 1 |
| Management Ethernet port | 10/100/1000Base-T Electrical Port: 1 |
| USB port | 1 |
| GigabitPSFP | 42 |
| 10GPSFP | 6 units |
| 10G/25G SFP28 | 4 ports |
| 40G QSFP+ | 2 ports |
| PoE | Supports PoE (802.3af)/PoE+ (802.3at)/PoE++ (802.3bt), maximum 90W output power per Port |
| Static Power Consumption | Single AC: 50W Dual AC: 59W |
| Typical power consumption | Single AC: 65W Dual AC: 80W |
| Full Load Power Consumption | Single AC: 1680W (POE: 1450W) Dual AC: 3210W (POE: 2850W) |
| Input voltage | AC: Rated Voltage Range: 100~240V AC: 50/60Hz |
| Whole machine leakage current | meets UL60950-1/EN60950-1/IEC60950-1/GB4943 standards |
| Operating Environment Temperature | -5ºC～45ºC |
| Operating Ambient Relative Humidity (Non-condensing) | 5%～95% |
| Characteristics | Characterization |
| Port aggregation | Supports Port Aggregation, Supports Static Aggregation, Supports Dynamic Aggregation, Supports Cross-Device Link Aggregation, M-LAG |
| Port Features | Supports IEEE802.3x flow control (full-duplex) Supports storm suppression based on port rate percentage Supports storm suppression based on PPS Supports storm suppression based on bps |
| Jumbo Frame | Supports maximum frame length of 13312 |
| MAC Address Table | Supports static, dynamic, and blackhole MAC address modes. Supports source MAC address filtering. Supports setting the maximum number of learned Port MAC addresses. |
| VLAN | Supports 802.1Q VLAN, supports 4K VLAN, supports Port-based VLAN, supports QinQ and flexible QinQ, supports Guest VLAN, supports STP, RSTP, MSTP, PVST, supports MVRP, supports Voice VLAN, supports Policy VLAN, supports IP Subnet-based VLAN, supports Protocol-based VLAN, supports MAC-based VLAN |
| Layer 2 Ring Protocol | Supports STP/RSTP/MSTP/PVST protocols. Supports STP Root Protection. Supports BPDU Protection. Supports G.8032 Ethernet Ring Protection Switching protocol (ERPS), with switching time ≤50ms, compatible with other products supporting this protocol. Supports Smart Link tree topology and Smart Link multi-instance, providing millisecond-level protection for primary/secondary links. |
| DHCP | DHCPv4/v6 ClientDHCP Snooping、DHCPv6 SnoopingDHCPv4/v6 RelayDHCPv4/v6 ServerDHCP Snooping option82/DHCP Relay option82 |
| IRF2 Intelligent Elastic Architecture | Supports IRF2 Intelligent Elastic Architecture Supports Distributed Device Management, Distributed Link Aggregation, Distributed Elastic Routing Supports Stacking via Standard Ethernet Interface etc. Supports Local Stacking and Remote Stacking |
| IP Routing | Supports IPv4/IPv6 static routing Supports IPv4/IPv6 dual stack Supports RIPv1/v2, RIPng Supports OSPFv1/v2, OSPFv3 Supports BGP4, BGP4+ for IPv6 Supports IS-IS, IS-IS V6 Supports Equivalent Routing, Policy Routing Supports VRRP/VRRPv3 Supports OSPF Multi-Process, MD5 encryption authentication, STUB/NSSA area support route COST settings, support inter-area route filtering |
| IPv6 | Supports IPv4/IPv6 dual-stack protocols Supports ND (Neighbor Discovery)Supports ND Snooping Supports PMTUSupports IPv6-Ping, IPv6-Tracert, IPv6-Telnet, IPv6-TFTP, IPv6-ICMP, IPv6-DNS, IPv6-FTP |
| Multicast | Supports IGMP Snooping v1/v2/v3 and rapid leave mechanism, MLD Snooping v1/v2, PIM Snooping, MLD Proxy, multicast VLAN, multicast load balancing across bundled ports, port-based multicast traffic statistics, controlled multicast, IGMP v1/v2/v3, MLD v1/v2, PIM-DM, PIM-SM, PIM-SSM, MSDP, MSDP for IPv6, MBGP, MBGP for IPv6 |
| Mirroring | Supports flow Mirroring, N:9-Port Mirroring, local and remote Port Mirroring, ERSPAN |
| ACL\QoS | Supports L2 (Layer 2)~L4 (Layer 4) packet filtering, providing flow classification based on source MAC address, destination MAC address, source IP (IPv4/IPv6) address, destination IP (IPv4/IPv6) address, TCP/UDP port number, and VLANs Supports Time Range ACLs Supports inbound and outbound bi-directional ACL policies Supports issuing ACLs based on VLANs Supports limiting the rate of incoming messages and the rate of outgoing messages on ports Supports message redirection Supports message redirection Supporting the rate of receiving messages and the rate of sending messages on ports Supports message redirection. Supports bi-directional ACL policy in both inbound and outbound directions Supports VLAN-based downstream ACLs Supports limiting the rate of incoming and outgoing messages on ports Supports message redirection Supports 802.1p and DSCP priority re-tagging of messages Supports CAR (Committed Access Rate) function Supports flexible queue scheduling algorithms, which can be set up based on ports and queues at the same time Support for SP, WFQ, SP+WFQ three modes support for network slicing |
| MPLS | Supports MPLS MCE Supports MPLS L3VPN Supports MPLS L2VPN Supports MPLS SR |
| VxLAN | Support VXLAN Layer 2 switching Support VXLAN routing and switching Support VXLAN centralized gateway and distributed Anycast gateway Support BGP EVPN Support Open Flow+Netconf VXLAN centralized control plane and automated deployment |
| Security Features | Supports user hierarchical management and password protection Supports 802.1X authentication/centralized MAC address authentication Supports Portal authentication Supports Guest VLAN Supports RADIUS authentication Supports HWTACACS+ authentication Supports SSH 2.0 Supports port isolation, port security, Sticky MAC Supports combination binding of IP, MAC, port, VLAN Supports Blacklisting and whitelisting support MFF support EAD support SAVI, SAVA, secure IPv6 environment can support DHCP Snooping, DHCPv6 Snooping, prevent spoofed DHCP server support Dynamic ARP Inspection (DAI), prevent man-in-the-middle attacks and ARP Denial of Service support anti-DOS attack support anti-ARP attack support anti-ICMP attack support CPU protection support CPU anti-attack support BPDU guard, Root guard support uRPF (Unicast Reverse Path Detection), to eliminate IP source address spoofing, to prevent viruses and attacks support IP/Port/MAC binding function support OSPF, RIPv2 Plaintext and MD5 ciphertext authentication support PKI (Public Key Infrastructure) support ID indicator, you can locate the device through the flashing indicator. |
| Management and Maintenance | Supports hotfix function, can be online for patch upgrade Supports XModem/FTP/TFTP load upgrade Supports Command Line Interface (CLI), Telnet, Console port for configuration Supports netcool network management platform Supports SNMPv1/v2/v3, RMON (Remote Monitoring) Supports hardware BFD For VRRP/IS-IS/BGP/RIP/OSPF/static routing, the minimum detection interval of 3ms support converged AC support iMC Intelligent Management Center support Syslog, system logs, hierarchical alarms, debugging information output support NTP support for the power alarm function, fan, temperature alarm support Ping, Tracert support VCT (Virtual Cable Test) cable testing function support Dual Channel Networking (DCT) cable testing function support Dual Channel Networking (DCR) cable testing function support DCR, DCR, and DCR. Cable Test) cable detection function supports DLDP (Device Link Detection Protocol) unidirectional link detection protocol supports LLDP supports Y.1731 supports Ethernet OAM supports Telemetry visualization supports NETCONF network management protocol supports Python script management operation and maintenance supports Loopback-detection port loopback detection support Net Stream function, traffic analysis sampling ratio of 1:1 support SFLOW support USB for file upload and download, support for USB opening support ID indicator, you can locate the device location through the indicator flashing |
| Green Energy Saving | Port automatic power down function, Port scheduled power down function (Schedule job), EEE (802.3az) energy saving standard support |
| Ordering Information | |
| SFP28-Port | |
| 0231A6NG | SFP-25G-D-AOC-10M - 25G SFP28 to 25G SFP28 10m Active Optical Cable |
| 0231A5GY | SFP-25G-D-CAB-1M - 25G SFP28 to 25G SFP28 1m Passive Cable |
| 0231A6NH | SFP-25G-D-AOC-20M - 25G SFP28 to 25G SFP28 20m Active Optical Cable |
| 0231A5H0 | SFP-25G-D-CAB-3M - 25G SFP28 to 25G SFP28 3m Passive Cable |
| 0231A6ND | SFP-25G-D-AOC-3M - 25G SFP28 to 25G SFP28 3m Active Optical Cable |
| 0231A5H1 | SFP-25G-D-CAB-5M - 25G SFP28 to 25G SFP28 5m Passive Cable |
| 0231A6NE | SFP-25G-D-AOC-5M - 25G SFP28 to 25G SFP28 5m Active Optical Cable |
| 0231A6NF | SFP-25G-D-AOC-7M - 25G SFP28 to 25G SFP28 7m Active Optical Cable |
| 0231ABR6 | SFP-25G-LR-SM1310 - 25G SFP28Optical Module(1310nm,10km,LR,SM,LC) |
| 0231A4Y2 | SFP-25G-SR-MM850 - 25G SFP28Optical Module(850nm,100m,SR,MM,LC) |
| 0231ALXT | SFP-25G-LR-SM1310-F - 25G SFP28 All-Optical 3.0 Optical Module(1310nm,10km,LR,SM,LC) |
| 0231A3TA | SFP-XG-D-AOC-10M - SFP+ to SFP+10m AOC |
| 0231A3TB | SFP-XG-D-AOC-20M - SFP+ to SFP+20m AOC |
| 0231A3T9 | SFP-XG-D-AOC-7M - SFP+ to SFP+7m AOC |
| 0231ABSQ | SFP-XG-LX-SM1270-BIDI - SFP+ 10GBIDIOptical Module(TX1270nm/RX1330nm,10km,LC) |
| 0231ABSP | SFP-XG-LH40-SM1270-BIDI - SFP+ 10G BIDI Optical Module (TX 1270 nm/RX 1330 nm, 40 km, LC) |
| 0231ABSR | SFP-XG-LX-SM1330-BIDI - SFP+ 10G BIDI Optical Module (TX 1330 nm/RX 1270 nm, 10 km, LC) |
| 0231ABSS | SFP-XG-LH40-SM1330-BIDI - SFP+ 10G BIDI Optical Module (TX 1330 nm/RX 1270 nm, 40 km, LC) |
| 0231ABST | SFP-XG-LH80-SM1490-BIDI - SFP+ 10GBIDI Optical Module (TX 1490nm/RX 1550nm, 80km, LC) |
| 0231ABSU | SFP-XG-LH80-SM1550-BIDI - SFP+ 10GBIDI Optical Module (TX 1550nm/RX 1490nm, 80km, LC) |
| 0231AEUQ | SFP-XG-LX-SM1310-S - SFP+ 10G Optical Module(1310nm,10km,LX,LC) |
| 0231AEUM | SFP-XG-SX-MM850-S - SFP+ 10G Optical Module(850nm,300m,SX,LC) |
| 0231A0A8 | SFP-XG-LX-SM1310 - SFP+ 10GModule(1310nm,10km,LC) |
| 0231A2L3 | SFP-XG-LX-SM1310-E - SFP+ 10GModule(1310nm,10km,LC) |
| 0231A1RQ | SFP-XG-LX-SM1310-D - SFP+ 10GModule(1310nm,10km,LC) |
| 0231A0SP | SFP-XG-LH40-SM1550 - SFP+ 10GModule(1550nm,40km,LC) |
| 0231A1RR | SFP-XG-LH40-SM1550-D - SFP+ 10GModule(1550nm,40km,LC) |
| 0231A2T6 | SFP-XG-LH80-SM1550-D - SFP+ 10GModule(1550nm,80km,LC) |
| 0231A1PA | SFP-XG-LH80-SM1550 - SFP+ 10GModule(1550nm,80km,LC) |
| 0231A0A6 | SFP-XG-SX-MM850-A - SFP+ 10GModule(850nm,300m,LC) |
| 0231A2L4 | SFP-XG-SX-MM850-E - SFP+ 10GModule(850nm,300m,LC) |
| 0231A1RP | SFP-XG-SX-MM850-D - SFP+ 10GModule(850nm,300m,LC) |
| 0231ALXU | SFP-XG-LX-SM1310-F - SFP+ All-Optical 3.010G Optical Module(1310nm,10km,SM,LC) |
| 0231A0AK | LSWM1STK - SFP+Cable0.65m |
| 0231A0AL | LSWM2STK - SFP+Cable1.2m |
| 0231A0AM | LSWM3STK - SFP+Cable3m |
| 0231A0G1 | LSTM1STK - SFP+Cable5m |
| QSFP+ Port | |
| 0231A1LS | LSWM1QSTK0 - 40G QSFP+ 1m Cable |
| 0231A1LT | LSWM1QSTK1 - 40G QSFP+ 3m Cable |
| 0231A1LU | LSWM1QSTK2 - 40G QSFP+ 5m Cable |
| 0231A9CT | QSFP-40G-D-AOC-3M - 40G QSFP+ to 40G QSFP+ 3m Active Optical Cable |
| 0231A3U4 | QSFP-40G-D-AOC-10M - 40G QSFP+ to 40G QSFP+10m AOC |
| 0231A3U5 | QSFP-40G-D-AOC-20M - 40G QSFP+ to 40G QSFP+20m AOC |
| 0231A3U3 | QSFP-40G-D-AOC-7M - 40G QSFP+ to 40G QSFP+7m AOC |
| 0231A2E4 | QSFP-40G-LR4-WDM1300 - QSFP+ 40G optical module (1310 nm, 10 km, LR4, LC) |
| 0231A4Q7 | QSFP-40G-BIDI-SR-MM850 - QSFP+ 40G BIDI Optical Module (850 nm, 100 m, SR) |
| 0231A4PB | QSFP-40G-LR4L-WDM1300 - QSFP+ 40G Optical Module (1310nm, 2km, LR4L, LC) |
| 0231A4UG | QSFP-40G-ER4-WDM1300 - QSFP+ 40G Optical Module (1310 nm, 40 km, ER4, LC) |
| 0231A2NF | QSFP-40G-SR4-MM850 - QSFP+ 40G Optical Module (850 nm, 100 m, SR4, supports 1-to-4 splitting) |
| 0231A2KL | QSFP-40G-CSR4-MM850 - QSFP+ 40G Optical Module (850 nm, 300 m, CSR4, supports 1-to-4 splitting) |
| Gigabit Optical Hybrid Port | |
| 02312173 | SFP-GE-LH80-SM1550 - Optical Module - SFP-GE - Single-Mode Module - (1550 nm, 80 km, LC) |
| 0231A12U | SFP-FE-LX-SM1550-BIDI - SFP Fast Ethernet BIDI Optical Module (TX 1550/RX 1310 nm, 15 km, LC) |
| 0231A12T | SFP-FE-LX-SM1310-BIDI - SFP Fast Ethernet BIDI Optical Module (TX 1310/RX 1550 nm, 15 km, LC) |
| 0231A564 | SFP-FE-LX-SM1310-A - Optical Module—SFP 100M/155M Single-Mode Module (1310 nm, 15 km, LC) |
| 0231A965 | SFP-FE-LX-SM1310-D - Optical Module—SFP 100M/155M Single-Mode Module (1310 nm, 15 km, LC) |
| 0231A320 | SFP-FE-SX-MM1310-A - Optical Module—SFP 100M/155M Multimode Module (1310 nm, 2 km, LC) |
| 0231A089 | SFP-FE-LH40-SM1310 - Optical Module - SFP 100M/155M Single-Mode Module - (1310nm, 40km, LC) |
| 0231A090 | SFP-FE-LH80-SM1550 - Optical Module—SFP 100M/155M Single-Mode Long-Distance Module—(1550 nm, 80 km, LC) |
| 0231A2UN | SFP-GE-LH40-SM1310-BIDI - SFP Gigabit BIDI Optical Module (TX 1310/RX 1550 nm, 40 km, LC) |
| 0231A2UL | SFP-GE-LH70-SM1490-BIDI - SFPGigabitBIDI Optical Module (TX 1490/RX 1550 nm, 70 km, LC) |
| 0231A2UP | SFP-GE-LH40-SM1550-BIDI - SFPGigabitBIDI Optical Module (TX 1550/RX 1310 nm, 40 km, LC) |
| 0231A2UM | SFP-GE-LH70-SM1550-BIDI - SFPGigabitBIDI Optical Module (TX 1550/RX 1490 nm, 70 km, LC) |
| 0231AKNR | SFP-GE-POE - SFP Gigabit Optical-Electrical Hybrid Module (-40°C to 85°C, 1310 nm, 10 km, LC) |
| 0231A54T | SFP-STACK-Kit - SFP Stacking Cable—(150 cm, includes stacking module) |
| 0231A563 | SFP-GE-LX-SM1310-A - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 10 km, LC) |
| 0231A962 | SFP-GE-LX-SM1310-D - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 10 km, LC) |
| 02312170 | SFP-GE-LH40-SM1310 - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 40 km, LC) |
| 0231A963 | SFP-GE-LH40-SM1310-D - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 40 km, LC) |
| 02312172 | SFP-GE-LH40-SM1550 - Optical Module—SFP—GE—Single-Mode Module—(1550 nm, 40 km, LC) |
| 0231A964 | SFP-GE-LH80-SM1550-D - Optical Module - SFP-GE - Single-Mode Module - (1550 nm, 80 km, LC) |
| 0231A562 | SFP-GE-SX-MM850-A - Optical Module - SFP-GE - Multimode Module (850 nm, 0.55 km, LC) |
| 0231A961 | SFP-GE-SX-MM850-D - Optical Module - SFP-GE - Multimode Module (850 nm, 0.55 km, LC) |
| 0231A11U | SFP-GE-LX-SM1310-BIDI - Optical Module - SFP Gigabit BIDI Optical Module - TX 1310/RX 1490, 10 km, LC |
| 0231A11V | SFP-GE-LX-SM1490-BIDI - Optical Module - SFP Gigabit BIDI Optical Module - TX 1490/RX 1310, 10 km, LC |
| 0231AEUP | SFP-GE-SX-MM850-S - SFPGigabit Optical Module(850nm,550m,SX,LC) |
| 0231AEUN | SFP-GE-LX-SM1310-S - SFPGigabit Optical Module(1310nm,10km,LX,LC) |
| 0231A085 | SFP-GE-T - SFP GEElectrical Port Module(100m,RJ45) |
| 0231A960 | SFP-GE-T-D - SFP GEElectrical Port Module(100m,RJ45) |
| 0231AJXK | SFP-2.5G-LX10-SM1310-DR-I - SFP 2.5G/1G Single-Mode Industrial-Temperature Optical Module (1310 nm, 10 km, LC) |
| 10G Optical Hybrid Port | |
| 0231AKNS | SFP-XG-POE-MR - SFP 10G Multi-Rate Optical Transceiver Module (-40°C to 85°C, 1310 nm, 1.4 km, LC) |
| Fan Options | |
| 0231AG9F | LSPM1FANSB-SN - H3C Fan Module (Side-Exhaust Fan) |
| Power Module | |
| 9803A05Q | PSR1600-54A-B - H3C-PSR1600-54A-B-1600W/AC PoEPower Module |
| 9803A05N | PSR600-54A-B - H3C-PSR600-54A-B-600W/AC PoEPower Module |
| 9803A05P | PSR920-54A-B - H3C-PSR920-54A-B-920W/AC PoEPower Module |
| Optical hybrid cable connectorsand pigtails | |
| 1413A01W | PoE-PELC-PELC-1.5 - Hybrid Optical Cable Patch Cord—PELC/PC-PELC/PC—Single-Mode—1.5 m |
| 1413A01X | PoE-PELC-PELC-0.3 - Hybrid Optical Cable Patch Cord—PELC/PC-PELC/PC—Single-Mode—0.3 m |
| 1413A01Y | PoE-PELC-PELC-3.0 - Hybrid Optical Cable Patch Cord—PELC/PC-PELC/PC—Single-Mode—3.0 m |
| 1413A022 | PoE-PELC-ODF-0.4m - Optical-Electrical Hybrid Cable Connector Patch Cord - PELC/PC-ODF - Single-Mode - 0.4 m |
| 1413A023 | PoE-PELC-ODF-1.2m - Optical-Electrical Hybrid Cable Connector Patch Cord - PELC/PC-ODF - Single-Mode - 1.2 m |
| 1413A02R | PoE-PELC-ODF-1.5m - Optical-Electrical Hybrid Cable Connector Patch Cord - PELC/PC-ODF - Single-Mode - 1.5 m |
| Hybrid Optical-Electrical Cable | |
| 2505A006 | CAB-17AWG-500-LSZH - Symmetrical Twisted Pair Cable - Optical Hybrid Cable - 33mm - 17AWG - 2C+2C - 500m (LSZH) |
| 2505A007 | CAB-21AWG-200-PVC - Symmetrical Twisted Pair Cable - Optical Hybrid Cable - 13mm - 21AWG - 2C+2C - 200m (PVC) |
| 2505A008 | 2505A008 - Symmetrical Twisted Pair Cable - Optical Hybrid Cable - 33mm - 17AWG - 2C+2C - 200m (PVC) |
| 2505A009 | CAB-17AWG-100-PVC - Symmetrical Twisted Pair Cable - Optical Hybrid Cable - 33mm - 17AWG - 2C+2C - 100m (PVC) |
| 2505A00A | CAB-21AWG-100-LSZH - Symmetrical Twisted Pair Cable - Optical Hybrid Cable - 13mm - 21AWG - 2C+2C - 100m (LSZH) |
| 2505A00B | CAB-17AWG-100-LSZH - Symmetrical Twisted Pair Cable - Optical Hybrid Cable - 33mm - 17AWG - 2C+2C - 100m (LSZH) |
| 2505A00C | CAB-17AWG-200-LSZH - Symmetrical Twisted Pair Cable - Optical Hybrid Cable - 33mm - 17AWG - 2C+2C - 200m (LSZH) |
| 2505A00D | CAB-21AWG-100-PVC - Symmetrical Twisted Pair Cable - Optical Hybrid Cable - 13mm - 21AWG - 2C+2C - 100m (PVC) |
| 2505A00E | CAB-21AWG-500-PVC - Symmetrical Twisted Pair Cable - Optical Hybrid Cable - 13mm - 21AWG - 2C+2C - 500m (PVC) |
| 2505A00F | 2505A00F - Symmetrical Twisted Pair Cable - Optical Hybrid Cable - 33mm - 17AWG - 2C+2C - 500m (PVC) |
| 2505A00G | CAB-21AWG-200-LSZH - Symmetrical Twisted Pair Cable - Optical Hybrid Cable - 13mm - 21AWG - 2C+2C - 200m (LSZH) |
| 2505A00H | CAB-21AWG-500-LSZH - Symmetrical Twisted Pair Cable - Optical Hybrid Cable - 13mm - 21AWG - 2C+2C - 500m (LSZH) |
| 2505A00J | HYBRID CABLE-200-0.5 - 200-meter hybrid optical-electrical cable |
| 2505A00K | HYBRID CABLE-100-0.5 - 100-meter fiber-optic hybrid cable |
| 2505A00L | HYBRID CABLE-500-0.5 - 500-meter hybrid optical-electrical cable |
| 2505A00M | HCAB-GDJV-20AWG-200m-2F - GDJV-20AWG-2C+2C Hybrid Optical-Electrical Cable, 200 meters (OD 5.9 mm) |
| 2505A00N | HCAB-GDJV-20AWG-500m-2F - GDJV-20AWG-2C+2C Hybrid Optical-Electrical Cable, 500 meters (OD 5.9 mm) |
| 2505A00P | HCAB-GDJV-20AWG-100m-2F - GDJV-20AWG-2C+2C Hybrid Optical-Electrical Cable, 100 meters (OD 5.9 mm) |
| 2505A00Q | HCAB-GDJV-21AWG-200-2F - GDJV-21AWG-2C+2C Hybrid Optical-Electrical Cable, 200 meters (OD 5.7 mm) |
| 2505A00R | HCAB-GDJV-21AWG-500m-2F - GDJV-21AWG-2C+2C Hybrid Optical-Electrical Cable, 500 meters (OD 5.7 mm) |
| 2505A00S | HCAB-GDJV-21AWG-100-2F - GDJV-21AWG-2C+2C Hybrid Optical-Electrical Cable, 100 meters (OD 5.7 mm) |
| 2505A00T | HCAB-GDJV-17AWG-100m-2F - GDJV-17AWG-2C+2C Hybrid Optical-Electrical Cable, 100 meters (OD 6.2 mm) |
| 2505A00U | HCAB-GDJV-17AWG-200m-2F - GDJV-17AWG-2C+2C Hybrid Optical-Electrical Cable, 200 meters (OD 6.2 mm) |
| 2505A00V | HCAB-GDJV-17AWG-500m-2F - GDJV-17AWG-2C+2C Hybrid Optical-Electrical Cable, 500 meters (OD 6.2 mm) |
| 2505A00W | HCAB-GDJH-21AWG-500m-2F - GDJH-21AWG-2C+2C Hybrid Optical-Electrical Cable, 500 meters (OD 5.7 mm) |
| 2505A00X | HCAB-GDJH-21AWG-200m-2F - GDJH-21AWG-2C+2C Hybrid Optical-Electrical Cable, 200 meters (OD 5.7 mm) |
| 2505A00Y | HCAB-GDJH-21AWG-100m-2F - GDJH-21AWG-2C+2C Hybrid Optical-Electrical Cable, 100 meters (OD 5.7 mm) |
| 2505A010 | HCAB-GDJH-20AWG-100m-2F - GDJH-20AWG-2C+2C Hybrid Optical-Electrical Cable, 100 meters (OD 5.9 mm) |
| 2505A011 | HCAB-GDJH-20AWG-200m-2F - GDJH-20AWG-2C+2C Hybrid Optical-Electrical Cable, 200 meters (OD 5.9 mm) |
| 2505A012 | HCAB-GDJH-20AWG-500m-2F - GDJH-20AWG-2C+2C Hybrid Optical-Electrical Cable, 500 meters (OD 5.9 mm) |
| 2505A013 | HCAB-GDJH-17AWG-500m-2F - GDJH-17AWG-2C+2C Hybrid Optical-Electrical Cable, 500 meters (OD 6.2 mm) |
| 2505A014 | HCAB-GDJH-17AWG-100m-2F - GDJH-17AWG-2C+2C Hybrid Optical-Electrical Cable, 100 meters (OD 6.2 mm) |
| 2505A015 | HCAB-GDJH-17AWG-200m-2F - GDJH-17AWG-2C+2C Hybrid Optical-Electrical Cable, 200 meters (OD 6.2 mm) |
| Cable Management Box | |
| 9821A0K9 | H3C GC-KDS24-HUS1-1 - Optical Hybrid Switch Cable Management Box (1U, Supports 48 cables, for FS5500Series) |
| Ear Hook | |
| 2150A03X | LS-FL-LE-1U - 1Ucompatible lug-1UChassis |
| Heat-Shrink Tubing | |
| 9904A0KE | H3C GC-SD-B0 - Optical Hybrid Solution Customized Fiber Fusion Heat Shrink Tubing (2.3mm I.D., 50pcs included) |
| Cold-pressed intermediate terminal | |
| 9904A0KD | H3C GC-BNYF1.25 - Cold-Pressed Intermediate Terminals (BNYF1.25, 100 pcs included) |
| Configuration Cables | |
| 04042967 | CAB-CON-1.8m - Configuration Serial Cable—1.8 m—(DB9 Female to 8-pin Ethernet Port) |
| 0404A1EE | CAB-Console-1.8m-W31R - Configuration Port Cable-1.8m-(RJ45P)-(UL2725(3C28AWG))-(USB AP) |
| Product Identity | |
| Brand | H3C |
| Series | H3C FS5500-EI Series Switch |
Reviews
No reviews yet
Be the first to review this enterprise product.
Warranty
Standard Warranty Policy
All hardware sold by ITMall includes our 3-Year Free Maintenance and 1-Year RMA Replacement Service. Please refer to our Warranty Policy for details.
- 1-Year Advance Replacement (RMA)
- 3-Year Free Repair Service
- Full coverage for functionality defects
Hassle-Free RMA Process
We streamlined the return process to minimize your network downtime. Our engineering team provides pre-return diagnostics to ensure hardware is truly defective.
- 30-Day satisfaction guarantee return window
- Automated RMA portal access for instant tracking
- Restocking fee waived for functionality issues
Certified Engineering Support
Our products are backed by CCIE-certified engineers who provide expert guidance on compatibility, configuration, and troubleshooting at no extra cost.
- Free pre-sales topology consultation
- Remote troubleshooting & firmware advice
- Simulation lab testing before dispatch
Global Logistics & Packaging
We ship to 85+ countries using premium anti-static packaging to ensure safety. Orders placed before 14:00 (GMT+8) are typically dispatched the same day.
- Double-walled boxes with customer molded foam
- Blind shipping support for channel partners
- Real-time tracking via FedEx / DHL / UPS
Resources
No downloads available for this product.
FAQ
What is the Jumbo Frame specification for LS-FS5500-48UXS4Y2Q-EI?
LS-FS5500-48UXS4Y2Q-EI lists Jumbo Frame as Supports maximum frame length of 13312. Use this value when checking datasheet requirements, quotation details, and deployment compatibility.
What is the DHCP specification for LS-FS5500-48UXS4Y2Q-EI?
LS-FS5500-48UXS4Y2Q-EI lists DHCP as DHCPv4/v6 ClientDHCP Snooping、DHCPv6 SnoopingDHCPv4/v6 RelayDHCPv4/v6 ServerDHCP Snooping option82/DHCP Relay option82. Use this value when checking datasheet requirements, quotation details, and deployment compatibility.
What is the Ports specification for LS-FS5500-48UXS4Y2Q-EI?
LS-FS5500-48UXS4Y2Q-EI lists Ports as 42*100/1000 PSFP PoE++ Ports, 6*1G/2. Use this value when checking datasheet requirements, quotation details, and deployment compatibility.
What is the Mirroring specification for LS-FS5500-48UXS4Y2Q-EI?
LS-FS5500-48UXS4Y2Q-EI lists Mirroring as Supports flow Mirroring, N:9-Port Mirroring, local and remote Port Mirroring, ERSPAN. Use this value when checking datasheet requirements, quotation details, and deployment compatibility.
Is this product Brand New?
Yes, unless clearly marked as "Refurbished", all our products are Factory Sealed (Original New) sourced directly from authorized channels.
What is the warranty period?
We provide a comprehensive 3-Year Warranty on this item. This covers hardware defects and includes advanced replacement.
Do you offer volume discounts?
Yes! For bulk orders or project bids, please click "Quote | Help" to get a custom price proposal from our sales team.
How fast can you ship?
In-stock items ordered before 3 PM EST ship the same day. We offer overnight and 2-day shipping options via FedEx/DHL.
Still have questions?
