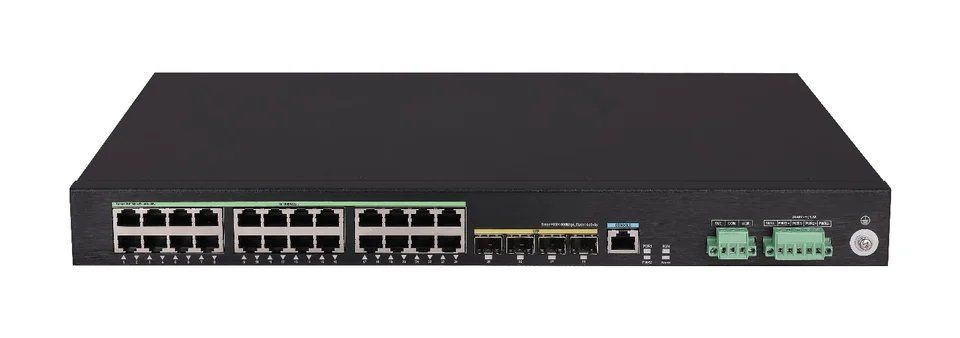

H3C LS-IE4100-28TP-DC IE4100-28TP L2 Industrial Ethernet Switch Chassis, 24 10/100BASE-Telecommunication ports, 4 100/1000BASE-X SFP Port, 24-48VDC(18-60VDC). Redundant Inputs
Brand H3C
N/AVerified
H3C LS-IE4100-28TP-DC
Model (MPN)
9801A6C8
Condition
Factory Sealed
Out of Stock
H3C LS-IE4100-28TP-DC IE4100-28TP L2 Industrial Ethernet Switch Chassis, 24 10/100BASE-Telecommunication ports, 4 100/1000BASE-X SFP Port, 24-48VDC(18-60VDC). Redundant Inputs. Switching Capacity: 336Gbps. Packet Forwarding Rate: 96Mpps. Configuration Port: 1 x RJ45 console
Key Specifications
DescriptionH3C IE4100-28TP L2 Industrial Ethernet Switch Chassis,Supports 24 x10/100BASE-Telecommunication ports,Supports 4 x100/1000BASE-X SFP Port,24-48VDC(18-60VDC). Redundant Inputs
Switching Capacity336Gbps
Packet Forwarding Rate96Mpps
Dimensions (Width x Depth x Height) (Unit: mm)440×260×44
Weight≤3.4kg
Static Power ConsumptionStatic≤8.6W
Your Price
Best Value
$180.74
List Price: $2,582.00Save 93%
Availability Out of Stock
Quantity
Need configuration help?
Our CCIE certified engineers can help you verify compatibility.
Secure Payment
VISA
Pay
WIRE
Fast Dispatch
Global logistics network aiming for same-day handover.
48hrs
Avg. Shipping
99%
On-Time
Guaranteed Quality
Every unit undergoes rigorous 38-point inspection test.
3Year
Warranty
0.1%
RMA Rate
Global Reach
Trusted by enterprise clients across 6 continents.
85+
Countries
20k+
Clients
Expert Support
Certified network engineers ready to assist with configuration.
24/7
Assistance
CCIE
Certified
Overview
Specifications
| Catalog Description | |
|---|---|
| Description | H3C IE4100-28TP L2 Industrial Ethernet Switch Chassis,Supports 24 x10/100BASE-Telecommunication ports,Supports 4 x100/1000BASE-X SFP Port,24-48VDC(18-60VDC). Redundant Inputs |
| Key Specifications | |
| Switching Capacity | 336Gbps |
| Packet Forwarding Rate | 96Mpps |
| Dimensions (Width x Depth x Height) (Unit: mm) | 440×260×44 |
| Weight | ≤3.4kg |
| Static Power Consumption | Static≤8.6W |
| Full-load Power Consumption | Full load ≤ 13.5W |
| Product Specifications | |
| Supports Features | Characterization |
| Forwarding Mode | store-and-forward mode |
| Link aggregation | Supports |
| Jumbo Frame | Supports |
| MAC Address Table | Supports Static MAC address |
| VLAN | Supports Port-based VLAN |
| DHCP | DHCP Client |
| ARP | Supports Static entries |
| Routing protocols | Supported Routing Interfaces |
| Smartlink | Supports Smartlink |
| Multicast Protocol | Supports IGMP V1/V2/V3 Snooping |
| MSTP | Supports STP/RSTP/MSTP protocols |
| Ring protocol | Support RRPP ring protocol, self-healing time ≤ 50ms Supported flexible queue scheduling algorithms, can be configured simultaneously based on ports and queues, Supported SP, WRR, SP+WRR and other modes |
| Port Mirroring | Supports Port Mirroring |
| Security Features | Supports user hierarchical management and password protection |
| Loading and Upgrade | Supports XModem protocol for loading and upgrading |
| Management and Maintenance | Supports Command Line Interface (CLI) Configuration |
| Reliability | Supports single power loss alarm |
| Switching Capacity | 336Gbps |
| Packet Forwarding Rate | 96Mpps |
| Dimensions (Width x Depth x Height) (Unit: mm) | 440×260×44 |
| Weight | ≤3.4kg |
| Installation Method | Rack Mounting |
| Configuration Port | 1 x RJ45 console |
| Alarm port/DO/DO | One normally open ALM alarm port; one normally closed Fail alarm port |
| Protection Rating | IP40 |
| Service Port | 24 x10/100BASE-Telectrical port, 4 x100/1000BASE-X SFP |
| Power Input | Dual redundant power supply inputs; AC 220 V input power range (100–240 VAC, 50/60 Hz) with a maximum range of (90–264 VAC), or DC 110 V/DC 220 V input voltage range (88–264 VDC); |
| Static Power Consumption | Static≤8.6W |
| Full-load Power Consumption | Full load ≤ 13.5W |
| operating humidity | 5% to 95% (non-condensing) |
| operating temperature | -40℃~75℃ |
| Storage Temperature | -40℃～85℃ |
| Ordering Information | |
| SFPGigabit Optical Port | |
| 0231ALKL | SFP-FE-LH40-SM1310-I - SFP 100M/155M Optical Module-(-40°C~85°C,1310nm,40km,EX,SM,LC) |
| 0231A890 | SFP-FE-BX15-U-SM1310 - SFPModule,-40~85℃,1310nm,15km,LC |
| 0231A564 | SFP-FE-LX-SM1310-A - Optical Module—SFP 100M/155M Single-Mode Module (1310 nm, 15 km, LC) |
| 0231A965 | SFP-FE-LX-SM1310-D - Optical Module—SFP 100M/155M Single-Mode Module (1310 nm, 15 km, LC) |
| 0231A320 | SFP-FE-SX-MM1310-A - Optical Module—SFP 100M/155M Multimode Module (1310 nm, 2 km, LC) |
| 0231A089 | SFP-FE-LH40-SM1310 - Optical Module - SFP 100M/155M Single-Mode Module - (1310nm, 40km, LC) |
| 0231ALKD | SFP-GE-SX-MM850-I - SFP GE Optical Module-(-40°C~85°C,850nm,0.55km,SX,MM,LC) |
| 0231ALKB | SFP-GE-T-I - SFP GEelectrical interface Module-(-40°C~85°C,100m,RJ45) |
| 0231AK6J | 0231AK6J - H3C IE4100Frame Series Industrial Ethernet Switches |
| 0231A2UN | SFP-GE-LH40-SM1310-BIDI - SFP Gigabit BIDI Optical Module (TX 1310/RX 1550 nm, 40 km, LC) |
| 0231AK6K | 0231AK6K - H3C IE4100Frame Series Industrial Ethernet Switches |
| 0231A2UP | SFP-GE-LH40-SM1550-BIDI - SFPGigabitBIDI Optical Module (TX 1550/RX 1310 nm, 40 km, LC) |
| 0231ALKE | SFP-GE-LH20-SM1310-BIDI-I - SFPGigabitBIDI Optical Module-(-40°C~85°C,TX1310/RX1490,20km,LC) |
| 0231ALKH | SFP-GE-LH40-SM1310-BIDI-I - SFPGigabitBIDI Optical Module-(-40°C~85°C,TX1310/RX1490,40km,LC) |
| 0231ALKG | SFP-GE-LH20-SM1490-BIDI-I - SFPGigabitBIDI Optical Module-(-40°C~85°C,TX1490/RX1310,20km,LC) |
| 0231ALKC | SFP-GE-LH40-SM1490-BIDI-I - SFPGigabitBIDI Optical Module-(-40°C~85°C,TX1490/RX1310,40km,LC) |
| 0231AK6F | 0231AK6F - H3C IE4100Frame Series Industrial Ethernet Switches |
| 0231A54T | SFP-STACK-Kit - SFP Stacking Cable—(150 cm, includes stacking module) |
| 0231ADWF | SFP-GE-LH20-SM1310-I - SFPGigabit Optical Module(-40℃~85℃,1310nm,20km,LC) |
| 0231ADWE | SFP-GE-LH40-SM1310-I - SFPGigabit Optical Module(-40℃～85℃,1310nm,40km,LC) |
| 0231A0BY | SFP-GE-LX10-SM1310 - SFP GEOptical Module-(-40°C~85°C,1310nm,10km,LX,SM,LC) |
| 0231A563 | SFP-GE-LX-SM1310-A - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 10 km, LC) |
| 0231A962 | SFP-GE-LX-SM1310-D - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 10 km, LC) |
| 0231A562 | SFP-GE-SX-MM850-A - Optical Module - SFP-GE - Multimode Module (850 nm, 0.55 km, LC) |
| 0231A961 | SFP-GE-SX-MM850-D - Optical Module - SFP-GE - Multimode Module (850 nm, 0.55 km, LC) |
| 0231AH26 | SFP-GE-LX-SM1310-BIDI-I - Optical Module-SFPGigabitBIDI Optical Module(-40℃~85℃,TX1310/RX1490,10km,LC) |
| 0231AH28 | SFP-GE-LX-SM1490-BIDI-I - Optical Module-SFPGigabitBIDI Optical Module(-40℃~85℃,TX1490/RX1310,10km,LC) |
| 0231A11U | SFP-GE-LX-SM1310-BIDI - Optical Module - SFP Gigabit BIDI Optical Module - TX 1310/RX 1490, 10 km, LC |
| 0231A11V | SFP-GE-LX-SM1490-BIDI - Optical Module - SFP Gigabit BIDI Optical Module - TX 1490/RX 1310, 10 km, LC |
| 0231AEUP | SFP-GE-SX-MM850-S - SFPGigabit Optical Module(850nm,550m,SX,LC) |
| 0231AEUN | SFP-GE-LX-SM1310-S - SFPGigabit Optical Module(1310nm,10km,LX,LC) |
| Power Module | |
| 9802A009 | SMB-IE Adapter 30W - IE Power Supply Adapter 30W (Input Voltage Range: 90-264Vac/120-370Vdc, Output Voltage Range: +24V) |
| Power Supply Cable | |
| 0404A2BL | CAB-AC-1.8m-CHN-51035 - Wall Plug AC power Cord-1.8m-3*0.75mm^2-Black-(GB1002 Plug(3P) Straight Male 250V10A)-(227 IEC 53(RVV))-(3*EN(18-6mm)Yellow)-National Standard |
| Configuration Cables | |
| 04042967 | CAB-CON-1.8m - Configuration Serial Cable—1.8 m—(DB9 Female to 8-pin Ethernet Port) |
| 0404A1EE | CAB-Console-1.8m-W31R - Configuration Port Cable-1.8m-(RJ45P)-(UL2725(3C28AWG))-(USB AP) |
| Product Identity | |
| Brand | H3C |
| Series | H3C IE4100 Series Rackmount Industrial Ethernet Switch |
