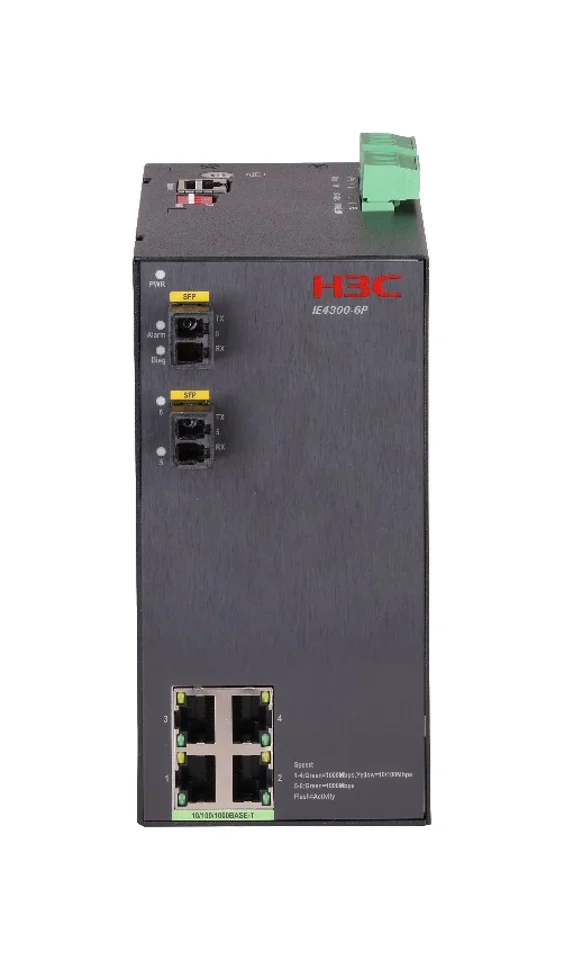

H3C LS-IE4300-6P-BS-AC Ethernet Switch. H3C IE4300-6P L2 Industrial Ethernet Switch with 4*10/100/1000 BASE-T Ports and 2 Fiber Ports (with Built-In 20KM 1000M LC (1310 nm) Single-Mode Dual Core Optical Transceiver Modules), 100-240VAC, Single Input.
Our CCIE certified engineers can help you verify compatibility.
Global logistics network aiming for same-day handover.
Every unit undergoes rigorous 38-point inspection test.
Trusted by enterprise clients across 6 continents.
Certified network engineers ready to assist with configuration.
H3C LS-IE4300-6P-BS-AC Ethernet Switch is H3C IE4300-6P L2 Industrial Ethernet Switch with 4*10/100/1000 BASE-T Ports and 2 Fiber Ports (with Built-In 20KM 1000M LC (1310 nm) Single-Mode Dual Core Optical Transceiver Modules), 100-240VAC, Single Input.
Compatible and optional SKUs are listed in the ordering information, including 9801A6C9 LS-IE4300-6P-BS-AC, 0404A2BL CAB-AC-1.8m-CHN-51035, 04042967 CAB-CON-1.8m, 0404A1EE CAB-Console-1.8m-W31R.
| Key Specifications | |
|---|---|
| Port Mirroring | Supports Port Mirroring |
| Management and Maintenance | Supports Command Line Interface (CLI) Configuration |
| Forwarding Mode | store-and-forward mode |
| Link aggregation | Supports |
| MAC Address Table | Supports Static MAC address |
| VLAN | Supports Port-based VLAN |
| Product Specifications | |
| Forwarding Mode | store-and-forward mode |
| Link aggregation | Supports |
| Jumbo Frame | Supports |
| MAC Address Table | Supports Static MAC address |
| VLAN | Supports Port-based VLAN |
| DHCP | DHCP Client |
| ARP | Supports Static entries |
| Routing protocols | Supported Routing Interfaces |
| Multicast Protocol | Supports IGMP V1/V2/V3 Snooping |
| MSTP | Supports STP/RSTP/MSTP protocols |
| Smartlink | Supports smartlink |
| Ring protocol | Support RRPP ring protocol, self-healing time ≤ 50ms |
| Port Mirroring | Supports Port Mirroring |
| Security Features | Supports user hierarchical management and password protection |
| Loading and Upgrade | Supports XModem protocol for loading and upgrading |
| Management and Maintenance | Supports Command Line Interface (CLI) Configuration |
| Reliability | Supports single power loss alarm |
| Catalog Description | |
| Description | H3C IE4300-6P L2 Industrial Ethernet Switch with 4*10/100/1000 BASE-T Ports and 2 Fiber Ports (with Built-In 20KM 1000M LC (1310 nm) Single-Mode Dual Core Optical Transceiver Modules), 100-240VAC, Single Input |
| Ordering Information | |
| Base Configuration | |
| 9801A6C9 | LS-IE4300-6P-BS-AC |
| Configuration Options | |
| 0404A2BL | CAB-AC-1.8m-CHN-51035; Wall-mounted AC power cord—1.8 m—3 × 0.75 mm²—black—(GB1002 plug (3P), straight male, 250 V, 10 A)—(227 IEC 53 (RVV))—(3 × EN (18–6 mm), yellow)—Chinese National Standard |
| Port and Cable Configuration | |
| 04042967 | CAB-CON-1.8m; Configuration Serial Cable—1.8 m (DB9 Female to 8-pin Ethernet Port); Type: Port and Cable Configuration |
| 0404A1EE | CAB-Console-1.8m-W31R; Configuration Port Cable-1.8m (RJ45P) (UL2725(3C28AWG)) (USB AP); Type: Port and Cable Configuration |
| Product Identity | |
| Brand | H3C |
| Series | H3C ESeries Switches |
