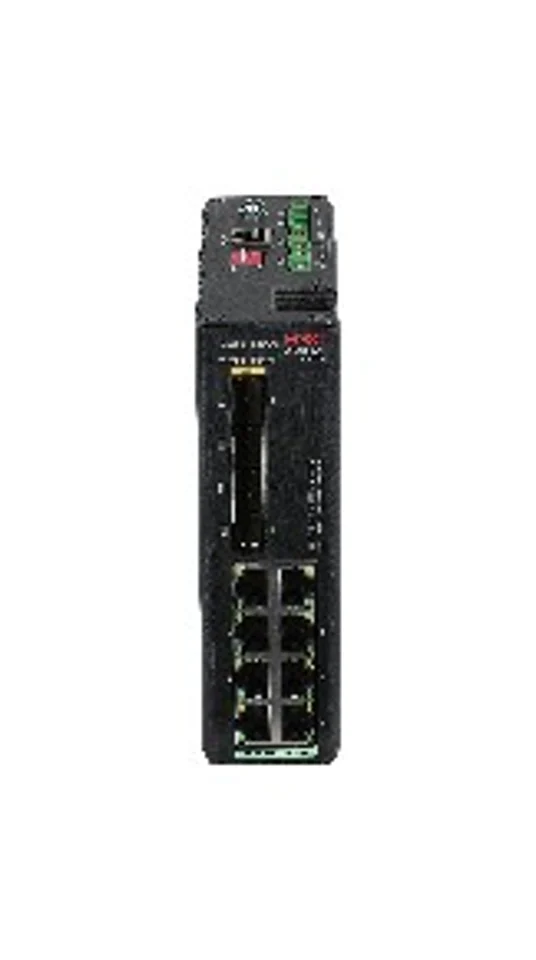

H3C LS-IE4320-12P-UPWR L2 Industrial Ethernet Switch Chassis, 8 10/100/1000BASE-T PoE++electrical port, 4 1000BASE-X SFP Ports Port, 53- 57VDC, Redundant DC Inputs
Brand H3C
N/AVerified
H3C LS-IE4320-12P-UPWR
Model (MPN)
9801A2DL
Condition
Factory Sealed
Out of Stock
H3C LS-IE4320-12P-UPWR L2 Industrial Ethernet Switch Chassis, 8 10/100/1000BASE-T PoE++electrical port, 4 1000BASE-X SFP Ports Port, 53- 57VDC, Redundant DC Inputs
Key Specifications
DescriptionH3C IE4320-12P-UPWR L2 Industrial Ethernet Switch Chassis,Supports 8 x10/100/1000BASE-T PoE++electrical port,Supports 4 x1000BASE-X SFP Ports Port,53- 57VDC, Redundant DC Inputs
SFP Gigabit Port
0231ALKDSFP-GE-SX-MM850-I - SFP GE Optical Module-(-40°C~85°C,850nm,0.55km,SX,MM,LC)
0231ALKBSFP-GE-T-I - SFP GEelectrical interface Module-(-40°C~85°C,100m,RJ45)
0231AK6J0231AK6J - H3C IE4300 Rail Industrial Switch Series
0231A2UNSFP-GE-LH40-SM1310-BIDI - SFP Gigabit BIDI Optical Module (TX 1310/RX 1550 nm, 40 km, LC)
Your Price
Best Value
$241.99
List Price: $3,457.00Save 93%
Availability Out of Stock
Quantity
Need configuration help?
Our CCIE certified engineers can help you verify compatibility.
Secure Payment
VISA
Pay
WIRE
Fast Dispatch
Global logistics network aiming for same-day handover.
48hrs
Avg. Shipping
99%
On-Time
Guaranteed Quality
Every unit undergoes rigorous 38-point inspection test.
3Year
Warranty
0.1%
RMA Rate
Global Reach
Trusted by enterprise clients across 6 continents.
85+
Countries
20k+
Clients
Expert Support
Certified network engineers ready to assist with configuration.
24/7
Assistance
CCIE
Certified
Overview
Specifications
| Catalog Description | |
|---|---|
| Description | H3C IE4320-12P-UPWR L2 Industrial Ethernet Switch Chassis,Supports 8 x10/100/1000BASE-T PoE++electrical port,Supports 4 x1000BASE-X SFP Ports Port,53- 57VDC, Redundant DC Inputs |
| Ordering Information | |
| SFP Gigabit Port | |
| 0231ALKD | SFP-GE-SX-MM850-I - SFP GE Optical Module-(-40°C~85°C,850nm,0.55km,SX,MM,LC) |
| 0231ALKB | SFP-GE-T-I - SFP GEelectrical interface Module-(-40°C~85°C,100m,RJ45) |
| 0231AK6J | 0231AK6J - H3C IE4300 Rail Industrial Switch Series |
| 0231A2UN | SFP-GE-LH40-SM1310-BIDI - SFP Gigabit BIDI Optical Module (TX 1310/RX 1550 nm, 40 km, LC) |
| 0231AK6K | 0231AK6K - H3C IE4300 Rail Industrial Switch Series |
| 0231A2UP | SFP-GE-LH40-SM1550-BIDI - SFPGigabitBIDI Optical Module (TX 1550/RX 1310 nm, 40 km, LC) |
| 0231ALKE | SFP-GE-LH20-SM1310-BIDI-I - SFPGigabitBIDI Optical Module-(-40°C~85°C,TX1310/RX1490,20km,LC) |
| 0231ALKH | SFP-GE-LH40-SM1310-BIDI-I - SFPGigabitBIDI Optical Module-(-40°C~85°C,TX1310/RX1490,40km,LC) |
| 0231ALKG | SFP-GE-LH20-SM1490-BIDI-I - SFPGigabitBIDI Optical Module-(-40°C~85°C,TX1490/RX1310,20km,LC) |
| 0231ALKC | SFP-GE-LH40-SM1490-BIDI-I - SFPGigabitBIDI Optical Module-(-40°C~85°C,TX1490/RX1310,40km,LC) |
| 0231AK6G | 0231AK6G - H3C IE4300 Rail Industrial Switch Series |
| 0231AK6F | 0231AK6F - H3C IE4300 Rail Industrial Switch Series |
| 0231A54T | SFP-STACK-Kit - SFP Stacking Cable—(150 cm, includes stacking module) |
| 0231ADWF | SFP-GE-LH20-SM1310-I - SFPGigabit Optical Module(-40℃~85℃,1310nm,20km,LC) |
| 0231ADWE | SFP-GE-LH40-SM1310-I - SFPGigabit Optical Module(-40℃～85℃,1310nm,40km,LC) |
| 0231A0BY | SFP-GE-LX10-SM1310 - SFP GEOptical Module-(-40°C~85°C,1310nm,10km,LX,SM,LC) |
| 0231A563 | SFP-GE-LX-SM1310-A - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 10 km, LC) |
| 0231A962 | SFP-GE-LX-SM1310-D - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 10 km, LC) |
| 02312170 | SFP-GE-LH40-SM1310 - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 40 km, LC) |
| 0231A963 | SFP-GE-LH40-SM1310-D - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 40 km, LC) |
| 02312172 | SFP-GE-LH40-SM1550 - Optical Module—SFP—GE—Single-Mode Module—(1550 nm, 40 km, LC) |
| 0231A562 | SFP-GE-SX-MM850-A - Optical Module - SFP-GE - Multimode Module (850 nm, 0.55 km, LC) |
| 0231A961 | SFP-GE-SX-MM850-D - Optical Module - SFP-GE - Multimode Module (850 nm, 0.55 km, LC) |
| 0231AH26 | SFP-GE-LX-SM1310-BIDI-I - Optical Module-SFPGigabitBIDI Optical Module(-40℃~85℃,TX1310/RX1490,10km,LC) |
| 0231AH28 | SFP-GE-LX-SM1490-BIDI-I - Optical Module-SFPGigabitBIDI Optical Module(-40℃~85℃,TX1490/RX1310,10km,LC) |
| 0231A11U | SFP-GE-LX-SM1310-BIDI - Optical Module - SFP Gigabit BIDI Optical Module - TX 1310/RX 1490, 10 km, LC |
| 0231A11V | SFP-GE-LX-SM1490-BIDI - Optical Module - SFP Gigabit BIDI Optical Module - TX 1490/RX 1310, 10 km, LC |
| 0231AEUP | SFP-GE-SX-MM850-S - SFPGigabit Optical Module(850nm,550m,SX,LC) |
| 0231AEUN | SFP-GE-LX-SM1310-S - SFPGigabit Optical Module(1310nm,10km,LX,LC) |
| Power Supply Options | |
| 9802A037 | AD241M55-1M4B - 240W High Performance Power Supply Adapter (Input Voltage Range: 85-264Vac/80-370Vdc, Output Voltage Range:+55V) |
| 0213A07K | DG-240-5501 - H3C 200W Industrial Switch Card-Rail PoEPower Module(Input Voltage Range:90VAC-264VAC,Output Voltage 55VDC) |
| Power Supply Cable | |
| 0404A2BL | CAB-AC-1.8m-CHN-51035 - Wall Plug AC power Cord-1.8m-3*0.75mm^2-Black-(GB1002 Plug(3P) Straight Male 250V10A)-(227 IEC 53(RVV))-(3*EN(18-6mm)Yellow)-National Standard |
| 0404A2BK | CAB-DC-2.0m-51036 - External DC power cable-2.0m-(EDGKM(2P) straight male 300V/8A green)-(SJT)-(EN(18-6mm) yellow) |
| Configuration Cables | |
| 04042967 | CAB-CON-1.8m - Configuration Serial Cable—1.8 m—(DB9 Female to 8-pin Ethernet Port) |
| 0404A1EE | CAB-Console-1.8m-W31R - Configuration Port Cable-1.8m-(RJ45P)-(UL2725(3C28AWG))-(USB AP) |
| Product Identity | |
| Brand | H3C |
| Series | H3C IE4300 Series Rack Rail Type Industrial Ethernet Switch |
