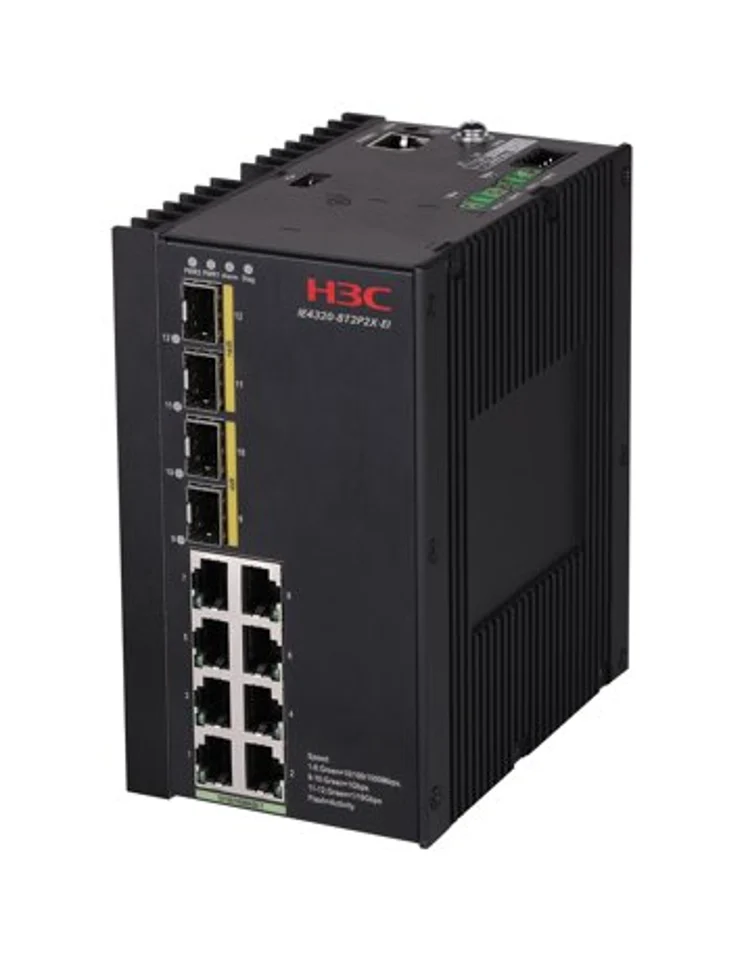

H3C LS-IE4320-8T2P2X-EI-AC IE4320-8T2P2X-EI L2 Industrial Ethernet Switch Chassis, 8 10/100/1000BASE-Telecommunication ports, 2 1000BASE-X SFP Port, 2 1G/10GBASE-X SFP+Port. 100-240VAC, Single Input
Brand H3C
N/AVerified
H3C LS-IE4320-8T2P2X-EI-AC
Model (MPN)
9801A6EF
Condition
Factory Sealed
Out of Stock
H3C LS-IE4320-8T2P2X-EI-AC IE4320-8T2P2X-EI L2 Industrial Ethernet Switch Chassis, 8 10/100/1000BASE-Telecommunication ports, 2 1000BASE-X SFP Port, 2 1G/10GBASE-X SFP+Port. 100-240VAC, Single Input. Switching Capacity: 672Gbps/6.72Tbps. Packet Forwarding Rate: 128Mpps. Configuration Port: 1 x RJ45 console
Key Specifications
DescriptionH3C IE4320-8T2P2X-EI L2 Industrial Ethernet Switch Chassis,Supports 8 x10/100/1000BASE-Telecommunication ports,2 x1000BASE-X SFP Port,2 x1G/10GBASE-X SFP+Port. 100-240VAC, Single Input
Switching Capacity672Gbps/6.72Tbps
Packet Forwarding Rate128Mpps
Power InterfacePhoenix terminal block
Dimensions(W x D x H) (Unit: mm)
Weight≤1.0Kg
Your Price
Best Value
$265.30
List Price: $3,790.00Save 93%
Availability Out of Stock
Quantity
Need configuration help?
Our CCIE certified engineers can help you verify compatibility.
Secure Payment
VISA
Pay
WIRE
Fast Dispatch
Global logistics network aiming for same-day handover.
48hrs
Avg. Shipping
99%
On-Time
Guaranteed Quality
Every unit undergoes rigorous 38-point inspection test.
3Year
Warranty
0.1%
RMA Rate
Global Reach
Trusted by enterprise clients across 6 continents.
85+
Countries
20k+
Clients
Expert Support
Certified network engineers ready to assist with configuration.
24/7
Assistance
CCIE
Certified
Overview
Specifications
| Catalog Description | |
|---|---|
| Description | H3C IE4320-8T2P2X-EI L2 Industrial Ethernet Switch Chassis,Supports 8 x10/100/1000BASE-Telecommunication ports,2 x1000BASE-X SFP Port,2 x1G/10GBASE-X SFP+Port. 100-240VAC, Single Input |
| Key Specifications | |
| Switching Capacity | 672Gbps/6.72Tbps |
| Packet Forwarding Rate | 128Mpps |
| Power Interface | Phoenix terminal block |
| Dimensions | (W x D x H) (Unit: mm) |
| Weight | ≤1.0Kg |
| Static Power Consumption | ≤5.0W |
| Product Specifications | |
| Switching Capacity | 672Gbps/6.72Tbps |
| Packet Forwarding Rate | 128Mpps |
| Dimensions | (W x D x H) (Unit: mm) |
| 48*130*150 | 44*130*150 |
| Weight | ≤1.0Kg |
| Installation Method | Rail mounting |
| Power Interface | Phoenix terminal block |
| Configuration Port | 1 x RJ45 console |
| Service Serial Port | None |
| DIDO | One normally open ALM alarm port; one normally closed Fail alarm port |
| IPProtection Rating | IP51 |
| Service Port | 8 x10/100/1000BASE-TElectrical Port, 2 x1000BASE-X SFP Port,2 x1G/10GBASE-X SFP+Port |
| Power Input | Single power input |
| AC220V Input Power Range (100-240VAC, 50/60HZ) Maximum Range (85-264VAC) or DC220V Input Power Range (192-288VDC) | DC24~48V（18~60VDC） |
| Static Power Consumption | ≤5.0W |
| Dual power supply: ≤5.0W | Dual power supply: ≤9.6W |
| Full-load Power Consumption | ≤12.1W |
| Dual power supply: ≤13.0W | Dual power supply: 145W (PoE: 125W) |
| Cooling method | Fanless, natural cooling |
| operating humidity | 5% to 95% (non-condensing) |
| operating temperature | -40℃~85℃ |
| Storage Temperature | -40℃～85℃ |
| Supports Features | Characterization |
| Forwarding Mode | store-and-forward mode |
| SDN/Openflow | Supports Open Flow 1.3 Standard |
| Port aggregation | Supports GE Port Aggregation |
| Port Features | Support IEEE802.3x flow control (full-duplex) |
| Jumbo Frame | Supports Jumbo Frame |
| MAC Address Table | Supports blackhole MAC address |
| VLAN | Supports 4K VLAN |
| Layer 2 Ring Protocol | Supports STP/RSTP/MSTP |
| Industrial protocols | Supports Profinet, Ethernet/IP, Modbus and other ubiquitous industrial protocols throughput. |
| AI PoE | PoE models support the AI PoE feature |
| DHCP | DHCP Client |
| IRF2 Intelligent Elastic Architecture | Supports IRF2 Intelligent Resilient Fabric |
| IP Routing | Supports Static Routing |
| IPv6 | Supports ND (Neighbor Discovery) |
| Multicast | Supports IGMP Snooping v1/v2/v3, MLD Snooping v1/v2 |
| MFF | Supports MFF (MAC-Forced Forwarding) function |
| Mirroring | Supports Flow Mirroring |
| Supports ACL\QoS | Supports L2 (Layer 2) to L4 (Layer 4) packet filtering functions, providing flow classification based on source MAC address, destination MAC address, source IP (IPv4/IPv6) address, destination IP (IPv4/IPv6) address, TCP/UDP port numbers, and VLAN |
| Security Features | Supports user hierarchical management and password protection |
| Management and Maintenance | Supports XModem/FTP/TFTP for loading upgrades |
| Green Energy Saving | Port auto Power down function |
| Ordering Information | |
| Power Supply Cable | |
| 0404A2BL | CAB-AC-1.8m-CHN-51035 - Wall Plug AC power Cord-1.8m-3*0.75mm^2-Black-(GB1002 Plug(3P) Straight Male 250V10A)-(227 IEC 53(RVV))-(3*EN(18-6mm)Yellow)-National Standard |
| Configuration Cables | |
| 04042967 | CAB-CON-1.8m - Configuration Serial Cable—1.8 m—(DB9 Female to 8-pin Ethernet Port) |
| 0404A1EE | CAB-Console-1.8m-W31R - Configuration Port Cable-1.8m-(RJ45P)-(UL2725(3C28AWG))-(USB AP) |
| Product Identity | |
| Brand | H3C |
| Series | H3C IE4320-EI Series Rack Rail Type Industrial Ethernet Switch |
