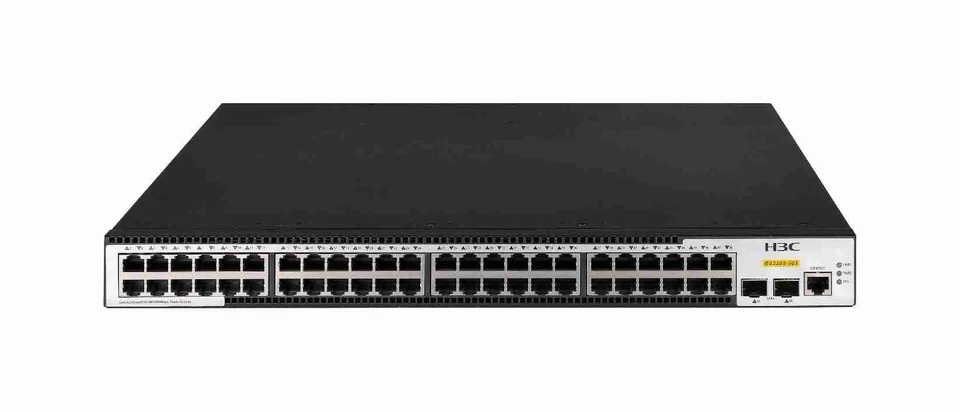

H3C LS-IE4320S-50S L2 Industrial Ethernet Switch, supports 48 10/100/1000BASE-T Ethernet ports and 2 1G/10G BASE-X SFP+ ports
Brand H3C
N/AVerified
H3C LS-IE4320S-50S
Model (MPN)
9801A28B
Condition
Factory Sealed
Out of Stock
H3C LS-IE4320S-50S L2 Industrial Ethernet Switch, supports 48 10/100/1000BASE-T Ethernet ports and 2 1G/10G BASE-X SFP+ ports. Switching Capacity: 336Gbps. Packet Forwarding Rate: 132Mpps. Power Interface: IEC 60320 C13
Key Specifications
DescriptionH3C IE4320S-50S L2 Industrial Ethernet Switch, supports 48 10/100/1000BASE-T Ethernet ports and 2 1G/10G BASE-X SFP Plus ports
Switching Capacity336Gbps
Packet Forwarding Rate132Mpps
Power InterfaceIEC 60320 C13
USB interfaceNone
Dimensions(W x D x H) (Unit: mm)440×360×43.6
Your Price
Best Value
$439.95
List Price: $6,285.00Save 93%
Availability Out of Stock
Quantity
Need configuration help?
Our CCIE certified engineers can help you verify compatibility.
Secure Payment
VISA
Pay
WIRE
Fast Dispatch
Global logistics network aiming for same-day handover.
48hrs
Avg. Shipping
99%
On-Time
Guaranteed Quality
Every unit undergoes rigorous 38-point inspection test.
3Year
Warranty
0.1%
RMA Rate
Global Reach
Trusted by enterprise clients across 6 continents.
85+
Countries
20k+
Clients
Expert Support
Certified network engineers ready to assist with configuration.
24/7
Assistance
CCIE
Certified
Overview
Specifications
| Catalog Description | |
|---|---|
| Description | H3C IE4320S-50S L2 Industrial Ethernet Switch, supports 48 10/100/1000BASE-T Ethernet ports and 2 1G/10G BASE-X SFP Plus ports |
| Key Specifications | |
| Switching Capacity | 336Gbps |
| Packet Forwarding Rate | 132Mpps |
| Power Interface | IEC 60320 C13 |
| USB interface | None |
| Dimensions | (W x D x H) (Unit: mm)440×360×43.6 |
| Weight | ≤6.5kg |
| Product Specifications | |
| Switching Capacity | 336Gbps |
| Packet Forwarding Rate | 132Mpps |
| Dimensions | (W x D x H) (Unit: mm)440×360×43.6 |
| Weight | ≤6.5kg |
| Installation Method | Rack Mounting |
| Power Interface | IEC 60320 C13 |
| USB interface | None |
| Configuration Port | 1 x RJ45 console |
| DIP Switch | None |
| DIDO | None |
| IPProtection Rating | IP30 |
| Service Port | 48 x10/100/1000BASE-TElectrical Port, 2 x1G/10G SFP+Port |
| Power Input | Dual backup redundant power inputs; modular power supply. |
| Static Power Consumption | Single power supply: ≤ 18.0W Dual power supply: ≤ 20.0W |
| Full-load Power Consumption | Single power supply: ≤ 41.0W Dual power supply: ≤ 43.0W |
| Cooling method | Fanless, natural cooling |
| operating humidity | 5% to 95% (non-condensing) |
| operating temperature | -40℃~60℃ |
| Storage Temperature | -40℃～85℃ |
| Forwarding Mode | store-and-forward mode |
| Link aggregation | Supports GE Port Aggregation |
| Flow Control | Supports 802.3x flow control and half-duplex back pressure flow control |
| Jumbo Frame | Supports Jumbo Frame |
| MAC Address Table | Supports blackhole MAC address |
| VLAN | Supports Port-based VLAN |
| ARP | Supports Gratuitous ARP |
| ND | Supports ND |
| DHCP | Supports DHCP Client |
| DNS | Supports Static domain name resolution |
| Routing Features | Supports IPv4/IPv6 static routing |
| MFF | Supports MFF (MAC-Forced Forwarding) function |
| Multicast | Supports IGMP v1, v2, v3 |
| Broadcast/Multicast/Unicast storm suppression | Supports storm suppression based on Port rate percentage |
| Layer 2 Ring Protocol | Supports STP/RSTP/MSTP protocols |
| Industrial protocols | Supports transparent transmission of pan-industrial protocols such as Profinet, Ethernet/IP, Modbus, etc. |
| SmartLink | Supports Smart Link |
| Monitor Link | Supports Monitor Link |
| ACL/QOS | Supports packet filtering function |
| Mirroring | Supports Port Mirroring |
| Security Features | Supports user hierarchical management and password protection |
| 802.1X | Supports 802.1X authentication |
| Loading and Upgrade | Supports XModem protocol for loading and upgrading |
| Management | Telnet remote configuration support |
| Operations and Maintenance | Supports Ping, Tracert |
| Ordering Information | |
| SFP/SFP+10GOptical Port | |
| 02312173 | SFP-GE-LH80-SM1550 - Optical Module - SFP-GE - Single-Mode Module - (1550 nm, 80 km, LC) |
| 0231ALKD | SFP-GE-SX-MM850-I - SFP GE Optical Module-(-40°C~85°C,850nm,0.55km,SX,MM,LC) |
| 0231ALKB | SFP-GE-T-I - SFP GEelectrical interface Module-(-40°C~85°C,100m,RJ45) |
| 0231AK6J | 0231AK6J - H3C IE4320S Series Rackmount Industrial Ethernet Switches |
| 0231A2UN | SFP-GE-LH40-SM1310-BIDI - SFP Gigabit BIDI Optical Module (TX 1310/RX 1550 nm, 40 km, LC) |
| 0231AK6K | 0231AK6K - H3C IE4320S Series Rackmount Industrial Ethernet Switches |
| 0231A2UL | SFP-GE-LH70-SM1490-BIDI - SFPGigabitBIDI Optical Module (TX 1490/RX 1550 nm, 70 km, LC) |
| 0231A2UP | SFP-GE-LH40-SM1550-BIDI - SFPGigabitBIDI Optical Module (TX 1550/RX 1310 nm, 40 km, LC) |
| 0231A2UM | SFP-GE-LH70-SM1550-BIDI - SFPGigabitBIDI Optical Module (TX 1550/RX 1490 nm, 70 km, LC) |
| 0231ALKE | SFP-GE-LH20-SM1310-BIDI-I - SFPGigabitBIDI Optical Module-(-40°C~85°C,TX1310/RX1490,20km,LC) |
| 0231ALKH | SFP-GE-LH40-SM1310-BIDI-I - SFPGigabitBIDI Optical Module-(-40°C~85°C,TX1310/RX1490,40km,LC) |
| 0231ALKG | SFP-GE-LH20-SM1490-BIDI-I - SFPGigabitBIDI Optical Module-(-40°C~85°C,TX1490/RX1310,20km,LC) |
| 0231ALKC | SFP-GE-LH40-SM1490-BIDI-I - SFPGigabitBIDI Optical Module-(-40°C~85°C,TX1490/RX1310,40km,LC) |
| 0231AK6G | 0231AK6G - H3C IE4320S Series Rackmount Industrial Ethernet Switches |
| 0231AK6F | 0231AK6F - H3C IE4320S Series Rackmount Industrial Ethernet Switches |
| 0231A54T | SFP-STACK-Kit - SFP Stacking Cable—(150 cm, includes stacking module) |
| 0231ADWF | SFP-GE-LH20-SM1310-I - SFPGigabit Optical Module(-40℃~85℃,1310nm,20km,LC) |
| 0231ADWE | SFP-GE-LH40-SM1310-I - SFPGigabit Optical Module(-40℃～85℃,1310nm,40km,LC) |
| 0231A0BY | SFP-GE-LX10-SM1310 - SFP GEOptical Module-(-40°C~85°C,1310nm,10km,LX,SM,LC) |
| 0231A563 | SFP-GE-LX-SM1310-A - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 10 km, LC) |
| 0231A962 | SFP-GE-LX-SM1310-D - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 10 km, LC) |
| 02312170 | SFP-GE-LH40-SM1310 - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 40 km, LC) |
| 0231A963 | SFP-GE-LH40-SM1310-D - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 40 km, LC) |
| 02312172 | SFP-GE-LH40-SM1550 - Optical Module—SFP—GE—Single-Mode Module—(1550 nm, 40 km, LC) |
| 0231A964 | SFP-GE-LH80-SM1550-D - Optical Module - SFP-GE - Single-Mode Module - (1550 nm, 80 km, LC) |
| 0231A562 | SFP-GE-SX-MM850-A - Optical Module - SFP-GE - Multimode Module (850 nm, 0.55 km, LC) |
| 0231A961 | SFP-GE-SX-MM850-D - Optical Module - SFP-GE - Multimode Module (850 nm, 0.55 km, LC) |
| 0231AH26 | SFP-GE-LX-SM1310-BIDI-I - Optical Module-SFPGigabitBIDI Optical Module(-40℃~85℃,TX1310/RX1490,10km,LC) |
| 0231AH28 | SFP-GE-LX-SM1490-BIDI-I - Optical Module-SFPGigabitBIDI Optical Module(-40℃~85℃,TX1490/RX1310,10km,LC) |
| 0231A11U | SFP-GE-LX-SM1310-BIDI - Optical Module - SFP Gigabit BIDI Optical Module - TX 1310/RX 1490, 10 km, LC |
| 0231A11V | SFP-GE-LX-SM1490-BIDI - Optical Module - SFP Gigabit BIDI Optical Module - TX 1490/RX 1310, 10 km, LC |
| 0231AEUP | SFP-GE-SX-MM850-S - SFPGigabit Optical Module(850nm,550m,SX,LC) |
| 0231AEUN | SFP-GE-LX-SM1310-S - SFPGigabit Optical Module(1310nm,10km,LX,LC) |
| 0231A085 | SFP-GE-T - SFP GEElectrical Port Module(100m,RJ45) |
| 0231A960 | SFP-GE-T-D - SFP GEElectrical Port Module(100m,RJ45) |
| 0231A9X2 | SFP-XG-CPRI-IR-SM1310 - SFP+ 10GCPRIOptical Module(-40°C～85°C,1310nm,1.4km,LC) |
| 0231A9X3 | SFP-XG-CPRI-LR-SM1310 - SFP+ 10GCPRI Optical Module (-40°C to 85°C, 1310 nm, 10 km, LC) |
| 0231A3TA | SFP-XG-D-AOC-10M - SFP+ to SFP+10m AOC |
| 0231A3TB | SFP-XG-D-AOC-20M - SFP+ to SFP+20m AOC |
| 0231A3T9 | SFP-XG-D-AOC-7M - SFP+ to SFP+7m AOC |
| 0231ABSQ | SFP-XG-LX-SM1270-BIDI - SFP+ 10GBIDIOptical Module(TX1270nm/RX1330nm,10km,LC) |
| 0231ABSP | SFP-XG-LH40-SM1270-BIDI - SFP+ 10G BIDI Optical Module (TX 1270 nm/RX 1330 nm, 40 km, LC) |
| 0231ABSR | SFP-XG-LX-SM1330-BIDI - SFP+ 10G BIDI Optical Module (TX 1330 nm/RX 1270 nm, 10 km, LC) |
| 0231ABSS | SFP-XG-LH40-SM1330-BIDI - SFP+ 10G BIDI Optical Module (TX 1330 nm/RX 1270 nm, 40 km, LC) |
| 0231AEUQ | SFP-XG-LX-SM1310-S - SFP+ 10G Optical Module(1310nm,10km,LX,LC) |
| 0231AEUM | SFP-XG-SX-MM850-S - SFP+ 10G Optical Module(850nm,300m,SX,LC) |
| 0231ALKF | SFP-XG-LH40-SM1550-I - SFP+ 10G Optical Module-(-40°C~85°C,1550nm,40km, ER,SM,LC) |
| 0231ALKJ | SFP-XG-SX-MM850-I - SFP+ 10G Optical Module-(-40°C~85°C,850nm,300m, SR,MM,LC) |
| 0231A2L3 | SFP-XG-LX-SM1310-E - SFP+ 10GModule(1310nm,10km,LC) |
| 0231A1RQ | SFP-XG-LX-SM1310-D - SFP+ 10GModule(1310nm,10km,LC) |
| 0231A0A8 | SFP-XG-LX-SM1310 - SFP+ 10GModule(1310nm,10km,LC) |
| 0231A0SP | SFP-XG-LH40-SM1550 - SFP+ 10GModule(1550nm,40km,LC) |
| 0231A1RR | SFP-XG-LH40-SM1550-D - SFP+ 10GModule(1550nm,40km,LC) |
| 0231A2T6 | SFP-XG-LH80-SM1550-D - SFP+ 10GModule(1550nm,80km,LC) |
| 0231A1PA | SFP-XG-LH80-SM1550 - SFP+ 10GModule(1550nm,80km,LC) |
| 0231A2L4 | SFP-XG-SX-MM850-E - SFP+ 10GModule(850nm,300m,LC) |
| 0231A1RP | SFP-XG-SX-MM850-D - SFP+ 10GModule(850nm,300m,LC) |
| 0231A0A6 | SFP-XG-SX-MM850-A - SFP+ 10GModule(850nm,300m,LC) |
| 0231AK6M | 0231AK6M - H3C IE4320S Series Rackmount Industrial Ethernet Switches |
| 0231AK6L | 0231AK6L - H3C IE4320S Series Rackmount Industrial Ethernet Switches |
| 0231AK6E | 0231AK6E - H3C IE4320S Series Rackmount Industrial Ethernet Switches |
| 0231A0AK | LSWM1STK - SFP+Cable0.65m |
| 0231A0AL | LSWM2STK - SFP+Cable1.2m |
| 0231A0AM | LSWM3STK - SFP+Cable3m |
| 0231AK6H | 0231AK6H - H3C IE4320S Series Rackmount Industrial Ethernet Switches |
| 0231A0G1 | LSTM1STK - SFP+Cable5m |
| Power Module | |
| 0231A1U2 | LSPM5150D - 150W Asset Management DC power Module (Power Supply with Front-Facing Air Exhaust) |
| 0231A5PW | PSR75-12A - 75WAC Pluggable Power Module |
| Configuration Cables | |
| 04042967 | CAB-CON-1.8m - Configuration Serial Cable—1.8 m—(DB9 Female to 8-pin Ethernet Port) |
| 0404A1EE | CAB-Console-1.8m-W31R - Configuration Port Cable-1.8m-(RJ45P)-(UL2725(3C28AWG))-(USB AP) |
| Product Identity | |
| Brand | H3C |
| Series | H3C IE4320S Series Rackmount Industrial Ethernet Switch |
