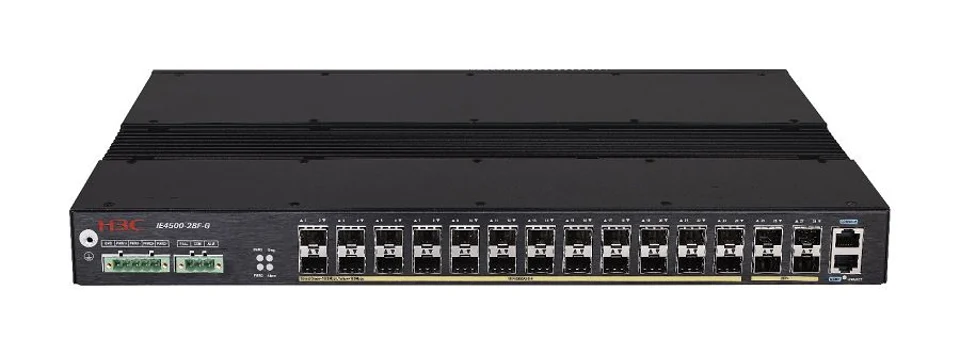

H3C LS-IE4500-28F-G L3 Industrial Ethernet Switch Chassis, 24 100/1000BASE-X SFP Port, 4 100M/1G/10G BASE-X SFP+Port, 100-240VAC, Redundant Inputs
Brand H3C
N/AVerified
H3C LS-IE4500-28F-G
Model (MPN)
9801A5JL
Condition
Factory Sealed
Out of Stock
H3C LS-IE4500-28F-G L3 Industrial Ethernet Switch Chassis, 24 100/1000BASE-X SFP Port, 4 100M/1G/10G BASE-X SFP+Port, 100-240VAC, Redundant Inputs. Switching Capacity: 560Gbps. Packet Forwarding Rate: 196Mpps. Configuration Port: 1 x RJ45 console
Key Specifications
DescriptionH3C IE4500-28F-G L3 Industrial Ethernet Switch Chassis,Supports 24 x100/1000BASE-X SFP Port,Supports 4 x100M/1G/10G BASE-X SFP+Port,100-240VAC,Redundant Inputs
Switching Capacity560Gbps
Packet Forwarding Rate196Mpps
Power InterfacePhoenix terminal block
Dimensions(W x D x H) (Unit: mm)
Weight≤5.4kg
Your Price
Best Value
$742.00
List Price: $10,600.00Save 93%
Availability Out of Stock
Quantity
Need configuration help?
Our CCIE certified engineers can help you verify compatibility.
Secure Payment
VISA
Pay
WIRE
Fast Dispatch
Global logistics network aiming for same-day handover.
48hrs
Avg. Shipping
99%
On-Time
Guaranteed Quality
Every unit undergoes rigorous 38-point inspection test.
3Year
Warranty
0.1%
RMA Rate
Global Reach
Trusted by enterprise clients across 6 continents.
85+
Countries
20k+
Clients
Expert Support
Certified network engineers ready to assist with configuration.
24/7
Assistance
CCIE
Certified
Overview
Specifications
| Catalog Description | |
|---|---|
| Description | H3C IE4500-28F-G L3 Industrial Ethernet Switch Chassis,Supports 24 x100/1000BASE-X SFP Port,Supports 4 x100M/1G/10G BASE-X SFP+Port,100-240VAC,Redundant Inputs |
| Key Specifications | |
| Switching Capacity | 560Gbps |
| Packet Forwarding Rate | 196Mpps |
| Power Interface | Phoenix terminal block |
| Dimensions | (W x D x H) (Unit: mm) |
| Weight | ≤5.4kg |
| Static Power Consumption | Single circuit: ≤ 19.0W |
| Product Specifications | |
| Switching Capacity | 560Gbps |
| Packet Forwarding Rate | 196Mpps |
| Dimensions | (W x D x H) (Unit: mm) |
| Weight | ≤5.4kg |
| Installation Method | Rack Mounting |
| Power Interface | Phoenix terminal block |
| Configuration Port | 1 x RJ45 console |
| Alarm Port | One normally open ALM alarm port; one normally closed Fail alarm port |
| IPProtection Rating | IP40 |
| Service Port | 24 x100/1000BASE-X SFP Port, 4 x100M/1G/10G SFP+Port |
| Power Input | Dual Backup Redundant Power Inputs |
| AC220V Input power range (100-240VAC, 50/60HZ) Maximum range (85-264VAC) | AC220V input power range (100-240VAC, 50/60HZ) maximum range (90-264VAC) or DC110V/DC220V input power range (88-264VDC); DC24~48V (DC18~60V) |
| Static Power Consumption | Single circuit: ≤ 19.0W |
| Dual: ≤ 24.0W | Dual: ≤ 20.0W |
| Full-load Power Consumption | Single circuit: ≤ 45.0W |
| Dual: ≤ 42.0W | Dual: ≤ 45.0W |
| Cooling method | Fanless, natural cooling |
| operating humidity | 5% to 95% (non-condensing) |
| operating temperature | -40℃~85℃ |
| Storage Temperature | -40℃～85℃ |
| Supports Features | Characterization |
| Forwarding Mode | store-and-forward mode |
| SDN/Openflow | Supports Open Flow 1.3 Standard |
| Port aggregation | Supports GE Port Aggregation |
| Port Features | Support IEEE802.3x flow control (full-duplex) |
| Jumbo Frame | Supports Jumbo Frame |
| MAC Address Table | Supports blackhole MAC address |
| VLAN | Supports 4K VLAN |
| Layer 2 Ring Protocol | Supports STP/RSTP/MSTP |
| Industrial protocols | Supports Profinet, Ethernet/IP, Modbus and other ubiquitous industrial protocols throughput. |
| DHCP | DHCP Client |
| IRF2 Intelligent Elastic Architecture | Supports IRF2 Intelligent Resilient Fabric |
| IP Routing | Supports Static Routing |
| IPv6 | Supports ND (Neighbor Discovery) |
| Multicast | Supports IGMP Snooping v1/v2/v3, MLD Snooping v1/v2 |
| Ipsec | Supports Ipsec VPN |
| MFF | Supports MFF (MAC-Forced Forwarding) function |
| Mirroring | Supports Flow Mirroring |
| Supports ACL\QoS | Supports L2 (Layer 2) to L4 (Layer 4) packet filtering functions, providing flow classification based on source MAC address, destination MAC address, source IP (IPv4/IPv6) address, destination IP (IPv4/IPv6) address, TCP/UDP port numbers, and VLAN |
| Security Features | Supports user hierarchical management and password protection |
| Management and Maintenance | Supports XModem/FTP/TFTP for loading upgrades |
| Green Energy Saving | Port auto Power down function |
| Ordering Information | |
| SFPGigabit Optical Port | |
| 0231ALKL | SFP-FE-LH40-SM1310-I - SFP 100M/155M Optical Module-(-40°C~85°C,1310nm,40km,EX,SM,LC) |
| 0231A890 | SFP-FE-BX15-U-SM1310 - SFPModule,-40~85℃,1310nm,15km,LC |
| 0231A12U | SFP-FE-LX-SM1550-BIDI - SFP Fast Ethernet BIDI Optical Module (TX 1550/RX 1310 nm, 15 km, LC) |
| 0231A12T | SFP-FE-LX-SM1310-BIDI - SFP Fast Ethernet BIDI Optical Module (TX 1310/RX 1550 nm, 15 km, LC) |
| 0231A564 | SFP-FE-LX-SM1310-A - Optical Module—SFP 100M/155M Single-Mode Module (1310 nm, 15 km, LC) |
| 0231A965 | SFP-FE-LX-SM1310-D - Optical Module—SFP 100M/155M Single-Mode Module (1310 nm, 15 km, LC) |
| 0231A320 | SFP-FE-SX-MM1310-A - Optical Module—SFP 100M/155M Multimode Module (1310 nm, 2 km, LC) |
| 0231A089 | SFP-FE-LH40-SM1310 - Optical Module - SFP 100M/155M Single-Mode Module - (1310nm, 40km, LC) |
| 0231ALKD | SFP-GE-SX-MM850-I - SFP GE Optical Module-(-40°C~85°C,850nm,0.55km,SX,MM,LC) |
| 0231ALKB | SFP-GE-T-I - SFP GEelectrical interface Module-(-40°C~85°C,100m,RJ45) |
| 0231AK6J | 0231AK6J - H3C IE4500-G Series Rackmount Industrial Ethernet Switches |
| 0231A2UN | SFP-GE-LH40-SM1310-BIDI - SFP Gigabit BIDI Optical Module (TX 1310/RX 1550 nm, 40 km, LC) |
| 0231AK6K | 0231AK6K - H3C IE4500-G Series Rackmount Industrial Ethernet Switches |
| 0231A2UL | SFP-GE-LH70-SM1490-BIDI - SFPGigabitBIDI Optical Module (TX 1490/RX 1550 nm, 70 km, LC) |
| 0231A2UP | SFP-GE-LH40-SM1550-BIDI - SFPGigabitBIDI Optical Module (TX 1550/RX 1310 nm, 40 km, LC) |
| 0231A2UM | SFP-GE-LH70-SM1550-BIDI - SFPGigabitBIDI Optical Module (TX 1550/RX 1490 nm, 70 km, LC) |
| 0231ALKE | SFP-GE-LH20-SM1310-BIDI-I - SFPGigabitBIDI Optical Module-(-40°C~85°C,TX1310/RX1490,20km,LC) |
| 0231ALKH | SFP-GE-LH40-SM1310-BIDI-I - SFPGigabitBIDI Optical Module-(-40°C~85°C,TX1310/RX1490,40km,LC) |
| 0231ALKG | SFP-GE-LH20-SM1490-BIDI-I - SFPGigabitBIDI Optical Module-(-40°C~85°C,TX1490/RX1310,20km,LC) |
| 0231ALKC | SFP-GE-LH40-SM1490-BIDI-I - SFPGigabitBIDI Optical Module-(-40°C~85°C,TX1490/RX1310,40km,LC) |
| 0231AK6G | 0231AK6G - H3C IE4500-G Series Rackmount Industrial Ethernet Switches |
| 0231AK6F | 0231AK6F - H3C IE4500-G Series Rackmount Industrial Ethernet Switches |
| 0231A54T | SFP-STACK-Kit - SFP Stacking Cable—(150 cm, includes stacking module) |
| 0231ADWF | SFP-GE-LH20-SM1310-I - SFPGigabit Optical Module(-40℃~85℃,1310nm,20km,LC) |
| 0231ADWE | SFP-GE-LH40-SM1310-I - SFPGigabit Optical Module(-40℃～85℃,1310nm,40km,LC) |
| 0231A0BY | SFP-GE-LX10-SM1310 - SFP GEOptical Module-(-40°C~85°C,1310nm,10km,LX,SM,LC) |
| 0231A563 | SFP-GE-LX-SM1310-A - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 10 km, LC) |
| 0231A962 | SFP-GE-LX-SM1310-D - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 10 km, LC) |
| 02312170 | SFP-GE-LH40-SM1310 - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 40 km, LC) |
| 0231A963 | SFP-GE-LH40-SM1310-D - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 40 km, LC) |
| 02312172 | SFP-GE-LH40-SM1550 - Optical Module—SFP—GE—Single-Mode Module—(1550 nm, 40 km, LC) |
| 0231A562 | SFP-GE-SX-MM850-A - Optical Module - SFP-GE - Multimode Module (850 nm, 0.55 km, LC) |
| 0231A961 | SFP-GE-SX-MM850-D - Optical Module - SFP-GE - Multimode Module (850 nm, 0.55 km, LC) |
| 0231AH26 | SFP-GE-LX-SM1310-BIDI-I - Optical Module-SFPGigabitBIDI Optical Module(-40℃~85℃,TX1310/RX1490,10km,LC) |
| 0231AH28 | SFP-GE-LX-SM1490-BIDI-I - Optical Module-SFPGigabitBIDI Optical Module(-40℃~85℃,TX1490/RX1310,10km,LC) |
| 0231A11U | SFP-GE-LX-SM1310-BIDI - Optical Module - SFP Gigabit BIDI Optical Module - TX 1310/RX 1490, 10 km, LC |
| 0231A11V | SFP-GE-LX-SM1490-BIDI - Optical Module - SFP Gigabit BIDI Optical Module - TX 1490/RX 1310, 10 km, LC |
| 0231AEUP | SFP-GE-SX-MM850-S - SFPGigabit Optical Module(850nm,550m,SX,LC) |
| 0231AEUN | SFP-GE-LX-SM1310-S - SFPGigabit Optical Module(1310nm,10km,LX,LC) |
| SFP/SFP+10GOptical Port | |
| 0231A9X2 | SFP-XG-CPRI-IR-SM1310 - SFP+ 10GCPRIOptical Module(-40°C～85°C,1310nm,1.4km,LC) |
| 0231A9X3 | SFP-XG-CPRI-LR-SM1310 - SFP+ 10GCPRI Optical Module (-40°C to 85°C, 1310 nm, 10 km, LC) |
| 0231A3TA | SFP-XG-D-AOC-10M - SFP+ to SFP+10m AOC |
| 0231A3TB | SFP-XG-D-AOC-20M - SFP+ to SFP+20m AOC |
| 0231A3T9 | SFP-XG-D-AOC-7M - SFP+ to SFP+7m AOC |
| 0231ABSQ | SFP-XG-LX-SM1270-BIDI - SFP+ 10GBIDIOptical Module(TX1270nm/RX1330nm,10km,LC) |
| 0231ABSP | SFP-XG-LH40-SM1270-BIDI - SFP+ 10G BIDI Optical Module (TX 1270 nm/RX 1330 nm, 40 km, LC) |
| 0231ABSR | SFP-XG-LX-SM1330-BIDI - SFP+ 10G BIDI Optical Module (TX 1330 nm/RX 1270 nm, 10 km, LC) |
| 0231ABSS | SFP-XG-LH40-SM1330-BIDI - SFP+ 10G BIDI Optical Module (TX 1330 nm/RX 1270 nm, 40 km, LC) |
| 0231ABST | SFP-XG-LH80-SM1490-BIDI - SFP+ 10GBIDI Optical Module (TX 1490nm/RX 1550nm, 80km, LC) |
| 0231ABSU | SFP-XG-LH80-SM1550-BIDI - SFP+ 10GBIDI Optical Module (TX 1550nm/RX 1490nm, 80km, LC) |
| 0231AEUQ | SFP-XG-LX-SM1310-S - SFP+ 10G Optical Module(1310nm,10km,LX,LC) |
| 0231AEUM | SFP-XG-SX-MM850-S - SFP+ 10G Optical Module(850nm,300m,SX,LC) |
| 0231ALKF | SFP-XG-LH40-SM1550-I - SFP+ 10G Optical Module-(-40°C~85°C,1550nm,40km, ER,SM,LC) |
| 0231ALKJ | SFP-XG-SX-MM850-I - SFP+ 10G Optical Module-(-40°C~85°C,850nm,300m, SR,MM,LC) |
| 0231A2L3 | SFP-XG-LX-SM1310-E - SFP+ 10GModule(1310nm,10km,LC) |
| 0231A1RQ | SFP-XG-LX-SM1310-D - SFP+ 10GModule(1310nm,10km,LC) |
| 0231A0A8 | SFP-XG-LX-SM1310 - SFP+ 10GModule(1310nm,10km,LC) |
| 0231A2L4 | SFP-XG-SX-MM850-E - SFP+ 10GModule(850nm,300m,LC) |
| 0231A1RP | SFP-XG-SX-MM850-D - SFP+ 10GModule(850nm,300m,LC) |
| 0231A0A6 | SFP-XG-SX-MM850-A - SFP+ 10GModule(850nm,300m,LC) |
| 0231AK6M | 0231AK6M - H3C IE4500-G Series Rackmount Industrial Ethernet Switches |
| 0231AK6L | 0231AK6L - H3C IE4500-G Series Rackmount Industrial Ethernet Switches |
| 0231A0AK | LSWM1STK - SFP+Cable0.65m |
| 0231A0AL | LSWM2STK - SFP+Cable1.2m |
| 0231A0AM | LSWM3STK - SFP+Cable3m |
| 0231AK6H | 0231AK6H - H3C IE4500-G Series Rackmount Industrial Ethernet Switches |
| 0231A0G1 | LSTM1STK - SFP+Cable5m |
| Power Supply Cable | |
| 0404A2BL | CAB-AC-1.8m-CHN-51035 - Wall Plug AC power Cord-1.8m-3*0.75mm^2-Black-(GB1002 Plug(3P) Straight Male 250V10A)-(227 IEC 53(RVV))-(3*EN(18-6mm)Yellow)-National Standard |
| Configuration Cables | |
| 04042967 | CAB-CON-1.8m - Configuration Serial Cable—1.8 m—(DB9 Female to 8-pin Ethernet Port) |
| 0404A1EE | CAB-Console-1.8m-W31R - Configuration Port Cable-1.8m-(RJ45P)-(UL2725(3C28AWG))-(USB AP) |
| Product Identity | |
| Brand | H3C |
| Series | H3C IE4500-G Series Rackmount Industrial Ethernet Switch |
