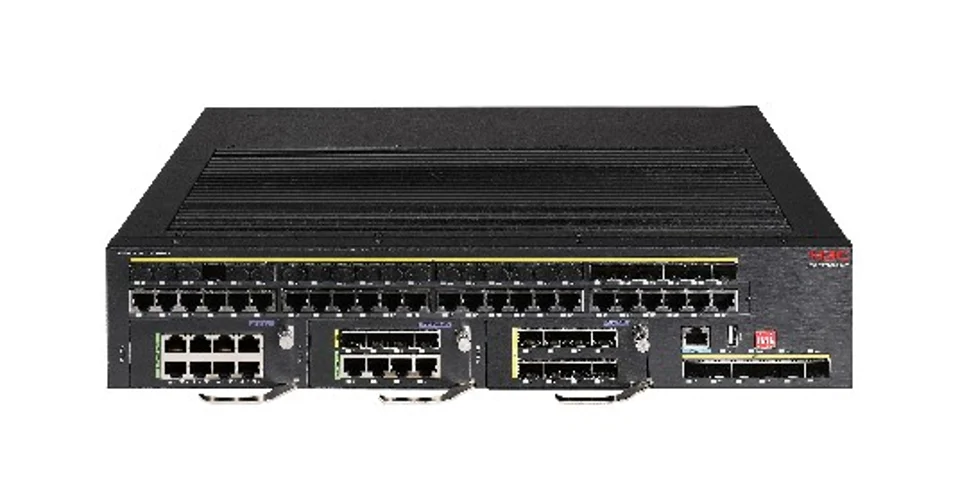

H3C LS-IE4520-54S-C Ethernet Switch. H3C IE4520-54S-C L3 Industrial Ethernet Switch with 24*Combo Ports (10/100/1000BASE-T or 100/1000BASE-X SFP), 6*1G/10G Base-X SFP Plus Ports and 3*Slots, (AC).
Our CCIE certified engineers can help you verify compatibility.
Global logistics network aiming for same-day handover.
Every unit undergoes rigorous 38-point inspection test.
Trusted by enterprise clients across 6 continents.
Certified network engineers ready to assist with configuration.
H3C LS-IE4520-54S-C Ethernet Switch is H3C IE4520-54S-C L3 Industrial Ethernet Switch with 24*Combo Ports (10/100/1000BASE-T or 100/1000BASE-X SFP), 6*1G/10G Base-X SFP Plus Ports and 3*Slots, (AC).
Compatible and optional SKUs are listed in the ordering information, including 9801A2M1 LS-IE4520-54S-C, 9801A47M LS5M1IEXG4, 0231ALKD SFP-GE-SX-MM850-I, 0231ALKB SFP-GE-T-I, 0231AK6J 0231AK6J.
| Key Specifications | |
|---|---|
| Switching Capacity | 756Gbps/7.56Tbps |
| Packet Forwarding Rate | 252Mpps |
| Configuration Port | 1 x RJ45 console |
| Dimensions | (W×D×H) (in mm) 440×360×87.22U Rack |
| Weight | ≤10.0kg |
| extended slot | 3 x Expansion Slot |
| Product Specifications | |
| Switching Capacity | 756Gbps/7.56Tbps |
| Packet Forwarding Rate | 252Mpps |
| Dimensions | (W×D×H) (in mm) 440×360×87.22U Rack |
| Weight | ≤10.0kg |
| Power Interface | AC: IEC 60320 C13; DC: Phoenix terminal block |
| USB interface | 1 x USBInterface |
| Configuration Port | 1 x RJ45 console |
| DIP switch | Four-way DIP switch for quick configuration |
| DIDO | 1 DI 1 DO |
| IPProtection Rating | IP40 |
| Fixed Service Ports | 24 Gigabit Combo ports (optical ports are compatible with 100GbE rates), 6 1G/10G BASE-X SFP+ ports |
| extended slot | 3 x Expansion Slot |
| Extended Services Plug-in Card | LS5M1IEGP8: 8 100/1000BASE-X SFP ports (common to all three slots) LS5M1IEGT4GP4: 4 10/100/1000BASE-T electrical ports,4 100/1000BASE-X SFP ports (common to all three slots) LS5M1IEGT8: 8 10/100/LS5M1IEGT8: 8 x 10/100/1000BASE-T electrical ports (common to all three slots) LS5M1IEXG4: 4 x 1G/10G BASE-X SFP+ ports (only the third slot is suitable for this card); |
| Extended Function Plug-in Card | LSWM2-iMC: H3C Intelligent Network Management System Module (only the third slot is available for this plug-in card) LSWM2EC: H3C Eagle Vision Scanner Module (only the third slot is available for this plug-in card) LSWM3EC: H3C Industrial Control Security Plug-in Module (only the third slot is available for this plug-in card) LSPM6FWD: H3C Next Generation Firewall Module (only the third slot is available for this plug-in card) |
| Power Input | Dual Backup Redundant Power Input DC24-48V (18~60V) |
| Static Power Consumption | Single AC: ≤ 22.0W Dual AC: ≤ 26.0W |
| Full-load Power Consumption | Single AC: ≤ 68.0W Dual AC: ≤ 72.0W |
| Cooling method | With fan |
| operating humidity | 5% to 95% (non-condensing) |
| operating temperature | -40℃~70℃ |
| Storage Temperature | -40℃～85℃ |
| Catalog Description | |
| Description | H3C IE4520-54S-C L3 Industrial Ethernet Switch with 24*Combo Ports (10/100/1000BASE-T or 100/1000BASE-X SFP), 6*1G/10G Base-X SFP Plus Ports and 3*Slots, (AC) |
| Ordering Information | |
| Base Configuration | |
| 9801A2M1 | LS-IE4520-54S-C |
| Extension Module | |
| 9801A47M | LS5M1IEXG4; Type: Extension Module |
| SFP+ 10G Port | |
| 0231ALKD | SFP-GE-SX-MM850-I; SFP GE Optical Module (-40°C~85°C, 850nm, 0.55km, SX, MM, LC); Type: SFP+ 10G Port |
| 0231ALKB | SFP-GE-T-I; SFP G Eelectrical interface Module (-40°C~85°C, 100m, RJ45); Type: SFP+ 10G Port |
| 0231AK6J | Type: SFP+ 10G Port |
| 0231A2UN | SFP-GE-LH40-SM1310-BIDI; SFP GigabitBIDI Optical Module (TX 1310/RX 1550 nm, 40 km, LC); Type: SFP+ 10G Port |
| 0231AK6K | Type: SFP+ 10G Port |
| 0231A2UL | SFP-GE-LH70-SM1490-BIDI; SFP GigabitBIDI Optical Module (TX 1490 nm/RX 1550 nm, 70 km, LC); Type: SFP+ 10G Port |
| 0231A2UP | SFP-GE-LH40-SM1550-BIDI; SFP GigabitBIDI Optical Module (TX 1550 nm/RX 1310 nm, 40 km, LC); Type: SFP+ 10G Port |
| 0231A2UM | SFP-GE-LH70-SM1550-BIDI; SFP GigabitBIDI Optical Module (TX 1550/RX 1490 nm, 70 km, LC); Type: SFP+ 10G Port |
| 0231ALKE | SFP-GE-LH20-SM1310-BIDI-I; SFP GigabitBIDI Optical Module (-40°C~85°C, TX1310/RX1490, 20km, LC); Type: SFP+ 10G Port |
| 0231ALKH | SFP-GE-LH40-SM1310-BIDI-I; SFP GigabitBIDI Optical Module (-40°C~85°C, TX1310/RX1490, 40km, LC); Type: SFP+ 10G Port |
| 0231ALKG | SFP-GE-LH20-SM1490-BIDI-I; SFP GigabitBIDI Optical Module (-40°C~85°C, TX1490/RX1310, 20km, LC); Type: SFP+ 10G Port |
| 0231ALKC | SFP-GE-LH40-SM1490-BIDI-I; SFP GigabitBIDI Optical Module (-40°C~85°C, TX1490/RX1310, 40km, LC); Type: SFP+ 10G Port |
| 0231AK6G | Type: SFP+ 10G Port |
| 0231ADWF | SFP-GE-LH20-SM1310-I; SFP Gigabit Optical Module (-40°C to 85°C, 1310 nm, 20 km, LC); Type: SFP+ 10G Port |
| 0231ADWE | SFP-GE-LH40-SM1310-I; SFP Gigabit Optical Module (-40°C to 85°C, 1310 nm, 40 km, LC); Type: SFP+ 10G Port |
| 0231A0BY | SFP-GE-LX10-SM1310; SFP GE Optical Module (-40°C~85°C, 1310nm, 10km, LX, SM, LC); Type: SFP+ 10G Port |
| 0231A563 | SFP-GE-LX-SM1310-A; Single-mode SFP GE optical module (1310 nm, 10 km, LC); Type: SFP+ 10G Port |
| 0231A962 | SFP-GE-LX-SM1310-D; Single-mode SFP GE optical module (1310 nm, 10 km, LC); Type: SFP+ 10G Port |
| 02312170 | SFP-GE-LH40-SM1310; Single-mode SFP GE optical module (1310 nm, 40 km, LC); Type: SFP+ 10G Port |
| 0231A963 | SFP-GE-LH40-SM1310-D; Single-mode SFP GE optical module (1310 nm, 40 km, LC); Type: SFP+ 10G Port |
| 02312172 | SFP-GE-LH40-SM1550; Single-mode SFP optical module (1550 nm, 40 km, LC); Type: SFP+ 10G Port |
| 0231A562 | SFP-GE-SX-MM850-A; Multi-mode SFP-GE optical module (850 nm, 0.55 km, LC); Type: SFP+ 10G Port |
| 0231A961 | SFP-GE-SX-MM850-D; Multi-mode SFP-GE optical module (850 nm, 0.55 km, LC); Type: SFP+ 10G Port |
| 0231AH26 | SFP-GE-LX-SM1310-BIDI-I; Optical Module - SFP Gigabit BIDI Optical Module (-40°C to 85°C, TX 1310/RX 1490, 10 km, LC); Type: SFP+ 10G Port |
| 0231AH28 | SFP-GE-LX-SM1490-BIDI-I; Optical Module - SFP Gigabit BIDI Optical Module (-40°C to 85°C, TX 1490/RX 1310, 10 km, LC); Type: SFP+ 10G Port |
| 0231A11U | SFP-GE-LX-SM1310-BIDI; Optical Module - SFP Gigabit BIDI Optical Module - TX1310/RX1490, 10 km, LC; Type: SFP+ 10G Port |
| 0231A11V | SFP-GE-LX-SM1490-BIDI; Optical Module - SFP Gigabit BIDI Optical Module - TX1490/RX1310, 10 km, LC; Type: SFP+ 10G Port |
| 0231AEUP | SFP-GE-SX-MM850-S; SFP Gigabit Optical Module (850 nm, 550 m, SX, LC); Type: SFP+ 10G Port |
| 0231AEUN | SFP-GE-LX-SM1310-S; SFP Gigabit Optical Module (1310 nm, 10 km, LX, LC); Type: SFP+ 10G Port |
| 0231A9X2 | SFP-XG-CPRI-IR-SM1310; SFP+ 10G CPRI Optical Module (-40°C to 85°C, 1310nm, 1.4km, LC); Type: SFP+ 10G Port |
| 0231A9X3 | SFP-XG-CPRI-LR-SM1310; SFP+ 10G CPRI Optical Module (-40°C to 85°C, 1310nm, 10km, LC); Type: SFP+ 10G Port |
| 0231A3TA | SFP-XG-D-AOC-10M; SFP+ to SFP+10m AOC; Type: SFP+ 10G Port |
| 0231A3TB | SFP-XG-D-AOC-20M; SFP+ to SFP+20m AOC; Type: SFP+ 10G Port |
| 0231A3T9 | SFP-XG-D-AOC-7M; SFP+ to SFP+7m AOC; Type: SFP+ 10G Port |
| 0231ABSQ | SFP-XG-LX-SM1270-BIDI; SFP+ 10GBIDI Optical Module (TX 1270nm/RX 1330nm, 10km, LC); Type: SFP+ 10G Port |
| 0231ABSR | SFP-XG-LX-SM1330-BIDI; SFP+ 10GBIDI Optical Module (TX 1330nm/RX 1270nm, 10km, LC); Type: SFP+ 10G Port |
| 0231AEUQ | SFP-XG-LX-SM1310-S; SFP+ 10G Optical Module (1310nm, 10km, LX, LC); Type: SFP+ 10G Port |
| 0231AEUM | SFP-XG-SX-MM850-S; SFP+ 10G optical module (850nm, 300m, SX, LC); Type: SFP+ 10G Port |
| 0231ALKF | SFP-XG-LH40-SM1550-I; SFP+ 10G Optical Module (-40°C~85°C, 1550nm, 40km, ER, SM, LC); Type: SFP+ 10G Port |
| 0231ALKJ | SFP-XG-SX-MM850-I; SFP+ 10G Optical Module (-40°C~85°C, 850nm, 300m, SR, MM, LC); Type: SFP+ 10G Port |
| 0231A0A8 | SFP-XG-LX-SM1310; SFP+ 10G Module (1310nm, 10km, LC); Type: SFP+ 10G Port |
| 0231A1RQ | SFP-XG-LX-SM1310-D; SFP+ 10G Module (1310nm, 10km, LC); Type: SFP+ 10G Port |
| 0231A2L3 | SFP-XG-LX-SM1310-E; SFP+ 10G Module (1310nm, 10km, LC); Type: SFP+ 10G Port |
| 0231A0A6 | SFP-XG-SX-MM850-A; SFP+ 10G Module (850nm, 300m, LC); Type: SFP+ 10G Port |
| 0231A1RP | SFP-XG-SX-MM850-D; SFP+ 10G Module (850nm, 300m, LC); Type: SFP+ 10G Port |
| 0231A2L4 | SFP-XG-SX-MM850-E; SFP+ 10G Module (850nm, 300m, LC); Type: SFP+ 10G Port |
| 0231AK6M | Type: SFP+ 10G Port |
| 0231AK6L | Type: SFP+ 10G Port |
| 0231A0AK | LSWM1STK; SFP+Cable0.65m; Type: SFP+ 10G Port |
| 0231A0AL | LSWM2STK; SFP+Cable1.2m; Type: SFP+ 10G Port |
| 0231A0AM | LSWM3STK; SFP+Cable3m; Type: SFP+ 10G Port |
| 0231A0G1 | LSTM1STK; SFP+Cable5m; Type: SFP+ 10G Port |
| 0231AK6H | Type: SFP+ 10G Port |
| Extension Module | |
| 9801A2MV | LS5M1IEGT4GP4; H3C IE-Module-4G4P 4Electrical Port+4Optical Port Gigabit Interface Module; Type: Extension Module |
| SFP Gigabit Port | |
| 0231ALKL | SFP-FE-LH40-SM1310-I; SFP 100M/155M Optical Module (-40°C~85°C, 1310nm, 40km, EX, SM, LC); Type: SFP Gigabit Port |
| 0231A890 | SFP-FE-BX15-U-SM1310; SFP Module, -40~85C, 1310nm, 15km, LC; Type: SFP Gigabit Port |
| 0231A12T | SFP-FE-LX-SM1310-BIDI; SFP Fast Ethernet BIDI Optical Module (TX 1310 nm/RX 1550 nm, 15 km, LC); Type: SFP Gigabit Port |
| 0231A12U | SFP-FE-LX-SM1550-BIDI; SFP Fast Ethernet BIDI Optical Module (TX 1550 nm/RX 1310 nm, 15 km, LC); Type: SFP Gigabit Port |
| 0231A564 | SFP-FE-LX-SM1310-A; Single-mode SFP 100M/155M optical module (1310 nm, 15 km, LC); Type: SFP Gigabit Port |
| 0231A965 | SFP-FE-LX-SM1310-D; Single-mode SFP 100M/155M optical module (1310 nm, 15 km, LC); Type: SFP Gigabit Port |
| 0231A320 | SFP-FE-SX-MM1310-A; Optical Module-SFP 100M/155M-Multimode Module (1310nm, 2km, LC); Type: SFP Gigabit Port |
| 0231A089 | SFP-FE-LH40-SM1310; Single-mode SFP 100M/155M optical module (1310 nm, 40 km, LC); Type: SFP Gigabit Port |
| 0231AK6F | Type: SFP Gigabit Port |
| 0231A54T | SFP-STACK-Kit; Type: SFP Gigabit Port |
| Extension Module | |
| 9801A2MW | LS5M1IEGT8; H3C IE-Module-8G 8-Port Gigabit Ethernetelectrical interface Module; Type: Extension Module |
| 9801A2MU | LS5M1IEGP8; Type: Extension Module |
| SFP Gigabit Optical Port | |
| 0231A085 | SFP-GE-T; SFP GE Electrical Port Module (100m, RJ45); Type: SFP Gigabit Optical Port |
| 0231A960 | SFP-GE-T-D; SFP GE Electrical Port Module (100m, RJ45); Type: SFP Gigabit Optical Port |
| Port and Cable Configuration | |
| 04042967 | CAB-CON-1.8m; Configuration Serial Cable—1.8 m (DB9 Female to 8-pin Ethernet Port); Type: Port and Cable Configuration |
| 0404A1EE | CAB-Console-1.8m-W31R; Configuration Port Cable-1.8m (RJ45P) (UL2725(3C28AWG)) (USB AP); Type: Port and Cable Configuration |
| Product Identity | |
| Brand | H3C |
| Series | H3C ESeries Switches |
