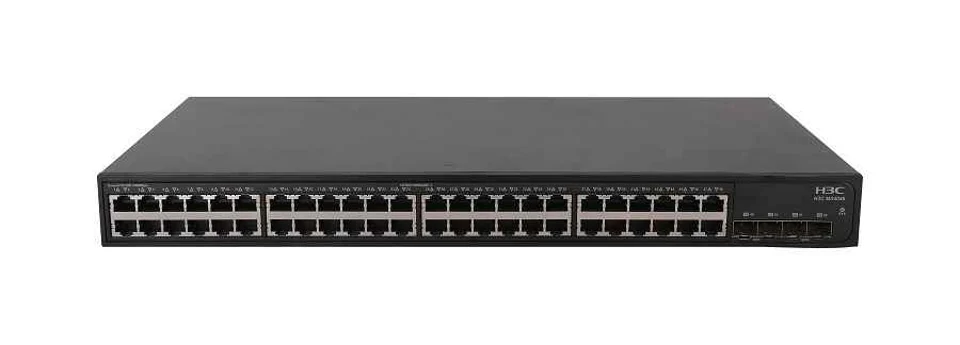

H3C LS-MS4048 Ethernet Switch. H3C MS4048 Ethernet Switch with 48*10/100/1000BASE-T Ports,2*1000BASE-X SFP Ports and 2*1G/10GBASE-X SFP Plus Ports,(AC).
Our CCIE certified engineers can help you verify compatibility.
Global logistics network aiming for same-day handover.
Every unit undergoes rigorous 38-point inspection test.
Trusted by enterprise clients across 6 continents.
Certified network engineers ready to assist with configuration.
H3C LS-MS4048 Ethernet Switch is H3C MS4048 Ethernet Switch with 48*10/100/1000BASE-T Ports,2*1000BASE-X SFP Ports and 2*1G/10GBASE-X SFP Plus Ports,(AC).
Compatible and optional SKUs are listed in the ordering information, including 9801A1NY LS-MS4048, 0231A2UN SFP-GE-LH40-SM1310-BIDI, 0231A2UL SFP-GE-LH70-SM1490-BIDI, 0231A2UP SFP-GE-LH40-SM1550-BIDI, 0231A2UM SFP-GE-LH70-SM1550-BIDI.
| Key Specifications | |
|---|---|
| Ports | 48*10/100/1000BASE-T Ports,2*1000BASE-X SFP Ports and 2*1G/10GBASE-X SFP Plus Ports,(AC) |
| Model | LS-MS4048 |
| Product Code | 9801A1NY |
| Product Type | Ethernet Switch |
| Series | Intelligent Terminal |
| Configuration | Fixed Ethernet switch |
| Catalog Description | |
| Description | H3C MS4048 Ethernet Switch with 48*10/100/1000BASE-T Ports,2*1000BASE-X SFP Ports and 2*1G/10GBASE-X SFP Plus Ports,(AC) |
| Key Features | |
| Feature 1 | Compliant with IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE802.3x and IEEE802.3ab 1000Base-T standards |
| Feature 2 | Layer 2 Gigabit forwarding at full wire speed on all ports, MS4010/MS4010-HPWR provides two Gigabit uplink optical ports to meet the high bandwidth requirements of security monitoring networks |
| Feature 3 | Using the shared cache architecture, the cache space available for each port is expanded several times, which can greatly enhance the forwarding performance of bursty heavy traffic |
| Feature 4 | PoE models support enhanced Ethernet functionality (PoE+) and can provide up to 30W of output power per port, allowing them to power high-power security surveillance cameras |
| Feature 5 | The MS4000 Series unmanaged security switch is easy to operate, plug-and-play, and meets the needs of building high-performance surveillance networks with simple network policy deployment |
| Ordering Information | |
| Base Configuration | |
| 9801A1NY | LS-MS4048; H3C MS4048Ethernet switch Chassis, Supports 48 x10/100/1000BASE-T Electrical Port, 2 x1000BASE-X SFP Port, 2 x1G/10GBASE-X SFP Plus Port, Supports AC |
| SFP Gigabit Optical Port | |
| 0231A2UN | SFP-GE-LH40-SM1310-BIDI; SFP GigabitBIDI Optical Module (TX 1310/RX 1550 nm, 40 km, LC); Type: SFP Gigabit Optical Port |
| 0231A2UL | SFP-GE-LH70-SM1490-BIDI; SFP GigabitBIDI Optical Module (TX 1490 nm/RX 1550 nm, 70 km, LC); Type: SFP Gigabit Optical Port |
| 0231A2UP | SFP-GE-LH40-SM1550-BIDI; SFP GigabitBIDI Optical Module (TX 1550 nm/RX 1310 nm, 40 km, LC); Type: SFP Gigabit Optical Port |
| 0231A2UM | SFP-GE-LH70-SM1550-BIDI; SFP GigabitBIDI Optical Module (TX 1550/RX 1490 nm, 70 km, LC); Type: SFP Gigabit Optical Port |
| 0231ADWF | SFP-GE-LH20-SM1310-I; SFP Gigabit Optical Module (-40°C to 85°C, 1310 nm, 20 km, LC); Type: SFP Gigabit Optical Port |
| 0231ADWE | SFP-GE-LH40-SM1310-I; SFP Gigabit Optical Module (-40°C to 85°C, 1310 nm, 40 km, LC); Type: SFP Gigabit Optical Port |
| 0231A563 | SFP-GE-LX-SM1310-A; Single-mode SFP GE optical module (1310 nm, 10 km, LC); Type: SFP Gigabit Optical Port |
| 0231A962 | SFP-GE-LX-SM1310-D; Single-mode SFP GE optical module (1310 nm, 10 km, LC); Type: SFP Gigabit Optical Port |
| 02312170 | SFP-GE-LH40-SM1310; Single-mode SFP GE optical module (1310 nm, 40 km, LC); Type: SFP Gigabit Optical Port |
| 0231A963 | SFP-GE-LH40-SM1310-D; Single-mode SFP GE optical module (1310 nm, 40 km, LC); Type: SFP Gigabit Optical Port |
| 02312172 | SFP-GE-LH40-SM1550; Single-mode SFP optical module (1550 nm, 40 km, LC); Type: SFP Gigabit Optical Port |
| 02312173 | SFP-GE-LH80-SM1550; Single-mode SFP optical module (1550 nm, 80 km, LC); Type: SFP Gigabit Optical Port |
| 0231A964 | SFP-GE-LH80-SM1550-D; Single-mode SFP optical module (1550 nm, 80 km, LC); Type: SFP Gigabit Optical Port |
| 0231A562 | SFP-GE-SX-MM850-A; Multi-mode SFP-GE optical module (850 nm, 0.55 km, LC); Type: SFP Gigabit Optical Port |
| 0231A961 | SFP-GE-SX-MM850-D; Multi-mode SFP-GE optical module (850 nm, 0.55 km, LC); Type: SFP Gigabit Optical Port |
| 0231A11U | SFP-GE-LX-SM1310-BIDI; Optical Module - SFP Gigabit BIDI Optical Module - TX1310/RX1490, 10 km, LC; Type: SFP Gigabit Optical Port |
| 0231A11V | SFP-GE-LX-SM1490-BIDI; Optical Module - SFP Gigabit BIDI Optical Module - TX1490/RX1310, 10 km, LC; Type: SFP Gigabit Optical Port |
| 0231AEUP | SFP-GE-SX-MM850-S; SFP Gigabit Optical Module (850 nm, 550 m, SX, LC); Type: SFP Gigabit Optical Port |
| 0231AEUN | SFP-GE-LX-SM1310-S; SFP Gigabit Optical Module (1310 nm, 10 km, LX, LC); Type: SFP Gigabit Optical Port |
| 0231A085 | SFP-GE-T; SFP GE Electrical Port Module (100m, RJ45); Type: SFP Gigabit Optical Port |
| 0231A960 | SFP-GE-T-D; SFP GE Electrical Port Module (100m, RJ45); Type: SFP Gigabit Optical Port |
| SFP/SFP+10G Optical Port | |
| 0231A3TA | SFP-XG-D-AOC-10M; SFP+ to SFP+10m AOC; Type: SFP/SFP+10G Optical Port |
| 0231A3TB | SFP-XG-D-AOC-20M; SFP+ to SFP+20m AOC; Type: SFP/SFP+10G Optical Port |
| 0231A3T9 | SFP-XG-D-AOC-7M; SFP+ to SFP+7m AOC; Type: SFP/SFP+10G Optical Port |
| 0231ABSQ | SFP-XG-LX-SM1270-BIDI; SFP+ 10GBIDI Optical Module (TX 1270nm/RX 1330nm, 10km, LC); Type: SFP/SFP+10G Optical Port |
| 0231ABSP | SFP-XG-LH40-SM1270-BIDI; SFP+ 10GBIDI Optical Module (TX 1270nm/RX 1330nm, 40km, LC); Type: SFP/SFP+10G Optical Port |
| 0231ABSR | SFP-XG-LX-SM1330-BIDI; SFP+ 10GBIDI Optical Module (TX 1330nm/RX 1270nm, 10km, LC); Type: SFP/SFP+10G Optical Port |
| 0231ABSS | SFP-XG-LH40-SM1330-BIDI; SFP+ 10GBIDI Optical Module (TX 1330nm/RX 1270nm, 40km, LC); Type: SFP/SFP+10G Optical Port |
| 0231ABST | SFP-XG-LH80-SM1490-BIDI; SFP+ 10GBIDI Optical Module (TX 1490nm/RX 1550nm, 80km, LC); Type: SFP/SFP+10G Optical Port |
| 0231ABSU | SFP-XG-LH80-SM1550-BIDI; SFP+ 10GBIDI Optical Module (TX 1550nm/RX 1490nm, 80km, LC); Type: SFP/SFP+10G Optical Port |
| 0231AEUQ | SFP-XG-LX-SM1310-S; SFP+ 10G Optical Module (1310nm, 10km, LX, LC); Type: SFP/SFP+10G Optical Port |
| 0231AEUM | SFP-XG-SX-MM850-S; SFP+ 10G optical module (850nm, 300m, SX, LC); Type: SFP/SFP+10G Optical Port |
| 0231A0A8 | SFP-XG-LX-SM1310; SFP+ 10G Module (1310nm, 10km, LC); Type: SFP/SFP+10G Optical Port |
| 0231A2L3 | SFP-XG-LX-SM1310-E; SFP+ 10G Module (1310nm, 10km, LC); Type: SFP/SFP+10G Optical Port |
| 0231A1RQ | SFP-XG-LX-SM1310-D; SFP+ 10G Module (1310nm, 10km, LC); Type: SFP/SFP+10G Optical Port |
| 0231A0SP | SFP-XG-LH40-SM1550; SFP+ 10G Module (1550nm, 40km, LC); Type: SFP/SFP+10G Optical Port |
| 0231A1RR | SFP-XG-LH40-SM1550-D; SFP+ 10G Module (1550nm, 40km, LC); Type: SFP/SFP+10G Optical Port |
| 0231A2T6 | SFP-XG-LH80-SM1550-D; SFP+ 10G Module (1550nm, 80km, LC); Type: SFP/SFP+10G Optical Port |
| 0231A1PA | SFP-XG-LH80-SM1550; SFP+ 10G Module (1550nm, 80km, LC); Type: SFP/SFP+10G Optical Port |
| 0231A0A6 | SFP-XG-SX-MM850-A; SFP+ 10G Module (850nm, 300m, LC); Type: SFP/SFP+10G Optical Port |
| 0231A2L4 | SFP-XG-SX-MM850-E; SFP+ 10G Module (850nm, 300m, LC); Type: SFP/SFP+10G Optical Port |
| 0231A1RP | SFP-XG-SX-MM850-D; SFP+ 10G Module (850nm, 300m, LC); Type: SFP/SFP+10G Optical Port |
| 0231ALXU | SFP-XG-LX-SM1310-F; SFP+ All-Optical 3.010G Optical Module (1310nm, 10km, SM, LC); Type: SFP/SFP+10G Optical Port |
| 0231A0AK | LSWM1STK; SFP+Cable0.65m; Type: SFP/SFP+10G Optical Port |
| 0231A0AL | LSWM2STK; SFP+Cable1.2m; Type: SFP/SFP+10G Optical Port |
| 0231A0AM | LSWM3STK; SFP+Cable3m; Type: SFP/SFP+10G Optical Port |
| 0231A0G1 | LSTM1STK; SFP+Cable5m; Type: SFP/SFP+10G Optical Port |
| Product Identity | |
| Brand | H3C |
| Series | Intelligent Terminal |
