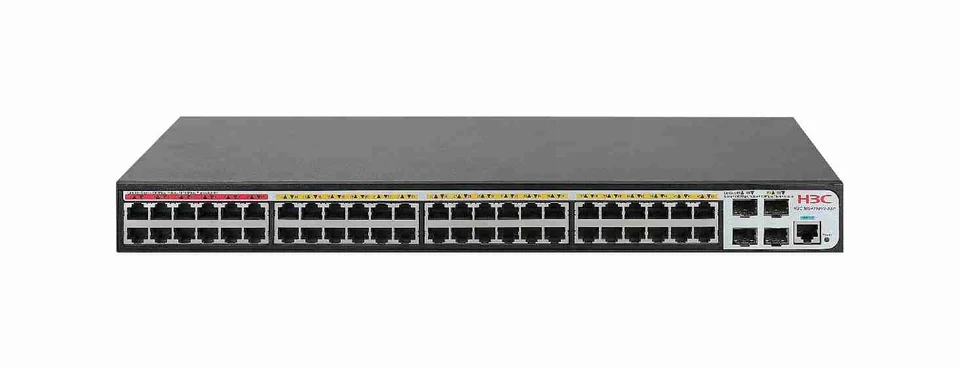

H3C LS-MS4100V2-52P 52 Port Gigabit Ethernet Switch(48GE+4SFP)
Brand H3C
N/AVerified
H3C LS-MS4100V2-52P
Model (MPN)
9801A25R
Condition
Factory Sealed
Out of Stock
H3C LS-MS4100V2-52P 52 Port Gigabit Ethernet Switch(48GE+4SFP). Switching Capacity: 432Gbps. Packet Forwarding Rate: 144Mpps. Fixed Port: 48*10/100/1000Base-TEthernet Port4*1000 Base-X SFPOptical Port
Key Specifications
DescriptionH3C MS4100V2-52P,52-Port Gigabit Ethernet Switch(48GE+4SFP)
Switching Capacity432Gbps
Packet Forwarding Rate144Mpps
Fixed Port48*10/100/1000Base-TEthernet Port4*1000 Base-X SFPOptical Port
Dimensions (Length × Width × Height) (Unit: mm)440×238×44
PoE+ Power SupplyNot supported
Your Price
Best Value
$1,638.00
Availability Out of Stock
Quantity
Need configuration help?
Our CCIE certified engineers can help you verify compatibility.
Secure Payment
VISA
Pay
WIRE
Fast Dispatch
Global logistics network aiming for same-day handover.
48hrs
Avg. Shipping
99%
On-Time
Guaranteed Quality
Every unit undergoes rigorous 38-point inspection test.
3Year
Warranty
0.1%
RMA Rate
Global Reach
Trusted by enterprise clients across 6 continents.
85+
Countries
20k+
Clients
Expert Support
Certified network engineers ready to assist with configuration.
24/7
Assistance
CCIE
Certified
Overview
Specifications
| Catalog Description | |
|---|---|
| Description | H3C MS4100V2-52P,52-Port Gigabit Ethernet Switch(48GE+4SFP) |
| Key Specifications | |
| Switching Capacity | 432Gbps |
| Packet Forwarding Rate | 144Mpps |
| Fixed Port | 48*10/100/1000Base-TEthernet Port4*1000 Base-X SFPOptical Port |
| Dimensions (Length × Width × Height) (Unit: mm) | 440×238×44 |
| PoE+ Power Supply | Not supported |
| Device power consumption | ≤ 32W |
| Product Specifications | |
| Switching Capacity | 432Gbps |
| Packet Forwarding Rate | 144Mpps |
| Management Port | 1 Console port |
| Fixed Port | 48*10/100/1000Base-TEthernet Port4*1000 Base-X SFPOptical Port |
| Electrical Port Attributes | Supports half-duplex, full-duplex, and self-negotiation operating modes Supports MDI/MDI-X |
| Ethernet Features | Flow Control (802.3x) Green Ethernet (EEE) Port Auto Energy Saving Dynamic Link Aggregation (802.3ad)/Static Port Aggregation 802.1p, 802.1Q Cable Diagnostics STP (802.1D)/RSTP (802.1w)/MSTP (802.1s) TC snooping BPDU Protection/Root Protection/Loopback Protection/Anti TC-BPDU Attack Protection Function |
| IPv4 | ARPDHCP Client |
| Multicast | Support for IGMP V1/V2/V3 Snooping Support for fast leave mechanism |
| QoS | Diff-Serv QoS support SP/WRR/SP+WRR Traffic Limiting 802.1p/DSCP Priority Mapping Priority Mapping |
| Security | User Hierarchy Management Blackhole MAC Ports MAC Address Learning Count Limit SSL |
| Network Management and Monitoring | WEB page configuration for FTP, TFTP, Xmodem file upload management |
| System Management | Support Console/AUX Modem/Telnet/SSH2.0 Command Line Configuration Support FTP, TFTP, Xmodem, SFTP File Upload and Download Management Support SNMP V1/V2c/V3 Support NTP Clock Support System Work Log Support Cluster Management |
| Lightning Protection Rating | 10KV |
| PoE+ Power Supply | Not supported |
| Device power consumption | ≤ 32W |
| Temp. | Storage Humidity: -40℃～70℃ Operating Temperature: -10～50 |
| Fan Quantity | 1 |
| Input voltage | AC：100V～240V AC，50/60Hz |
| Dimensions (Length × Width × Height) (Unit: mm) | 440×238×44 |
| Ordering Information | |
| SFPGigabit Optical Port | |
| 0231A2UN | SFP-GE-LH40-SM1310-BIDI - SFP Gigabit BIDI Optical Module (TX 1310/RX 1550 nm, 40 km, LC) |
| 0231A2UL | SFP-GE-LH70-SM1490-BIDI - SFPGigabitBIDI Optical Module (TX 1490/RX 1550 nm, 70 km, LC) |
| 0231A2UP | SFP-GE-LH40-SM1550-BIDI - SFPGigabitBIDI Optical Module (TX 1550/RX 1310 nm, 40 km, LC) |
| 0231A2UM | SFP-GE-LH70-SM1550-BIDI - SFPGigabitBIDI Optical Module (TX 1550/RX 1490 nm, 70 km, LC) |
| 0231ADWF | SFP-GE-LH20-SM1310-I - SFPGigabit Optical Module(-40℃~85℃,1310nm,20km,LC) |
| 0231ADWE | SFP-GE-LH40-SM1310-I - SFPGigabit Optical Module(-40℃～85℃,1310nm,40km,LC) |
| 0231A0LS | 0231A0LS - H3C MS4100V2 Switch Series |
| 0231A0HL | 0231A0HL - H3C MS4100V2 Switch Series |
| 0231A563 | SFP-GE-LX-SM1310-A - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 10 km, LC) |
| 0231A962 | SFP-GE-LX-SM1310-D - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 10 km, LC) |
| 02312170 | SFP-GE-LH40-SM1310 - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 40 km, LC) |
| 0231A963 | SFP-GE-LH40-SM1310-D - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 40 km, LC) |
| 02312172 | SFP-GE-LH40-SM1550 - Optical Module—SFP—GE—Single-Mode Module—(1550 nm, 40 km, LC) |
| 02312173 | SFP-GE-LH80-SM1550 - Optical Module - SFP-GE - Single-Mode Module - (1550 nm, 80 km, LC) |
| 0231A964 | SFP-GE-LH80-SM1550-D - Optical Module - SFP-GE - Single-Mode Module - (1550 nm, 80 km, LC) |
| 0231A0LQ | 0231A0LQ - H3C MS4100V2 Switch Series |
| 0231A562 | SFP-GE-SX-MM850-A - Optical Module - SFP-GE - Multimode Module (850 nm, 0.55 km, LC) |
| 0231A961 | SFP-GE-SX-MM850-D - Optical Module - SFP-GE - Multimode Module (850 nm, 0.55 km, LC) |
| 0231A0HK | 0231A0HK - H3C MS4100V2 Switch Series |
| 0231A11U | SFP-GE-LX-SM1310-BIDI - Optical Module - SFP Gigabit BIDI Optical Module - TX 1310/RX 1490, 10 km, LC |
| 0231A11V | SFP-GE-LX-SM1490-BIDI - Optical Module - SFP Gigabit BIDI Optical Module - TX 1490/RX 1310, 10 km, LC |
| 0231AEUP | SFP-GE-SX-MM850-S - SFPGigabit Optical Module(850nm,550m,SX,LC) |
| 0231AEUN | SFP-GE-LX-SM1310-S - SFPGigabit Optical Module(1310nm,10km,LX,LC) |
| 0231A085 | SFP-GE-T - SFP GEElectrical Port Module(100m,RJ45) |
| 0231A960 | SFP-GE-T-D - SFP GEElectrical Port Module(100m,RJ45) |
| Product Identity | |
| Brand | H3C |
| Series | H3C MS4100V2 Series Switch |
