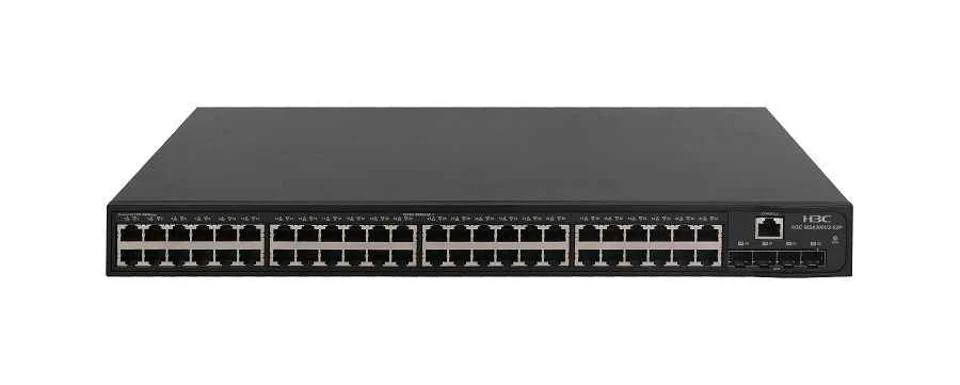

H3C LS-MS4300V2-52P Layer 2 Ethernet Switch Chassis, 48 10/100/1000BASE-Telectrical port, 4 1000BASE-X SFP Port, AC
Brand H3C
N/AVerified
H3C LS-MS4300V2-52P
Model (MPN)
9801A1GR
Condition
Factory Sealed
Out of Stock
H3C LS-MS4300V2-52P Layer 2 Ethernet Switch Chassis, 48 10/100/1000BASE-Telectrical port, 4 1000BASE-X SFP Port, AC. System Switching Capacity: 672Gbps/6.72Tbps. Packet Forwarding Rate: 166Mpps. Port lightning protection: Supports 9KV Port lightning protection
Key Specifications
DescriptionH3C MS4300V2-52P L2Ethernet Switch Chassis,Supports 48 x10/100/1000BASE-Telectrical port,Supports 4 x1000BASE-X SFP Port,Supports AC
System Switching Capacity672Gbps/6.72Tbps
Packet Forwarding Rate166Mpps
Dimensions (Width x Depth x Height) (Unit: mm)266×161×43.6440×160×43.6440×230×43.6
Input voltageAC：100V～240V AC，50/60Hz
Maximum Power Consumption of the Entire SystemAC: MIN 7W MAX 12WAC: MIN 9W MAX 23WAC: MIN 18W MAX 41W
Your Price
Best Value
$2,219.00
Availability Out of Stock
Quantity
Need configuration help?
Our CCIE certified engineers can help you verify compatibility.
Secure Payment
VISA
Pay
WIRE
Fast Dispatch
Global logistics network aiming for same-day handover.
48hrs
Avg. Shipping
99%
On-Time
Guaranteed Quality
Every unit undergoes rigorous 38-point inspection test.
3Year
Warranty
0.1%
RMA Rate
Global Reach
Trusted by enterprise clients across 6 continents.
85+
Countries
20k+
Clients
Expert Support
Certified network engineers ready to assist with configuration.
24/7
Assistance
CCIE
Certified
Overview
Specifications
| Catalog Description | |
|---|---|
| Description | H3C MS4300V2-52P L2Ethernet Switch Chassis,Supports 48 x10/100/1000BASE-Telectrical port,Supports 4 x1000BASE-X SFP Port,Supports AC |
| Key Specifications | |
| System Switching Capacity | 672Gbps/6.72Tbps |
| Packet Forwarding Rate | 166Mpps |
| Dimensions (Width x Depth x Height) (Unit: mm) | 266×161×43.6440×160×43.6440×230×43.6 |
| Input voltage | AC：100V～240V AC，50/60Hz |
| Maximum Power Consumption of the Entire System | AC: MIN 7W MAX 12WAC: MIN 9W MAX 23WAC: MIN 18W MAX 41W |
| Operating Environment Temperature | 0℃～45℃ |
| Product Specifications | |
| System Switching Capacity | 672Gbps/6.72Tbps |
| Packet Forwarding Rate | 166Mpps |
| Port Morphology | MS4300V2-10P: 8 10/100/1000Base-T ports, 2 100/1000Base-X ports; MS4300V2-28P: 24 10/100/1000Base-T ports, 4 100/1000Base-X ports; MS4300V2-52P: 48 10/100/1000Base-T ports, 4 100/1000Base-X ports; MS4320S-28P: 24 10/100/1000Base-T ports, 4 1000Base-X SFP ports; MS4320S-28F: 24 100/1000BASE-X SFP ports, 8 10/100/1000BASE-T combo ports, 4 1000BASE-X SFP ports, no power supply; MS4320S-52P: 48 10/100/1000Base-T ports, 4 1000Base-X SFP ports; MS4320V2-28S: 24 10/100/1000BASE-T ports, 4 1/10G BASE-X SFP+ ports; MS4320V2-28F: 24 100/1000BASE-X SFP ports, 8 10/100/1000BASE-T combo ports, 4 1/10G BASE-X SFP+ ports, no power supply; MS4320V2-52S: 48 10/100/1000BASE-T ports, 4 1/10G BASE-X SFP+ ports; MS4320S-20P-PWR: 16 10/100/1000BASE-T PoE+ ports (AC 210W), 4 1000BASE-X SFP ports; MS4320S-28P-PWR: 24 10/100/1000BASE-T PoE+ (AC 370W, DC 740W), 4 100/1000BASE-X SFP ports, 4 GE Combo ports; MS4320V2-28S-PWR: 24 10/100/1000BASE-T ports, 4 1/10G BASE-X SFP+ ports, supports PoE+; |
| IP Routing | Supports IPv4 static routing, RIPv1/v2Supports IPv6 static routing, RIPngOSPFV1/V2/V3 |
| Jumbo Frame | 9K |
| Link aggregation | Supports GE port aggregation, supports static aggregation, supports dynamic aggregation, supports cross-device aggregation |
| Port Features | Supports IEEE802.3x Flow Control (Full Duplex) Storm Suppression based on Port Rate Percentage Storm Suppression based on PPS/BPS |
| Embedded Surveillance Management Component | Supports |
| Virtualization | IRF2 |
| IRF2 | Supports IRF2 Intelligent Resilient Architecture Supports stacking via standard Ethernet interfaces Supports local stacking and remote stacking Supports distributed device management, distributed link aggregation |
| Multimedia Services | Supports VODetc.multimedia services Supports VoIPetc.delay-sensitive Voice service provision Supports Multicast audioand video servicesfunctions |
| Flow Control | Supports 802.3x flow control and half-duplex back pressure flow control |
| SDN/Openflow | Supports the Open Flow 1.3 standard (MS4320V2 sub-series); supports multiple controllers (EQUAL mode, active-standby mode) (MS4320V2 sub-series); supports multi-table pipelining (MS4320V2 sub-series); supports Group tables (MS4320V2 sub-series) |
| VLAN | Supports Port's VLANSupports MAC's VLAN based protocols VLANSupports QinQ, Flexible QinQSupports VLAN Mapping Supports Voice VLANSupports Guest VLANSupports Super VLANSupports PVLANs |
| ACL | Supports L2 (Layer 2) to L4 (Layer 4) packet filtering functions, provides flow classification based on source MAC address, destination MAC address, source IP address, destination IP address, TCP/UDP Port, protocol type, and VLAN, supports Time Range ACL, supports ACL distribution under Port, VLAN, and global modes, supports bidirectional ACL |
| QoS | Supports rate limiting on received and transmitted packets per Port, supports packet redirection, supports CAR (Committed Access Rate) function, supports 8 output queues per Port, supports Port queue scheduling (SP, WRR, SP+WRR), supports 802.1p and DSCP priority remarking on packets |
| DHCP | Supports DHCP Client Supports DHCP Snooping Supports DHCP Relay Supports DHCP Snooping option82Supports DHCP Server Supports DHCP auto-config (zero Configuration) |
| Multicast | Supports IGMP Snooping/MLD Snooping (supported by the MS4320V2 subseries); supports Multicast VLANs (supported by the MS4320V2 subseries) |
| Layer 2 Ring Protocol | Supports STP/RSTP/MSTP/PVSTSupports Smart Link Supports RRPP |
| OAM | Supports 802.1ag and 802.3ah |
| Mirroring | Supports Port Mirroring, Remote Port Mirroring (RSPAN), and Flow Mirroring |
| Security Features | Supports user hierarchical management and password protection Supports 802.1X authentication/centralized MAC address authentication Supports Guest VLAN Supports RADIUS authentication Supports SSH 2.0 Supports port isolation Supports port security Supports limit on the number of MAC addresses to be learned Supports IP source address protection Supports ARP Intrusion Detection Function Supports IP+MAC+Port Multi-Group Binding Supports EAD |
| Management and Maintenance | Support XModem/FTP/TFTP load upgrade Support Command Line Interface (CLI), Telnet, Console port for configuration Support SNMPv1/v2/v3, WEB network management Support RMON alarm, event, history support iMC Intelligent Management Center Support system log, hierarchical alarm, debugging information output Support NTP Support Ping, Tracert support VCT cable detection function support DLDP unidirectional link detection protocol support Loopback-detection port loopback detection support power, fan, temperature alarm support BFD |
| Port lightning protection | Supports 9KV Port lightning protection |
| Green Energy Saving | Supports EEE (802.3az) Port automatic Power down function; Port scheduled down function (Schedule job) |
| Input voltage | AC：100V～240V AC，50/60Hz |
| Maximum Power Consumption of the Entire System | AC: MIN 7W MAX 12WAC: MIN 9W MAX 23WAC: MIN 18W MAX 41W |
| Dimensions (Width x Depth x Height) (Unit: mm) | 266×161×43.6440×160×43.6440×230×43.6 |
| Fan | Curing |
| Operating Environment Temperature | 0℃～45℃ |
| Operating Ambient Relative Humidity (Non-condensing) | 5%～95% |
| Ordering Information | |
| SFPGigabit Optical Port | |
| 0231A2UN | SFP-GE-LH40-SM1310-BIDI - SFP Gigabit BIDI Optical Module (TX 1310/RX 1550 nm, 40 km, LC) |
| 0231A2UL | SFP-GE-LH70-SM1490-BIDI - SFPGigabitBIDI Optical Module (TX 1490/RX 1550 nm, 70 km, LC) |
| 0231A2UP | SFP-GE-LH40-SM1550-BIDI - SFPGigabitBIDI Optical Module (TX 1550/RX 1310 nm, 40 km, LC) |
| 0231A2UM | SFP-GE-LH70-SM1550-BIDI - SFPGigabitBIDI Optical Module (TX 1550/RX 1490 nm, 70 km, LC) |
| 0231A54T | SFP-STACK-Kit - SFP Stacking Cable—(150 cm, includes stacking module) |
| 0231A563 | SFP-GE-LX-SM1310-A - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 10 km, LC) |
| 0231A962 | SFP-GE-LX-SM1310-D - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 10 km, LC) |
| 02312170 | SFP-GE-LH40-SM1310 - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 40 km, LC) |
| 0231A963 | SFP-GE-LH40-SM1310-D - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 40 km, LC) |
| 02312172 | SFP-GE-LH40-SM1550 - Optical Module—SFP—GE—Single-Mode Module—(1550 nm, 40 km, LC) |
| 02312173 | SFP-GE-LH80-SM1550 - Optical Module - SFP-GE - Single-Mode Module - (1550 nm, 80 km, LC) |
| 0231A964 | SFP-GE-LH80-SM1550-D - Optical Module - SFP-GE - Single-Mode Module - (1550 nm, 80 km, LC) |
| 0231A562 | SFP-GE-SX-MM850-A - Optical Module - SFP-GE - Multimode Module (850 nm, 0.55 km, LC) |
| 0231A961 | SFP-GE-SX-MM850-D - Optical Module - SFP-GE - Multimode Module (850 nm, 0.55 km, LC) |
| 0231A11U | SFP-GE-LX-SM1310-BIDI - Optical Module - SFP Gigabit BIDI Optical Module - TX 1310/RX 1490, 10 km, LC |
| 0231A11V | SFP-GE-LX-SM1490-BIDI - Optical Module - SFP Gigabit BIDI Optical Module - TX 1490/RX 1310, 10 km, LC |
| 0231AEUP | SFP-GE-SX-MM850-S - SFPGigabit Optical Module(850nm,550m,SX,LC) |
| 0231AEUN | SFP-GE-LX-SM1310-S - SFPGigabit Optical Module(1310nm,10km,LX,LC) |
| 0231A085 | SFP-GE-T - SFP GEElectrical Port Module(100m,RJ45) |
| 0231A960 | SFP-GE-T-D - SFP GEElectrical Port Module(100m,RJ45) |
| Product Identity | |
| Brand | H3C |
| Series | H3C MS4300V2 Series Switch |
