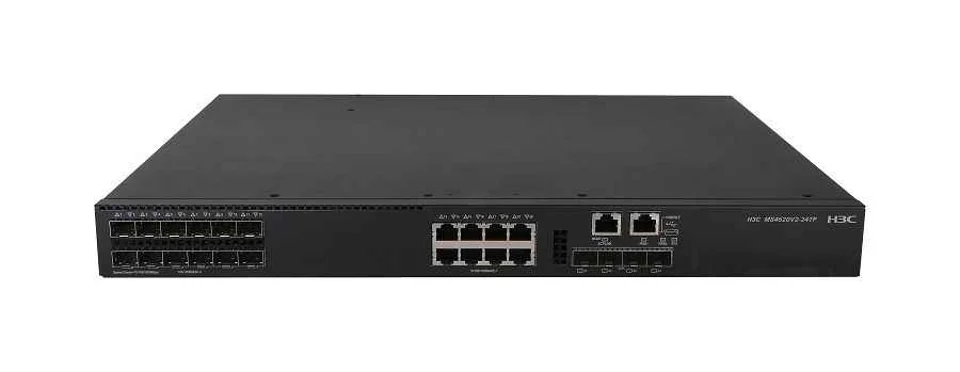

H3C LS-MS4520V2-24TP Layer 3 Ethernet Switch Chassis, supports 12 100/1000BASE-X SFP ports, supports 8 10/100/1000BASE-T wired ports, supports 4 1G/10GBASE-X SFP+ ports, no power supply
Brand H3C
N/AVerified
H3C LS-MS4520V2-24TP
Model (MPN)
0235A3NS
Condition
Factory Sealed
Out of Stock
H3C LS-MS4520V2-24TP Layer 3 Ethernet Switch Chassis, supports 12 100/1000BASE-X SFP ports, supports 8 10/100/1000BASE-T wired ports, supports 4 1G/10GBASE-X SFP+ ports, no power supply. System Switching Capacity: 758Gbps/7.58Tbps. Packet Forwarding Rate: 222Mpps. Front Panel Port Format: 12 SFP ports, 8 10/100/1000Base-T ports, 4 10 Gigabit SFP+ ports
Key Specifications
DescriptionH3C MS4520V2-24TP L3 Ethernet Switch Chassis, supports 12 100/1000BASE-X SFP ports, supports 8 10/100/1000BASE-T wired ports, supports 4 1G/10GBASE-X SFP Plus ports, no power supply
System Switching Capacity758Gbps/7.58Tbps
Packet Forwarding Rate222Mpps
Operating Environment Temperature-10℃～50℃
Operating Ambient Relative Humidity (Non-condensing)5%～95%
Front Panel Port Format12 SFP ports, 8 10/100/1000Base-T ports, 4 10 Gigabit SFP+ ports
Your Price
Best Value
$4,085.00
Availability Out of Stock
Quantity
Need configuration help?
Our CCIE certified engineers can help you verify compatibility.
Secure Payment
VISA
Pay
WIRE
Fast Dispatch
Global logistics network aiming for same-day handover.
48hrs
Avg. Shipping
99%
On-Time
Guaranteed Quality
Every unit undergoes rigorous 38-point inspection test.
3Year
Warranty
0.1%
RMA Rate
Global Reach
Trusted by enterprise clients across 6 continents.
85+
Countries
20k+
Clients
Expert Support
Certified network engineers ready to assist with configuration.
24/7
Assistance
CCIE
Certified
Overview
Specifications
| Catalog Description | |
|---|---|
| Description | H3C MS4520V2-24TP L3 Ethernet Switch Chassis, supports 12 100/1000BASE-X SFP ports, supports 8 10/100/1000BASE-T wired ports, supports 4 1G/10GBASE-X SFP Plus ports, no power supply |
| Key Specifications | |
| System Switching Capacity | 758Gbps/7.58Tbps |
| Packet Forwarding Rate | 222Mpps |
| Operating Environment Temperature | -10℃～50℃ |
| Operating Ambient Relative Humidity (Non-condensing) | 5%～95% |
| Front Panel Port Format | 12 SFP ports, 8 10/100/1000Base-T ports, 4 10 Gigabit SFP+ ports |
| Expansion Slot | None |
| Product Specifications | |
| System Switching Capacity | 758Gbps/7.58Tbps |
| Packet Forwarding Rate | 222Mpps |
| Front Panel Port Format | 12 SFP ports, 8 10/100/1000Base-T ports, 4 10 Gigabit SFP+ ports |
| Expansion Slot | None |
| Expansion line cards | None |
| IP Routing | Supports static routing Supports RIPv1/v2, RIPng Supports OSPFv1/v2, OSPFv3VRRP/VRRPv3 |
| Link aggregation | Support for dynamic aggregation Support for cross-device aggregation |
| Port Features | Supports IEEE802.3x Flow Control (Full Duplex) Storm Suppression based on Port Rate Percentage Storm Suppression based on PPS/BPS |
| IRF2 | Supports IRF2 Intelligent Resilient Architecture Supports stacking via standard Ethernet interfaces Supports local stacking and remote stacking Supports distributed device management, distributed link aggregation |
| Monitoring Terminal Embedded Management Component | Supports |
| SDN/Openflow | Support Open Flow 1.3 standard, support multi-controllers (EQUAL mode, active-standby mode), support multi-table pipeline, support Group table, support Meter |
| VLAN | Support Port-based VLAN Support MAC-based VLAN Support Protocol-based VLAN Support QinQ, Flexible QinQ Support VLAN Mapping Support Voice VLAN Support Guest VLAN Support Super VLAN Support PVLAN Support MVRP |
| ACL | Supports L2 (Layer 2) to L4 (Layer 4) packet filtering functions, provides flow classification based on source MAC address, destination MAC address, source IP address, destination IP address, TCP/UDP Port, protocol type, and VLAN, supports Time Range ACL, supports ACL distribution under Port, VLAN, and global modes, supports bidirectional ACL |
| QoS | Supports rate limiting on received and transmitted packets per Port, supports packet redirection, supports CAR (Committed Access Rate) function, supports 8 output queues per Port, supports Port queue scheduling (SP, WRR, SP+WRR), supports 802.1p and DSCP priority remarking on packets |
| DHCP | Support DHCP Client support DHCP Snooping support DHCP Snooping option82 support DHCP Relay support DHCP Server support DHCP auto-config (zero placement) |
| Multicast | Supports IGMP Snooping/MLD Snooping Supports MulticastVLAN |
| Layer 2 Ring Protocol | Supports STP/RSTP/MSTP/PVSTSupports Smart Link Supports RRPP |
| OAM | Supports 802.1ag and 802.3ah |
| Mirroring | Supports Port Mirroring, Remote Port Mirroring (RSPAN), and Flow Mirroring |
| Security Features | Supports user hierarchical management and password protection Supports 802.1X authentication/centralized MAC address authentication Supports Guest VLAN Supports RADIUS authentication Supports SSH 2.0 Supports port isolation Supports port security Supports limit on the number of MAC addresses to be learned Supports IP source address protection Supports ARP Intrusion Detection Function Supports IP+MAC+Port Multi-Group Binding Supports EAD |
| Management and Maintenance | Support XModem/FTP/TFTP load upgrade Support Command Line Interface (CLI), Telnet, Console port for configuration Support SNMPv1/v2/v3, WEB network management Support RMON alarm, event, history support iMC Intelligent Management Center Support system log, hierarchical alarm, debugging information output Support NTP Support Ping, Tracert support VCT cable detection function support DLDP unidirectional link detection protocol support Loopback-detection port loopback detection support power, fan, temperature alarm support BFD |
| Port lightning protection | 10KV |
| Green Energy Saving | Supports EEE (802.3az) Port automatic Power down function; Port scheduled down function (Schedule job) |
| Operating Environment Temperature | -10℃～50℃ |
| Operating Ambient Relative Humidity (Non-condensing) | 5%～95% |
| Ordering Information | |
| SFPGigabit Optical Port | |
| 0231A2UN | SFP-GE-LH40-SM1310-BIDI - SFP Gigabit BIDI Optical Module (TX 1310/RX 1550 nm, 40 km, LC) |
| 0231A2UL | SFP-GE-LH70-SM1490-BIDI - SFPGigabitBIDI Optical Module (TX 1490/RX 1550 nm, 70 km, LC) |
| 0231A2UP | SFP-GE-LH40-SM1550-BIDI - SFPGigabitBIDI Optical Module (TX 1550/RX 1310 nm, 40 km, LC) |
| 0231A2UM | SFP-GE-LH70-SM1550-BIDI - SFPGigabitBIDI Optical Module (TX 1550/RX 1490 nm, 70 km, LC) |
| 0231A54T | SFP-STACK-Kit - SFP Stacking Cable—(150 cm, includes stacking module) |
| 0231ADWF | SFP-GE-LH20-SM1310-I - SFPGigabit Optical Module(-40℃~85℃,1310nm,20km,LC) |
| 0231ADWE | SFP-GE-LH40-SM1310-I - SFPGigabit Optical Module(-40℃～85℃,1310nm,40km,LC) |
| 0231A12U | SFP-FE-LX-SM1550-BIDI - SFP Fast Ethernet BIDI Optical Module (TX 1550/RX 1310 nm, 15 km, LC) |
| 0231A12T | SFP-FE-LX-SM1310-BIDI - SFP Fast Ethernet BIDI Optical Module (TX 1310/RX 1550 nm, 15 km, LC) |
| 0231A564 | SFP-FE-LX-SM1310-A - Optical Module—SFP 100M/155M Single-Mode Module (1310 nm, 15 km, LC) |
| 0231A965 | SFP-FE-LX-SM1310-D - Optical Module—SFP 100M/155M Single-Mode Module (1310 nm, 15 km, LC) |
| 0231A0LU | 0231A0LU - H3C MS4500V2 Switch Series |
| 0231A0LP | 0231A0LP - H3C MS4500V2 Switch Series |
| 0231A320 | SFP-FE-SX-MM1310-A - Optical Module—SFP 100M/155M Multimode Module (1310 nm, 2 km, LC) |
| 0231A089 | SFP-FE-LH40-SM1310 - Optical Module - SFP 100M/155M Single-Mode Module - (1310nm, 40km, LC) |
| 0231A090 | SFP-FE-LH80-SM1550 - Optical Module—SFP 100M/155M Single-Mode Long-Distance Module—(1550 nm, 80 km, LC) |
| 0231A0LS | 0231A0LS - H3C MS4500V2 Switch Series |
| 0231A0HL | 0231A0HL - H3C MS4500V2 Switch Series |
| 0231A563 | SFP-GE-LX-SM1310-A - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 10 km, LC) |
| 0231A962 | SFP-GE-LX-SM1310-D - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 10 km, LC) |
| 02312170 | SFP-GE-LH40-SM1310 - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 40 km, LC) |
| 0231A963 | SFP-GE-LH40-SM1310-D - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 40 km, LC) |
| 02312172 | SFP-GE-LH40-SM1550 - Optical Module—SFP—GE—Single-Mode Module—(1550 nm, 40 km, LC) |
| 02312173 | SFP-GE-LH80-SM1550 - Optical Module - SFP-GE - Single-Mode Module - (1550 nm, 80 km, LC) |
| 0231A964 | SFP-GE-LH80-SM1550-D - Optical Module - SFP-GE - Single-Mode Module - (1550 nm, 80 km, LC) |
| 0231A0LQ | 0231A0LQ - H3C MS4500V2 Switch Series |
| 0231A562 | SFP-GE-SX-MM850-A - Optical Module - SFP-GE - Multimode Module (850 nm, 0.55 km, LC) |
| 0231A961 | SFP-GE-SX-MM850-D - Optical Module - SFP-GE - Multimode Module (850 nm, 0.55 km, LC) |
| 0231A0HK | 0231A0HK - H3C MS4500V2 Switch Series |
| 0231A11U | SFP-GE-LX-SM1310-BIDI - Optical Module - SFP Gigabit BIDI Optical Module - TX 1310/RX 1490, 10 km, LC |
| 0231A11V | SFP-GE-LX-SM1490-BIDI - Optical Module - SFP Gigabit BIDI Optical Module - TX 1490/RX 1310, 10 km, LC |
| 0231AEUP | SFP-GE-SX-MM850-S - SFPGigabit Optical Module(850nm,550m,SX,LC) |
| 0231AEUN | SFP-GE-LX-SM1310-S - SFPGigabit Optical Module(1310nm,10km,LX,LC) |
| 0231A085 | SFP-GE-T - SFP GEElectrical Port Module(100m,RJ45) |
| 0231A960 | SFP-GE-T-D - SFP GEElectrical Port Module(100m,RJ45) |
| SFP/SFP+10GOptical Port | |
| 0231A3TA | SFP-XG-D-AOC-10M - SFP+ to SFP+10m AOC |
| 0231A3TB | SFP-XG-D-AOC-20M - SFP+ to SFP+20m AOC |
| 0231A3T9 | SFP-XG-D-AOC-7M - SFP+ to SFP+7m AOC |
| 0231ABSQ | SFP-XG-LX-SM1270-BIDI - SFP+ 10GBIDIOptical Module(TX1270nm/RX1330nm,10km,LC) |
| 0231ABSP | SFP-XG-LH40-SM1270-BIDI - SFP+ 10G BIDI Optical Module (TX 1270 nm/RX 1330 nm, 40 km, LC) |
| 0231ABSR | SFP-XG-LX-SM1330-BIDI - SFP+ 10G BIDI Optical Module (TX 1330 nm/RX 1270 nm, 10 km, LC) |
| 0231ABSS | SFP-XG-LH40-SM1330-BIDI - SFP+ 10G BIDI Optical Module (TX 1330 nm/RX 1270 nm, 40 km, LC) |
| 0231ABST | SFP-XG-LH80-SM1490-BIDI - SFP+ 10GBIDI Optical Module (TX 1490nm/RX 1550nm, 80km, LC) |
| 0231ABSU | SFP-XG-LH80-SM1550-BIDI - SFP+ 10GBIDI Optical Module (TX 1550nm/RX 1490nm, 80km, LC) |
| 0231AEUQ | SFP-XG-LX-SM1310-S - SFP+ 10G Optical Module(1310nm,10km,LX,LC) |
| 0231AEUM | SFP-XG-SX-MM850-S - SFP+ 10G Optical Module(850nm,300m,SX,LC) |
| 0231A2L3 | SFP-XG-LX-SM1310-E - SFP+ 10GModule(1310nm,10km,LC) |
| 0231A1RQ | SFP-XG-LX-SM1310-D - SFP+ 10GModule(1310nm,10km,LC) |
| 0231A0A8 | SFP-XG-LX-SM1310 - SFP+ 10GModule(1310nm,10km,LC) |
| 0231A0SP | SFP-XG-LH40-SM1550 - SFP+ 10GModule(1550nm,40km,LC) |
| 0231A1RR | SFP-XG-LH40-SM1550-D - SFP+ 10GModule(1550nm,40km,LC) |
| 0231A2T6 | SFP-XG-LH80-SM1550-D - SFP+ 10GModule(1550nm,80km,LC) |
| 0231A1PA | SFP-XG-LH80-SM1550 - SFP+ 10GModule(1550nm,80km,LC) |
| 0231A2L4 | SFP-XG-SX-MM850-E - SFP+ 10GModule(850nm,300m,LC) |
| 0231A1RP | SFP-XG-SX-MM850-D - SFP+ 10GModule(850nm,300m,LC) |
| 0231A0A6 | SFP-XG-SX-MM850-A - SFP+ 10GModule(850nm,300m,LC) |
| 0231ALXU | SFP-XG-LX-SM1310-F - SFP+ All-Optical 3.010G Optical Module(1310nm,10km,SM,LC) |
| 0231A0AK | LSWM1STK - SFP+Cable0.65m |
| 0231A0AL | LSWM2STK - SFP+Cable1.2m |
| 0231A0AM | LSWM3STK - SFP+Cable3m |
| 0231A0G1 | LSTM1STK - SFP+Cable5m |
| Power Module | |
| 0231A2MR | AC-PSR150-A1 - 150W ACPower Module |
| 0231A0EY | 0231A0EY - H3C MS4500V2 Switch Series |
| 0231A1U0 | LSPM2150A - 150W Asset ManagementAC Power Module |
| 0231A1U2 | LSPM5150D - 150W Asset Management DC power Module (Power Supply with Front-Facing Air Exhaust) |
| 0231A5PW | PSR75-12A - 75WAC Pluggable Power Module |
| Product Identity | |
| Brand | H3C |
| Series | H3C MS4500V2 Series Switch |
