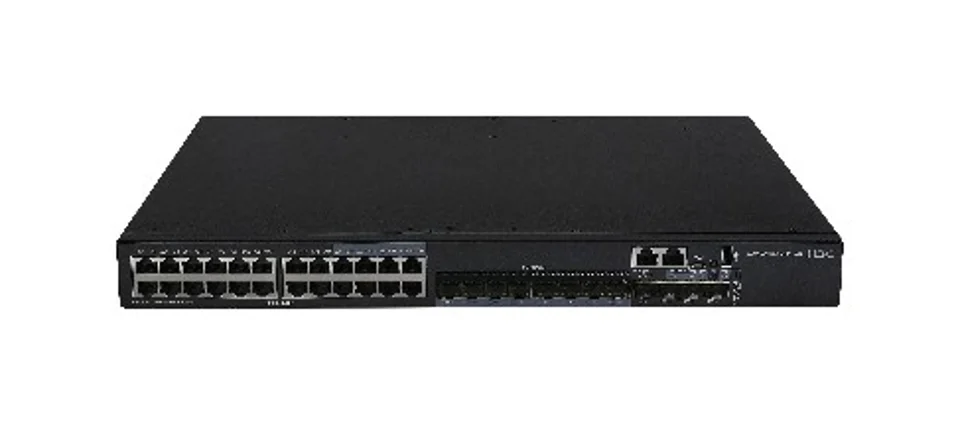

H3C LS-MS4520V2-30C Layer 3 Ethernet Switch Chassis, supports 24 10/100/1000BASE-T ports (including 8 SFP Combo ports), supports 4 1G/10GBASE-X SFP+ ports, supports 1 slot, no power supply
Brand H3C
N/AVerified
H3C LS-MS4520V2-30C
Model (MPN)
0235A2PA
Condition
Factory Sealed
Out of Stock
H3C LS-MS4520V2-30C Layer 3 Ethernet Switch Chassis, supports 24 10/100/1000BASE-T ports (including 8 SFP Combo ports), supports 4 1G/10GBASE-X SFP+ ports, supports 1 slot, no power supply. System Switching Capacity: 758Gbps/7.58Tbps. Packet Forwarding Rate: 252Mpps. Front Panel Port Format: 24*10/100/1000Base-TElectrical Port (8Combo), 4*10G BASE-X SFP+10GOptical Port
Key Specifications
DescriptionH3C MS4520V2-30C L3 Ethernet Switch Chassis, supports 24 10/100/1000BASE-T ports (including 8 SFP Combo ports), supports 4 1G/10GBASE-X SFP Plus ports, supports 1 slot, no power supply
System Switching Capacity758Gbps/7.58Tbps
Packet Forwarding Rate252Mpps
Operating Environment Temperature-10℃～50℃
Operating Ambient Relative Humidity (Non-condensing)5%～95%
Front Panel Port Format24*10/100/1000Base-TElectrical Port (8Combo), 4*10G BASE-X SFP+10GOptical Port
Your Price
Best Value
$4,057.00
Availability Out of Stock
Quantity
Need configuration help?
Our CCIE certified engineers can help you verify compatibility.
Secure Payment
VISA
Pay
WIRE
Fast Dispatch
Global logistics network aiming for same-day handover.
48hrs
Avg. Shipping
99%
On-Time
Guaranteed Quality
Every unit undergoes rigorous 38-point inspection test.
3Year
Warranty
0.1%
RMA Rate
Global Reach
Trusted by enterprise clients across 6 continents.
85+
Countries
20k+
Clients
Expert Support
Certified network engineers ready to assist with configuration.
24/7
Assistance
CCIE
Certified
Overview
Specifications
| Catalog Description | |
|---|---|
| Description | H3C MS4520V2-30C L3 Ethernet Switch Chassis, supports 24 10/100/1000BASE-T ports (including 8 SFP Combo ports), supports 4 1G/10GBASE-X SFP Plus ports, supports 1 slot, no power supply |
| Key Specifications | |
| System Switching Capacity | 758Gbps/7.58Tbps |
| Packet Forwarding Rate | 252Mpps |
| Operating Environment Temperature | -10℃～50℃ |
| Operating Ambient Relative Humidity (Non-condensing) | 5%～95% |
| Front Panel Port Format | 24*10/100/1000Base-TElectrical Port (8Combo), 4*10G BASE-X SFP+10GOptical Port |
| Expansion Slot | 1 |
| Product Specifications | |
| System Switching Capacity | 758Gbps/7.58Tbps |
| Packet Forwarding Rate | 252Mpps |
| Front Panel Port Format | 24*10/100/1000Base-TElectrical Port (8Combo), 4*10G BASE-X SFP+10GOptical Port |
| Expansion Slot | 1 |
| Expansion line cards | None |
| IP Routing | Supports static routing Supports RIPv1/v2, RIPng Supports OSPFv1/v2, OSPFv3VRRP/VRRPv3 |
| Link aggregation | Support for dynamic aggregation Support for cross-device aggregation |
| Port Features | Supports IEEE802.3x Flow Control (Full Duplex) Storm Suppression based on Port Rate Percentage Storm Suppression based on PPS/BPS |
| IRF2 | Supports IRF2 Intelligent Resilient Architecture Supports stacking via standard Ethernet interfaces Supports local stacking and remote stacking Supports distributed device management, distributed link aggregation |
| Monitoring Terminal Embedded Management Component | Supports |
| SDN/Openflow | Support Open Flow 1.3 standard, support multi-controllers (EQUAL mode, active-standby mode), support multi-table pipeline, support Group table, support Meter |
| VLAN | Support Port-based VLAN Support MAC-based VLAN Support Protocol-based VLAN Support QinQ, Flexible QinQ Support VLAN Mapping Support Voice VLAN Support Guest VLAN Support Super VLAN Support PVLAN Support MVRP |
| ACL | Supports L2 (Layer 2) to L4 (Layer 4) packet filtering functions, provides flow classification based on source MAC address, destination MAC address, source IP address, destination IP address, TCP/UDP Port, protocol type, and VLAN, supports Time Range ACL, supports ACL distribution under Port, VLAN, and global modes, supports bidirectional ACL |
| QoS | Supports rate limiting on received and transmitted packets per Port, supports packet redirection, supports CAR (Committed Access Rate) function, supports 8 output queues per Port, supports Port queue scheduling (SP, WRR, SP+WRR), supports 802.1p and DSCP priority remarking on packets |
| DHCP | Support DHCP Client support DHCP Snooping support DHCP Snooping option82 support DHCP Relay support DHCP Server support DHCP auto-config (zero placement) |
| Multicast | Supports IGMP Snooping/MLD Snooping Supports MulticastVLAN |
| Layer 2 Ring Protocol | Supports STP/RSTP/MSTP/PVSTSupports Smart Link Supports RRPP |
| OAM | Supports 802.1ag and 802.3ah |
| Mirroring | Supports Port Mirroring, Remote Port Mirroring (RSPAN), and Flow Mirroring |
| Security Features | Supports user hierarchical management and password protection Supports 802.1X authentication/centralized MAC address authentication Supports Guest VLAN Supports RADIUS authentication Supports SSH 2.0 Supports port isolation Supports port security Supports limit on the number of MAC addresses to be learned Supports IP source address protection Supports ARP Intrusion Detection Function Supports IP+MAC+Port Multi-Group Binding Supports EAD |
| Management and Maintenance | Support XModem/FTP/TFTP load upgrade Support Command Line Interface (CLI), Telnet, Console port for configuration Support SNMPv1/v2/v3, WEB network management Support RMON alarm, event, history support iMC Intelligent Management Center Support system log, hierarchical alarm, debugging information output Support NTP Support Ping, Tracert support VCT cable detection function support DLDP unidirectional link detection protocol support Loopback-detection port loopback detection support power, fan, temperature alarm support BFD |
| Port lightning protection | 10KV |
| Green Energy Saving | Supports EEE (802.3az) Port automatic Power down function; Port scheduled down function (Schedule job) |
| Operating Environment Temperature | -10℃～50℃ |
| Operating Ambient Relative Humidity (Non-condensing) | 5%～95% |
| Ordering Information | |
| Expansion Module | |
| 0231A2TA | LSWM2SP2PM - 2-Port 10G SFP+ MACSec Interface Card |
| SFP+ 10G Port | |
| 0231A3TA | SFP-XG-D-AOC-10M - SFP+ to SFP+10m AOC |
| 0231A3TB | SFP-XG-D-AOC-20M - SFP+ to SFP+20m AOC |
| 0231A3T9 | SFP-XG-D-AOC-7M - SFP+ to SFP+7m AOC |
| 0231ABSQ | SFP-XG-LX-SM1270-BIDI - SFP+ 10GBIDIOptical Module(TX1270nm/RX1330nm,10km,LC) |
| 0231ABSP | SFP-XG-LH40-SM1270-BIDI - SFP+ 10G BIDI Optical Module (TX 1270 nm/RX 1330 nm, 40 km, LC) |
| 0231ABSR | SFP-XG-LX-SM1330-BIDI - SFP+ 10G BIDI Optical Module (TX 1330 nm/RX 1270 nm, 10 km, LC) |
| 0231ABSS | SFP-XG-LH40-SM1330-BIDI - SFP+ 10G BIDI Optical Module (TX 1330 nm/RX 1270 nm, 40 km, LC) |
| 0231A0A8 | SFP-XG-LX-SM1310 - SFP+ 10GModule(1310nm,10km,LC) |
| 0231A1RQ | SFP-XG-LX-SM1310-D - SFP+ 10GModule(1310nm,10km,LC) |
| 0231A2L3 | SFP-XG-LX-SM1310-E - SFP+ 10GModule(1310nm,10km,LC) |
| 0231A0SP | SFP-XG-LH40-SM1550 - SFP+ 10GModule(1550nm,40km,LC) |
| 0231A1RR | SFP-XG-LH40-SM1550-D - SFP+ 10GModule(1550nm,40km,LC) |
| 0231A1PA | SFP-XG-LH80-SM1550 - SFP+ 10GModule(1550nm,80km,LC) |
| 0231A0A6 | SFP-XG-SX-MM850-A - SFP+ 10GModule(850nm,300m,LC) |
| 0231A1RP | SFP-XG-SX-MM850-D - SFP+ 10GModule(850nm,300m,LC) |
| 0231A2L4 | SFP-XG-SX-MM850-E - SFP+ 10GModule(850nm,300m,LC) |
| 0231A0AK | LSWM1STK - SFP+Cable0.65m |
| 0231A0AL | LSWM2STK - SFP+Cable1.2m |
| 0231A0AM | LSWM3STK - SFP+Cable3m |
| 0231A0G1 | LSTM1STK - SFP+Cable5m |
| 0231A2TB | LSWM2SP8P - 8-Port10GSFP Plus Interface Card |
| 02312173 | SFP-GE-LH80-SM1550 - Optical Module - SFP-GE - Single-Mode Module - (1550 nm, 80 km, LC) |
| 0231A2UN | SFP-GE-LH40-SM1310-BIDI - SFP Gigabit BIDI Optical Module (TX 1310/RX 1550 nm, 40 km, LC) |
| 0231A2UL | SFP-GE-LH70-SM1490-BIDI - SFPGigabitBIDI Optical Module (TX 1490/RX 1550 nm, 70 km, LC) |
| 0231A2UP | SFP-GE-LH40-SM1550-BIDI - SFPGigabitBIDI Optical Module (TX 1550/RX 1310 nm, 40 km, LC) |
| 0231A2UM | SFP-GE-LH70-SM1550-BIDI - SFPGigabitBIDI Optical Module (TX 1550/RX 1490 nm, 70 km, LC) |
| 0231A54T | SFP-STACK-Kit - SFP Stacking Cable—(150 cm, includes stacking module) |
| 0231ADWF | SFP-GE-LH20-SM1310-I - SFPGigabit Optical Module(-40℃~85℃,1310nm,20km,LC) |
| 0231ADWE | SFP-GE-LH40-SM1310-I - SFPGigabit Optical Module(-40℃～85℃,1310nm,40km,LC) |
| 0231A0HL | 0231A0HL - 8-Port10GSFP Plus Interface Card |
| 0231A0LS | 0231A0LS - 8-Port10GSFP Plus Interface Card |
| 0231A563 | SFP-GE-LX-SM1310-A - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 10 km, LC) |
| 0231A962 | SFP-GE-LX-SM1310-D - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 10 km, LC) |
| 02312170 | SFP-GE-LH40-SM1310 - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 40 km, LC) |
| 0231A963 | SFP-GE-LH40-SM1310-D - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 40 km, LC) |
| 02312172 | SFP-GE-LH40-SM1550 - Optical Module—SFP—GE—Single-Mode Module—(1550 nm, 40 km, LC) |
| 0231A964 | SFP-GE-LH80-SM1550-D - Optical Module - SFP-GE - Single-Mode Module - (1550 nm, 80 km, LC) |
| 0231A0LQ | 0231A0LQ - 8-Port10GSFP Plus Interface Card |
| 0231A562 | SFP-GE-SX-MM850-A - Optical Module - SFP-GE - Multimode Module (850 nm, 0.55 km, LC) |
| 0231A961 | SFP-GE-SX-MM850-D - Optical Module - SFP-GE - Multimode Module (850 nm, 0.55 km, LC) |
| 0231A0HK | 0231A0HK - 8-Port10GSFP Plus Interface Card |
| 0231A11U | SFP-GE-LX-SM1310-BIDI - Optical Module - SFP Gigabit BIDI Optical Module - TX 1310/RX 1490, 10 km, LC |
| 0231A11V | SFP-GE-LX-SM1490-BIDI - Optical Module - SFP Gigabit BIDI Optical Module - TX 1490/RX 1310, 10 km, LC |
| 0231AEUP | SFP-GE-SX-MM850-S - SFPGigabit Optical Module(850nm,550m,SX,LC) |
| 0231AEUN | SFP-GE-LX-SM1310-S - SFPGigabit Optical Module(1310nm,10km,LX,LC) |
| 0231A085 | SFP-GE-T - SFP GEElectrical Port Module(100m,RJ45) |
| 0231A960 | SFP-GE-T-D - SFP GEElectrical Port Module(100m,RJ45) |
| 0231ABST | SFP-XG-LH80-SM1490-BIDI - SFP+ 10GBIDI Optical Module (TX 1490nm/RX 1550nm, 80km, LC) |
| 0231ABSU | SFP-XG-LH80-SM1550-BIDI - SFP+ 10GBIDI Optical Module (TX 1550nm/RX 1490nm, 80km, LC) |
| 0231AEUQ | SFP-XG-LX-SM1310-S - SFP+ 10G Optical Module(1310nm,10km,LX,LC) |
| 0231AEUM | SFP-XG-SX-MM850-S - SFP+ 10G Optical Module(850nm,300m,SX,LC) |
| 0231A2T6 | SFP-XG-LH80-SM1550-D - SFP+ 10GModule(1550nm,80km,LC) |
| 0231ALXU | SFP-XG-LX-SM1310-F - SFP+ All-Optical 3.010G Optical Module(1310nm,10km,SM,LC) |
| 0231A2TC | LSWM2QP2P - 2-Port40G QSFP Plus Interface Card |
| QSFP+ Port | |
| 0231A1LS | LSWM1QSTK0 - 40G QSFP+ 1m Cable |
| 0231A1LT | LSWM1QSTK1 - 40G QSFP+ 3m Cable |
| 0231A1LU | LSWM1QSTK2 - 40G QSFP+ 5m Cable |
| 0231A9CT | QSFP-40G-D-AOC-3M - 40G QSFP+ to 40G QSFP+ 3m Active Optical Cable |
| 0231A3U4 | QSFP-40G-D-AOC-10M - 40G QSFP+ to 40G QSFP+10m AOC |
| 0231A3U5 | QSFP-40G-D-AOC-20M - 40G QSFP+ to 40G QSFP+20m AOC |
| 0231A3U3 | QSFP-40G-D-AOC-7M - 40G QSFP+ to 40G QSFP+7m AOC |
| 0231A1LV | LSWM1QSTK3 - 40G QSFP+ to 4x10G SFP+ 1m Cable |
| 0231A1LW | LSWM1QSTK4 - 40G QSFP+ to 4x10G SFP+ 3m Cable |
| 0231A1LX | LSWM1QSTK5 - 40G QSFP+ to 4x10G SFP+ 5m Cable |
| 0231A2E4 | QSFP-40G-LR4-WDM1300 - QSFP+ 40G optical module (1310 nm, 10 km, LR4, LC) |
| 0231A4Q7 | QSFP-40G-BIDI-SR-MM850 - QSFP+ 40G BIDI Optical Module (850 nm, 100 m, SR) |
| 0231A4PB | QSFP-40G-LR4L-WDM1300 - QSFP+ 40G Optical Module (1310nm, 2km, LR4L, LC) |
| 0231A4UG | QSFP-40G-ER4-WDM1300 - QSFP+ 40G Optical Module (1310 nm, 40 km, ER4, LC) |
| 0231A2NF | QSFP-40G-SR4-MM850 - QSFP+ 40G Optical Module (850 nm, 100 m, SR4, supports 1-to-4 splitting) |
| 0231A2KL | QSFP-40G-CSR4-MM850 - QSFP+ 40G Optical Module (850 nm, 300 m, CSR4, supports 1-to-4 splitting) |
| 0231A8HW | LSWM2MGT8P - 8-Port 1/2.5/5G BASE-T Ethernet Electrical Interface Module |
| 0231A8HX | LSWM2XMGT8P - 8-Port 1/2.5/5/10G BASE-T Ethernet Port Module |
| 0231A8J8 | LSWM2ZSP2P - 2-Port25G SFP28Ethernet Optical Interface Module |
| SFP28-Port | |
| 0231A6NG | SFP-25G-D-AOC-10M - 25G SFP28 to 25G SFP28 10m Active Optical Cable |
| 0231A5GY | SFP-25G-D-CAB-1M - 25G SFP28 to 25G SFP28 1m Passive Cable |
| 0231A6NH | SFP-25G-D-AOC-20M - 25G SFP28 to 25G SFP28 20m Active Optical Cable |
| 0231A5H0 | SFP-25G-D-CAB-3M - 25G SFP28 to 25G SFP28 3m Passive Cable |
| 0231A6ND | SFP-25G-D-AOC-3M - 25G SFP28 to 25G SFP28 3m Active Optical Cable |
| 0231A5H1 | SFP-25G-D-CAB-5M - 25G SFP28 to 25G SFP28 5m Passive Cable |
| 0231A6NE | SFP-25G-D-AOC-5M - 25G SFP28 to 25G SFP28 5m Active Optical Cable |
| 0231A6NF | SFP-25G-D-AOC-7M - 25G SFP28 to 25G SFP28 7m Active Optical Cable |
| 0231ABR6 | SFP-25G-LR-SM1310 - 25G SFP28Optical Module(1310nm,10km,LR,SM,LC) |
| 0231A4Y2 | SFP-25G-SR-MM850 - 25G SFP28Optical Module(850nm,100m,SR,MM,LC) |
| 0231A9UF | LSWM2SP2PB - H3C 2-Port10GSFP Plus Ethernet Optical Interface Module |
| 0231A0HL | 0231A0HL - H3C 2-Port10GSFP Plus Ethernet Optical Interface Module |
| 0231A0LS | 0231A0LS - H3C 2-Port10GSFP Plus Ethernet Optical Interface Module |
| 0231A0LQ | 0231A0LQ - H3C 2-Port10GSFP Plus Ethernet Optical Interface Module |
| 0231A0HK | 0231A0HK - H3C 2-Port10GSFP Plus Ethernet Optical Interface Module |
| 0231A9UG | LSWM2SP4PB - H3C 4-Port10GSFP Plus Ethernet Optical Interface Module |
| 0231A0HL | 0231A0HL - H3C 4-Port10GSFP Plus Ethernet Optical Interface Module |
| 0231A0LS | 0231A0LS - H3C 4-Port10GSFP Plus Ethernet Optical Interface Module |
| 0231A0LQ | 0231A0LQ - H3C 4-Port10GSFP Plus Ethernet Optical Interface Module |
| 0231A0HK | 0231A0HK - H3C 4-Port10GSFP Plus Ethernet Optical Interface Module |
| SFPGigabit Optical Port | |
| 0231A12U | SFP-FE-LX-SM1550-BIDI - SFP Fast Ethernet BIDI Optical Module (TX 1550/RX 1310 nm, 15 km, LC) |
| 0231A12T | SFP-FE-LX-SM1310-BIDI - SFP Fast Ethernet BIDI Optical Module (TX 1310/RX 1550 nm, 15 km, LC) |
| 0231A564 | SFP-FE-LX-SM1310-A - Optical Module—SFP 100M/155M Single-Mode Module (1310 nm, 15 km, LC) |
| 0231A965 | SFP-FE-LX-SM1310-D - Optical Module—SFP 100M/155M Single-Mode Module (1310 nm, 15 km, LC) |
| 0231A0LU | 0231A0LU - H3C MS4500V2 Switch Series |
| 0231A0LP | 0231A0LP - H3C MS4500V2 Switch Series |
| 0231A320 | SFP-FE-SX-MM1310-A - Optical Module—SFP 100M/155M Multimode Module (1310 nm, 2 km, LC) |
| 0231A089 | SFP-FE-LH40-SM1310 - Optical Module - SFP 100M/155M Single-Mode Module - (1310nm, 40km, LC) |
| 0231A090 | SFP-FE-LH80-SM1550 - Optical Module—SFP 100M/155M Single-Mode Long-Distance Module—(1550 nm, 80 km, LC) |
| 0231A0LS | 0231A0LS - H3C MS4500V2 Switch Series |
| 0231A0HL | 0231A0HL - H3C MS4500V2 Switch Series |
| 0231A0LQ | 0231A0LQ - H3C MS4500V2 Switch Series |
| 0231A0HK | 0231A0HK - H3C MS4500V2 Switch Series |
| SFP/SFP+10GOptical Port | |
| Power Module | |
| 0231A2MR | AC-PSR150-A1 - 150W ACPower Module |
| 0231A0EY | 0231A0EY - H3C MS4500V2 Switch Series |
| 0231A1U0 | LSPM2150A - 150W Asset ManagementAC Power Module |
| 0231A1U2 | LSPM5150D - 150W Asset Management DC power Module (Power Supply with Front-Facing Air Exhaust) |
| 0231A6N5 | 0231A6N5 - H3C MS4500V2 Switch Series |
| 0231A5PW | PSR75-12A - 75WAC Pluggable Power Module |
| Product Identity | |
| Brand | H3C |
| Series | H3C MS4500V2 Series Switch |
Reviews
No reviews yet
Be the first to review this enterprise product.
Warranty
Standard Warranty Policy
All hardware sold by ITMall includes our 3-Year Free Maintenance and 1-Year RMA Replacement Service. Please refer to our Warranty Policy for details.
- 1-Year Advance Replacement (RMA)
- 3-Year Free Repair Service
- Full coverage for functionality defects
Hassle-Free RMA Process
We streamlined the return process to minimize your network downtime. Our engineering team provides pre-return diagnostics to ensure hardware is truly defective.
- 30-Day satisfaction guarantee return window
- Automated RMA portal access for instant tracking
- Restocking fee waived for functionality issues
Certified Engineering Support
Our products are backed by CCIE-certified engineers who provide expert guidance on compatibility, configuration, and troubleshooting at no extra cost.
- Free pre-sales topology consultation
- Remote troubleshooting & firmware advice
- Simulation lab testing before dispatch
Global Logistics & Packaging
We ship to 85+ countries using premium anti-static packaging to ensure safety. Orders placed before 14:00 (GMT+8) are typically dispatched the same day.
- Double-walled boxes with customer molded foam
- Blind shipping support for channel partners
- Real-time tracking via FedEx / DHL / UPS
Resources
No downloads available for this product.
FAQ
What is the System Switching Capacity specification for LS-MS4520V2-30C?
LS-MS4520V2-30C lists System Switching Capacity as 758Gbps/7.58Tbps. Use this value when checking datasheet requirements, quotation details, and deployment compatibility.
What is the Packet Forwarding Rate specification for LS-MS4520V2-30C?
LS-MS4520V2-30C lists Packet Forwarding Rate as 252Mpps. Use this value when checking datasheet requirements, quotation details, and deployment compatibility.
What is the Front Panel Port Format specification for LS-MS4520V2-30C?
LS-MS4520V2-30C lists Front Panel Port Format as 24*10/100/1000Base-TElectrical Port (8Combo), 4*10G BASE-X SFP+10GOptical Port. Use this value when checking datasheet requirements, quotation details, and deployment compatibility.
What is the Expansion Slot specification for LS-MS4520V2-30C?
LS-MS4520V2-30C lists Expansion Slot as 1. Use this value when checking datasheet requirements, quotation details, and deployment compatibility.
Is this product Brand New?
Yes, unless clearly marked as "Refurbished", all our products are Factory Sealed (Original New) sourced directly from authorized channels.
What is the warranty period?
We provide a comprehensive 3-Year Warranty on this item. This covers hardware defects and includes advanced replacement.
Do you offer volume discounts?
Yes! For bulk orders or project bids, please click "Quote | Help" to get a custom price proposal from our sales team.
How fast can you ship?
In-stock items ordered before 3 PM EST ship the same day. We offer overnight and 2-day shipping options via FedEx/DHL.
Still have questions?
