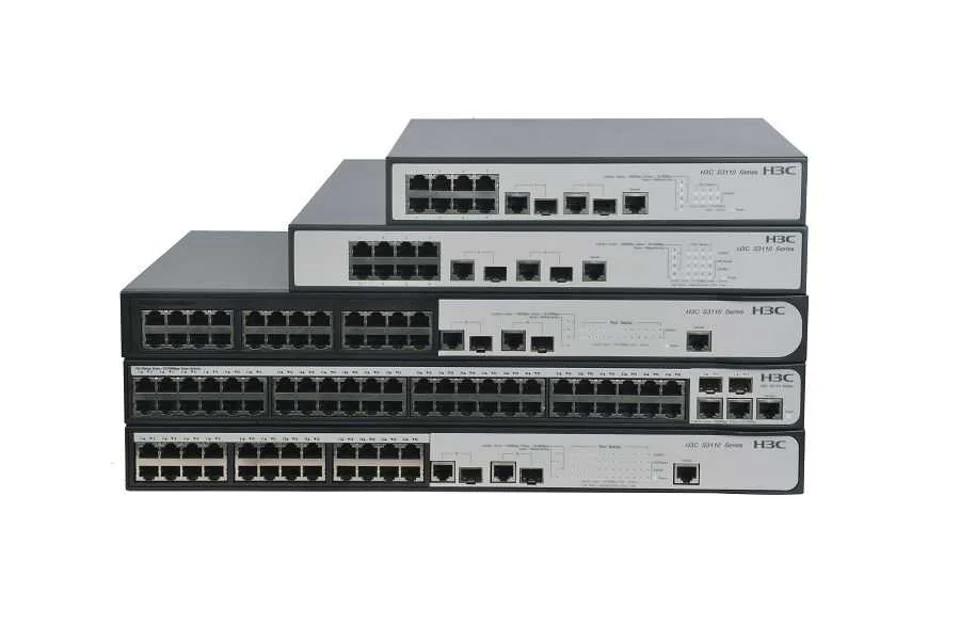

H3C LS-S3110-26TP-PWR Ethernet Switch. H3C S3110-26TP-PWR,Ethernet Switch(24FE+2SFP Combo+PoE,AC/DC).
Our CCIE certified engineers can help you verify compatibility.
Global logistics network aiming for same-day handover.
Every unit undergoes rigorous 38-point inspection test.
Trusted by enterprise clients across 6 continents.
Certified network engineers ready to assist with configuration.
H3C LS-S3110-26TP-PWR Ethernet Switch is H3C S3110-26TP-PWR,Ethernet Switch(24FE+2SFP Combo+PoE,AC/DC).
Compatible and optional SKUs are listed in the ordering information, including 9801A0K0 LS-S3110-26TP-PWR, 0231A564 SFP-FE-LX-SM1310-A, 0231A320 SFP-FE-SX-MM1310-A, 0231A563 SFP-GE-LX-SM1310-A, 0231A962 SFP-GE-LX-SM1310-D.
| Key Specifications | |
|---|---|
| Switching Capacity | 64Gbps |
| Packet Forwarding Rate | 11.1Mpps/18.6Mpps |
| Management Port | 1 Console port |
| Dimensions (W x D x H)(Unit: mm) | 440×260×44 |
| Weight (Fully Configured) | ≤ 4kg |
| PoE+ Power Supply | Supports |
| Product Specifications | |
| Switching Capacity | 64Gbps |
| Packet Forwarding Rate | 11.1Mpps/18.6Mpps |
| Management Port | 1 Console port |
| Fixed Port | 24 10/100Base-TX Ethernet ports (PoE+), 2 10/100/1000Base-T Ethernet ports and 2 multiplexed 100/1000Base-X SFP ports |
| PoE+ Power Supply | Supports |
| Port | Supports IEEE 802.3x flow control (full-duplex) and broadcast storm suppression based on Port bandwidth percentage |
| Port Aggregation | Supports LACP and manual link aggregation Supports maximum Port aggregation group: Port count/2, each aggregation group maximum supports 8 x Port |
| VLAN | Supports port-based VLANs (4K) Supports MAC-based VLANs Supports protocol-based VLANs Supports GVRP Supports QinQ, Flexible QinQ Supports VLAN Mapping |
| IPv4 | Supports static routing Supports RIP |
| IPv6 | Supports IPv4 and IPv6 dual stacks Supports IPv6 static routing Supports ND, PMTUD Supports Pingv6, Telnetv6, FTPv6, TFTPv6, ICMPv6 |
| stacking | Supports IRF LITE stacking technology up to 16 devices stacking |
| Multicast | IGMP Snooping v1/v2/v3, support for fast exit MLD Snooping v1/v2 multicast VLANs |
| Mirroring | Support for port mirroring Support for flow mirroring |
| ACL | Supports L2-L4 packet filtering functionality, can match the first 80 bytes of packets, provides ACL definition based on source MAC address, destination MAC address, source IP address, destination IP address, IP protocol type, TCP/UDP Port, TCP/UDP Port range, VLAN, etc. Supports ACL deployment based on Port, VLAN, supports ACL based on Time Range, supports hardware-based IPv6 ACL and QoS |
| Security Features | User hierarchical management and password protection Support for Guest VLAN Support for IEEE 802.1X authentication/centralized MAC address authentication Support for EAD rapid deployment Support for AAA & RADIUS & HWTACACS authentication Support for MAC address learning number limitation Support for MAC address black hole Support for SSH 2.0, which provides a secure encrypted channel for user login Support for SSL, which safeguards the Support HABP support SAVI source address validity verification support port isolation support ARP message speed limit function support IP source address protection support ARP intrusion detection function support anti-Dos attack support broadcast message suppression support master and backup data backup mechanism support IP+port binding, IP+MAC binding, port+MAC binding, IP+MAC+port Binding Function |
| Reliability | Supports STP/RSTP/MSTP Supports Ethernet OAM Supports CFD Connectivity Error Detection Supports Smart Link, which can provide efficient and reliable link backup, load sharing and fast convergence for dual uplink networking Supports Monitor Link, which can monitor the status of the uplink, and cooperate with Smart Link for more efficient link backup switching Supports DLDP, which can Supports DLDP to detect and discover unidirectional links Supports RRPP (Rapid Ring Protection Protocol). |
| DHCP | Supports DHCP Server Supports DHCP Relay Supports DHCP Client Supports DHCP Snooping Supports DHCP Snooping Option82 |
| Management and Maintenance | Support Console/AUX Modem/Telnet/SSH2.0 Command Line Configuration Support FTP, TFTP, Xmodem, SFTP File Upload and Download Management Support SNMP V1/V2c/V3 Support RMON Support TR069 Support NTP Clock Support System Work Log Support Cluster Management Support H3C iMC Intelligent Management Center |
| PoE+ Power Supply | Support PoE+ whole machine max output:370W (support RPS Power Module max output 740W) |
| Input voltage | AC：100V～240V AC, 50/60Hz～264V AC；47Hz～63Hz |
| Dimensions (W x D x H)(Unit: mm) | 440×260×44 |
| Weight (Fully Configured) | ≤ 4kg |
| Static Power Consumption | 25W |
| Full Load Power Consumption | AC power supply 470W, of which the total PoE power supply is 370WDC power supply 810W, of which the total PoE power supply is 740W |
| Ambient temperature | Operating Environment Temperature: 0℃～45℃ Storage Environment Temperature: -40℃～70℃ |
| Ambient humidity | Operating ambient humidity: 5%～95% (non-condensing) Storage ambient humidity: 5%～95% (non-condensing) |
| Catalog Description | |
| Description | H3C S3110-26TP-PWR,Ethernet Switch(24FE+2SFP Combo+PoE,AC/DC) |
| Ordering Information | |
| Base Configuration | |
| 9801A0K0 | LS-S3110-26TP-PWR |
| Fast Ethernet Optical Module | |
| 0231A564 | SFP-FE-LX-SM1310-A; Single-mode SFP 100M/155M optical module (1310 nm, 15 km, LC); Type: Fast Ethernet Optical Module |
| 0231A320 | SFP-FE-SX-MM1310-A; Optical Module-SFP 100M/155M-Multimode Module (1310nm, 2km, LC); Type: Fast Ethernet Optical Module |
| Gigabit Optical Module | |
| 0231A563 | SFP-GE-LX-SM1310-A; Single-mode SFP GE optical module (1310 nm, 10 km, LC); Type: Gigabit Optical Module |
| 0231A962 | SFP-GE-LX-SM1310-D; Single-mode SFP GE optical module (1310 nm, 10 km, LC); Type: Gigabit Optical Module |
| 02312170 | SFP-GE-LH40-SM1310; Single-mode SFP GE optical module (1310 nm, 40 km, LC); Type: Gigabit Optical Module |
| 0231A963 | SFP-GE-LH40-SM1310-D; Single-mode SFP GE optical module (1310 nm, 40 km, LC); Type: Gigabit Optical Module |
| 02312172 | SFP-GE-LH40-SM1550; Single-mode SFP optical module (1550 nm, 40 km, LC); Type: Gigabit Optical Module |
| 02312173 | SFP-GE-LH80-SM1550; Single-mode SFP optical module (1550 nm, 80 km, LC); Type: Gigabit Optical Module |
| 0231A964 | SFP-GE-LH80-SM1550-D; Single-mode SFP optical module (1550 nm, 80 km, LC); Type: Gigabit Optical Module |
| 0231A562 | SFP-GE-SX-MM850-A; Multi-mode SFP-GE optical module (850 nm, 0.55 km, LC); Type: Gigabit Optical Module |
| 0231A961 | SFP-GE-SX-MM850-D; Multi-mode SFP-GE optical module (850 nm, 0.55 km, LC); Type: Gigabit Optical Module |
| 0231AEUP | SFP-GE-SX-MM850-S; SFP Gigabit Optical Module (850 nm, 550 m, SX, LC); Type: Gigabit Optical Module |
| 0231AEUN | SFP-GE-LX-SM1310-S; SFP Gigabit Optical Module (1310 nm, 10 km, LX, LC); Type: Gigabit Optical Module |
| Product Identity | |
| Brand | H3C |
| Series | H3C S3xxx Series Switches |
