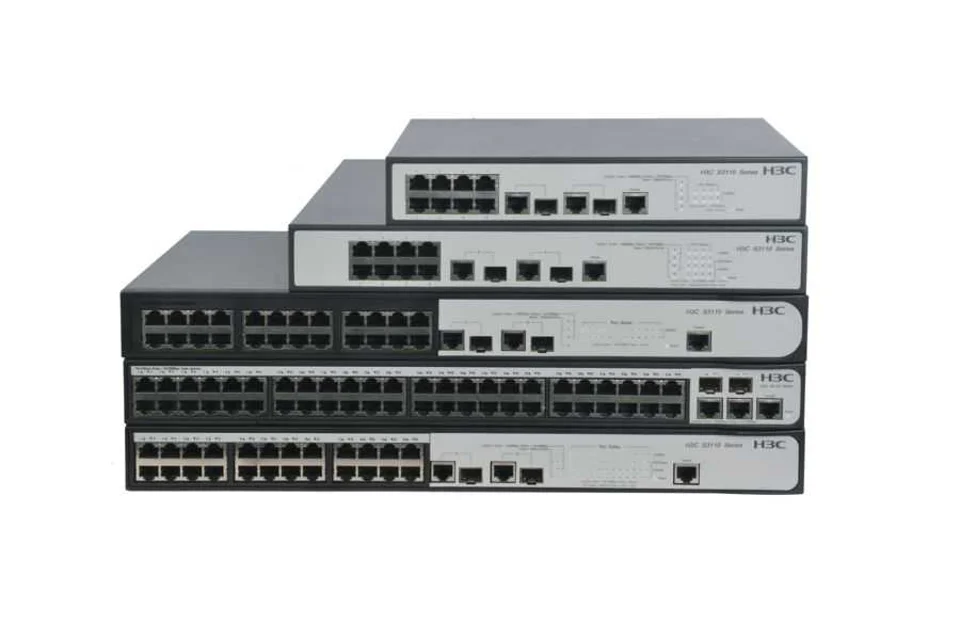

H3C LS-S3110-52TP-SI Ethernet Switch. H3C S3110-52TP-SI,Ethernet Switch(48FE+2GE+2SFP,AC).
Our CCIE certified engineers can help you verify compatibility.
Global logistics network aiming for same-day handover.
Every unit undergoes rigorous 38-point inspection test.
Trusted by enterprise clients across 6 continents.
Certified network engineers ready to assist with configuration.
H3C LS-S3110-52TP-SI Ethernet Switch is H3C S3110-52TP-SI,Ethernet Switch(48FE+2GE+2SFP,AC).
Compatible and optional SKUs are listed in the ordering information, including 9801A0L5 LS-S3110-52TP-SI, 0231A564 SFP-FE-LX-SM1310-A, 0231A320 SFP-FE-SX-MM1310-A, 0231A563 SFP-GE-LX-SM1310-A, 0231A962 SFP-GE-LX-SM1310-D.
| Key Specifications | |
|---|---|
| Switching Capacity | 64Gbps |
| Packet Forwarding Rate | 17.7Mpps |
| Management Port | 1 Console port |
| Dimensions (W x D x H)(Unit: mm) | 440×173×44 |
| Weight (Fully Configured) | ≤ 2.3kg |
| Maximum Power Consumption of the Entire System | ≤ 22W |
| Product Specifications | |
| Switching Capacity | 64Gbps |
| Packet Forwarding Rate | 17.7Mpps |
| Management Port | 1 Console port |
| Fixed Port | 48 x10/100Base-TXEthernet Port, 2 x10/100/1000Base-TEthernet Portand2 x100/1000Base-X SFPPort |
| Port | Supports IEEE 802.3x flow control (full-duplex) and broadcast storm suppression based on Port bandwidth percentage |
| Port Aggregation | Supports LACP and manual link aggregation Supports maximum Port aggregation group: Port count/2, each aggregation group maximum supports 8 x Port |
| VLAN | Support Port-based VLAN, MAC-based VLAN, and GVRP |
| Layer 2 Ring Protocol | Supports STP/RSTP/MSTP |
| stacking | Supports IRF LITE stacking technology up to 16 devices stacking |
| Multicast | IGMP Snooping v1/v2/v3MLD Snooping v1/v2MulticastVLAN |
| Mirroring | Support for port mirroring Support for flow mirroring |
| ACL | Supports L2-L4 packet filtering functionality, can match the first 80 bytes of packets, provides ACL definition based on source MAC address, destination MAC address, source IP address, destination IP address, IP protocol type, TCP/UDP Port, TCP/UDP Port range, VLAN, etc. Supports ACL deployment based on Port, VLAN, supports ACL based on Time Range, supports hardware-based IPv6 ACL and QoS |
| Security Features | User hierarchical management and password protection Support for Guest VLANSupport for IEEE 802.1X authentication/centralized MAC address authentication Support for AAA&RADIUS&HWTACACS authentication Support for MAC address learning number limitation Support for MAC address black hole Support for SSH 2.0, which provides a secure encrypted channel for user logon Support for SSL, which guarantees the security of data transmission Support for HABP support port isolation support IP source address protection support anti-Dos attack support broadcast message suppression support master and backup data backup mechanism support IP + port binding, IP + MAC binding, port + MAC binding, IP + MAC + port binding function |
| DHCP | Supports DHCP Relay Supports DHCP Client Supports DHCP Snooping Supports DHCP Snooping Option82 |
| Management and Maintenance | Supports Console/AUX Modem/Telnet/SSH2.0 command line Configuration, Supports FTP, TFTP, Xmodem, SFTP file upload/download management, Supports SNMP V1/V2c/V3, Supports RMON, Supports NTP clock, Supports system operation logs, Supports cluster management, Supports H3C iMC Intelligent Management Center |
| Input voltage | AC：100V～240V AC, 50/60Hz～264V AC；47Hz～63Hz |
| Maximum Power Consumption of the Entire System | ≤ 22W |
| Dimensions (W x D x H)(Unit: mm) | 440×173×44 |
| Weight (Fully Configured) | ≤ 2.3kg |
| Ambient temperature | Operating Environment Temperature: 0℃～45℃ Storage Environment Temperature: -40℃～70℃ |
| Ambient humidity | Operating ambient humidity: 5%～95% (non-condensing) Storage ambient humidity: 5%～95% (non-condensing) |
| Catalog Description | |
| Description | H3C S3110-52TP-SI,Ethernet Switch(48FE+2GE+2SFP,AC) |
| Ordering Information | |
| Base Configuration | |
| 9801A0L5 | LS-S3110-52TP-SI; H3C S3110-52TP-SI Ethernet Switch Chassis (48FE+2GE+2SFP, A Cpower supply) |
| Fast Ethernet Optical Module | |
| 0231A564 | SFP-FE-LX-SM1310-A; Single-mode SFP 100M/155M optical module (1310 nm, 15 km, LC); Type: Fast Ethernet Optical Module |
| 0231A320 | SFP-FE-SX-MM1310-A; Optical Module-SFP 100M/155M-Multimode Module (1310nm, 2km, LC); Type: Fast Ethernet Optical Module |
| Gigabit Optical Module | |
| 0231A563 | SFP-GE-LX-SM1310-A; Single-mode SFP GE optical module (1310 nm, 10 km, LC); Type: Gigabit Optical Module |
| 0231A962 | SFP-GE-LX-SM1310-D; Single-mode SFP GE optical module (1310 nm, 10 km, LC); Type: Gigabit Optical Module |
| 02312170 | SFP-GE-LH40-SM1310; Single-mode SFP GE optical module (1310 nm, 40 km, LC); Type: Gigabit Optical Module |
| 0231A963 | SFP-GE-LH40-SM1310-D; Single-mode SFP GE optical module (1310 nm, 40 km, LC); Type: Gigabit Optical Module |
| 02312172 | SFP-GE-LH40-SM1550; Single-mode SFP optical module (1550 nm, 40 km, LC); Type: Gigabit Optical Module |
| 02312173 | SFP-GE-LH80-SM1550; Single-mode SFP optical module (1550 nm, 80 km, LC); Type: Gigabit Optical Module |
| 0231A964 | SFP-GE-LH80-SM1550-D; Single-mode SFP optical module (1550 nm, 80 km, LC); Type: Gigabit Optical Module |
| 0231A562 | SFP-GE-SX-MM850-A; Multi-mode SFP-GE optical module (850 nm, 0.55 km, LC); Type: Gigabit Optical Module |
| 0231A961 | SFP-GE-SX-MM850-D; Multi-mode SFP-GE optical module (850 nm, 0.55 km, LC); Type: Gigabit Optical Module |
| 0231AEUP | SFP-GE-SX-MM850-S; SFP Gigabit Optical Module (850 nm, 550 m, SX, LC); Type: Gigabit Optical Module |
| 0231AEUN | SFP-GE-LX-SM1310-S; SFP Gigabit Optical Module (1310 nm, 10 km, LX, LC); Type: Gigabit Optical Module |
| Product Identity | |
| Brand | H3C |
| Series | H3C S3xxx Series Switches |
