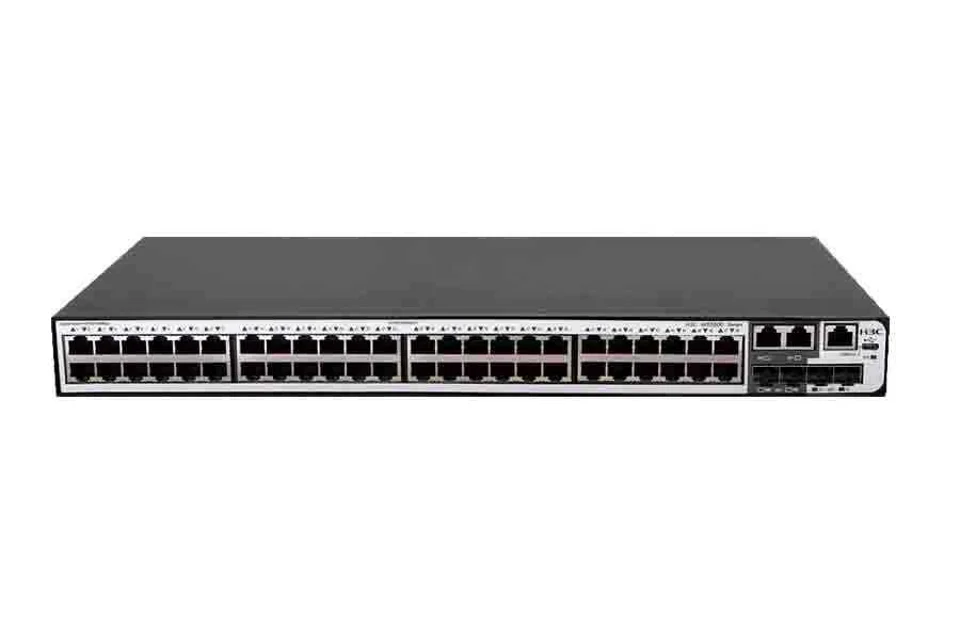

H3C LS-WS5820-52TP-WiNet WS5820-52TP-Wi Net Layer 2 Ethernet Switch Chassis, 48 10/100/1000Base-Telectrical port, 2 GE Comboelectrical port, 2 100/1000Base-X SFP Port, 2 1000Base-X SFP Port, AC
Brand H3C
N/AVerified
H3C LS-WS5820-52TP-WiNet
Model (MPN)
0235A3PJ
Condition
Factory Sealed
Out of Stock
H3C LS-WS5820-52TP-WiNet WS5820-52TP-Wi Net Layer 2 Ethernet Switch Chassis, 48 10/100/1000Base-Telectrical port, 2 GE Comboelectrical port, 2 100/1000Base-X SFP Port, 2 1000Base-X SFP Port, AC. Switching Capacity (full duplex): 672Gbps/6.72Tbps. Packet Forwarding Rate (entire system): 87Mpps/166Mpps. Management Port: 1 Console port
Key Specifications
DescriptionH3C WS5820-52TP-Wi Net L2Ethernet Switch Chassis,Supports 48 x10/100/1000Base-Telectrical port,2 x GE Comboelectrical port,2 x100/1000Base-X SFP Port,2 x1000Base-X SFP Port,Supports AC
Switching Capacity (full duplex)672Gbps/6.72Tbps
Packet Forwarding Rate (entire system)87Mpps/166Mpps
VLAN virtual interfaceSupports
Dimensions (Width x Depth x Height) (Unit: mm)440×260 ×43.6
Weight≤3.5kg
Your Price
Best Value
$2,171.00
Availability Out of Stock
Quantity
Need configuration help?
Our CCIE certified engineers can help you verify compatibility.
Secure Payment
VISA
Pay
WIRE
Fast Dispatch
Global logistics network aiming for same-day handover.
48hrs
Avg. Shipping
99%
On-Time
Guaranteed Quality
Every unit undergoes rigorous 38-point inspection test.
3Year
Warranty
0.1%
RMA Rate
Global Reach
Trusted by enterprise clients across 6 continents.
85+
Countries
20k+
Clients
Expert Support
Certified network engineers ready to assist with configuration.
24/7
Assistance
CCIE
Certified
Overview
Specifications
| Catalog Description | |
|---|---|
| Description | H3C WS5820-52TP-Wi Net L2Ethernet Switch Chassis,Supports 48 x10/100/1000Base-Telectrical port,2 x GE Comboelectrical port,2 x100/1000Base-X SFP Port,2 x1000Base-X SFP Port,Supports AC |
| Key Specifications | |
| Switching Capacity (full duplex) | 672Gbps/6.72Tbps |
| Packet Forwarding Rate (entire system) | 87Mpps/166Mpps |
| VLAN virtual interface | Supports |
| Dimensions (Width x Depth x Height) (Unit: mm) | 440×260 ×43.6 |
| Weight | ≤3.5kg |
| Input voltage | Rated Voltage Range: 100V~240V AC, 50/60Hz |
| Product Specifications | |
| Switching Capacity (full duplex) | 672Gbps/6.72Tbps |
| Packet Forwarding Rate (entire system) | 87Mpps/166Mpps |
| Dimensions (Width x Depth x Height) (Unit: mm) | 440×260 ×43.6 |
| Weight | ≤3.5kg |
| Management Port | 1 Console port |
| Service Port Description | 48 10/100/1000BASE-T electrical ports, supports 4 100/1000BASE-X SFP ports, 2 100/1000BASE-X SFP Combo ports |
| Input voltage | Rated Voltage Range: 100V~240V AC, 50/60Hz |
| Total Power Consumption | MIN:AC:20WMAX:AC:42W |
| Operating Environment Temperature | -5℃～45℃ |
| Operating Ambient Relative Humidity (Non-condensing) | 5%～95% |
| Link aggregation | Supports GE Port Aggregation |
| Flow Control | Supports 802.3x flow control and half-duplex back pressure flow control |
| Jumbo Frame | Supports |
| MAC Address Table | Supports blackhole MAC address |
| VLAN | Supports Port-based VLAN |
| ARP | Supports Gratuitous ARP |
| ND | Supports ND |
| VLAN virtual interface | Supports |
| DHCP | Supports DHCP Client |
| DNS | Supports Static domain name resolution |
| Unicast routing | Supports IPv4/IPv6 static routing |
| Multicast | Supports IGMP Snooping |
| Broadcast/Multicast/Unicast storm suppression | Supports storm suppression based on Port rate percentage |
| Layer 2 Ring Protocol | Supports STP/RSTP/MSTP protocols |
| SmartLink | Supports |
| QoS/ACL | Supports 802.1p/DSCP priority marking |
| Mirroring | Supports Port Mirroring |
| Security Features | Supports user hierarchical management and password protection |
| 802.1X | Supports 802.1X authentication |
| Loading and Upgrade | Supports XModem protocol for loading and upgrading |
| Management | Supports Command Line Interface (CLI) Configuration |
| Maintenance | Supports debug information output |
| Ordering Information | |
| SFP Gigabit Port | |
| 02312173 | SFP-GE-LH80-SM1550 - Optical Module - SFP-GE - Single-Mode Module - (1550 nm, 80 km, LC) |
| 0231A12T | SFP-FE-LX-SM1310-BIDI - SFP Fast Ethernet BIDI Optical Module (TX 1310/RX 1550 nm, 15 km, LC) |
| 0231A12U | SFP-FE-LX-SM1550-BIDI - SFP Fast Ethernet BIDI Optical Module (TX 1550/RX 1310 nm, 15 km, LC) |
| 0231A0LU | 0231A0LU - H3C WS5800-WiNet Switch Series |
| 0231A564 | SFP-FE-LX-SM1310-A - Optical Module—SFP 100M/155M Single-Mode Module (1310 nm, 15 km, LC) |
| 0231A965 | SFP-FE-LX-SM1310-D - Optical Module—SFP 100M/155M Single-Mode Module (1310 nm, 15 km, LC) |
| 0231A0LP | 0231A0LP - H3C WS5800-WiNet Switch Series |
| 0231A320 | SFP-FE-SX-MM1310-A - Optical Module—SFP 100M/155M Multimode Module (1310 nm, 2 km, LC) |
| 0231A089 | SFP-FE-LH40-SM1310 - Optical Module - SFP 100M/155M Single-Mode Module - (1310nm, 40km, LC) |
| 0231A090 | SFP-FE-LH80-SM1550 - Optical Module—SFP 100M/155M Single-Mode Long-Distance Module—(1550 nm, 80 km, LC) |
| 0231A2UN | SFP-GE-LH40-SM1310-BIDI - SFP Gigabit BIDI Optical Module (TX 1310/RX 1550 nm, 40 km, LC) |
| 0231A2UL | SFP-GE-LH70-SM1490-BIDI - SFPGigabitBIDI Optical Module (TX 1490/RX 1550 nm, 70 km, LC) |
| 0231A2UP | SFP-GE-LH40-SM1550-BIDI - SFPGigabitBIDI Optical Module (TX 1550/RX 1310 nm, 40 km, LC) |
| 0231A2UM | SFP-GE-LH70-SM1550-BIDI - SFPGigabitBIDI Optical Module (TX 1550/RX 1490 nm, 70 km, LC) |
| 0231A54T | SFP-STACK-Kit - SFP Stacking Cable—(150 cm, includes stacking module) |
| 0231ADWF | SFP-GE-LH20-SM1310-I - SFPGigabit Optical Module(-40℃~85℃,1310nm,20km,LC) |
| 0231ADWE | SFP-GE-LH40-SM1310-I - SFPGigabit Optical Module(-40℃～85℃,1310nm,40km,LC) |
| 0231A0HL | 0231A0HL - H3C WS5800-WiNet Switch Series |
| 0231A0LS | 0231A0LS - H3C WS5800-WiNet Switch Series |
| 0231A563 | SFP-GE-LX-SM1310-A - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 10 km, LC) |
| 0231A962 | SFP-GE-LX-SM1310-D - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 10 km, LC) |
| 02312170 | SFP-GE-LH40-SM1310 - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 40 km, LC) |
| 0231A963 | SFP-GE-LH40-SM1310-D - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 40 km, LC) |
| 02312172 | SFP-GE-LH40-SM1550 - Optical Module—SFP—GE—Single-Mode Module—(1550 nm, 40 km, LC) |
| 0231A964 | SFP-GE-LH80-SM1550-D - Optical Module - SFP-GE - Single-Mode Module - (1550 nm, 80 km, LC) |
| 0231A0LQ | 0231A0LQ - H3C WS5800-WiNet Switch Series |
| 0231A562 | SFP-GE-SX-MM850-A - Optical Module - SFP-GE - Multimode Module (850 nm, 0.55 km, LC) |
| 0231A961 | SFP-GE-SX-MM850-D - Optical Module - SFP-GE - Multimode Module (850 nm, 0.55 km, LC) |
| 0231A0HK | 0231A0HK - H3C WS5800-WiNet Switch Series |
| 0231A11U | SFP-GE-LX-SM1310-BIDI - Optical Module - SFP Gigabit BIDI Optical Module - TX 1310/RX 1490, 10 km, LC |
| 0231A11V | SFP-GE-LX-SM1490-BIDI - Optical Module - SFP Gigabit BIDI Optical Module - TX 1490/RX 1310, 10 km, LC |
| 0231AEUP | SFP-GE-SX-MM850-S - SFPGigabit Optical Module(850nm,550m,SX,LC) |
| 0231AEUN | SFP-GE-LX-SM1310-S - SFPGigabit Optical Module(1310nm,10km,LX,LC) |
| 0231A085 | SFP-GE-T - SFP GEElectrical Port Module(100m,RJ45) |
| 0231A960 | SFP-GE-T-D - SFP GEElectrical Port Module(100m,RJ45) |
| Configuration Serial Cable | |
| 04042967 | CAB-CON-1.8m - Configuration Serial Cable—1.8 m—(DB9 Female to 8-pin Ethernet Port) |
| Product Identity | |
| Brand | H3C |
| Series | H3C WS5800-Wi Net Series Switch |
