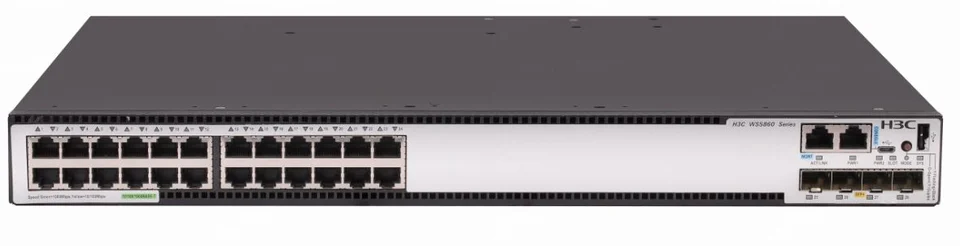

H3C LS-WS5860-28XC-WiNet WS5860-28 C-Wi Net Ethernet Switch (24*GE + 4*SFP+ + 1*Slot), Power Supply Not Included, Fanless
Brand H3C
N/AVerified
H3C LS-WS5860-28XC-WiNet
Model (MPN)
0235A4L4
Condition
Factory Sealed
Out of Stock
H3C LS-WS5860-28XC-WiNet WS5860-28 C-Wi Net Ethernet Switch (24*GE + 4*SFP+ + 1*Slot), Power Supply Not Included, Fanless. Switching Capacity: 1.28Tbps/12.8Tbps. Packet Forwarding Rate: 228Mpps. Management port: 1
Key Specifications
DescriptionH3C WS5860-28XC-Wi Net Ethernet Switch (24*GE + 4*SFP Plus + 1*Slot), Power Supply Not Included, Fanless
Switching Capacity1.28Tbps/12.8Tbps
Packet Forwarding Rate228Mpps
Dimensions (Width x Depth x Height) (Unit: mm)440×360×44
Weight4.25kg
Input voltageAC: Rated voltage range: 100V~240V AC, 50/60HzDC: Input rated voltage range: -48V~-60V DC
Your Price
Best Value
$299.95
List Price: $4,285.00Save 93%
Availability Out of Stock
Quantity
Need configuration help?
Our CCIE certified engineers can help you verify compatibility.
Secure Payment
VISA
Pay
WIRE
Fast Dispatch
Global logistics network aiming for same-day handover.
48hrs
Avg. Shipping
99%
On-Time
Guaranteed Quality
Every unit undergoes rigorous 38-point inspection test.
3Year
Warranty
0.1%
RMA Rate
Global Reach
Trusted by enterprise clients across 6 continents.
85+
Countries
20k+
Clients
Expert Support
Certified network engineers ready to assist with configuration.
24/7
Assistance
CCIE
Certified
Overview
Specifications
| Catalog Description | |
|---|---|
| Description | H3C WS5860-28XC-Wi Net Ethernet Switch (24*GE + 4*SFP Plus + 1*Slot), Power Supply Not Included, Fanless |
| Key Specifications | |
| Switching Capacity | 1.28Tbps/12.8Tbps |
| Packet Forwarding Rate | 228Mpps |
| Dimensions (Width x Depth x Height) (Unit: mm) | 440×360×44 |
| Weight | 4.25kg |
| Input voltage | AC: Rated voltage range: 100V~240V AC, 50/60HzDC: Input rated voltage range: -48V~-60V DC |
| Power Consumption (Static) | 26W |
| Product Specifications | |
| Switching Capacity | 1.28Tbps/12.8Tbps |
| Packet Forwarding Rate | 228Mpps |
| Dimensions (Width x Depth x Height) (Unit: mm) | 440×360×44 |
| Weight | 4.25kg |
| Management port | 1 |
| Management serial port | Micro USB CONSOLE port: 1 Serial CONSOLE port: 1 Both interfaces cannot be used at the same time, when connecting both interfaces at the same time, only the Micro USB CONSOLE port takes effect |
| Front panel service port description | 24 10/100/1000Base-T Adaptive Ethernet Ports 4 10 Gigabit SFP+ Ports |
| extended slot | 1 |
| Expansion line cards | 4-Port 10G SFP+ Interface Card |
| SDN/Openflow | Support Open Flow 1.3 standard, support multi-controllers (EQUAL mode, active-standby mode), support multi-table pipeline, support Group table, support Meter |
| Port aggregation | Supports GE port aggregation, 10GE port aggregation, static aggregation, dynamic aggregation, and cross-device aggregation |
| Port Features | Supports IEEE802.3x flow control (full-duplex) Supports storm suppression based on percentage of port rate Supports PPS-based storm suppression Supports bps-based storm suppression |
| MAC Address Table | Support for black hole MAC addresses Support for setting the maximum number of port MAC addresses to learn Support for setting the maximum number of MAC addresses to learn based on VLANs |
| VLAN | Port-based VLAN support MAC-based VLAN support QinQ, Flexible QinQ support VLAN Mapping support GVRP |
| Layer 2 Ring Protocol | Support for STP/RSTP/MSTP Support for Smart Link Support for RRPP Support for ERPS Ethernet Ring Protection Protocol (G.8032) |
| DHCP | DHCP ClientDHCP SnoopingDHCP RelayDHCP Relay SECURITYDHCP Server |
| IRF2 Intelligent Elastic Architecture | Supports IRF2 Intelligent Elastic Architecture Supports Distributed Device Management, Distributed Link Aggregation, Distributed Elastic Routing Supports Stacking via Standard Ethernet Interface etc. Supports Local Stacking and Remote Stacking |
| IP Routing | Support static routing support RIPv1/v2, RIPng support OSPF support BGP4, BGP4+ for IPv6 support Equivalent Routing, Policy Routing support VRRP/VRRPv3 |
| IPv6 | Supports ND (Neighbor Discovery)Supports PMTUSupports IPv6-Ping, IPv6-Tracert, IPv6-Telnet, IPv6-TFTPSupports IPv4 GRE tunnel |
| Multicast | Supports IGMP Snooping v1/v2/v3, MLD Snooping v1/v2Supports MLD Proxy Supports MulticastVLANSupports IGMP v1/v2/v3, MLD v1/v2Supports PIM-DM, PIM-SM, PIM-SSMSupports MSDPSupports MBGP, MBGP for Ipv6 |
| Mirroring | Support for stream mirroring Support for N:M port mirroring Support for local and remote port mirroring (RSPAN) |
| Supports ACL\QoS | Supports L2 (Layer 2)~L4 (Layer 4) packet filtering, provides flow classification based on source MAC address, destination MAC address, source IP (IPv4/IPv6) address, destination IP (IPv4/IPv6) address, TCP/UDP port number, and VLAN Supports Time Range ACLs Supports inbound and outbound bi-directional ACL policies Supports issuing ACLs based on VLANs Supports limiting the rate of incoming and outgoing messages on ports, with a minimum granularity of 8KK. ACL support for inbound and outbound bi-directional ACL policy support for VLAN-based downstream ACL support for the rate of incoming and outgoing messages on the port to limit the rate, the minimum granularity of 8Kbps support for message redirection support for 802.1p and DSCP priority tagging of messages support for CAR (Committed Access Rate) function support for each port to support the output of 8 queues support for flexible queue scheduling algorithms, can be used to support the output of the port to support the output of the port to the port. Supports flexible queue scheduling algorithms, which can be set based on both port and queue Support WRED |
| Security Features | Supports user hierarchical management and password protection Supports 802.1X authentication/centralized MAC address authentication Supports Guest VLANSupports RADIUS authentication Supports SSH 2.0Supports port isolation Supports port security Supports PORTAL authentication Supports EADCan support DHCP Snooping to prevent spoofing of DHCP servers Supports Dynamic ARP detection to prevent Man-in-the-middle attack and ARP denial of service support BPDU-Protection, Root-Protection support uRPF (Unicast Reverse Path Detection), to eliminate IP source address spoofing, to prevent viruses and attacks support IP/Port/MAC binding support OSPF, RIPv2 message plaintext and MD5 ciphertext authentication support PKI (Public Key Infrastructure) |
| Management and Maintenance | Support XModem/FTP/TFTP load upgrade support Command Line Interface (CLI), Telnet, Console port for configuration support SNMPv1/v2/v3, WEB network management support RMON (Remote Monitoring) alarms, events, history support iMC Intelligent Management Center support system logs, hierarchical alarms, and Debugging information output support NTP support power alarm function, fan, temperature alarm support Ping, Tracert support VCT (Virtual Cable Test) cable detection function support DLDP (Device Link Detection Protocol) unidirectional link detection protocol support LLDP support Loopback -detection port loopback detection support 802.3ah |
| Green Energy Saving | Support for EEE (802.3az) port timed down function (Schedule job) |
| Input voltage | AC: Rated voltage range: 100V~240V AC, 50/60HzDC: Input rated voltage range: -48V~-60V DC |
| Power Consumption (Static) | 26W |
| Power consumption (at full load) | 61W |
| Operating Environment Temperature | 0℃～45℃ |
| Operating Ambient Relative Humidity (Non-condensing) | 5%～95% |
| Ordering Information | |
| Expansion Module | |
| 0231A8HP | LSWM2SP4P - H3C S5560 4-Port10GSFP Plus Interface Module |
| SFP/SFP+10GOptical Port | |
| 02312173 | SFP-GE-LH80-SM1550 - Optical Module - SFP-GE - Single-Mode Module - (1550 nm, 80 km, LC) |
| 0231A563 | SFP-GE-LX-SM1310-A - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 10 km, LC) |
| 0231A962 | SFP-GE-LX-SM1310-D - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 10 km, LC) |
| 02312170 | SFP-GE-LH40-SM1310 - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 40 km, LC) |
| 0231A963 | SFP-GE-LH40-SM1310-D - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 40 km, LC) |
| 02312172 | SFP-GE-LH40-SM1550 - Optical Module—SFP—GE—Single-Mode Module—(1550 nm, 40 km, LC) |
| 0231A964 | SFP-GE-LH80-SM1550-D - Optical Module - SFP-GE - Single-Mode Module - (1550 nm, 80 km, LC) |
| 0231A562 | SFP-GE-SX-MM850-A - Optical Module - SFP-GE - Multimode Module (850 nm, 0.55 km, LC) |
| 0231A961 | SFP-GE-SX-MM850-D - Optical Module - SFP-GE - Multimode Module (850 nm, 0.55 km, LC) |
| 0231A11U | SFP-GE-LX-SM1310-BIDI - Optical Module - SFP Gigabit BIDI Optical Module - TX 1310/RX 1490, 10 km, LC |
| 0231A11V | SFP-GE-LX-SM1490-BIDI - Optical Module - SFP Gigabit BIDI Optical Module - TX 1490/RX 1310, 10 km, LC |
| 0231A085 | SFP-GE-T - SFP GEElectrical Port Module(100m,RJ45) |
| 0231A960 | SFP-GE-T-D - SFP GEElectrical Port Module(100m,RJ45) |
| 0231A0A8 | SFP-XG-LX-SM1310 - SFP+ 10GModule(1310nm,10km,LC) |
| 0231A2L3 | SFP-XG-LX-SM1310-E - SFP+ 10GModule(1310nm,10km,LC) |
| 0231A1RQ | SFP-XG-LX-SM1310-D - SFP+ 10GModule(1310nm,10km,LC) |
| 0231A0SP | SFP-XG-LH40-SM1550 - SFP+ 10GModule(1550nm,40km,LC) |
| 0231A1RR | SFP-XG-LH40-SM1550-D - SFP+ 10GModule(1550nm,40km,LC) |
| 0231A2T6 | SFP-XG-LH80-SM1550-D - SFP+ 10GModule(1550nm,80km,LC) |
| 0231A1PA | SFP-XG-LH80-SM1550 - SFP+ 10GModule(1550nm,80km,LC) |
| 0231A0A6 | SFP-XG-SX-MM850-A - SFP+ 10GModule(850nm,300m,LC) |
| 0231A2L4 | SFP-XG-SX-MM850-E - SFP+ 10GModule(850nm,300m,LC) |
| 0231A1RP | SFP-XG-SX-MM850-D - SFP+ 10GModule(850nm,300m,LC) |
| 0231A0AK | LSWM1STK - SFP+Cable0.65m |
| 0231A0AL | LSWM2STK - SFP+Cable1.2m |
| 0231A0AM | LSWM3STK - SFP+Cable3m |
| Fan Options | |
| 0231A2VU | LSPM1FANSB - Fan Module(SW, 4028,Fan Panel Side Air Outlet) |
| 0231A2VT | LSPM1FANSA - Fan Module(SW, 4028, Fan Panel Side Air Intake) |
| Power Module | |
| 0231A7GC | PSR150-A1-GL - 150W Asset Management AC power Module (Power Panel Side-Exhaust) |
| 0231A1U2 | LSPM5150D - 150W Asset Management DC power Module (Power Supply with Front-Facing Air Exhaust) |
| Third party optical Modulelicense certificate | |
| 3130A3EU | LIS-OPT-40/10G-CA-F - H3C Third-Party Optical Module Authorization Letter—Campus Switch Enclosures (40G/10G and Below) |
| NAT functionslicense certificate | |
| 3130A3UM | LIS-SDNAPP-MC-NAT - SDNMulticastNATfunctionslicense certificate |
| Product Identity | |
| Brand | H3C |
| Series | H3C WS5860-28XC-Wi Net Series Switch |
