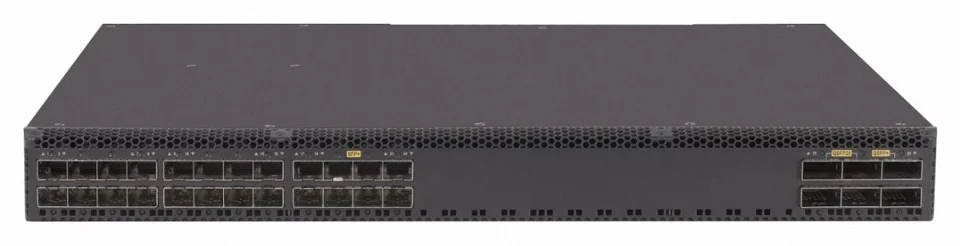

H3C LS-WS6520-30HF-WiNet WS6520-30HF-Wi Net Ethernet Switch (24×SFP+ + 4×QSFP28 + 2×QSFP+), Power Supply Not Included, Fanless
Brand H3C
N/AVerified
H3C LS-WS6520-30HF-WiNet
Model (MPN)
0235A4L5
Condition
Factory Sealed
Out of Stock
H3C LS-WS6520-30HF-WiNet WS6520-30HF-Wi Net Ethernet Switch (24×SFP+ + 4×QSFP28 + 2×QSFP+), Power Supply Not Included, Fanless. Switching Capacity: 2.56T/25.6T. Packet Forwarding Rate: 1080Mpps/2160Mpps. Management Ethernet port: 2 (one optical, one electrical) on rear panel
Key Specifications
DescriptionH3C WS6520-30HF-Wi Net Ethernet Switch (24×SFP Plus + 4×QSFP28 + 2×QSFP Plus), Power Supply Not Included, Fanless
Switching Capacity2.56T/25.6T
Packet Forwarding Rate1080Mpps/2160Mpps
Management Ethernet port2 (one optical, one electrical) on rear panel
Dimensions (Width x Depth x Height) (Unit: mm)440×400×44
Weight5.30kg
Your Price
Best Value
$637.00
List Price: $9,100.00Save 93%
Availability Out of Stock
Quantity
Need configuration help?
Our CCIE certified engineers can help you verify compatibility.
Secure Payment
VISA
Pay
WIRE
Fast Dispatch
Global logistics network aiming for same-day handover.
48hrs
Avg. Shipping
99%
On-Time
Guaranteed Quality
Every unit undergoes rigorous 38-point inspection test.
3Year
Warranty
0.1%
RMA Rate
Global Reach
Trusted by enterprise clients across 6 continents.
85+
Countries
20k+
Clients
Expert Support
Certified network engineers ready to assist with configuration.
24/7
Assistance
CCIE
Certified
Overview
Specifications
| Catalog Description | |
|---|---|
| Description | H3C WS6520-30HF-Wi Net Ethernet Switch (24×SFP Plus + 4×QSFP28 + 2×QSFP Plus), Power Supply Not Included, Fanless |
| Key Specifications | |
| Switching Capacity | 2.56T/25.6T |
| Packet Forwarding Rate | 1080Mpps/2160Mpps |
| Management Ethernet port | 2 (one optical, one electrical) on rear panel |
| Dimensions (Width x Depth x Height) (Unit: mm) | 440×400×44 |
| Weight | 5.30kg |
| Input voltage | AC Rated Voltage Range: 100V～240V AC, 50/60Hz |
| Product Specifications | |
| Switching Capacity | 2.56T/25.6T |
| Packet Forwarding Rate | 1080Mpps/2160Mpps |
| Dimensions (Width x Depth x Height) (Unit: mm) | 440×400×44 |
| Weight | 5.30kg |
| Console Port | 1, located on the rear panel |
| Management Ethernet port | 2 (one optical, one electrical) on rear panel |
| USB port | 1 (full speed), located on the rear panel |
| Front panel service port description | 24 SFP+ 10 Gigabit/Gigabit Adaptive Optical Ports 2 QSFP Plus Ports 4 QSFP28-Ports |
| Layer 2 Ring Protocol | Supports STP/RSTP/MSTP protocols, STP Root Guard, BPDU Guard, ERPS Ethernet Ring Protection Protocol (G.8032) |
| Port aggregation | Supports static aggregation Supports dynamic aggregation |
| Port Features | Supports IEEE802.3x flow control (full-duplex) Supports storm suppression based on percentage of port rate Supports PPS-based storm suppression Supports bps-based storm suppression |
| MAC Address Table | Support for static MAC addresses Support for black hole MAC addresses Support for setting the maximum number of port MAC addresses to learn Support for setting the maximum number of MAC addresses to learn based on VLANs |
| VLAN | Support for port-based VLANs (4094) Support for Guest VLANs Support for Voice VLANs Support for Default VLANs Support for QINQ Support for Flexible QINQ Support for VLAN MAPPING |
| Reliability | Support BFD for static routing/IS-IS/OSPF/RIP/BGP/IPv6 static routing/OSPFv3/PIM/Track Support BPDU protection, root protection, loop protection Support Port Role Restriction, TC-BPDU Propagation Restriction Support Anti-tc-BPDU Attack Protection, PVST Message Protection for MSTP Support Smart Link supports hardware BFD (minimum 3.3ms packet sending interval) supports PVST |
| DHCP | DHCP ClientDHCP SnoopingDHCP RelayDHCP Snooping option82/DHCP Relay option82DHCP Server |
| IP Routing | Supports IPv4, IPv6 static routes, RIP and other Layer 3 dynamic routing protocols Supports policy routing; supports RIP v1/2, RIPng Supports enhanced Layer 3 routing protocols such as Equivalent Routing, VRRP, OSPF, BGP, ISIS, etc. |
| IPv6 | Supports Neighbor Discovery (ND), PMTU, ICMP v6, Telnet v6, SFTP v6, SNMP v6, BFD v6, VRRP v3, BGP4+, ISISv6, IPv6-Portal, IPv6 tunnel |
| Multicast | Supports IGMP Snooping v2/v3, IGMP Snooping Fast-leave, IGMP Snooping Group-policy, PIM-SM, PIM-SSM, PIM snooping, MVRP, MFF, Enhanced Three-layer Multicast Protocol |
| Mirroring | Supports flow Mirroring. Supports N:1-Port Mirroring. Supports local and remote Port Mirroring. |
| Supports ACL\QoS | Supports rate limiting on both received and transmitted packets per Port. Supports CAR functionality. Supports dual-rate three-color CAR functionality. Each Port supports 8 output queues. Supports flexible queue scheduling algorithms, with settings available at both Port and queue levels. Supports multiple scheduling modes including SP, WDRR, and SP+WDRR. Supports re-marking of 802.1p and DSCP priorities. Provides L2 (Layer 2) to L4 (Layer 4) packet filtering functions, offering flow classification based on source MAC address, destination MAC address, source IP (IPv4/IPv6) address, destination IP (IPv4/IPv6) address, Port, protocol, and VLAN. Supports Time Range. Supports WRED. |
| Security Features | Supports user level management and password protection. Supports centralized MAC authentication. Supports 802.1X. Supports storm control. Supports AAA authentication. Supports RADIUS authentication. Supports HWTACACS. Supports SSH 2.0. Supports port isolation. Supports IP+MAC+Port binding. Supports plaintext and MD5 encrypted authentication for dynamic routing protocols. Supports route redistribution. Supports IP Source Guard. Supports HTTPS. Supports SSL. Supports PKI (Public Key Infrastructure). Supports CPU protection. |
| Management and Maintenance | Supports Command Line Interface (CLI) Configuration Supports Telnet Remote Configuration Supports Console Port Configuration Supports schedule job Supports ISSU Supports SNMP (Simple Network Management Protocol) Supports IMC Network Management System Supports System Log Supports Hierarchical Alarm Supports NTP Supports Power Supply Alarm Function Supports Fan and Temperature Alarm Supports Debug Information Output Supports Ping, Tracert Supports Track Supports Telnet Remote Maintenance Supports USB for File Upload and Download |
| Input voltage | AC Rated Voltage Range: 100V～240V AC, 50/60Hz |
| DC | Rated voltage range: -48V～-60V DC |
| Power Consumption (Static) | 86W |
| Power consumption (at full load) | 177W |
| Operating Environment Temperature | 0℃～45℃ |
| Operating Ambient Relative Humidity (Non-condensing) | 5%～95% |
| Ordering Information | |
| SFP/SFP+10GOptical Port | |
| 02312173 | SFP-GE-LH80-SM1550 - Optical Module - SFP-GE - Single-Mode Module - (1550 nm, 80 km, LC) |
| 0231A563 | SFP-GE-LX-SM1310-A - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 10 km, LC) |
| 0231A962 | SFP-GE-LX-SM1310-D - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 10 km, LC) |
| 02312170 | SFP-GE-LH40-SM1310 - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 40 km, LC) |
| 0231A963 | SFP-GE-LH40-SM1310-D - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 40 km, LC) |
| 02312172 | SFP-GE-LH40-SM1550 - Optical Module—SFP—GE—Single-Mode Module—(1550 nm, 40 km, LC) |
| 0231A964 | SFP-GE-LH80-SM1550-D - Optical Module - SFP-GE - Single-Mode Module - (1550 nm, 80 km, LC) |
| 0231A562 | SFP-GE-SX-MM850-A - Optical Module - SFP-GE - Multimode Module (850 nm, 0.55 km, LC) |
| 0231A961 | SFP-GE-SX-MM850-D - Optical Module - SFP-GE - Multimode Module (850 nm, 0.55 km, LC) |
| 0231A11U | SFP-GE-LX-SM1310-BIDI - Optical Module - SFP Gigabit BIDI Optical Module - TX 1310/RX 1490, 10 km, LC |
| 0231A11V | SFP-GE-LX-SM1490-BIDI - Optical Module - SFP Gigabit BIDI Optical Module - TX 1490/RX 1310, 10 km, LC |
| 0231A085 | SFP-GE-T - SFP GEElectrical Port Module(100m,RJ45) |
| 0231A960 | SFP-GE-T-D - SFP GEElectrical Port Module(100m,RJ45) |
| 0231AJXK | SFP-2.5G-LX10-SM1310-DR-I - SFP 2.5G/1G Single-Mode Industrial-Temperature Optical Module (1310 nm, 10 km, LC) |
| 0231AH0W | SFP-10GE-T - SFP+ 10GEElectrical Port Module(Cat6a/Cat7,30m,RJ45) |
| 0231A0A8 | SFP-XG-LX-SM1310 - SFP+ 10GModule(1310nm,10km,LC) |
| 0231A2L3 | SFP-XG-LX-SM1310-E - SFP+ 10GModule(1310nm,10km,LC) |
| 0231A1RQ | SFP-XG-LX-SM1310-D - SFP+ 10GModule(1310nm,10km,LC) |
| 0231A0SP | SFP-XG-LH40-SM1550 - SFP+ 10GModule(1550nm,40km,LC) |
| 0231A1RR | SFP-XG-LH40-SM1550-D - SFP+ 10GModule(1550nm,40km,LC) |
| 0231A2T6 | SFP-XG-LH80-SM1550-D - SFP+ 10GModule(1550nm,80km,LC) |
| 0231A1PA | SFP-XG-LH80-SM1550 - SFP+ 10GModule(1550nm,80km,LC) |
| 0231A0A6 | SFP-XG-SX-MM850-A - SFP+ 10GModule(850nm,300m,LC) |
| 0231A2L4 | SFP-XG-SX-MM850-E - SFP+ 10GModule(850nm,300m,LC) |
| 0231A1RP | SFP-XG-SX-MM850-D - SFP+ 10GModule(850nm,300m,LC) |
| 0231A0AK | LSWM1STK - SFP+Cable0.65m |
| 0231A0AL | LSWM2STK - SFP+Cable1.2m |
| 0231A0AM | LSWM3STK - SFP+Cable3m |
| 0231A0G1 | LSTM1STK - SFP+Cable5m |
| QSFP+ Port | |
| 0231A1LS | LSWM1QSTK0 - 40G QSFP+ 1m Cable |
| 0231A1LT | LSWM1QSTK1 - 40G QSFP+ 3m Cable |
| 0231A1LU | LSWM1QSTK2 - 40G QSFP+ 5m Cable |
| 0231A2E4 | QSFP-40G-LR4-WDM1300 - QSFP+ 40G optical module (1310 nm, 10 km, LR4, LC) |
| 0231A2KL | QSFP-40G-CSR4-MM850 - QSFP+ 40G Optical Module (850 nm, 300 m, CSR4, supports 1-to-4 splitting) |
| 0231A2NF | QSFP-40G-SR4-MM850 - QSFP+ 40G Optical Module (850 nm, 100 m, SR4, supports 1-to-4 splitting) |
| 0231A3U3 | QSFP-40G-D-AOC-7M - 40G QSFP+ to 40G QSFP+7m AOC |
| 0231A3U4 | QSFP-40G-D-AOC-10M - 40G QSFP+ to 40G QSFP+10m AOC |
| 0231A3U5 | QSFP-40G-D-AOC-20M - 40G QSFP+ to 40G QSFP+20m AOC |
| 0231A4PB | QSFP-40G-LR4L-WDM1300 - QSFP+ 40G Optical Module (1310nm, 2km, LR4L, LC) |
| 0231A4Q7 | QSFP-40G-BIDI-SR-MM850 - QSFP+ 40G BIDI Optical Module (850 nm, 100 m, SR) |
| 0231A4UG | QSFP-40G-ER4-WDM1300 - QSFP+ 40G Optical Module (1310 nm, 40 km, ER4, LC) |
| QSFP28-Port | |
| 0231A4B1 | QSFP-100G-SR4-MM850 - 100G QSFP28 Optical Module (850nm, 100m OM4, SR4, MPO) |
| 0231A4B2 | QSFP-100G-D-AOC-7M - 100G QSFP28 to 100G QSFP28 7m AOC |
| 0231A4B3 | QSFP-100G-D-AOC-10M - 100G QSFP28 to 100G QSFP28 10m AOC |
| 0231A4B4 | QSFP-100G-D-AOC-20M - 100G QSFP28 to 100G QSFP28 20m AOC |
| 0231A4UF | QSFP-100G-LR4-WDM1300 - 100G QSFP28 Optical Module (1310 nm, 10 km, LR4, WDM, LC) |
| 0231A5H6 | 0231A5H6 - 100G QSFP28 Optical Module (850 nm, 100 m OM4, SWDM4, LC) |
| 0231A5HA | QSFP-100G-PSM4-SM1310 - 100G QSFP28 Optical Module (1310 nm, 500 m, PSM4, MPO/APC) |
| 0231A5LL | QSFP-100G-LR4L-WDM1300 - 100G QSFP28 Optical Module (1310nm, 2km, LR4L, CWDM4, LC) |
| 0231A5UL | QSFP-100G-eSR4-MM850 - 100G QSFP28 Optical Module (850nm, 300m OM4, eSR4, MPO) |
| 0231ABS7 | QSFP-100G-ER4L-WDM1300 - 100G QSFP28 Optical Module (1310 nm, 40 km, ER4L, WDM, LC) |
| Fan Options | |
| 0231A2VU | LSPM1FANSB - Fan Module(SW, 4028,Fan Panel Side Air Outlet) |
| 0231A2VT | LSPM1FANSA - Fan Module(SW, 4028, Fan Panel Side Air Intake) |
| Power Module | |
| 0231A6M0 | PSR250-12A - 250W AC power Module (Power Supply panel-side airflow intake) |
| 0231A8FP | PSR250-12A1 - 250W AC power Module (Power Supply panel-side airflow exhaust) |
| 0231A6NA | PSR450-12AHD - 450W High-Voltage DC power Module (Supports AC/336V High-Voltage DC, with air exhaust on the front panel) |
| 0231A6NB | PSR450-12D - 450W DC power Module (Power Supply panel-side airflow exhaust) |
| Third party optical Modulelicense certificate | |
| 3130A3ET | LIS-OPT-100/25G-CA-F - H3C Third-Party Optical Module Authorization Letter—Campus Switch Cassette Devices (100G/25G) |
| 3130A3EU | LIS-OPT-40/10G-CA-F - H3C Third-Party Optical Module Authorization Letter—Campus Switch Enclosures (40G/10G and Below) |
| NAT functionslicense certificate | |
| 3130A3UM | LIS-SDNAPP-MC-NAT - SDNMulticastNATfunctionslicense certificate |
| Product Identity | |
| Brand | H3C |
| Series | H3C WS6520-30HF-Wi Net Series Switch |
