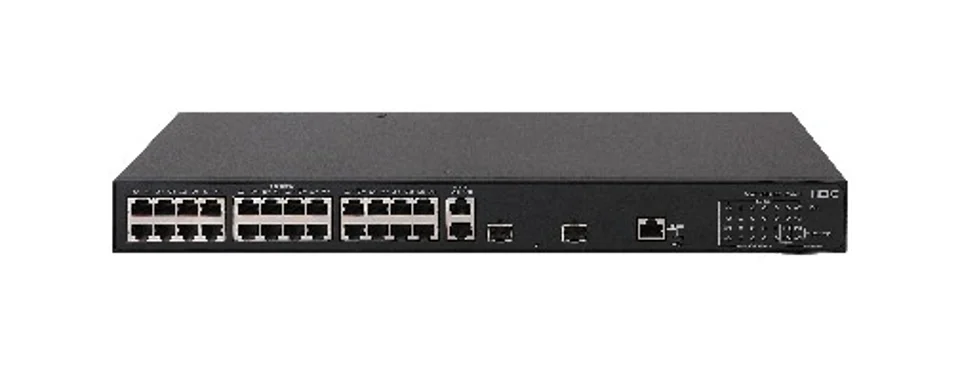

H3C LS-Z2+M-3 Ethernet Switch. Multi-speed Bundle with 5GBASE-T Ports and S10500 Interface Module.
Our CCIE certified engineers can help you verify compatibility.
Global logistics network aiming for same-day handover.
Every unit undergoes rigorous 38-point inspection test.
Trusted by enterprise clients across 6 continents.
Certified network engineers ready to assist with configuration.
H3C LS-Z2+M-3 Ethernet Switch is Multi-speed Bundle with 5GBASE-T Ports and S10500 Interface Module.
Compatible and optional SKUs are listed in the ordering information, including 0150A1GT LS-Z2+M-3, 02312173 SFP-GE-LH80-SM1550, 0231A2UN SFP-GE-LH40-SM1310-BIDI, 0231A2UL SFP-GE-LH70-SM1490-BIDI, 0231A2UP SFP-GE-LH40-SM1550-BIDI.
| Key Specifications | |
|---|---|
| Management | Supports Command Line Interface (CLI) Configuration |
| Link aggregation | Supports GE Port Aggregation |
| Ports | 5GBASE-T Ports and S10500 Interface Module |
| Jumbo Frame | Supports Maximum Frame Length of 10K |
| MAC Address Table | Supports Static, Dynamic, and Blackhole MAC Address |
| SDN/Openflow | Supports Open Flow 1.3 Standard |
| Product Specifications | |
| Link aggregation | Supports GE Port Aggregation |
| Flow Control | Supports 802.3x flow control and half-duplex back pressure flow control |
| Jumbo Frame | Supports Maximum Frame Length of 10K |
| MAC Address Table | Supports Static, Dynamic, and Blackhole MAC Address |
| SDN/Openflow | Supports Open Flow 1.3 Standard |
| VLAN | Supports 802.1Q VLAN |
| ARP | Supports Gratuitous ARP |
| ND | Supports ND |
| VLAN virtual interface | Supports |
| DHCP | Supports DHCP/DHCPv6 Client |
| DNS | Supports Static domain name resolution |
| Unicast routing | Supports IPv4/IPv6 dual stack |
| Multicast | Supports IGMPv1/v2/v3 Snooping and rapid leave mechanism |
| Broadcast/Multicast/Unicast storm suppression | Supports storm suppression based on Port rate percentage |
| Layer 2 Ring Protocol | Supports STP/RSTP/MSTP/PVST protocols |
| QoS/ACL | Supports 802.1p/DSCP priority marking |
| Mirroring | Supports Port Mirroring |
| Security Features | Supports user hierarchical management and password protection |
| 802.1X | Supports 802.1X authentication |
| Loading and Upgrade | Supports XModem protocol for loading and upgrading |
| Management | Supports Command Line Interface (CLI) Configuration |
| Maintenance | Supports debug information output |
| Catalog Description | |
| Description | Multi-speed Bundle with 5GBASE-T Ports and S10500 Interface Module |
| Ordering Information | |
| Base Configuration | |
| 0150A1GT | LS-Z2+M-3 |
| SFP Gigabit Port | |
| 02312173 | SFP-GE-LH80-SM1550; Single-mode SFP optical module (1550 nm, 80 km, LC); Type: SFP Gigabit Port |
| 0231A2UN | SFP-GE-LH40-SM1310-BIDI; SFP GigabitBIDI Optical Module (TX 1310/RX 1550 nm, 40 km, LC); Type: SFP Gigabit Port |
| 0231A2UL | SFP-GE-LH70-SM1490-BIDI; SFP GigabitBIDI Optical Module (TX 1490 nm/RX 1550 nm, 70 km, LC); Type: SFP Gigabit Port |
| 0231A2UP | SFP-GE-LH40-SM1550-BIDI; SFP GigabitBIDI Optical Module (TX 1550 nm/RX 1310 nm, 40 km, LC); Type: SFP Gigabit Port |
| 0231A2UM | SFP-GE-LH70-SM1550-BIDI; SFP GigabitBIDI Optical Module (TX 1550/RX 1490 nm, 70 km, LC); Type: SFP Gigabit Port |
| 0231A54T | SFP-STACK-Kit; Type: SFP Gigabit Port |
| 0231ADWF | SFP-GE-LH20-SM1310-I; SFP Gigabit Optical Module (-40°C to 85°C, 1310 nm, 20 km, LC); Type: SFP Gigabit Port |
| 0231ADWE | SFP-GE-LH40-SM1310-I; SFP Gigabit Optical Module (-40°C to 85°C, 1310 nm, 40 km, LC); Type: SFP Gigabit Port |
| 0231A563 | SFP-GE-LX-SM1310-A; Single-mode SFP GE optical module (1310 nm, 10 km, LC); Type: SFP Gigabit Port |
| 0231A962 | SFP-GE-LX-SM1310-D; Single-mode SFP GE optical module (1310 nm, 10 km, LC); Type: SFP Gigabit Port |
| 02312170 | SFP-GE-LH40-SM1310; Single-mode SFP GE optical module (1310 nm, 40 km, LC); Type: SFP Gigabit Port |
| 0231A963 | SFP-GE-LH40-SM1310-D; Single-mode SFP GE optical module (1310 nm, 40 km, LC); Type: SFP Gigabit Port |
| 02312172 | SFP-GE-LH40-SM1550; Single-mode SFP optical module (1550 nm, 40 km, LC); Type: SFP Gigabit Port |
| 0231A964 | SFP-GE-LH80-SM1550-D; Single-mode SFP optical module (1550 nm, 80 km, LC); Type: SFP Gigabit Port |
| 0231A562 | SFP-GE-SX-MM850-A; Multi-mode SFP-GE optical module (850 nm, 0.55 km, LC); Type: SFP Gigabit Port |
| 0231A961 | SFP-GE-SX-MM850-D; Multi-mode SFP-GE optical module (850 nm, 0.55 km, LC); Type: SFP Gigabit Port |
| 0231A11U | SFP-GE-LX-SM1310-BIDI; Optical Module - SFP Gigabit BIDI Optical Module - TX1310/RX1490, 10 km, LC; Type: SFP Gigabit Port |
| 0231A11V | SFP-GE-LX-SM1490-BIDI; Optical Module - SFP Gigabit BIDI Optical Module - TX1490/RX1310, 10 km, LC; Type: SFP Gigabit Port |
| 0231AEUP | SFP-GE-SX-MM850-S; SFP Gigabit Optical Module (850 nm, 550 m, SX, LC); Type: SFP Gigabit Port |
| 0231AEUN | SFP-GE-LX-SM1310-S; SFP Gigabit Optical Module (1310 nm, 10 km, LX, LC); Type: SFP Gigabit Port |
| 0231A085 | SFP-GE-T; SFP GE Electrical Port Module (100m, RJ45); Type: SFP Gigabit Port |
| 0231A960 | SFP-GE-T-D; SFP GE Electrical Port Module (100m, RJ45); Type: SFP Gigabit Port |
| Port and Cable Configuration | |
| 04042967 | CAB-CON-1.8m; Configuration Serial Cable—1.8 m (DB9 Female to 8-pin Ethernet Port); Type: Port and Cable Configuration |
| 0404A1EE | CAB-Console-1.8m-W31R; Configuration Port Cable-1.8m (RJ45P) (UL2725(3C28AWG)) (USB AP); Type: Port and Cable Configuration |
| Product Identity | |
| Brand | H3C |
| Series | H3C S51xxSeries Switches |
