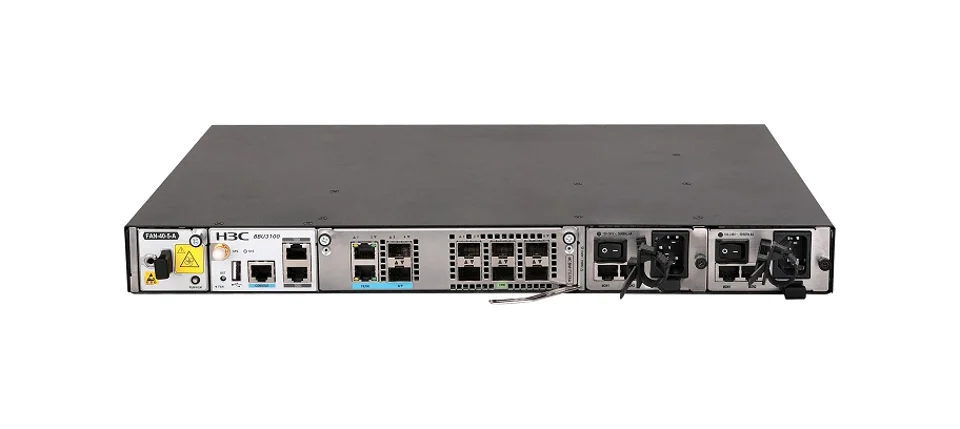

H3C MC-BBU3120 BBU3120 Baseband Processing Unit Chassis
Brand H3C
N/AVerified
H3C MC-BBU3120
Model (MPN)
0235A2J2
Condition
Factory Sealed
Out of Stock
H3C MC-BBU3120 BBU3120 Baseband Processing Unit Chassis. Dimensions: 400mm x 350mm x 140mm (with mounting bracket). Power Consumption: ≤300W. Weight: ≤20kg (with mounting bracket)
Key Specifications
DescriptionH3C BBU3120 Baseband Processing Unit Chassis
Dimensions400mm x 350mm x 140mm (with mounting bracket)
Weight≤20kg (with mounting bracket)
Power Consumption≤300W
Ambient temperatureLong-term -40°C to +55°C, short-term -55°C to +70°C
Relative Humidity5％～95％
Your Price
Best Value
$1,699.95
List Price: $24,285.00Save 93%
Availability Out of Stock
Quantity
Need configuration help?
Our CCIE certified engineers can help you verify compatibility.
Secure Payment
VISA
Pay
WIRE
Fast Dispatch
Global logistics network aiming for same-day handover.
48hrs
Avg. Shipping
99%
On-Time
Guaranteed Quality
Every unit undergoes rigorous 38-point inspection test.
3Year
Warranty
0.1%
RMA Rate
Global Reach
Trusted by enterprise clients across 6 continents.
85+
Countries
20k+
Clients
Expert Support
Certified network engineers ready to assist with configuration.
24/7
Assistance
CCIE
Certified
Overview
Specifications
| Catalog Description | |
|---|---|
| Description | H3C BBU3120 Baseband Processing Unit Chassis |
| Key Specifications | |
| Dimensions | 400mm x 350mm x 140mm (with mounting bracket) |
| Weight | ≤20kg (with mounting bracket) |
| Power Consumption | ≤300W |
| Ambient temperature | Long-term -40°C to +55°C, short-term -55°C to +70°C |
| Relative Humidity | 5％～95％ |
| Duplex Mode | TDD |
| Product Specifications | |
| Duplex Mode | TDD |
| Frequency Range | 1785MHz~1805MHz |
| System Bandwidth | 1.4/3/5/10/15/20MHz |
| Operating Mode | Support for TD-LTE operating modes |
| Receiving Sensitivity | -104dBm |
| Cascade | Supports 3 levels of cascading, each level of cascading RRUs can be configured as independent cells or cell merging |
| Protection Rating | IP65 |
| Specification Name | Specification Value |
| Dimensions | 400mm x 350mm x 140mm (with mounting bracket) |
| Weight | ≤20kg (with mounting bracket) |
| Cooling method | Natural heat dissipation |
| Whole Machine Efficiency | >25% |
| Supply Voltage | 220VAC（176V～264V AC） |
| Power Consumption | ≤300W |
| Mean Time Between Failures | MTBF ≥ 400,000 hours |
| Ambient temperature | Long-term -40°C to +55°C, short-term -55°C to +70°C |
| Relative Humidity | 5％～95％ |
| Atmospheric pressure | 55KPa～106 Kpa |
| Ordering Information | |
| functions Module | |
| 0231ADU3 | MCBM2LMCMB1 - H3C BBU3120 LTE Control Module |
| 0231ADU2 | MCBM2LBBMB1 - H3C BBU3120 LTE Baseband Module |
| Power Module | |
| 0231ADU1 | PSR780-12D - 780WDC Power Module |
| 0231ADU4 | PSR780-12A - 780WAC Power Module |
| Product Identity | |
| Brand | H3C |
| Series | H3C LTE Private Network Base Stations |
