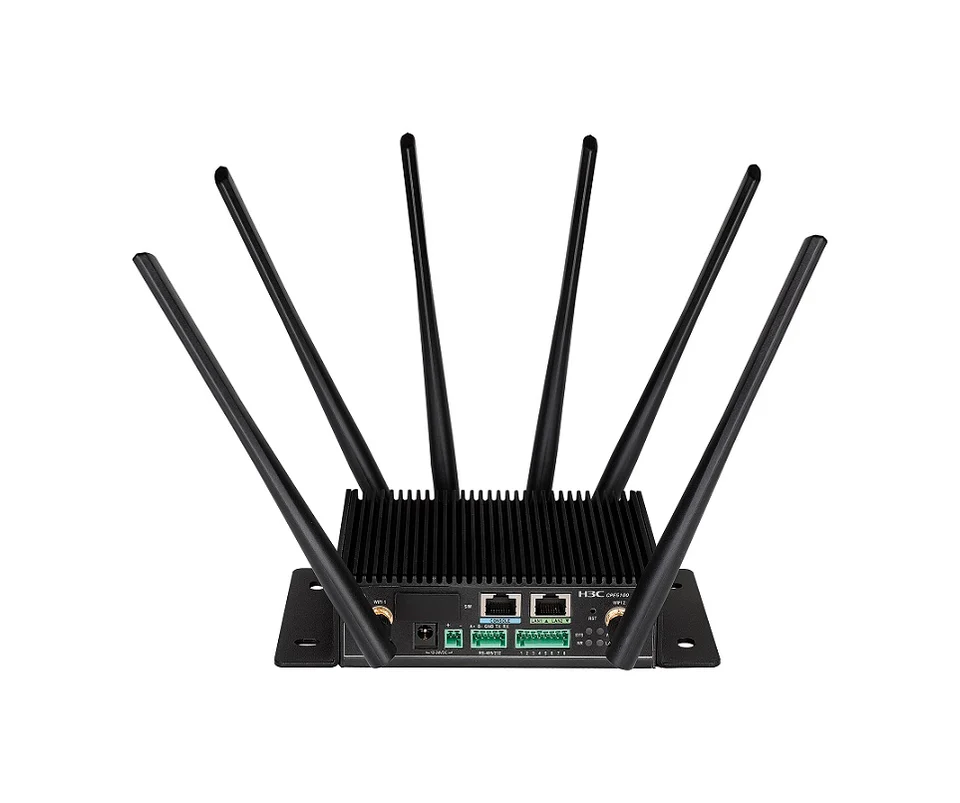

H3C MC-CPE5100 CPE5100 5G Wireless Data Terminal
Brand H3C
N/AVerified
H3C MC-CPE5100
Model (MPN)
9801A38U
Condition
Factory Sealed
Out of Stock
H3C MC-CPE5100 CPE5100 5G Wireless Data Terminal. Memory: 1GB. Storage Temperature: -40℃～70℃. Dimensions (L×W×H): 128*116.5*40mm
Key Specifications
DescriptionH3C CPE5100 5G Wireless Data Terminal
Dimensions (L×W×H)128*116.5*40mm
Weight1kg
power supply modeDC 12～24V
operating temperature-30℃～65℃
Storage Temperature-40℃～70℃
Your Price
Best Value
$350.00
List Price: $5,000.00Save 93%
Availability Out of Stock
Quantity
Need configuration help?
Our CCIE certified engineers can help you verify compatibility.
Secure Payment
VISA
Pay
WIRE
Fast Dispatch
Global logistics network aiming for same-day handover.
48hrs
Avg. Shipping
99%
On-Time
Guaranteed Quality
Every unit undergoes rigorous 38-point inspection test.
3Year
Warranty
0.1%
RMA Rate
Global Reach
Trusted by enterprise clients across 6 continents.
85+
Countries
20k+
Clients
Expert Support
Certified network engineers ready to assist with configuration.
24/7
Assistance
CCIE
Certified
Overview
Specifications
| Catalog Description | |
|---|---|
| Description | H3C CPE5100 5G Wireless Data Terminal |
| Key Specifications | |
| Dimensions (L×W×H) | 128*116.5*40mm |
| Weight | 1kg |
| power supply mode | DC 12～24V |
| operating temperature | -30℃～65℃ |
| Storage Temperature | -40℃～70℃ |
| Ambient humidity | 5% to 95% RH (non-condensing) |
| Product Specifications | |
| Dimensions (L×W×H) | 128*116.5*40mm |
| Weight | 1kg |
| Memory | 1GB |
| Flash Configuration | 512MB NAND FLASH |
| Band | - 5G NR NSA: n41/n78/n79- 5G NR SA: n1/n28/n41/n78/n79- LTE-FDD: B1/B3/B5/B8- LTE-TDD: B34/B38/B39/B40/B41- WLAN: 2.4GHz/5GHz, Dual-Band Concurrent |
| Interface | - 2 SIM card ports with dust cover. - 1 GE RJ45 interface. - 1 GE Phoenix terminal interface. - 1 Console RJ45 interface. - 1 RS232/485 2-in-1 Phoenix terminal serial interface. - 4 LEDs to indicate wired interface, NR, WIFI, system operation. - 2 DC power supply interface, a DC jack, a Phoenix terminal, a power supply two interfaces, shared. Standard H3C 12VDC adapter. |
| Number of antennas and gain | External 6 antennas (4 for 5G NR, 2 for WIFI):NR - 4d Bi gainWIFI - 5d Bi gain Note: The above comes standard. |
| Maximum Transmit Power | - 5G NR: 26d Bm (single port/class 2); 23d Bm (single port/class 3) - WIFI: 20d Bm; (single port) |
| Protection Rating | IP30 |
| power supply mode | DC 12～24V |
| Installation Method | Wall Mount, Rail, Desktop |
| Cooling | Natural heat dissipation |
| operating temperature | -30℃～65℃ |
| Storage Temperature | -40℃～70℃ |
| Ambient humidity | 5% to 95% RH (non-condensing) |
| Protocol Standards | Compliant with 3GPP R15 standard |
| Network Format | 5G NR/LTE-TDD/LTE-FDD/WIFI 6 。Supports SA and NSA。 |
| Modulation (NR) | - Downstream: QPSK/16QAM/64QAM/256QAM- Uplink: π/2-BPSK/QPSK/16QAM/64QAM/256QAM |
| MIMO（NR） | Uplink 2×2, downlink 4×4 |
| MIMO（WIFI） | 5GHz：2×2；2.4GHz：2×2。 |
| Maximum transmission rate | - 5G SA Sub-6 Transmission Rate: DL 2.1Gbps/UL 900 Mbps;- 5G NSA Sub-6 Transmission Rate: DL 2.5Gbps/UL 550 Mbps;- LTE Transmission Rate: DL 1Gbps/UL 200Mbps;- WIFI Transmission Rate: 575 Mbps (2.4GHz)/1.2Gbps(5GHz). Note: The above is the theoretical peak rate, the actual need to refer to the network configuration. |
| Network Functions | Static routing, IPV4/IPV6 dual stack, GRE tunneling, L2TP, NAT, port mapping, DHCP, DNS, IPSec encryption, bridge mode, etc. |
| Product Identity | |
| Brand | H3C |
| Series | H3C CPEProducts |
