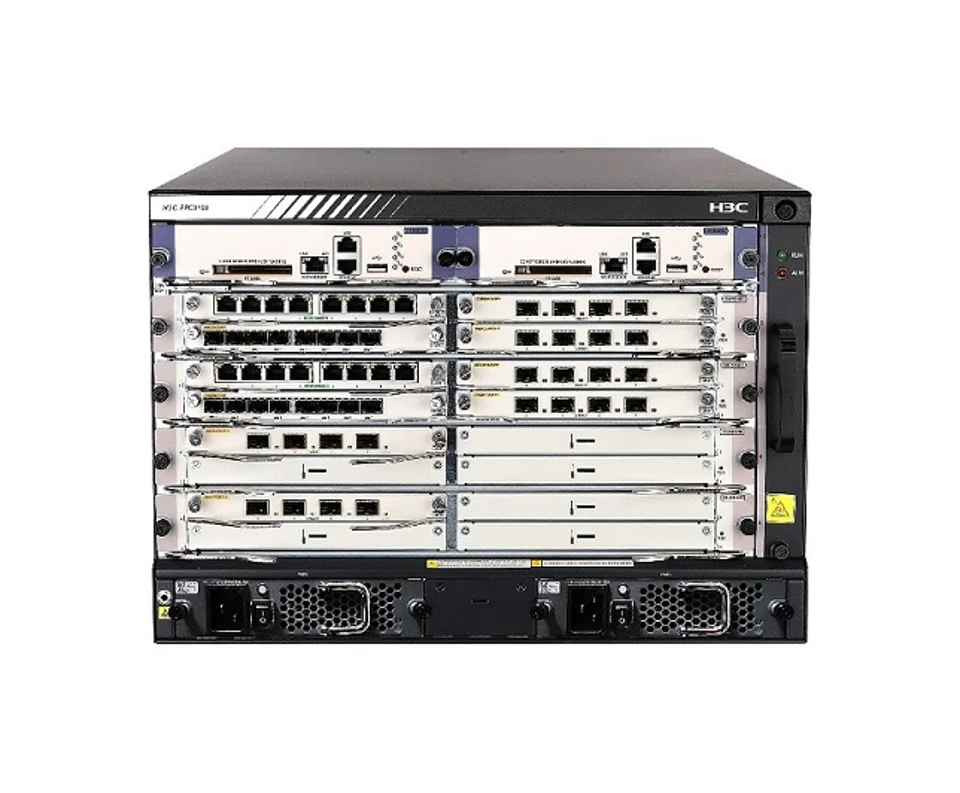

H3C MC-EPC3108 EPC3108 Core Network Host
Brand H3C
N/AVerified
H3C MC-EPC3108
Model (MPN)
0235A3T5
Condition
Factory Sealed
Out of Stock
H3C MC-EPC3108 EPC3108 Core Network Host. User Interface Type: 10/100M Ethernet（RJ-45）10/100/1000M Ethernet（RJ-45）100/1000M Ethernet（SFP）1000M Ethernet（SFP）10G Ethernet（SFP+）. Dimensions (W×D×H): 436mm×481.5mm×308.4mm. Power Supply: AC input rated range: 100 to 240V 50/60Hz DC input rated range: -48 to -60V
Key Specifications
DescriptionH3C EPC3108 Core Network Host
User Interface Type10/100M Ethernet（RJ-45）10/100/1000M Ethernet（RJ-45）100/1000M Ethernet（SFP）1000M Ethernet（SFP）10G Ethernet（SFP+）
Dimensions (W×D×H)436mm×481.5mm×308.4mm
Fully Configured Weight (Fully Configured)51kg
Power SupplyAC input rated range: 100 to 240V 50/60Hz DC input rated range: -48 to -60V
Ambient temperatureOperating: 0°C to 45°C; Storage: -40°C to 70°C;
Your Price
Call for Pricing
Volume discounts available
Availability Out of Stock
Need configuration help?
Our CCIE certified engineers can help you verify compatibility.
Secure Payment
VISA
Pay
WIRE
Fast Dispatch
Global logistics network aiming for same-day handover.
48hrs
Avg. Shipping
99%
On-Time
Guaranteed Quality
Every unit undergoes rigorous 38-point inspection test.
3Year
Warranty
0.1%
RMA Rate
Global Reach
Trusted by enterprise clients across 6 continents.
85+
Countries
20k+
Clients
Expert Support
Certified network engineers ready to assist with configuration.
24/7
Assistance
CCIE
Certified
Overview
Specifications
| Catalog Description | |
|---|---|
| Description | H3C EPC3108 Core Network Host |
| Key Specifications | |
| User Interface Type | 10/100M Ethernet（RJ-45）10/100/1000M Ethernet（RJ-45）100/1000M Ethernet（SFP）1000M Ethernet（SFP）10G Ethernet（SFP+） |
| Dimensions (W×D×H) | 436mm×481.5mm×308.4mm |
| Fully Configured Weight (Fully Configured) | 51kg |
| Power Supply | AC input rated range: 100 to 240V 50/60Hz DC input rated range: -48 to -60V |
| Ambient temperature | Operating: 0°C to 45°C; Storage: -40°C to 70°C; |
| Ambient humidity | Operating: 5% to 95% (non-condensing); Storage: 5% to 95% (non-condensing) |
| Product Specifications | |
| Specification Name | Specification |
| Power Supply | AC input rated range: 100 to 240V 50/60Hz DC input rated range: -48 to -60V |
| Dimensions (W×D×H) | 436mm×481.5mm×308.4mm |
| Fully Configured Weight (Fully Configured) | 51kg |
| User Interface Type | 10/100M Ethernet（RJ-45）10/100/1000M Ethernet（RJ-45）100/1000M Ethernet（SFP）1000M Ethernet（SFP）10G Ethernet（SFP+） |
| Ambient temperature | Operating: 0°C to 45°C; Storage: -40°C to 70°C; |
| Ambient humidity | Operating: 5% to 95% (non-condensing); Storage: 5% to 95% (non-condensing) |
| Altitude | Operation: -60m to 5km |
| Ordering Information | |
| Supervisor Module | |
| 0231AASG | CN-MSU-X3 - H3C EPC3100 MSU-X3Supervisor Engine Module |
| Business Module | |
| 0231AASF | CN-FSP-660 - H3C EPC3100 660 Flexible Service Platform Module, 4 MIC-X slots |
| Ethernetinterface daughter card Module | |
| 0231AASD | CN-MIC-X-GP8 - H3C EPC3100 8-Port Gigabit Ethernet SFP (LC) Interface Daughter Card (MIC-X) |
| Optical Module | |
| 02312170 | SFP-GE-LH40-SM1310 - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 40 km, LC) |
| 02312172 | SFP-GE-LH40-SM1550 - Optical Module—SFP—GE—Single-Mode Module—(1550 nm, 40 km, LC) |
| 02312173 | SFP-GE-LH80-SM1550 - Optical Module - SFP-GE - Single-Mode Module - (1550 nm, 80 km, LC) |
| 0231A562 | SFP-GE-SX-MM850-A - Optical Module - SFP-GE - Multimode Module (850 nm, 0.55 km, LC) |
| 0231A563 | SFP-GE-LX-SM1310-A - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 10 km, LC) |
| 0231AASE | CN-MIC-X-GT8 - H3C EPC3100 8-Port Gigabit Ethernet Electrical Interface Subcard (RJ45) (MIC-X) |
| 0231AASH | CN-MIC-X-XP4W - H3C EPC3100 4-Port 10 Gigabit Ethernet Optical Interface Daughter Card (SFP+, LC) (Supports LAN/WAN Modes) (MIC-X) |
| 0231A0A6 | SFP-XG-SX-MM850-A - SFP+ 10GModule(850nm,300m,LC) |
| 0231A0A8 | SFP-XG-LX-SM1310 - SFP+ 10GModule(1310nm,10km,LC) |
| 0231A0SP | SFP-XG-LH40-SM1550 - SFP+ 10GModule(1550nm,40km,LC) |
| 0231A1PA | SFP-XG-LH80-SM1550 - SFP+ 10GModule(1550nm,80km,LC) |
| Power Module | |
| 0231ABEH | PSR1200-12A-F-MC - H3C PSR1200A AC power Module,1200W |
| 0231ABEJ | PSR1200-12D-F-MC - H3C PSR1200D DC power Module,1200W |
| Console Cable | |
| 04042967 | CAB-CON-1.8m - Configuration Serial Cable—1.8 m—(DB9 Female to 8-pin Ethernet Port) |
| Product Identity | |
| Brand | H3C |
| Series | H3C LTE Private Network Core Network |
