Product Overview

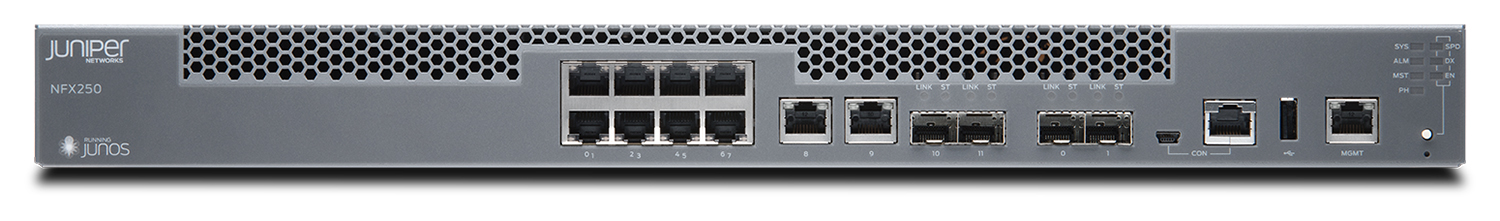

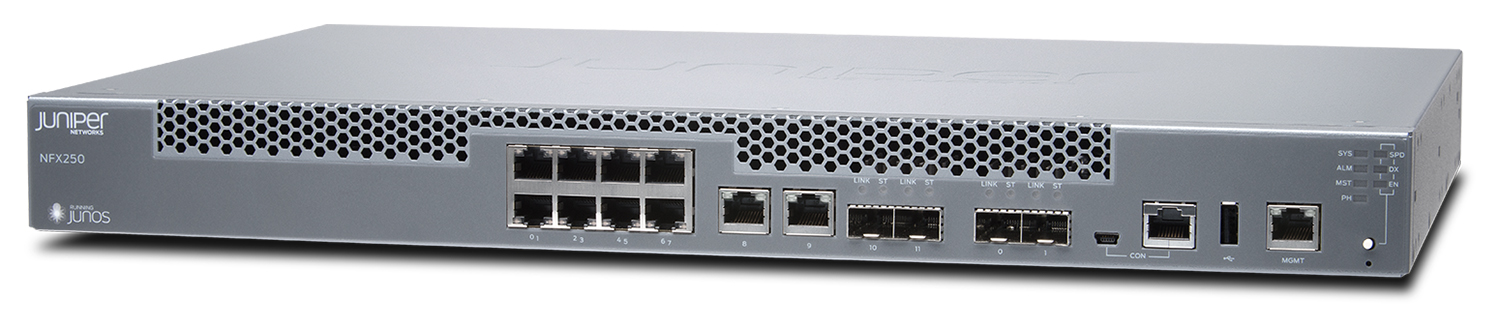

The Juniper NFX250-S1 is a high-performance network component designed for the NFX250 series.
Key Specifications
- NFX250-LS1: [{‘group’: ‘Overview’, ‘attributes’: {‘Full Product Name’: ‘NFX250 Network Services Platform’, ‘OS Supported’: ‘Junos OS’}}, {‘group’: ‘Chassis’, ‘attributes’: {‘Fixed/Modular Chassis?’: ‘Fixed’, ‘Form Factor’: ‘1 U’, ‘Chassis Height’: ‘1.72 in / 4.3688 cm’, ‘Chassis Width’: ‘17.36 in / 44.0944 cm’, ‘Chassis Depth’: ’12 in / 30.48 cm’, ‘Chassis Depth (With FRUs)’: ’12 in / 30.48 cm’, ‘Chassis Weight (As Shipped)’: ‘9 lb / 4.08 kg’}}, {‘group’: ‘Cooling System’, ‘attributes’: {‘Airflow Direction’: ‘Front-to-back’, ‘AFO/AFI?’: ‘AFO’, ‘Fan Module – Fixed?’: ‘Y’}}, {‘group’: ‘Environmental Specifications’, ‘attributes’: {‘Operating Altitude’: ‘10000 ft (3048 m)’, ‘Operating Temperature’: ’32° through 122° F / 0° through 50° C’, ‘Storage Temperature’: ‘-40° through 158° F / -40° through 70° C’, ‘Relative Humidity, Noncondensing (Operating)’: ‘5% through 90%’, ‘Relative Humidity, Noncondensing (Nonoperating)’: ‘5% through 90%’, ‘Seismic Tolerance’: ‘Zone 4’, ‘Acoustic Noise Level (Max)’: ’50 dB’, ‘Maintenance Clearance’: ’30 in / 76.2 cm’}}, {‘group’: ‘Built-in Network Ports’, ‘attributes’: {‘RJ-45 Port Count’: ‘8’, ‘SFP Port Count’: ‘2’, ‘SFP+ Port Count’: ‘2’}}, {‘group’: ‘Other Port Configuration’, ‘attributes’: {‘Console Port Count’: ‘1’, ‘Console Port Type’: ‘RJ-45’, ‘Console Port 2 Count’: ‘1’, ‘Console Port 2 Type’: ‘Mini-USB Type B’, ‘Management Port Count’: ‘1’, ‘Management Port Type’: ‘RJ-45’, ‘USB Port Count’: ‘1’, ‘USB Port Type’: ‘Type A’, ‘Uplink Port Count’: ‘2’, ‘Uplink Port Type’: ‘RJ-45’}}, {‘group’: ‘Performance (General)’, ‘attributes’: {‘Hardware Queues Per Port’: ‘8’}}, {‘group’: ‘Performance (Routing/Switching)’, ‘attributes’: {‘Throughput’: ’64 Gbps’, ‘MSTP Instances’: ’64’, ‘MAC Addresses Per System (Thousands)’: ’16’, ‘Maximum Mirroring Sessions’: ‘1’, ‘Traffic Mirroring Destination VLANs’: ‘1’, ‘Traffic Mirroring Destination Ports’: ‘1’, ‘VLAN IDs Count’: ‘4096’, ‘VNF Capacity’: ’20 Gbps’, ‘VNF Count Maximum’: ‘6’, ‘Jumbo Frame’: ‘9216 bytes’}}, {‘group’: ‘Processor’, ‘attributes’: {‘CPU’: ‘1.6 GHz 4-core Intel’, ‘DRAM’: ’16 GB’}}, {‘group’: ‘Power System’, ‘attributes’: {‘PSU Count’: ‘1’, ‘PSU Airflow Direction’: ‘Front-to-back’, ‘AC Max Power Consumption’: ‘140 W’, ‘Grounding Cable Lug Type’: ‘Panduit LCC10-14BWL’, ‘Grounding Cable Temperature Rating’: ’90° C / 194° F’, ‘Grounding Cable Wire Gauge’: ’14 AWG’}}, {‘group’: ‘Security’, ‘attributes’: {‘IPsec Authentication Algorithms’: ‘MD5, SHA-1, SHA-128, SHA-256’, ‘IPsec Encryption Algorithms’: ‘DES, 3DES, AES-256, AES-GCM’}}, {‘group’: ‘Storage’, ‘attributes’: {‘Internal Storage Size’: ‘100 GB’, ‘Internal Storage Type’: ‘SSD’}}]
- NFX250-S1: [{‘group’: ‘Overview’, ‘attributes’: {‘Full Product Name’: ‘NFX250 Network Services Platform’, ‘OS Supported’: ‘Junos OS’}}, {‘group’: ‘Chassis’, ‘attributes’: {‘Fixed/Modular Chassis?’: ‘Fixed’, ‘Form Factor’: ‘1 U’, ‘Chassis Height’: ‘1.72 in / 4.3688 cm’, ‘Chassis Width’: ‘17.36 in / 44.0944 cm’, ‘Chassis Depth’: ’12 in / 30.48 cm’, ‘Chassis Depth (With FRUs)’: ’12 in / 30.48 cm’, ‘Chassis Weight (As Shipped)’: ‘9.4 lb / 4.26 kg’}}, {‘group’: ‘Cooling System’, ‘attributes’: {‘Airflow Direction’: ‘Front-to-back’, ‘AFO/AFI?’: ‘AFO’, ‘Fan Module – Fixed?’: ‘Y’}}, {‘group’: ‘Environmental Specifications’, ‘attributes’: {‘Operating Altitude’: ‘10000 ft (3048 m)’, ‘Operating Temperature’: ’32° through 122° F / 0° through 50° C’, ‘Storage Temperature’: ‘-40° through 158° F / -40° through 70° C’, ‘Relative Humidity, Noncondensing (Operating)’: ‘5% through 90%’, ‘Relative Humidity, Noncondensing (Nonoperating)’: ‘5% through 90%’, ‘Seismic Tolerance’: ‘Zone 4’, ‘Acoustic Noise Level (Max)’: ’50 dB’, ‘Maintenance Clearance’: ’30 in / 76.2 cm’}}, {‘group’: ‘Built-in Network Ports’, ‘attributes’: {‘RJ-45 Port Count’: ‘8’, ‘SFP Port Count’: ‘2’, ‘SFP+ Port Count’: ‘2’}}, {‘group’: ‘Other Port Configuration’, ‘attributes’: {‘Console Port Count’: ‘1’, ‘Console Port Type’: ‘RJ-45’, ‘Console Port 2 Count’: ‘1’, ‘Console Port 2 Type’: ‘Mini-USB Type B’, ‘Management Port Count’: ‘1’, ‘Management Port Type’: ‘RJ-45’, ‘USB Port Count’: ‘1’, ‘USB Port Type’: ‘Type A’, ‘Uplink Port Count’: ‘2’, ‘Uplink Port Type’: ‘RJ-45’}}, {‘group’: ‘Performance (General)’, ‘attributes’: {‘Hardware Queues Per Port’: ‘8’}}, {‘group’: ‘Performance (Routing/Switching)’, ‘attributes’: {‘Throughput’: ’64 Gbps’, ‘MSTP Instances’: ’64’, ‘MAC Addresses Per System (Thousands)’: ’16’, ‘Maximum Mirroring Sessions’: ‘1’, ‘Traffic Mirroring Destination VLANs’: ‘1’, ‘Traffic Mirroring Destination Ports’: ‘1’, ‘VLAN IDs Count’: ‘4096’, ‘VNF Capacity’: ’20 Gbps’, ‘VNF Count Maximum’: ‘6’, ‘Jumbo Frame’: ‘9216 bytes’}}, {‘group’: ‘Performance (Security)’, ‘attributes’: {‘IPsec’: ‘0.5 Gbps’, ‘Managed Secure Router’: ‘2 Gbps’, ‘Managed Security’: ‘2 Gbps’}}, {‘group’: ‘Processor’, ‘attributes’: {‘CPU’: ‘1.9 GHz 6-core Intel’, ‘DRAM’: ’16 GB’}}, {‘group’: ‘Power System’, ‘attributes’: {‘PSU Count’: ‘1’, ‘PSU Airflow Direction’: ‘Front-to-back’, ‘AC Max Power Consumption’: ‘140 W’, ‘Grounding Cable Lug Type’: ‘Panduit LCC10-14BWL’, ‘Grounding Cable Temperature Rating’: ’90° C / 194° F’, ‘Grounding Cable Wire Gauge’: ’14 AWG’}}, {‘group’: ‘Security’, ‘attributes’: {‘IPsec Authentication Algorithms’: ‘MD5, SHA-1, SHA-128, SHA-256’, ‘IPsec Encryption Algorithms’: ‘DES, 3DES, AES-256, AES-GCM’}}, {‘group’: ‘Storage’, ‘attributes’: {‘Internal Storage Size’: ‘100 GB’, ‘Internal Storage Type’: ‘SSD’}}]
- NFX250-S1E: [{‘group’: ‘Overview’, ‘attributes’: {‘Full Product Name’: ‘NFX250 Network Services Platform’, ‘OS Supported’: ‘Junos OS’}}, {‘group’: ‘Chassis’, ‘attributes’: {‘Fixed/Modular Chassis?’: ‘Fixed’, ‘Form Factor’: ‘1 U’, ‘Chassis Height’: ‘1.72 in / 4.3688 cm’, ‘Chassis Width’: ‘17.36 in / 44.0944 cm’, ‘Chassis Depth’: ’12 in / 30.48 cm’, ‘Chassis Depth (With FRUs)’: ’12 in / 30.48 cm’, ‘Chassis Weight (As Shipped)’: ‘9.4 lb / 4.26 kg’}}, {‘group’: ‘Cooling System’, ‘attributes’: {‘Airflow Direction’: ‘Front-to-back’, ‘AFO/AFI?’: ‘AFO’, ‘Fan Module – Fixed?’: ‘Y’}}, {‘group’: ‘Environmental Specifications’, ‘attributes’: {‘Operating Altitude’: ‘10000 ft (3048 m)’, ‘Operating Temperature’: ’32° through 122° F / 0° through 50° C’, ‘Storage Temperature’: ‘-40° through 158° F / -40° through 70° C’, ‘Relative Humidity, Noncondensing (Operating)’: ‘5% through 90%’, ‘Relative Humidity, Noncondensing (Nonoperating)’: ‘5% through 90%’, ‘Seismic Tolerance’: ‘Zone 4’, ‘Acoustic Noise Level (Max)’: ’50 dB’, ‘Maintenance Clearance’: ’30 in / 76.2 cm’}}, {‘group’: ‘Built-in Network Ports’, ‘attributes’: {‘RJ-45 Port Count’: ‘8’, ‘SFP Port Count’: ‘2’, ‘SFP+ Port Count’: ‘2’}}, {‘group’: ‘Other Port Configuration’, ‘attributes’: {‘Console Port Count’: ‘1’, ‘Console Port Type’: ‘RJ-45’, ‘Console Port 2 Count’: ‘1’, ‘Console Port 2 Type’: ‘Mini-USB Type B’, ‘Management Port Count’: ‘1’, ‘Management Port Type’: ‘RJ-45’, ‘USB Port Count’: ‘1’, ‘USB Port Type’: ‘Type A’, ‘Uplink Port Count’: ‘2’, ‘Uplink Port Type’: ‘RJ-45’}}, {‘group’: ‘Performance (General)’, ‘attributes’: {‘Hardware Queues Per Port’: ‘8’}}, {‘group’: ‘Performance (Routing/Switching)’, ‘attributes’: {‘Throughput’: ’64 Gbps’, ‘MSTP Instances’: ’64’, ‘MAC Addresses Per System (Thousands)’: ’16’, ‘Maximum Mirroring Sessions’: ‘1’, ‘Traffic Mirroring Destination VLANs’: ‘1’, ‘Traffic Mirroring Destination Ports’: ‘1’, ‘VLAN IDs Count’: ‘4096’, ‘VNF Capacity’: ’20 Gbps’, ‘VNF Count Maximum’: ‘6’, ‘Jumbo Frame’: ‘9216 bytes’}}, {‘group’: ‘Performance (Security)’, ‘attributes’: {‘IPsec’: ‘0.75 Gbps’, ‘Managed Secure Router’: ‘3 Gbps’, ‘Managed Security’: ‘3 Gbps’}}, {‘group’: ‘Processor’, ‘attributes’: {‘CPU’: ‘2.0 GHz 6-core Intel’, ‘DRAM’: ’16 GB’}}, {‘group’: ‘Power System’, ‘attributes’: {‘PSU Count’: ‘1’, ‘PSU Airflow Direction’: ‘Front-to-back’, ‘AC Max Power Consumption’: ‘140 W’, ‘Grounding Cable Lug Type’: ‘Panduit LCC10-14BWL’, ‘Grounding Cable Temperature Rating’: ’90° C / 194° F’, ‘Grounding Cable Wire Gauge’: ’14 AWG’}}, {‘group’: ‘Security’, ‘attributes’: {‘IPsec Authentication Algorithms’: ‘MD5, SHA-1, SHA-128, SHA-256’, ‘IPsec Encryption Algorithms’: ‘DES, 3DES, AES-256, AES-GCM’}}, {‘group’: ‘Storage’, ‘attributes’: {‘Internal Storage Size’: ‘200 GB’, ‘Internal Storage Type’: ‘SSD’}}]
- NFX250-S2: [{‘group’: ‘Overview’, ‘attributes’: {‘Full Product Name’: ‘NFX250 Network Services Platform’, ‘OS Supported’: ‘Junos OS’}}, {‘group’: ‘Chassis’, ‘attributes’: {‘Fixed/Modular Chassis?’: ‘Fixed’, ‘Form Factor’: ‘1 U’, ‘Chassis Height’: ‘1.72 in / 4.3688 cm’, ‘Chassis Width’: ‘17.36 in / 44.0944 cm’, ‘Chassis Depth’: ’12 in / 30.48 cm’, ‘Chassis Depth (With FRUs)’: ’12 in / 30.48 cm’, ‘Chassis Weight (As Shipped)’: ‘9.4 lb / 4.26 kg’}}, {‘group’: ‘Cooling System’, ‘attributes’: {‘Airflow Direction’: ‘Front-to-back’, ‘AFO/AFI?’: ‘AFO’, ‘Fan Module – Fixed?’: ‘Y’}}, {‘group’: ‘Environmental Specifications’, ‘attributes’: {‘Operating Altitude’: ‘10000 ft (3048 m)’, ‘Operating Temperature’: ’32° through 122° F / 0° through 50° C’, ‘Storage Temperature’: ‘-40° through 158° F / -40° through 70° C’, ‘Relative Humidity, Noncondensing (Operating)’: ‘5% through 90%’, ‘Relative Humidity, Noncondensing (Nonoperating)’: ‘5% through 90%’, ‘Seismic Tolerance’: ‘Zone 4’, ‘Acoustic Noise Level (Max)’: ’50 dB’, ‘Maintenance Clearance’: ’30 in / 76.2 cm’}}, {‘group’: ‘Built-in Network Ports’, ‘attributes’: {‘RJ-45 Port Count’: ‘8’, ‘SFP Port Count’: ‘2’, ‘SFP+ Port Count’: ‘2’}}, {‘group’: ‘Other Port Configuration’, ‘attributes’: {‘Console Port Count’: ‘1’, ‘Console Port Type’: ‘RJ-45’, ‘Console Port 2 Count’: ‘1’, ‘Console Port 2 Type’: ‘Mini-USB Type B’, ‘Management Port Count’: ‘1’, ‘Management Port Type’: ‘RJ-45’, ‘USB Port Count’: ‘1’, ‘USB Port Type’: ‘Type A’, ‘Uplink Port Count’: ‘2’, ‘Uplink Port Type’: ‘RJ-45’}}, {‘group’: ‘Performance (General)’, ‘attributes’: {‘Hardware Queues Per Port’: ‘8’}}, {‘group’: ‘Performance (Routing/Switching)’, ‘attributes’: {‘Throughput’: ’64 Gbps’, ‘MSTP Instances’: ’64’, ‘MAC Addresses Per System (Thousands)’: ’16’, ‘Maximum Mirroring Sessions’: ‘1’, ‘Traffic Mirroring Destination VLANs’: ‘1’, ‘Traffic Mirroring Destination Ports’: ‘1’, ‘VLAN IDs Count’: ‘4096’, ‘VNF Capacity’: ’20 Gbps’, ‘VNF Count Maximum’: ‘8’, ‘Jumbo Frame’: ‘9216 bytes’}}, {‘group’: ‘Performance (Security)’, ‘attributes’: {‘IPsec’: ‘1.2 Gbps’, ‘Managed Secure Router’: ‘4 Gbps’, ‘Managed Security’: ‘4 Gbps’}}, {‘group’: ‘Processor’, ‘attributes’: {‘CPU’: ‘1.9 GHz 6-core Intel’, ‘DRAM’: ’32 GB’}}, {‘group’: ‘Power System’, ‘attributes’: {‘PSU Count’: ‘1’, ‘PSU Airflow Direction’: ‘Front-to-back’, ‘AC Max Power Consumption’: ‘140 W’, ‘Grounding Cable Lug Type’: ‘Panduit LCC10-14BWL’, ‘Grounding Cable Temperature Rating’: ’90° C / 194° F’, ‘Grounding Cable Wire Gauge’: ’14 AWG’}}, {‘group’: ‘Security’, ‘attributes’: {‘IPsec Authentication Algorithms’: ‘MD5, SHA-1, SHA-128, SHA-256’, ‘IPsec Encryption Algorithms’: ‘DES, 3DES, AES-256, AES-GCM’}}, {‘group’: ‘Storage’, ‘attributes’: {‘Internal Storage Size’: ‘400 GB’, ‘Internal Storage Type’: ‘SSD’}}]
