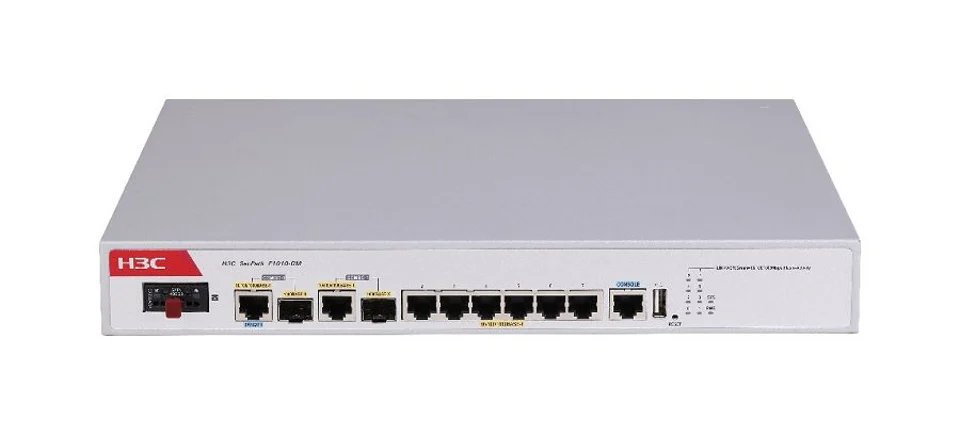

H3C NS-SecPath F1010-GM Sec Path F1010-GM firewall appliance, supports 6 gigabit copper ports, 2 GE Combo ports, 1 USB port, 1 Console port
Brand H3C
N/AVerified
H3C NS-SecPath F1010-GM
Model (MPN)
NS-SecPath F1010-GM
Condition
Factory Sealed
Out of Stock
H3C NS-SecPath F1010-GM Sec Path F1010-GM firewall appliance, supports 6 gigabit copper ports, 2 GE Combo ports, 1 USB port, 1 Console port. Dimensions (W×D×H) (Unit: mm): 330 x 230 x 43.6 438×227 x44. Power Supply: 1 external 36W AC power supply. Ambient temperature: Operating: 0～45℃; Non-operating: -40～70℃
Key Specifications
DescriptionH3C Sec Path F1010-GM firewall appliance, supports 6 gigabit copper ports, 2 GE Combo ports, 1 USB port, 1 Console port
Dimensions (W×D×H) (Unit: mm)330 x 230 x 43.6 438x227 x44
Power Supply1 external 36W AC power supply
Ambient temperatureOperating: 0～45℃; Non-operating: -40～70℃
Ambient humidityOperating: 10 to 80%, non-condensing Non-operating: 5 to 95%, non-condensing
Expansion SlotsNone
Your Price
Best Value
$1,817.12
List Price: $22,714.00Save 92%
Availability Out of Stock
Quantity
Need configuration help?
Our CCIE certified engineers can help you verify compatibility.
Secure Payment
VISA
Pay
WIRE
Fast Dispatch
Global logistics network aiming for same-day handover.
48hrs
Avg. Shipping
99%
On-Time
Guaranteed Quality
Every unit undergoes rigorous 38-point inspection test.
3Year
Warranty
0.1%
RMA Rate
Global Reach
Trusted by enterprise clients across 6 continents.
85+
Countries
20k+
Clients
Expert Support
Certified network engineers ready to assist with configuration.
24/7
Assistance
CCIE
Certified
Overview
Specifications
| Catalog Description | |
|---|---|
| Description | H3C Sec Path F1010-GM firewall appliance, supports 6 gigabit copper ports, 2 GE Combo ports, 1 USB port, 1 Console port |
| Key Specifications | |
| Dimensions (W×D×H) (Unit: mm) | 330 x 230 x 43.6 438x227 x44 |
| Power Supply | 1 external 36W AC power supply |
| Ambient temperature | Operating: 0～45℃; Non-operating: -40～70℃ |
| Ambient humidity | Operating: 10 to 80%, non-condensing Non-operating: 5 to 95%, non-condensing |
| Expansion Slots | None |
| Storage Media | Internal storage media (micro SD card interface supported) |
| Product Specifications | |
| Interface | 1 configuration port (CON) 1 external USB host interface 5 Gigabit Ethernet electrical ports 2 Gigabit Ethernet optical ports built-in 4G Modem 1 configuration port (CON) 1 external USB host interface 10 Gigabit Ethernet electrical ports 2 Gigabit Ethernet optical ports built-in 4G Modem |
| Expansion Slots | None |
| Storage Media | Internal storage media (micro SD card interface supported) |
| Power Supply | 1 external 36W AC power supply |
| Dimensions (W×D×H) (Unit: mm) | 330 x 230 x 43.6 438x227 x44 |
| Ambient temperature | Operating: 0～45℃; Non-operating: -40～70℃ |
| Ambient humidity | Operating: 10 to 80%, non-condensing Non-operating: 5 to 95%, non-condensing |
| Operating Mode | Routing Mode, Transparent Mode, Mixed Mode |
| AAA Services | Portal Authentication, RADIUS Authentication, HWTACACS Authentication, PKI/CA (X.509 format)Authentication, domain authentication, CHAP authentication, PAP authentication |
| Firewall | Security zoning defends against Land, Smurf, Fraggle, Ping of Death, Tear Drop, IP Spoofing, IP Segmented Messages, ARP Spoofing, ARP Active Reverse Lookup, TCP Message Flag Bit Illegal Oversized ICMP messages, Address Scanning, Port Scanning, SYN Flood, UPD Flood, ICMP Flood, DNS Flood, and other malicious attacks Basic and Extended Access Control Lists Time Period-based Access Control Lists User-based and Usage-based Access Control Lists Dynamic Packet Filtering ASPF Application Layer Message Filtering Static and Dynamic Blacklisting MAC and IP Binding MAC-based Access Control Lists 802.1q VLAN support Pass-through |
| Load Balancing | Supports the link load balancing function |
| Virus Protection | Detection based on virus characteristics Support manual and automatic upgrade of virus database Message stream processing mode Support HTTP, FTP, SMTP, POP3 protocols Supported virus types: Backdoor, Email-Worm, IM-Worm, P2P-Worm, Trojan, Ad Ware, Virus, etc.Support virus logs and reports |
| Deep Intrusion Prevention | Supports defense against hacker attacks, worms/viruses, Trojan horses, malicious code, spyware/adware, DoS/DDoS often Supports defense against buffer overflow, SQL injection, IDS/IPS escape, etc. Supports classification (based on attack type, target machine system) and grading (in four levels: high, medium, low, and prompt) of attack signature libraries Supports manual Supports manual and automatic upgrade (TFTP and HTTP) of the attack signature library. Supports the identification and control of P2P/IM such as BT. |
| Email/Web/Application-Layer Filtering | Email FilteringSMTP Email Address Filtering Email Header Filtering Email Content Filtering Email Attachment Filtering Web FilteringHTTP URL FilteringHTTP Content Filtering Application Layer Filtering Java Blocking ActiveX BlockingSQL Injection Attack Prevention |
| Behavior and Content Audit | Auditing and traceability of access content can be performed based on user |
| Data Loss Prevention | Identify and filter the transmitted files and contents, which can accurately identify the real types of common files, such as Word, Excel, PPT, PDF, ZIP, RAR, EXE, DLL, AVI, MP4, etc., and filter the sensitive contents |
| URL Filtering | Supports predefinition of more than 50 URL categories, black and white lists of URL rules, and the ability to drop, reset, redirect, log, and blacklist traffic accessing the URLs |
| Application Identification and Control | Recognize massive application types, access control precision to application functions, e.g., differentiate between We Chat login, sending messages, receiving messages, voice calls, pictures, etc. Application identification combined with intrusion detection, anti-virus, content filtering to improve detection performance and accuracy |
| NAT | Supports mapping of multiple internal addresses to the same public address Supports mapping of multiple internal addresses to multiple public addresses Supports one-to-one mapping of internal addresses to public addresses Supports simultaneous translation of source and destination addresses Supports access to internal servers by external network hosts Supports direct mapping of internal addresses to interface public IP addresses Supports DNS mapping feature is configurable Supports effective time for address translation Supports multiple NAT ALGs Support multiple NAT ALG, including DNS, FTP, H.323, ILS, MSN, NBT, PPTP, SIP, etc. |
| VPN | L2TP VPN、IPSec VPN、GRE VPN、SSL VPN |
| Routing Features | Full support for multiple routing protocols, such as RIP, OSPF, RIPv2, etc; |
| IPv6 | IPv6-based Stateful Firewall and Attack Prevention IPv6 Protocols: IPv6 Forwarding, ICMPv6, PMTU, Ping6, DNS6, TraceRT6, Telnet6, DHCPv6 Client, DHCPv6 Relay, etc. IPv6 Routing: RIPng, OSPFv3, BGP4+, Static Routing, Policy Routing, PIM-SM, PIM-DM, etc. IPv6 Security: NAT-PT, IPv6 Tunnel, IPv6 Packet Filter, Radius, IPv6 Inter-Domain Policy, IPv6 Connection Limit, etc. |
| High Reliability | Support for IKE state synchronization for IPSec VPNs Support for VRRP |
| Maintainability | Supports command line based configuration management Supports Web-based remote configuration management Supports H3C SSM Security Management Center for device management Supports standard network management SNMPv3, and is compatible with SNMP v1 and v2 Intelligent Security Policies Supports remote configuration management of the device through iMC BIMS (VPN policies are uniformly issued) |
| Ordering Information | |
| SFPGigabit Optical Port | |
| 02312170 | SFP-GE-LH40-SM1310 - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 40 km, LC) |
| 02312172 | SFP-GE-LH40-SM1550 - Optical Module—SFP—GE—Single-Mode Module—(1550 nm, 40 km, LC) |
| 02312173 | SFP-GE-LH80-SM1550 - Optical Module - SFP-GE - Single-Mode Module - (1550 nm, 80 km, LC) |
| 0231A085 | SFP-GE-T - SFP GEElectrical Port Module(100m,RJ45) |
| 0231A562 | SFP-GE-SX-MM850-A - Optical Module - SFP-GE - Multimode Module (850 nm, 0.55 km, LC) |
| 0231A563 | SFP-GE-LX-SM1310-A - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 10 km, LC) |
| 0231A960 | SFP-GE-T-D - SFP GEElectrical Port Module(100m,RJ45) |
| 0231A961 | SFP-GE-SX-MM850-D - Optical Module - SFP-GE - Multimode Module (850 nm, 0.55 km, LC) |
| 0231A962 | SFP-GE-LX-SM1310-D - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 10 km, LC) |
| 0231A963 | SFP-GE-LH40-SM1310-D - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 40 km, LC) |
| 0231A964 | SFP-GE-LH80-SM1550-D - Optical Module - SFP-GE - Single-Mode Module - (1550 nm, 80 km, LC) |
| Cable | |
| 04042967 | CAB-CON-1.8m - Configuration Serial Cable—1.8 m—(DB9 Female to 8-pin Ethernet Port) |
| 0404A1EE | CAB-Console-1.8m-W31R - Configuration Port Cable-1.8m-(RJ45P)-(UL2725(3C28AWG))-(USB AP) |
| Security License Certificate | |
| 3130A1RM | LIS-F1000-SSL-25 - H3C Sec Path F1000,SSL VPN 25 x User |
| 3130A1RN | LIS-F1000-SSL-125 - H3C Sec Path F1000,SSL VPN 125 x User |
| 3130A1RP | LIS-F1000-SSL-500 - H3C Sec Path F1000,SSL VPN 500 x User |
| 3130A1RQ | LIS-F1000-SSL-1000 - H3C Sec Path F1000,SSL VPN 1000 x User |
| IMC-SSL license certificate | |
| 3130A2W7 | LIS-IMC7-SVF1KD-1K - H3C iMC-SSL VPN Authentication Client - F1000 - 1000 Licenses |
| 3130A2W6 | LIS-IMC7-SVF1KC-500 - H3C iMC-SSL VPN Authentication Client - F1000-500 License |
| 3130A2W5 | LIS-IMC7-SVF1KB-125 - H3C iMC-SSL VPN Authentication Client - F1000-125 License |
| 3130A2W4 | LIS-IMC7-SVF1KA-25 - H3C iMC-SSL VPN Authentication Client—F1000-25 License |
| F1000-AI Licenses | |
| 3130A5R9 | LIS-F1000-AI-05-URL-1Y - H3C Sec Path F1000-AI-05 firewall URL signature database upgrade license, 1 year |
| 3130A5R8 | LIS-F1000-AI-05-IPS1-1Y - H3C Sec Path F1000-AI-05 Firewall IPS signature database upgrade license, 1 year |
| 3130A5QU | LIS-F1000-AI-05-ACG3-3Y - H3C Sec Path F1000-AI-05 Firewall application identification signature database upgrade license, 3 years |
| 3130A5R6 | LIS-F1000-AI-05-IPS3-3Y - H3C Sec Path F1000-AI-05 Firewall IPS signature database upgrade license, 3 years |
| 3130A5R3 | LIS-F1000-AI-05-AV-3Y - H3C Sec Path F1000-AI-05 Firewall AV antivirus security signature database upgrade license, 3 years |
| 3130A5QR | LIS-F1000-AI-05-ACG1-1Y - H3C Sec Path F1000-AI-05 Firewall application identification signature database upgrade license, 1 year |
| 3130A5QG | LIS-F1000-AI-05-TI-3Y - H3C Sec Path F1000-AI-05 Firewall security threat intelligence upgrade license, 3 years |
| 3130A5SH | LIS-F1000-AI-05-TAIAU-3Y - H3C Sec Path F1000-AI-05 Firewall TI/ACG/IPS/AV/URL combined signature database upgrade license, 3 years |
| 3130A5SG | LIS-F1000-AI-05-TAIAU-1Y - H3C Sec Path F1000-AI-05 Firewall TI/ACG/IPS/AV/URL combined signature database upgrade license, 1 year |
| 3130A5QD | LIS-F1000-AI-05-TI-1Y - H3C Sec Path F1000-AI-05 Firewall security threat intelligence upgrade license, 1 year |
| 3130A5R0 | LIS-F1000-AI-05-AV-1Y - H3C Sec Path F1000-AI-05 Firewall AV antivirus security signature database upgrade license, 1 year |
| 3130A5SC | LIS-F1000-AI-05-URL-3Y - H3C Sec Path F1000-AI-05 Firewall URL signature database upgrade license, 3 years |
| Custom Development Authorization Letter Selection | |
| 3130A4S4 | LIS-SeerEngine-Sec-CDC - H3C Seer Engine-Sec Security Controller Custom Development (1 person-day) Authorization Letter |
| Product Identity | |
| Brand | H3C |
| Series | H3C F1000 Series |
