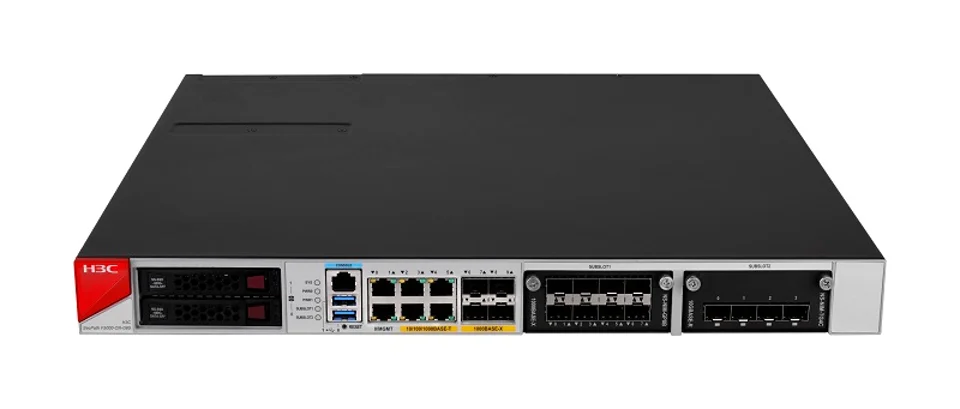

H3C NS-SecPath F5000-CN-G65 Sec Path F5000-CN-G65 firewall device
Brand H3C
N/AVerified
H3C NS-SecPath F5000-CN-G65
Model (MPN)
NS-SecPath F5000-CN-G65
Condition
Factory Sealed
Out of Stock
H3C NS-SecPath F5000-CN-G65 Sec Path F5000-CN-G65 firewall device. Interface: 1 configuration port (CON) Host comes with 12 Gigabit electrical ports + 16 10Gb optical ports + 4 40G interfaces. Memory Configuration: 4G. Dimensions (W×D×H): 440×650×88.4mm
Key Specifications
DescriptionH3C Sec Path F5000-CN-G65 firewall device
Interface1 configuration port (CON) Host comes with 12 Gigabit electrical ports + 16 10Gb optical ports + 4 40G interfaces
Dimensions (W×D×H)440×650×88.4mm
Dimensions (W ×H ×D)440mm×44mm×435mm
Power SupplyDual power supply, supports 1+1 AC/DC redundancy
Ambient temperatureOperating: 0～45℃; Non-operating: -40～70℃
Your Price
Best Value
$6,514.24
List Price: $81,428.00Save 92%
Availability Out of Stock
Quantity
Need configuration help?
Our CCIE certified engineers can help you verify compatibility.
Secure Payment
VISA
Pay
WIRE
Fast Dispatch
Global logistics network aiming for same-day handover.
48hrs
Avg. Shipping
99%
On-Time
Guaranteed Quality
Every unit undergoes rigorous 38-point inspection test.
3Year
Warranty
0.1%
RMA Rate
Global Reach
Trusted by enterprise clients across 6 continents.
85+
Countries
20k+
Clients
Expert Support
Certified network engineers ready to assist with configuration.
24/7
Assistance
CCIE
Certified
Overview
Specifications
| Catalog Description | |
|---|---|
| Description | H3C Sec Path F5000-CN-G65 firewall device |
| Key Specifications | |
| Interface | 1 configuration port (CON) Host comes with 12 Gigabit electrical ports + 16 10Gb optical ports + 4 40G interfaces |
| Dimensions (W×D×H) | 440×650×88.4mm |
| Dimensions (W ×H ×D) | 440mm×44mm×435mm |
| Power Supply | Dual power supply, supports 1+1 AC/DC redundancy |
| Ambient temperature | Operating: 0～45℃; Non-operating: -40～70℃ |
| Ambient humidity | Operating: 10 to 95%, non-condensing Non-operating: 5 to 95%, non-condensing |
| Product Specifications | |
| Interface | 1 configuration port (CON) Host comes with 12 Gigabit electrical ports + 16 10Gb optical ports + 4 40G interfaces |
| Expansion Slots | 4 ports |
| Expansion Board Type | 4 x Gigabit Optical Port4 x10GOptical Port1 x40GInterface |
| Drive Expansion Bays | 2 x Drive Expansion Bays |
| Power Supply | Dual power supply, supports 1+1 AC/DC redundancy |
| Fan | Dual fans with 1+1 redundancy support |
| Dimensions (W×D×H) | 440×650×88.4mm |
| Ambient temperature | Operating: 0～45℃; Non-operating: -40～70℃ |
| Ambient humidity | Operating: 10 to 95%, non-condensing Non-operating: 5 to 95%, non-condensing |
| Expansion Slot | 2 x Interface Expansion Slot, Supports 8-Port Electrical Port Interface Card, 8-Port Optical Port Interface Card, 4-Port10GOptical Interface Card |
| Memory Configuration | 4G |
| Flash Configuration | 8G |
| Dimensions (W ×H ×D) | 440mm×44mm×435mm |
| Hardware Expansion Slot | 2 x Drive Expansion Bays |
| AAA Services | Portal Authentication, RADIUS Authentication, HWTACACS Authentication, PKI/CA (X.509 format)Authentication, domain authentication, CHAP authentication, PAP authentication |
| Firewall | Virtual Firewall Security Zoning Defends against Land, Smurf, Fraggle, Ping of Death, Tear Drop, IP Spoofing, IP Segmented Messages, ARP Spoofing, ARP Active Reverse Lookup, TCP Message Flag Bit Illegal Oversized ICMP messages, Address Scanning, Port Scanning, SYN Flood, UPD Flood, ICMP Flood, DNS Flood and other malicious attacks Basic and Extended Access Control Lists Time Period Based Access Control Lists User, Application Based Access Control Lists Dynamic Packet Filtering ASPF Application Layer Message Filtering Static and Dynamic Blacklisting Functions MAC and IP Binding Functions MAC-Based Access Control Lists Support 802.1q VLAN Transparency |
| Load Balancing | Supports link and server load balancing functions, intelligent routing based on application, ISP, and other elements, health monitoring of ICMP, UDP, TCP, and other protocols, and persistent probing based on address ports, HTTP protocols, and SSL protocols to achieve busy bandwidth and fault protection. |
| Virus Protection | Detection based on virus characteristics Support manual and automatic upgrade of virus database Message stream processing mode Support HTTP, FTP, SMTP, POP3 protocols Supported virus types: Backdoor, Email-Worm, IM-Worm, P2P-Worm, Trojan, Ad Ware, Virus, etc.Support virus logs and reports |
| Deep Intrusion Prevention | Supports defense against hacker attacks, worms/viruses, Trojan horses, malicious code, spyware/adware, DoS/DDoS often Supports defense against buffer overflow, SQL injection, IDS/IPS escape, etc. Supports classification (based on attack type, target machine system) and grading (in four levels: high, medium, low, and prompt) of attack signature libraries Supports manual Supports manual and automatic upgrade (TFTP and HTTP) of the attack signature library. Supports the identification and control of P2P/IM such as BT. |
| Email/Web/Application-Layer Filtering | Email FilteringSMTP Email Address Filtering Email Header Filtering Email Content Filtering Email Attachment Filtering Web FilteringHTTP URL FilteringHTTP Content Filtering Application Layer Filtering Java Blocking ActiveX BlockingSQL Injection Attack Prevention |
| Behavior and Content Audit | Auditing and traceability of access content can be performed based on user |
| Data Loss Prevention | Identify and filter the transmitted files and contents, which can accurately identify the real types of common files, such as Word, Excel, PPT, PDF, ZIP, RAR, EXE, DLL, AVI, MP4, etc., and filter the sensitive contents. |
| URL Filtering | Supports predefinition of more than 50 URL categories, black and white lists of URL rules, and the ability to drop, reset, redirect, log, and blacklist traffic accessing URLs. |
| Threat Probe | Support functions such as traffic collection, metadata extraction, storage, etc. Configure intrusion behavior detection module and WEB application detection module Support full storage of pcap packets collected from real-time traffic for retrospective analysis and forensic use Support storage of malicious files detected in traffic for correlation analysis and forensic use |
| Application Identification and Control | Recognizes massive application types, access control precision to application functions, e.g., distinguishing between We Chat login, sending messages, receiving messages, voice calls, pictures, etc. Application identification is combined with intrusion detection, anti-virus, and content filtering to improve detection performance and accuracy. |
| NAT | Supports mapping of multiple internal addresses to the same public address Supports mapping of multiple internal addresses to multiple public addresses Supports one-to-one mapping of internal addresses to public addresses Supports simultaneous translation of source and destination addresses Supports access to internal servers by external network hosts Supports direct mapping of internal addresses to interface public IP addresses Supports DNS mapping feature is configurable Supports effective time for address translation Supports multiple NAT ALGs Support multiple NAT ALG, including DNS, FTP, H.323, ILS, MSN, NBT, PPTP, SIP, etc. |
| VPN | L2TP VPN, IPsec VPN, GRE VPN, SSL VPN support hardware SM1 encryption algorithm, support SM2/SM3/SM4 encryption algorithm |
| Routing Features | Comprehensive support for multiple routing protocols, such as RIP, OSPF, BGP, IS-IS, etc.; support for SRv6: OSPFv3 for SRv6, ISIS for SRv6, SRv6 Policy, SRv6 Policy diversion, etc. |
| VXLAN | Support for VXLAN Service Chaining |
| IPv6 | IPv6-based Stateful Firewall and Attack Prevention IPv6 Protocols: IPv6 Forwarding, ICMPv6, PMTU, Ping6, DNS64, TraceRT6, Telnet6, DHCPv6 Client, DHCPv6 Relay, etc. IPv6 Routing: RIPng, OSPFv3, BGP4+, Static Routing, Policy Routing, PIM-SM, PIM-DM, etc. IPv6 Security: NAT-PT, IPv6 Tunnel, IPv6 Packet Filter, Radius, IPv6 Inter-Domain Policy, IPv6 Connection Limit, etc. |
| High Reliability | Supports SCF 2:1 virtualization Supports dual state hot standby (Active/Active and Active/Backup operating modes) Supports dual configuration synchronization Supports IKE state synchronization for IPsec VPNs Supports VRRP Supports built-in BYPASS boards Supports external BYPASS hosts |
| Maintainability | Supports command line based configuration management Supports Web-based remote configuration management Supports H3C SSM Security Management Center for device management Supports standard network management SNMPv3, and is compatible with SNMP v1 and v2 intelligent security policies |
| Ordering Information | |
| Expansion Module | |
| 9803A080 | NS-NIM-TG4C - H3C Sec Path F5000-CNSeries4-PortSFP+Interface Module |
| SFP+ 10G Port | |
| 02312173 | SFP-GE-LH80-SM1550 - Optical Module - SFP-GE - Single-Mode Module - (1550 nm, 80 km, LC) |
| 0231A563 | SFP-GE-LX-SM1310-A - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 10 km, LC) |
| 0231A962 | SFP-GE-LX-SM1310-D - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 10 km, LC) |
| 02312170 | SFP-GE-LH40-SM1310 - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 40 km, LC) |
| 0231A963 | SFP-GE-LH40-SM1310-D - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 40 km, LC) |
| 02312172 | SFP-GE-LH40-SM1550 - Optical Module—SFP—GE—Single-Mode Module—(1550 nm, 40 km, LC) |
| 0231A964 | SFP-GE-LH80-SM1550-D - Optical Module - SFP-GE - Single-Mode Module - (1550 nm, 80 km, LC) |
| 0231A562 | SFP-GE-SX-MM850-A - Optical Module - SFP-GE - Multimode Module (850 nm, 0.55 km, LC) |
| 0231A961 | SFP-GE-SX-MM850-D - Optical Module - SFP-GE - Multimode Module (850 nm, 0.55 km, LC) |
| 0231A085 | SFP-GE-T - SFP GEElectrical Port Module(100m,RJ45) |
| 0231A960 | SFP-GE-T-D - SFP GEElectrical Port Module(100m,RJ45) |
| 0231A0A8 | SFP-XG-LX-SM1310 - SFP+ 10GModule(1310nm,10km,LC) |
| 0231A1RQ | SFP-XG-LX-SM1310-D - SFP+ 10GModule(1310nm,10km,LC) |
| 0231A2L3 | SFP-XG-LX-SM1310-E - SFP+ 10GModule(1310nm,10km,LC) |
| 0231A0A6 | SFP-XG-SX-MM850-A - SFP+ 10GModule(850nm,300m,LC) |
| 0231A1RP | SFP-XG-SX-MM850-D - SFP+ 10GModule(850nm,300m,LC) |
| 0231A2L4 | SFP-XG-SX-MM850-E - SFP+ 10GModule(850nm,300m,LC) |
| 9803A082 | NS-NIM-GT8B - H3C Sec Path F5000-CNSeries8-PortGEInterface Module |
| 9803A084 | NS-NIM-GP8B - H3C Sec Path F5000-CNSeries8-PortSFPInterface Module |
| SFP Gigabit Port | |
| 9803A1AN | NS-NIM-GT4GP4A - H3C Sec Path F1000-CNSeries4-PortGEelectrical port(RJ45)+4-Port Gigabit Ethernetoptical port(SFP,LC)Interface Module |
| SFPGigabit Optical Port | |
| Power Supply | |
| 0231A8FP | PSR250-12A1 - 250W AC power Module (Power Supply panel-side airflow exhaust) |
| Cable | |
| 04042967 | CAB-CON-1.8m - Configuration Serial Cable—1.8 m—(DB9 Female to 8-pin Ethernet Port) |
| 0404A1EE | CAB-Console-1.8m-W31R - Configuration Port Cable-1.8m-(RJ45P)-(UL2725(3C28AWG))-(USB AP) |
| Hard Drive | |
| 0231A4PX | NS-HDD-1T-SATA-SFF - H3C Sec Path Series,1TB 2.5inch SATA HDD Hard Drive Module |
| 0231A4PY | NS-SSD-480G-SATA-SFF - H3C Sec Path Series,480GB 2.5inch SATA SSD Hard Drive Module |
| 0231AJVD | NS-SSD-1.92T-SATA-SFF - H3C Sec Path Series,1.92TB 2.5inch SATA SSD Hard Drive Module |
| 0231AM6S | NS-SSD-960G-SATA-SFF - H3C Sec Path 960GB 2.5-inch SATA SSD disk module (industry-specific) |
| Security License Certificate | |
| 3130A3TX | 3130A3TX - H3C Sec Path F5000 WAF Signature Database Upgrade License, 3 Years |
| 3130A4D5 | LIS-F5000-TI-1Y - H3C Sec Path F5000 Security Threat Intelligence Upgrade Service License, 1 year |
| 3130A4DT | LIS-F5000-TI-3Y - H3C Sec Path F5000 Security Threat Intelligence Upgrade Service License, 3 years |
| 3130A37G | LIS-F5000-URL-1Y - H3C Sec Path F5000 URLsignature database update service license certificate,1 year |
| 3130A372 | LIS-F5000-URL-3Y - H3C Sec Path F5000 URLsignature database update service license certificate,3 years |
| 3130A1R9 | LIS-F5000-ACG-1Y - H3C Sec Path F5000,application identificationsignature database update service,1 year |
| 3130A1RA | LIS-F5000-ACG-3Y - H3C Sec Path F5000,application identificationsignature database update service,3 years |
| 3130A1TT | LIS-F5000-AV-1Y - H3C Sec Path F5000,AV anti-virus security license,1 year |
| 3130A1TU | LIS-F5000-AV-3Y - H3C Sec Path F5000,AV anti-virus security license,3 years |
| 3130A1R7 | LIS-F5000-IPS-1Y - H3C Sec Path F5000,IPS signature database update service,1 year |
| 3130A1R8 | LIS-F5000-IPS-3Y - H3C Sec Path F5000,IPS signature database update service,3 years |
| 3130A1RB | LIS-F5000-LB - H3C Sec Path F5000,LBlicense certificate |
| 3130A1RC | LIS-F5000-SSL-75 - H3C Sec Path F5000,SSL VPN 75 x User |
| 3130A1RD | LIS-F5000-SSL-500 - H3C Sec Path F5000,SSL VPN 500 x User |
| 3130A1RE | LIS-F5000-SSL-1000 - H3C Sec Path F5000,SSL VPN 1000 x User |
| 3130A1RF | LIS-F5000-SSL-3000 - H3C Sec Path F5000,SSL VPN 3000 x User |
| IMC-SSL license certificate | |
| 3130A2WQ | LIS-IMC7-SVF5KA-75 - H3C iMC-SSL VPN Authentication Client—F5000—75 Licenses |
| 3130A2W0 | LIS-IMC7-SVF5KB-500 - H3C iMC-SSL VPN Authentication Client—F5000—500 Licenses |
| 3130A2W9 | LIS-IMC7-SVF5KD-3K - H3C iMC-SSL VPN Authentication Client—F5000-3000 License |
| 3130A2W8 | LIS-IMC7-SVF5KC-1K - H3C iMC-SSL VPN Authentication Client—F5000-1000 License |
| Product Identity | |
| Brand | H3C |
| Series | H3C F5000 localized series |
