QFX5130-32CD-AFI
Brand Juniper
4.9Verified

QFX5130-32CD-AFI

Model (MPN)
QFX5130-32CD-AFI
Condition
Factory Sealed
Original Packaging (NIB)
Out of Stock

Volume & Framework Pricing

B2B Only
QuantityUnit PriceEst. Savings
1 Unit$272.20-
2 - 9 UnitsRequest Quote5 - 10%
10+ / ProjectFramework Match Tier-1 Access
Global Framework Support AvailableGet Global Discount

Key Specifications

Form Factor1 RU
Dimensions (W x H x D)17.5 x 1.75 x 23.5 in (44.45 x 4.45 x 59.69 cm)
Weight25.6 lb (11.6 kg)
AirflowPort-to-FRU (P2F)
Power Supplies2 + 1 redundant AC PSUs (India/Japan cords -AFI variant)
Power Consumption (Typical/Max)600 W / 1400 W
Your Price
Call for Pricing
Volume discounts available
Availability Out of Stock

Need configuration help?

Our CCIE certified engineers can help you verify compatibility.

Secure Payment
VISA
Pay
WIRE

Fast Dispatch

Global logistics network aiming for same-day handover.

48hrs
Avg. Shipping
99%
On-Time

Guaranteed Quality

Every unit undergoes rigorous 38-point inspection test.

3Year
Warranty
0.1%
RMA Rate

Global Reach

Trusted by enterprise clients across 6 continents.

85+
Countries
20k+
Clients

Expert Support

Certified network engineers ready to assist with configuration.

24/7
Assistance
CCIE
Certified

Overview

Product Overview

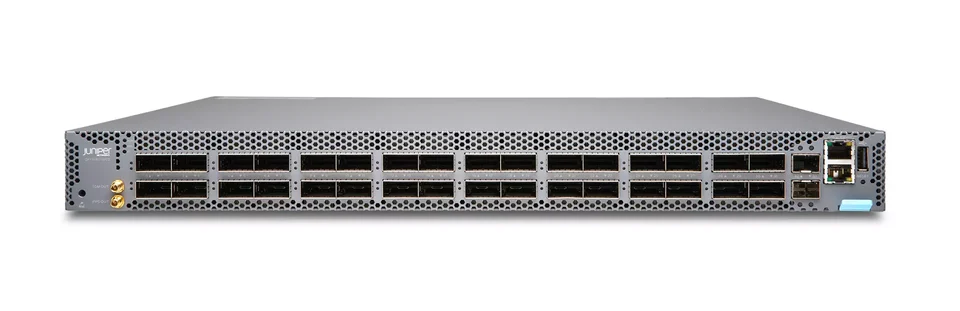

The Juniper QFX5130-32CD-AFI is a high-density 400GbE data center top-of-rack (ToR) switch from the QFX5130 line, designed for AI/ML fabrics, IP fabrics, and spine-and-leaf deployments. It features 32 fixed QSFP-DD ports supporting 400GbE, with breakout to 4x100GbE, 2x200GbE, or 4×100/50/25/10GbE. This SKU specifies Port-to-FRU airflow with AC power supplies optimized for specific regions (India/Japan cords).

Architecture & Performance

Powered by Broadcom Jericho3-AI silicon, the QFX5130-32CD-AFI delivers 12.8 Tbps system throughput and 4 Bpps forwarding rate with ultra-low latency (<400 ns). It includes 32 GB shared packet buffer for handling microbursts in demanding AI workloads. Scales to 1M IPv4/IPv6 FIB routes, 288K MAC addresses, and supports EVPN-VXLAN for virtualized overlays.

Software Features

Running Junos OS, it supports advanced L2/L3 features including EVPN-VXLAN, MC-LAG, BGP, OSPF, IS-IS, multicast, QoS, and security (MACsec on select models). Programmable via Junos EVPN, gNMI, and telemetry.

Physical & Environmental Specifications

1RU form factor with redundant AC PSUs, Port-to-FRU airflow. Operates in 0° to 40°C, with NEBS compliance and low acoustic noise.

Ordering Information

  • Main Unit: QFX5130-32CD-AFI

Specifications

Physical Specifications
Form Factor1 RU
Dimensions (W x H x D)17.5 x 1.75 x 23.5 in (44.45 x 4.45 x 59.69 cm)
Weight25.6 lb (11.6 kg)
AirflowPort-to-FRU (P2F)
Power Supplies2 + 1 redundant AC PSUs (India/Japan cords -AFI variant)
Power Consumption (Typical/Max)600 W / 1400 W
Port Configuration
Fixed Ports32 x QSFP-DD (400/200/100 GbE native, breakout to 4x100/4x50/4x25/2x100/2x50 GbE)
QSFP-DD Support400GBASE-DR4, FR4, LR4, 2x FR4; 200GBASE-FR4, LR4; 100GBASE-DR, FR
Jumbo Frames9216 bytes (IMIX)
Performance
Switching Capacity12.8 Tbps (Layer 2 / Layer 3)
Forwarding Rate4 Bpps
Latency&lt; 400 ns (400G port-to-port, L2/L3)
Packet Buffer32 GB shared
MAC Addresses288 K
VLAN IDs4094
ARP/ND Entries600 K
IPv4 Host Routes (FIB)1 M shared (IPv4+IPv6)
IPv6 Host Routes (FIB)1 M shared (IPv4+IPv6)
IPv4 Routes (RIB)1.5 M shared
IPv6 Routes (RIB)1.5 M shared
EVPN MAC-IP Routes104 K per IMET/VXLAN instance
Layer 2 Features
L2 Protocols802.1Q VLAN, 802.1ad, 802.1Qbg EVPN, 802.1BR, STP/RSTP/MSTP, LACP, ERPS (G.8032)
MulticastPIM-SM/DM/SSM, IGMP/MLD snooping, PIM-SSM mapping
Layer 3 Features
RoutingBGP, OSPFv2/v3, IS-IS, static, VRF, PBF, filter-based forwarding
MulticastMLD snooping, PIM (SM/DM/SSM)
Overlay & Tunneling
EVPN-VXLANEVPN Type 2/3/5, Symmetric IRB, Ingress Replication, Headend Replication, Assisted Replication
OtherVXLAN routing, MPLSoUDP
QoS & Buffering
Queues per Port8
Scheduler8 strict priority + 8 WDRR
CoSPort-based, VLAN-based, MF-classifier
Security Features
MACsecSupported on 400G ports (IEEE 802.1AE)
ACLL2/L3 ingress/egress, up to 48K IPv4, 24K IPv6
Standards Compliance
IEEE Standards802.1AB LLDP, 802.1AG CFM, 802.1Q VLAN Tagging, 802.1Q-2014 Split Horizon, 802.1Qbg EVPN, 802.1BR, 802.1ad Provider Bridging, 802.3ad LAG, 802.3af/at Class 3 PoH PSE, 802.3bt Class 6 PoH PSE, 802.3 Clause 45 EMLD, 802.3 xFlow Control, 802.3 10GbE, 802.3ba 40GbE/100GbE, 802.3by 25GbE, 802.3cd 50/200GbE, 802.3ck 100/200/400GbE, 802.3bs 200/400GbE
OtherITU-T Y.1731 CFM, RFC 7174 802.1Qac, RFC 7625 MACsec
Safety & EMC
Safety CertificationsCAN/CSA-C22.2 No. 60950-1-07, UL 60950-1, IEC/EN 60950-1 (CB Scheme with all national deviations), EN 60825-1 Class 1 Lasers
EMCCISPR 22 Class A, EN 55022 Class A, FCC 47 CFR Part 15 Class A, ICES-003 Class A, VCCI Class A, AS/NZS CISPR 22 Class A, KN32/35 Class A
NEBSSR-3580 NEBS Level 3 (GR-63-CORE), SR-1089-CORE Level 3
Environmental
Operating Temperature0° to 40° C (32° to 104° F) at sea level
Storage Temperature–40° to 70° C (–40° to 158° F)
Relative Humidity Operating5% to 90% (noncondensing)
Relative Humidity Nonoperating0% to 95% (noncondensing)
Acoustic Noise&lt; 60 dBA @ 25° C
Altitude Operating0 to 6,000 ft (1,800 m)
MTBF~1,000,000 hours @ 25° C
RoHSRoHS 3 compliant
Software & Management
Operating SystemJunos OS Evolved
Management InterfacesRJ-45 console, RJ-45 OOB mgmt, USB 2.0, SFP mgmt port
Ordering Information
Base SKUQFX5130-32CD-AFI

Reviews

No reviews yet

Be the first to review this enterprise product.

Warranty

Standard Warranty Policy

All hardware sold by ITMall includes our 3-Year Free Maintenance and 1-Year RMA Replacement Service. Please refer to our Warranty Policy for details.

  • 1-Year Advance Replacement (RMA)
  • 3-Year Free Repair Service
  • Full coverage for functionality defects
Hassle-Free RMA Process

We streamlined the return process to minimize your network downtime. Our engineering team provides pre-return diagnostics to ensure hardware is truly defective.

  • 30-Day satisfaction guarantee return window
  • Automated RMA portal access for instant tracking
  • Restocking fee waived for functionality issues
Certified Engineering Support

Our products are backed by CCIE-certified engineers who provide expert guidance on compatibility, configuration, and troubleshooting at no extra cost.

  • Free pre-sales topology consultation
  • Remote troubleshooting & firmware advice
  • Simulation lab testing before dispatch
Global Logistics & Packaging

We ship to 85+ countries using premium anti-static packaging to ensure safety. Orders placed before 14:00 (GMT+8) are typically dispatched the same day.

  • Double-walled boxes with customer molded foam
  • Blind shipping support for channel partners
  • Real-time tracking via FedEx / DHL / UPS

Resources

No downloads available for this product.

Common Questions

What is the switching capacity of QFX5130-32CD-AFI?
12.8 Tbps Layer 2 and Layer 3 switching capacity.
Does QFX5130-32CD-AFI support EVPN-VXLAN?
Yes, full support for EVPN-VXLAN including Type 2/3/5 routes, symmetric IRB, and ingress replication.
What airflow does the -AFI variant have?
Port-to-FRU (P2F) airflow with AC power supplies for India/Japan regions.
What silicon powers the QFX5130-32CD-AFI?
Broadcom Jericho3-AI ASIC.
What is the buffer size?
32 GB shared packet buffer architecture.
