Overview

Product Overview

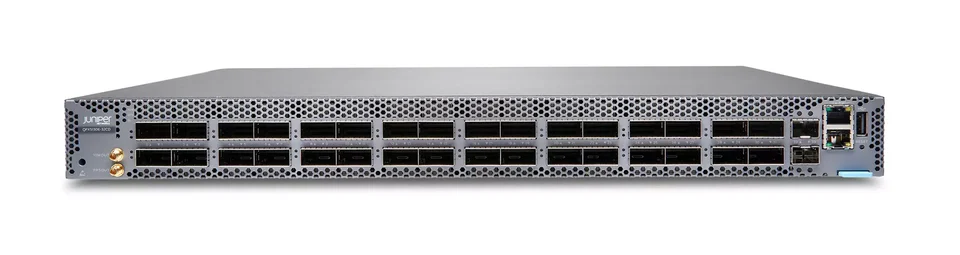

The Juniper QFX5130E-32CD-AFI is a high-performance, 1U fixed-configuration data center switch designed for top-of-rack deployments. It features 32 QSFP-DD ports supporting up to 400GbE and 2 SFP+ ports, delivering 25.6 Tbps of switching capacity and 5.3 Bpps forwarding performance. Powered by Junos OS Evolved, it supports advanced features like EVPN-VXLAN for leaf-spine architectures.

Architecture & Performance

Built for demanding cloud and enterprise environments, the QFX5130E-32CD-AFI offers low-latency switching with 132 MB latency (unidirectional), 96K MAC addresses, 32K ARP entries, and 128 LAGs. It includes 4 GB shared packet buffer, 9216-byte jumbo frames, and flexible QoS with 8 unicast and 2 multicast queues per port. ACL scales include 40K ingress port ACLs and 10K ingress VLAN ACLs.

Hardware Highlights

Port Flexibility

32 QSFP-DD ports support channelization (e.g., 4x100G, 8x50G, 2x200G) and a wide range of transceivers including DAC/AOC for 10/25/40/50/100/200/400G. 2 SFP+ ports for 1/10GbE connectivity.

Management & Storage

Includes RJ-45 console, management port, USB Type A, and 10 MHz port. 100 GB SSD storage (50+50 GB).

Ordering Information

Specifications

Overview
Full Product Name	QFX5130E-32CD Switch
OS Supported	Junos OS Evolved
First OS Release Supported	23.4R2-EVO
Chassis
Fixed/Modular Chassis?	Fixed
Form Factor	1 U
Chassis Height	1.72 in / 4.3688 cm
Chassis Width	17.26 in / 43.8404 cm
Chassis Depth	21.1 in / 53.594 cm
Chassis Weight (Fully Loaded With All Components)	24.5 lb / 11.11 kg
Chassis Model Number	QFX5130E-32CD-CHAS
Cooling System
Airflow Direction	Back-to-front
Airflow Volume	144 CFM
AFO/AFI?	AFI
Fan Module Model Number	QFX5130E-32CD-FANAI
Fan Module Count	6
Fan Module Redundancy	5+1
Fan Module Hot-Removable And Hot-Insertable?	Y
Environmental Specifications
Operating Altitude	6000 ft / 1828 m
Operating Temperature	32° through 86° F / 0° through 30° C
Storage Temperature	-40° through 158° F / -40° through 70° C
Relative Humidity, Noncondensing (Operating)	5% through 90%
Relative Humidity, Noncondensing (Nonoperating)	5% through 90%
Seismic Tolerance	Zone 4
Maintenance Clearance	30 in / 76.2 cm
Built-in Network Ports
SFP+ Port Count	2
QSFP-DD Port Count	32
QSFP-DD Port Channelization	Y
Other Port Configuration
Console Port Count	1
Console Port Type	RJ-45
Management Port Count	1
Management Port Type	Y
USB Port Count	1
USB Port Type	Type A
10 MHz Port	Y
Performance (Routing/Switching)
Throughput	25600 Gbps
Throughput (Bidirectional)	12800 Gbps
Throughput (Unidirectional)	132 MB
Forwarding Capacity	5.3 Bpps
Egress VLAN ACL	2000
Egress Port ACL	8000
Egress Routed ACL	4000
Ingress VLAN ACL	10000
Ingress Port ACL	40000
Ingress Routed ACL	40000
ARP Entries (Thousands)	32
LAGs Count	128
MAC Addresses Per System (Thousands)	96
Maximum Mirroring Sessions	4
Traffic Mirroring Destination VLANs	4
Traffic Mirroring Destination Ports	4000
Jumbo Frame	9216 bytes
Total Packet Buffer	4
QoS Hardware Queues Per Port (Multicast)	2
QoS Hardware Queues Per Port (Unicast)	8
Power System
PSU - Fixed?	Y
PSU Hot-Pluggable?	1+1
PDM Model Number	Back-to-front
PDM Redundancy	2
AC PSU Model Number	839 W
AC PSU Max Heat Dissipation	323 W
AC PSU Average Heat Dissipation	JPSU-1600W-1UACAFI
DC Max Power Consumption	Panduit LCD10-10A-L
DC Max Power Consumption (Low Current)	60° C / 140° F
System Average Power Consumption	Intel Broadwell DE
System Maximum Current Rating	32 GB
Grounding Cable Lug Type	14 AWG
Storage
External Storage Type	100 (50+50) GB
Slot for SSD2	SSD
Supported Transceivers (Partial List)
CTP-SFP-1GE-LX	740-011614 - Small Form Factor Pluggable 1000Base-LX Gigabit Ethernet Optic Module, CTP1000
EX-QSFP-40GE-DAC-50CM	740-044512 - QSFP+ 40 Gigabit Ethernet Direct Attach Copper (Twinax Copper Cable) for 50cm Transmission
EX-SFP-10GE-DAC-1M	740-030076 - SFP+ 10 Gigabit Ethernet Direct Attach Copper (Twinax Copper Cable), 1M
EX-SFP-10GE-DAC-3M	740-030077 - SFP+ 10 Gigabit Ethernet Direct Attach Copper (Twinax Copper Cable), 3M
EX-SFP-10GE-DAC-5M	740-031838 - SFP+ 10 Gigabit Ethernet Direct Attach Copper (Twinax Copper Cable), 5M
EX-SFP-10GE-DAC-7M	740-030429 - SFP+ 10 Gigabit Ethernet Direct Attach Copper (Twinax Copper Cable), 7M
EX-SFP-10GE-ER	740-140355 - SFP+ 10GBase-ER 10 Gigabit Ethernet Optics Module, 1550nm for 40Km Transmission
EX-SFP-10GE-LR	740-021309 - Small Form Factor Pluggable 10 Gigabit Ethernet (SFP+) LR Optics
EX-SFP-10GE-SR	740-021308 - Small Form Factor Pluggable 10 Gigabit Ethernet (SFP+) SR Optics
EX-SFP-10GE-USR	740-030658 - SFP+ 10 Gigabit Ethernet Ultra Short Reach; 850 nm; 10m on OM1, 20m on OM2, 100m on OM3 Multi-Mode Fiber
EX-SFP-1GE-LH	740-011612
EX-SFP-1GE-LX	740-011614 - Small Form Factor Pluggable 1000Base-LX Gigabit Ethernet Optics
EX-SFP-1GE-LX40K	740-017726 - SFP 1000Base-LX Gigabit Ethernet Optics, 1310 nm for 40 km transmission on single mode fiber
JCO400-QDD-ZR	740-157132
JNP-100G-2X50G-1M	720-068904 - 100G DAC Breakout into 2x50G 1M
JNP-100G-2X50G-2M	720-068905 - 100G DAC Breakout into 2x50G 2M
JNP-100G-2X50G-3M	720-068906 - 100G DAC Breakout into 2x50G 3M
JNP-100G-2X50G-5M	720-128947 - 100G DAC Breakout into 2x50G 5M
JNP-100G-4X25G-1M	720-068901 - 100G QSFP28 to SFP28 4x25G Direct Attach Copper Breakout (twinax copper cable) 1m
Power Supply Modules (PSM)
JPSU-1600W-1UACAFI	740-085596 - QFX5220-32CD 1600W 1U AC PSU AFI
JPSU-1600W-1UACAFO	740-085431 - QFX5220-32CD 1600W 1U AC PSU AFO
JPSU-1600W-1UDCAFI	740-087316 - QFX5220-32CD 1600W 1U DC PSU AFI
JPSU-1600W-1UDCAFO	740-087315 - QFX5220-32CD 1600W 1U DC PSU AFO
Rack Mounting Kits
QFX5220-32CD-4PRMK	760-086480 - QFX5220-32CD 4 POST RACK MOUNT KIT
QFX5K-4PST-RMK-E	760-172157 - Enhanced 4PST RMK for QFX5130-32CD & QFX5220-32CD
