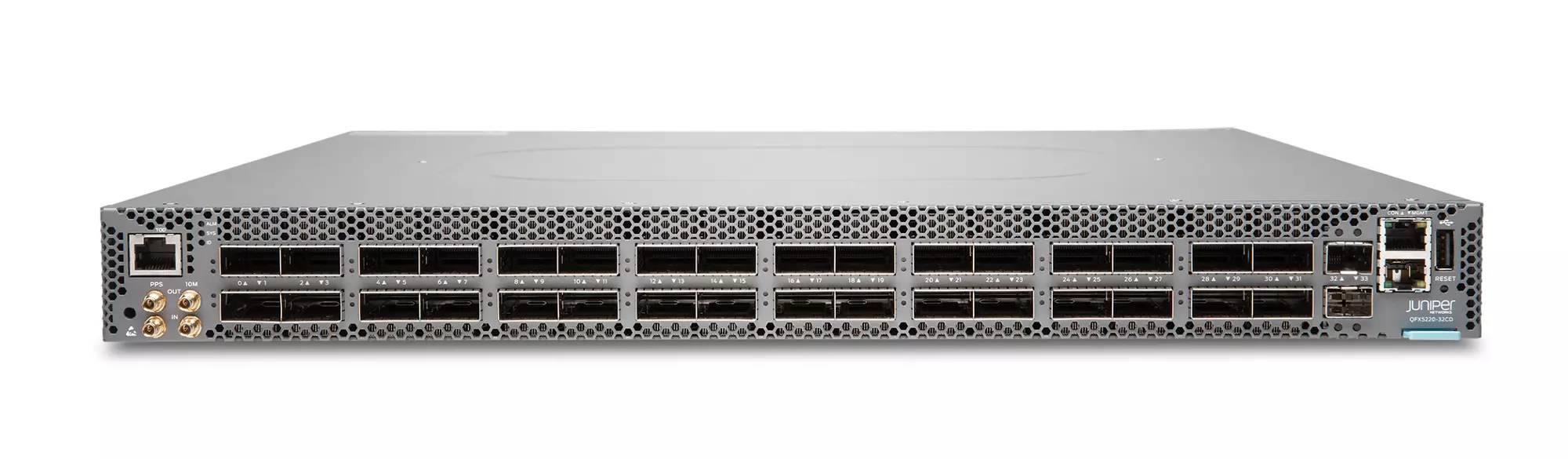

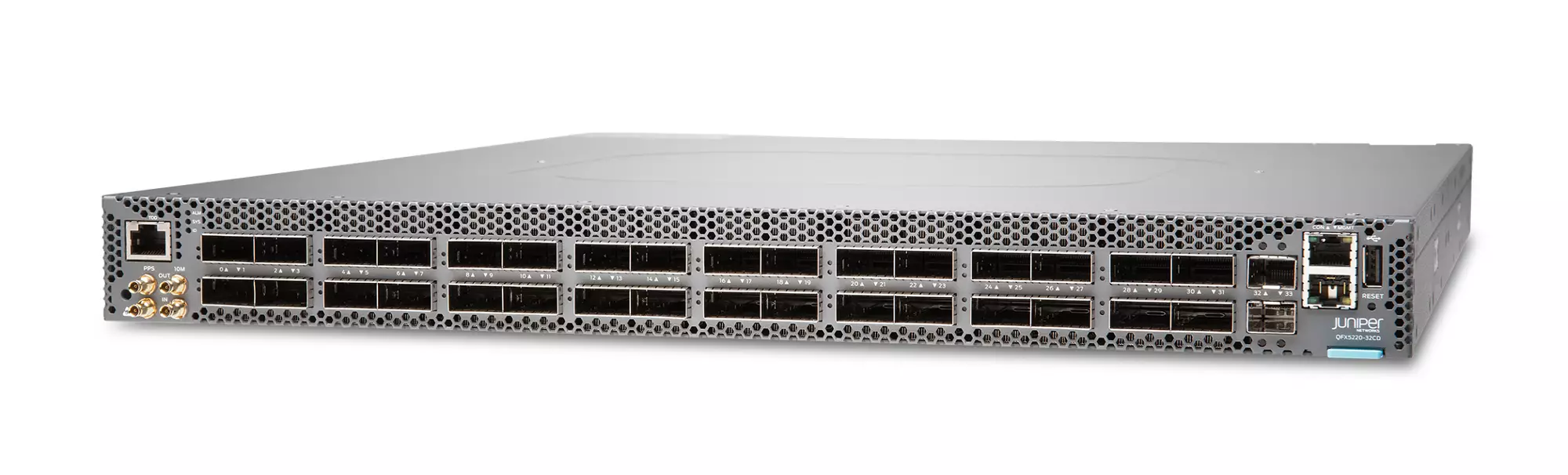

QFX5220-32CD
Brand Juniper
4.9Verified

QFX5220-32CD

Model (MPN)
QFX5220-32CD
Condition
Factory Sealed
Original Packaging (NIB)
Out of Stock
  • Ports: 32x QSFP56-DD (400G/200G/100G capable, channelization supported), 2x SFP+
  • Throughput: 25.6 Tbps / 8 Bpps
  • Buffer: 64 MB
  • OS: Junos OS Evolved

Volume & Framework Pricing

B2B Only
QuantityUnit PriceEst. Savings
1 Unit$272.20-
2 - 9 UnitsRequest Quote5 - 10%
10+ / ProjectFramework Match Tier-1 Access
Global Framework Support AvailableGet Global Discount

Key Specifications

System throughputUp to 25.6 Tbps (bidirectional)
Forwarding capacity8 billion packets per second
Port density32 ports of QSFP56-DD 400GbE
SFP+/SFP282 SFP+ transceiver ports for in-band network management
Dimensions (W x H x D)17.26 x 1.72 x 21.1 in. (43.8 x 4.3 x 53.59 cm)
Rack units1 U
Your Price
Call for Pricing
Volume discounts available
Availability Out of Stock

Need configuration help?

Our CCIE certified engineers can help you verify compatibility.

Secure Payment
VISA
Pay
WIRE

Fast Dispatch

Global logistics network aiming for same-day handover.

48hrs
Avg. Shipping
99%
On-Time

Guaranteed Quality

Every unit undergoes rigorous 38-point inspection test.

3Year
Warranty
0.1%
RMA Rate

Global Reach

Trusted by enterprise clients across 6 continents.

85+
Countries
20k+
Clients

Expert Support

Certified network engineers ready to assist with configuration.

24/7
Assistance
CCIE
Certified

Overview

Product Overview

The Juniper QFX5220-32CD is a 1U fixed-configuration data center switch designed for high-performance spine-and-leaf deployments. It delivers 25.6 Tbps forwarding capacity with 32x QSFP56-DD ports supporting 400GbE, 200GbE, 100GbE, and breakout options, plus 2x SFP+ ports for 10/25GbE connectivity. Powered by Junos OS Evolved, it supports advanced features like EVPN-VXLAN for overlay fabrics, MAC-VRF, and full Layer 3 routing.

Architecture & Performance

Built with Intel Xeon D-1500 processor and 100 GB SSD storage (50+50 GB redundant). Key scales: 2000K IPv4 unicast routes, 380K IPv4 host routes, 500K IPv6 routes, 130K IPv6 host routes, 8.192K MAC addresses, 32K ARP entries, 16K MPLS labels, 3968 VLAN IDs, 9216-byte jumbo frames, 64 MB packet buffer. QoS: 8 unicast / 2 multicast queues per port. Supports 128 LAGs with up to 64 ports each, 4 mirroring sessions. ACL scales up to 768 ingress VLAN/Port/Routed, 512 egress VLAN/Port, 2558 egress routed.

Ports & Connectivity

32x QSFP56-DD ports (channelization: 2x200G, 4x100G, 8x50G supported), 2x SFP+ ports, 1x RJ-45 console, 1x RJ-45 management, 1x USB Type A, 10 MHz input, PPS input. Extensive transceiver support including 400G/200G/100G/40G/25G/10G DAC, AOC, and optics.

Power, Cooling & Physical

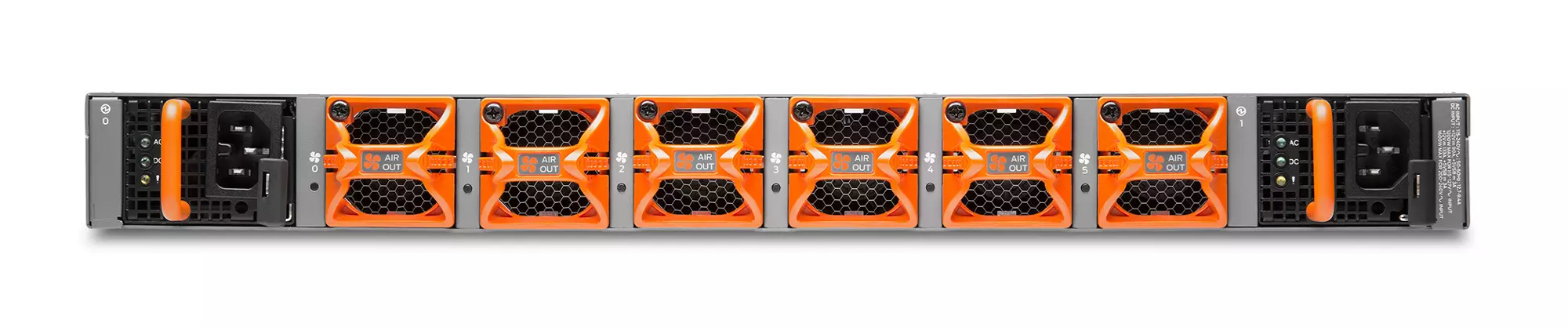

1+1 redundant hot-pluggable PSUs (AC/DC, AFI/AFO airflow options), 6 fans (5+1 redundancy, hot-swap). Dimensions: 1.72 x 17.26 x 21.1 in (HxWxD), weight 24.5 lb. Operating temp: 0-25°C (AFI) / 0-40°C (AFO), altitude up to 6000 ft.

Ordering Information

  • Main Unit: QFX5220-32CD, QFX5220-32CD-CHAS
  • Airflow Variants: QFX5220-32CD-AFI, QFX5220-32CD-AFO, QFX5220-32CD-D-AFI, QFX5220-32CD-D-AFO
  • Fan Modules: QFX5220-32CD-FANAI (AFI), QFX5220-32CD-FANAO (AFO)
  • Power Supplies: JPSU-1600W-1UACAFI (AC AFI), JPSU-1600W-1UACAFO (AC AFO), JPSU-1600W-1UDCAFI (DC AFI), JPSU-1600W-1UDCAFO (DC AFO)
  • Rack Mount Kits: QFX5220-32CD-4PRMK, QFX5K-4PST-RMK-E

Full transceiver, power cord, and cable options available for deployment flexibility.

Specifications

System Performance
System throughputUp to 25.6 Tbps (bidirectional)
Forwarding capacity8 billion packets per second
Port density32 ports of QSFP56-DD 400GbE
SFP+/SFP282 SFP+ transceiver ports for in-band network management
Physical Specifications
Dimensions (W x H x D)17.26 x 1.72 x 21.1 in. (43.8 x 4.3 x 53.59 cm)
Rack units1 U
Weight24.5 lb (11.11 kg) with 2 power supplies and 6 fans installed
Operating systemJunos OS Evolved
Switch chipBroadcom Tomahawk3
CPUIntel
WarrantyJuniper standard one-year warranty
Power and Cooling
PowerRedundant (1+1) hot-pluggable 1600 W AC/DC power supplies (2n) * 115-240 V single phase AC power * -48 to -60 V DC power
CoolingPorts-to-FRUs (AFO) and FRUs-to-ports (AFI) cooling * Redundant (5+1) hot-pluggable fan modules with variable speed to minimize power draw
Packet Buffer
Total packet buffer64 MB
Recommended Software Version
Recommended Software VersionJunos OS Evolved 22.2R3-Sx and later
Software Features
Layer 2 featuresSupported
Link aggregationSupported
Layer 3 featuresSupported
MulticastSupported
Security and filtersSupported
Quality of Service (QoS)Supported
MPLS (Premium Services License)Supported
Data Center Bridging (DCB)Supported
High AvailabilitySupported
Visibility and analyticsSupported
Management and operationsSupported
Standards Compliance
IEEE standardsSupported
T11 standardsSupported
Supported RFCsSupported
Supported MIBsSupported
Environmental Ranges
Operating temperature32° to 104° F (0° to 40° C)
Storage temperature-40° through 158° F
Operating altitudeUp to 6000 feet (1828.8 meters)
Relative humidity operating5 to 90% (noncondensing)
Relative humidity nonoperating5 to 95% (noncondensing)
SeismicDesigned to meet GR-63, Zone 4 earthquake requirements
Power Consumption
Maximum power draw (220-240 V)834 W (AC), 860 W (DC)
Typical power draw (220-240 V)310 W (AC), 328 W (DC)
Safety and Compliance
SafetySupported
Electromagnetic compatibilitySupported
Environmental Compliance
Restriction of Hazardous Substances (ROHS)Supported
2011/65/EU amended by Directive (EU) 2015/863Supported
Silver PSU EfficiencySupported
Recycled materialSupported
Waste Electronics and Electrical Equipment (WEEE)Supported
Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)Supported
China Restriction of Hazardous Substances (ROHS)Supported
Telco
TelcoSupported

Reviews

No reviews yet

Be the first to review this enterprise product.

Warranty

Standard Warranty Policy

All hardware sold by ITMall includes our 3-Year Free Maintenance and 1-Year RMA Replacement Service. Please refer to our Warranty Policy for details.

  • 1-Year Advance Replacement (RMA)
  • 3-Year Free Repair Service
  • Full coverage for functionality defects
Hassle-Free RMA Process

We streamlined the return process to minimize your network downtime. Our engineering team provides pre-return diagnostics to ensure hardware is truly defective.

  • 30-Day satisfaction guarantee return window
  • Automated RMA portal access for instant tracking
  • Restocking fee waived for functionality issues
Certified Engineering Support

Our products are backed by CCIE-certified engineers who provide expert guidance on compatibility, configuration, and troubleshooting at no extra cost.

  • Free pre-sales topology consultation
  • Remote troubleshooting & firmware advice
  • Simulation lab testing before dispatch
Global Logistics & Packaging

We ship to 85+ countries using premium anti-static packaging to ensure safety. Orders placed before 14:00 (GMT+8) are typically dispatched the same day.

  • Double-walled boxes with customer molded foam
  • Blind shipping support for channel partners
  • Real-time tracking via FedEx / DHL / UPS

Resources

No downloads available for this product.

Common Questions

What is the switching capacity of QFX5220-32CD?
Up to 25.6 Tbps bidirectional throughput with 8 Bpps forwarding.
Does QFX5220-32CD support EVPN-VXLAN?
Yes, deployable in EVPN-VXLAN fabrics as top-of-rack or spine with centralized/distributed gateways.
What port speeds does QFX5220-32CD support?
32x QSFP56-DD ports supporting 400GbE, 200GbE, 100GbE, 50GbE, 40GbE, 25GbE, 10GbE; 2x SFP+ management.
What is the packet buffer size?
64 MB total packet buffer.
What chipset powers the QFX5220-32CD?
Broadcom Tomahawk 3 switch chip.
