Product Overview

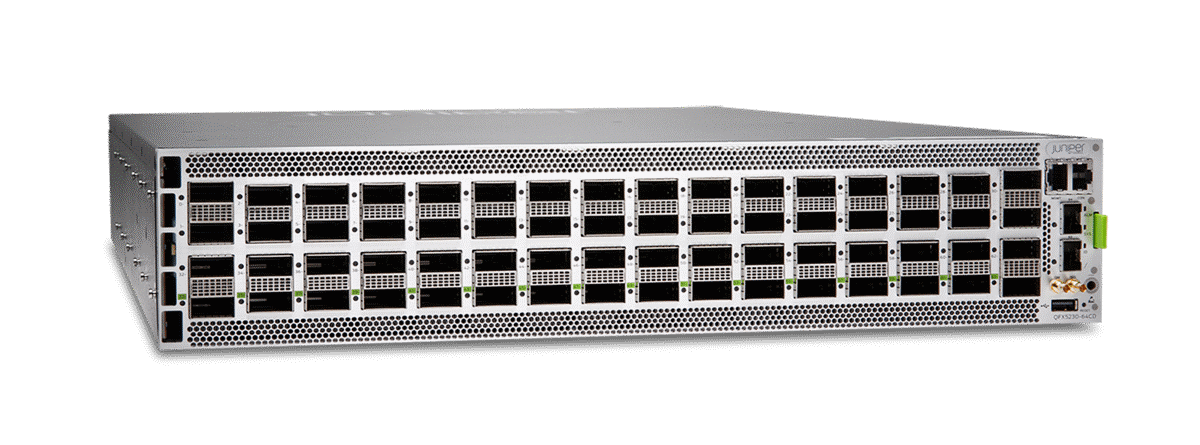

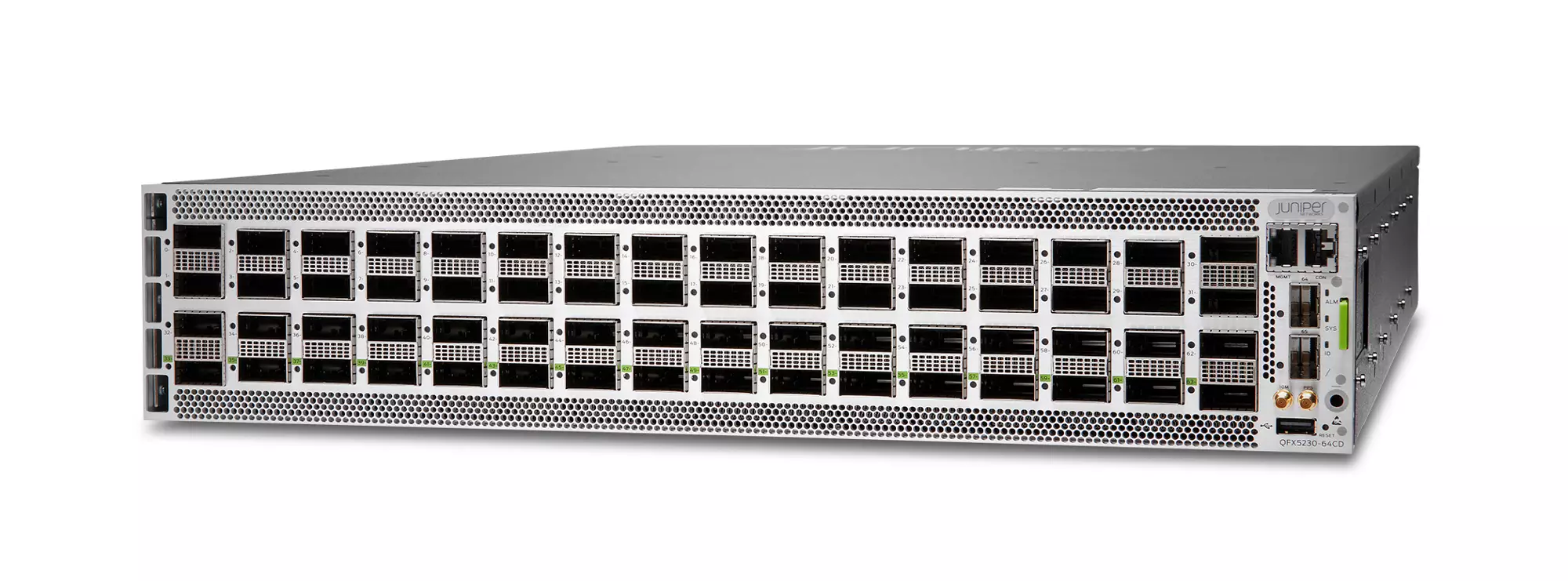

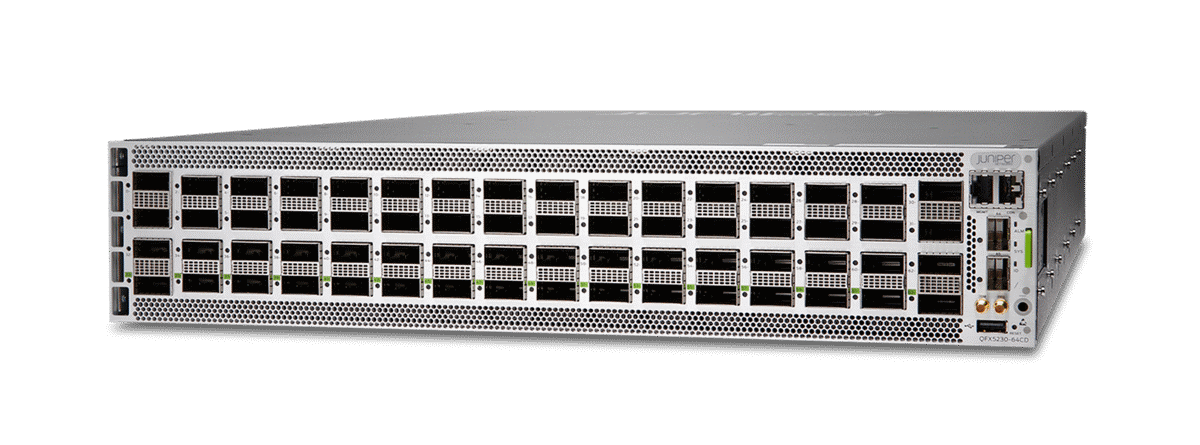

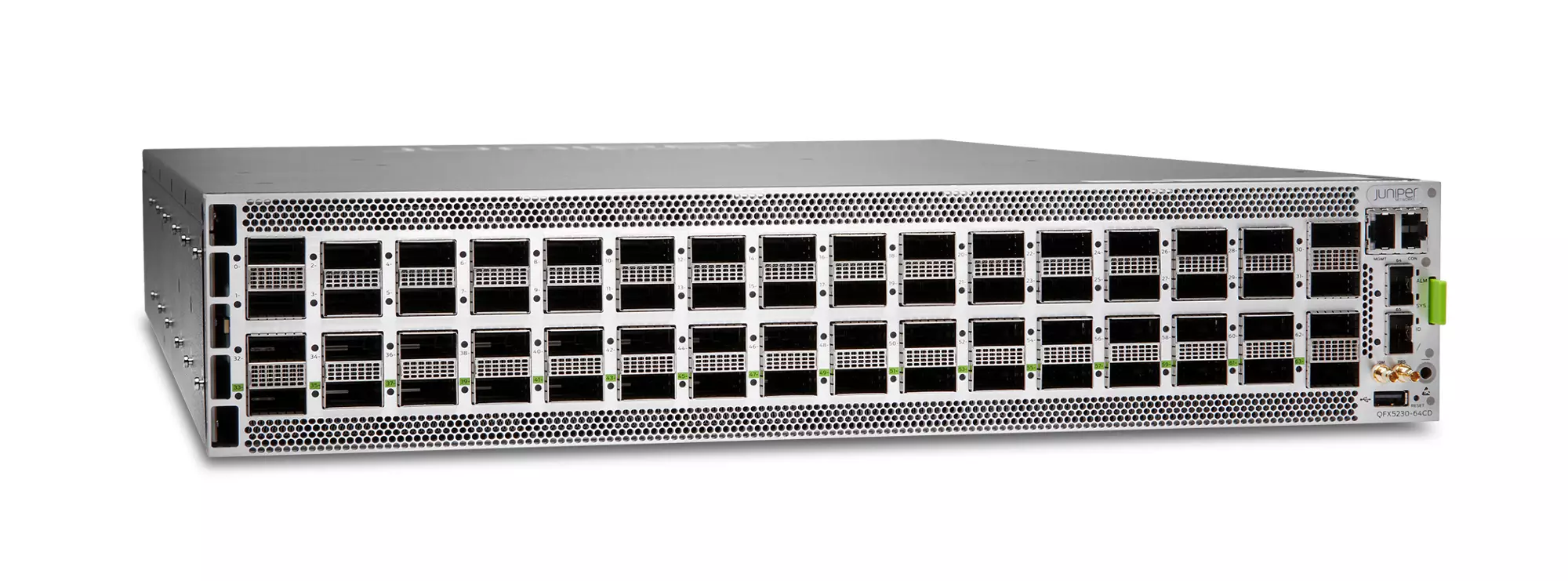

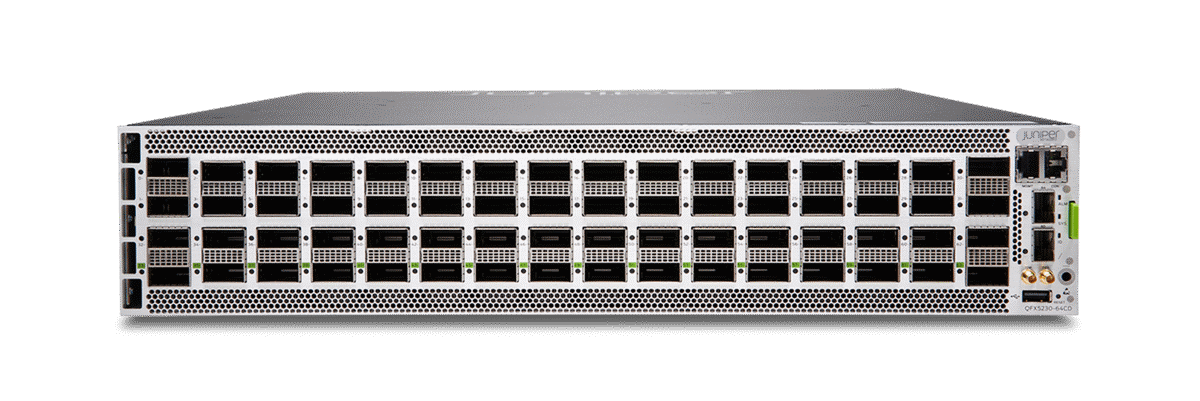

The Juniper QFX5230-64CD-AFI is a high-performance 2U fixed-configuration switch designed for high-speed, high-density spine-and-leaf IP fabrics in AI/ML data center networks. It delivers up to 51.2 Tbps bidirectional throughput with 64 QSFP56-DD ports supporting 400GbE interfaces and 2 SFP+ ports. Ideal for workloads requiring scalability, low latency, and massive bandwidth, it runs Junos OS Evolved for advanced automation and programmability.
Architecture & Performance
Powered by a high-performance ASIC architecture, the QFX5230-64CD-AFI offers 51.2 Tbps bidirectional (25.6 Tbps unidirectional) switching capacity and 10.53 Bpps forwarding rate. It supports 112 MB shared packet buffer, 9216-byte jumbo frames, and granular QoS with 8 unicast and 2 multicast queues per port. Scale includes 128K MAC addresses, 4K VLANs, 32K ARP entries, 128 LAGs (up to 64 ports per LAG), and extensive IPv4/IPv6 routing tables (up to 2M RIB prefixes, 720K IPv4 FIB). ACL scales up to 3K ingress port/routed and 768 ingress VLAN. Processor: 6-core Intel Hewitt Lake D-1637 with 32 GB DRAM and 200 GB SSD storage.
Ports & Connectivity

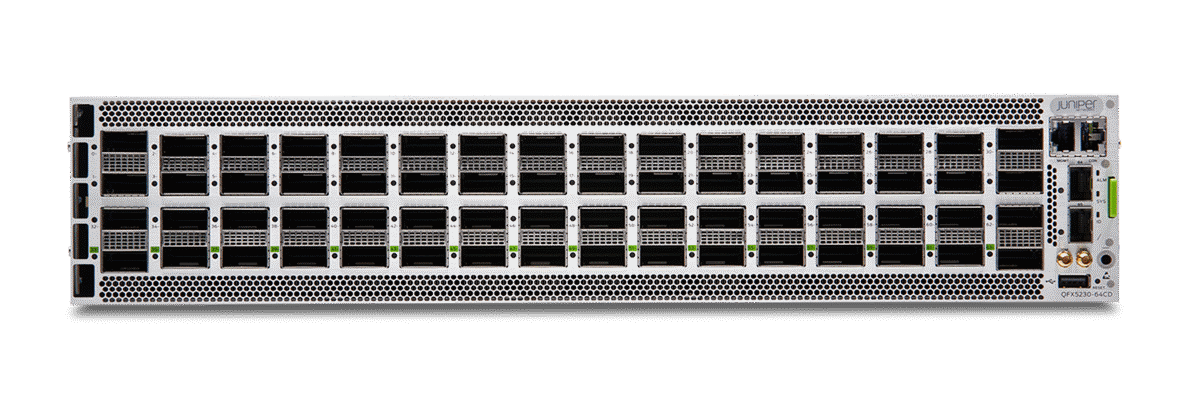

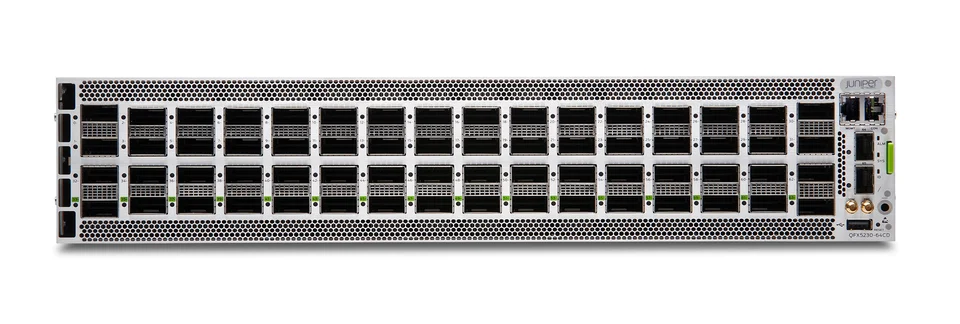

64x QSFP56-DD ports (channelization supported for 2x200G, 4x100G, 2x100G+2x50G, etc.) and 2x SFP+ ports. Management: 1x RJ-45 console, 1x RJ-45 OOB management, 1x USB Type A. Timing: 10 MHz and PPS ports for synchronization.
Hardware Reliability

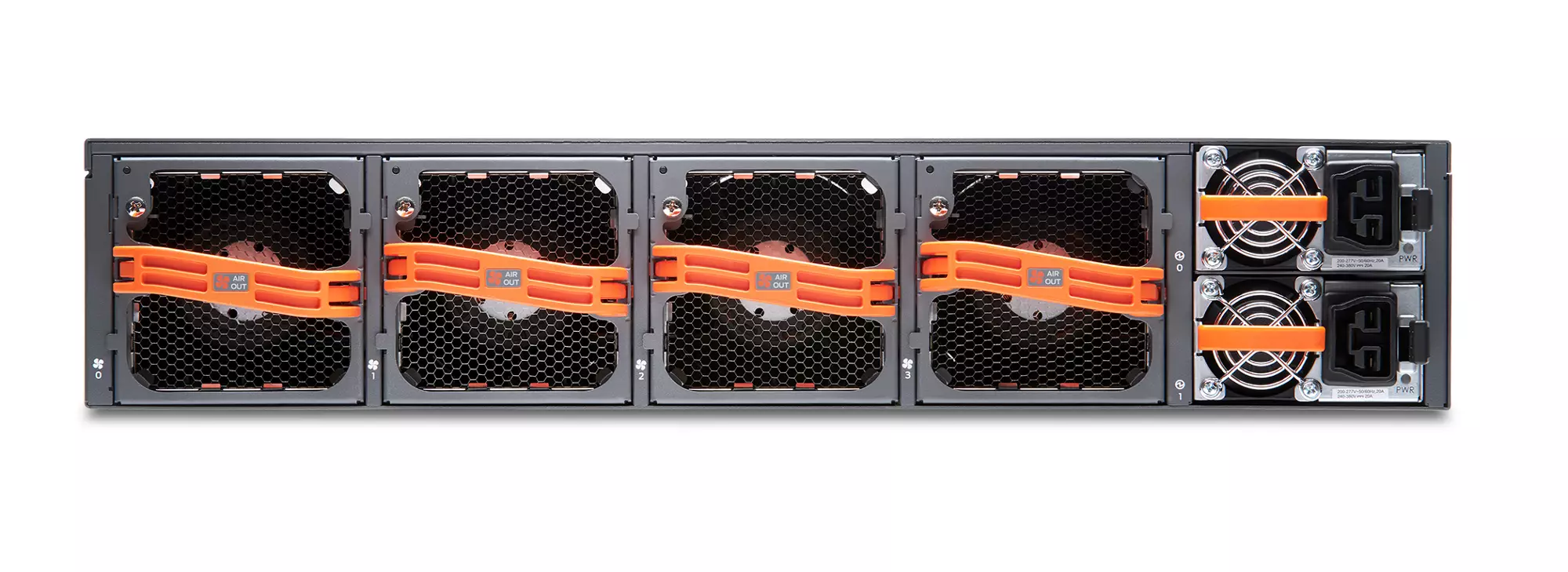

1+1 redundant hot-swap PSUs (AC: JNP-2700W-AC-AFI, max 1396 W, avg 498 W), 4x hot-swap fans (back-to-front airflow, 500 CFM). Chassis: 3.43 x 17.4 x 25.6 in, 55 lb fully loaded.
Environmental & Compliance
Operating temp 0-40°C, altitude 0 m (sea level), RH 5-90% non-condensing, seismic Zone 4.
Ordering Information
Main unit: QFX5230-64CD-AFI (includes chassis QFX5230-64CD-CHAS, fans QFX5230-64CD-FANAI). Power supplies: JNP-2700W-AC-AFI. Rack mount: QFX5230-2RU-4PRMK. Extensive transceiver support including QSFP-DD 400G/DR4/FR4/LR4-10/SR8/SR4.2/VR4/ZR-M, DAC/AOC breakouts.
