QFX5230-64CD-AFI
Brand Juniper
4.9Verified

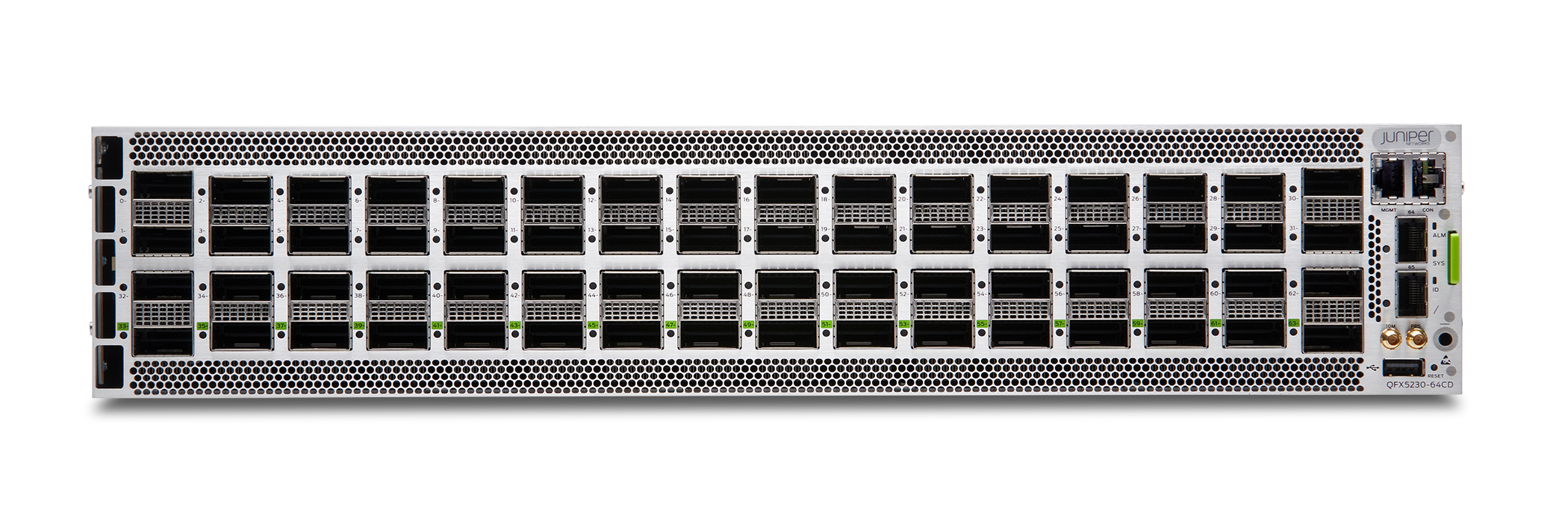

QFX5230-64CD-AFI

Model (MPN)
QFX5230-64CD-AFI
Condition
Factory Sealed
Original Packaging (NIB)
Out of Stock

Volume & Framework Pricing

B2B Only
QuantityUnit PriceEst. Savings
1 Unit$272.20-
2 - 9 UnitsRequest Quote5 - 10%
10+ / ProjectFramework Match Tier-1 Access
Global Framework Support AvailableGet Global Discount

Key Specifications

Full Product NameQFX5230-64CD Switch
OS SupportedJunos OS Evolved
Fixed/Modular Chassis?Fixed
Form Factor2 U
Chassis Height3.43 in / 8.7122 cm
Chassis Width17.4 in / 44.196 cm
Your Price
Call for Pricing
Volume discounts available
Availability Out of Stock

Need configuration help?

Our CCIE certified engineers can help you verify compatibility.

Secure Payment
VISA
Pay
WIRE

Fast Dispatch

Global logistics network aiming for same-day handover.

48hrs
Avg. Shipping
99%
On-Time

Guaranteed Quality

Every unit undergoes rigorous 38-point inspection test.

3Year
Warranty
0.1%
RMA Rate

Global Reach

Trusted by enterprise clients across 6 continents.

85+
Countries
20k+
Clients

Expert Support

Certified network engineers ready to assist with configuration.

24/7
Assistance
CCIE
Certified

Overview

Product Overview

The Juniper QFX5230-64CD-AFI is a high-performance 2U fixed-configuration switch designed for high-speed, high-density spine-and-leaf IP fabrics in AI/ML data center networks. It delivers up to 51.2 Tbps bidirectional throughput with 64 QSFP56-DD ports supporting 400GbE interfaces and 2 SFP+ ports. Ideal for workloads requiring scalability, low latency, and massive bandwidth, it runs Junos OS Evolved for advanced automation and programmability.

Architecture & Performance

Powered by a high-performance ASIC architecture, the QFX5230-64CD-AFI offers 51.2 Tbps bidirectional (25.6 Tbps unidirectional) switching capacity and 10.53 Bpps forwarding rate. It supports 112 MB shared packet buffer, 9216-byte jumbo frames, and granular QoS with 8 unicast and 2 multicast queues per port. Scale includes 128K MAC addresses, 4K VLANs, 32K ARP entries, 128 LAGs (up to 64 ports per LAG), and extensive IPv4/IPv6 routing tables (up to 2M RIB prefixes, 720K IPv4 FIB). ACL scales up to 3K ingress port/routed and 768 ingress VLAN. Processor: 6-core Intel Hewitt Lake D-1637 with 32 GB DRAM and 200 GB SSD storage.

Ports & Connectivity

64x QSFP56-DD ports (channelization supported for 2x200G, 4x100G, 2x100G+2x50G, etc.) and 2x SFP+ ports. Management: 1x RJ-45 console, 1x RJ-45 OOB management, 1x USB Type A. Timing: 10 MHz and PPS ports for synchronization.

Hardware Reliability

1+1 redundant hot-swap PSUs (AC: JNP-2700W-AC-AFI, max 1396 W, avg 498 W), 4x hot-swap fans (back-to-front airflow, 500 CFM). Chassis: 3.43 x 17.4 x 25.6 in, 55 lb fully loaded.

Environmental & Compliance

Operating temp 0-40°C, altitude 0 m (sea level), RH 5-90% non-condensing, seismic Zone 4.

Ordering Information

Main unit: QFX5230-64CD-AFI (includes chassis QFX5230-64CD-CHAS, fans QFX5230-64CD-FANAI). Power supplies: JNP-2700W-AC-AFI. Rack mount: QFX5230-2RU-4PRMK. Extensive transceiver support including QSFP-DD 400G/DR4/FR4/LR4-10/SR8/SR4.2/VR4/ZR-M, DAC/AOC breakouts.

Specifications

Overview
Full Product NameQFX5230-64CD Switch
OS SupportedJunos OS Evolved
Chassis
Fixed/Modular Chassis?Fixed
Form Factor2 U
Chassis Height3.43 in / 8.7122 cm
Chassis Width17.4 in / 44.196 cm
Chassis Depth25.6 in / 65.024 cm
Chassis Weight (Fully Loaded With All Components)55 lb / 24.94 kg
Chassis Model NumberQFX5230-64CD-CHAS
Cooling System
Airflow DirectionBack-to-front
AFO/AFI?AFI
Airflow Volume500 CFM
Fan Module Model NumberQFX5230-64CD-FANAI
Fan Module Count4
Fan Module Hot-Removable And Hot-Insertable?Y
Environmental Specifications
Operating Altitude0 ft (0 m)
Operating Temperature32° through 104° F / 0° through 40° C
Storage Temperature-40° through 158° F / -40° through 70° C
Relative Humidity, Noncondensing (Operating)5% through 90%
Relative Humidity, Noncondensing (Nonoperating)5% through 90%
Seismic ToleranceZone 4
Maintenance Clearance30 in / 76.2 cm
Built-in Network Ports
SFP+ Port Count2
QSFP56-DD Port Count64
QSFP56-DD Port ChannelizationY
Other Port Configuration
Console Port Count1
Console Port TypeRJ-45
Management Port Count1
Management Port TypeRJ-45
USB Port Count1
USB Port TypeType A
10 MHz PortY
PPS PortY
Performance (Routing/Switching)
Throughput (Bidirectional)51200 Gbps
Throughput (Unidirectional)25600 Gbps
Forwarding Capacity10.53 Bpps
IPv4 Unicast Host Routes (Thousands)720
IPv4 Unicast Routes Prefixes (RIB) (Thousands)2000
IPv4 Unicast Routes Prefixes (FIB) (Thousands)720
IPv6 Unicast Host Routes (Thousands)366
IPv6 Unicast Routes Prefixes (RIB) (Thousands)2000
IPv6 Unicast Routes Prefixes (FIB) (Thousands)366
Egress VLAN ACL512
Egress Port ACL2000
Egress Routed ACL2000
Ingress VLAN ACL768
Ingress Port ACL3000
Ingress Routed ACL3000
ARP Entries (Thousands)32
LAGs Count128
Ports Per LAG64
MAC Addresses Per System (Thousands)128
Maximum Mirroring Sessions8
Traffic Mirroring Destination VLANs4
Traffic Mirroring Destination Ports4
VLAN IDs Count4000
Jumbo Frame9216 bytes
Total Packet Buffer112 MB
QoS Hardware Queues Per Port (Multicast)2
QoS Hardware Queues Per Port (Unicast)8
Processor
CPUIntel 6-core Intel Hewitt Lake D-1637
DRAM32 GB
Power System
PSU Count2
PSU Redundancy1+1
PSU Airflow DirectionBack-to-front
PSU Hot-Removable And Hot-Insertable?Y
AC PSU Model NumberJNP-2700W-AC-AFI
AC Max Power Consumption1396 W
AC Average Power Consumption498 W
Grounding Cable Lug TypePanduit LCD4-14A-L
Grounding Cable Temperature Rating90° C / 194° F
Grounding Cable Wire Gauge4 AWG
Storage
Internal Storage Size200 (100+100) GB
Internal Storage TypeSSD
Power Supply Modules (PSM)
JNP-2400W-DC-AFI740-155850 (Juniper DC Power Supply, 2400W, back-to-front airflow)
JNP-2700W-AC-AFI740-155849 (Juniper AC Power Supply, 2700W, back-to-front airflow)
JNP-3000W-AC-AFO740-073765 (PTX10000 2700 W AC power supply)
JNP-3000W-DC-AFO740-073766 (PTX10000 2700 W AC power supply)
Rack Mounting Kits
QFX5230-2RU-4PRMK760-158367 (Tool-less 4post RMK for 2RU QFX5230-64CD)
Supported Transceivers (Partial List)
EX-QSFP-40GE-DAC-50CM740-044512 (QSFP+ 40GbE DAC Twinax 50cm)
EX-SFP-10GE-DAC-7M740-030429 (SFP+ 10GbE DAC Twinax 7m)
EX-SFP-10GE-ER740-140355 (SFP+ 10GBase-ER 40km)
EX-SFP-10GE-LR740-021309 (SFP+ 10GbE LR)
EX-SFP-10GE-SR740-021308 (SFP+ 10GbE SR)
JNP-100G-2X50G-1M720-068904 (100G DAC Breakout 2x50G 1M)
JNP-100G-4X25G-1M720-068901 (100G QSFP28 to 4x25G DAC 1m)
JNP-100G-AOC-1M740-065630 (QSFP28 100G AOC 1M)
JNP-QSFP-100G-SR4740-061405 (QSFP28 100GBase-SR4 100m MMF)
QDD-400G-DAC-1M720-087756 (QSFP56-DD 400G DAC 1m)
QDD-400G-DR4740-085351 (QSFP-DD 400GBASE-DR4 500m SMF)
QDD-400G-FR4740-085349 (QSFP-DD 400G-FR4 2km SMF)
QDD-400G-LR4-10740-096176 (QSFP-DD 400G-LR4-10 10km SMF)
QDD-400G-SR8740-114928 (QSFP56-DD 400G SR8)
QDD-400G-ZR-M740-131169 (OpenZR+ 400GE coherent)
More transceivers availableFull list exceeds 100 models including DAC/AOC breakouts for 400G/200G/100G/50G/40G/25G/10G

Reviews

No reviews yet

Be the first to review this enterprise product.

Warranty

Standard Warranty Policy

All hardware sold by ITMall includes our 3-Year Free Maintenance and 1-Year RMA Replacement Service. Please refer to our Warranty Policy for details.

  • 1-Year Advance Replacement (RMA)
  • 3-Year Free Repair Service
  • Full coverage for functionality defects
Hassle-Free RMA Process

We streamlined the return process to minimize your network downtime. Our engineering team provides pre-return diagnostics to ensure hardware is truly defective.

  • 30-Day satisfaction guarantee return window
  • Automated RMA portal access for instant tracking
  • Restocking fee waived for functionality issues
Certified Engineering Support

Our products are backed by CCIE-certified engineers who provide expert guidance on compatibility, configuration, and troubleshooting at no extra cost.

  • Free pre-sales topology consultation
  • Remote troubleshooting & firmware advice
  • Simulation lab testing before dispatch
Global Logistics & Packaging

We ship to 85+ countries using premium anti-static packaging to ensure safety. Orders placed before 14:00 (GMT+8) are typically dispatched the same day.

  • Double-walled boxes with customer molded foam
  • Blind shipping support for channel partners
  • Real-time tracking via FedEx / DHL / UPS

Resources

Datasheet
Quick Start Guide

Common Questions

What is the switching capacity of QFX5230-64CD-AFI?
51.2 Tbps bidirectional (25.6 Tbps unidirectional), 10.53 Bpps forwarding.
Does QFX5230-64CD-AFI support EVPN-VXLAN?
Yes, supported via Junos OS Evolved for overlay fabrics in data centers.
What ports are on the QFX5230-64CD-AFI?
64x QSFP56-DD (400GbE capable with channelization), 2x SFP+, management console, OOB Ethernet, USB, 10 MHz, PPS.
What is the power consumption of QFX5230-64CD-AFI?
AC max 1396 W, average 498 W with JNP-2700W-AC-AFI PSUs (1+1 redundant).
What is the buffer size on QFX5230-64CD-AFI?
112 MB total packet buffer.
