QFX5241-64QD-AO
Brand Juniper
4.9Verified

QFX5241-64QD-AO

Model (MPN)
QFX5241-64QD-AO
Condition
Factory Sealed
Original Packaging (NIB)
Out of Stock

Volume & Framework Pricing

B2B Only
QuantityUnit PriceEst. Savings
1 Unit$272.20-
2 - 9 UnitsRequest Quote5 - 10%
10+ / ProjectFramework Match Tier-1 Access
Global Framework Support AvailableGet Global Discount

Key Specifications

Data transmission capability800 Gbps
Rack units (U)2 U
Throughput51.2 Tbps
Core64 Peregrine SerDes cores
ChipsetHigh-radix class TH5 BCM78900 chipsets
ProcessorIntel 4-core 2.2-GHz Ice Lake D processor with 32 GB DRAM
Your Price
Call for Pricing
Volume discounts available
Availability Out of Stock

Need configuration help?

Our CCIE certified engineers can help you verify compatibility.

Secure Payment
VISA
Pay
WIRE

Fast Dispatch

Global logistics network aiming for same-day handover.

48hrs
Avg. Shipping
99%
On-Time

Guaranteed Quality

Every unit undergoes rigorous 38-point inspection test.

3Year
Warranty
0.1%
RMA Rate

Global Reach

Trusted by enterprise clients across 6 continents.

85+
Countries
20k+
Clients

Expert Support

Certified network engineers ready to assist with configuration.

24/7
Assistance
CCIE
Certified

Overview

Product Overview

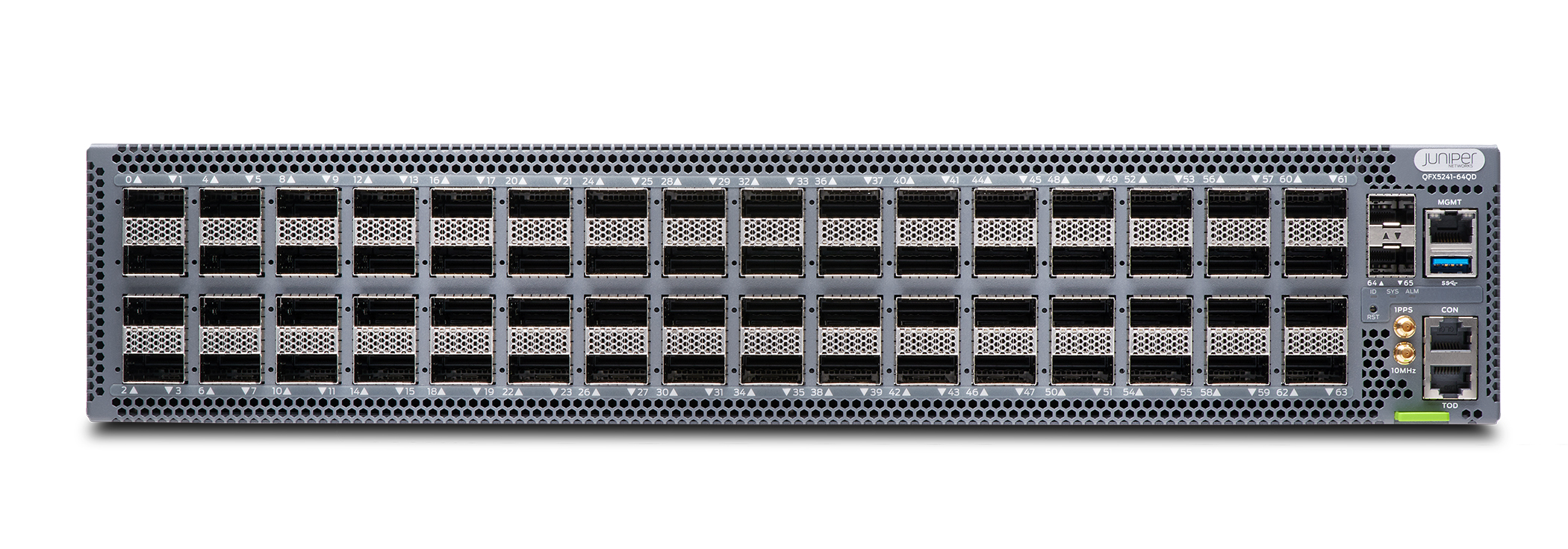

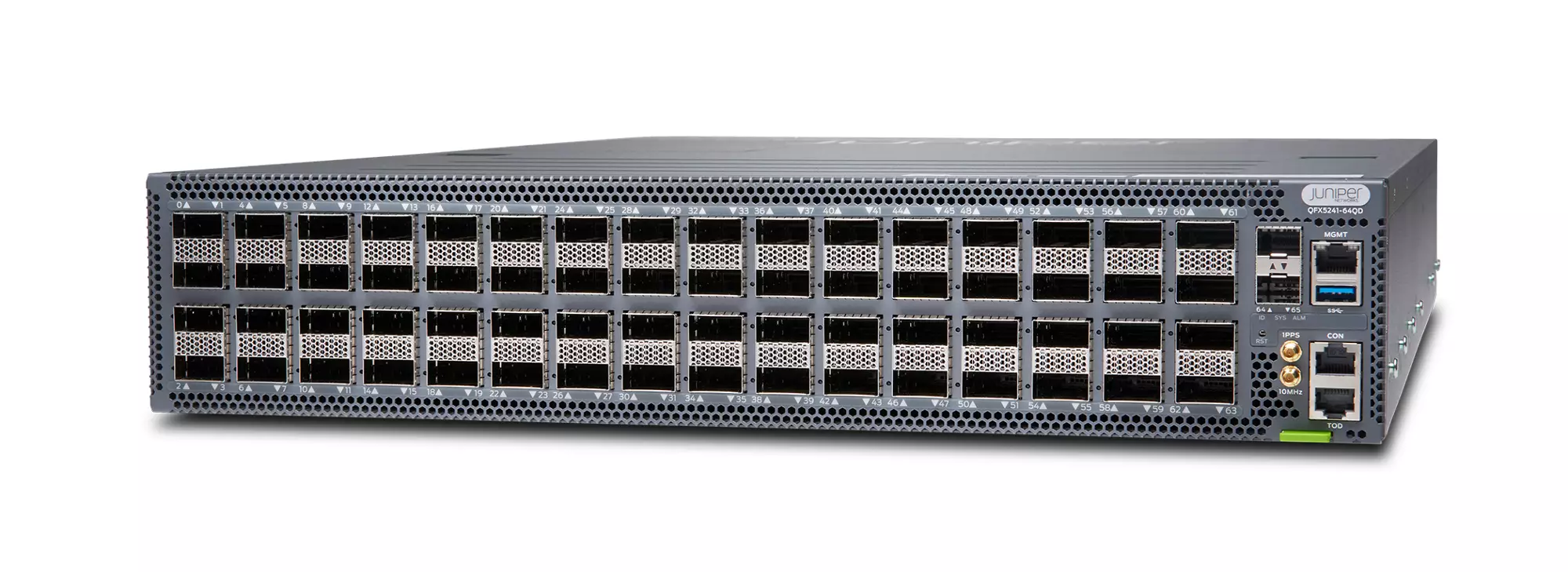

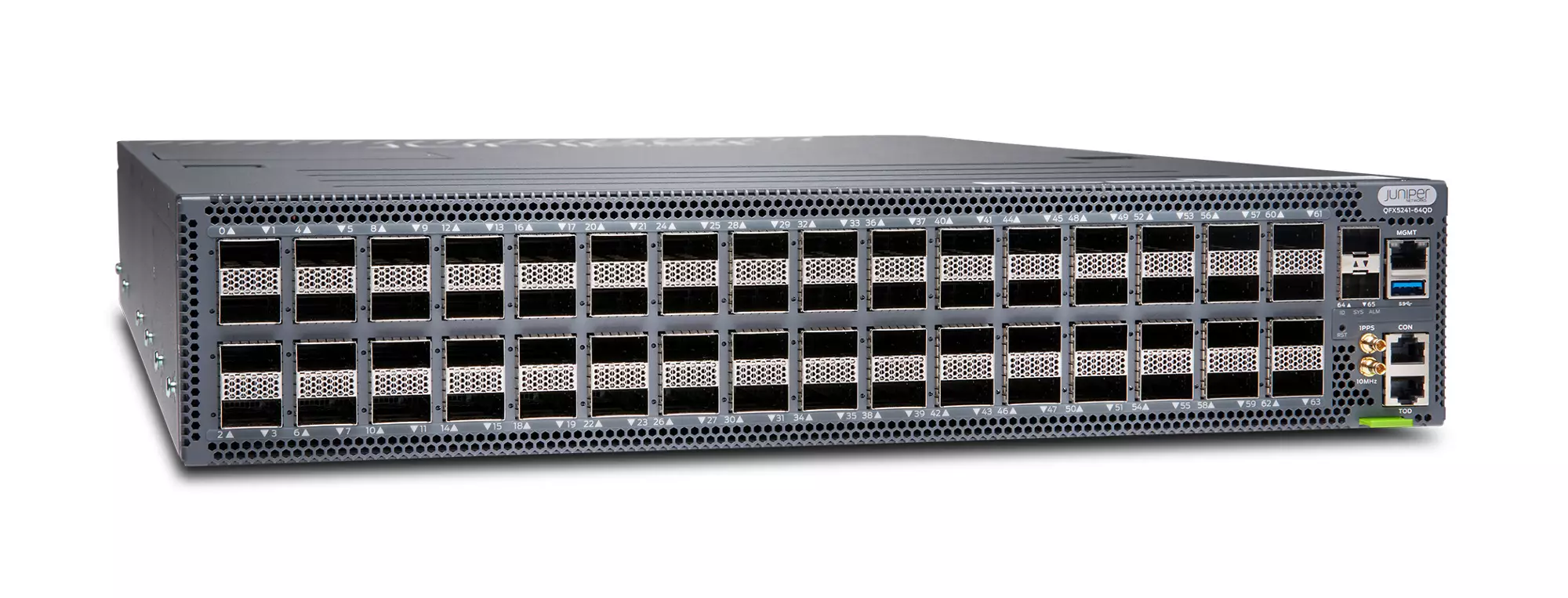

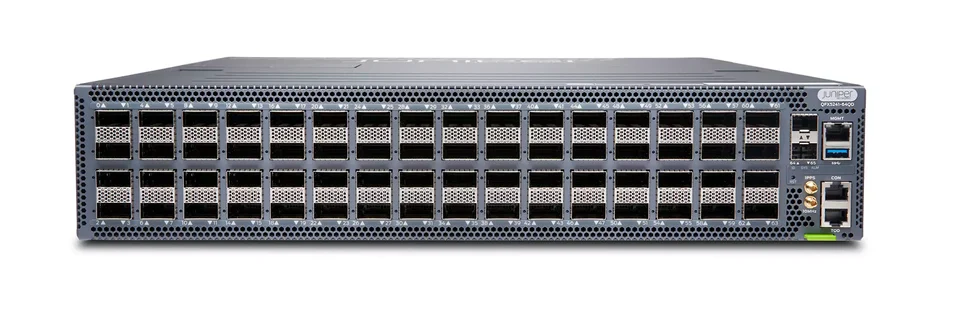

The Juniper QFX5241-64QD-AO is a 2U high-performance switch from the QFX5200-Transform line, optimized for end-of-row, leaf, or spine roles in IP fabric architectures, particularly as shallow buffer platforms for spine in data centers. It features 64 QSFP-DD ports supporting up to 800 Gbps and 2 SFP28 ports at 10 Gbps, delivering 51.2 Tbps throughput with 64 Peregrine SerDes cores and high-radix TH5 BCM78900 chipsets.

Architecture & Performance

Powered by an Intel 4-core 2.2-GHz Ice Lake D processor with 32 GB DRAM and two internal 480-GB NVMe SSDs for Junos OS Evolved. The switch provides Layer 2 and Layer 3 switching, routing, and security services. Airflow Out (AFO) cooling with four hot-swappable fan modules and dual redundant 3000W AC PSUs. Dimensions: 3.46 x 19.03 x 25.51 in (8.78 x 48.33 x 65 cm). Weight: 48.50 lb (22 kg) fully loaded without optics.

Component Details

Ports: 64 QSFP-DD (0–63, up to 800 Gbps), 2 SFP28 (64–65, up to 10 Gbps).
Management: 1 USB 3.0, 1 RJ-45 console, 1 MGMT port.
Power: Two 12.2-V, 3000-W AC PSUs (AFO), 1+1 redundancy.
Cooling: Four QFX5240-2U-FANAO fan modules (AFO).

Ordering Information

Main Unit: QFX5241-64QD-AO
Spare Chassis: QFX5241-64QD-CHAS
Rack Mount Kit: QFX5240-2U-4PRMK
FRUs:

  • Fan Module: QFX5240-2U-FANAO
  • AC PSU: QFX5240-PWR-AC-AO (3000W AFO)

Specifications

Key Specifications
Data transmission capability800 Gbps
Rack units (U)2 U
Throughput51.2 Tbps
Core64 Peregrine SerDes cores
ChipsetHigh-radix class TH5 BCM78900 chipsets
ProcessorIntel 4-core 2.2-GHz Ice Lake D processor with 32 GB DRAM
Operating system (OS)Junos OS Evolved (two internal 480-GB NVMe SSDs)
Ports and Interfaces (QFX5241-64QD-AO)
QSFP-DD ports64 (ports 0–63) up to 800 Gbps
SFP28 ports2 (ports 64 and 65) up to 10 Gbps
USB port1 USB 3.0 port
Console port1 RJ-45 console port
Management port1 management (MGMT) port
Rack mount kitQFX5240-2U-4PRMK
Physical Specifications
Height3.46 in. (8.78 cm)
Width19.03 in. (48.33 cm)
Depth25.51 in. (65 cm)
Weight48.50 lb (22 kg) fully loaded without optics
Airflow and Cooling
Fan modulesFour hot-insertable and hot-removable fan modules with front-to-back or airflow out (AFO) airflow, indicated by AIR OUT label
Fan module SKUQFX5240-2U-FANAO (80 mm x 80 mm x 80 mm, 12.2 V)
Fan replacement duration2 minutes at 77°F (25°C); 30 seconds at 95°F (35°C) to 104°F (40°C)
Power Supply (QFX5241-64QD-AO)
Power systemTwo 12.2-V, 3000-W AC PSUs with AFO cooling system, hot-insertable/hot-removable, 1+1 redundancy and load sharing
AC PSU Specifications (QFX5240-PWR-AC-AO)
Maximum output power3000 W (215-240 VAC); 2800 W (200-214 VAC). Note: >2800 W requires >215 VAC.
AC input current rating16 A maximum
AC input voltage200 V–240 VAC
AC input line frequency50-60 Hz
DC PSU Specifications (QFX5241-PWR-DC-AO, reference)
Maximum output power3000 W
DC output voltage12.2 V maximum
DC input voltage range–48 V to –60 V
Input current (max 3 kW)80 A maximum per PSU
Field-Replaceable Units (FRUs)
Fan moduleQFX5240-2U-FANAO (ports-to-FRUs AFO airflow)
AC PSUQFX5240-PWR-AC-AO, 3000 W, AFO airflow
DC PSU (reference)QFX5241-PWR-DC-AO, 3000 W, AFO airflow
Rack mount kitFour-post toolless RMK (QFX5240-2U-4PRMK)
Spare Chassis
QFX5241-64QD-CHASSpare chassis without PSUs and fans for QFX5241-64QD model
Software Features
OSJunos OS Evolved (CLI management via console/out-of-band MGMT ports)
CapabilitiesLayer 2 and Layer 3 switching, routing, and security services
System Redundancy
PSUs1+1 redundancy and load sharing (hot-insertable/hot-removable)
Fan modulesHot-insertable/hot-removable (four modules)

Reviews

No reviews yet

Be the first to review this enterprise product.

Warranty

Standard Warranty Policy

All hardware sold by ITMall includes our 3-Year Free Maintenance and 1-Year RMA Replacement Service. Please refer to our Warranty Policy for details.

  • 1-Year Advance Replacement (RMA)
  • 3-Year Free Repair Service
  • Full coverage for functionality defects
Hassle-Free RMA Process

We streamlined the return process to minimize your network downtime. Our engineering team provides pre-return diagnostics to ensure hardware is truly defective.

  • 30-Day satisfaction guarantee return window
  • Automated RMA portal access for instant tracking
  • Restocking fee waived for functionality issues
Certified Engineering Support

Our products are backed by CCIE-certified engineers who provide expert guidance on compatibility, configuration, and troubleshooting at no extra cost.

  • Free pre-sales topology consultation
  • Remote troubleshooting & firmware advice
  • Simulation lab testing before dispatch
Global Logistics & Packaging

We ship to 85+ countries using premium anti-static packaging to ensure safety. Orders placed before 14:00 (GMT+8) are typically dispatched the same day.

  • Double-walled boxes with customer molded foam
  • Blind shipping support for channel partners
  • Real-time tracking via FedEx / DHL / UPS

Resources

No downloads available for this product.

Common Questions

What is the switching capacity of QFX5241-64QD-AO?
51.2 Tbps throughput with 800 Gbps data transmission capability per port.
What ports does the QFX5241-64QD-AO support?
64 QSFP-DD ports (up to 800 Gbps, ports 0-63), 2 SFP28 ports (up to 10 Gbps, ports 64-65), 1 USB 3.0, 1 RJ-45 console, 1 MGMT port.
What chipset powers the QFX5241-64QD-AO?
High-radix class TH5 BCM78900 chipsets with 64 Peregrine SerDes cores.
What is the power configuration for QFX5241-64QD-AO?
Two 12.2-V, 3000-W AC PSUs (QFX5240-PWR-AC-AO) with AFO, 1+1 redundancy.
What OS runs on the QFX5241-64QD-AO?
Junos OS Evolved, stored on two 480-GB NVMe SSDs, with Intel 4-core 2.2-GHz Ice Lake D processor and 32 GB DRAM.
