QFX5241-64QD-DO
Juniper QFX Series
4.9Verified

QFX5241-64QD-DO

Model (MPN)
QFX5241-64QD-DO
Condition
New Retail
Certified Engineer Tested
Out of Stock

Volume & Framework Pricing

B2B Only
QuantityUnit PriceEst. Savings
1 Unit$272.20-
2 - 9 UnitsRequest Quote5 - 10%
10+ / ProjectFramework Match Tier-1 Access
Global Framework Support AvailableGet Global Discount

Key Specifications

Data transmission capability800 Gbps
Rack units (U)2 U
Form factorQuad small form-factor pluggable double-density (QSFP-DD)—64 QSFP-DD ports with speeds of up to 800 Gbps. 2 SFP28 ports with speeds of 10 Gbps.
Ports64 QSFP-DD ports (800 Gbps), 2 SFP28 ports (10 Gbps), 1 USB 3.0 port, 1 RJ-45 console port, 1 management port
Throughput51.2 terabits per second (Tbps)
Core64 Peregrine SerDes cores
Your Price
Call for Pricing
Volume discounts available
Availability Out of Stock

Need configuration help?

Our CCIE certified engineers can help you verify compatibility.

Secure Payment
VISA
Pay
WIRE

Fast Dispatch

Global logistics network aiming for same-day handover.

48hrs
Avg. Shipping
99%
On-Time

Guaranteed Quality

Every unit undergoes rigorous 38-point inspection test.

3Year
Warranty
0.1%
RMA Rate

Global Reach

Trusted by enterprise clients across 6 continents.

85+
Countries
20k+
Clients

Expert Support

Certified network engineers ready to assist with configuration.

24/7
Assistance
CCIE
Certified

Overview

Product Overview

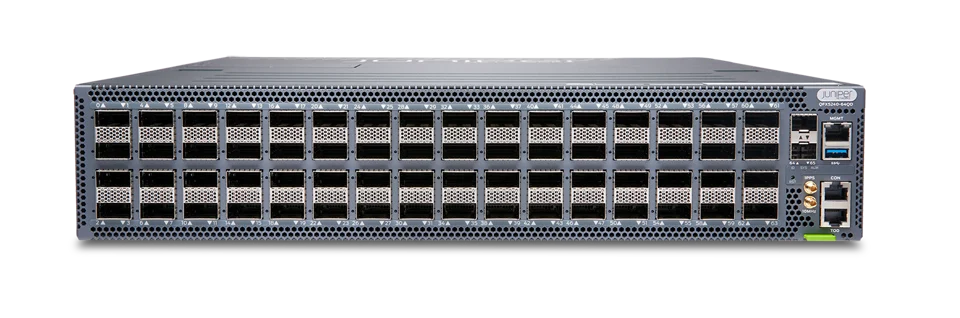

The Juniper QFX5241-64QD-DO is a high-performance 2U switch from the QFX5241-64QD Series, optimized for end-of-row, leaf, or spine roles in IP fabric architectures, particularly as shallow buffer platforms for spine in data centers. It features 64 QSFP-DD ports supporting up to 800 Gbps, delivering 51.2 Tbps throughput with high port density to reduce space and power costs. Equipped with DC PSUs and airflow out (AFO) cooling.

Architecture & Performance

Powered by high-radix class TH5 BCM78900 chipsets with 64 Peregrine SerDes cores and an Intel 4-core 2.2-GHz Ice Lake D processor with 32 GB DRAM. Runs Junos OS Evolved on two internal 480-GB NVMe SSDs. Supports advanced telemetry (ECN/PFC counters), load-balancing for complex flows, and automation via Apstra. Data transmission capability: 800 Gbps per port.

Ports and Connectivity

  • 64 QSFP-DD ports (ports 0–63, up to 800 Gbps)
  • 2 SFP28 ports (ports 64 and 65, up to 10 Gbps)
  • 1 USB 3.0 port
  • 1 RJ-45 console port
  • 1 management (MGMT) port

Chassis and Physical Specifications

2U rack form factor. Dimensions: Height 3.46 in. (8.78 cm), Width 19.03 in. (48.33 cm), Depth 25.51 in. (65 cm). Weight: 48.50 lb (22 kg) fully loaded without optics. Installs with QFX5240-2U-4PRMK four-post toolless rack mount kit.

Power and Cooling

Two 12.2-V, 3000-W DC PSUs (hot-insertable/hot-removable, 1+1 redundancy, load sharing). Four QFX5240-2U-FANAO fan modules (80 mm x 80 mm x 80 mm, 12.2 V, N+1 redundancy, AFO front-to-back airflow).

Component Redundancy and FRUs

PSUs and fan modules are hot-insertable/hot-removable FRUs. Cooling offers N+1 fan redundancy; fan replacement: 2 min at 77°F (25°C), 30 sec at 95–104°F (35–40°C).

Ordering Information

  • Main Unit: QFX5241-64QD-DO (64 QSFP-DD ports, DC PSU, AFO)
  • Spare Chassis: QFX5241-64QD-CHAS
  • PSU (Spare): QFX5241-PWR-DC-AO (3000 W DC, AFO)
  • Fan Module (Spare): QFX5240-2U-FANAO (AFO)
  • Rack Mount Kit: QFX5240-2U-4PRMK

Specifications

Key Specifications (QFX5241-64QD)
Data transmission capability800 Gbps
Rack units (U)2 U
Form factorQuad small form-factor pluggable double-density (QSFP-DD)—64 QSFP-DD ports with speeds of up to 800 Gbps. 2 SFP28 ports with speeds of 10 Gbps.
Ports64 QSFP-DD ports (800 Gbps), 2 SFP28 ports (10 Gbps), 1 USB 3.0 port, 1 RJ-45 console port, 1 management port
Throughput51.2 terabits per second (Tbps)
Core64 Peregrine SerDes cores
ChipsetHigh-radix class TH5 BCM78900 chipsets
ProcessorIntel 4-core 2.2-GHz Ice Lake D processor with 32 GB DRAM
Operating system (OS)Junos OS Evolved software (Two internal 480-GB NVMe SSDs)
Variant Details (QFX5241-64QD-DO)
Description64 QSFP-DD ports (ports 0–63) with port speed of up to 800 Gbps, 2 SFP28 ports (ports 64 and 65) with port speed of up to 10 Gbps, 1 USB 3.0 port, 1 RJ-45 console port, 1 management (MGMT) port. Install using QFX5240-2U-4PRMK rack mount kit.
AirflowFour hot-insertable and hot-removable fan modules with front-to-back or airflow out (AFO) airflow, indicated by the label AIR OUT.
Power SystemTwo 12.2-V, 3000-W DC PSUs with front-to-back airflow. Hot-insertable and hot-removable FRUs that provide 1 + 1 redundancy and load sharing.
Physical Specifications (Chassis)
Height3.46 in. (8.78 cm)
Width19.03 in. (48.33 cm)
Depth25.51 in. (65 cm)
Weight48.50 lb (22 kg) fully loaded without optics
PSU Specifications (QFX5241-PWR-DC-AO)
Maximum output power3000 W
DC output voltage12.2 V maximum
DC input voltage range–48 V to –60 V
Input current (for maximum power output of 3 kW)80 A (maximum per PSU)
Cooling System Specifications (QFX5240-2U-FANAO Fan Modules)
DescriptionFour 12.2 V fan modules. 80 mm x 80 mm x 80 mm dimension, hot-insertable and hot-removable FRUs.
AirflowAirflow out (AFO), front-to-back or port-to-FRU airflow
Fan Replacement Duration2 minutes for ambient temperature of 77 ℉ (25 ℃); 30 seconds for 95 ℉ (35 ℃) to 104 ℉ (40 ℃)
Field-Replaceable Units (FRUs)
QFX5240-2U-FANAOFan module, ports-to-FRUs airflow (front-to-back or AFO)
QFX5241-PWR-DC-AODC PSU, 3000 W, ports-to-FRUs airflow (front-to-back or AFO)
QFX5240-PWR-AC-AOAC PSU, 3000 W, ports-to-FRUs airflow (front-to-back or AFO) (alternate)
QFX5240-2U-4PRMKFour-post toolless rack mount kit (RMK)
Spare Chassis
QFX5241-64QD-CHASSpare chassis without PSUs and fans for the QFX5241-64QD model
Component Redundancy
PSUs1+1 redundancy, hot-insertable/hot-removable, no shutdown required
Fan ModulesN+1 redundancy, hot-insertable/hot-removable

Reviews

No reviews yet

Be the first to review this enterprise product.

Warranty

Standard Warranty Policy

All hardware sold by ITMall includes our 3-Year Free Maintenance and 1-Year RMA Replacement Service. Please refer to our Warranty Policy for details.

  • 1-Year Advance Replacement (RMA)
  • 3-Year Free Repair Service
  • Full coverage for functionality defects
Hassle-Free RMA Process

We streamlined the return process to minimize your network downtime. Our engineering team provides pre-return diagnostics to ensure hardware is truly defective.

  • 30-Day satisfaction guarantee return window
  • Automated RMA portal access for instant tracking
  • Restocking fee waived for functionality issues
Certified Engineering Support

Our products are backed by CCIE-certified engineers who provide expert guidance on compatibility, configuration, and troubleshooting at no extra cost.

  • Free pre-sales topology consultation
  • Remote troubleshooting & firmware advice
  • Simulation lab testing before dispatch
Global Logistics & Packaging

We ship to 85+ countries using premium anti-static packaging to ensure safety. Orders placed before 14:00 (GMT+8) are typically dispatched the same day.

  • Double-walled boxes with customer molded foam
  • Blind shipping support for channel partners
  • Real-time tracking via FedEx / DHL / UPS

Resources

Datasheet

Common Questions

What is the switching capacity of QFX5241-64QD-DO?
51.2 Tbps throughput.
What ports are on the QFX5241-64QD-DO?
64 QSFP-DD ports (up to 800 Gbps, ports 0-63), 2 SFP28 ports (up to 10 Gbps, ports 64-65), 1 USB 3.0, 1 RJ-45 console, 1 management port.
What power system does QFX5241-64QD-DO use?
Two 12.2-V, 3000-W DC PSUs with 1+1 redundancy and AFO airflow.
What is the chipset in QFX5241-64QD-DO?
High-radix class TH5 BCM78900 chipsets with 64 Peregrine SerDes cores.
What OS runs on QFX5241-64QD-DO?
Junos OS Evolved on two 480-GB NVMe SSDs.
