QFX5700E-BASE-DC
Brand Juniper
4.9Verified

QFX5700E-BASE-DC

Model (MPN)
QFX5700E-BASE-DC
Condition
New Retail
Certified Engineer Tested
Out of Stock

Volume & Framework Pricing

B2B Only
QuantityUnit PriceEst. Savings
1 Unit$272.20-
2 - 9 UnitsRequest Quote5 - 10%
10+ / ProjectFramework Match Tier-1 Access
Global Framework Support AvailableGet Global Discount

Key Specifications

Dimensions (W x H x D)19.0 in x 8.74 in (5RU) x 32 in (48.2 x 22.2 x 81.5 cm)
Rack units5 U
Weight153.8 lbs. (69.8 kg) with all FRUs installed
Switch chipBroadcom Trident4
CPUIntel Hewitt Lake, 32GB DDRAM
Operating systemJunos OS Evolved
Your Price
Call for Pricing
Volume discounts available
Availability Out of Stock

Need configuration help?

Our CCIE certified engineers can help you verify compatibility.

Secure Payment
VISA
Pay
WIRE

Fast Dispatch

Global logistics network aiming for same-day handover.

48hrs
Avg. Shipping
99%
On-Time

Guaranteed Quality

Every unit undergoes rigorous 38-point inspection test.

3Year
Warranty
0.1%
RMA Rate

Global Reach

Trusted by enterprise clients across 6 continents.

85+
Countries
20k+
Clients

Expert Support

Certified network engineers ready to assist with configuration.

24/7
Assistance
CCIE
Certified

Overview

Product Overview

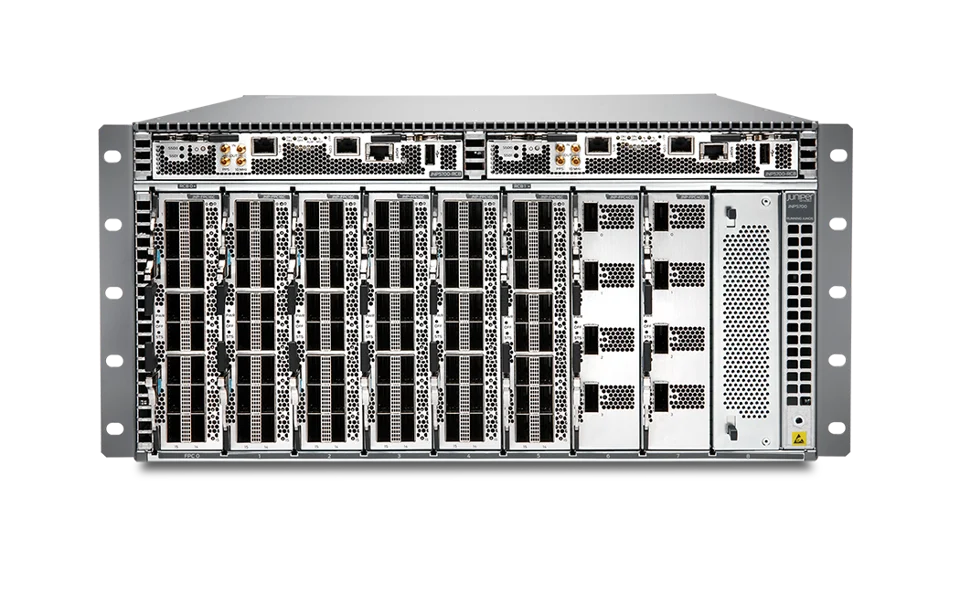

The Juniper QFX5700E-BASE-DC is a high-density, cost-optimized, 5U 8-slot fabric-less modular switch ideal for spine-and-leaf deployments in enterprise, service provider, cloud provider data centers, and campus distribution/core. It supports 400GbE, 100GbE, 50GbE, 40GbE, 25GbE, and 10GbE interfaces with 25.6 Tbps bidirectional capacity, advanced L2/L3, EVPN-VXLAN, RoCEv2, and Junos OS Evolved for cloud-scale performance.

Architecture & Performance

Powered by Broadcom Trident4 switch chip and Intel Hewitt Lake CPU (32GB DDRAM), the QFX5700E-BASE-DC delivers 5.3 Bpps forwarding, 132MB shared buffer, latency as low as 900 ns, up to 732K IPv4/428K IPv6 routes, 96K MAC addresses, and 80K firewall filters. Supports high-density configs: 32x400GbE (QFX5K-FPC-4CD), 128x100G/40G (QFX5K-FPC-16C), 144x50G/25G/10G (QFX5K-FPC-20Y). N+N power redundancy (3000W DC PSUs), N+1 fan redundancy, front-to-back airflow.

Key features: EVPN-VXLAN overlays (L2/L3 gateway), 128 LAGs, 4000 VLANs, 9216B jumbo frames, MACsec (licensed), BGP add-path, 128-way ECMP, dynamic load balancing, ingress/egress policing/shaping, DCB (PFC, DCBX), Junos telemetry interface, automation (ZTP, NETCONF, JET, Python).

Deployment Flexibility

Universal spine/leaf/border-leaf for IP fabrics, EVPN-VXLAN fabrics, DCI, campus fabric (core/distribution), RoCEv2 for HPC/storage. Managed via Apstra Data Center Director or Juniper Mist Wired Assurance for AI-native operations.

Ordering Information

Base Chassis: QFX5700E-BASE-DC (QFX5700E hardware only; software services sold separately, 1 5700E-FEB, 1 RCB, redundant fans, 2 DC PSUs, AFO).

Line Cards: QFX5K-FPC-4CD (4x400G), QFX5K-FPC-16C (16x100G), QFX5K-FPC-20Y (20x25G/10G SFP).

Power Supplies: JNP-3000W-DC-AFO (3000W DC, AFO).

Software Licenses: S-QFX5KC3-MACSEC-3/5/P (MACsec, 3/5yr/Perpetual); S-QFX5K-C3-A1-X/A2-X/P1-X (X=3,5; Base L3/Advanced/Premium subscriptions).

Other: JNP5700-FAN (fans), blanks, rack kits, cables. Full optics/transceivers via Hardware Compatibility Tool.

Specifications

Physical Specifications
Dimensions (W x H x D)19.0 in x 8.74 in (5RU) x 32 in (48.2 x 22.2 x 81.5 cm)
Rack units5 U
Weight153.8 lbs. (69.8 kg) with all FRUs installed
Switch chipBroadcom Trident4
CPUIntel Hewitt Lake, 32GB DDRAM
Operating systemJunos OS Evolved
AirflowFront-to-back (AFO)
Performance and Capacity
System throughputUp to 12.8 / 25.6 Tbps (uni / bidirectional)
Forwarding capacity5.3 Bpps
Port density without breakout32 ports of QSFP56-DD (400GbE); 128 ports of QSFP28 (100GbE) or QSFP+ (40GbE); or 144 ports of SFP56 (50GbE), SFP28 (25GbE), or SFP+ (10GbE)
Max ports with breakoutsLine card QFX5K-FPC-16C: 32 4x25GbE, 32 4x10GbE; Line card QFX5K-FPC-4CD: 32 4x100GbE, 32 4x25GbE, 32 4x10GbE
Total packet buffer132MB shared packet buffer
Latencyas low as 900 ns
Software Scale (QFX5700E)
MAC addresses per system96,000
VLAN IDs4,000
Number of link aggregation groups (LAGs)128
Ingress routed ACL (RACL)10,000 terms configured to one filter
Ingress VLAN ACL (VACL)10,000 terms configured to one filter
Ingress port ACL (PACL)10,000 terms configured to one filter
Egress routed ACL (RACL)1,000 terms configured to one filter
Egress VLAN ACL (VACL)2,000 terms configured to one filter
Egress port ACL (PACL)2,000 terms configured to one filter
unicast routes IPv4/v6732,000 / 428,000 routes
Host routes ipv4/ipv696,000 / 48,000
ARP entries32,000 (tunnel mode), 64,000 (non-tunnel mode)
Jumbo frame9,216 Bytes
Traffic mirroring destination ports per switch64
Maximum number of mirroring sessions4
Traffic mirroring destination vlans per switch60
Firewall filters80,000
Power
Power suppliesRedundant (N+N) hot-pluggable 3000 W AC/DC power supplies (2n)
Power Supplies SKUJNP-3000W-DC-AFO (3000W DC, AFO)
Power Consumption
8x QFX5K-FPC-20Y (144x50G) Typical power draw751 W (at 25°C ambient, 50% load with IMIX traffic, without MACsec, excludes transceivers)
8x QFX5K-FPC-20Y (144x50G) Maximum power draw1,622 W (at 40°C ambient with SR optics, 100% load with IMIX traffic, with MACsec on QFX5K-FPC-20Y and QFX5K-FPC-16C, without MACsec on QFX5K-FPC-4CD)
8x QFX5K-FPC-16C (128x100G) Typical power draw1,259 W
8x QFX5K-FPC-16C (128x100G) Maximum power draw2,271 W
8x QFX5K-FPC-4CD (32x400G) Typical power draw1,095 W
8x QFX5K-FPC-4CD (32x400G) Maximum power draw1,762 W
Cooling
CoolingTwo hot-pluggable Fan trays with Four Counter Rotating Fans in each Fan Tray
Fan redundancyN+1 Fan rotor redundancy at Chassis level
Fans SKUJNP5700-FAN (Airflow out (AFO) front-to-back airflow fans)
Line Cards
QFX5K-FPC-4CD4x400G line card
QFX5K-FPC-16C16x100G line card
QFX5K-FPC-20Y20x25G/10G SFP line card
Environmental Ranges
Operating temperature32° F to 104° F (0° C to 40° C)
Storage temperature-40° F through 158° F (-40 ° C to 70° C)
Operating altitudeUp to 6000 feet (1828.8 meters)
Relative humidity operating5 to 90% (noncondensing)
Relative humidity nonoperating5 to 95% (noncondensing)
SeismicDesigned to meet GR-63, Zone 4 earthquake requirements
Software Features
Key featuresEVPN-VXLAN overlays (L2/L3 gateway), BGP add-path, 128-way ECMP, dynamic load balancing, ingress/egress policing/shaping, DCB (PFC, DCBX), Junos telemetry interface, automation (ZTP, NETCONF, JET, Python), MACsec (licensed), RoCEv2
Software Licenses
S-QFX5KC3-MACSEC-3MACsec Software feature license for QFX5700/QFX5700E, 16(100G) ports + 4(400G) ports + 20(10G/25G) ports, 3 Year
S-QFX5KC3-MACSEC-5MACsec Software feature license for QFX5700/QFX5700E, 16(100G) ports + 4(400G) ports + 20(10G/25G) ports, 5 Year
S-QFX5KC3-MACSEC-PMACsec Software feature license for QFX5700/QFX5700E, 16(100G) ports + 4(400G) ports + 20(10G/25G) ports, Perpetual
S-QFX5K-C3-A1-X (X=3,5)Base L3 Software Subscription (X Years; X=3,5) License for QFX5700/QFX5700E
S-QFX5K-C3-A2-X (X=3,5)Advanced Software Subscription (X Years; X=3,5) License for QFX5700/QFX5700E
S-QFX5K-C3-P1-X (X=3,5)Premium Software Subscription (X Years; X=3,5) License for QFX5700/QFX5700E
Compliance
Safety and complianceSafety and compliance (specific standards not detailed in source)
Electromagnetic compatibility globalElectromagnetic compatibility global (specific standards not detailed in source)
Environmental complianceRestriction of Hazardous Substances (ROHS) 6/6; China Restriction of Hazardous Substances (ROHS); Registration, Evaluation, Authorization and Restriction of Chemicals (REACH); Waste Electronics and Electrical Equipment (WEEE); Recycled material; 80 Plus Silver PSU Efficiency
Base Chassis Components
IncludedQFX5700E hardware only; software services sold separately, 1 5700E-FEB, 1 RCB, redundant fans, 2 DC PSUs, AFO

Reviews

No reviews yet

Be the first to review this enterprise product.

Warranty

Standard Warranty Policy

All hardware sold by ITMall includes our 3-Year Free Maintenance and 1-Year RMA Replacement Service. Please refer to our Warranty Policy for details.

  • 1-Year Advance Replacement (RMA)
  • 3-Year Free Repair Service
  • Full coverage for functionality defects
Hassle-Free RMA Process

We streamlined the return process to minimize your network downtime. Our engineering team provides pre-return diagnostics to ensure hardware is truly defective.

  • 30-Day satisfaction guarantee return window
  • Automated RMA portal access for instant tracking
  • Restocking fee waived for functionality issues
Certified Engineering Support

Our products are backed by CCIE-certified engineers who provide expert guidance on compatibility, configuration, and troubleshooting at no extra cost.

  • Free pre-sales topology consultation
  • Remote troubleshooting & firmware advice
  • Simulation lab testing before dispatch
Global Logistics & Packaging

We ship to 85+ countries using premium anti-static packaging to ensure safety. Orders placed before 14:00 (GMT+8) are typically dispatched the same day.

  • Double-walled boxes with customer molded foam
  • Blind shipping support for channel partners
  • Real-time tracking via FedEx / DHL / UPS

Resources

No downloads available for this product.

Common Questions

What is the switching capacity of QFX5700E-BASE-DC?
25.6 Tbps bidirectional / 5.3 Bpps forwarding capacity.
Does QFX5700E-BASE-DC support EVPN-VXLAN?
Yes, supports EVPN-VXLAN overlays with L2/L3 gateway services.
What is the buffer size on QFX5700E-BASE-DC?
132 MB shared packet buffer.
What line cards are supported by QFX5700E-BASE-DC?
QFX5K-FPC-4CD (4x400G), QFX5K-FPC-16C (16x100G), QFX5K-FPC-20Y (20x25G/10G).
What power supplies does QFX5700E-BASE-DC use?
N+N redundant 3000W DC PSUs (JNP-3000W-DC-AFO), front-to-back airflow.
Is this product Brand New?
Yes, unless clearly marked as "Refurbished", all our products are Factory Sealed (Original New) sourced directly from authorized channels.
What is the warranty period?
We provide a comprehensive 3-Year Warranty on this item. This covers hardware defects and includes advanced replacement.
Do you offer volume discounts?
Yes! For bulk orders or project bids, please click "Quote | Help" to get a custom price proposal from our sales team.
How fast can you ship?
In-stock items ordered before 3 PM EST ship the same day. We offer overnight and 2-day shipping options via FedEx/DHL.
