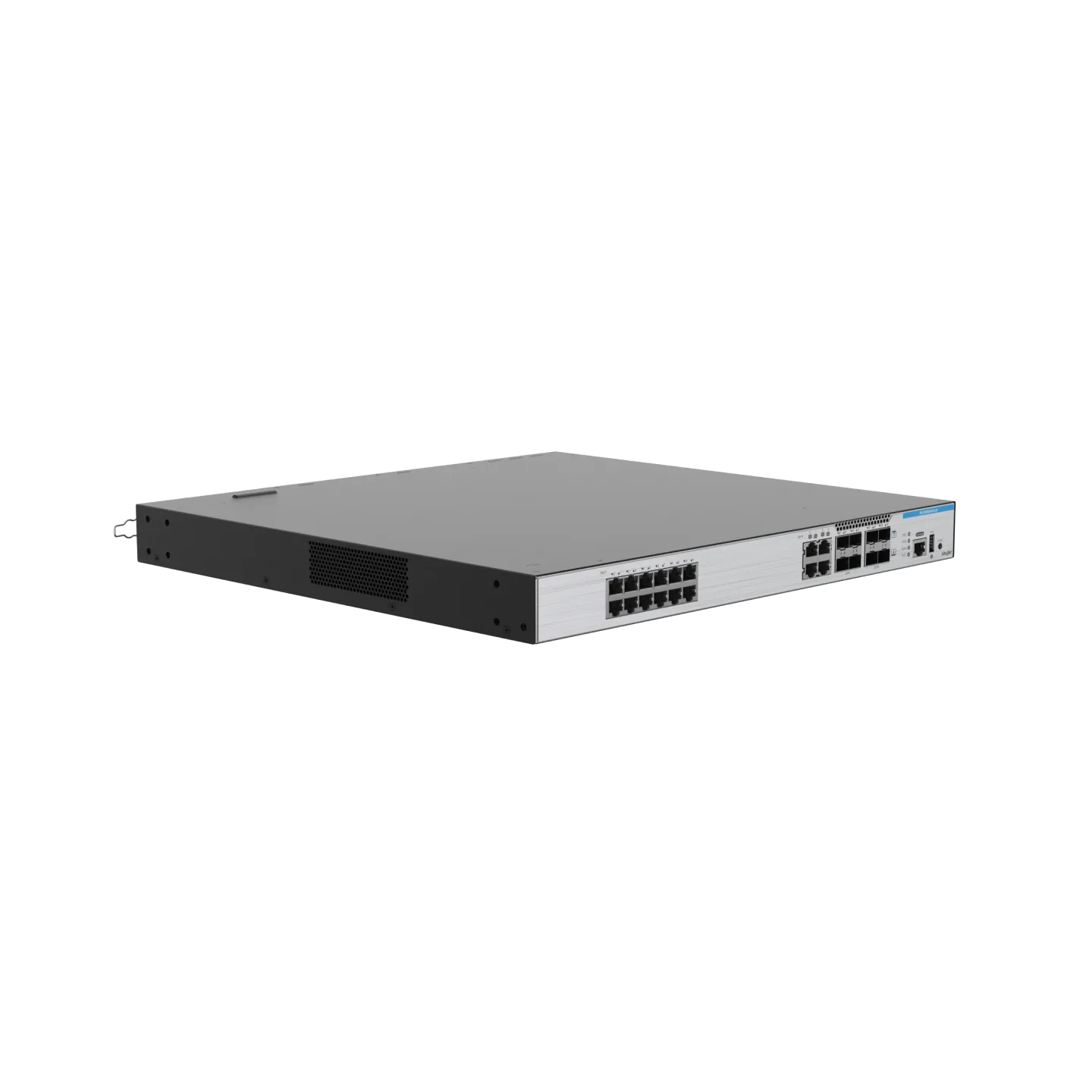

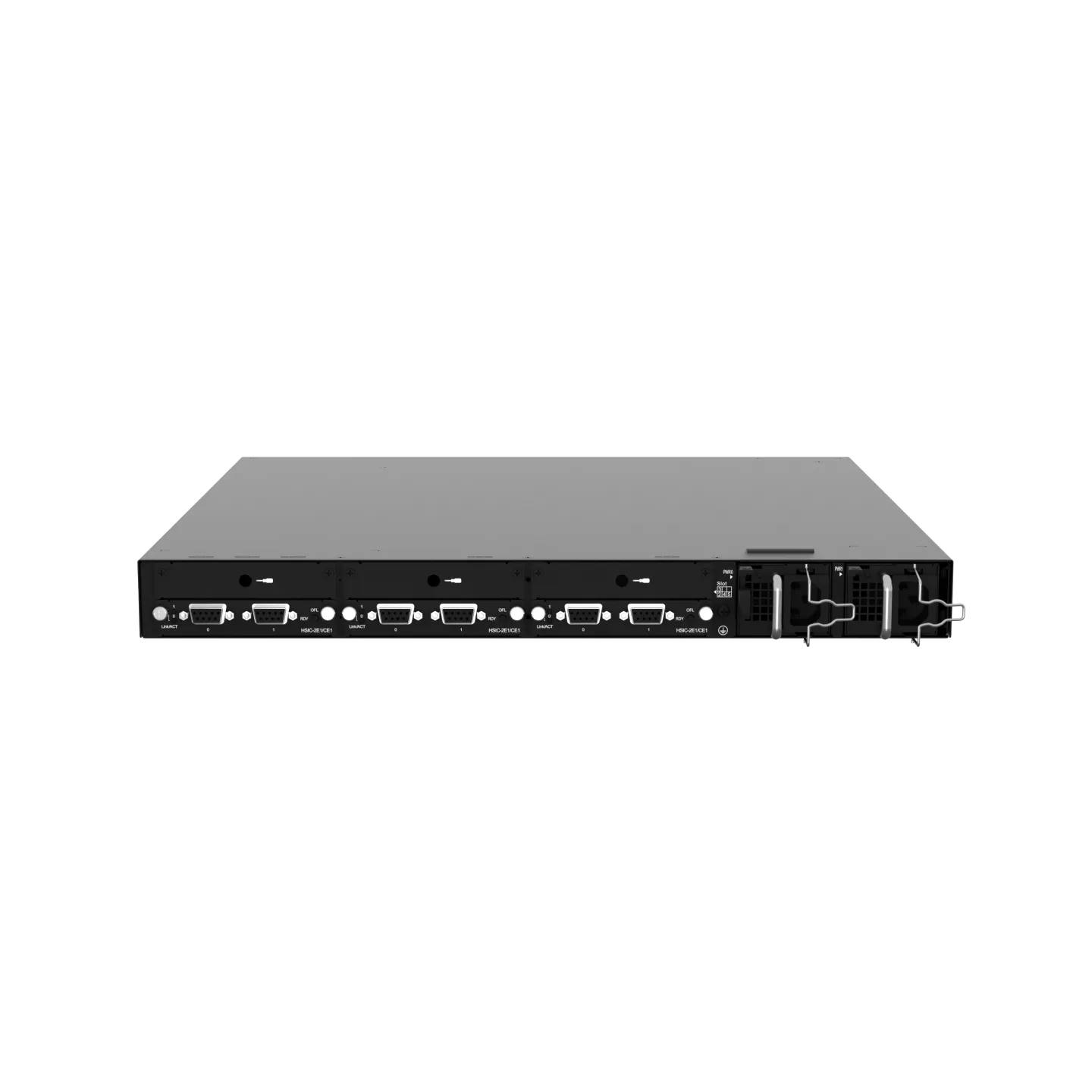

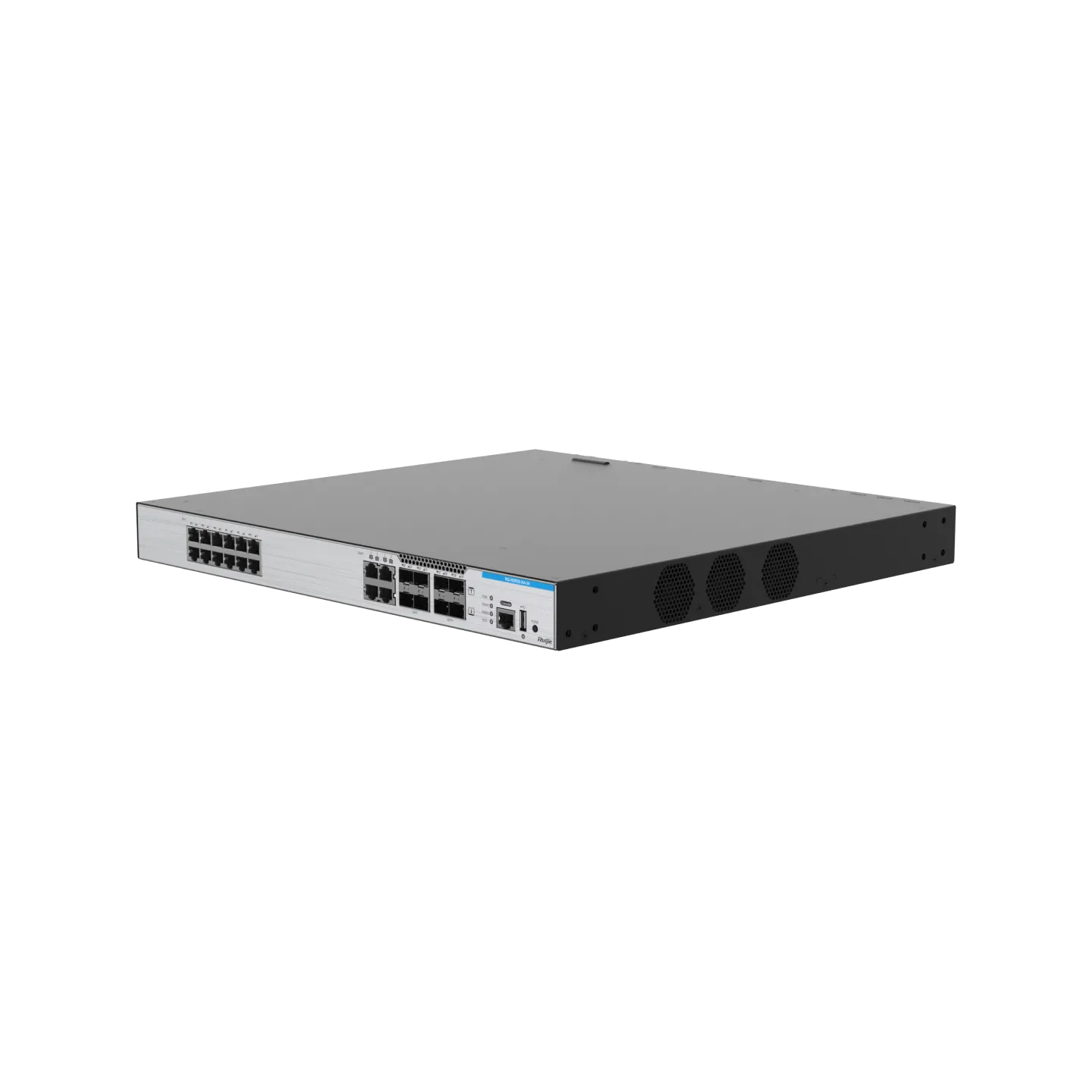

Integrating routing, switching, security, 4G/5G and other functions, equipped with RGOS operating system with Ruijie’s independent intellectual property rights, it is recommended to be used in small and medium-sized branch access scenarios for financial, governmental, and enterprise customers.
Product Features:Abundant port types and quantities, multi-service convergence, and multi-purpose services simplify network deployment
It supports IPsec VPN+ national cryptography algorithm to ensure the security and trustworthiness of transmitted data, and ensure both business security and policy requirements
Dual redundancy of software and hardware, high system reliability, and uninterrupted business continuity
The comprehensive HQoS policy implements refined traffic management and improves the network experience of key users
Hardware Specifications
| Hardware Specifications | RG-RSR20-XA-24 | RG-RSR20-XA-36 | RG-RSR20-XA-54 |
| Interface Specifications | |||
| Fixed WAN port | 4 x 10GE optical ports
4 x 1GE optical ports 4 x 1GE electrical ports |
4 x 10GE optical ports
4 x 1GE optical ports 4 x 1GE electrical ports |
2 x 10GE optical ports
4 x 1GE electrical ports |
| Fixed LAN port (LAN/WAN port switching) | 12 x 1GE electrical ports | 24 x 1GE electrical ports | 48 x 1GE electrical ports |
| Power modules | 2 (1+1 redundancy) | 2 (1+1 redundancy) | 2 (1+1 redundancy) |
| Fixed management ports | 1 x console port and 1 x USB 2.0 port | ||
| Expansion slot | 4 | ||
| System Specifications | |||
| Switching capacity | 10 Gbps | ||
| Number of MAC addresses | Number of global MAC addresses: 10,000
Number of static MAC addresses: 4,000 |
||
| ARP table size | 24,000 | ||
| Number of IPv4 unicast routes | 100,000 | ||
| Number of IPv4 multicast routes | 2,048 | ||
| Number of IPv6 multicast routes | 1,024 | ||
| Number of ACEs | Ingress: 4,000
Egress: 4,000 |
||
| Dimensions and Weight | |||
| Dimensions (W x D x H) | 440 mm x 420 mm x 44 mm (17.32 inch. x 16.56 in. x 1.73 in.), 1 RU | ||
| Weight (Full configuration) | < 7.8 kg (17.20 lbs) (excluding packaging) | ||
| Power and Consumption | |||
| Maximum power consumption | < 150 W | ||
| Maximum output power | RG-PA150IB-F: 150 W @ 10 A power cord | ||
| Rated input voltage | RG-PA150IB-F: 100 V AC to 240 V AC, 50 Hz to 60 Hz | ||
| Maximum input voltage | RG-PA150IB-F: 90 V AC to 264 V AC, 47Hz~63Hz | ||
| Environment and Reliability | |||
| MTBF | > 100,000 hours | ||
| Operating temperature | 0°C to 50°C (32°F to 122°F) | ||
| Storage temperature | –40°C to +70°C (–40°F to +158°F) | ||
| Operating humidity | 10% to 90% RH (non-condensing) | ||
| Storage humidity | 5% to 95% RH (non-condensing) | ||
| Interface surge protection | 6 kV | ||
| Operating altitude | 0–3000 m (0–9,842.52 ft.) | ||
| Hardware Specifications | RG-RSR20-XA-24 | RG-RSR20-XA-36 | RG-RSR20-XA-54 |
| Interface Specifications | |||
| Fixed WAN port | 4 x 10GE optical ports
4 x 1GE optical ports 4 x 1GE electrical ports |
4 x 10GE optical ports
4 x 1GE optical ports 4 x 1GE electrical ports |
2 x 10GE optical ports
4 x 1GE electrical ports |
| Fixed LAN port (LAN/WAN port switching) | 12 x 1GE electrical ports | 24 x 1GE electrical ports | 48 x 1GE electrical ports |
| Power modules | 2 (1+1 redundancy) | 2 (1+1 redundancy) | 2 (1+1 redundancy) |
| Fixed management ports | 1 x console port and 1 x USB 2.0 port | ||
| Expansion slot | 4 | ||
| System Specifications | |||
| Switching capacity | 10 Gbps | ||
| Number of MAC addresses | Number of global MAC addresses: 10,000
Number of static MAC addresses: 4,000 |
||
| ARP table size | 24,000 | ||
| Number of IPv4 unicast routes | 100,000 | ||
| Number of IPv4 multicast routes | 2,048 | ||
| Number of IPv6 multicast routes | 1,024 | ||
| Number of ACEs | Ingress: 4,000
Egress: 4,000 |
||
| Dimensions and Weight | |||
| Dimensions (W x D x H) | 440 mm x 420 mm x 44 mm (17.32 inch. x 16.56 in. x 1.73 in.), 1 RU | ||
| Weight (Full configuration) | < 7.8 kg (17.20 lbs) (excluding packaging) | ||
| Power and Consumption | |||
| Maximum power consumption | < 150 W | ||
| Maximum output power | RG-PA150IB-F: 150 W @ 10 A power cord | ||
| Rated input voltage | RG-PA150IB-F: 100 V AC to 240 V AC, 50 Hz to 60 Hz | ||
| Maximum input voltage | RG-PA150IB-F: 90 V AC to 264 V AC, 47Hz~63Hz | ||
| Environment and Reliability | |||
| MTBF | > 100,000 hours | ||
| Operating temperature | 0°C to 50°C (32°F to 122°F) | ||
| Storage temperature | –40°C to +70°C (–40°F to +158°F) | ||
| Operating humidity | 10% to 90% RH (non-condensing) | ||
| Storage humidity | 5% to 95% RH (non-condensing) | ||
| Interface surge protection | 6 kV | ||
| Operating altitude | 0–3000 m (0–9,842.52 ft.) | ||
Software Specifications
| RG-RSR20-XA Series | |
| Model | Description |
| Ethernet switching | Jumbo frame length: 1578 bytes |
| Number of created VLANs: 4,088 | |
| Voice VLAN | |
| MAC address-based and interface-based VLAN assignment | |
| STP (IEEE 802.1.d), RSTP (IEEE 802.1w), and MSTP (IEEE 802.1s) | |
| LLDP/LLDP-MED | |
| IP service | DHCP server, DHCP relay, DHCP client, and DHCP snooping |
| Static and dynamic NAT and VPN NAT | |
| DHCPv6 client, DHCPv6 relay, and DHCPv6 snooping | |
| Neighbor Discovery (ND) | |
| IPv6 GRE tunnel | |
| IP routing | IPv4/IPv6 static routing |
| RIP v1/v2 and RIPng | |
| OSPFv2 and OSPFv3 | |
| GR | |
| IS-ISv4 and IS-ISv6 | |
| BGP and BGP4+ | |
| Routing policies | |
| IPv4/IPv6 VRF | |
| IPv4 and IPv6 PBR | |
| Multicast | IGMPv1/v2/v3 |
| Static multicast routing | |
| PIM-DM, PIM-SM, PIM-SSM, and other multicast routing protocols | |
| PIM-SSM for IPv4 and IPv6 | |
| MSDP for inter-domain multicast | |
| MLDv1/v2 | |
| PIM-SMv6 | |
| MPLS | MPLS forwarding
Two MPLS VPN modes: inter-AS Option B and Option C MPLS L3VPN |
| 6PE/6VPE interconnection with IPv4/IPv6 MPLS backbone network | |
| MPLS MIB (RFC 1273, 4265, 4382) | |
| ACL and QoS | Standard IP ACLs |
| Extended IP ACLs | |
| Extended MAC ACLs | |
| Expert-level ACLs (ACLs based on source and destination IP addresses and ports, and specified protocol) | |
| IPv6 ACLs | |
| Security | Multiple AAA modes |
| RADIUS authentication and authorization | |
| TACACS+ | |
| IEEE802.1X authentication, MAC address bypass (MAB) authentication, and interface-based and MAC address-based 802.1X authentication | |
| MAC address allowlist, and bindings of VLAN IDs, interface numbers, and MAC addresses | |
| SSHv1 and SSHv2 | |
| ICMP (interface discards ICMP traffic of which the rate exceeds the threshold) | |
| Port security | |
| L2TP, IPsec, and GRE
uRPF Login authentication and password security |
|
| CPP | |
| Strict and loose RPF
uRPF ignoring default routes |
|
| Reliability | RLDP, Layer 2 link connectivity detection, unidirectional link detection, and VLAN-based loop control |
| DLDP | |
| IPv4 VRRP v2/v3 and IPv6 VRRP | |
| ECMP | |
| BFD | |
| GR for OSPF/IS-IS/BGP
BFD for VRRP, OSPF, BGP4, IS-IS, IS-ISv6, MPLS, and static routing |
|
| SDN technology | NETCONF |
| NMS and maintenance | SPAN and ERSPAN |
| NTP and SNTP | |
| NTP server and NTP client | |
| FTP and TFTP | |
| SNMP v1/v2/v3 | |
| System operation logging | |
| Command line through console, AUX Modem, Telnet, and SSH | |
| RMON (1, 2, 3, 9) | |
| CWMP | |
| gRPC | |
Order Information
Chassis
| Model | Description |
| RG-RSR20-XA-24 | RG-RSR20-XA-24 chassis, 12 x fixed WAN ports (4 x 10GE optical ports, 4 x 1GE optical ports, and 4 x 1GE electrical ports) and 12 x 1GE electrical LAN ports (LAN/WAN port switching), 4 x Expansion slots, 1 x USB 2.0 port, 1 x console port |
| RG-RSR20-XA-36 | RG-RSR20-XA-36 chassis, 12 x fixed WAN ports (4 x 10GE optical ports, 4 x 1GE optical ports, and 4 x 1GE electrical ports) and 24 x 1GE electrical LAN ports (LAN/WAN port switching), 4 x Expansion slots, 1 x USB 2.0 port, 1 x console port |
| RG-RSR20-XA-54 | RG-RSR20-XA-54 chassis, 6 x fixed WAN ports (2 x 10GE optical ports and 4 x 1GE electrical ports) and 48 x 1GE electrical LAN ports (LAN/WAN port switching), 4 x Expansion slots, 1 x USB 2.0 port, 1 x console port |
Power Modules
| Model | Description |
| RG-PA150IB-F | 150 W AC power module |
Line Card
| Model | Description |
| HSIC-2E1/CE1 | 2-port E1/CE1 module (the cable needs to be purchased separately) |
| HSIC-4G-LTE-G | 1-port full-mode 4G and encryption module (the antenna needs to be purchased separately) |
| *HSIC-5G-NR | 1-port full-mode 5G and encryption module (the antenna needs to be purchased separately) |
| *HSIC-1POS-STM1 | 1-port OC-3c/STM-1c POS interface card (the optical module needs to be purchased separately) |
Note: The item marked with the asterisk (*) will be available in the future.
