Hardware Specifications

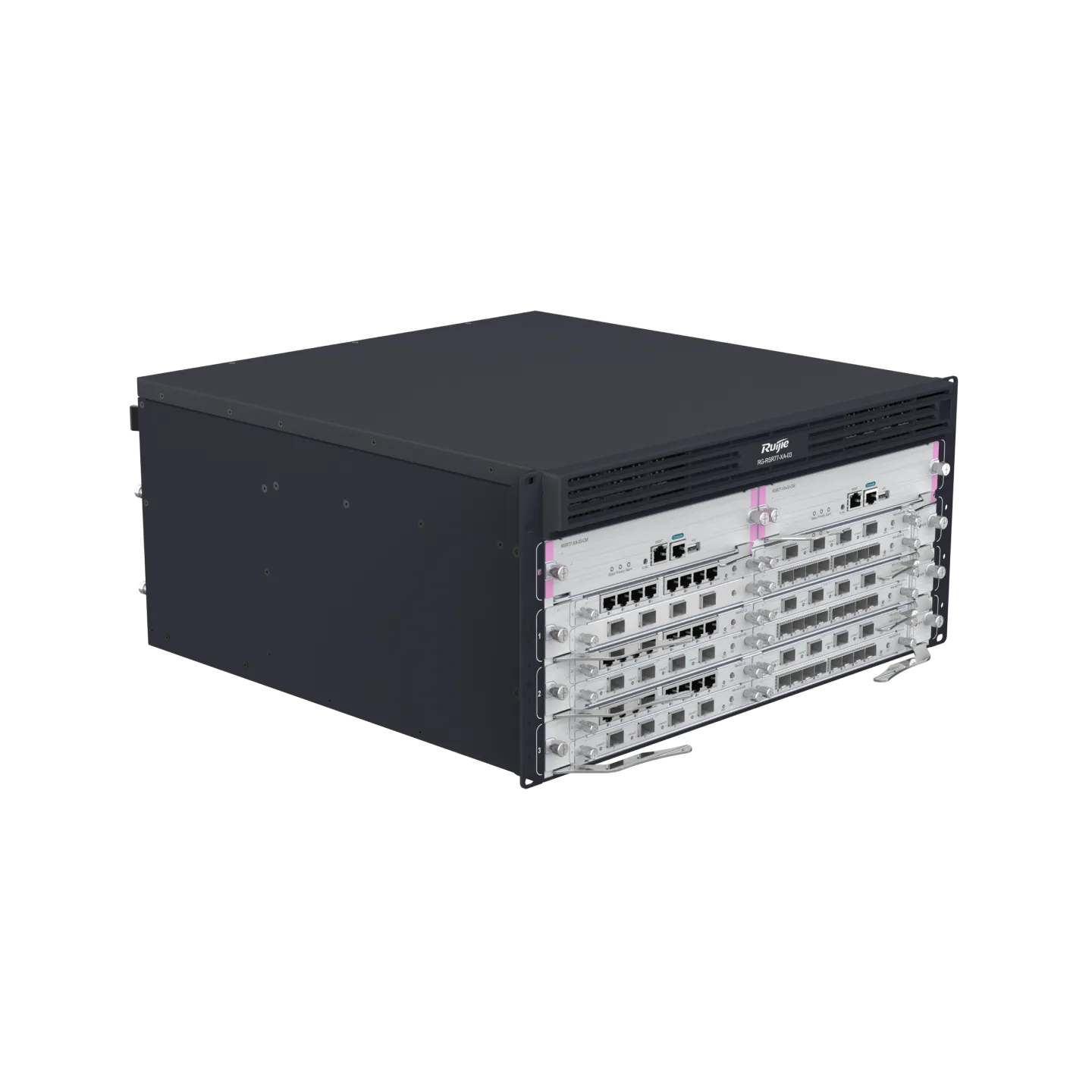

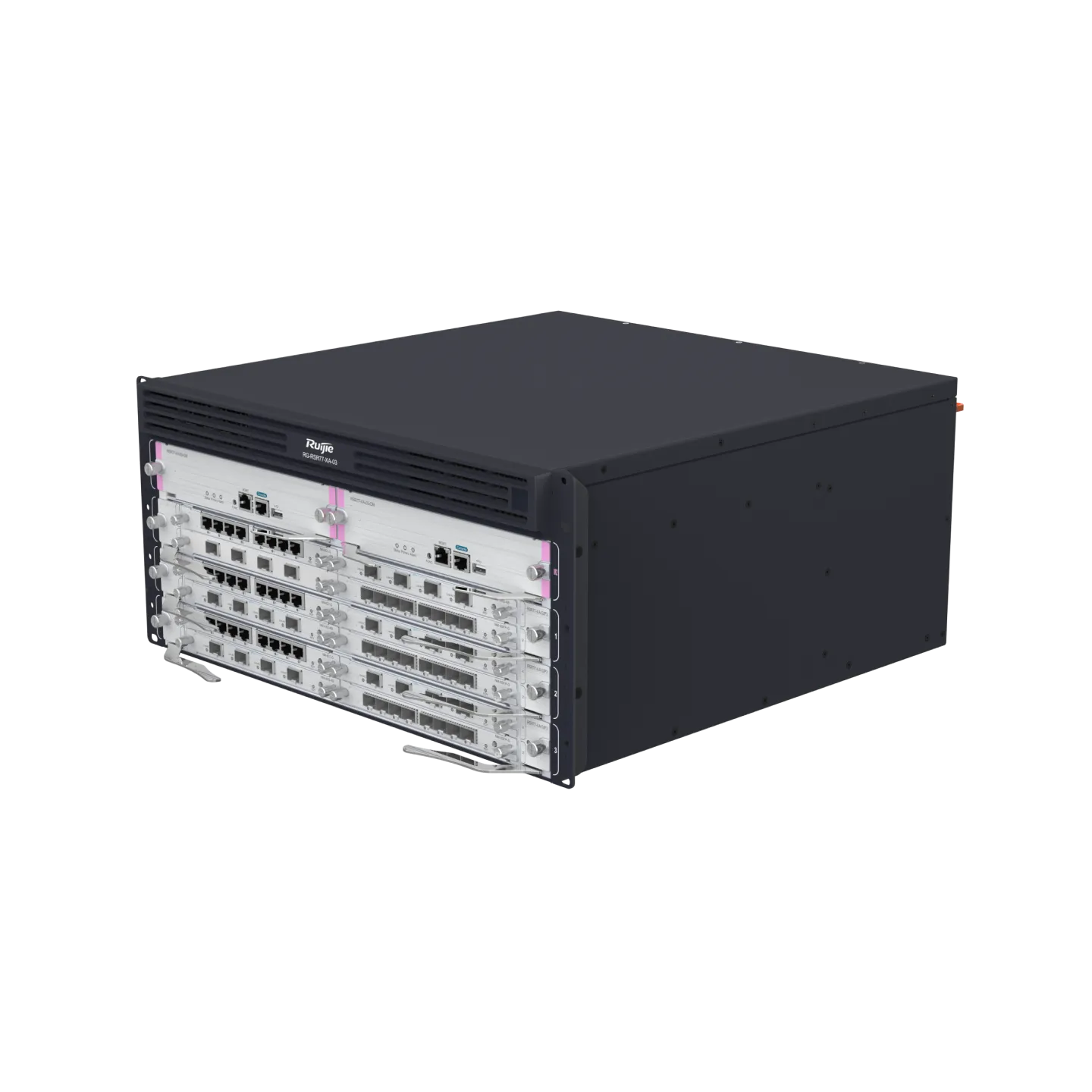

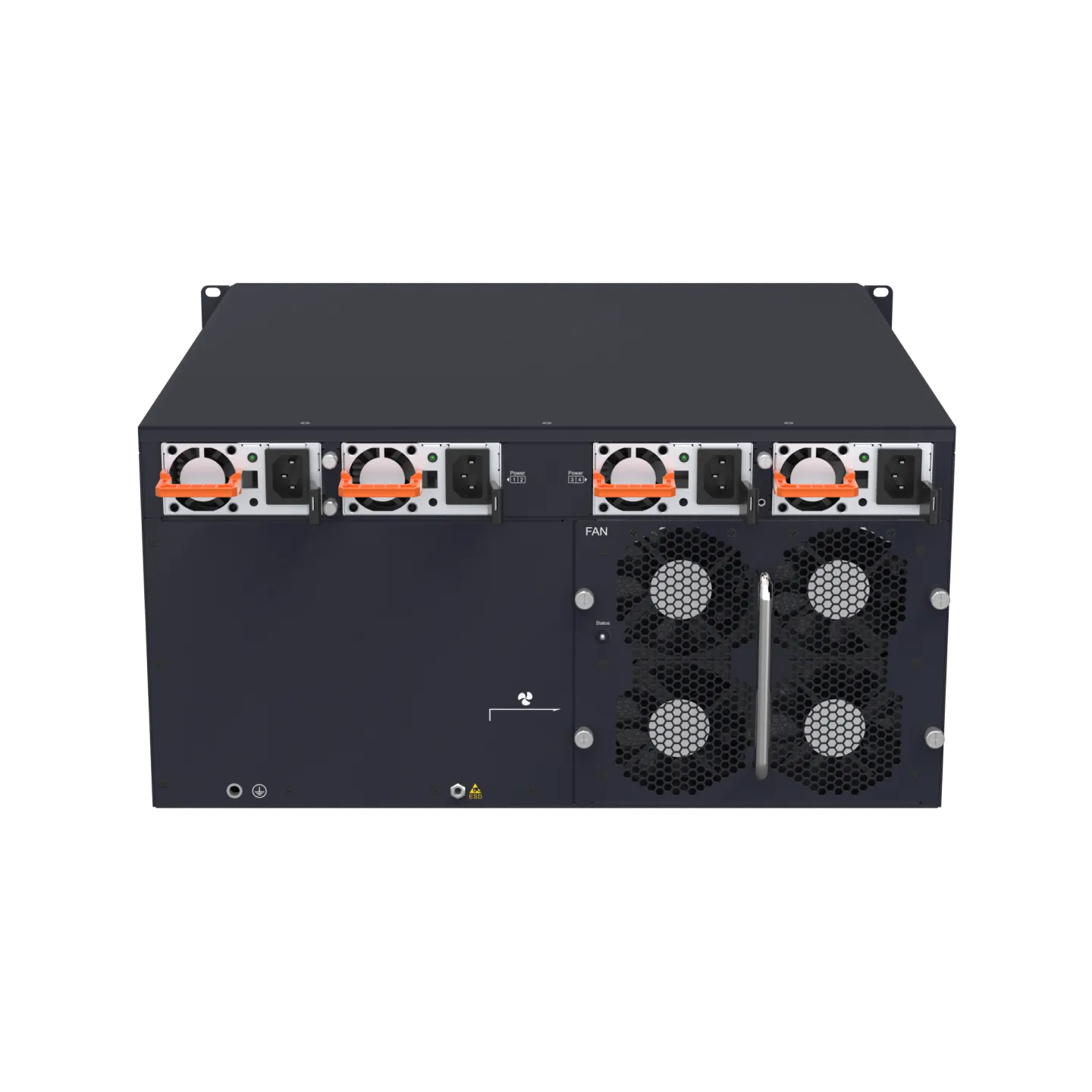

| Hardware Specifications | RG-RSR77-XA-03 | RG-RSR77-XA-08 |
| Interface Specifications | ||
| Power module | 4 (N+N redundancy) | |
| Fan module | 1 | 2 |
| Fixed management port | 1 x console port, 1 x MGMT port, and 1 x USB port | 1 x console port, 1 x MGMT port, and 1 x USB port |
| Supervisor module slot | 2 | 2 |
| Switch fabric module | 2 x integrated switch fabric modules | 4 x independent switch fabric modules |
| Service module slot | 3 | 8 |
| Line card slot | 12 | 32 |
| System Specifications | ||
| Switching capacity | 1.2 Tbps | 3.2 Tbps |
| ARP table size | 40,000 | 40,000 |
| Number of IPv4 unicast routes | 2,000,000 | 2,000,000 |
| Number of IPv4 multicast routes | 8,000 | 8,000 |
| Number of IPv6 unicast routes | 1,500,000 | 1,500,000 |
| Number of IPv6 multicast routes | 4,000 | 4,000 |
| Number of ACEs | 32,000 | 32,000 |
| Dimensions and Weight | ||
| Dimensions (W x D x H) | 442 mm x 560 mm x 220 mm (17.40 in. x 22.05 in. x 8.66 in.), 5 RU | 442 mm x 560 mm x 442 mm (17.40 in. x 22.05 in. x 17.40 in.), 10 RU |
| Weight (empty chassis and fan modules) | 12.5 kg (27.56 lbs) | 43.55 kg (96.01 lbs) |
| Power and Consumption | ||
| Maximum power
consumption |
40 W | 60 W |
| Maximum output power | RG-PA460-RI: 90 V AC to 290 V AC, 460 W | RG-PA1600I:
90 V AC to 176 V AC, 1200 W 176 V to 290 V AC, 1600 W
RG-PD600I: 600 W |
| Rated input voltage | ● AC: 100 V to 240 V AC, 50 Hz to 60 Hz | ● AC: 100 V to 240 V AC, 50Hz~60Hz
● DC: –48 V to –60 V DC |
| Maximum input voltage | ● AC: 90 V AC to 290 V AC, 45 Hz to 65 Hz | ● AC: 90 V to 290V AC, 47Hz~63Hz
● DC: –38 V to –75 V DC |
| Environment and Reliability | ||
| MTBF | 216,000 hours | 342,000 hours |
| Primary airflow | Fans drawing air for forced convection | Fans drawing air for forced convection |
| Operating temperature | 0°C to 45°C (32°F to 113°F) | |
| Storage temperature | –40°C to +70°C (–40°F to +158°F) | |
| Operating humidity | 10% to 90% RH (non-condensing) | |
| Operating noise | Ambient temperature ≤ 70 dB
Maximum noise < 77 dB |
35°C (95°F): 60 dB
50°C (122°F): 75 dB |
Software Specifications
| RG-RSR77-XA Series | |
| Model | Description |
| Ethernet switching | Jumbo frame length: 1,578 bytes |
| 802.3az EEE | |
| LLDP/LLDP-MED | |
| IP service | Static and dynamic ARP |
| DHCP server, DHCP relay, and DHCP client | |
| FTP, TFTP, FTPv6, and TFTPv6 | |
| NTP, SNTP, and NTPv6 | |
| NAT | |
| Strict and loose RPF
uRPF ignoring default routes |
|
| ND | |
| FTP, TFTP, FTPv6, and TFTPv6 | |
| DNS | |
| IPv4/IPv6 VRF | |
| DHCP server, DHCPv6 client, and DHCPv6 relay | |
| ND and ND snooping | |
| IPv6 GRE tunnel | |
| IP routing | IPv4 and IPv6 static routing, and static blackhole routes |
| RIP v1/v2 and RIPng | |
| OSPFv2 and OSPFv3 | |
| IS-ISv4 and IS-ISv6 | |
| BGP and BGP4+ | |
| Routing policies | |
| BGP4, BGP4+, and MP-BGP | |
| IPv4 VRRP v2/v3 and IPv6 VRRP v3 | |
| IPv4 and IPv6 PBR | |
| Multicast | IGMP v1/v2/v3 |
| Static multicast routing | |
| PIM-DM, PIM-SM, PIM-SSM, PIM-SSMv6, PIM-SMv6, and other multicast routing protocols | |
| MSDP for inter-domain multicast | |
| MLDv1/v2 | |
| MPLS/SR | Basic MPLS functions |
| MPLS forwarding | |
| 6PE/6VPE interconnection with IPv4/IPv6 MPLS backbone network | |
| MPLS MIB (RFC 1273, 4265, 4382) | |
| L3VPN | |
| LSP | |
| LDP | |
| ACL and QoS | Standard IP ACLs |
| Extended IP ACLs | |
| Extended MAC ACLs | |
| IPv6 ACLs | |
| Applying ACLs to interfaces | |
| MPLS QoS | |
| HQoS | |
| Security | Multiple AAA modes |
| RADIUS authentication, authorization, and accounting | |
| TACACS+ | |
| Attack defense | |
| Password security | |
| RNFP | |
| CPP | |
| FPM | |
| PKI | |
| IPsec VPN | |
| VPDN | |
| SSHv1 and SSHv2 | |
| Global IP-MAC binding | |
| Login authentication and password security | |
| Reliability | BFD |
| GR | |
| DLDP | |
| ECMP | |
| NSR | |
| Hot swapping | |
| NMS and maintenance | SPAN and ERSPAN |
| SNMP v1/v2/v3 | |
| System operation logging | |
| IPFIX | |
| Command line configuration through console, AUX Modem, Telnet, and SSH | |
| RMON (1, 2, 3, 9) | |
| NETCONF | |
| CWMP | |
| gRPC | |
Note: The item marked with the asterisk (*) will be available in the future.
Order Information
Chassis and Supervisor Engines
| Model | Description |
| RG-RSR77-XA-03 | RG-RSR77-XA-03 chassis |
| RG-RSR77-XA-08 | RG-RSR77-XA-08 chassis |
| RSR77-XA-03-CM | RG-RSR77-XA-03 routing switching engine |
| RSR77-XA-08-CM | RG-RSR77-XA-08 routing engine |
| RSR77-XA-08-DSF | RG-RSR77-XA-08 switch fabric module (40 Gbps supported by a single switch fabric module) |
| RSR77-XA-08-DSF II | RG-RSR77-XA-08 switch fabric module (200 Gbps supported by a single switch fabric module) |
Power Modules
| Model | Description |
| RG-PA1600I | RG-RSR77-XA-08, 1600 W AC power module |
| RG-PA460-RI | RG-RSR77-XA-03, 460 W AC power module |
| RG-PD600I | RG-RSR77-XA-08, 600 W DC power module |
SIP Carrier Card
| Model | Description |
| RSR77-XA-SIP3 | NM/DNM carrier card (four NM modules or two DNM modules supported by each RSR77-XA-SIP3) |
| RSR77-XA-SIP6 | Enhanced carrier card, supporting 2 x DNMX cards |
NM Line Card
| Model | Description |
| NM-2XS-KA | 2-port 10GE Ethernet interface module, requiring additional SFP+ modules |
| NM-4XS-KB | 4-port 10GE Ethernet interface module, requiring additional SFP+ modules |
| NM-8SFP-G | 8-port 1GE Ethernet optical interface module, requiring additional SFP modules |
| NM-8GT-G | 8-port 1GE Ethernet electrical interface module |
| NM-8E1/CE1 | 8-port E1/CE1 interface module, requiring adapters and adapter cables |
| DNM-1CQ-KC | 1-port 100GE/40GE Ethernet interface module |
| DNMX-20XS | 20-port 10GE Ethernet interface module, requiring additional SFP+ modules |
| DNMX-20SFP | 20-port 1GE Ethernet optical interface module, requiring additional SFP modules |
| DNMX-24GT | 24-port 1GE Ethernet electrical interface module |
| DNMX-4CQ | 4-port 100GE/40GE Ethernet interface module, requiring additional SFP+ modules |
Note: The item marked with the asterisk (*) will be available in the future.
