The RG-S6220 series switches are all 10G cloud computing data center switches launched by Ruijie Networks.
| Technical Parameters | Parameter Description | ||
| Product number | RG-S6220-48XT6QXS-H | RG-S6220-32QXS-H | |
| Fixed port | Fixed 48 10G BASE-T ports, 6 40G QSFP+ ports | Fixed 32 40G QSFP+ ports | |
| Extension modules | No port expansion slot
Power module slot Fan module slot |
||
| Management port | 1 MGMT port, 1 Console port, 1 USB port that complies with USB2.0 standards, 1 miniUSB Console port | ||
| Switching capacity | 2.56T/40.96T | 2.56T/40.96T | |
| Packet forwarding rate | 1080Mpps | 1440Mpps | |
| 802.1q VLAN | 4K | ||
| Next-Generation Data Center Features | DCB Features (Enhanced Ethernet):
802.1Qbb: Priority-based Flow Control (PFC) 802.1Qaz: Enhanced Transmission Selection (ETS and DCBX) 802.1Qau: Congestion Notification (CN/QCN) Unified switching features: *FCoE (Fibre Channel over Ethernet) Cloud computing and virtualization features: VSU (Virtual Switching Unit) EVPN VXLAN (Virtual Extensible LAN based on Ethernet VPN) Support OpenFlow 1.3 |
||
| L2 Protocol | IEEE802.3（10Base-T）、IEEE802.3u（100Base-T）、IEEE802.3z（1000Base-X） 、IEEE802.3ab（1000Base-T）、IEEE802.3ae（10GBase）、IEEE802.3an（10GBase-T）、IEEE802.3ak、IEEE802.3an 、IEEE802.3x、IEEE802.3ad（链路聚合）、IEEE802.1p、IEEE802.1Q、IEEE802.1D（STP）、IEEE802.1w（RSTP）、IEEE802.1s（MSTP）、IGMP Snooping 、Jumbo Frame(9Kbytes)、IEEE802.1ad（QinQ、灵活QinQ）、GVRP | ||
| Layer 3 protocol (IPv4) | BGP4、OSPFv2、RIPv1、RIPv2、MBGP、LPM Routing、Policy-based Routing、Route-policy、ECMP、WCMP、VRRP、IGMP v1/v2/v3、PIM-SSM/SM/DM、MSDP、Any-RP、ISIS | ||
| IPv6 basic protocols | ND（邻居发现）、ICMPv6、Path MTU Discovery、DNSv6、DHCPv6、ICMPv6、ICMPv6重定向、ACLv6、TCP/UDP for IPv6、SNMP v6、Ping /Traceroute v6、IPv6 RADIUS、Telnet/SSH v6、FTP/TFTP v6、NTP v6、IPv6 MIB support for SNMP、VRRP for IPv6、IPv6 QoS、ISISv6 | ||
| IPv6 Features | Static routing, equal-cost routing, policy routing, OSPFV3, RIPng, BGP4+, MLDv1/v2, PIM-SMv6, manual tunnel, automatic tunnel, IPv4 over IPv6 tunnel, ISATAP tunnel, etc. | ||
| QoS | Supports EXP priority mapping such as IP Precedence, 802.1P, DSCP, TOS, etc., supports ACL flow classification, supports priority marking Mark/Remark, supports multiple queue scheduling mechanisms such as SP, WRR, DRR, SP+WRR, SP+DRR, etc. | ||
| High reliability design | Support VSU (virtualization technology, virtualizing multiple devices into one), support GR for RIP/OSPF/BGP and other routing protocols, support BFD detection, support ERPS (G.8032), support REUP dual-link fast switching technology, support RLDP unidirectional link detection technology, support TPP (topology protection technology), support power supply 1+1 redundant backup, fan adopts redundant design, all single boards and power modules support hot swap function | ||
| security function | NFPP (basic security protection policy), CPP (CPU protection), anti-DDOS attack, illegal data packet detection, data encryption, anti-source IP spoofing, anti-IP scanning, support Radius/TACACS, support IPv4/v6ACL message filtering based on standards, extensions, and VLANs, support OSPF, RIPv2 and BGPv4 message plaintext and MD5 ciphertext authentication, support Telnet login and password mechanism for restricted IP addresses, uRPF, support broadcast message suppression, DHCP Snooping, anti-gateway ARP spoofing, ARP Check | ||
| Management | SNMP v1/v2/v3, Telnet, Console, MGMT, RMON, SSHv1/v2, FTP/TFTP file upload and download management, support NTP clock, support Syslog, support SPAN/RSPAN | ||
| Other protocols | DHCP Client、DHCP Relay、DHCP Server、DNS Client、UDP relay、ARP Proxy、Syslog | ||
| Size (height x width x depth) | 44.0 x 442 x 500mm
(1U height) |
44.0x 442x 420mm
(1U height) |
|
| Operating temperature | 0 to 45°C | 0 to 45°C | |
| Operating humidity – non-condensing | 10% to 90% RH | 10% to 90% RH | |
| weight | Approximately 11 kg (including power supply and fan) | About 9kg (including power supply and fan) | |
| Maximum power | <250W | <200W | |
| Input voltage | comminicate | Rated voltage range: 100V~240V AC, 50~60Hz
Maximum voltage range: 90V-264V AC, 50~60Hz Rated input current: 5.29A-2.2A |
|
| High Voltage Direct Current | Input voltage range: 192-290VDC
Input current range: 2.66A-2.03A |
||
*Denotes future support features

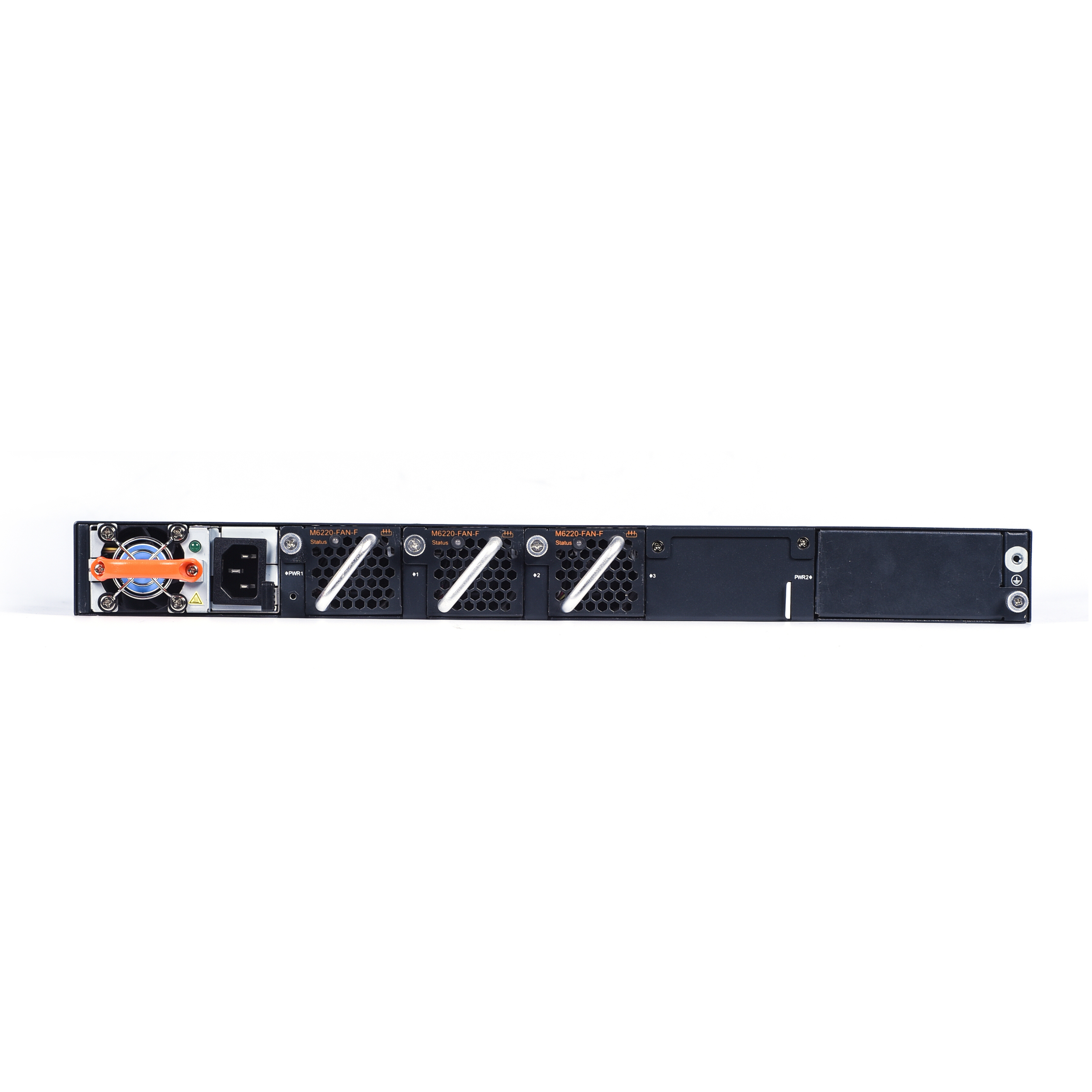

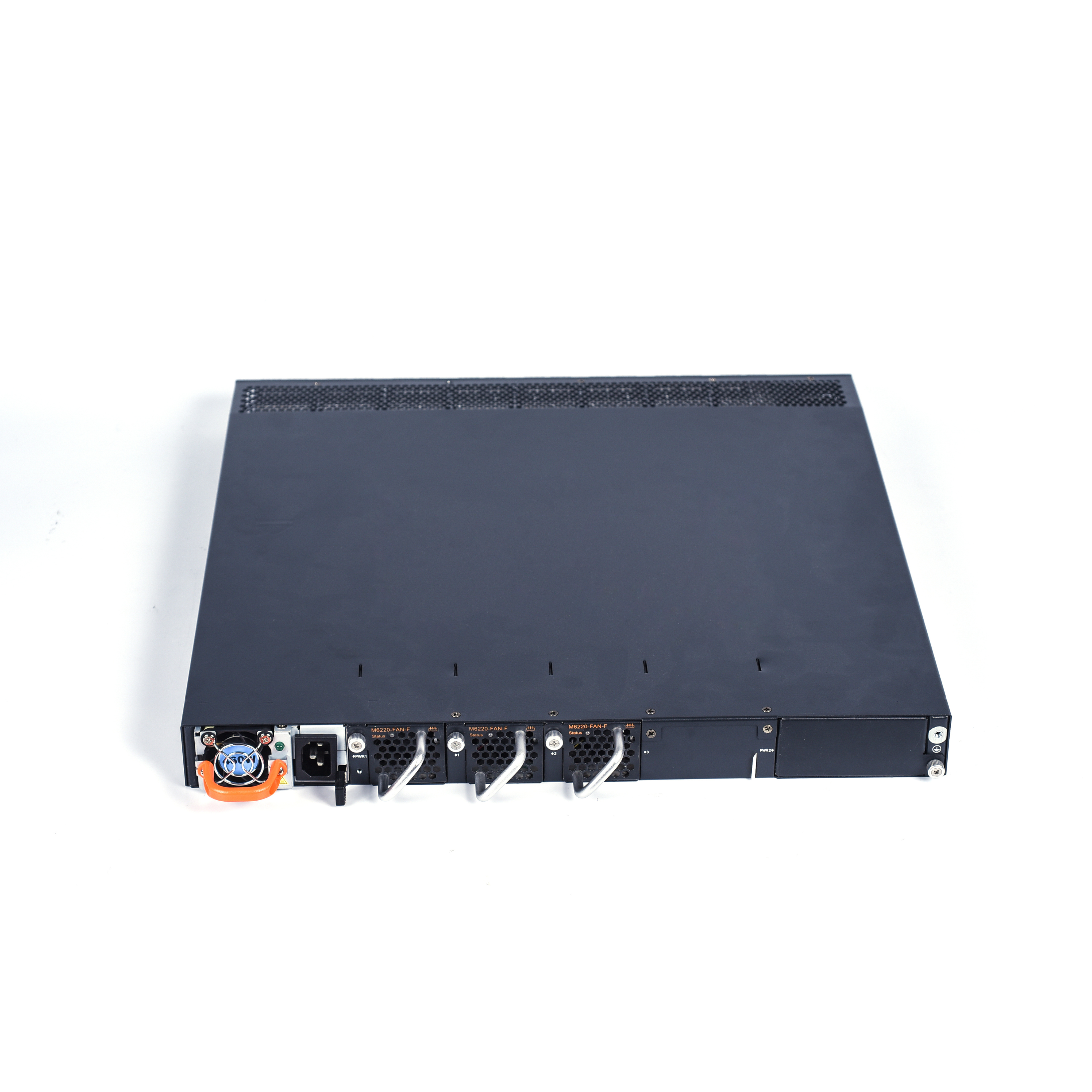

1. Host, expansion card, fan, power module
| model | describe |
| RG-S6220-48XT6QXS-H | Fixed 48 10GBASE-T electrical ports, 6 40G QSFP+ ports |

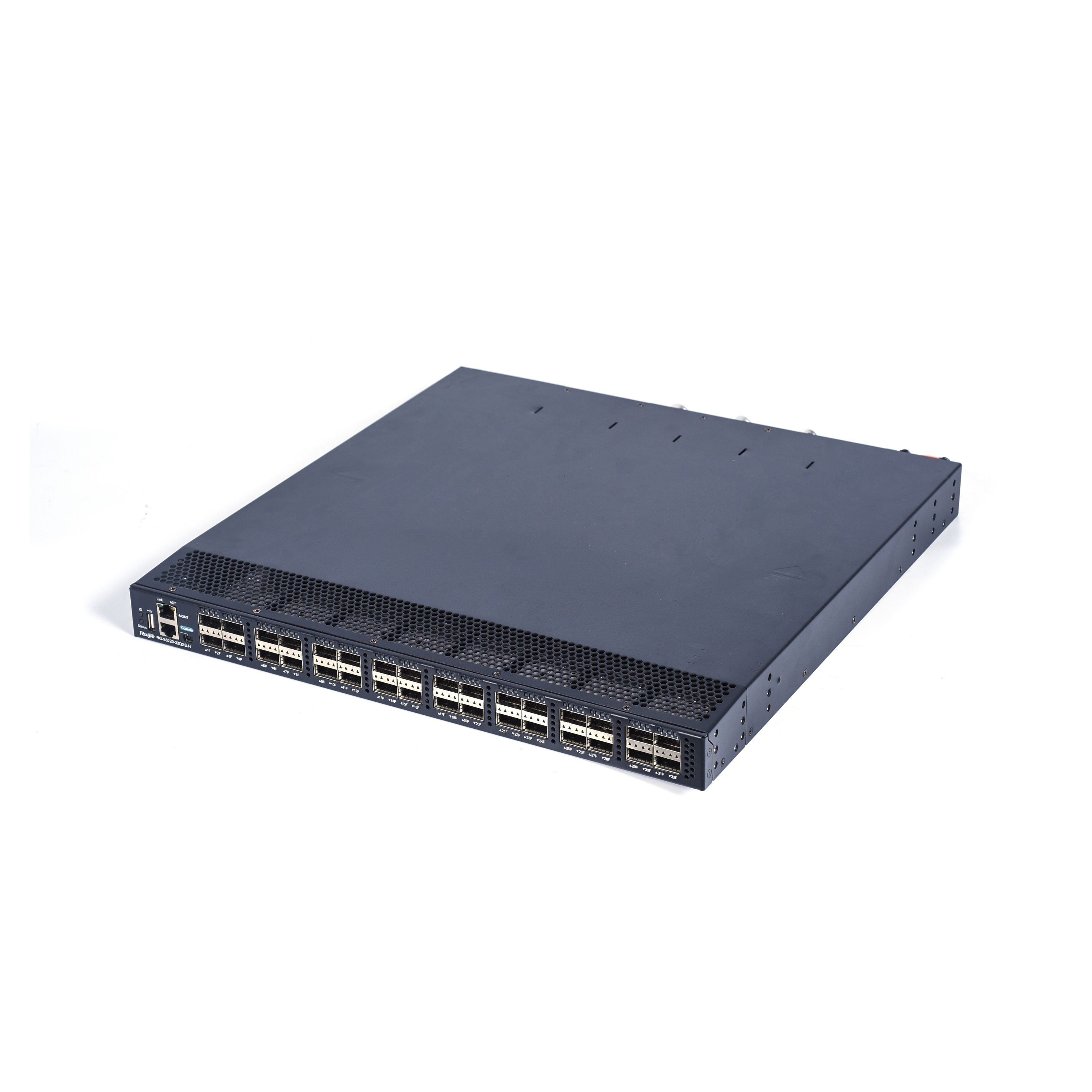

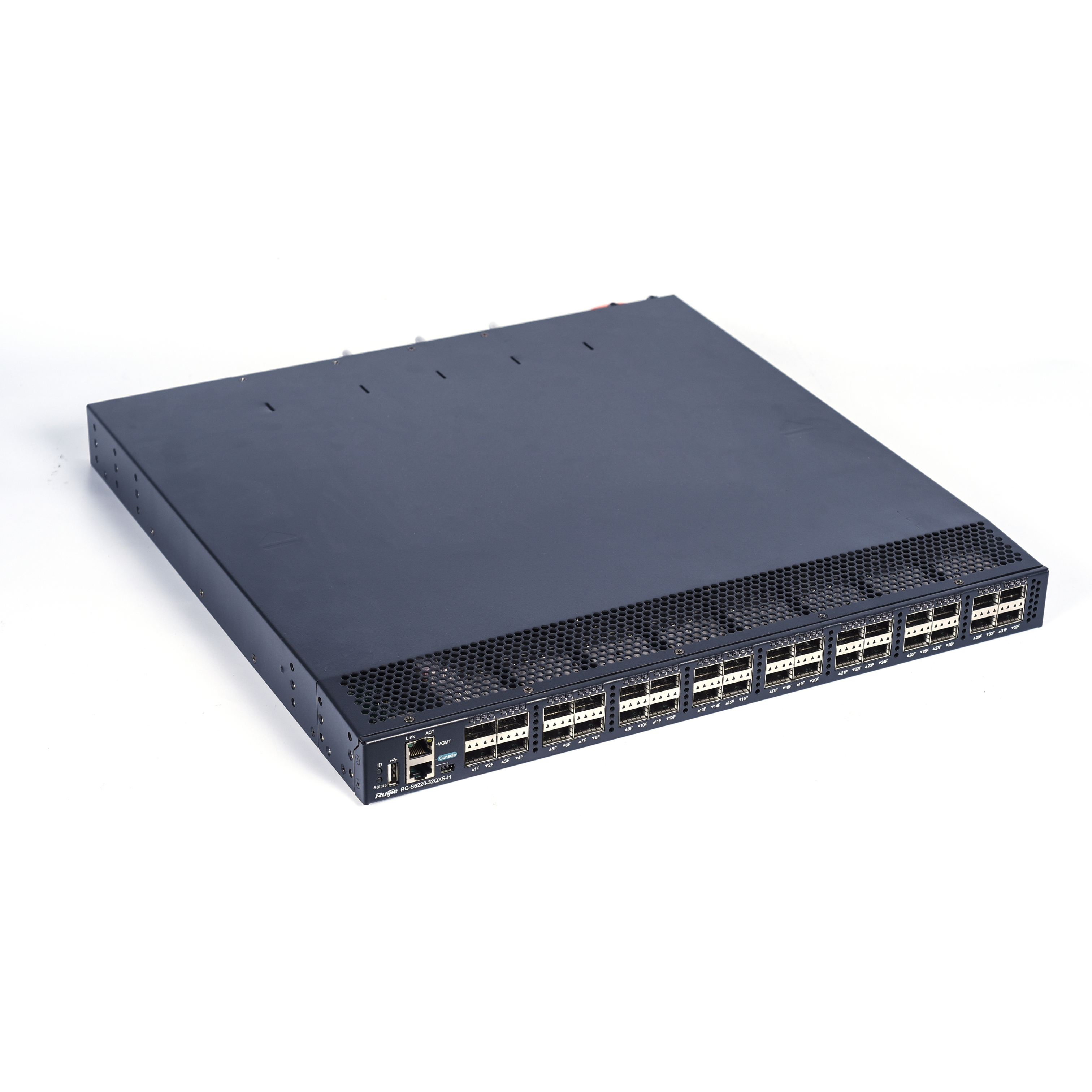

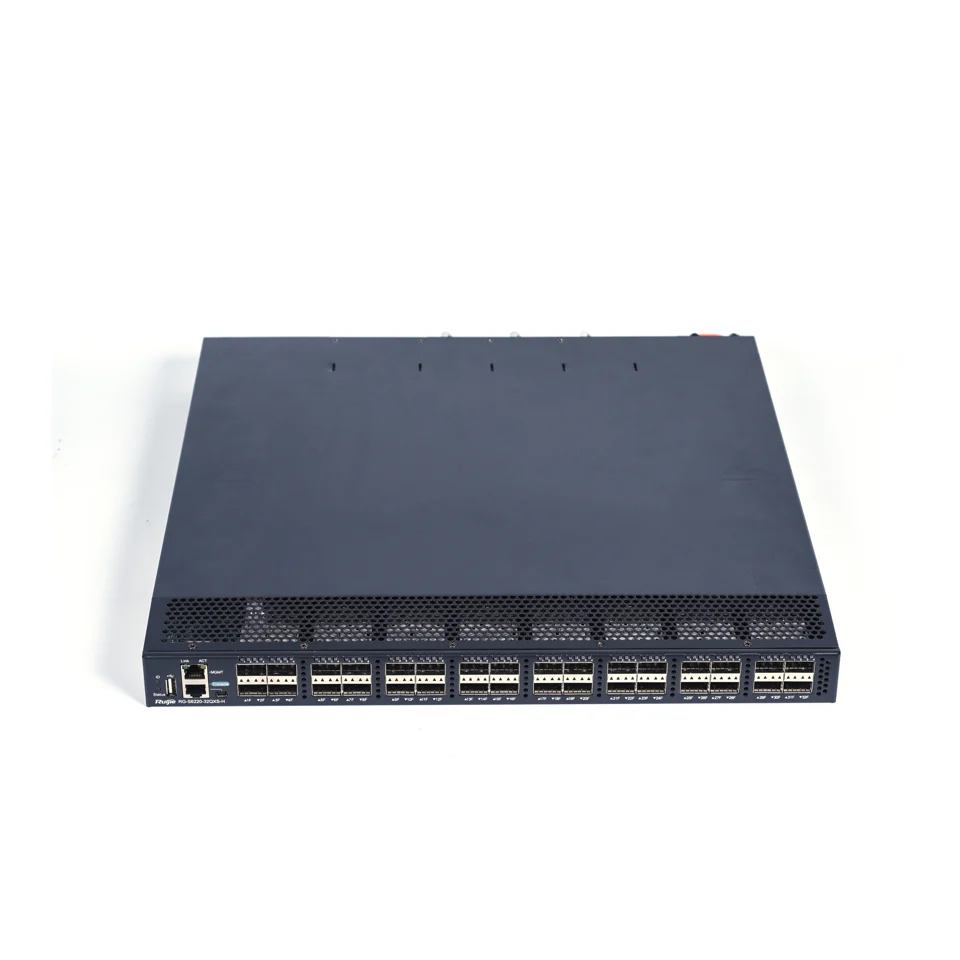

| RG-S6220-32QXS-H | Fixed 32 40G QSFP+ ports |
| M6220-FAN-F | Fan module (front and rear air duct) |
| M6220-FAN II-F | Fan module (front and rear air duct) |
| RG-M6220-AC460E-F | AC power supply module (front and rear air ducts), with a minimum of 1 power supply and a maximum of 2 power supplies, which can achieve 1+1 redundancy |
| RG-M6220-DC460E-F | DC power supply module (front and rear air duct), at least 1 power supply, at most 2 power supplies, 1+1 redundancy can be achieved |
2. 40G and 10G optical module selection information
| model | describe |
|---|---|
| 40G-QSFP-SR-MM850 | 40G SR optical module, suitable for QSFP+ interface (OM3/OM4 MPO optical fiber, 8 cores, wavelength 850nm, transmission distance of 100 meters using OM3 optical fiber, and 150 meters using OM4 optical fiber) |
| 40G-QSFP-LSR-MM850 | 40G SR optical module, suitable for QSFP+ interface (must be equipped with OM3/OM4 MPO optical fiber, 8-core or 12-core, wavelength 850nm, transmission distance is 300 meters when using OM3 optical fiber, and transmission distance is 400 meters when using OM4 optical fiber) |
| 40G-QSFP-LR4-SM1310 | 40G LR single-mode optical module, suitable for QSFP+ interface, maximum transmission distance is 10km (LC type optical fiber, 2 cores, wavelength 1310nm) |
| XG-SFP-SR-MM850 | 10G SR optical module (300 meters), suitable for SFP+ interface |
| XG-SFP-LR-SM1310 | 10G LR optical module (10km), suitable for SFP+ interface |
| XG-SFP-ER-SM1550 | 10G ER optical module (40km), suitable for SFP+ interface |
| XG-SFP-ZR-SM1550 | 10G ZR optical module (80km), suitable for SFP+ interface |
