RDMA-capable high-density 25GE/100GE access switch for data center networks with low latency and no packet drop
Highlight Features

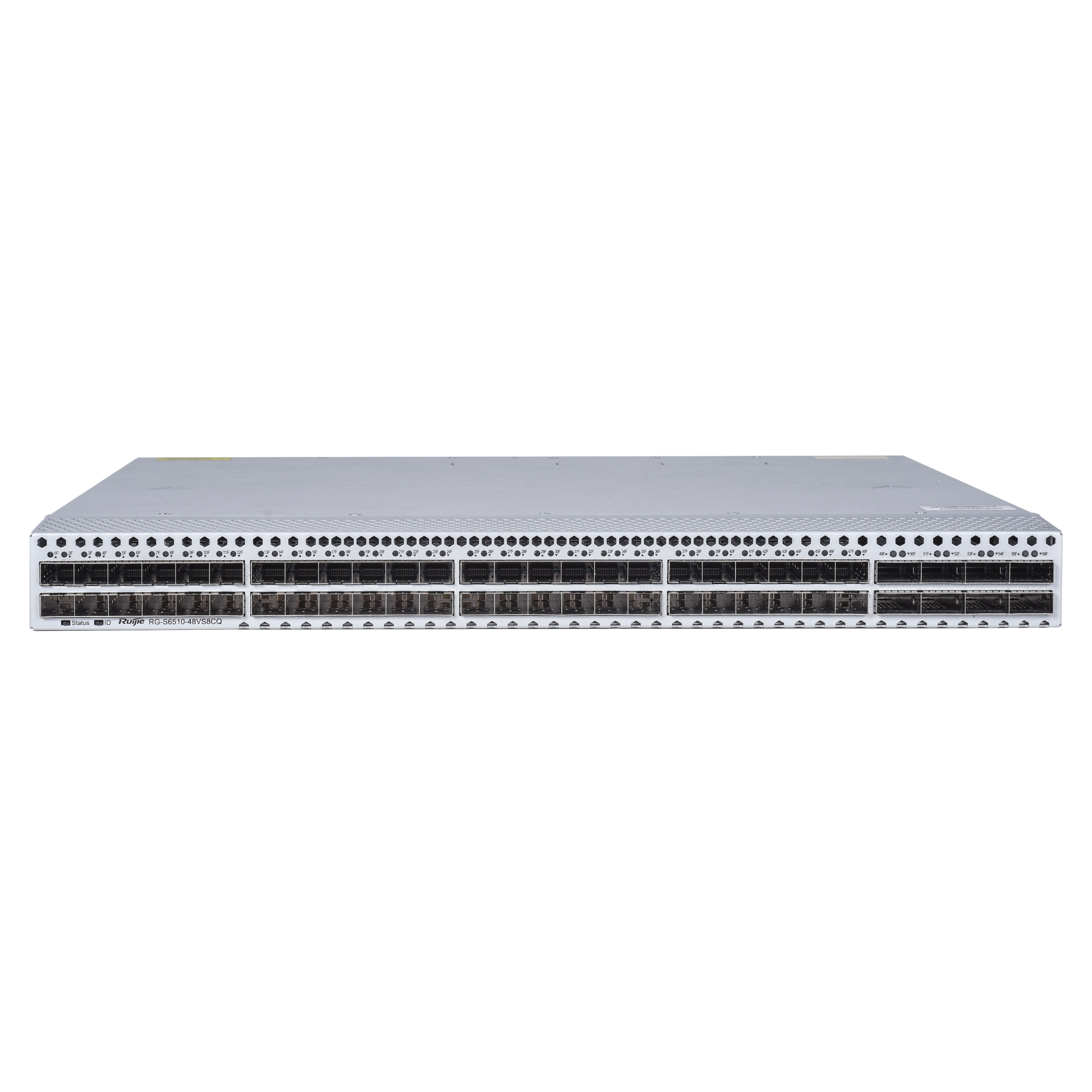

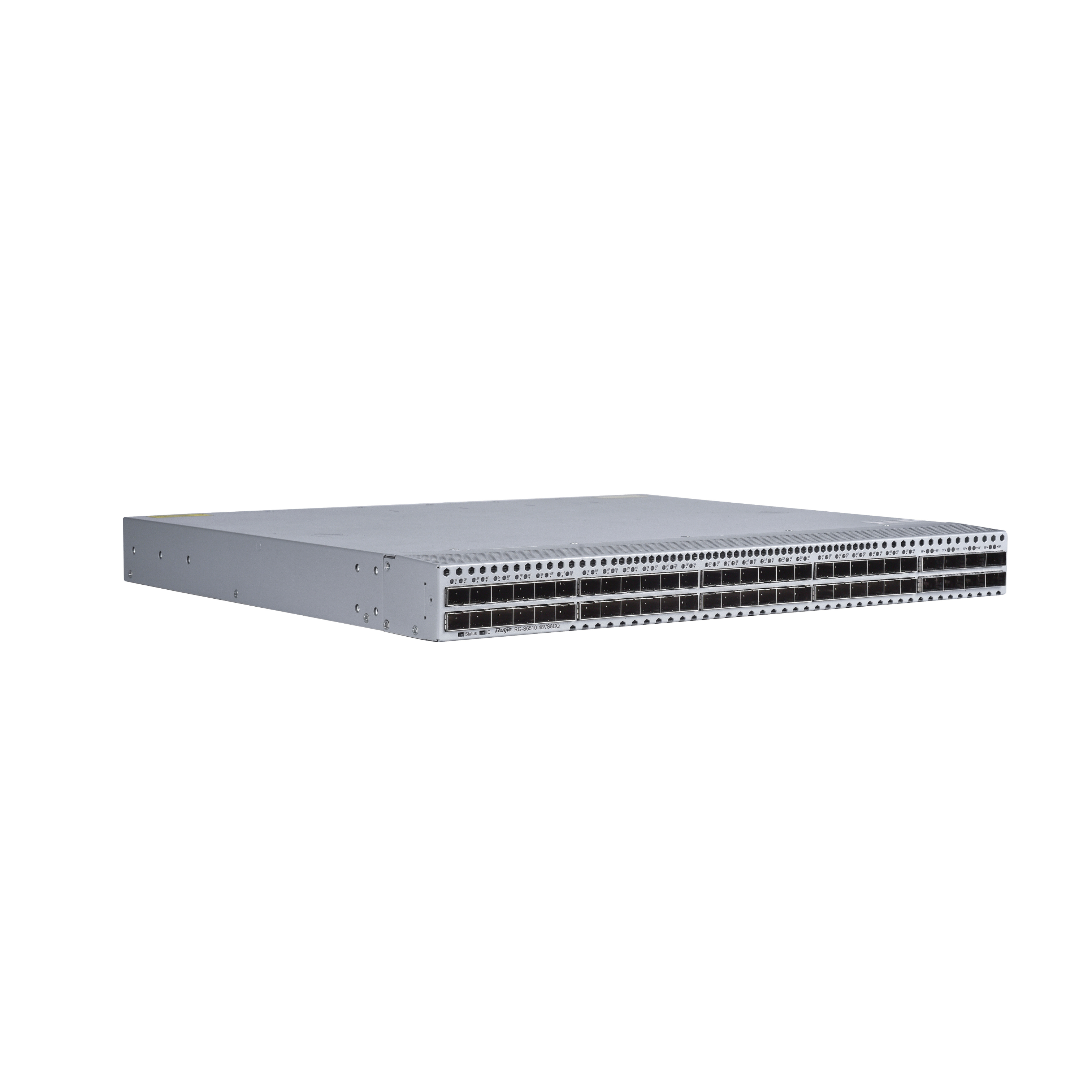

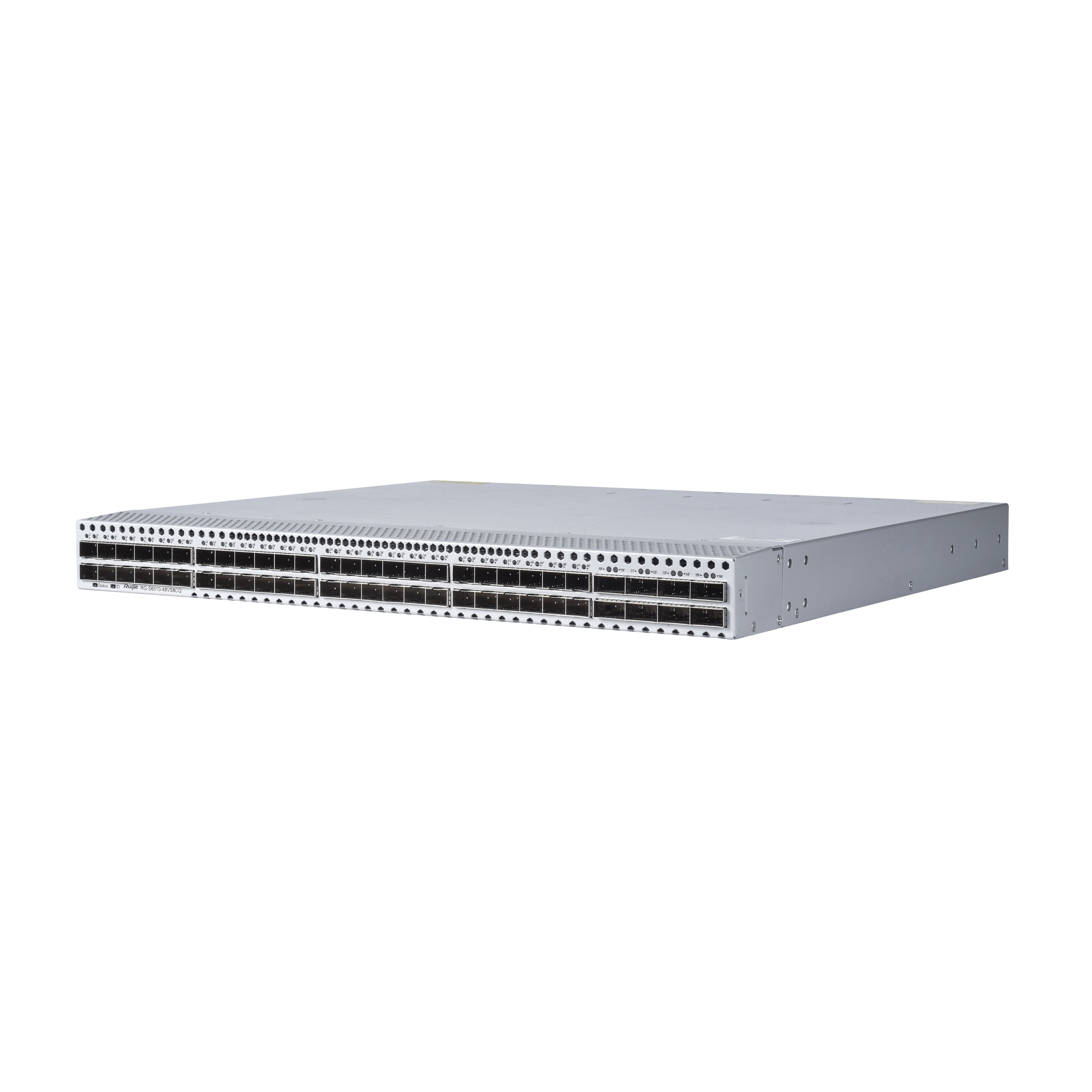

- 48 x 25GE SFP28 ports + 8 x 100GE QSFP28 ports, and 32 MB buffer, easily coping with burst traffic
- Cross-device link aggregation (De-stacking/M-LAG/VSU), device-level redundancy, flexible networking, and high reliability
- Multiple hardware-level protection, ensuring service consistency and network stability
- VXLAN tunneling technology, achieving unlimited data transmission and flexible resource allocation and scheduling
- Lossless Ethernet, ensuring zero packet loss during RDMA E2E communication
- Telemetry/gRPC/sFlow/SPAN-based network monitoring and automated O&M, making management simple and efficient
Hardware Specifications
| System Specifications | RG-S6510-48VS8CQ | ||
| Ports | 48 × 25GE ports and 8 × 100GE ports | ||
| Expansion Module Slots | Power module slots
Fan module slots |
||
| Management Port | One management port, one console port, and one USB port, compliant with the USB2.0 standard | ||
| Switching Capacity | 4.0Tbps | ||
| Packet Forwarding Rate | 2000 Mpps | ||
| 802.1Q VLAN | 4094 | ||
| Dimensions and Weight | RG-S6510-48VS8CQ | ||
| Dimensions
(W × D × H) |
442 mm × 387 mm × 44 mm, 1 RU | ||

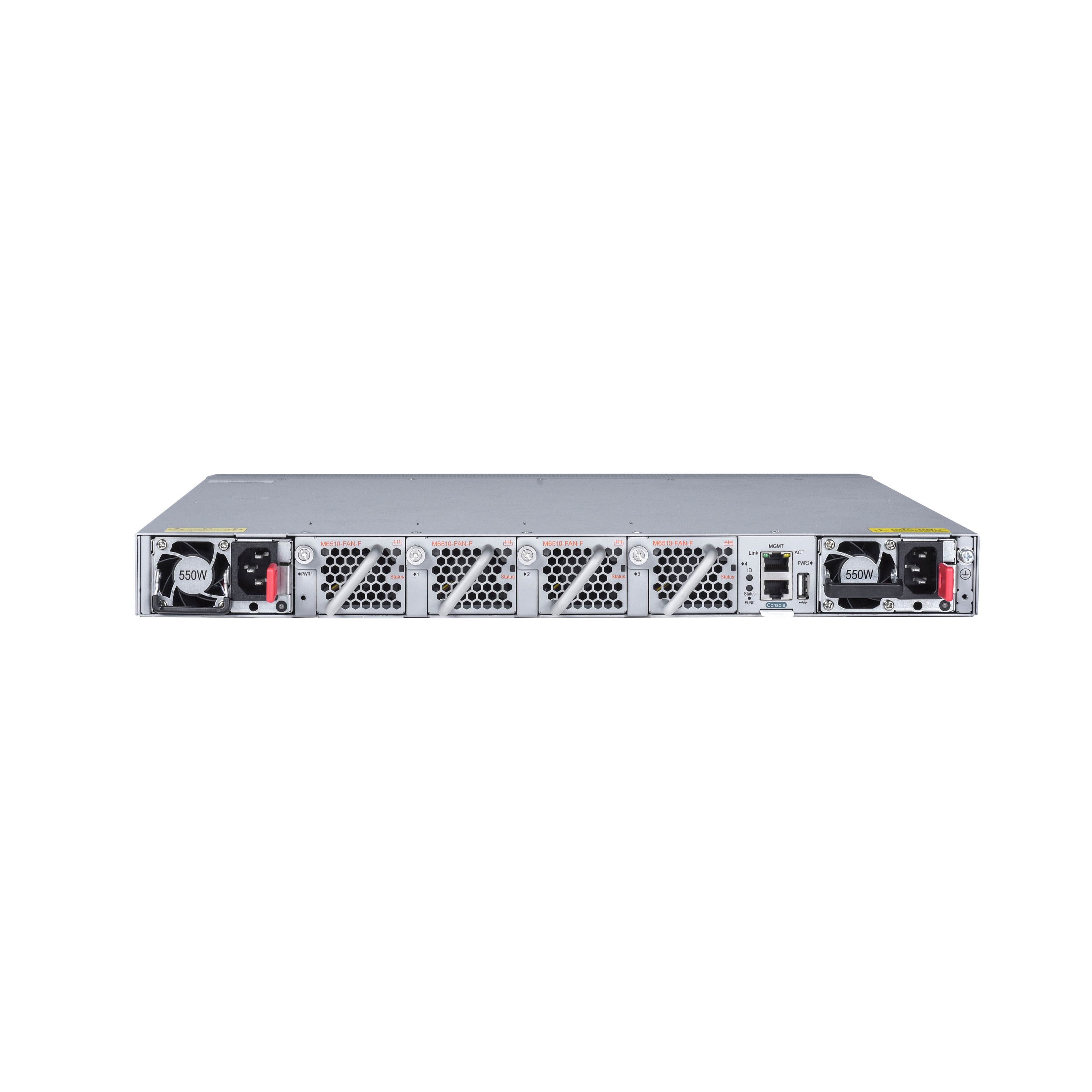

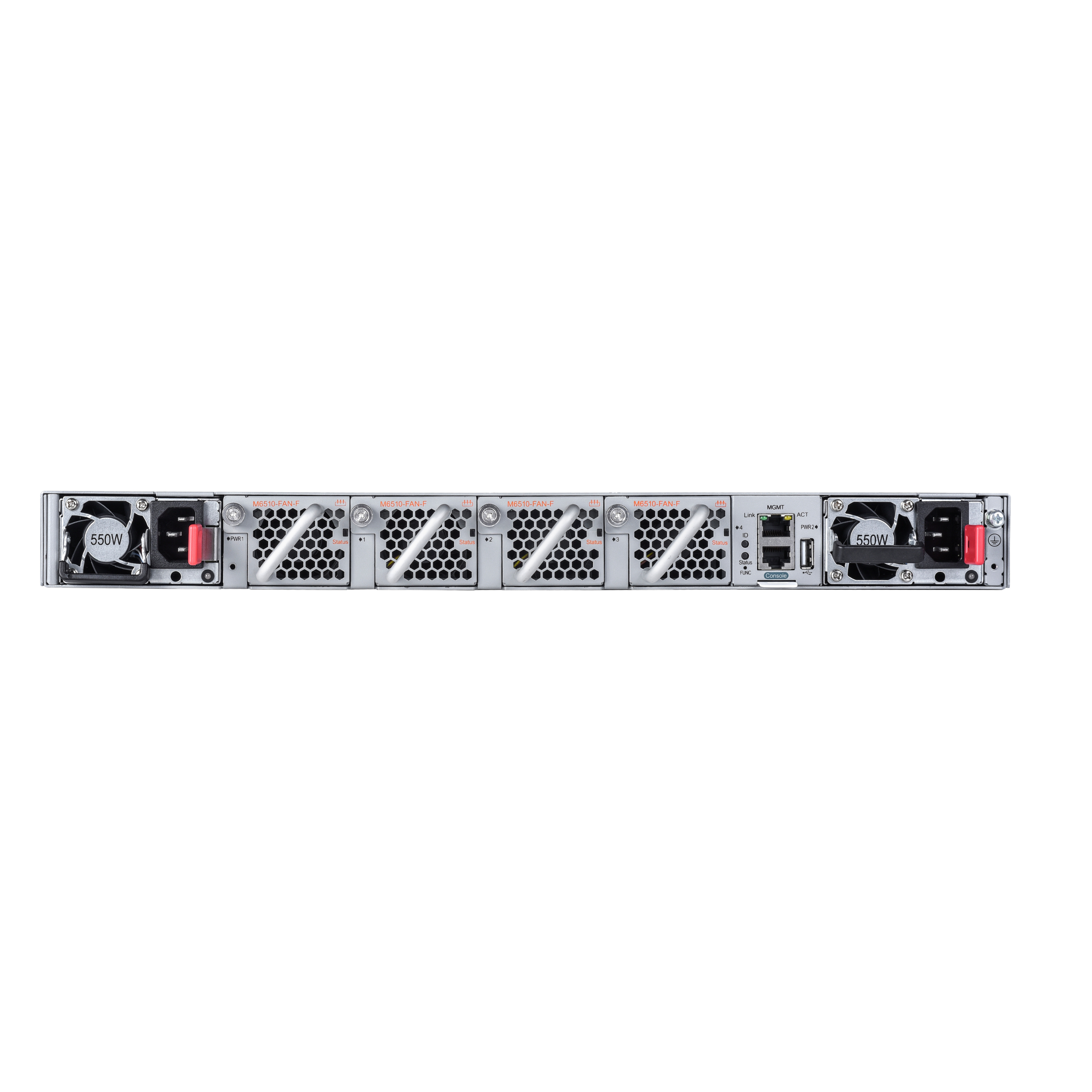

| Weight | About 8 kg (including two power supply modules and four fan modules) | ||
| Power Supply and Consumption | RG-S6510-48VS8CQ | ||
| AC | Rated voltage range: 100 VAC to 240 VAC
Maximum voltage range: 90 VAC to 264 VAC Frequency: 50 Hz to 60 Hz Rated input current range: 3.5 A to 7.2 A |
||
| High-voltage DC | Input voltage range: 192 VDC to 288 VDC
Input current: 3.6 A |
||
| Low-voltage DC | Input voltage range: –42 VDC to –72 VDC
Rated input voltage: –48 VDC Rated input current: 23 A |
||
| Maximum Power Consumption | 300 W | ||
| Environment and Reliability | RG-S6510-48VS8CQ | ||
| Operating Temperature | 0°C to 45°C (32°F to 113°F) | ||
| Storage temperature | -40 °C to 70 °C (-40 °F to 158 °F) | ||
| Operating Humidity | 10%–90% RH (Non-condensing) | ||
| Storage humidity | 5% to 95% RH (non-condensing) | ||
| Working altitude | Operating altitude: up to 5000 m (16,404.20 ft.) Storage altitude: up to 5000 m (16,404.20 ft.) |
||
Software Specifications
| Software Specifications | RG-S6510-48VS8CQ | |
| L2 Protocols | IEEE802.3ad (Link Aggregation Control Protocol), IEEE802.1p, IEEE802.1Q, IEEE802.1D (STP), IEEE802.1w (RSTP), IEEE802.1s (MSTP), IGMP Snooping, MLD Snooping, Jumbo Frame (9 KB), IEEE802.1ad (QinQ and Selective QinQ), GVRP | |
| L3 Protocols (IPv4) | BGP4, OSPFv2, RIPv1, RIPv2, MBGP, LPM Routing, Policy-based Routing (PBR), Route-policy, Equal-Cost Multi-Path Routing (ECMP), WCMP, VRRP, IGMP v1/v2/v3, DVMRP, PIM-SSM/SM/DM, MSDP, Any-RP | |
| IPv6 Basic Protocols | Neighbor Discovery, ICMPv6, Path MTU Discovery, DNSv6, DHCPv6, ICMPv6, ICMPv6 redirection, ACLv6, TCP/UDP for IPv6, SNMP v6, Ping/Traceroute v6, IPv6 RADIUS, Telnet/SSH v6, FTP/TFTP v6, NTP v6, IPv6 MIB support for SNMP, VRRP for IPv6, IPv6 QoS | |
| IPv6 Features | Static routing, ECMP, PBR, OSPFv3, RIPng, BGP4+, MLDv1/v2, PIM-SMv6, manual tunnel, automatic tunnel, IPv4 over IPv6 tunnel, and ISATAP tunnel | |
| Multicast | IGMPv1, v2, v3、IGMP Host Behavior、Member Query and Response、Querier Election、IGMP Proxy、Multicast Static Routing、MSDP、PIM-DM、PIM-SM、PIM-SSM、Enabling PIM on Layer-3 Subinterface、PIM-SMv6、MLD v1 and v2、MLD Proxy、Enabling PIMv6 on Layer-3 Subinterface | |
| ACL | Standard IP-based ACL、Extended MAC/IP-based ACL、Expert-level ACL、ACL 80、IPv6 ACL、ACL Logging、ACL Counter (Ingress and egress counters are supported in interface or global configuration modes)、ACL Re-marking、Global ACL、ACL-based Redirection、Displaying ACL Resources、Processing First Packet of TCP Handshake When Binding the ACL to Restrict SIP、Matching Against 5-Tuple of Pass-by VXLAN Inner IP Packets、The expert-level ACL supports matching the IP flag and DSCP fields of VXLAN inner packets、Ingress/Egress ACLs | |
| When the same ACL is applied to different physical interfaces or SVIs, resources can be multiplexed | ||
| Data Center Features | VXLAN routing and VXLAN bridging
IPv6 VXLAN over IPv4 and EVPN VXLAN PFC, ECN, and RDMA M-LAG *RoCE over VxLAN OpenFlow 1.3 |
|
| Visualization | gRPC
sFLOW sampling INT |
|
| QoS | Mapping of IEEE 802.1p, DSCP, and ToS priorities ACL-based traffic classification Priority marking/remarking Multiple queue scheduling mechanisms, including SP, WRR, DRR, SP+WRR, and SP+DRR Congestion avoidance mechanisms such as WRED and tail discarding |
|
| Virtualization | Virtual Switching Unit | |
| Cache Management | Cache status monitoring and management, and identification of burst traffic | |
| HA Design | GR for RIP/OSPF/BGP, BFD, DLDP, REUP dual-link fast switching, RLDP unidirectional link detection, 1+1 power redundancy and fan redundancy, and hot swapping for all cards and power supply modules | |
| Security Features | Network Foundation Protection Policy (NFPP), CPP, DDoS attack defense, illegitimate data packet detection, data encryption, source IP spoofing prevention, IP scanning prevention, RADIUS/TACACS, IPv4/v6 packet filtering by basic ACL, extended ACL or VLAN-based ACL, plaintext-based and MD5 ciphertext-based authentication for OSPF, RIPv2, and BGPv4 packets, telnet login and password mechanisms for restricted IP addresses, uRPF, broadcast packet suppression, DHCP Snooping, ARP spoofing prevention, ARP check, and hierarchical user management | |
| Management Mode | SNMP v1/v2/v3, Netconf, telnet, console, MGMT, RMON, SSHv1/v2, FTP/TFTP, NTP clock, Syslog, SPAN/RSPAN/ERSPAN, Telemetry, ZTP, Python, fan and power alarm, and temperature alarm | |
| Other Protocols | DHCP Client, DHCP Relay, DHCP Server, DNS Client, UDP relay, ARP Proxy, and Syslog | |
Safety and Regulatory Compliance
| Specification | RG-S6510-48VS8CQ |
| Safety | ● IEC 62368-1
● EN 62368-1 ● NM EN 62368-1 ● NM CEI 62368-1 ● EN IEC 62368-1 ● BS EN IEC 62368-1 ● UL 62368-1 ● CSA C22.2#62368-1 ● GB 4943.1 |
| Electromagnetic Compatibility (EMC) | ● EN 55032
● EN 55035 ● EN IEC 61000-3-2 ● EN IEC 61000-3-3 ● EN 61000-3-3 ● EN 300 386 ● ETSI EN 300 386 ● NM EN 55035 ● NM EN CEI61000-3-2 ● NM EN 61000-3-3 ● CNS 13438 ● ICES-003 Issue 7 ● ANSI C63.4-2014 ● FCC CFR Title 47, Part 15, Subpart B ● ANSI C63.4-2014 ● VCCI-CLSPR 32 ● GB/T 9254.1 |
| Environment | ● 2011/65/EU EN 50581
● 2012/19/EU EN 50419 ● (EC) No.1907/2006 ● GB/T 26572 |
*For more country-specific regulatory information and approvals, contact your local sales agency.
Order Information
Chassis
| Product Model | Description |
| RG-S6510-48VS8CQ | 48 × 25GE ports and 8 × 100GE ports. Two power supply module slots and four fan module slots. The power module model is RG-PA550I-F, and the fan model is M6510-FAN-F. |
| RG-S6510-32CQ | Provides 32 × 100G ports. Two power supply module slots and five fan module slots. The power module model is RG-PA550I-F, and the fan model is M1HFAN I-F. |
Fan and Power Supply Modules
| Product Model | Description |
| RG-PA550I-F | 550 W power supply module (AC and 240 V HVDC) |
| RG-PD800I-F | 800 W power supply module (48 V LVDC), applicable only to RG-S6510-48VS8CQ |
| M6510-FAN-F | Fan module of RG-S6510-48VS8CQ, supporting 3+1 redundancy, hot swapping, and front-to-rear ventilation design. |
| M1HFAN I-F | Fan module of RG-S6510-32CQ, supporting 4+1 redundancy, hot swapping, and front-to-rear ventilation design. |
100GBASE Series Optical Modules
| Product Model | Description | |
| 100G-QSFP-SR-MM850 | 100G SR module, QSFP28 form factor, MPO, 850 nm, 100 m (328.08 ft.) over MMF | |
| 100G-QSFP-LR4-SM1310 | 100G LR4 module, QSFP28 form factor, Duplex LC, 1310 nm, 10 km (32,808.40 ft.) over SMF | |
| 100G-QSFP-iLR4-SM1310 | 100G iLR4 module, QSFP28 form factor, Duplex LC, 1310 nm, 2 km (6,561.68 ft.) over SMF | |
| 100G-QSFP-ER4-SM1310 | 100G ER4 module, QSFP28 form factor, Duplex LC, 1310 nm, 40 km (131,233.59 ft.) over SMF | |
| 100G-AOC-10M | 100G QSFP28 AOC cable, 10 m (32.81 ft.) | |
| 100G-AOC-5M | 100G QSFP28 AOC cable, 5 m (16.40 ft.) | |
40GBASE Series Optical Modules
| Product Model | Description |
| 40G-QSFP-SR-MM850 | 40G SR module, QSFP+ form factor, MPO, 150 m (492.13 ft.) over MMF |
| 40G-QSFP-LR4-SM1310 | 40G LR4 module, QSFP+ form factor, Duplex LC, 10 km (32,808.40 ft.) over SMF |
| 40G-QSFP-LSR-MM850 | 40G LSR module, QSFP+ form factor, MPO, 400 m (1,312.34 ft.) over MMF |
| 40G-QSFP-iLR4-SM1310 | 40G iLR4 module, QSFP+ form factor, Duplex LC, 2 km (6,561.68 ft.) over SMF |
| 40G-QSFP-LX4-SM1310 | 40G LX4 module, QSFP+ form factor, Duplex LC connector, 150 m (492.13 ft.) over OM3/OM4 MMF, or 2 km (6,561.68 ft.) over SMF |
| 40G-AOC-30M | 40G QSFP+ AOC cable, 30 m (98.43 ft.) |
| 40G-AOC-5M | 40G QSFP+ AOC cable, 5 m (16.40 ft.) |
25GBASE Series Optical Modules
| Product Model | Description |
| VG-SFP-AOC5M | 25G SFP28 AOC cable, 5 m (16.40 ft.) |
| VG-SFP-LR-SM1310 | 25G LR module, SFP28 form factor, Duplex LC, 1310 nm, 10 km (32,808.40 ft.) over SMF |
| VG-SFP-SR-MM850 | 25G SR module, SFP28 form factor, Duplex LC, 850 nm, 100 m (328.08 ft.) over MMF |
10GBASE Series Optical Modules
| Product Model | Description |
| XG-LR-SM1310 | 10G LR module, SFP+ form factor, Duplex LC, 10 km ((32,808.40 ft.) over SMF |
| XG-SR-MM850 | 10G SR module, SFP+ form factor, Duplex LC, 300 m (984.25 ft.) over MMF |
| XG-SFP-AOC1M | 10G SFP+ AOC cable, 1 m (3.28 ft.) |
| XG-SFP-AOC3M | 10G SFP+ AOC cable, 3 m (9.84 ft.) |
| XG-SFP-AOC5M | 10G SFP+ AOC cable, 5 m (16.40 ft.) |
| XG-SFP-SR-MM850 | 10G SR module, SFP+ form factor, Duplex LC, 300 m (984.25 ft.) over MMF |
| XG-SFP-LR-SM1310 | 10G LR module, SFP+ form factor, Duplex LC, 10 km ((32,808.40 ft.) over SMF |
| XG-SFP-ER-SM1550 | 10G ER module, SFP+ form factor, Duplex LC, 40 km (131,233.60 ft.) over SMF |
| XG-SFP-ZR-SM1550 | 10G ZR module, SFP+ form factor, Duplex LC, 80 km (262,467.19 ft.) over SMF |
1000BASE Series Optical Modules
| Product Model | Description |
| GE-SFP-LH40-SM1310-BIDI | 1G LH module, SFP form factor, BIDI LC, 40 km (131,233.60 ft.) over SMF |
| GE-SFP-LX20-SM1310-BIDI | 1G LX module, SFP form factor, BIDI LC, 20 km (65,616.80 ft.) over SMF |
| GE-SFP-LX20-SM1550-BIDI | 1G LX module, SFP form factor, BIDI LC, 20 km (65,616.80 ft.) over SMF |
| MINI-GBIC-LH40-SM1310 | 1G LH module, SFP form factor, Duplex LC, 40 km (131,233.60 ft.) over SMF |
| MINI-GBIC-LX-SM1310 | 1G LX module, SFP form factor, Duplex LC, 10 km (32,808.40 ft.) over SMF |
| MINI-GBIC-SX-MM850 | 1G SR module, SFP form factor, Duplex LC, 550 m (1,804.46 ft.) over MMF |
| MINI-GBIC-ZX80-SM1550 | 1G ZX module, SFP form factor, Duplex LC, 80 km (262,467.19 ft.) over SMF |
1000BASE Series Electrical Modules
| Product Model | Description |
| Mini-GBIC-GT(F) | 1G SFP copper module, SFP form factor, RJ45, 100 m (328.08 ft.) over Cat 5e/6/6a |
| Mini-GBIC-GT | 1G SFP copper module, SFP form factor, RJ45, 100 m (328.08 ft.) over Cat 5e/6/6a |
