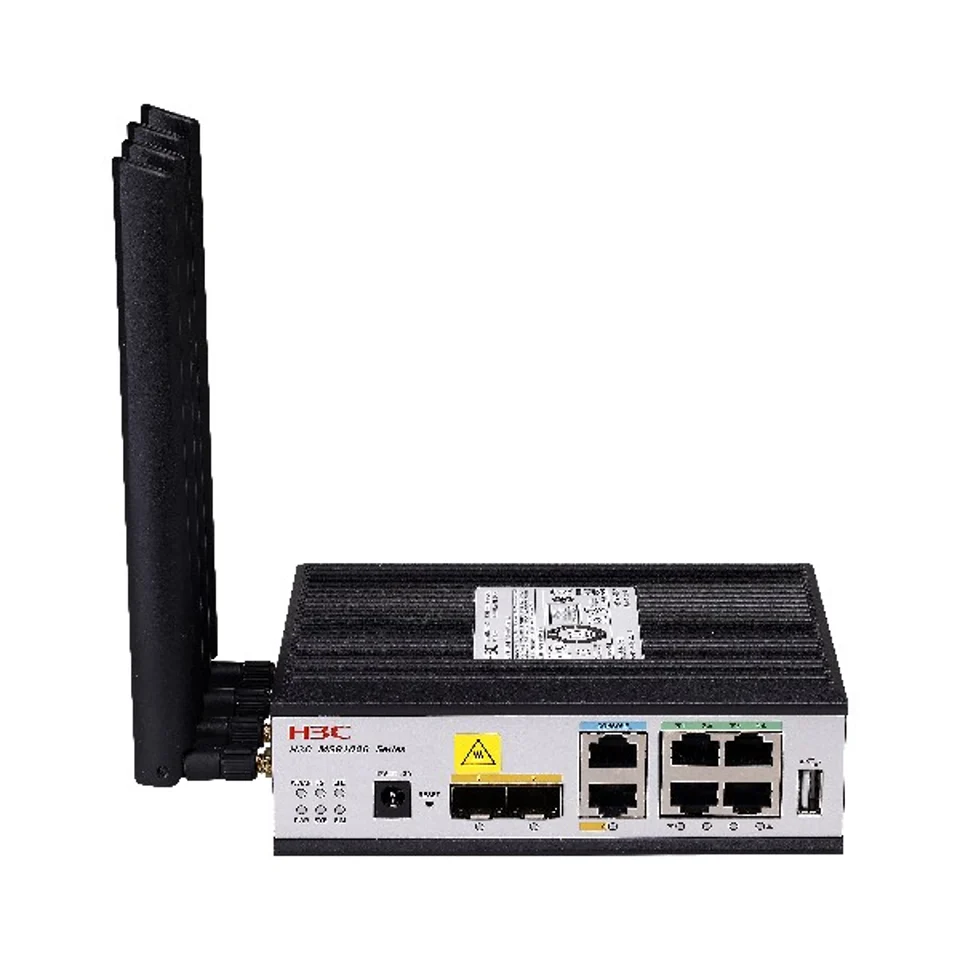

H3C RT-MSR1004S-5G-CN MSR1004S-5G-CNRouter Chassis(2*GE(SFP), 5*GE(RJ45), 5G NR(NSA/SA, 4G FDD/TDD LTE-A, 3G WCDMA, Sub6))
Brand H3C
N/AVerified
H3C RT-MSR1004S-5G-CN
Model (MPN)
9801A4C5
Condition
Factory Sealed
Out of Stock
H3C RT-MSR1004S-5G-CN MSR1004S-5G-CNRouter Chassis(2*GE(SFP), 5*GE(RJ45), 5G NR(NSA/SA, 4G FDD/TDD LTE-A, 3G WCDMA, Sub6)). Fixed Ports: WAN: 2*GE (optical) + 1*GE (electrical) LAN: 4*GE (electrical) (all can cut WAN). Memory: 1GB. Dimensions(W×D×H, mm): 150×127×52.4
Key Specifications
DescriptionH3C MSR1004S-5G-CNRouter Chassis(2*GE(SFP),5*GE(RJ45),5G NR(NSA/SA,4G FDD/TDD LTE-A,3G WCDMA,Sub6))
Fixed PortsWAN: 2*GE (optical) + 1*GE (electrical) LAN: 4*GE (electrical) (all can cut WAN)
Dimensions(W×D×H, mm)150×127×52.4
Maximum Power Consumption18W
Power SupplyExternal power adapter: 100 to 240V 50/60Hz
operating temperature-40～70℃
Your Price
Best Value
$334.95
List Price: $4,785.00Save 93%
Availability Out of Stock
Quantity
Need configuration help?
Our CCIE certified engineers can help you verify compatibility.
Secure Payment
VISA
Pay
WIRE
Fast Dispatch
Global logistics network aiming for same-day handover.
48hrs
Avg. Shipping
99%
On-Time
Guaranteed Quality
Every unit undergoes rigorous 38-point inspection test.
3Year
Warranty
0.1%
RMA Rate
Global Reach
Trusted by enterprise clients across 6 continents.
85+
Countries
20k+
Clients
Expert Support
Certified network engineers ready to assist with configuration.
24/7
Assistance
CCIE
Certified
Overview
Specifications
| Catalog Description | |
|---|---|
| Description | H3C MSR1004S-5G-CNRouter Chassis(2*GE(SFP),5*GE(RJ45),5G NR(NSA/SA,4G FDD/TDD LTE-A,3G WCDMA,Sub6)) |
| Key Specifications | |
| Fixed Ports | WAN: 2*GE (optical) + 1*GE (electrical) LAN: 4*GE (electrical) (all can cut WAN) |
| Dimensions(W×D×H, mm) | 150×127×52.4 |
| Maximum Power Consumption | 18W |
| Power Supply | External power adapter: 100 to 240V 50/60Hz |
| operating temperature | -40～70℃ |
| Ambient Relative Humidity | 5 to 95% (no condensation) |
| Product Specifications | |
| Forwarding Performance | 3Mpps |
| Fixed Ports | WAN: 2*GE (optical) + 1*GE (electrical) LAN: 4*GE (electrical) (all can cut WAN) |
| Memory | 1GB |
| Flash | 512MB |
| Firewall Performance | 2Gbps |
| IPsec Throughput | 800Mbps |
| NAT Sessions | 250,000 |
| Protection Rating | IP40 |
| Antenna | 4 external 5G antennas |
| 5G | Built-in single 5G module 3GPP Release 15 |
| Band Information | 5G NR NSA：n41/n78/n795G NR SA: n1/n28/n41/n77/n78/n79LTE-FDD: B1/B2/B3/B5/B7/B8/B20/B28LTE-TDD: B34/B38/B39/B40/B41UMTS/WCDMA: B1/B2/B5/B8 |
| SIM card slot | 2 |
| Console | 1 |
| USB | 1 |
| Maximum Power Consumption | 18W |
| Fan | Fanless Natural Cooling |
| Power Supply | External power adapter: 100 to 240V 50/60Hz |
| Dimensions(W×D×H, mm) | 150×127×52.4 |
| operating temperature | -40～70℃ |
| Ambient Relative Humidity | 5 to 95% (no condensation) |
| Installation Method | Rack, DIN rail (with clips), desktop, wall mounting |
| Layer 2 Protocols | Support Ethernet, Ethernet II, 802.3x, PPPoE Client, PPPoE Server, etc. |
| IP Services | Support for TCP, UDP, IP Option, IP Unnumber Support for Policy Routing, Netstream, etc Support for ECMP Support for UCMP |
| IP Applications | Support Ping, Trace, ICMP, DHCP Server, DHCP Relay, DHCP Client, DNS client, DNS Proxy, DDNS, UDP Helper, NTP, SNTP, etc. |
| IPv4 Routing | static routingdynamic routing protocols: RIPv1/v2, OSPFv2, BGP, IS-ISroute recursionrouting policymulticast routing protocols: IGMPV1/V2/V3, PIM-DM, PIM-SM, MBGP, MSDP |
| IPv6 | Supports IPv6 ND, IPv6 PMTU, IPv6 FIB, IPv6 ACL, NAT-PT, IPv6 Tunneling, 6PE, DS-LITE IPv6 Tunneling Technologies: Manual Tunneling, Auto Tunneling, GRE Tunneling, 6to4, ISATAP Static Routing Dynamic Routing Protocols: RIPng, OSPFv3, IS-ISv6, BGP4+ IPv6 multicast protocols: MLD V1/V2, PIM-DM, PIM-SM |
| QoS | Support LR, Port-Based Mirroring, etc. support CAR (Committed Access Rate) support FIFO, WFQ, CBQ, etc. support GTS (Generic Traffic Shaping) support traffic classification |
| Wireless Controller (AC) | AP management: AP access, AP configuration parameter issuance, AP version upgrade, AP reboot, AP display WLAN access, WLAN user security, WLAN user access authentication, WLAN roaming, etc; |
| Security Features | PORTALLocal Authentication, RBAC, Radius, Tacacs+ASPF, ACL, FILTER, Connection Count Limit IKE/IPsec VPN, ADVPN, L2TP VPN, GRE VPNNAT/NAPT, PKI, RSA, URPF Support DDoS Attack Prevention, ARP Attack Prevention Support EAD Endpoint Access Defense |
| SDN Features | Supports Netconf, Telemetry Supports VxLAN, EVPN Layer 2 virtual Ethernet links Supports Segment Routing Supports USB flash drives, URLs, DHCP Zero Configuration Deployment Supports SRv6 with EVPN L2VPN/L3VPN over SRv6 BE/Policy networking capability |
| MPLS | LDP, Static LSPL3VPN: Cross-domain MPLS VPN (Option1/2/3), Nested MPLS VPN, CE Dual Attribution, MCE, Multi-Role Hosts, etc. L2VPN: Martini, Kompella, CCC, and SVC mode MPLS TE, RSVP TE |
| Reliability | Supports VRRP, VRRPv3 Supports load sharing and backup based on multiple links Supports the linkage function of NQA with routing, VRRP, and interface backup to realize end-to-end link detection and backup function Supports BFD fast link detection Supports GR |
| Management and Maintenance | Support SNMP V1/V2c/V3, TR069, SYSLOG, RMON support Telnet, SSHv1.5/2.0, FTP support EAA Embedded Automation Architecture support command line management, file system management, Dual ImageNQA features support DHCP, FTP, HTTP, ICMP, TCP, UDP- echo, SNMP and other protocols test 5G model also supports SMS opening and management maintenance. |
| Ordering Information | |
| Antenna | |
| 2701A02R | ANT-C5060-510007-A - 5G NR Rod Antenna - SMA Interface |
| Bracket | |
| 9821A091 | RTU-FL-E - H3C MSR1004S-5G Mounting Bracket Assembly (includes 1 mounting bracket + 4 screws) |
| SFP Gigabit Port | |
| 0231A2UN | SFP-GE-LH40-SM1310-BIDI - SFP Gigabit BIDI Optical Module (TX 1310/RX 1550 nm, 40 km, LC) |
| 0231A2UL | SFP-GE-LH70-SM1490-BIDI - SFPGigabitBIDI Optical Module (TX 1490/RX 1550 nm, 70 km, LC) |
| 0231A2UP | SFP-GE-LH40-SM1550-BIDI - SFPGigabitBIDI Optical Module (TX 1550/RX 1310 nm, 40 km, LC) |
| 0231A2UM | SFP-GE-LH70-SM1550-BIDI - SFPGigabitBIDI Optical Module (TX 1550/RX 1490 nm, 70 km, LC) |
| 0231A54T | SFP-STACK-Kit - SFP Stacking Cable—(150 cm, includes stacking module) |
| 0231A12U | SFP-FE-LX-SM1550-BIDI - SFP Fast Ethernet BIDI Optical Module (TX 1550/RX 1310 nm, 15 km, LC) |
| 0231A12T | SFP-FE-LX-SM1310-BIDI - SFP Fast Ethernet BIDI Optical Module (TX 1310/RX 1550 nm, 15 km, LC) |
| 0231A564 | SFP-FE-LX-SM1310-A - Optical Module—SFP 100M/155M Single-Mode Module (1310 nm, 15 km, LC) |
| 0231A965 | SFP-FE-LX-SM1310-D - Optical Module—SFP 100M/155M Single-Mode Module (1310 nm, 15 km, LC) |
| 0231A320 | SFP-FE-SX-MM1310-A - Optical Module—SFP 100M/155M Multimode Module (1310 nm, 2 km, LC) |
| 0231A089 | SFP-FE-LH40-SM1310 - Optical Module - SFP 100M/155M Single-Mode Module - (1310nm, 40km, LC) |
| 0231A090 | SFP-FE-LH80-SM1550 - Optical Module—SFP 100M/155M Single-Mode Long-Distance Module—(1550 nm, 80 km, LC) |
| 0231A0BY | SFP-GE-LX10-SM1310 - SFP GEOptical Module-(-40°C~85°C,1310nm,10km,LX,SM,LC) |
| 0231A563 | SFP-GE-LX-SM1310-A - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 10 km, LC) |
| 0231A962 | SFP-GE-LX-SM1310-D - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 10 km, LC) |
| 02312170 | SFP-GE-LH40-SM1310 - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 40 km, LC) |
| 0231A963 | SFP-GE-LH40-SM1310-D - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 40 km, LC) |
| 02312173 | SFP-GE-LH80-SM1550 - Optical Module - SFP-GE - Single-Mode Module - (1550 nm, 80 km, LC) |
| 0231A964 | SFP-GE-LH80-SM1550-D - Optical Module - SFP-GE - Single-Mode Module - (1550 nm, 80 km, LC) |
| 0231A562 | SFP-GE-SX-MM850-A - Optical Module - SFP-GE - Multimode Module (850 nm, 0.55 km, LC) |
| 0231A961 | SFP-GE-SX-MM850-D - Optical Module - SFP-GE - Multimode Module (850 nm, 0.55 km, LC) |
| 0231A11U | SFP-GE-LX-SM1310-BIDI - Optical Module - SFP Gigabit BIDI Optical Module - TX 1310/RX 1490, 10 km, LC |
| 0231A11V | SFP-GE-LX-SM1490-BIDI - Optical Module - SFP Gigabit BIDI Optical Module - TX 1490/RX 1310, 10 km, LC |
| 0231AEUP | SFP-GE-SX-MM850-S - SFPGigabit Optical Module(850nm,550m,SX,LC) |
| 0231AEUN | SFP-GE-LX-SM1310-S - SFPGigabit Optical Module(1310nm,10km,LX,LC) |
| 0231A085 | SFP-GE-T - SFP GEElectrical Port Module(100m,RJ45) |
| 0231A960 | SFP-GE-T-D - SFP GEElectrical Port Module(100m,RJ45) |
| WX/IPS/ACG/VPN/WEBCACHE/URLlicense certificate | |
| 3130A3LL | LIS-MSRA-WEBCACHE - H3C MSR 800/26/LA Series Web Cache Software License Letter |
| 3130A1Y1 | LIS-MSR-SSL-200 - H3C MSR/ICG Series SSL VPN 200 x user license certificate |
| 3130A1Y0 | LIS-MSR-SSL-30 - H3C MSR/ICG Series SSL VPN 30 x user license certificate |
| 3130A50L | LIS-MSR-URL-1Y - H3C MSR Series URLsignature database update service license certificate,1 year |
| 3130A50K | LIS-MSR-URL-3Y - H3C MSR Series URLsignature database update service license certificate,3 years |
| 3130A1XS | LIS-MSRA-ACG-1Y - H3C MSR800/LA/MERSeriesapplication identificationsignature database update service license certificate,1 year |
| 3130A1XT | LIS-MSRA-ACG-3Y - H3C MSR800/LA/MERSeriesapplication identificationsignature database update service license certificate,3 years |
| 3130A1XL | LIS-MSRA-IPS-1Y - H3C MSR800/LASeries IPS signature database update service license certificate,1 year |
| 3130A1XM | LIS-MSRA-IPS-3Y - H3C MSR800/LASeries IPS signature database update service license certificate,3 years |
| 3130A1TV | LIS-F1000-AV-1Y - H3C Sec Path F1000,AV anti-virus security license,1 year |
| 3130A1TW | LIS-F1000-AV-3Y - H3C Sec Path F1000,AV anti-virus security license,3 years |
| 3130A1LB | LIS-WX-16-BE - Enhanced Wireless Controller License Authorization Letter - Manage 16APs - For Enterprise Networks - V7V9 |
| 3130A1L9 | LIS-WX-1-BE - Enhanced Wireless Controller License Authorization Letter - Management 1AP - For Enterprise Networks - V7V9 |
| 3130A2HB | LIS-WX-4-BE - Enhanced Wireless Controller License Authorization Letter - Manage 4AP - Enterprise Network Only - V7V9 |
| AP | |
| 9801A0YE | 9801A0YE - MSR1000 Router |
| Power Adapter | |
| 0213A03K | FSP025-1AD207A - Primary Power Supply - 0°C to 40°C - 90 VAC to 264 VAC - 48 V/0.52 A, detachable AC power cord |
| 0231A1SS | EWPAM2NPOE - H3C Single-Port PoE Injector (includes 25W power supply, Gigabit, side-by-side installation supported) |
| 2701A00M | C5060-510002-A - Omnidirectional Antenna—2.4–2.5 GHz, 4.9–5.825GHz-2d [email protected],3d Bi @ 5 GHz—Vertical Polarization—Omnidirectional Antenna—1 W—SMA Reverse-Polarity Connector—Whip Antenna (White) |
| 2701A022 | ANT-2503C-S4 - 2.4 GHz (3d Bi) & 5.150–5.850 GHz (5d Bi), Smart Dual-Band MIMO Omnidirectional Ceiling Antenna, RP-SMA-J ×4, Indoor, Ceiling |
| 2701A023 | ANT-5014P-M2 - 5150–5850 MHz (14 d Bi), Directional MIMO Antenna, N Female x 2, Outdoor |
| AP Mounting Accessory | |
| 2115A03Q | EWPA-TR-EWMK - Adjustable Wall-Mount Kit |
| Cables | |
| 0404A06Q | CAB-AC Pwr CHI-1.8m - Wall-mounted AC power cord—1.8 m—3 × 0.75 mm²—black—(GB1002 plug (3P), straight male, 250 V, 10 A)—(227 IEC 53 (RVV))—(C13 connector (3P), straight female, 250 V, 10 A)—Chinese National Standard |
| 0404A0FL | CAB-RF-1.2m-(N50SM+RSMA50SF) - RF Cable - 1.2 m - (N50 Male Straight) - (COAX-LMR240 Black) - (RSMA50 Female Straight) |
| 0404A0MH | CAB-RF-RG8-5m-SMA - Coaxial cable - 5m - (SMA 50 straight male) - (COAX-RG8 white) - (SMA 50 straight female) |
| 0404A0MJ | CAB-RF-RG8-10m-SMA - Coaxial cable - 10m - (SMA 50 straight male) - (COAX-RG8 white) - (SMA 50 straight female) |
| 9801A0YC | 9801A0YC - MSR1000 Router |
| 2115A03N | EWPA-TR-WMK-WA5300 - Wall Mount Bracket - WA5300 |
| 9801A0YF | 9801A0YF - MSR1000 Router |
| 0231A4QB | ADP040-54V - 54V 40Whigh-power adapter Power Module |
| 9801A0YH | 9801A0YH - MSR1000 Router |
| 0213A05R | ADP040-54 - 40W Adapter - Input 90–264 VAC - Output 54 VDC - Energy-Saving VI - Detachable AC power Cord |
| 0235A1SV | 0235A1SV - MSR1000 Router |
| 9801A3G1 | EWP-WA6320-HI-FIT - H3C WA6320-HI built-in antennadual-band4-stream802.11ax/ac/nwireless access point-FIT |
| 9801A42A | EWP-WA6320-SI-H20-FIT - H3C WA6320-SI-H20 built-in antennadual-band4-stream802.11ax/ac/nwireless access point-FIT |
| 9801A297 | 9801A297 - MSR1000 Router |
| 2150A0CB | EWPA-CE-4320H - WA4320H-ACN Wall-Mount Kit |
| 9801A23V | EWP-WA6330-FIT - H3C WA6330 built-in antennatri-band6-stream802.11ax/ac/nwireless access point-FIT |
| T300 Unit | |
| 0202A2HC | PINPOINT-T300-PB-UWB-IN - Pinbo T300-PB-UWB Indoor Positioning Plug-in Card |
| 9801A20L | IOT-T301-R - H3C T301-R IoT Module 2.4GHz Wireless IoT Access Unit, Supports RFID/Bluetooth |
| 9801A20P | IOT-T301-Z - H3C T301-Z IoT Module Zig Bee Wireless IoT Access Unit |
| 9801A26L | IOTGM1T301L4 - H3C T301-L4 470 MHz Band Lo RaWAN Wireless IoT Access Unit |
| 9801A26P | 9801A26P - H3C T320-ZR Zigbee & 2.4 GHz (RFID or BLE) Dual-Band Wireless IoT Access Unit |
| 9801A26R | IOT-T320 - H3C T320 Wireless IoT Access Unit with Built-in 2.4 GHz (RFID or BLE) & Expansion Slot |
| 9801A26S | 9801A26S - H3C T320-DR 2.4 GHz RFID & BLE Dual-Band Wireless IoT Access Unit |
| 9801A26U | IOT-T320M - H3C T320M Wireless IoT Gateway with Built-in 2.4 GHz (RFID or BLE) & Expansion Slot, Manageable, Standalone Deployable |
| IoTAccessory | |
| 0202A2HB | PINPOINT-T-B1011 - Pinbo UWB Location Terminal - T-B1011 |
| 0202A2HE | PINPOINT-HULSI - Pinbo High-Precision UWB Positioning Service Implementation (Please note the specific service location when placing an order) - 1 person-day - HULSI |
| 0202A2MD | PINPOINT-T-H2011 - Pinbo Personnel Safety Helmet Tracking Device - T-H2011 |
| 0202A2ME | PINPOINT-KT-1421-ZD - Pinbo Explosion-Proof Positioning Terminal - KT-1421-ZD |
| 0202A2MF | PINPOINT-TU-1900 - Pinbo Tamper-Proof Wristband Unlocker - TU-1900 |
| 0202A2MG | PINPOINT-TC-1500 - Pinbo Tamper-Proof Wristband Charger - TC-1500 |
| 0202A2MH | PINPOINT-TC-1311 - Pinbo Standard Wristband Charger - TC-1311 |
| 0202A2MJ | PINPOINT-T-W2511-X - Pinbo Personnel Tracking Tamper-Proof Heart Rate Monitoring Wristband - T-W2511-X |
| 0202A2MK | PINPOINT-T-W2511 - Pinbo Personnel Tracking Tamper-Proof Wristband - T-W2511 |
| 0202A2ML | PINPOINT-T-W1311-P - Pinbo Smart Location Tracking Wristband - T-W1311-P |
| 0202A2MM | PINPOINT-T-G1010 - Pinbo Asset Tracking Terminal - T-G1010 |
| 0202A2MN | PINPOINT-T-W1311 - Pinbo Personnel Tracking Wristband - T-W1311 |
| 0202A2MR | 0202A2MR - H3C WA6330 built-in antennatri-band6-stream802.11ax/ac/nwireless access point-FIT |
| 0202A2MT | 0202A2MT - H3C WA6330 built-in antennatri-band6-stream802.11ax/ac/nwireless access point-FIT |
| 0202A2MU | HSJC-MR3837C - Huashi Jingcheng 2.4 GHz Non-Tamper-Resistant Active RFID Tag - MR3837C |
| 0202A2MV | 0202A2MV - H3C WA6330 built-in antennatri-band6-stream802.11ax/ac/nwireless access point-FIT |
| 0202A2MW | HSJC-MR3848 - Huashi Jingcheng 2.4 GHz Light-Sensing Tamper-Proof Active Asset Management Tag - MR3848 |
| 0202A2N0 | 0202A2N0 - H3C WA6330 built-in antennatri-band6-stream802.11ax/ac/nwireless access point-FIT |
| 9801A280 | 9801A280 - H3C WA6330 built-in antennatri-band6-stream802.11ax/ac/nwireless access point-FIT |
| 9801A2QR | EWP-WA6338-HI-FIT - H3C WA6338-HI built-in antennatri-band8-stream802.11ax/ac/nwireless access point-FIT |
| 9802A00D | EWPAM1UPOE2 - Two-Port Network Power Adapter 60W-55V-1.1A-DC-1m |
| 0202A2MR | 0202A2MR - H3C WA6338-HI built-in antennatri-band8-stream802.11ax/ac/nwireless access point-FIT |
| 0202A2MT | 0202A2MT - H3C WA6338-HI built-in antennatri-band8-stream802.11ax/ac/nwireless access point-FIT |
| 0202A2MV | 0202A2MV - H3C WA6338-HI built-in antennatri-band8-stream802.11ax/ac/nwireless access point-FIT |
| 0202A2N0 | 0202A2N0 - H3C WA6338-HI built-in antennatri-band8-stream802.11ax/ac/nwireless access point-FIT |
| 9801A280 | 9801A280 - H3C WA6338-HI built-in antennatri-band8-stream802.11ax/ac/nwireless access point-FIT |
| 9801A3L5 | EWP-WA6520-FIT - H3C WA6520 built-in antennadual-band4-stream802.11ax/ac/nwireless access point-FIT |
| 9802A01Q | PWR-S36B51-540A067-C4 - Power Adapter - 36W - 54V/0.67A - 1.5m (Phoenix Connector) - Wall-Mounted |
| Accessory | |
| 1408A048 | CON-2P-U4 - Ethernet Connector—Non-Integrated Transformer—1-Port—Single Row—Unshielded—2-Pin—Plug—4mm—UPOE—Gray |
| Optical Module | |
| 02312172 | SFP-GE-LH40-SM1550 - Optical Module—SFP—GE—Single-Mode Module—(1550 nm, 40 km, LC) |
| 0231A1RP | SFP-XG-SX-MM850-D - SFP+ 10GModule(850nm,300m,LC) |
| 0231A1RQ | SFP-XG-LX-SM1310-D - SFP+ 10GModule(1310nm,10km,LC) |
| 0231A2L3 | SFP-XG-LX-SM1310-E - SFP+ 10GModule(1310nm,10km,LC) |
| 0231A2L4 | SFP-XG-SX-MM850-E - SFP+ 10GModule(850nm,300m,LC) |
| 0231A9X2 | SFP-XG-CPRI-IR-SM1310 - SFP+ 10GCPRIOptical Module(-40°C～85°C,1310nm,1.4km,LC) |
| 0231A9X3 | SFP-XG-CPRI-LR-SM1310 - SFP+ 10GCPRI Optical Module (-40°C to 85°C, 1310 nm, 10 km, LC) |
| 0231ABSQ | SFP-XG-LX-SM1270-BIDI - SFP+ 10GBIDIOptical Module(TX1270nm/RX1330nm,10km,LC) |
| 0231ABSR | SFP-XG-LX-SM1330-BIDI - SFP+ 10G BIDI Optical Module (TX 1330 nm/RX 1270 nm, 10 km, LC) |
| 0231AEUM | SFP-XG-SX-MM850-S - SFP+ 10G Optical Module(850nm,300m,SX,LC) |
| 0231AEUQ | SFP-XG-LX-SM1310-S - SFP+ 10G Optical Module(1310nm,10km,LX,LC) |
| 0231AH0W | SFP-10GE-T - SFP+ 10GEElectrical Port Module(Cat6a/Cat7,30m,RJ45) |
| 0231AJXK | SFP-2.5G-LX10-SM1310-DR-I - SFP 2.5G/1G Single-Mode Industrial-Temperature Optical Module (1310 nm, 10 km, LC) |
| 9801A3PF | 9801A3PF - H3C WA6520-HI built-in antennadual-band4-stream802.11ax/ac/nwireless access point-FIT |
| 9801A3L6 | EWP-WA6522-FIT - H3C WA6522 built-in antennadual-band4-stream802.11ax/ac/nwireless access point-FIT |
| 0202A2MR | 0202A2MR - H3C WA6522 built-in antennadual-band4-stream802.11ax/ac/nwireless access point-FIT |
| 0202A2MT | 0202A2MT - H3C WA6522 built-in antennadual-band4-stream802.11ax/ac/nwireless access point-FIT |
| 0202A2MV | 0202A2MV - H3C WA6522 built-in antennadual-band4-stream802.11ax/ac/nwireless access point-FIT |
| 0202A2N0 | 0202A2N0 - H3C WA6522 built-in antennadual-band4-stream802.11ax/ac/nwireless access point-FIT |
| 9801A280 | 9801A280 - H3C WA6522 built-in antennadual-band4-stream802.11ax/ac/nwireless access point-FIT |
| 9801A3L7 | 9801A3L7 - H3C WA6522H-HI built-in antennadual-band4-stream802.11ax/ac/nwall-platewireless access point-FIT |
| 9801A2VY | EWP-WA6530-FIT - H3C WA6530 built-in antennatri-band6-stream802.11ax/ac/nwireless access point-FIT |
| 9801A24H | EWP-WA6622-FIT - H3C WA6622 built-in antennadual-band6-stream802.11ax/ac/nwireless access point-FIT |
| 0202A2MR | 0202A2MR - H3C WA6622 built-in antennadual-band6-stream802.11ax/ac/nwireless access point-FIT |
| 0202A2MT | 0202A2MT - H3C WA6622 built-in antennadual-band6-stream802.11ax/ac/nwireless access point-FIT |
| 0202A2MV | 0202A2MV - H3C WA6622 built-in antennadual-band6-stream802.11ax/ac/nwireless access point-FIT |
| 0202A2N0 | 0202A2N0 - H3C WA6622 built-in antennadual-band6-stream802.11ax/ac/nwireless access point-FIT |
| 9801A280 | 9801A280 - H3C WA6622 built-in antennadual-band6-stream802.11ax/ac/nwireless access point-FIT |
| 9801A24F | EWP-WA6638-FIT - H3C WA6638 Wireless Access Point with Built-in Antennas, Tri-Band, 12 Streams, 802.11ax/ac/n - FIT |
| 0202A2MR | 0202A2MR - H3C WA6638 Wireless Access Point with Built-in Antennas, Tri-Band, 12 Streams, 802.11ax/ac/n - FIT |
| 0202A2MT | 0202A2MT - H3C WA6638 Wireless Access Point with Built-in Antennas, Tri-Band, 12 Streams, 802.11ax/ac/n - FIT |
| 0202A2MV | 0202A2MV - H3C WA6638 Wireless Access Point with Built-in Antennas, Tri-Band, 12 Streams, 802.11ax/ac/n - FIT |
| 0202A2N0 | 0202A2N0 - H3C WA6638 Wireless Access Point with Built-in Antennas, Tri-Band, 12 Streams, 802.11ax/ac/n - FIT |
| 9801A280 | 9801A280 - H3C WA6638 Wireless Access Point with Built-in Antennas, Tri-Band, 12 Streams, 802.11ax/ac/n - FIT |
| 9801A2ET | 9801A2ET - H3C WA6638i Wireless Access Point with Built-in Smart Antenna, Tri-Band, 16-Stream, 802.11ax/ac/n – FIT |
| 9821A06P | EWPA-TR-Indoor-A - WA6320—Indoor Mounting Hardware—Structural Components |
| 0202A2MR | 0202A2MR - H3C WA6638i Wireless Access Point with Built-in Smart Antenna, Tri-Band, 16-Stream, 802.11ax/ac/n – FIT |
| 0202A2MT | 0202A2MT - H3C WA6638i Wireless Access Point with Built-in Smart Antenna, Tri-Band, 16-Stream, 802.11ax/ac/n – FIT |
| 0202A2MV | 0202A2MV - H3C WA6638i Wireless Access Point with Built-in Smart Antenna, Tri-Band, 16-Stream, 802.11ax/ac/n – FIT |
| 0202A2N0 | 0202A2N0 - H3C WA6638i Wireless Access Point with Built-in Smart Antenna, Tri-Band, 16-Stream, 802.11ax/ac/n – FIT |
| 9801A280 | 9801A280 - H3C WA6638i Wireless Access Point with Built-in Smart Antenna, Tri-Band, 16-Stream, 802.11ax/ac/n – FIT |
| Cable Optional Configuration Scheme | |
| 0150A2H3 | CAB-RF-10m-SMA-B - 10m Antenna Extension Cable - Wall Mounting Bracket - SMA Interface |
| 0150A2H2 | CAB-RF-10m-SMA-M - 10m Antenna Extension Cable - Magnetic Base - SMA Interface |
| 0150A2H4 | CAB-RF-15m-SMA-B - 15m Antenna Extension Cable - Wall Mounting Bracket - SMA Interface |
| 0150A2H7 | CAB-RF-15m-SMA-M - 15m Antenna Extension Cable - Magnetic Base - SMA Interface |
| 2706A00A | CAB-C5060-510008-A - 4*1m Extension Cable - Magnetic Base - SMA Interface |
| 2706A009 | CAB-ACA-3000-6G0R6-A1 - 5G NR Antenna 3m Extension Cable - Magnetic Base - SMA Interface |
| 0150A2H6 | CAB-RF-5m-SMA-B - 5m Antenna Extension Cable - Wall Mounting Bracket - SMA Interface |
| 0150A2H5 | CAB-RF-5m-SMA-M - 5m Antenna Extension Cable - Magnetic Base - SMA Interface |
| Serial Cable | |
| 04042967 | CAB-CON-1.8m - Configuration Serial Cable—1.8 m—(DB9 Female to 8-pin Ethernet Port) |
| 0404A1EE | CAB-Console-1.8m-W31R - Configuration Port Cable-1.8m-(RJ45P)-(UL2725(3C28AWG))-(USB AP) |
| Product Identity | |
| Brand | H3C |
| Series | H3C MSR1000 Series Router |
Reviews
No reviews yet
Be the first to review this enterprise product.
Warranty
Standard Warranty Policy
All hardware sold by ITMall includes our 3-Year Free Maintenance and 1-Year RMA Replacement Service. Please refer to our Warranty Policy for details.
- 1-Year Advance Replacement (RMA)
- 3-Year Free Repair Service
- Full coverage for functionality defects
Hassle-Free RMA Process
We streamlined the return process to minimize your network downtime. Our engineering team provides pre-return diagnostics to ensure hardware is truly defective.
- 30-Day satisfaction guarantee return window
- Automated RMA portal access for instant tracking
- Restocking fee waived for functionality issues
Certified Engineering Support
Our products are backed by CCIE-certified engineers who provide expert guidance on compatibility, configuration, and troubleshooting at no extra cost.
- Free pre-sales topology consultation
- Remote troubleshooting & firmware advice
- Simulation lab testing before dispatch
Global Logistics & Packaging
We ship to 85+ countries using premium anti-static packaging to ensure safety. Orders placed before 14:00 (GMT+8) are typically dispatched the same day.
- Double-walled boxes with customer molded foam
- Blind shipping support for channel partners
- Real-time tracking via FedEx / DHL / UPS
Resources
No downloads available for this product.
FAQ
What is the Fixed Ports specification for RT-MSR1004S-5G-CN?
RT-MSR1004S-5G-CN lists Fixed Ports as WAN: 2*GE (optical) + 1*GE (electrical) LAN: 4*GE (electrical) (all can cut WAN). Use this value when checking datasheet requirements, quotation details, and deployment compatibility.
What is the Dimensions(W×D×H, mm) specification for RT-MSR1004S-5G-CN?
RT-MSR1004S-5G-CN lists Dimensions(W×D×H, mm) as 150×127×52.4. Use this value when checking datasheet requirements, quotation details, and deployment compatibility.
What is the SIM card slot specification for RT-MSR1004S-5G-CN?
RT-MSR1004S-5G-CN lists SIM card slot as 2. Use this value when checking datasheet requirements, quotation details, and deployment compatibility.
What is the Maximum Power Consumption specification for RT-MSR1004S-5G-CN?
RT-MSR1004S-5G-CN lists Maximum Power Consumption as 18W. Use this value when checking datasheet requirements, quotation details, and deployment compatibility.
Is this product Brand New?
Yes, unless clearly marked as "Refurbished", all our products are Factory Sealed (Original New) sourced directly from authorized channels.
What is the warranty period?
We provide a comprehensive 3-Year Warranty on this item. This covers hardware defects and includes advanced replacement.
Do you offer volume discounts?
Yes! For bulk orders or project bids, please click "Quote | Help" to get a custom price proposal from our sales team.
How fast can you ship?
In-stock items ordered before 3 PM EST ship the same day. We offer overnight and 2-day shipping options via FedEx/DHL.
Still have questions?
