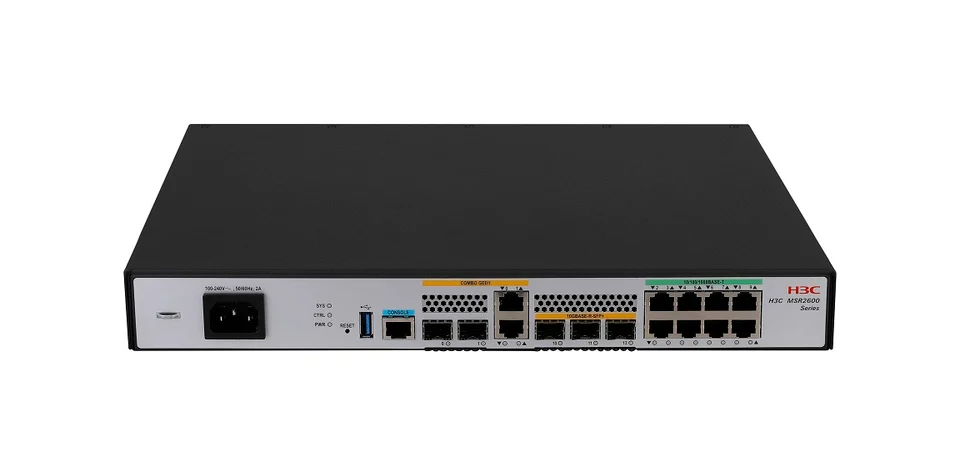

H3C RT-MSR2630E-X1 MSR2630E-X1Router Chassis(3*10GE(SFP+), 2*GE(Combo), 8*GE(RJ45))
Brand H3C
N/AVerified
H3C RT-MSR2630E-X1
Model (MPN)
9801A2WN
Condition
Factory Sealed
Out of Stock
H3C RT-MSR2630E-X1 MSR2630E-X1Router Chassis(3*10GE(SFP+), 2*GE(Combo), 8*GE(RJ45)). System Switching Capacity: 105Gbps. Fixed Ports: WAN:3*10GE(Optical)+2*GE(Combo)LAN:8*GE(Electrical)(4 ports can cut WAN). Memory: 4GB
Key Specifications
DescriptionH3C MSR2630E-X1Router Chassis(3*10GE(SFP+),2*GE(Combo),8*GE(RJ45))
System Switching Capacity105Gbps
Fixed PortsWAN:3*10GE(Optical)+2*GE(Combo)LAN:8*GE(Electrical)(4 ports can cut WAN)
Supported Interface Formats3G-Modem 3G module with USB interface (WCDMA, EVDO, TD-SCDMA)
Dimensions (W×D×H, mm)360×300×44
Maximum Power Consumption54W
Your Price
Best Value
$509.95
List Price: $7,285.00Save 93%
Availability Out of Stock
Quantity
Need configuration help?
Our CCIE certified engineers can help you verify compatibility.
Secure Payment
VISA
Pay
WIRE
Fast Dispatch
Global logistics network aiming for same-day handover.
48hrs
Avg. Shipping
99%
On-Time
Guaranteed Quality
Every unit undergoes rigorous 38-point inspection test.
3Year
Warranty
0.1%
RMA Rate
Global Reach
Trusted by enterprise clients across 6 continents.
85+
Countries
20k+
Clients
Expert Support
Certified network engineers ready to assist with configuration.
24/7
Assistance
CCIE
Certified
Overview
Specifications
| Catalog Description | |
|---|---|
| Description | H3C MSR2630E-X1Router Chassis(3*10GE(SFP+),2*GE(Combo),8*GE(RJ45)) |
| Key Specifications | |
| System Switching Capacity | 105Gbps |
| Fixed Ports | WAN:3*10GE(Optical)+2*GE(Combo)LAN:8*GE(Electrical)(4 ports can cut WAN) |
| Supported Interface Formats | 3G-Modem 3G module with USB interface (WCDMA, EVDO, TD-SCDMA) |
| Dimensions (W×D×H, mm) | 360×300×44 |
| Maximum Power Consumption | 54W |
| Power Supply | AC:100V～240V |
| Product Specifications | |
| Forwarding Performance | 20Mpps |
| System Switching Capacity | 105Gbps |
| Fixed Ports | WAN:3*10GE(Optical)+2*GE(Combo)LAN:8*GE(Electrical)(4 ports can cut WAN) |
| SIC Service Slot | 2 |
| Memory | 4GB |
| FLASH | 4GB |
| USB | 1*USB3.0/2.0 |
| Console Port | 1 |
| Maximum Power Consumption | 54W |
| Power Supply | AC:100V～240V |
| Device Height | 1 RU |
| Dimensions (W×D×H, mm) | 360×300×44 |
| Ambient temperature | 0～45℃ |
| Ambient Relative Humidity | 5 to 95% (no condensation) |
| Layer 2 Protocols | Supported Ethernet, Ethernet II, VLAN, 802.3x, 802.1p, 802.1Q, 802.1x, STP (802.1D), RSTP (802.1w), MSTP (802.1s), PPP, PPPoE Client, PPPoE Server, HDLC, FR, DDR, Modem, ISDN, etc. |
| IP Services | Support for TCP, UDP, IP Option, IPUnnumber Support for policy routing, Netstream, s Flow, etc Support for ECMP Support for UCMP |
| IP Applications | Support Ping, Trace, ICMP, DHCP Server, DHCP Relay, DHCP Client, DNS client, DNS Proxy, DDNS, UDP Helper, NTP, SNTP, etc. |
| IPv4 Routing | static routingdynamic routing protocols: RIPv1/v2, OSPFv2, BGP, IS-ISroute recursionrouting policymulticast routing protocols: IGMPV1/V2/V3, PIM-DM, PIM-SM, MBGP, MSDP |
| IPv6 | Supports IPv6 ND, IPv6 PMTU, IPv6 FIB, IPv6 ACL, NAT-PT, IPv6 Tunneling, 6PE, DS-LITE IPv6 Tunneling Technologies: Manual Tunneling, Auto Tunneling, GRE Tunneling, 6to4, ISATAP Static Routing Dynamic Routing Protocols: RIPng, OSPFv3, IS-ISv6, BGP4+ IPv6 multicast protocols: MLD V1/V2, PIM-DM, PIM-SM |
| QoS | Supports LR, Port-Based Mirroring, Port Trust Mode, Port Priority, etc. Supports CAR (Committed Access Rate) Supports FIFO, WFQ, CBQ, etc. Supports 5 levels of HQoS Supports GTS (Generic Traffic Shaping) Support Traffic Classification |
| Wireless Controller (AC) | AP management: AP access, AP configuration parameter issuance, AP version upgrade, AP reboot, AP display WLAN access, WLAN user security, WLAN user access authentication, WLAN roaming, etc; |
| Voice | Support FXS/FXO/E&M/VE1/VT1, support R2, DSS1, Q.sig, Digital E&M, etc. Support G.711, G.723, G.726, G.729AB, AMR-NB, GSM-FR, iLBC, RT-Audio, etc. Support Rich Voice Services, Voice Backup, DTMF transmission support RFC2833, intelligent dial-up router, 1:1 binding of FXS and FXO, power failure escape, SIP Sever local survival, IVR, etc. |
| 3/4/5G | Supports extended 3/4G and 5G extended access, 5G NR NSA/SA, TDD/FDD LTE, WCDMA/HSPA+ network support |
| Security Features | PORTAL, 802.1x, MAC Authentication Local Authentication, RBAC, Radius, Tacacs+ASPF, ACL, FILTER, Domain Based Firewall, Connection Count Limit, IPSIKE/IPSec VPN, ADVPN, GDVPN, L2TP VPN, GRE VPN (supports GRE over IPSec) NAT/NAPT, PKI, RSA, URPF support DDoS attack prevention, ARP anti-attack, URL filtering support EAD endpoint access defense function support DPI depth message identification, speed limiting and filtering of business flows State Secret SM1/2/3/4 algorithm |
| SDN Features | Supports Netconf, Openflow, Telemetry Supports VxLAN, EVPN Layer 2 virtual Ethernet links Supports Segment Routing Supports USB flash drives, URLs, DHCP Zero-configuration deployment Supports SR, SRv6 |
| MPLS | LDP, Static LSPL3VPN: Cross-domain MPLS VPN (Option1/2/3), Nested MPLS VPN, Hierarchical PE (HoPE), CE Dual Attribution, MCE, Multi-Role Hosts, etc. L2VPN: Martini, Kompella, CCC, and SVC mode MPLS TE, RSVP TE |
| Reliability | Supports VRRP, VRRPv3 Supports load sharing and backup based on multiple links Supports the linkage function of NQA with routing, VRRP, and interface backup to realize end-to-end link detection and backup function |
| Management and Maintenance | Support SNMP V1/V2c/V3, TR069, SYSLOG, RMON Support Telnet, SSHv1.5/2.0, FTP Support EAA Embedded Automation Architecture Support Command Line Management, File System Management, Dual ImageNQA Support DHCP, FTP,HTTP,ICMP,UDP public, UDP private, TCP public, TCP private, SNMP and other protocols. |
| Network Interconnect | LAN Protocol ARP |
| WAN Protocol | PPP、PPPoE Client、PPPoE Server |
| Network Protocols | IP Service Fast Forwarding |
| IP Routing | static routing |
| Network Security | Port security, supports PORTAL, 802.1x, MAC authentication |
| AAA | Local Authentication, Radius, Tacacs |
| Firewall | ASPF，ACL，FILTER |
| Data Security | IKE, IPSec, supports encryption algorithms certified by the State Cryptography Administration |
| Other Security Technologies | L2TP, NAT/NAPT, PKI, RSA, SSH v1.5/2.0, URPF, GRE; supports DDOS attack defense and ARP attack defense |
| NQA linkage mechanism | NQA supports the linkage function with static routing, policy routing, dynamic routing, VRRP and interface backup to realize the detection and backup function of end-to-end links |
| BFD linkage mechanism | Supports BFD fast link detection and can be linked with RIP, OSPF, BGP, MPLS, VRRP for fast routing and link switching. |
| Layer 2 QoS | LR |
| Traffic Supervision | Supports CAR (Committed Access Rate) |
| Congestion Management | FIFO、CQ、WFQ、CBQ、RTPQ |
| Congestion Avoidance | WRED/RED |
| Traffic shaping | Supports GTS (Generic Traffic Shaping) |
| Other QOS Technologies | IP-based Speed Limiting, Nested QoS, VLAN QoS |
| Supported Traffic Classifications | Support for ACL traffic classification |
| 3/4G Wireless | Supported 3G standards: HSPA+/DC-HSPA+, EVDO, TD-SCDMA |
| Supports 4G-LTE standard | TDD-LTE:Band40/39/38；FDD-LTE：Band1; |
| Supported Interface Formats | 3G-Modem 3G module with USB interface (WCDMA, EVDO, TD-SCDMA) |
| Supported Functions and Features | Complies with the functions and features of the corresponding 3G-Modem, and supports multi-factor binding authentication for 3G communication |
| Service, Administration and Maintenance | Network management: SNMP V1/V2c/V3, MIB, SYSLOG, RMON, WEB network management, TR069; H3C BiMS remote management solution, supports zero-configuration deployment (USB initial startup, etc.) |
| DMC | Serial Port Server Device Management Center |
| Local Management | Command Line Management, File System Management, Dual Image |
| Network Quality Assurance (NQA) | Supports DHCP, FTP, HTTP, ICMP, UDP public, UDP private, TCP public, TCP private, SNMP, and other protocol testing |
| User Access Management | Support console port login, telnet (VTY) login, SSH login, FTP login |
| Ordering Information | |
| SIC module | |
| 0231A2NB | RT-SIC-2SAE - 2-port enhanced synchronous/asynchronous serial InterfaceSIC module |
| Cable | |
| 04043596 | CAB-RS449DCE(DB28) - Synchronous/Asynchronous Serial (SA) RS449 DCE Cable (DB28) |
| 04043595 | CAB-RS449DTE(DB28) - Synchronous/Asynchronous (SA) RS449 DTE Cable (DB28) |
| 04043597 | CAB-RS530DTE(DB28) - Synchronous/Asynchronous (SA) RS530 DTE Cable (DB28) |
| 04043770 | CAB-RS530DCE(DB28) - Synchronous/Asynchronous (SA) RS530 DCE Cable (DB28) |
| 04043589 | CAB-V24DTE(DB28) - Synchronous/Asynchronous (SA) V.24 DTE Cable (DB28) |
| 04043590 | CAB-V24DCE(DB28) - Synchronous/Asynchronous (SA) V.24 DCE Cable (DB28) |
| 04043592 | CAB-V35DCE(DB28) - Synchronous/Asynchronous (SA) V.35 DCE Cable (DB28) |
| 04043591 | CAB-V35DTE(DB28) - Synchronous/Asynchronous (SA) V.35 DTE Cable (DB28) |
| 04043594 | CAB-X.21DCE(DB28) - Synchronous/Asynchronous (SA) X.21 DCE Cable (DB28) |
| 04043593 | CAB-X.21DTE(DB28) - Synchronous/Asynchronous (SA) X.21 DTE Cable (DB28) |
| 0231A2NC | RT-SIC-4SAE - 4-port enhanced synchronous/asynchronous serial InterfaceSIC module |
| 0231A6C5 | RT-SIC-4G-CNDE - 4G LTE(TDD/FDD LTE,TD-SCDMA,WCDMA,EVDO full band,Dual SIM) and State Secret Office encryption (encryption module not included) SIC module |
| Antenna | |
| 9801A0KG | ANT-4G-LTE - 4G-LTE Magnetic Antenna with 5M Extension Cable |
| 9801A0KH | ANT-GPS-P - H3C LA3608E Passive GPS Antenna |
| 2701A00P | ANT-SL15346E - Omnidirectional Antenna - 806–960 MHz/1710–2500 MHz - 3 d Bi - Vertical Polarization - 50 W - TNC (Male) - No Mount - Ceiling-Mounted Antenna |
| 2701A00Q | ANT-SL15209B - Omnidirectional Antenna - 824–965 MHz/1710–2170 MHz - 3 d Bi - Vertical Polarization - 50 W - TNC (Male) - Magnetic Mount - Mobile Device Antenna - 3-meter Extension Cable |
| 9801A0LP | 9801A0LP - 4G LTE(TDD/FDD LTE,TD-SCDMA,WCDMA,EVDO full band,Dual SIM) and State Secret Office encryption (encryption module not included) SIC module |
| 9801A19T | ANT-4G-SMA - H3C MSR 4G SMA Antenna |
| Cables | |
| 0404A0MJ | CAB-RF-RG8-10m-SMA - Coaxial cable - 10m - (SMA 50 straight male) - (COAX-RG8 white) - (SMA 50 straight female) |
| 0404A0MH | CAB-RF-RG8-5m-SMA - Coaxial cable - 5m - (SMA 50 straight male) - (COAX-RG8 white) - (SMA 50 straight female) |
| 0404A0AL | CAB-RF-15m-(TNC-50ohm) - RF Cable - 15.0 m - TNC50 Straight Male - (SFF-50-3-1 Coax) - TNC50 Straight Female |
| 0404A0A9 | CAB-RF-6m-(TNC-50ohm) - RF Cable - 6.0 m - TNC50 Straight Male - (SFF-50-3-1 Coax) - TNC50 Straight Female |
| 0231A6C6 | RT-SIC-D4G-CNDE - Dual 4G LTE(TDD/FDD LTE,TD-SCDMA,WCDMA,EVDO full band,Dual SIM) and State Secret Office encryption (encryption module not included) SIC module |
| 9801A0LP | 9801A0LP - Dual 4G LTE(TDD/FDD LTE,TD-SCDMA,WCDMA,EVDO full band,Dual SIM) and State Secret Office encryption (encryption module not included) SIC module |
| 0231A835 | RT-SIC-8AS-H3 - 8-port asynchronous serialSICInterface Module |
| 0404A095 | CAB-(SIC-8AS)-0.28m-RJ45 - SIC-8AS Communication Cable—0.28 m—D60 Male—8×CC8C0.32P296U(S)—(8×8-pin Ethernet Port—III)—with RJ45 Female Connector |
| 0231A88Q | RT-SIC-16AS-H3 - 16-port asynchronous serialSICInterface Module |
| 0404A09F | CAB-(SIC-16AS)-0.3m-RJ45 - SIC-16AS Communication Cable - 0.3 m - DB28 Male to 4*RJ45 Sockets |
| 0231AA44 | 0231AA44 - Dual 4G LTE(TDD/FDD LTE,TD-SCDMA,WCDMA,EVDO Full Band,Dual SIM) and State Secret Encryption SIC Module(Support SM1/2/3/4) |
| 9801A0LP | 9801A0LP - Dual 4G LTE(TDD/FDD LTE,TD-SCDMA,WCDMA,EVDO Full Band,Dual SIM) and State Secret Encryption SIC Module(Support SM1/2/3/4) |
| 0231AA45 | 0231AA45 - 4G LTE(TDD/FDD LTE,TD-SCDMA,WCDMA,EVDO full-band,dual SIM)and Chinese commercial cryptography encryptionSIC module(supports SM1/2/3/4) |
| 9801A0LP | 9801A0LP - 4G LTE(TDD/FDD LTE,TD-SCDMA,WCDMA,EVDO full-band,dual SIM)and Chinese commercial cryptography encryptionSIC module(supports SM1/2/3/4) |
| 0231AA46 | 0231AA46 - Chinese commercial cryptography encryptionSIC module(supports SM1/2/3/4) |
| 0231AE2S | RT-SIC-M2-SATA - M.2 adapter (supports 1 SATA 3.0) SIC module |
| Hard Drive | |
| 0231AE2T | SSD-480G-SATA-M.2 - 480GB SATA M.2 SSDHard Drive Module |
| 0231AEST | RT-SIC-5G - 5G NR (NSA/SA/4G FDD/TDD LTE-A/3G WCDMA,Sub6,GNSS) SIC module |
| 2701A02J | ANT-5G-NR - 5G NR Rod Antenna - SMA Interface |
| 9801A0LP | 9801A0LP - 4G LTE(LTE,TD-SCDMA,WCDMA)SIC module |
| Cable Optional Configuration Scheme | |
| 0150A2H3 | CAB-RF-10m-SMA-B - 10m Antenna Extension Cable - Wall Mounting Bracket - SMA Interface |
| 0150A2H2 | CAB-RF-10m-SMA-M - 10m Antenna Extension Cable - Magnetic Base - SMA Interface |
| 0150A2H4 | CAB-RF-15m-SMA-B - 15m Antenna Extension Cable - Wall Mounting Bracket - SMA Interface |
| 0150A2H7 | CAB-RF-15m-SMA-M - 15m Antenna Extension Cable - Magnetic Base - SMA Interface |
| 2706A00A | CAB-C5060-510008-A - 4*1m Extension Cable - Magnetic Base - SMA Interface |
| 2706A009 | CAB-ACA-3000-6G0R6-A1 - 5G NR Antenna 3m Extension Cable - Magnetic Base - SMA Interface |
| 0150A2H6 | CAB-RF-5m-SMA-B - 5m Antenna Extension Cable - Wall Mounting Bracket - SMA Interface |
| 0150A2H5 | CAB-RF-5m-SMA-M - 5m Antenna Extension Cable - Magnetic Base - SMA Interface |
| 0404A1R7 | CAB-RF-10m-60071 - RF cable-10m-50 Ohm-(SMA 50 Ohm straight female)-(1-3S)-(SMA 50 Ohm straight male) |
| 0404A1R8 | CAB-RF-15m-60072 - RF cable-15m-50 Ohm-(SMA 50 Ohm straight female)-(1-3S)-(SMA 50 Ohm straight male) |
| 0404A1R6 | CAB-RF-20m-60073 - RF cable-20m-50 Ohm-(SMA 50 Ohm straight female)-(1-3S)-(SMA 50 Ohm straight male) |
| 0231ANJC | RT-SIC-2E1-G - 2-Port Partial Channelized E1 (E1-F) RJ45 or Channelized E1 (CE1/PRI) RJ45 Interface SIC Module |
| E1Cable | |
| 0404A0KN | CAB-E1-75ohm-3m-RJ45-2*BNC - E1Cable-3m-(RJ45P-8P8CS+CORE(F5B-RH14.2*28.5*8))-(SFTP-CAT5E24(4P)P430U+2*(COAX-SYFVZ75-1-1))-(2*BNC75SM) |
| 0404A076 | CAB-E1-120ohm-15m-RJ45 - E1 Trunk Cable - 15 m - (RJ45P-8P8CS) - (120CC4P0.5P430U(S)) - (RJ45P-8P8CS) - 120 ohms |
| 0404A09E | CAB-E1-120ohm-2m-RJ45 - E1 trunk cable - 2.00 m - (RJ45P-8P8CS) - (120CC4P0.5P430U(S)) - (RJ45P-8P8CS) - 120 ohms |
| 0404A077 | CAB-E1-120ohm-30m-RJ45 - E1 trunk cable - 30 m - (RJ45P-8P8CS) - (120CC4P0.5P430U(S)) - (RJ45P-8P8CS) - 120 ohms |
| 0404A078 | CAB-E1-10m-BNC - Single Cable—E1 Trunk Cable—75 ohms—10 m—(BNC to BNC) |
| 0404A079 | CAB-E1-15m-BNC - Single Cable—E1 Trunk Cable—75 ohms—15 m—(BNC to BNC) |
| 0404A080 | CAB-E1-20m-BNC - Single Cable - E1 Trunk Cable - 75 Ohm - 20 m - (BNC to BNC) |
| Extension | |
| 04026813 | CAB-E1/75-120 Convert - E1 Cable 120 Ohm to 75 Ohm Adapter Box |
| 14040202 | CAB-BNC-75 - Coaxial Connector - BNC - 75Ω - Straight/Socket - Dual Female - Connects to E1 Cable BNC Male Plug |
| SFP+ 10G Port | |
| 02312170 | SFP-GE-LH40-SM1310 - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 40 km, LC) |
| 02312172 | SFP-GE-LH40-SM1550 - Optical Module—SFP—GE—Single-Mode Module—(1550 nm, 40 km, LC) |
| 02312173 | SFP-GE-LH80-SM1550 - Optical Module - SFP-GE - Single-Mode Module - (1550 nm, 80 km, LC) |
| 0231A085 | SFP-GE-T - SFP GEElectrical Port Module(100m,RJ45) |
| 0231A0BY | SFP-GE-LX10-SM1310 - SFP GEOptical Module-(-40°C~85°C,1310nm,10km,LX,SM,LC) |
| 0231A0SP | SFP-XG-LH40-SM1550 - SFP+ 10GModule(1550nm,40km,LC) |
| 0231A11U | SFP-GE-LX-SM1310-BIDI - Optical Module - SFP Gigabit BIDI Optical Module - TX 1310/RX 1490, 10 km, LC |
| 0231A11V | SFP-GE-LX-SM1490-BIDI - Optical Module - SFP Gigabit BIDI Optical Module - TX 1490/RX 1310, 10 km, LC |
| 0231A1PA | SFP-XG-LH80-SM1550 - SFP+ 10GModule(1550nm,80km,LC) |
| 0231A1RP | SFP-XG-SX-MM850-D - SFP+ 10GModule(850nm,300m,LC) |
| 0231A1RQ | SFP-XG-LX-SM1310-D - SFP+ 10GModule(1310nm,10km,LC) |
| 0231A1RR | SFP-XG-LH40-SM1550-D - SFP+ 10GModule(1550nm,40km,LC) |
| 0231A2L3 | SFP-XG-LX-SM1310-E - SFP+ 10GModule(1310nm,10km,LC) |
| 0231A2L4 | SFP-XG-SX-MM850-E - SFP+ 10GModule(850nm,300m,LC) |
| 0231A2T6 | SFP-XG-LH80-SM1550-D - SFP+ 10GModule(1550nm,80km,LC) |
| 0231A2UL | SFP-GE-LH70-SM1490-BIDI - SFPGigabitBIDI Optical Module (TX 1490/RX 1550 nm, 70 km, LC) |
| 0231A2UM | SFP-GE-LH70-SM1550-BIDI - SFPGigabitBIDI Optical Module (TX 1550/RX 1490 nm, 70 km, LC) |
| 0231A2UN | SFP-GE-LH40-SM1310-BIDI - SFP Gigabit BIDI Optical Module (TX 1310/RX 1550 nm, 40 km, LC) |
| 0231A2UP | SFP-GE-LH40-SM1550-BIDI - SFPGigabitBIDI Optical Module (TX 1550/RX 1310 nm, 40 km, LC) |
| 0231A54T | SFP-STACK-Kit - SFP Stacking Cable—(150 cm, includes stacking module) |
| 0231A562 | SFP-GE-SX-MM850-A - Optical Module - SFP-GE - Multimode Module (850 nm, 0.55 km, LC) |
| 0231A563 | SFP-GE-LX-SM1310-A - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 10 km, LC) |
| 0231A960 | SFP-GE-T-D - SFP GEElectrical Port Module(100m,RJ45) |
| 0231A961 | SFP-GE-SX-MM850-D - Optical Module - SFP-GE - Multimode Module (850 nm, 0.55 km, LC) |
| 0231A962 | SFP-GE-LX-SM1310-D - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 10 km, LC) |
| 0231A963 | SFP-GE-LH40-SM1310-D - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 40 km, LC) |
| 0231A964 | SFP-GE-LH80-SM1550-D - Optical Module - SFP-GE - Single-Mode Module - (1550 nm, 80 km, LC) |
| 0231A9X2 | SFP-XG-CPRI-IR-SM1310 - SFP+ 10GCPRIOptical Module(-40°C～85°C,1310nm,1.4km,LC) |
| 0231A9X3 | SFP-XG-CPRI-LR-SM1310 - SFP+ 10GCPRI Optical Module (-40°C to 85°C, 1310 nm, 10 km, LC) |
| 0231ABSP | SFP-XG-LH40-SM1270-BIDI - SFP+ 10G BIDI Optical Module (TX 1270 nm/RX 1330 nm, 40 km, LC) |
| 0231ABSQ | SFP-XG-LX-SM1270-BIDI - SFP+ 10GBIDIOptical Module(TX1270nm/RX1330nm,10km,LC) |
| 0231ABSR | SFP-XG-LX-SM1330-BIDI - SFP+ 10G BIDI Optical Module (TX 1330 nm/RX 1270 nm, 10 km, LC) |
| 0231ABSS | SFP-XG-LH40-SM1330-BIDI - SFP+ 10G BIDI Optical Module (TX 1330 nm/RX 1270 nm, 40 km, LC) |
| 0231ABST | SFP-XG-LH80-SM1490-BIDI - SFP+ 10GBIDI Optical Module (TX 1490nm/RX 1550nm, 80km, LC) |
| 0231ABSU | SFP-XG-LH80-SM1550-BIDI - SFP+ 10GBIDI Optical Module (TX 1550nm/RX 1490nm, 80km, LC) |
| 0231AEUM | SFP-XG-SX-MM850-S - SFP+ 10G Optical Module(850nm,300m,SX,LC) |
| 0231AEUN | SFP-GE-LX-SM1310-S - SFPGigabit Optical Module(1310nm,10km,LX,LC) |
| 0231AEUP | SFP-GE-SX-MM850-S - SFPGigabit Optical Module(850nm,550m,SX,LC) |
| 0231AEUQ | SFP-XG-LX-SM1310-S - SFP+ 10G Optical Module(1310nm,10km,LX,LC) |
| 0231AH0W | SFP-10GE-T - SFP+ 10GEElectrical Port Module(Cat6a/Cat7,30m,RJ45) |
| SFP Gigabit Port | |
| 0231A089 | SFP-FE-LH40-SM1310 - Optical Module - SFP 100M/155M Single-Mode Module - (1310nm, 40km, LC) |
| 0231A090 | SFP-FE-LH80-SM1550 - Optical Module—SFP 100M/155M Single-Mode Long-Distance Module—(1550 nm, 80 km, LC) |
| 0231A12T | SFP-FE-LX-SM1310-BIDI - SFP Fast Ethernet BIDI Optical Module (TX 1310/RX 1550 nm, 15 km, LC) |
| 0231A12U | SFP-FE-LX-SM1550-BIDI - SFP Fast Ethernet BIDI Optical Module (TX 1550/RX 1310 nm, 15 km, LC) |
| 0231A320 | SFP-FE-SX-MM1310-A - Optical Module—SFP 100M/155M Multimode Module (1310 nm, 2 km, LC) |
| 0231A564 | SFP-FE-LX-SM1310-A - Optical Module—SFP 100M/155M Single-Mode Module (1310 nm, 15 km, LC) |
| 0231A965 | SFP-FE-LX-SM1310-D - Optical Module—SFP 100M/155M Single-Mode Module (1310 nm, 15 km, LC) |
| Fiber Connector | |
| 14130098 | OP-SC/PC-SC/PC-5-S - Fiber Optic Connector - Dual SC/PC - Single-Mode - 5 m |
| 14130126 | OP-SC/PC-SC/PC-15-S - Fiber Optic Connector—Dual SC/PC—Single-Mode—15 m |
| 14130127 | OP-SC/PC-SC/PC-15-M - Fiber Optic Connector - Dual SC/PC - Multimode - 15 m |
| 14130156 | OP-SC/PC-SC/PC-5-M - Fiber Optic Connector - Dual SC/PC - Multimode - 5 m |
| WX/IPS/ACG/VPN/WEBCACHE/URLlicense certificate | |
| 3130A3LL | LIS-MSRA-WEBCACHE - H3C MSR 800/26/LA Series Web Cache Software License Letter |
| 3130A1XU | LIS-MSRB-ACG-1Y - H3C MSR 26/36/56/ICG Series application identificationsignature database update service license certificate,1 year |
| 3130A1XV | LIS-MSRB-ACG-3Y - H3C MSR 26/36/56/ICG Series application identificationsignature database update service license certificate,3 years |
| 3130A1XN | LIS-MSRB-IPS-1Y - H3C MSR 26/36/ICG Series IPS signature database update service license certificate,1 year |
| 3130A1XP | LIS-MSRB-IPS-3Y - H3C MSR 26/36/ICG Series IPS signature database update service license certificate,3 years |
| Serial Cable | |
| 04042967 | CAB-CON-1.8m - Configuration Serial Cable—1.8 m—(DB9 Female to 8-pin Ethernet Port) |
| 0404A1EE | CAB-Console-1.8m-W31R - Configuration Port Cable-1.8m-(RJ45P)-(UL2725(3C28AWG))-(USB AP) |
| Ear Hook | |
| 2150A01A | RTV-FL-A - Installing the Elbow Assembly |
| Product Identity | |
| Brand | H3C |
| Series | H3C MSR26 Series Router |
Reviews
No reviews yet
Be the first to review this enterprise product.
Warranty
Standard Warranty Policy
All hardware sold by ITMall includes our 3-Year Free Maintenance and 1-Year RMA Replacement Service. Please refer to our Warranty Policy for details.
- 1-Year Advance Replacement (RMA)
- 3-Year Free Repair Service
- Full coverage for functionality defects
Hassle-Free RMA Process
We streamlined the return process to minimize your network downtime. Our engineering team provides pre-return diagnostics to ensure hardware is truly defective.
- 30-Day satisfaction guarantee return window
- Automated RMA portal access for instant tracking
- Restocking fee waived for functionality issues
Certified Engineering Support
Our products are backed by CCIE-certified engineers who provide expert guidance on compatibility, configuration, and troubleshooting at no extra cost.
- Free pre-sales topology consultation
- Remote troubleshooting & firmware advice
- Simulation lab testing before dispatch
Global Logistics & Packaging
We ship to 85+ countries using premium anti-static packaging to ensure safety. Orders placed before 14:00 (GMT+8) are typically dispatched the same day.
- Double-walled boxes with customer molded foam
- Blind shipping support for channel partners
- Real-time tracking via FedEx / DHL / UPS
Resources
No downloads available for this product.
FAQ
What is the System Switching Capacity specification for RT-MSR2630E-X1?
RT-MSR2630E-X1 lists System Switching Capacity as 105Gbps. Use this value when checking datasheet requirements, quotation details, and deployment compatibility.
What is the Fixed Ports specification for RT-MSR2630E-X1?
RT-MSR2630E-X1 lists Fixed Ports as WAN:3*10GE(Optical)+2*GE(Combo)LAN:8*GE(Electrical)(4 ports can cut WAN). Use this value when checking datasheet requirements, quotation details, and deployment compatibility.
What is the Dimensions (W×D×H, mm) specification for RT-MSR2630E-X1?
RT-MSR2630E-X1 lists Dimensions (W×D×H, mm) as 360×300×44. Use this value when checking datasheet requirements, quotation details, and deployment compatibility.
What is the SIC Service Slot specification for RT-MSR2630E-X1?
RT-MSR2630E-X1 lists SIC Service Slot as 2. Use this value when checking datasheet requirements, quotation details, and deployment compatibility.
Is this product Brand New?
Yes, unless clearly marked as "Refurbished", all our products are Factory Sealed (Original New) sourced directly from authorized channels.
What is the warranty period?
We provide a comprehensive 3-Year Warranty on this item. This covers hardware defects and includes advanced replacement.
Do you offer volume discounts?
Yes! For bulk orders or project bids, please click "Quote | Help" to get a custom price proposal from our sales team.
How fast can you ship?
In-stock items ordered before 3 PM EST ship the same day. We offer overnight and 2-day shipping options via FedEx/DHL.
Still have questions?
