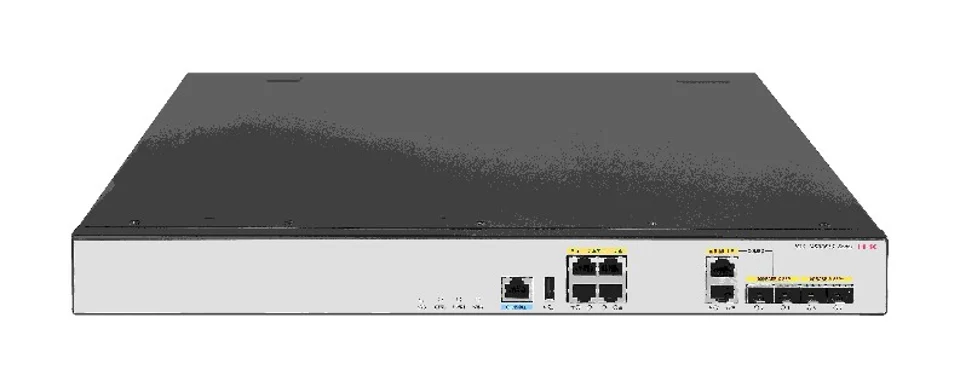

H3C RT-MSR3610-G-X3-DP MSR3610-G-X3 Router Mainframe(2*10GE(SFP+), 2*GE Combo, 4*GE(RJ45), Dual AC power Supply)
Brand H3C
N/AVerified
H3C RT-MSR3610-G-X3-DP
Model (MPN)
0235A4XM
Condition
Factory Sealed
Out of Stock
H3C RT-MSR3610-G-X3-DP MSR3610-G-X3 Router Mainframe(2*10GE(SFP+), 2*GE Combo, 4*GE(RJ45), Dual AC power Supply). System Switching Capacity: 356Gbps. Fixed Interface: 2*10GE(SFP+)+2*GE Combo+4*GE. Memory: 4GB
Key Specifications
DescriptionH3C MSR3610-G-X3 Router Mainframe(2*10GE(SFP+),2*GE Combo,4*GE(RJ45),Dual AC power Supply)
System Switching Capacity356Gbps
Fixed Interface2*10GE(SFP+)+2*GE Combo+4*GE
Dimensions (W×D×H, mm)440×400×43.6
Maximum Power Consumption75W
Power SupplyAC:100V～240VDC:-48～-60V
Your Price
Best Value
$729.96
List Price: $10,428.00Save 93%
Availability Out of Stock
Quantity
Need configuration help?
Our CCIE certified engineers can help you verify compatibility.
Secure Payment
VISA
Pay
WIRE
Fast Dispatch
Global logistics network aiming for same-day handover.
48hrs
Avg. Shipping
99%
On-Time
Guaranteed Quality
Every unit undergoes rigorous 38-point inspection test.
3Year
Warranty
0.1%
RMA Rate
Global Reach
Trusted by enterprise clients across 6 continents.
85+
Countries
20k+
Clients
Expert Support
Certified network engineers ready to assist with configuration.
24/7
Assistance
CCIE
Certified
Overview
Specifications
| Catalog Description | |
|---|---|
| Description | H3C MSR3610-G-X3 Router Mainframe(2*10GE(SFP+),2*GE Combo,4*GE(RJ45),Dual AC power Supply) |
| Key Specifications | |
| System Switching Capacity | 356Gbps |
| Fixed Interface | 2*10GE(SFP+)+2*GE Combo+4*GE |
| Dimensions (W×D×H, mm) | 440×400×43.6 |
| Maximum Power Consumption | 75W |
| Power Supply | AC:100V～240VDC:-48～-60V |
| Ambient temperature | 0～45℃ |
| Product Specifications | |
| Forwarding Performance | 246Mpps |
| System Switching Capacity | 356Gbps |
| Fixed Interface | 2*10GE(SFP+)+2*GE Combo+4*GE |
| SIC Service Slot | 4 |
| Memory | 4GB |
| FLASH | 8GB |
| USB | 1 |
| Console Port | 1 |
| Maximum Power Consumption | 75W |
| Power Supply | AC:100V～240VDC:-48～-60V |
| Redundant power supplies | DP model Supported Fixed redundant power supply DC model Supported fixed DC power supply |
| Device Height | 1 RU |
| Dimensions (W×D×H, mm) | 440×400×43.6 |
| Ambient temperature | 0～45℃ |
| Ambient Relative Humidity | 5 to 95% (no condensation) |
| EMC | FCC Part 15 (CFR 47) CLASS AICES-003 CLASS A VCCI-3 CLASS A VCCI-4 CLASS A CISPR 22 CLASS A EN 55022 CLASS A AS/NZS CISPR22 CLASS A CISPR 24EN 55024EN 61000-3-2EN 61000-3-3EN 61000-6-1ETSI EN 300 386EN 301 489-1EN 301 489-17 |
| Security | UL 60950-1CAN/CSA C22.2 No 60950-1IEC 60950-1EN 60950-1/A11AS/NZS 60950EN 60825-1EN 60825-2FDA 21 CFR Subchapter J GB 4943 |
| Interface Type | Supports FE, GE, 10GE, 25GE Ethernet interfaces; supports 155M POS, 622M POS, 155M CPOS, etc. interfaces Supports E1-F/E1 interfaces Supports AS/ASE (Asynchronous Serial Interface), SAE (Synchronous Serial Interface), etc. interfaces |
| Layer 2 Protocols | Supported Ethernet, Ethernet II, VLAN, 802.3x, 802.1p, 802.1Q, 802.1x, STP (802.1D), RSTP (802.1w), MSTP (802.1s), PPP, PPPoE Client, PPPoE Server, HDLC, FR, DDR, Modem, ISDN, etc. |
| IP Services | Support for TCP, UDP, IP Option, IP Unnumber Support for Policy Routing, Netstream, s Flow, etc Support for ECMP Support for UCMP |
| IP Applications | Support Ping, Trace, ICMP, DHCP Server, DHCP Relay, DHCP Client, DHCP Snooping, DNS client, DNS Proxy, DDNS, UDP Helper, NTP, SNTP, etc. |
| IPv4 Routing | static routingdynamic routing protocols: RIPv1/v2, OSPFv2, BGP, IS-ISroute recursionrouting policymulticast routing protocols: IGMPV1/V2/V3, PIM-DM, PIM-SM, MBGP, MSDP |
| IPv6 | Supports IPv6 ND, IPv6 PMTU, IPv6 FIB, IPv6 ACL, NAT-PT, NAT66, NAT64, IPv6 Tunneling, 6PE, DS-LITE IPv6 Tunneling Technologies: Manual Tunneling, Automated Tunneling, GRE Tunneling, 6to4, ISATAP Static Routing Dynamic Routing Protocols: RIPng, OSPFv3 IS-ISv6, BGP4+IPv6 multicast protocols: MLD V1/V2, PIM-DM, PIM-SM |
| QoS | Supports LR, Port-Based Mirroring, Port Trust Mode, Port Priority, etc. Supports CAR (Committed Access Rate) Supports FIFO, WFQ, CBQ, etc. Supports 5 levels of HQoS Supports GTS (Generic Traffic Shaping) Support Traffic Classification |
| Wireless Controller (AC) | AP management: AP access, AP configuration parameter issuance, AP version upgrade, AP reboot, AP display WLAN access, WLAN user security, WLAN user access authentication, WLAN roaming, etc.; Note: MSR3640-G, MSR3620-G-X3, and MSR3610-G-X3 don't support the built-in AC for now. |
| Voice | Support FXS/FXO/E&M/VE1/VT1, support R2, DSS1, Q.sig, Digital E&M, etc. Support G.711, G.723, G.726, G.729AB, AMR-NB, GSM-FR, iLBC, RT-Audio, etc. Support Rich Voice Services, Voice Backup, DTMF transmission support RFC2833, intelligent dial-up router, 1:1 binding of FXS and FXO, power failure escape, SIP Sever local survival, IVR, etc. |
| 3/4/5G | Supports extended 3/4G and 5G extended access, 5G NR NSA/SA, TDD/FDD LTE, WCDMA/HSPA+ network support |
| Security Features | Supports PORTAL, 802.1x, MAC Authentication Local Authentication, RBAC, Radius, Tacacs+ASPF, ACL, FILTER, Domain Based Firewall, Connection Count Limit, IPSIKE/IPSec VPN, ADVPN, GDVPN, L2TP VPN, GRE VPN (supports GRE over IPSec) NAT/NAPT, PKI, RSA, URPF support DDoS attack prevention, ARP anti-attack, URL filtering support EAD endpoint access defense function support DPI depth message identification, speed limiting and filtering of business flows State Secret SM1/2/3/4 algorithm |
| SDN Features | Supports Netconf, Telemetry Supports VxLAN, EVPN Layer 2 virtual Ethernet links Supports Segment Routing Supports USB flash drives, URLs, DHCP zero-configuration deployments Supports Segment Routing Supports EVPN VPWS, EVPN VPLS features Supports SRv6: OSPFv3 for SRv6 function ISIS for SRv6 function SRv6 Policy function SRv6 Policy diversion function EVPN L3VPN over SRv6 function EVPN L3VPN over SRv6 Policy function SRv6 Policy flow statistics function SRv6 OAM function BFD for SR/SRv6SRv6 TI-LFA supports dynamic downstream EVPN IPv4/IPv6 L3VPN over SRv6-TE policy capability Supports ping and tracert functions for SRv6-TE policy, realizing the basic operation and maintenance capability of the device |
| MPLS | LDP, Static LSPL3VPN: Cross-domain MPLS VPN (Option1/2/3), Nested MPLS VPN, Hierarchical PE (HoPE), CE Dual Attribution, MCE, Multi-Role Hosts, etc. L2VPN: Martini, Kompella, CCC, and SVC mode MPLS TE, RSVP TE |
| Reliability | Supports IRF2 Supports VRRP, VRRPv3 Supports load sharing and backup based on multiple links Supports the linkage function of NQA with routing, VRRP, and interface backup to realize the end-to-end link detection and backup function Supports BFD fast link detection Supports GR Supports iFIT follow-the-flow detection Technical support for RFC2544 Supports safe startup, blocking startup in abnormal scenarios, and guaranteeing startup Integrity. |
| Management and Maintenance | Support SNMP V1/V2c/V3, TR069, SYSLOG, RMON Support Telnet, SSHv1.5/2.0, FTP Support EAA Embedded Automation Architecture Support 1588v2, 1588 ATR/ACR Support Command Line Management, File System Management, Dual ImageNQA Support DHCP, FTP, HTTP, ICMP, UDP public, UDP private, TCP public, TCP private, SNMP and other protocols tested. |
| Ordering Information | |
| SIC module | |
| 0231A2NB | RT-SIC-2SAE - 2-port enhanced synchronous/asynchronous serial InterfaceSIC module |
| Cable | |
| 04043596 | CAB-RS449DCE(DB28) - Synchronous/Asynchronous Serial (SA) RS449 DCE Cable (DB28) |
| 04043595 | CAB-RS449DTE(DB28) - Synchronous/Asynchronous (SA) RS449 DTE Cable (DB28) |
| 04043597 | CAB-RS530DTE(DB28) - Synchronous/Asynchronous (SA) RS530 DTE Cable (DB28) |
| 04043770 | CAB-RS530DCE(DB28) - Synchronous/Asynchronous (SA) RS530 DCE Cable (DB28) |
| 04043589 | CAB-V24DTE(DB28) - Synchronous/Asynchronous (SA) V.24 DTE Cable (DB28) |
| 04043590 | CAB-V24DCE(DB28) - Synchronous/Asynchronous (SA) V.24 DCE Cable (DB28) |
| 04043592 | CAB-V35DCE(DB28) - Synchronous/Asynchronous (SA) V.35 DCE Cable (DB28) |
| 04043591 | CAB-V35DTE(DB28) - Synchronous/Asynchronous (SA) V.35 DTE Cable (DB28) |
| 04043594 | CAB-X.21DCE(DB28) - Synchronous/Asynchronous (SA) X.21 DCE Cable (DB28) |
| 04043593 | CAB-X.21DTE(DB28) - Synchronous/Asynchronous (SA) X.21 DTE Cable (DB28) |
| 0231A2NC | RT-SIC-4SAE - 4-port enhanced synchronous/asynchronous serial InterfaceSIC module |
| 0231A6C5 | RT-SIC-4G-CNDE - 4G LTE(TDD/FDD LTE,TD-SCDMA,WCDMA,EVDO full band,Dual SIM) and State Secret Office encryption (encryption module not included) SIC module |
| Antenna | |
| 9801A0KG | ANT-4G-LTE - 4G-LTE Magnetic Antenna with 5M Extension Cable |
| 9801A0KH | ANT-GPS-P - H3C LA3608E Passive GPS Antenna |
| 9801A19T | ANT-4G-SMA - H3C MSR 4G SMA Antenna |
| Cables | |
| 0404A0MJ | CAB-RF-RG8-10m-SMA - Coaxial cable - 10m - (SMA 50 straight male) - (COAX-RG8 white) - (SMA 50 straight female) |
| 0404A0MH | CAB-RF-RG8-5m-SMA - Coaxial cable - 5m - (SMA 50 straight male) - (COAX-RG8 white) - (SMA 50 straight female) |
| 0231A6C6 | RT-SIC-D4G-CNDE - Dual 4G LTE(TDD/FDD LTE,TD-SCDMA,WCDMA,EVDO full band,Dual SIM) and State Secret Office encryption (encryption module not included) SIC module |
| 0231A835 | RT-SIC-8AS-H3 - 8-port asynchronous serialSICInterface Module |
| 0404A095 | CAB-(SIC-8AS)-0.28m-RJ45 - SIC-8AS Communication Cable—0.28 m—D60 Male—8×CC8C0.32P296U(S)—(8×8-pin Ethernet Port—III)—with RJ45 Female Connector |
| 0231A88Q | RT-SIC-16AS-H3 - 16-port asynchronous serialSICInterface Module |
| 0404A09F | CAB-(SIC-16AS)-0.3m-RJ45 - SIC-16AS Communication Cable - 0.3 m - DB28 Male to 4*RJ45 Sockets |
| 0231AA44 | 0231AA44 - Dual 4G LTE(TDD/FDD LTE,TD-SCDMA,WCDMA,EVDO Full Band,Dual SIM) and State Secret Encryption SIC Module(Support SM1/2/3/4) |
| 0231AA45 | 0231AA45 - 4G LTE(TDD/FDD LTE,TD-SCDMA,WCDMA,EVDO full-band,dual SIM)and Chinese commercial cryptography encryptionSIC module(supports SM1/2/3/4) |
| 0231AA46 | 0231AA46 - Chinese commercial cryptography encryptionSIC module(supports SM1/2/3/4) |
| 0231AE2S | RT-SIC-M2-SATA - M.2 adapter (supports 1 SATA 3.0) SIC module |
| Hard Drive | |
| 0231AE2T | SSD-480G-SATA-M.2 - 480GB SATA M.2 SSDHard Drive Module |
| 0231AEST | RT-SIC-5G - 5G NR (NSA/SA/4G FDD/TDD LTE-A/3G WCDMA,Sub6,GNSS) SIC module |
| 2701A02J | ANT-5G-NR - 5G NR Rod Antenna - SMA Interface |
| Cable Optional Configuration Scheme | |
| 0150A2H3 | CAB-RF-10m-SMA-B - 10m Antenna Extension Cable - Wall Mounting Bracket - SMA Interface |
| 0150A2H2 | CAB-RF-10m-SMA-M - 10m Antenna Extension Cable - Magnetic Base - SMA Interface |
| 0150A2H4 | CAB-RF-15m-SMA-B - 15m Antenna Extension Cable - Wall Mounting Bracket - SMA Interface |
| 0150A2H7 | CAB-RF-15m-SMA-M - 15m Antenna Extension Cable - Magnetic Base - SMA Interface |
| 2706A00A | CAB-C5060-510008-A - 4*1m Extension Cable - Magnetic Base - SMA Interface |
| 2706A009 | CAB-ACA-3000-6G0R6-A1 - 5G NR Antenna 3m Extension Cable - Magnetic Base - SMA Interface |
| 0150A2H6 | CAB-RF-5m-SMA-B - 5m Antenna Extension Cable - Wall Mounting Bracket - SMA Interface |
| 0150A2H5 | CAB-RF-5m-SMA-M - 5m Antenna Extension Cable - Magnetic Base - SMA Interface |
| 0404A1R7 | CAB-RF-10m-60071 - RF cable-10m-50 Ohm-(SMA 50 Ohm straight female)-(1-3S)-(SMA 50 Ohm straight male) |
| 0404A1R8 | CAB-RF-15m-60072 - RF cable-15m-50 Ohm-(SMA 50 Ohm straight female)-(1-3S)-(SMA 50 Ohm straight male) |
| 0404A1R6 | CAB-RF-20m-60073 - RF cable-20m-50 Ohm-(SMA 50 Ohm straight female)-(1-3S)-(SMA 50 Ohm straight male) |
| 0231AKG4 | RT-SIC-5G-CN - 5G NR Domestic Version (NSA/SA/4G FDD/TDD LTE-A/3G WCDMA, Sub6) SIC Module |
| 2701A02R | ANT-C5060-510007-A - 5G NR Rod Antenna - SMA Interface |
| 10-cm extension cord | |
| 0404A1Y3 | CAB-RF-0.1m-60103 - Radio frequency cable - 0.1m - 50 ohm - (SMA 50 ohm straight male) - (RG174(2.9) 50 ohm black) - (SMA 50 ohm straight female) |
| 0231ANGL | RT-SIC-4GSW-G - 4-Port100/1000BASE-T-RJ45 L2/L3InterfaceSIC module |
| 0231ANJC | RT-SIC-2E1-G - 2-Port Partial Channelized E1 (E1-F) RJ45 or Channelized E1 (CE1/PRI) RJ45 Interface SIC Module |
| E1Cable | |
| 0404A0KN | CAB-E1-75ohm-3m-RJ45-2*BNC - E1Cable-3m-(RJ45P-8P8CS+CORE(F5B-RH14.2*28.5*8))-(SFTP-CAT5E24(4P)P430U+2*(COAX-SYFVZ75-1-1))-(2*BNC75SM) |
| 0404A076 | CAB-E1-120ohm-15m-RJ45 - E1 Trunk Cable - 15 m - (RJ45P-8P8CS) - (120CC4P0.5P430U(S)) - (RJ45P-8P8CS) - 120 ohms |
| 0404A09E | CAB-E1-120ohm-2m-RJ45 - E1 trunk cable - 2.00 m - (RJ45P-8P8CS) - (120CC4P0.5P430U(S)) - (RJ45P-8P8CS) - 120 ohms |
| 0404A077 | CAB-E1-120ohm-30m-RJ45 - E1 trunk cable - 30 m - (RJ45P-8P8CS) - (120CC4P0.5P430U(S)) - (RJ45P-8P8CS) - 120 ohms |
| 0404A078 | CAB-E1-10m-BNC - Single Cable—E1 Trunk Cable—75 ohms—10 m—(BNC to BNC) |
| 0404A079 | CAB-E1-15m-BNC - Single Cable—E1 Trunk Cable—75 ohms—15 m—(BNC to BNC) |
| 0404A080 | CAB-E1-20m-BNC - Single Cable - E1 Trunk Cable - 75 Ohm - 20 m - (BNC to BNC) |
| Extension | |
| 04026813 | CAB-E1/75-120 Convert - E1 Cable 120 Ohm to 75 Ohm Adapter Box |
| 14040202 | CAB-BNC-75 - Coaxial Connector - BNC - 75Ω - Straight/Socket - Dual Female - Connects to E1 Cable BNC Male Plug |
| 0231ANWQ | RT-SIC-4GSWF-G - 4-Port100/1000BASE-X-SFP L2/L3InterfaceSIC module |
| Fast Ethernet Optical Module | |
| 0231A089 | SFP-FE-LH40-SM1310 - Optical Module - SFP 100M/155M Single-Mode Module - (1310nm, 40km, LC) |
| 0231A12T | SFP-FE-LX-SM1310-BIDI - SFP Fast Ethernet BIDI Optical Module (TX 1310/RX 1550 nm, 15 km, LC) |
| 0231A12U | SFP-FE-LX-SM1550-BIDI - SFP Fast Ethernet BIDI Optical Module (TX 1550/RX 1310 nm, 15 km, LC) |
| 0231A320 | SFP-FE-SX-MM1310-A - Optical Module—SFP 100M/155M Multimode Module (1310 nm, 2 km, LC) |
| 0231A564 | SFP-FE-LX-SM1310-A - Optical Module—SFP 100M/155M Single-Mode Module (1310 nm, 15 km, LC) |
| 0231A965 | SFP-FE-LX-SM1310-D - Optical Module—SFP 100M/155M Single-Mode Module (1310 nm, 15 km, LC) |
| Gigabit Optical Module | |
| 02312170 | SFP-GE-LH40-SM1310 - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 40 km, LC) |
| 02312172 | SFP-GE-LH40-SM1550 - Optical Module—SFP—GE—Single-Mode Module—(1550 nm, 40 km, LC) |
| 02312173 | SFP-GE-LH80-SM1550 - Optical Module - SFP-GE - Single-Mode Module - (1550 nm, 80 km, LC) |
| 0231A085 | SFP-GE-T - SFP GEElectrical Port Module(100m,RJ45) |
| 0231A0BY | SFP-GE-LX10-SM1310 - SFP GEOptical Module-(-40°C~85°C,1310nm,10km,LX,SM,LC) |
| 0231A11U | SFP-GE-LX-SM1310-BIDI - Optical Module - SFP Gigabit BIDI Optical Module - TX 1310/RX 1490, 10 km, LC |
| 0231A11V | SFP-GE-LX-SM1490-BIDI - Optical Module - SFP Gigabit BIDI Optical Module - TX 1490/RX 1310, 10 km, LC |
| 0231A2UL | SFP-GE-LH70-SM1490-BIDI - SFPGigabitBIDI Optical Module (TX 1490/RX 1550 nm, 70 km, LC) |
| 0231A2UM | SFP-GE-LH70-SM1550-BIDI - SFPGigabitBIDI Optical Module (TX 1550/RX 1490 nm, 70 km, LC) |
| 0231A2UN | SFP-GE-LH40-SM1310-BIDI - SFP Gigabit BIDI Optical Module (TX 1310/RX 1550 nm, 40 km, LC) |
| 0231A2UP | SFP-GE-LH40-SM1550-BIDI - SFPGigabitBIDI Optical Module (TX 1550/RX 1310 nm, 40 km, LC) |
| 0231A562 | SFP-GE-SX-MM850-A - Optical Module - SFP-GE - Multimode Module (850 nm, 0.55 km, LC) |
| 0231A563 | SFP-GE-LX-SM1310-A - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 10 km, LC) |
| 0231A960 | SFP-GE-T-D - SFP GEElectrical Port Module(100m,RJ45) |
| 0231A961 | SFP-GE-SX-MM850-D - Optical Module - SFP-GE - Multimode Module (850 nm, 0.55 km, LC) |
| 0231A962 | SFP-GE-LX-SM1310-D - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 10 km, LC) |
| 0231A963 | SFP-GE-LH40-SM1310-D - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 40 km, LC) |
| 0231A964 | SFP-GE-LH80-SM1550-D - Optical Module - SFP-GE - Single-Mode Module - (1550 nm, 80 km, LC) |
| 0231ADWE | SFP-GE-LH40-SM1310-I - SFPGigabit Optical Module(-40℃～85℃,1310nm,40km,LC) |
| 0231ADWF | SFP-GE-LH20-SM1310-I - SFPGigabit Optical Module(-40℃~85℃,1310nm,20km,LC) |
| 0231AEUN | SFP-GE-LX-SM1310-S - SFPGigabit Optical Module(1310nm,10km,LX,LC) |
| 0231AEUP | SFP-GE-SX-MM850-S - SFPGigabit Optical Module(850nm,550m,SX,LC) |
| 0231AH26 | SFP-GE-LX-SM1310-BIDI-I - Optical Module-SFPGigabitBIDI Optical Module(-40℃~85℃,TX1310/RX1490,10km,LC) |
| 0231AH28 | SFP-GE-LX-SM1490-BIDI-I - Optical Module-SFPGigabitBIDI Optical Module(-40℃~85℃,TX1490/RX1310,10km,LC) |
| SFP+ 10G Port | |
| 0231ABSQ | SFP-XG-LX-SM1270-BIDI - SFP+ 10GBIDIOptical Module(TX1270nm/RX1330nm,10km,LC) |
| 0231ABSP | SFP-XG-LH40-SM1270-BIDI - SFP+ 10G BIDI Optical Module (TX 1270 nm/RX 1330 nm, 40 km, LC) |
| 0231ABSR | SFP-XG-LX-SM1330-BIDI - SFP+ 10G BIDI Optical Module (TX 1330 nm/RX 1270 nm, 10 km, LC) |
| 0231ABSS | SFP-XG-LH40-SM1330-BIDI - SFP+ 10G BIDI Optical Module (TX 1330 nm/RX 1270 nm, 40 km, LC) |
| 0231ABST | SFP-XG-LH80-SM1490-BIDI - SFP+ 10GBIDI Optical Module (TX 1490nm/RX 1550nm, 80km, LC) |
| 0231ABSU | SFP-XG-LH80-SM1550-BIDI - SFP+ 10GBIDI Optical Module (TX 1550nm/RX 1490nm, 80km, LC) |
| 0231AEUQ | SFP-XG-LX-SM1310-S - SFP+ 10G Optical Module(1310nm,10km,LX,LC) |
| 0231AEUM | SFP-XG-SX-MM850-S - SFP+ 10G Optical Module(850nm,300m,SX,LC) |
| 0231A1RQ | SFP-XG-LX-SM1310-D - SFP+ 10GModule(1310nm,10km,LC) |
| 0231A2L3 | SFP-XG-LX-SM1310-E - SFP+ 10GModule(1310nm,10km,LC) |
| 0231A0SP | SFP-XG-LH40-SM1550 - SFP+ 10GModule(1550nm,40km,LC) |
| 0231A1RR | SFP-XG-LH40-SM1550-D - SFP+ 10GModule(1550nm,40km,LC) |
| 0231A1PA | SFP-XG-LH80-SM1550 - SFP+ 10GModule(1550nm,80km,LC) |
| 0231A2T6 | SFP-XG-LH80-SM1550-D - SFP+ 10GModule(1550nm,80km,LC) |
| 0231A1RP | SFP-XG-SX-MM850-D - SFP+ 10GModule(850nm,300m,LC) |
| 0231A2L4 | SFP-XG-SX-MM850-E - SFP+ 10GModule(850nm,300m,LC) |
| 0231A0AL | LSWM2STK - SFP+Cable1.2m |
| SFP Gigabit Port | |
| Fiber Connector | |
| 14130098 | OP-SC/PC-SC/PC-5-S - Fiber Optic Connector - Dual SC/PC - Single-Mode - 5 m |
| 14130126 | OP-SC/PC-SC/PC-15-S - Fiber Optic Connector—Dual SC/PC—Single-Mode—15 m |
| 14130127 | OP-SC/PC-SC/PC-15-M - Fiber Optic Connector - Dual SC/PC - Multimode - 15 m |
| 14130156 | OP-SC/PC-SC/PC-5-M - Fiber Optic Connector - Dual SC/PC - Multimode - 5 m |
| WX/IPS/ACG/VPN/WEBCACHE/URLlicense certificate | |
| 3130A3LM | LIS-MSRB-WEBCACHE - H3C MSR 36/56 Series Web Cache Software License Agreement |
| 3130A1XU | LIS-MSRB-ACG-1Y - H3C MSR 26/36/56/ICG Series application identificationsignature database update service license certificate,1 year |
| 3130A1XV | LIS-MSRB-ACG-3Y - H3C MSR 26/36/56/ICG Series application identificationsignature database update service license certificate,3 years |
| 3130A1XN | LIS-MSRB-IPS-1Y - H3C MSR 26/36/ICG Series IPS signature database update service license certificate,1 year |
| 3130A1XP | LIS-MSRB-IPS-3Y - H3C MSR 26/36/ICG Series IPS signature database update service license certificate,3 years |
| Serial Cable | |
| 04042967 | CAB-CON-1.8m - Configuration Serial Cable—1.8 m—(DB9 Female to 8-pin Ethernet Port) |
| 0404A1EE | CAB-Console-1.8m-W31R - Configuration Port Cable-1.8m-(RJ45P)-(UL2725(3C28AWG))-(USB AP) |
| Product Identity | |
| Brand | H3C |
| Series | H3C MSR36 Autonomous Controllable Router |
Reviews
No reviews yet
Be the first to review this enterprise product.
Warranty
Standard Warranty Policy
All hardware sold by ITMall includes our 3-Year Free Maintenance and 1-Year RMA Replacement Service. Please refer to our Warranty Policy for details.
- 1-Year Advance Replacement (RMA)
- 3-Year Free Repair Service
- Full coverage for functionality defects
Hassle-Free RMA Process
We streamlined the return process to minimize your network downtime. Our engineering team provides pre-return diagnostics to ensure hardware is truly defective.
- 30-Day satisfaction guarantee return window
- Automated RMA portal access for instant tracking
- Restocking fee waived for functionality issues
Certified Engineering Support
Our products are backed by CCIE-certified engineers who provide expert guidance on compatibility, configuration, and troubleshooting at no extra cost.
- Free pre-sales topology consultation
- Remote troubleshooting & firmware advice
- Simulation lab testing before dispatch
Global Logistics & Packaging
We ship to 85+ countries using premium anti-static packaging to ensure safety. Orders placed before 14:00 (GMT+8) are typically dispatched the same day.
- Double-walled boxes with customer molded foam
- Blind shipping support for channel partners
- Real-time tracking via FedEx / DHL / UPS
Resources
No downloads available for this product.
FAQ
What is the System Switching Capacity specification for RT-MSR3610-G-X3-DP?
RT-MSR3610-G-X3-DP lists System Switching Capacity as 356Gbps. Use this value when checking datasheet requirements, quotation details, and deployment compatibility.
What is the Console Port specification for RT-MSR3610-G-X3-DP?
RT-MSR3610-G-X3-DP lists Console Port as 1. Use this value when checking datasheet requirements, quotation details, and deployment compatibility.
What is the Dimensions (W×D×H, mm) specification for RT-MSR3610-G-X3-DP?
RT-MSR3610-G-X3-DP lists Dimensions (W×D×H, mm) as 440×400×43.6. Use this value when checking datasheet requirements, quotation details, and deployment compatibility.
What is the SIC Service Slot specification for RT-MSR3610-G-X3-DP?
RT-MSR3610-G-X3-DP lists SIC Service Slot as 4. Use this value when checking datasheet requirements, quotation details, and deployment compatibility.
Is this product Brand New?
Yes, unless clearly marked as "Refurbished", all our products are Factory Sealed (Original New) sourced directly from authorized channels.
What is the warranty period?
We provide a comprehensive 3-Year Warranty on this item. This covers hardware defects and includes advanced replacement.
Do you offer volume discounts?
Yes! For bulk orders or project bids, please click "Quote | Help" to get a custom price proposal from our sales team.
How fast can you ship?
In-stock items ordered before 3 PM EST ship the same day. We offer overnight and 2-day shipping options via FedEx/DHL.
Still have questions?
