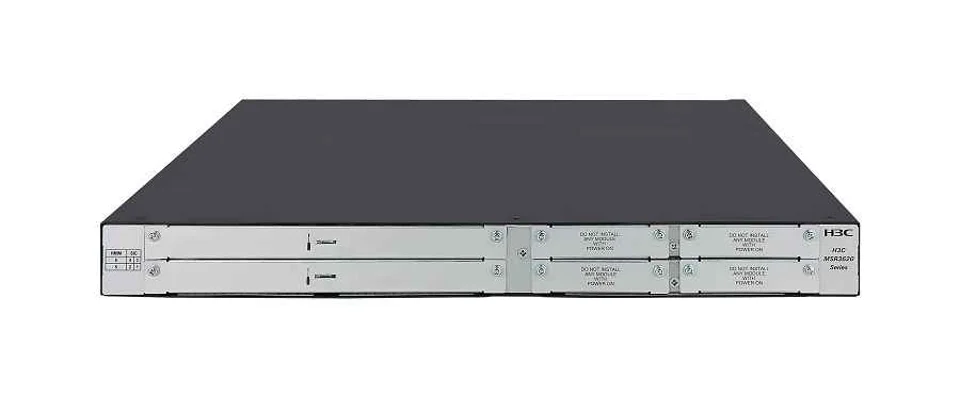

H3C RT-MSR3620-DP-WiNet MSR3620 Wi Net Smart Network Gigabit Integrated Service Gateway (4GE Combo+2SFP, supports dual power supply, 1U)
Brand H3C
N/AVerified
H3C RT-MSR3620-DP-WiNet
Model (MPN)
0235A2C8
Condition
Factory Sealed
Out of Stock
H3C RT-MSR3620-DP-WiNet MSR3620 Wi Net Smart Network Gigabit Integrated Service Gateway (4GE Combo+2SFP, supports dual power supply, 1U). Fixed WAN port: 4GE Combo + 2GE Optical. Dimensions (W×D×H, mm): 440*470*44.2mm. SIC Slot: 4
Key Specifications
DescriptionH3C MSR3620 Wi Net Smart Network Gigabit Integrated Service Gateway (4GE Combo+2SFP, supports dual power supply, 1U)
Dimensions (W×D×H, mm)440*470*44.2mm
Power SupplyAC100V a.c.～240V a.c.；50Hz/60Hz
Ambient temperature0～45℃
Ambient Relative Humidity5 to 95% (no condensation)
Firewall Performance6Gbps
Your Price
Call for Pricing
Volume discounts available
Availability Out of Stock
Need configuration help?
Our CCIE certified engineers can help you verify compatibility.
Secure Payment
VISA
Pay
WIRE
Fast Dispatch
Global logistics network aiming for same-day handover.
48hrs
Avg. Shipping
99%
On-Time
Guaranteed Quality
Every unit undergoes rigorous 38-point inspection test.
3Year
Warranty
0.1%
RMA Rate
Global Reach
Trusted by enterprise clients across 6 continents.
85+
Countries
20k+
Clients
Expert Support
Certified network engineers ready to assist with configuration.
24/7
Assistance
CCIE
Certified
Overview
Specifications
| Catalog Description | |
|---|---|
| Description | H3C MSR3620 Wi Net Smart Network Gigabit Integrated Service Gateway (4GE Combo+2SFP, supports dual power supply, 1U) |
| Key Specifications | |
| Dimensions (W×D×H, mm) | 440*470*44.2mm |
| Power Supply | AC100V a.c.～240V a.c.；50Hz/60Hz |
| Ambient temperature | 0～45℃ |
| Ambient Relative Humidity | 5 to 95% (no condensation) |
| Firewall Performance | 6Gbps |
| Encryption Performance | 4Gbps |
| Product Specifications | |
| Firewall Performance | 6Gbps |
| Encryption Performance | 4Gbps |
| NAT Sessions | 500,000 |
| Endpoint Capacity | 800 |
| USB2.0 | 1, support 3/4G Modem expansion |
| CON | 1 |
| Fixed WAN port | 4GE Combo + 2GE Optical |
| SIC Slot | 4 |
| HMIM slot | 2 |
| Maximum Supported Power | 150W |
| Power Supply | AC100V a.c.～240V a.c.；50Hz/60Hz |
| Redundant power supplies | Supports |
| Rack Height (U) | 1 rack height (1RU) |
| Dimensions (W×D×H, mm) | 440*470*44.2mm |
| Ambient temperature | 0～45℃ |
| Ambient Relative Humidity | 5 to 95% (no condensation) |
| Layer 2 Protocols | Supports Ethernet, Ethernet II, VLAN (VLAN-BASED PORT VLAN, VOICE VLAN, Guest VLAN), 802.3x, 802.1p, 802.1Q, 802.1x, STP(802.1D), RSTP(802.1w), MSTP(802.1 s), PPP, PPPOE Client, PPPOE Server, HDLC, DDR, Modem, ISDN, etc. |
| IP Services | Support Unicast Forwarding/Multicast Forwarding, TCP, UDP, IP Option, IP Unnumber, Policy Routing, Netstream, s Flow, etc Support ECMP Support UCMP |
| IP Applications | Support Ping, Trace, ICMP, DHCP Server, DHCP Relay, DHCP Client, DHCP Snooping, DNS client, DNS Proxy, DDNS, IP Accounting, UDP Helper, NTP, SNTP, and so on. |
| IPv4 Routing | Static routing Dynamic routing protocols: RIPv1/v2, OSPFv2, BGP, IS-IS routes Iterative routing policies ECMP (Equivalent Multipath) Multicast routing protocols: IGMPV1/V2/V3, PIM-DM, PIM-SM, MBGP, MSDP |
| IPv6 | Support Ipv6 ND, Ipv6 PMTU, Ipv6 FIB, Ipv6 ACL, NAT-PT, Ipv6 Tunneling, 6PE, DS-LITE; IPv6 Tunneling Technologies: Manual Tunneling, Auto Tunneling, GRE Tunneling, 6to4, ISATAP Static Routing Dynamic Routing Protocols: RIPng, OSPFv3, IS-ISv6. BGP4+ IPv6 multicast protocols: MLD V1/V2, PIM-DM, PIM-SM |
| QoS | Support LR, Port-Based Mirroring, Port Trust Mode, Port Priority, etc. Support CAR (Committed Access Rate) Support FIFO, WFQ, CBQ, etc. Support GTS (Generic Traffic Shaping) Support Traffic Classification |
| Voice | Support FXS/FXO/E&M/E1/T1, support R2, DSS1, Q.sig, Digital E&M, etc. Support G.711, G.723, G.726, G.729AB, AMR-NB, GSM-FR, iLBC, RT-Audio, etc. Support Rich Voice Services, Voice Backup, DTMF transmission support RFC2833, intelligent dial-up router, 1:1 binding of FXS and FXO, power failure escape, SIP Sever local survival, IVR, etc. |
| 3/4G | Supports 3G and 4G LTE plug-in cards, TDD/FDD LTE networks, TD-SCDMA, CDMA2000/EVDO, WCDMA/HSPA+ networks; USB 3/4G LTE Modem; |
| Security Features | PPPOE Client&Server, PORTAL, 802.1x Local Authentication, RBAC, Radius, TacacsASPF, ACL, FILTER, Connection Count Limit IKE, IPSecADVPNL2TP, NAT/NAPT, PKI, RSA, SSH v1.5/2.0. URPF, GRE support ARP anti-attack support EAD endpoint access defense function EVI |
| MPLS | Protocols: LDP, Static LSPL3VPN: Cross-domain MPLS VPN (Option1/2/3), Nested MPLS VPN, Hierarchical PE (HoPE), CE Dual Attribution, MCE, Multi-Role Hosts, etc. L2VPN: Martini, Kompella, CCC, and SVC mode MPLS TE, RSVP TE |
| Reliability | Supports VRRP, VRRPv3 Supports bandwidth-based load sharing and backup Supports user (IP address)-based load sharing and backup Supports the linkage function of NQA with routing, VRRP, and interface backup to realize end-to-end link detection and backup function |
| Management and Maintenance | Support SNMP V1/V2c/V3, MIB, SYSLOG, RMON Support BiMS remote management solution, support U disk opening Support command line management, file system management, Dual Image Support DHCP, FTP,HTTP,ICMP,UDP public, UDP private, TCP public, TCP Dual Image supports DHCP, FTP, HTTP, ICMP, UDP public, UDP private, TCP public, TCP private, SNMP and other protocols test support console port login, support telnet (VTY) login, support SSH login, support FTP login. |
| Ordering Information | |
| SIC module | |
| 0231A0FG | 0231A0FG - H3C MSR36Winet Router Series |
| Antenna | |
| 2701A00P | ANT-SL15346E - Omnidirectional Antenna - 806–960 MHz/1710–2500 MHz - 3 d Bi - Vertical Polarization - 50 W - TNC (Male) - No Mount - Ceiling-Mounted Antenna |
| 2701A00Q | ANT-SL15209B - Omnidirectional Antenna - 824–965 MHz/1710–2170 MHz - 3 d Bi - Vertical Polarization - 50 W - TNC (Male) - Magnetic Mount - Mobile Device Antenna - 3-meter Extension Cable |
| RFCable | |
| 0404A0AL | CAB-RF-15m-(TNC-50ohm) - RF Cable - 15.0 m - TNC50 Straight Male - (SFF-50-3-1 Coax) - TNC50 Straight Female |
| 0404A0A9 | CAB-RF-6m-(TNC-50ohm) - RF Cable - 6.0 m - TNC50 Straight Male - (SFF-50-3-1 Coax) - TNC50 Straight Female |
| 0231A1GV | 0231A1GV - H3C MSR36Winet Router Series |
| 0231A2LA | 0231A2LA - Chinese commercial cryptography encryptionSIC module(supports SM1/2/3/4) |
| 0231A2MN | RT-SIC-1GEC-V2 - 1-Port1000BASE-T(RJ45)+1-Port1000BASE-X(SFP,Combo)EthernetSIC module |
| Fast Ethernet Optical Module | |
| 0231A089 | SFP-FE-LH40-SM1310 - Optical Module - SFP 100M/155M Single-Mode Module - (1310nm, 40km, LC) |
| 0231A090 | SFP-FE-LH80-SM1550 - Optical Module—SFP 100M/155M Single-Mode Long-Distance Module—(1550 nm, 80 km, LC) |
| 0231A12T | SFP-FE-LX-SM1310-BIDI - SFP Fast Ethernet BIDI Optical Module (TX 1310/RX 1550 nm, 15 km, LC) |
| 0231A12U | SFP-FE-LX-SM1550-BIDI - SFP Fast Ethernet BIDI Optical Module (TX 1550/RX 1310 nm, 15 km, LC) |
| 0231A320 | SFP-FE-SX-MM1310-A - Optical Module—SFP 100M/155M Multimode Module (1310 nm, 2 km, LC) |
| 0231A564 | SFP-FE-LX-SM1310-A - Optical Module—SFP 100M/155M Single-Mode Module (1310 nm, 15 km, LC) |
| 0231A965 | SFP-FE-LX-SM1310-D - Optical Module—SFP 100M/155M Single-Mode Module (1310 nm, 15 km, LC) |
| Gigabit Optical Module | |
| 02312170 | SFP-GE-LH40-SM1310 - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 40 km, LC) |
| 02312172 | SFP-GE-LH40-SM1550 - Optical Module—SFP—GE—Single-Mode Module—(1550 nm, 40 km, LC) |
| 02312173 | SFP-GE-LH80-SM1550 - Optical Module - SFP-GE - Single-Mode Module - (1550 nm, 80 km, LC) |
| 0231A085 | SFP-GE-T - SFP GEElectrical Port Module(100m,RJ45) |
| 0231A0BY | SFP-GE-LX10-SM1310 - SFP GEOptical Module-(-40°C~85°C,1310nm,10km,LX,SM,LC) |
| 0231A11U | SFP-GE-LX-SM1310-BIDI - Optical Module - SFP Gigabit BIDI Optical Module - TX 1310/RX 1490, 10 km, LC |
| 0231A11V | SFP-GE-LX-SM1490-BIDI - Optical Module - SFP Gigabit BIDI Optical Module - TX 1490/RX 1310, 10 km, LC |
| 0231A2UL | SFP-GE-LH70-SM1490-BIDI - SFPGigabitBIDI Optical Module (TX 1490/RX 1550 nm, 70 km, LC) |
| 0231A2UM | SFP-GE-LH70-SM1550-BIDI - SFPGigabitBIDI Optical Module (TX 1550/RX 1490 nm, 70 km, LC) |
| 0231A2UN | SFP-GE-LH40-SM1310-BIDI - SFP Gigabit BIDI Optical Module (TX 1310/RX 1550 nm, 40 km, LC) |
| 0231A2UP | SFP-GE-LH40-SM1550-BIDI - SFPGigabitBIDI Optical Module (TX 1550/RX 1310 nm, 40 km, LC) |
| 0231A54T | SFP-STACK-Kit - SFP Stacking Cable—(150 cm, includes stacking module) |
| 0231A562 | SFP-GE-SX-MM850-A - Optical Module - SFP-GE - Multimode Module (850 nm, 0.55 km, LC) |
| 0231A563 | SFP-GE-LX-SM1310-A - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 10 km, LC) |
| 0231A960 | SFP-GE-T-D - SFP GEElectrical Port Module(100m,RJ45) |
| 0231A961 | SFP-GE-SX-MM850-D - Optical Module - SFP-GE - Multimode Module (850 nm, 0.55 km, LC) |
| 0231A962 | SFP-GE-LX-SM1310-D - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 10 km, LC) |
| 0231A963 | SFP-GE-LH40-SM1310-D - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 40 km, LC) |
| 0231A964 | SFP-GE-LH80-SM1550-D - Optical Module - SFP-GE - Single-Mode Module - (1550 nm, 80 km, LC) |
| 0231AEUN | SFP-GE-LX-SM1310-S - SFPGigabit Optical Module(1310nm,10km,LX,LC) |
| 0231AEUP | SFP-GE-SX-MM850-S - SFPGigabit Optical Module(850nm,550m,SX,LC) |
| 0231A2MQ | RT-SIC-4GSW - 4-Port10/100/1000BASE-TEthernet Layer 2 switching electrical interfaceSIC module |
| 0231A2NB | RT-SIC-2SAE - 2-port enhanced synchronous/asynchronous serial InterfaceSIC module |
| Cable | |
| 04043596 | CAB-RS449DCE(DB28) - Synchronous/Asynchronous Serial (SA) RS449 DCE Cable (DB28) |
| 04043595 | CAB-RS449DTE(DB28) - Synchronous/Asynchronous (SA) RS449 DTE Cable (DB28) |
| 04043597 | CAB-RS530DTE(DB28) - Synchronous/Asynchronous (SA) RS530 DTE Cable (DB28) |
| 04043770 | CAB-RS530DCE(DB28) - Synchronous/Asynchronous (SA) RS530 DCE Cable (DB28) |
| 04043589 | CAB-V24DTE(DB28) - Synchronous/Asynchronous (SA) V.24 DTE Cable (DB28) |
| 04043590 | CAB-V24DCE(DB28) - Synchronous/Asynchronous (SA) V.24 DCE Cable (DB28) |
| 04043592 | CAB-V35DCE(DB28) - Synchronous/Asynchronous (SA) V.35 DCE Cable (DB28) |
| 04043591 | CAB-V35DTE(DB28) - Synchronous/Asynchronous (SA) V.35 DTE Cable (DB28) |
| 04043594 | CAB-X.21DCE(DB28) - Synchronous/Asynchronous (SA) X.21 DCE Cable (DB28) |
| 04043593 | CAB-X.21DTE(DB28) - Synchronous/Asynchronous (SA) X.21 DTE Cable (DB28) |
| 0231A2NC | RT-SIC-4SAE - 4-port enhanced synchronous/asynchronous serial InterfaceSIC module |
| 0231A2T2 | RT-SIC-4G-LTE-M - 4G LTE(TDD/FDD LTE,TD-SCDMA,WCDMA,EVDO full-band)SIC module |
| 0231A3FG | RT-SIC-4GSWF - 4-port Fast/Gigabit Ethernetoptical L2/L3 SIC module |
| 0231A56N | RT-SIC-1SAE-H3 - 1-port enhanced synchronous/asynchronous serial Interface Module |
| 0231A56P | 0231A56P - H3C MSR36Winet Router Series |
| 0231A56R | RT-SIC-2FXS-V2-H3 - 2-Port Voice Modulesubscriber circuit Interface Card |
| 0231A61N | 0231A61N - H3C MSR36Winet Router Series |
| 0231A61P | 0231A61P - H3C MSR36Winet Router Series |
| 0231A61Q | 0231A61Q - H3C MSR36Winet Router Series |
| E1Cable | |
| 04040150 | CAB-E1-120ohm-20m-RJ45 - E1 Interface Cable/1*RJ45 (120 ohms) – 20 m |
| 04026104 | CAB-E1-120ohm-3m-RJ45 - E1 Interface Cable/1*RJ45 (120 ohms) – 3 m |
| 04040151 | CAB-E1-120ohm-40m-RJ45 - E1 Interface Cable/1*RJ45 (120 ohms) – 40 m |
| 04040148 | 04040148 - 1 E1 voice SIC interface module |
| 04026106 | CAB-E1/2*BNC-75-3m - E1 Interface Cable/2*BNC (75 ohms) - 3 m |
| 04040149 | CAB-E1/2*BNC-75-40m - E1 Interface Cable/2*BNC (75 ohms) – 40m |
| E1 Connector | |
| 14040202 | CAB-BNC-75 - Coaxial Connector - BNC - 75Ω - Straight/Socket - Dual Female - Connects to E1 Cable BNC Male Plug |
| 0231A6C5 | RT-SIC-4G-CNDE - 4G LTE(TDD/FDD LTE,TD-SCDMA,WCDMA,EVDO full band,Dual SIM) and State Secret Office encryption (encryption module not included) SIC module |
| 9801A0KG | ANT-4G-LTE - 4G-LTE Magnetic Antenna with 5M Extension Cable |
| 9801A0KH | ANT-GPS-P - H3C LA3608E Passive GPS Antenna |
| 9801A19T | ANT-4G-SMA - H3C MSR 4G SMA Antenna |
| Cables | |
| 0404A0MJ | CAB-RF-RG8-10m-SMA - Coaxial cable - 10m - (SMA 50 straight male) - (COAX-RG8 white) - (SMA 50 straight female) |
| 0404A0MH | CAB-RF-RG8-5m-SMA - Coaxial cable - 5m - (SMA 50 straight male) - (COAX-RG8 white) - (SMA 50 straight female) |
| 0231A6C6 | RT-SIC-D4G-CNDE - Dual 4G LTE(TDD/FDD LTE,TD-SCDMA,WCDMA,EVDO full band,Dual SIM) and State Secret Office encryption (encryption module not included) SIC module |
| 0231A835 | RT-SIC-8AS-H3 - 8-port asynchronous serialSICInterface Module |
| 0404A095 | CAB-(SIC-8AS)-0.28m-RJ45 - SIC-8AS Communication Cable—0.28 m—D60 Male—8×CC8C0.32P296U(S)—(8×8-pin Ethernet Port—III)—with RJ45 Female Connector |
| 0231A86Y | RT-SIC-2FXS1FXO-H3 - 2FXS+1FXOVoiceSICInterface Module |
| 0231A88Q | RT-SIC-16AS-H3 - 16-port asynchronous serialSICInterface Module |
| 0404A09F | CAB-(SIC-16AS)-0.3m-RJ45 - SIC-16AS Communication Cable - 0.3 m - DB28 Male to 4*RJ45 Sockets |
| HMIM module | |
| 0231A1V9 | RT-HMIM-2GEE - 2-port Gigabit Ethernet electrical interfaceHMIM module |
| 0231A1VA | RT-HMIM-4GEE - 4-port Gigabit Ethernet electrical interfaceHMIM module |
| 0231A1VB | RT-HMIM-8GEE - 8-port Gigabit Ethernet electrical interfaceHMIM module |
| 0231A1VC | RT-HMIM-2GEF - 2-Port Gigabit Ethernet Optical InterfaceHMIM module |
| 0231A1VD | RT-HMIM-4GEF - 4-Port Gigabit Ethernet Optical InterfaceHMIM module |
| 0231A1VE | RT-HMIM-8GEF - 8-Port Gigabit Ethernet Optical InterfaceHMIM module |
| 0231A1VF | RT-HMIM-24GSW - 24-Port Gigabit Ethernet Layer 2 switching electrical interfaceHMIM module |
| 0231A1VH | RT-HMIM-1CPOS - 1-PortOC-3/STM-1 CPOS HMIM module |
| 0231A1VL | 0231A1VL - H3C MSR36Winet Router Series |
| 04040148 | 04040148 - 2-PortE1VoiceHMIM module |
| 0231A1VS | RT-HMIM-1POS - 1-PortOC-3c/STM-1c POS HMIM module |
| 0231A1VW | 0231A1VW - H3C MSR36Winet Router Series |
| 04021299 | CAB-AUX - AUXInterface Cable(RJ45 to DB9/DB25) |
| 0404A048 | CAB-Tra-0.5m-RJ45 - Single Cable – Adapter Cable – 0.5 mm – (8-pin Ethernet Port – Type III) – (CC4P0.5 Gray) – (8-pin Ethernet Port – Type I) – ASE |
| Dumb Terminal Adapter | |
| 0404A01K | CAB-Tra-D25F-RJ45 - Dumb Terminal Adapter |
| 0231A1VX | 0231A1VX - H3C MSR36Winet Router Series |
| 0231A1VY | RT-HMIM-4FXS - 4-PortFXS HMIM module |
| 0231A1W0 | RT-HMIM-4FXO - 4-PortFXO HMIM module |
| 0231A1W1 | 0231A1W1 - H3C MSR36Winet Router Series |
| 0231A2C3 | 0231A2C3 - H3C MSR36Winet Router Series |
| 0231A2GE | 0231A2GE - H3C MSR36Winet Router Series |
| 0231A2MP | RT-HMIM-8GSW - 8-Port 10/100/1000BASE-T (RJ45) + 2-Port 100BASE-FX/1000BASE-X (SFP, Combo) Ethernet Layer 2 Switch HMIM Module |
| 0231A3FE | RT-HMIM-8GSWF - 8-Port 100/Gigabit Ethernet (4 Optical + 4 Optical/Electrical Combo) L2/L3 HMIM Module |
| 0231A3FJ | RT-HMIM-8E1T1 - 8-PortE1/CE1/T1/CT1/PRI HMIM module |
| 0404A0KN | CAB-E1-75ohm-3m-RJ45-2*BNC - E1Cable-3m-(RJ45P-8P8CS+CORE(F5B-RH14.2*28.5*8))-(SFTP-CAT5E24(4P)P430U+2*(COAX-SYFVZ75-1-1))-(2*BNC75SM) |
| 04041054 | CAB-FE/T1 - Shielded Ethernet Cable/T1 Connection Cable |
| Extension | |
| 0404A076 | CAB-E1-120ohm-15m-RJ45 - E1 Trunk Cable - 15 m - (RJ45P-8P8CS) - (120CC4P0.5P430U(S)) - (RJ45P-8P8CS) - 120 ohms |
| 0404A09E | CAB-E1-120ohm-2m-RJ45 - E1 trunk cable - 2.00 m - (RJ45P-8P8CS) - (120CC4P0.5P430U(S)) - (RJ45P-8P8CS) - 120 ohms |
| 0404A077 | CAB-E1-120ohm-30m-RJ45 - E1 trunk cable - 30 m - (RJ45P-8P8CS) - (120CC4P0.5P430U(S)) - (RJ45P-8P8CS) - 120 ohms |
| 0404A078 | CAB-E1-10m-BNC - Single Cable—E1 Trunk Cable—75 ohms—10 m—(BNC to BNC) |
| 0404A079 | CAB-E1-15m-BNC - Single Cable—E1 Trunk Cable—75 ohms—15 m—(BNC to BNC) |
| 0404A080 | CAB-E1-20m-BNC - Single Cable - E1 Trunk Cable - 75 Ohm - 20 m - (BNC to BNC) |
| 04026813 | CAB-E1/75-120 Convert - E1 Cable 120 Ohm to 75 Ohm Adapter Box |
| 0231A3FK | RT-HMIM-4E1T1 - 4-PortE1/CE1/T1/CT1/PRI HMIM module |
| 0231A3FL | RT-HMIM-2E1T1 - 2-PortE1/CE1/T1/CT1/PRI HMIM module |
| 0231A3FM | RT-HMIM-8E1T1-F - 8-port unchannelized E1/T1 HMIM module |
| 0231A3FN | 0231A3FN - 4-port unchannelized E1/T1 HMIM module |
| 0231A3FP | 0231A3FP - 2-port unchannelized E1/T1 HMIM module |
| 0231A6PR | RT-HMIM-8EM - 8-PortE&M HMIM module |
| HMIM adapter module | |
| 0231A1V4 | RT-HMIM-Adapter - 0.5U HMIM adapter module |
| 0231A1V5 | 0231A1V5 - H3C MSR36Winet Router Series |
| SFP+ 10G Port | |
| SFP Gigabit Port | |
| Fiber Connector | |
| 14130098 | OP-SC/PC-SC/PC-5-S - Fiber Optic Connector - Dual SC/PC - Single-Mode - 5 m |
| 14130126 | OP-SC/PC-SC/PC-15-S - Fiber Optic Connector—Dual SC/PC—Single-Mode—15 m |
| 14130127 | OP-SC/PC-SC/PC-15-M - Fiber Optic Connector - Dual SC/PC - Multimode - 15 m |
| 14130156 | OP-SC/PC-SC/PC-5-M - Fiber Optic Connector - Dual SC/PC - Multimode - 5 m |
| Power Supply | |
| 0231A2MR | AC-PSR150-A1 - 150W ACPower Module |
| 0231A2MT | DC-PSR150-D1 - 150W DCPower Module |
| WX/IPS/ACG/VPNlicense certificate | |
| 3130A1Y1 | LIS-MSR-SSL-200 - H3C MSR/ICG Series SSL VPN 200 x user license certificate |
| 3130A1Y0 | LIS-MSR-SSL-30 - H3C MSR/ICG Series SSL VPN 30 x user license certificate |
| 3130A1XU | LIS-MSRB-ACG-1Y - H3C MSR 26/36/56/ICG Series application identificationsignature database update service license certificate,1 year |
| 3130A1XV | LIS-MSRB-ACG-3Y - H3C MSR 26/36/56/ICG Series application identificationsignature database update service license certificate,3 years |
| 3130A1XN | LIS-MSRB-IPS-1Y - H3C MSR 26/36/ICG Series IPS signature database update service license certificate,1 year |
| 3130A1XP | LIS-MSRB-IPS-3Y - H3C MSR 26/36/ICG Series IPS signature database update service license certificate,3 years |
| 3130A1TT | LIS-F5000-AV-1Y - H3C Sec Path F5000,AV anti-virus security license,1 year |
| 3130A1TU | LIS-F5000-AV-3Y - H3C Sec Path F5000,AV anti-virus security license,3 years |
| 3130A1LD | LIS-WX-128-BE - Enhanced Wireless Controller License Agreement - Manages 128 APs - Enterprise Network Exclusive - V7V9 |
| 3130A1LB | LIS-WX-16-BE - Enhanced Wireless Controller License Authorization Letter - Manage 16APs - For Enterprise Networks - V7V9 |
| 3130A1L9 | LIS-WX-1-BE - Enhanced Wireless Controller License Authorization Letter - Management 1AP - For Enterprise Networks - V7V9 |
| 3130A1LC | LIS-WX-32-BE - Enhanced Wireless Controller License Authorization Letter - Manage 32APs - For Enterprise Networks - V7V9 |
| 3130A2HB | LIS-WX-4-BE - Enhanced Wireless Controller License Authorization Letter - Manage 4AP - Enterprise Network Only - V7V9 |
| 3130A1LA | LIS-WX-8-BE - Enhanced Wireless Controller License Authorization Letter - Manage 8AP - Enterprise Network Only - V7V9 |
| MSRlicense certificate | |
| 3130A0UE | LIS-MSR36-DATA - H3C MSR 36 Data Edition Software Authorization Letter |
| 3130A0UF | LIS-MSR36-SECURITY - H3C MSR 36 Security Edition Software Authorization Letter |
| 3130A0UG | LIS-MSR36-VOICE - H3C MSR 36 Voice Edition Software Authorization Letter |
| 3130A1DY | LIS-MSR36-ATC - H3C MSR36 Series Router ATC Feature License Fee |
| AP | |
| 9801A11J | EWP-WA2620-WiNet-FIT - H3C WA2620-Wi Net-built-in antennadual-band2*2 802.11ac/nwireless access point-FIT |
| Power Adapter | |
| 0231A1SS | EWPAM2NPOE - H3C Single-Port PoE Injector (includes 25W power supply, Gigabit, side-by-side installation supported) |
| 9801A11K | EWP-WA2620E-WiNet-FIT - H3C WA2620E-Wi Net Dual-Band Enhanced 2x2 802.11ac/n Wireless Access Point with Built-in Antenna - FIT |
| 9801A1GV | EWP-WA5320-WiNet-FIT - H3C WA5320-Wi Net built-in antennadual-band4-stream802.11ac/n Wave 2wireless access point-FIT |
| 0213A03K | FSP025-1AD207A - Primary Power Supply - 0°C to 40°C - 90 VAC to 264 VAC - 48 V/0.52 A, detachable AC power cord |
| AP Mounting Accessory | |
| 2115A03Q | EWPA-TR-EWMK - Adjustable Wall-Mount Kit |
| 9801A1FF | EWP-WA5320E-WiNet-FIT - H3C WA5320E-Wi Net built-in antennadual-band4-stream802.11ac/n Wave 2wireless access point-FIT |
| Serial Cable | |
| 04042967 | CAB-CON-1.8m - Configuration Serial Cable—1.8 m—(DB9 Female to 8-pin Ethernet Port) |
| 0404A1EE | CAB-Console-1.8m-W31R - Configuration Port Cable-1.8m-(RJ45P)-(UL2725(3C28AWG))-(USB AP) |
| TF card | |
| 9801A0KQ | 9801A0KQ - H3C MSR36Winet Router Series |
| Product Identity | |
| Brand | H3C |
| Series | H3C MSR36 Winet Series Router |
Reviews
No reviews yet
Be the first to review this enterprise product.
Warranty
Standard Warranty Policy
All hardware sold by ITMall includes our 3-Year Free Maintenance and 1-Year RMA Replacement Service. Please refer to our Warranty Policy for details.
- 1-Year Advance Replacement (RMA)
- 3-Year Free Repair Service
- Full coverage for functionality defects
Hassle-Free RMA Process
We streamlined the return process to minimize your network downtime. Our engineering team provides pre-return diagnostics to ensure hardware is truly defective.
- 30-Day satisfaction guarantee return window
- Automated RMA portal access for instant tracking
- Restocking fee waived for functionality issues
Certified Engineering Support
Our products are backed by CCIE-certified engineers who provide expert guidance on compatibility, configuration, and troubleshooting at no extra cost.
- Free pre-sales topology consultation
- Remote troubleshooting & firmware advice
- Simulation lab testing before dispatch
Global Logistics & Packaging
We ship to 85+ countries using premium anti-static packaging to ensure safety. Orders placed before 14:00 (GMT+8) are typically dispatched the same day.
- Double-walled boxes with customer molded foam
- Blind shipping support for channel partners
- Real-time tracking via FedEx / DHL / UPS
Resources
No downloads available for this product.
FAQ
What is the Fixed WAN port specification for RT-MSR3620-DP-WINET?
RT-MSR3620-DP-WINET lists Fixed WAN port as 4GE Combo + 2GE Optical. Use this value when checking datasheet requirements, quotation details, and deployment compatibility.
What is the Dimensions (W×D×H, mm) specification for RT-MSR3620-DP-WINET?
RT-MSR3620-DP-WINET lists Dimensions (W×D×H, mm) as 440*470*44.2mm. Use this value when checking datasheet requirements, quotation details, and deployment compatibility.
What is the SIC Slot specification for RT-MSR3620-DP-WINET?
RT-MSR3620-DP-WINET lists SIC Slot as 4. Use this value when checking datasheet requirements, quotation details, and deployment compatibility.
What is the Maximum Supported Power specification for RT-MSR3620-DP-WINET?
RT-MSR3620-DP-WINET lists Maximum Supported Power as 150W. Use this value when checking datasheet requirements, quotation details, and deployment compatibility.
Is this product Brand New?
Yes, unless clearly marked as "Refurbished", all our products are Factory Sealed (Original New) sourced directly from authorized channels.
What is the warranty period?
We provide a comprehensive 3-Year Warranty on this item. This covers hardware defects and includes advanced replacement.
Do you offer volume discounts?
Yes! For bulk orders or project bids, please click "Quote | Help" to get a custom price proposal from our sales team.
How fast can you ship?
In-stock items ordered before 3 PM EST ship the same day. We offer overnight and 2-day shipping options via FedEx/DHL.
Still have questions?
