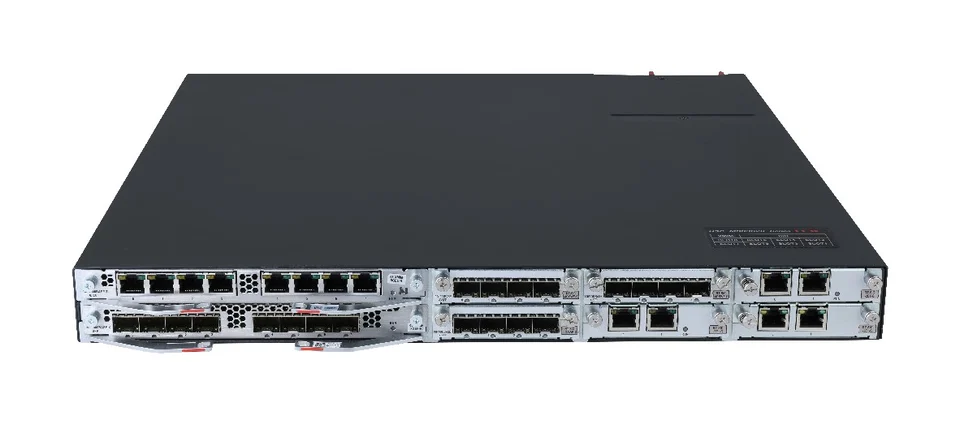

H3C RT-MSR3620-G-X3 MSR3620-G-X3Router Chassis(2*25GE(SFP28), 6*10GE(SFP+), 8*GE(RJ45))
Brand H3C
N/AVerified
H3C RT-MSR3620-G-X3
Model (MPN)
0235A50T
Condition
Factory Sealed
Out of Stock
H3C RT-MSR3620-G-X3 MSR3620-G-X3Router Chassis(2*25GE(SFP28), 6*10GE(SFP+), 8*GE(RJ45)). System Switching Capacity: 796Gbps. Fixed Interface: 2*25GE (SFP28) + 6*10GE (SFP+) + 8*GE electrical. Memory: 8GB
Key Specifications
DescriptionH3C MSR3620-G-X3Router Chassis(2*25GE(SFP28),6*10GE(SFP+),8*GE(RJ45))
System Switching Capacity796Gbps
Fixed Interface2*25GE (SFP28) + 6*10GE (SFP+) + 8*GE electrical
Dimensions (W×D×H, mm)440×470×44.2
Maximum Power Consumption250W
Power SupplyAC:100V～240VDC:-48～-60V
Your Price
Best Value
$1,369.97
List Price: $19,571.00Save 93%
Availability Out of Stock
Quantity
Need configuration help?
Our CCIE certified engineers can help you verify compatibility.
Secure Payment
VISA
Pay
WIRE
Fast Dispatch
Global logistics network aiming for same-day handover.
48hrs
Avg. Shipping
99%
On-Time
Guaranteed Quality
Every unit undergoes rigorous 38-point inspection test.
3Year
Warranty
0.1%
RMA Rate
Global Reach
Trusted by enterprise clients across 6 continents.
85+
Countries
20k+
Clients
Expert Support
Certified network engineers ready to assist with configuration.
24/7
Assistance
CCIE
Certified
Overview
Specifications
| Catalog Description | |
|---|---|
| Description | H3C MSR3620-G-X3Router Chassis(2*25GE(SFP28),6*10GE(SFP+),8*GE(RJ45)) |
| Key Specifications | |
| System Switching Capacity | 796Gbps |
| Fixed Interface | 2*25GE (SFP28) + 6*10GE (SFP+) + 8*GE electrical |
| Dimensions (W×D×H, mm) | 440×470×44.2 |
| Maximum Power Consumption | 250W |
| Power Supply | AC:100V～240VDC:-48～-60V |
| Ambient temperature | 0～45℃ |
| Product Specifications | |
| Forwarding Performance | 297Mpps |
| System Switching Capacity | 796Gbps |
| Fixed Interface | 2*25GE (SFP28) + 6*10GE (SFP+) + 8*GE electrical |
| SIC Service Slot | 6 |
| XMIM service slot | 2 |
| Memory | 8GB |
| FLASH | 8GB |
| USB | 1 |
| Console Port | 1 |
| Maximum Power Consumption | 250W |
| Power Supply | AC:100V～240VDC:-48～-60V |
| Redundant power supplies | 2; AC/DC (modular pluggable redundant power supply) |
| Device Height | 1 RU |
| Dimensions (W×D×H, mm) | 440×470×44.2 |
| Ambient temperature | 0～45℃ |
| Ambient Relative Humidity | 5 to 95% (no condensation) |
| EMC | FCC Part 15 (CFR 47) CLASS AICES-003 CLASS A VCCI-3 CLASS A VCCI-4 CLASS A CISPR 22 CLASS A EN 55022 CLASS A AS/NZS CISPR22 CLASS A CISPR 24EN 55024EN 61000-3-2EN 61000-3-3EN 61000-6-1ETSI EN 300 386EN 301 489-1EN 301 489-17 |
| Security | UL 60950-1CAN/CSA C22.2 No 60950-1IEC 60950-1EN 60950-1/A11AS/NZS 60950EN 60825-1EN 60825-2FDA 21 CFR Subchapter J GB 4943 |
| Interface Type | Supports FE, GE, 10GE, 25GE Ethernet interfaces; supports 155M POS, 622M POS, 155M CPOS, etc. interfaces Supports E1-F/E1 interfaces Supports AS/ASE (Asynchronous Serial Interface), SAE (Synchronous Serial Interface), etc. interfaces |
| Layer 2 Protocols | Supported Ethernet, Ethernet II, VLAN, 802.3x, 802.1p, 802.1Q, 802.1x, STP (802.1D), RSTP (802.1w), MSTP (802.1s), PPP, PPPoE Client, PPPoE Server, HDLC, FR, DDR, Modem, ISDN, etc. |
| IP Services | Support for TCP, UDP, IP Option, IP Unnumber Support for Policy Routing, Netstream, s Flow, etc Support for ECMP Support for UCMP |
| IP Applications | Support Ping, Trace, ICMP, DHCP Server, DHCP Relay, DHCP Client, DHCP Snooping, DNS client, DNS Proxy, DDNS, UDP Helper, NTP, SNTP, etc. |
| IPv4 Routing | static routingdynamic routing protocols: RIPv1/v2, OSPFv2, BGP, IS-ISroute recursionrouting policymulticast routing protocols: IGMPV1/V2/V3, PIM-DM, PIM-SM, MBGP, MSDP |
| IPv6 | Supports IPv6 ND, IPv6 PMTU, IPv6 FIB, IPv6 ACL, NAT-PT, NAT66, NAT64, IPv6 Tunneling, 6PE, DS-LITE IPv6 Tunneling Technologies: Manual Tunneling, Automated Tunneling, GRE Tunneling, 6to4, ISATAP Static Routing Dynamic Routing Protocols: RIPng, OSPFv3 IS-ISv6, BGP4+IPv6 multicast protocols: MLD V1/V2, PIM-DM, PIM-SM |
| QoS | Supports LR, Port-Based Mirroring, Port Trust Mode, Port Priority, etc. Supports CAR (Committed Access Rate) Supports FIFO, WFQ, CBQ, etc. Supports 5 levels of HQoS Supports GTS (Generic Traffic Shaping) Support Traffic Classification |
| Wireless Controller (AC) | AP management: AP access, AP configuration parameter issuance, AP version upgrade, AP reboot, AP display WLAN access, WLAN user security, WLAN user access authentication, WLAN roaming, etc.; Note: MSR3640-G, MSR3620-G-X3, and MSR3610-G-X3 don't support the built-in AC for now. |
| Voice | Support FXS/FXO/E&M/VE1/VT1, support R2, DSS1, Q.sig, Digital E&M, etc. Support G.711, G.723, G.726, G.729AB, AMR-NB, GSM-FR, iLBC, RT-Audio, etc. Support Rich Voice Services, Voice Backup, DTMF transmission support RFC2833, intelligent dial-up router, 1:1 binding of FXS and FXO, power failure escape, SIP Sever local survival, IVR, etc. |
| 3/4/5G | Supports extended 3/4G and 5G extended access, 5G NR NSA/SA, TDD/FDD LTE, WCDMA/HSPA+ network support |
| Security Features | Supports PORTAL, 802.1x, MAC Authentication Local Authentication, RBAC, Radius, Tacacs+ASPF, ACL, FILTER, Domain Based Firewall, Connection Count Limit, IPSIKE/IPSec VPN, ADVPN, GDVPN, L2TP VPN, GRE VPN (supports GRE over IPSec) NAT/NAPT, PKI, RSA, URPF support DDoS attack prevention, ARP anti-attack, URL filtering support EAD endpoint access defense function support DPI depth message identification, speed limiting and filtering of business flows State Secret SM1/2/3/4 algorithm |
| SDN Features | Supports Netconf, Telemetry Supports VxLAN, EVPN Layer 2 virtual Ethernet links Supports Segment Routing Supports USB flash drives, URLs, DHCP zero-configuration deployments Supports Segment Routing Supports EVPN VPWS, EVPN VPLS features Supports SRv6: OSPFv3 for SRv6 function ISIS for SRv6 function SRv6 Policy function SRv6 Policy diversion function EVPN L3VPN over SRv6 function EVPN L3VPN over SRv6 Policy function SRv6 Policy flow statistics function SRv6 OAM function BFD for SR/SRv6SRv6 TI-LFA supports dynamic downstream EVPN IPv4/IPv6 L3VPN over SRv6-TE policy capability Supports ping and tracert functions for SRv6-TE policy, realizing the basic operation and maintenance capability of the device |
| MPLS | LDP, Static LSPL3VPN: Cross-domain MPLS VPN (Option1/2/3), Nested MPLS VPN, Hierarchical PE (HoPE), CE Dual Attribution, MCE, Multi-Role Hosts, etc. L2VPN: Martini, Kompella, CCC, and SVC mode MPLS TE, RSVP TE |
| Reliability | Supports IRF2 Supports VRRP, VRRPv3 Supports load sharing and backup based on multiple links Supports the linkage function of NQA with routing, VRRP, and interface backup to realize the end-to-end link detection and backup function Supports BFD fast link detection Supports GR Supports iFIT follow-the-flow detection Technical support for RFC2544 Supports safe startup, blocking startup in abnormal scenarios, and guaranteeing startup Integrity. |
| Management and Maintenance | Support SNMP V1/V2c/V3, TR069, SYSLOG, RMON Support Telnet, SSHv1.5/2.0, FTP Support EAA Embedded Automation Architecture Support 1588v2, 1588 ATR/ACR Support Command Line Management, File System Management, Dual ImageNQA Support DHCP, FTP, HTTP, ICMP, UDP public, UDP private, TCP public, TCP private, SNMP and other protocols tested. |
| Product Identity | |
| Brand | H3C |
| Series | H3C MSR36 Autonomous Controllable Router |
