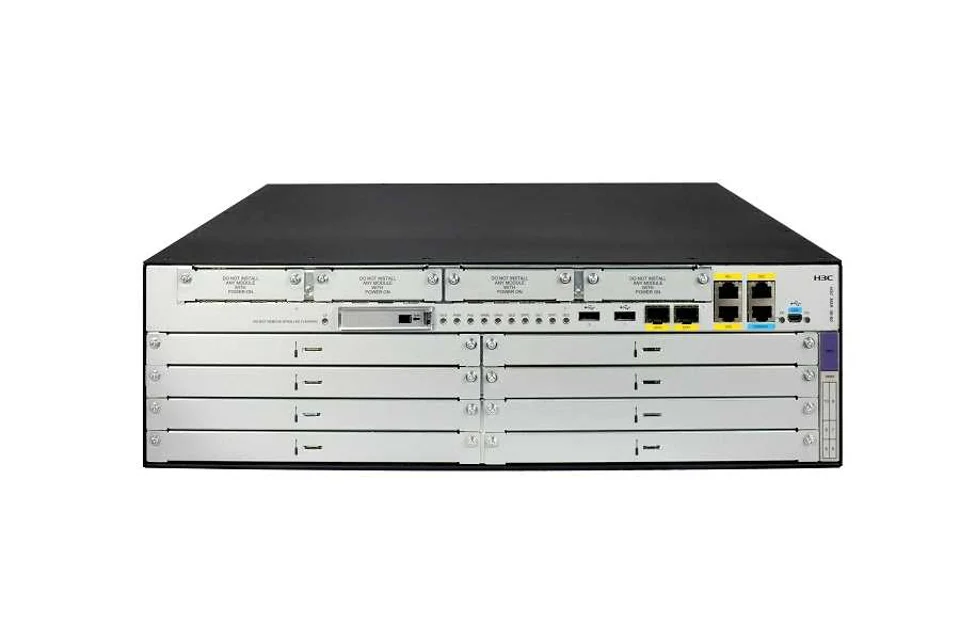

H3C RT-MSR3660 MSR 36-60Router Chassis
Brand H3C
N/AVerified
H3C RT-MSR3660
Model (MPN)
0235A0W9
Condition
Factory Sealed
Out of Stock
H3C RT-MSR3660 MSR 36-60Router Chassis. System Switching Capacity: 305Gbps. Fixed Ports: 1*GE Electric + 2*GE Combo. Memory: 2GB
Key Specifications
DescriptionH3C MSR 36-60Router Chassis
System Switching Capacity305Gbps
Fixed Ports1*GE Electric + 2*GE Combo
Dimensions (W×D×H, mm)440×480×130.5
Maximum Power Consumption174W
Power SupplyAC:100V～240VDC:-48～-60V
Your Price
Best Value
$860.16
List Price: $12,288.00Save 93%
Availability Out of Stock
Quantity
Need configuration help?
Our CCIE certified engineers can help you verify compatibility.
Secure Payment
VISA
Pay
WIRE
Fast Dispatch
Global logistics network aiming for same-day handover.
48hrs
Avg. Shipping
99%
On-Time
Guaranteed Quality
Every unit undergoes rigorous 38-point inspection test.
3Year
Warranty
0.1%
RMA Rate
Global Reach
Trusted by enterprise clients across 6 continents.
85+
Countries
20k+
Clients
Expert Support
Certified network engineers ready to assist with configuration.
24/7
Assistance
CCIE
Certified
Overview
Specifications
| Catalog Description | |
|---|---|
| Description | H3C MSR 36-60Router Chassis |
| Key Specifications | |
| System Switching Capacity | 305Gbps |
| Fixed Ports | 1*GE Electric + 2*GE Combo |
| Dimensions (W×D×H, mm) | 440×480×130.5 |
| Maximum Power Consumption | 174W |
| Power Supply | AC:100V～240VDC:-48～-60V |
| Ambient temperature | 0～45℃ |
| Product Specifications | |
| Forwarding Performance | 9~40Mpps |
| System Switching Capacity | 305Gbps |
| Fixed Ports | 1*GE Electric + 2*GE Combo |
| SIC Service Slot | 4 |
| DSIC service slot | 2 |
| HMIM service slot | 6 |
| DHMIM service slot | 1 |
| Memory | 2GB |
| FLASH | 256MB |
| USB | 2 |
| Console Port | 1 |
| CON(Mini-USB Type AB) | 1 |
| Maximum Power Consumption | 174W |
| Power Supply | AC:100V～240VDC:-48～-60V |
| Redundant power supplies | 2; AC/DC (modular pluggable redundant power supply) |
| Device Height | 3 RU |
| Dimensions (W×D×H, mm) | 440×480×130.5 |
| Ambient temperature | 0～45℃ |
| Ambient Relative Humidity | 5 to 95% (no condensation) |
| EMC | FCC Part 15 (CFR 47) CLASS AICES-003 CLASS A VCCI-3 CLASS A VCCI-4 CLASS A CISPR 22 CLASS A EN 55022 CLASS A AS/NZS CISPR22 CLASS A CISPR 24EN 55024EN 61000-3-2EN 61000-3-3EN 61000-6-1ETSI EN 300 386EN 301 489-1EN 301 489-17 |
| Security | UL 60950-1CAN/CSA C22.2 No 60950-1IEC 60950-1EN 60950-1/A11AS/NZS 60950EN 60825-1EN 60825-2FDA 21 CFR Subchapter J GB 4943 |
| Interface Type | Supports FE, GE, 10GE, 25GE Ethernet interfaces; supports 155M POS, 622M POS, 155M CPOS, etc. interfaces Supports E1-F/E1 interfaces Supports AS/ASE (Asynchronous Serial Interface), SAE (Synchronous Serial Interface), etc. interfaces |
| Layer 2 Protocols | Supported Ethernet, Ethernet II, VLAN, 802.3x, 802.1p, 802.1Q, 802.1x, STP (802.1D), RSTP (802.1w), MSTP (802.1s), PPP, PPPoE Client, PPPoE Server, HDLC, FR, DDR, Modem, ISDN, etc. |
| IP Services | Support for TCP, UDP, IP Option, IP Unnumber Support for Policy Routing, Netstream, s Flow, etc Support for ECMP Support for UCMP |
| IP Applications | Support Ping, Trace, ICMP, DHCP Server, DHCP Relay, DHCP Client, DHCP Snooping, DNS client, DNS Proxy, DDNS, UDP Helper, NTP, SNTP, etc. |
| IPv4 Routing | static routingdynamic routing protocols: RIPv1/v2, OSPFv2, BGP, IS-ISroute recursionrouting policymulticast routing protocols: IGMPV1/V2/V3, PIM-DM, PIM-SM, MBGP, MSDP |
| IPv6 | Supports IPv6 ND, IPv6 PMTU, IPv6 FIB, IPv6 ACL, NAT-PT, NAT66, NAT64, IPv6 Tunneling, 6PE, DS-LITE IPv6 Tunneling Technologies: Manual Tunneling, Automated Tunneling, GRE Tunneling, 6to4, ISATAP Static Routing Dynamic Routing Protocols: RIPng, OSPFv3 IS-ISv6, BGP4+IPv6 multicast protocols: MLD V1/V2, PIM-DM, PIM-SM |
| QoS | Supports LR, Port-Based Mirroring, Port Trust Mode, Port Priority, etc. Supports CAR (Committed Access Rate) Supports FIFO, WFQ, CBQ, etc. Supports 5 levels of HQoS Supports GTS (Generic Traffic Shaping) Support Traffic Classification |
| Wireless Controller (AC) | AP management: AP access, AP configuration parameter issuance, AP version upgrade, AP reboot, AP display WLAN access, WLAN user security, WLAN user access authentication, WLAN roaming, etc.; Note: MSR3640-G, MSR3620-G-X3, and MSR3610-G-X3 don't support the built-in AC for now. |
| Voice | Support FXS/FXO/E&M/VE1/VT1, support R2, DSS1, Q.sig, Digital E&M, etc. Support G.711, G.723, G.726, G.729AB, AMR-NB, GSM-FR, iLBC, RT-Audio, etc. Support Rich Voice Services, Voice Backup, DTMF transmission support RFC2833, intelligent dial-up router, 1:1 binding of FXS and FXO, power failure escape, SIP Sever local survival, IVR, etc. |
| 3/4/5G | Supports extended 3/4G and 5G extended access, 5G NR NSA/SA, TDD/FDD LTE, WCDMA/HSPA+ network support |
| Security Features | Supports PORTAL, 802.1x, MAC Authentication Local Authentication, RBAC, Radius, Tacacs+ASPF, ACL, FILTER, Domain Based Firewall, Connection Count Limit, IPSIKE/IPSec VPN, ADVPN, GDVPN, L2TP VPN, GRE VPN (supports GRE over IPSec) NAT/NAPT, PKI, RSA, URPF support DDoS attack prevention, ARP anti-attack, URL filtering support EAD endpoint access defense function support DPI depth message identification, speed limiting and filtering of business flows State Secret SM1/2/3/4 algorithm |
| SDN Features | Supports Netconf, Telemetry Supports VxLAN, EVPN Layer 2 virtual Ethernet links Supports Segment Routing Supports USB flash drives, URLs, DHCP zero-configuration deployments Supports Segment Routing Supports EVPN VPWS, EVPN VPLS features Supports SRv6: OSPFv3 for SRv6 function ISIS for SRv6 function SRv6 Policy function SRv6 Policy diversion function EVPN L3VPN over SRv6 function EVPN L3VPN over SRv6 Policy function SRv6 Policy flow statistics function SRv6 OAM function BFD for SR/SRv6SRv6 TI-LFA supports dynamic downstream EVPN IPv4/IPv6 L3VPN over SRv6-TE policy capability Supports ping and tracert functions for SRv6-TE policy, realizing the basic operation and maintenance capability of the device |
| MPLS | LDP, Static LSPL3VPN: Cross-domain MPLS VPN (Option1/2/3), Nested MPLS VPN, Hierarchical PE (HoPE), CE Dual Attribution, MCE, Multi-Role Hosts, etc. L2VPN: Martini, Kompella, CCC, and SVC mode MPLS TE, RSVP TE |
| Reliability | Supports IRF2 Supports VRRP, VRRPv3 Supports load sharing and backup based on multiple links Supports the linkage function of NQA with routing, VRRP, and interface backup to realize the end-to-end link detection and backup function Supports BFD fast link detection Supports GR Supports iFIT follow-the-flow detection Technical support for RFC2544 Supports safe startup, blocking startup in abnormal scenarios, and guaranteeing startup Integrity. |
| Management and Maintenance | Support SNMP V1/V2c/V3, TR069, SYSLOG, RMON Support Telnet, SSHv1.5/2.0, FTP Support EAA Embedded Automation Architecture Support 1588v2, 1588 ATR/ACR Support Command Line Management, File System Management, Dual ImageNQA Support DHCP, FTP, HTTP, ICMP, UDP public, UDP private, TCP public, TCP private, SNMP and other protocols tested. |
| Ordering Information | |
| SIC module | |
| 0231A0FG | 0231A0FG - MSR36 Router |
| Antenna | |
| 2701A02R | ANT-C5060-510007-A - 5G NR Rod Antenna - SMA Interface |
| 2701A02J | ANT-5G-NR - 5G NR Rod Antenna - SMA Interface |
| 2701A02Q | 2701A02Q - 3G TD SIC module |
| 2701A00P | ANT-SL15346E - Omnidirectional Antenna - 806–960 MHz/1710–2500 MHz - 3 d Bi - Vertical Polarization - 50 W - TNC (Male) - No Mount - Ceiling-Mounted Antenna |
| 2701A00Q | ANT-SL15209B - Omnidirectional Antenna - 824–965 MHz/1710–2170 MHz - 3 d Bi - Vertical Polarization - 50 W - TNC (Male) - Magnetic Mount - Mobile Device Antenna - 3-meter Extension Cable |
| RFCable | |
| 0404A1Y3 | CAB-RF-0.1m-60103 - Radio frequency cable - 0.1m - 50 ohm - (SMA 50 ohm straight male) - (RG174(2.9) 50 ohm black) - (SMA 50 ohm straight female) |
| 0404A0AL | CAB-RF-15m-(TNC-50ohm) - RF Cable - 15.0 m - TNC50 Straight Male - (SFF-50-3-1 Coax) - TNC50 Straight Female |
| 0404A0A9 | CAB-RF-6m-(TNC-50ohm) - RF Cable - 6.0 m - TNC50 Straight Male - (SFF-50-3-1 Coax) - TNC50 Straight Female |
| 0231A1GV | 0231A1GV - MSR36 Router |
| 2701A02Q | 2701A02Q - HSPA/WCDMA SIC module |
| 0231A2E0 | RT-SIC-1EPRI-V3 - 1-PortE1/CE1/PRI SIC module |
| E1Cable | |
| 0404A09P | CAB-2E1-3m-4*BNC - 2E1 Interface Cable - DB15 Male/4*BNC (75 ohms) - 3 m |
| 04040148 | 04040148 - 1-PortE1/CE1/PRI SIC module |
| 04026106 | CAB-E1/2*BNC-75-3m - E1 Interface Cable/2*BNC (75 ohms) - 3 m |
| 04040149 | CAB-E1/2*BNC-75-40m - E1 Interface Cable/2*BNC (75 ohms) – 40m |
| Extension | |
| 0404A078 | CAB-E1-10m-BNC - Single Cable—E1 Trunk Cable—75 ohms—10 m—(BNC to BNC) |
| 0404A079 | CAB-E1-15m-BNC - Single Cable—E1 Trunk Cable—75 ohms—15 m—(BNC to BNC) |
| 0404A080 | CAB-E1-20m-BNC - Single Cable - E1 Trunk Cable - 75 Ohm - 20 m - (BNC to BNC) |
| 14040202 | CAB-BNC-75 - Coaxial Connector - BNC - 75Ω - Straight/Socket - Dual Female - Connects to E1 Cable BNC Male Plug |
| 0231A2LA | 0231A2LA - Chinese commercial cryptography encryptionSIC module(supports SM1/2/3/4) |
| 0231A2MN | RT-SIC-1GEC-V2 - 1-Port1000BASE-T(RJ45)+1-Port1000BASE-X(SFP,Combo)EthernetSIC module |
| Fast Ethernet Optical Module | |
| 0231A089 | SFP-FE-LH40-SM1310 - Optical Module - SFP 100M/155M Single-Mode Module - (1310nm, 40km, LC) |
| 0231A090 | SFP-FE-LH80-SM1550 - Optical Module—SFP 100M/155M Single-Mode Long-Distance Module—(1550 nm, 80 km, LC) |
| 0231A12T | SFP-FE-LX-SM1310-BIDI - SFP Fast Ethernet BIDI Optical Module (TX 1310/RX 1550 nm, 15 km, LC) |
| 0231A12U | SFP-FE-LX-SM1550-BIDI - SFP Fast Ethernet BIDI Optical Module (TX 1550/RX 1310 nm, 15 km, LC) |
| 0231A320 | SFP-FE-SX-MM1310-A - Optical Module—SFP 100M/155M Multimode Module (1310 nm, 2 km, LC) |
| 0231A564 | SFP-FE-LX-SM1310-A - Optical Module—SFP 100M/155M Single-Mode Module (1310 nm, 15 km, LC) |
| 0231A965 | SFP-FE-LX-SM1310-D - Optical Module—SFP 100M/155M Single-Mode Module (1310 nm, 15 km, LC) |
| Gigabit Optical Module | |
| 02312170 | SFP-GE-LH40-SM1310 - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 40 km, LC) |
| 02312172 | SFP-GE-LH40-SM1550 - Optical Module—SFP—GE—Single-Mode Module—(1550 nm, 40 km, LC) |
| 02312173 | SFP-GE-LH80-SM1550 - Optical Module - SFP-GE - Single-Mode Module - (1550 nm, 80 km, LC) |
| 0231A085 | SFP-GE-T - SFP GEElectrical Port Module(100m,RJ45) |
| 0231A0BY | SFP-GE-LX10-SM1310 - SFP GEOptical Module-(-40°C~85°C,1310nm,10km,LX,SM,LC) |
| 0231A11U | SFP-GE-LX-SM1310-BIDI - Optical Module - SFP Gigabit BIDI Optical Module - TX 1310/RX 1490, 10 km, LC |
| 0231A11V | SFP-GE-LX-SM1490-BIDI - Optical Module - SFP Gigabit BIDI Optical Module - TX 1490/RX 1310, 10 km, LC |
| 0231A2UL | SFP-GE-LH70-SM1490-BIDI - SFPGigabitBIDI Optical Module (TX 1490/RX 1550 nm, 70 km, LC) |
| 0231A2UM | SFP-GE-LH70-SM1550-BIDI - SFPGigabitBIDI Optical Module (TX 1550/RX 1490 nm, 70 km, LC) |
| 0231A2UN | SFP-GE-LH40-SM1310-BIDI - SFP Gigabit BIDI Optical Module (TX 1310/RX 1550 nm, 40 km, LC) |
| 0231A2UP | SFP-GE-LH40-SM1550-BIDI - SFPGigabitBIDI Optical Module (TX 1550/RX 1310 nm, 40 km, LC) |
| 0231A54T | SFP-STACK-Kit - SFP Stacking Cable—(150 cm, includes stacking module) |
| 0231A562 | SFP-GE-SX-MM850-A - Optical Module - SFP-GE - Multimode Module (850 nm, 0.55 km, LC) |
| 0231A563 | SFP-GE-LX-SM1310-A - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 10 km, LC) |
| 0231A960 | SFP-GE-T-D - SFP GEElectrical Port Module(100m,RJ45) |
| 0231A961 | SFP-GE-SX-MM850-D - Optical Module - SFP-GE - Multimode Module (850 nm, 0.55 km, LC) |
| 0231A962 | SFP-GE-LX-SM1310-D - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 10 km, LC) |
| 0231A963 | SFP-GE-LH40-SM1310-D - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 40 km, LC) |
| 0231A964 | SFP-GE-LH80-SM1550-D - Optical Module - SFP-GE - Single-Mode Module - (1550 nm, 80 km, LC) |
| 0231AEUN | SFP-GE-LX-SM1310-S - SFPGigabit Optical Module(1310nm,10km,LX,LC) |
| 0231AEUP | SFP-GE-SX-MM850-S - SFPGigabit Optical Module(850nm,550m,SX,LC) |
| 0231A2MQ | RT-SIC-4GSW - 4-Port10/100/1000BASE-TEthernet Layer 2 switching electrical interfaceSIC module |
| 0231A2NB | RT-SIC-2SAE - 2-port enhanced synchronous/asynchronous serial InterfaceSIC module |
| Cable | |
| 04043596 | CAB-RS449DCE(DB28) - Synchronous/Asynchronous Serial (SA) RS449 DCE Cable (DB28) |
| 04043595 | CAB-RS449DTE(DB28) - Synchronous/Asynchronous (SA) RS449 DTE Cable (DB28) |
| 04043597 | CAB-RS530DTE(DB28) - Synchronous/Asynchronous (SA) RS530 DTE Cable (DB28) |
| 04043770 | CAB-RS530DCE(DB28) - Synchronous/Asynchronous (SA) RS530 DCE Cable (DB28) |
| 04043589 | CAB-V24DTE(DB28) - Synchronous/Asynchronous (SA) V.24 DTE Cable (DB28) |
| 04043590 | CAB-V24DCE(DB28) - Synchronous/Asynchronous (SA) V.24 DCE Cable (DB28) |
| 04043592 | CAB-V35DCE(DB28) - Synchronous/Asynchronous (SA) V.35 DCE Cable (DB28) |
| 04043591 | CAB-V35DTE(DB28) - Synchronous/Asynchronous (SA) V.35 DTE Cable (DB28) |
| 04043594 | CAB-X.21DCE(DB28) - Synchronous/Asynchronous (SA) X.21 DCE Cable (DB28) |
| 04043593 | CAB-X.21DTE(DB28) - Synchronous/Asynchronous (SA) X.21 DTE Cable (DB28) |
| 0231A2NC | RT-SIC-4SAE - 4-port enhanced synchronous/asynchronous serial InterfaceSIC module |
| 0231A2T2 | RT-SIC-4G-LTE-M - 4G LTE(TDD/FDD LTE,TD-SCDMA,WCDMA,EVDO full-band)SIC module |
| 9801A0KH | ANT-GPS-P - H3C LA3608E Passive GPS Antenna |
| 9801A0LP | 9801A0LP - 4G LTE(LTE,TD-SCDMA,WCDMA)SIC module |
| 0231A3FG | RT-SIC-4GSWF - 4-port Fast/Gigabit Ethernetoptical L2/L3 SIC module |
| 0231A4BJ | RT-SIC-1VE1T1 - 1-PortE1/T1VoiceSIC module(built-in DSP) |
| 0404A0KN | CAB-E1-75ohm-3m-RJ45-2*BNC - E1Cable-3m-(RJ45P-8P8CS+CORE(F5B-RH14.2*28.5*8))-(SFTP-CAT5E24(4P)P430U+2*(COAX-SYFVZ75-1-1))-(2*BNC75SM) |
| 0404A076 | CAB-E1-120ohm-15m-RJ45 - E1 Trunk Cable - 15 m - (RJ45P-8P8CS) - (120CC4P0.5P430U(S)) - (RJ45P-8P8CS) - 120 ohms |
| 0404A09E | CAB-E1-120ohm-2m-RJ45 - E1 trunk cable - 2.00 m - (RJ45P-8P8CS) - (120CC4P0.5P430U(S)) - (RJ45P-8P8CS) - 120 ohms |
| 0404A077 | CAB-E1-120ohm-30m-RJ45 - E1 trunk cable - 30 m - (RJ45P-8P8CS) - (120CC4P0.5P430U(S)) - (RJ45P-8P8CS) - 120 ohms |
| 04041054 | CAB-FE/T1 - Shielded Ethernet Cable/T1 Connection Cable |
| 0231A56N | RT-SIC-1SAE-H3 - 1-port enhanced synchronous/asynchronous serial Interface Module |
| 0231A56P | 0231A56P - MSR36 Router |
| 0231A56R | RT-SIC-2FXS-V2-H3 - 2-Port Voice Modulesubscriber circuit Interface Card |
| 0231A61N | 0231A61N - MSR36 Router |
| 0231A61P | 0231A61P - MSR36 Router |
| 0231A835 | RT-SIC-8AS-H3 - 8-port asynchronous serialSICInterface Module |
| 0404A095 | CAB-(SIC-8AS)-0.28m-RJ45 - SIC-8AS Communication Cable—0.28 m—D60 Male—8×CC8C0.32P296U(S)—(8×8-pin Ethernet Port—III)—with RJ45 Female Connector |
| 0231A86Y | RT-SIC-2FXS1FXO-H3 - 2FXS+1FXOVoiceSICInterface Module |
| 0231A88Q | RT-SIC-16AS-H3 - 16-port asynchronous serialSICInterface Module |
| 0404A09F | CAB-(SIC-16AS)-0.3m-RJ45 - SIC-16AS Communication Cable - 0.3 m - DB28 Male to 4*RJ45 Sockets |
| HMIM adapter module | |
| 0231A1V4 | RT-HMIM-Adapter - 0.5U HMIM adapter module |
| 0231A1V5 | 0231A1V5 - MSR36 Router |
| HMIM module | |
| 0231A1V9 | RT-HMIM-2GEE - 2-port Gigabit Ethernet electrical interfaceHMIM module |
| 0231A1VA | RT-HMIM-4GEE - 4-port Gigabit Ethernet electrical interfaceHMIM module |
| 0231A1VB | RT-HMIM-8GEE - 8-port Gigabit Ethernet electrical interfaceHMIM module |
| 0231A1VC | RT-HMIM-2GEF - 2-Port Gigabit Ethernet Optical InterfaceHMIM module |
| 0231A1VD | RT-HMIM-4GEF - 4-Port Gigabit Ethernet Optical InterfaceHMIM module |
| 0231A1VE | RT-HMIM-8GEF - 8-Port Gigabit Ethernet Optical InterfaceHMIM module |
| 0231A1VF | RT-HMIM-24GSW - 24-Port Gigabit Ethernet Layer 2 switching electrical interfaceHMIM module |
| 0231A1VH | RT-HMIM-1CPOS - 1-PortOC-3/STM-1 CPOS HMIM module |
| 0231A1VL | 0231A1VL - MSR36 Router |
| 04040150 | CAB-E1-120ohm-20m-RJ45 - E1 Interface Cable/1*RJ45 (120 ohms) – 20 m |
| 04026104 | CAB-E1-120ohm-3m-RJ45 - E1 Interface Cable/1*RJ45 (120 ohms) – 3 m |
| 04040151 | CAB-E1-120ohm-40m-RJ45 - E1 Interface Cable/1*RJ45 (120 ohms) – 40 m |
| 04040148 | 04040148 - 2-PortE1VoiceHMIM module |
| E1 Connector | |
| 0231A1VS | RT-HMIM-1POS - 1-PortOC-3c/STM-1c POS HMIM module |
| 0231A1VW | 0231A1VW - MSR36 Router |
| 04021299 | CAB-AUX - AUXInterface Cable(RJ45 to DB9/DB25) |
| 0404A048 | CAB-Tra-0.5m-RJ45 - Single Cable – Adapter Cable – 0.5 mm – (8-pin Ethernet Port – Type III) – (CC4P0.5 Gray) – (8-pin Ethernet Port – Type I) – ASE |
| Dumb Terminal Adapter | |
| 0404A01K | CAB-Tra-D25F-RJ45 - Dumb Terminal Adapter |
| 0231A1VX | 0231A1VX - MSR36 Router |
| 0231A1VY | RT-HMIM-4FXS - 4-PortFXS HMIM module |
| 0231A1W0 | RT-HMIM-4FXO - 4-PortFXO HMIM module |
| 0231A1W1 | 0231A1W1 - MSR36 Router |
| 0231A2C3 | 0231A2C3 - MSR36 Router |
| 0231A2GE | 0231A2GE - MSR36 Router |
| 0231A2MP | RT-HMIM-8GSW - 8-Port 10/100/1000BASE-T (RJ45) + 2-Port 100BASE-FX/1000BASE-X (SFP, Combo) Ethernet Layer 2 Switch HMIM Module |
| 0231A3FE | RT-HMIM-8GSWF - 8-Port 100/Gigabit Ethernet (4 Optical + 4 Optical/Electrical Combo) L2/L3 HMIM Module |
| 0231A3FJ | RT-HMIM-8E1T1 - 8-PortE1/CE1/T1/CT1/PRI HMIM module |
| 04026813 | CAB-E1/75-120 Convert - E1 Cable 120 Ohm to 75 Ohm Adapter Box |
| 0231A3FK | RT-HMIM-4E1T1 - 4-PortE1/CE1/T1/CT1/PRI HMIM module |
| 0231A3FL | RT-HMIM-2E1T1 - 2-PortE1/CE1/T1/CT1/PRI HMIM module |
| 0231A3FM | RT-HMIM-8E1T1-F - 8-port unchannelized E1/T1 HMIM module |
| 0231A3FN | 0231A3FN - 4-port unchannelized E1/T1 HMIM module |
| 0231A3FP | 0231A3FP - 2-port unchannelized E1/T1 HMIM module |
| 0231A6PR | RT-HMIM-8EM - 8-PortE&M HMIM module |
| 0231AAFU | RT-HMIM-CNDE-SJK - Chinese commercial cryptography encryptionHMIM module(supports SM1/2/3/4) |
| 0231ACVY | RT-HMIM-4XP - 4-Port10GEthernet Optical InterfaceHMIM module |
| 10G optical module | |
| 0231A0A6 | SFP-XG-SX-MM850-A - SFP+ 10GModule(850nm,300m,LC) |
| 0231A0A8 | SFP-XG-LX-SM1310 - SFP+ 10GModule(1310nm,10km,LC) |
| 0231A1RP | SFP-XG-SX-MM850-D - SFP+ 10GModule(850nm,300m,LC) |
| 0231A1RQ | SFP-XG-LX-SM1310-D - SFP+ 10GModule(1310nm,10km,LC) |
| 0231A2L3 | SFP-XG-LX-SM1310-E - SFP+ 10GModule(1310nm,10km,LC) |
| 0231A2L4 | SFP-XG-SX-MM850-E - SFP+ 10GModule(850nm,300m,LC) |
| 0231A9X2 | SFP-XG-CPRI-IR-SM1310 - SFP+ 10GCPRIOptical Module(-40°C～85°C,1310nm,1.4km,LC) |
| 0231A9X3 | SFP-XG-CPRI-LR-SM1310 - SFP+ 10GCPRI Optical Module (-40°C to 85°C, 1310 nm, 10 km, LC) |
| 0231AEUM | SFP-XG-SX-MM850-S - SFP+ 10G Optical Module(850nm,300m,SX,LC) |
| 0231AEUQ | SFP-XG-LX-SM1310-S - SFP+ 10G Optical Module(1310nm,10km,LX,LC) |
| 0231AGV9 | RT-HMIM-4GEE-V2 - 4-Port Gigabit Ethernet Electrical L3 Interface HMIM Module |
| 0231AGVA | RT-HMIM-8GEE-V2 - 8-Port Gigabit Ethernet Electrical L3 Interface HMIM Module |
| 0231AGVB | RT-HMIM-4GEF-V2 - 4-Port Gigabit Ethernet Optical L3 Interface HMIM Module |
| 0231AGVC | RT-HMIM-8GEF-V2 - 8-Port Gigabit Ethernet Optical L3 Interface HMIM Module |
| 0231AGVD | RT-HMIM-16ASE-V2 - 16-Port Enhanced Asynchronous Serial Port HMIM Module |
| 0231AGVE | RT-HMIM-8ASE-V2 - 8-Port Enhanced Asynchronous Serial Port HMIM Module |
| 0231AHX7 | RT-HMIM-4SAE-V2 - 4-port enhanced synchronous/asynchronous serialHMIM module |
| 0231AHX8 | RT-HMIM-8SAE-V2 - 8-port enhanced synchronous/asynchronous serialHMIM module |
| 0231AJ2F | RT-HMIM-2E1-V3 - 2-Port Partially Channelized E1 (E1-F) and Channelized E1 (CE1/PRI) Combined Electrical Interface (RJ45) HMIM Module |
| 0231AJ2G | RT-HMIM-4E1-V3 - 4-Port Partially Channelized E1 (E1-F) and Channelized E1 (CE1/PRI) Combined Electrical Interface (RJ45) HMIM Module |
| 0231AJ2H | RT-HMIM-8E1-V3 - 8-Port Partially Channelized E1 (E1-F) and Channelized E1 (CE1/PRI) Combined Electrical Interface (RJ45) HMIM Module |
| 9801A267 | RT-HMIM-4POS-STM1/4 - 4-Port OC-3c/STM-1c-SFP or 4-Port OC-12c/STM-4c-SFP Interface HMIM Module |
| 622M Optical Module | |
| 0231A40B | SFP-622M-LX-SM1310 - 622M SFP Optical Module (1310 nm, 15 km, LC) |
| 9801A31P | RT-HMIM-2POS-STM1 - 2-PortOC-3c/STM-1c POS HMIM module |
| Optical Module | |
| Fiber Connector | |
| 14130098 | OP-SC/PC-SC/PC-5-S - Fiber Optic Connector - Dual SC/PC - Single-Mode - 5 m |
| 14130126 | OP-SC/PC-SC/PC-15-S - Fiber Optic Connector—Dual SC/PC—Single-Mode—15 m |
| 14130127 | OP-SC/PC-SC/PC-15-M - Fiber Optic Connector - Dual SC/PC - Multimode - 15 m |
| 14130156 | OP-SC/PC-SC/PC-5-M - Fiber Optic Connector - Dual SC/PC - Multimode - 5 m |
| Power Supply | |
| 0231A2ER | AC-PSR300-12A2 - 300W AC power Module |
| 0231A2G5 | DC-PSR300-12D2 - 300W DC power Module |
| WX/IPS/ACG/VPN/WEBCACHE/URLlicense certificate | |
| 3130A3LM | LIS-MSRB-WEBCACHE - H3C MSR 36/56 Series Web Cache Software License Agreement |
| 3130A1Y1 | LIS-MSR-SSL-200 - H3C MSR/ICG Series SSL VPN 200 x user license certificate |
| 3130A1Y0 | LIS-MSR-SSL-30 - H3C MSR/ICG Series SSL VPN 30 x user license certificate |
| 3130A50L | LIS-MSR-URL-1Y - H3C MSR Series URLsignature database update service license certificate,1 year |
| 3130A50K | LIS-MSR-URL-3Y - H3C MSR Series URLsignature database update service license certificate,3 years |
| 3130A1XU | LIS-MSRB-ACG-1Y - H3C MSR 26/36/56/ICG Series application identificationsignature database update service license certificate,1 year |
| 3130A1XV | LIS-MSRB-ACG-3Y - H3C MSR 26/36/56/ICG Series application identificationsignature database update service license certificate,3 years |
| 3130A1XN | LIS-MSRB-IPS-1Y - H3C MSR 26/36/ICG Series IPS signature database update service license certificate,1 year |
| 3130A1XP | LIS-MSRB-IPS-3Y - H3C MSR 26/36/ICG Series IPS signature database update service license certificate,3 years |
| 3130A1TV | LIS-F1000-AV-1Y - H3C Sec Path F1000,AV anti-virus security license,1 year |
| 3130A1TW | LIS-F1000-AV-3Y - H3C Sec Path F1000,AV anti-virus security license,3 years |
| 3130A1LD | LIS-WX-128-BE - Enhanced Wireless Controller License Agreement - Manages 128 APs - Enterprise Network Exclusive - V7V9 |
| 3130A1LB | LIS-WX-16-BE - Enhanced Wireless Controller License Authorization Letter - Manage 16APs - For Enterprise Networks - V7V9 |
| 3130A1L9 | LIS-WX-1-BE - Enhanced Wireless Controller License Authorization Letter - Management 1AP - For Enterprise Networks - V7V9 |
| 3130A1LC | LIS-WX-32-BE - Enhanced Wireless Controller License Authorization Letter - Manage 32APs - For Enterprise Networks - V7V9 |
| 3130A2HB | LIS-WX-4-BE - Enhanced Wireless Controller License Authorization Letter - Manage 4AP - Enterprise Network Only - V7V9 |
| 3130A1LA | LIS-WX-8-BE - Enhanced Wireless Controller License Authorization Letter - Manage 8AP - Enterprise Network Only - V7V9 |
| MSRlicense certificate | |
| 3130A0UE | LIS-MSR36-DATA - H3C MSR 36 Data Edition Software Authorization Letter |
| 3130A0UF | LIS-MSR36-SECURITY - H3C MSR 36 Security Edition Software Authorization Letter |
| 3130A0UG | LIS-MSR36-VOICE - H3C MSR 36 Voice Edition Software Authorization Letter |
| 3130A1DY | LIS-MSR36-ATC - H3C MSR36 Series Router ATC Feature License Fee |
| AP | |
| 0235A1PR | 0235A1PR - MSR36 Router |
| Power Adapter | |
| 0231A1SS | EWPAM2NPOE - H3C Single-Port PoE Injector (includes 25W power supply, Gigabit, side-by-side installation supported) |
| 9801A0T7 | EWP-WA4320-ACN-SI-FIT - H3C WA4320-ACN-SI-built-in antennadual-band2*2 802.11ac/nwireless access point-FIT |
| 0235A1GU | EWP-WA4320-ACN-FIT - H3C WA4320-ACN - internal antenna dual-band 2-stream 802.11ac/n AP - FIT |
| 9801A0YG | 9801A0YG - MSR36 Router |
| AP Mounting Accessory | |
| 2150A0CB | EWPA-CE-4320H - WA4320H-ACN Wall-Mount Kit |
| 9801A0P7 | 9801A0P7 - MSR36 Router |
| Wall mount and top cover | |
| 9821A001 | 9821A001 - H3C WA4320H-ACN-802.11ac Wireless LAN panel-type dual-band access point - FIT |
| 9821A002 | 9821A002 - H3C WA4320H-ACN-802.11ac Wireless LAN panel-type dual-band access point - FIT |
| 9801A1TG | EWP-WA4320H-SI - H3C WA4320H-SI Internal Antenna Dual-band Three-stream 802.11ac/n Wall Plate Wireless Access Point |
| 9801A0RE | 9801A0RE - MSR36 Router |
| 9801A0F0 | 9801A0F0 - H3C WA4320X-802.11ac Wireless LAN outdoor dual-band high-power access point - FIT |
| 0231A1S3 | 0231A1S3 - H3C WA4320X-802.11ac Wireless LAN outdoor dual-band high-power access point - FIT |
| 1413A002 | OP-DLC-10m-S - Fiber Connector - DLC (GM-8T) - SC*2 - Single-mode - 7 mm - 10 m |
| Antenna and Feedline Surge Arresters | |
| 1902A002 | MHT6000-N-1 - Antenna Surge Protector - 10KA - 20V - 2.4~6.0GHz - 100W - N-F/N-M |
| 2701A00M | C5060-510002-A - Omnidirectional Antenna—2.4–2.5 GHz, 4.9–5.825GHz-2d [email protected],3d Bi @ 5 GHz—Vertical Polarization—Omnidirectional Antenna—1 W—SMA Reverse-Polarity Connector—Whip Antenna (White) |
| 2701A018 | ANT-5018P-M3 - 5.150~5.850GHz (18d Bi), intelligent MIMO directional sector antenna (18deg), N-type ×3, outdoor |
| 2701A01B | ANT-5011P-M3 - 5.150~5.850GHz (11d Bi), Intelligent MIMO Directional Sector Antenna (90deg), N-type ×3, Outdoor |
| 2701A01J | 2701A01J - H3C WA4320X-802.11ac Wireless LAN outdoor dual-band high-power access point - FIT |
| 2701A01K | ANT-2506V-M4-E - 2.4 GHz (6d Bi), 5.150–5.850 GHz (8d Bi), Smart Dual-Band MIMO Omnidirectional Antenna, N-Type × 4, Outdoor |
| 2701A01L | ANT-2015P-M2 - 2.4GHz (15d Bi), Intelligent MIMO Directional Sector Antenna (65deg), N-type ×2, Outdoor |
| 2701A01V | ANT-5016P-M2 - Directional Antenna - 5150-5850MHz - 15.5d Bi - 45deg - Vertical/Horizontal - 100W - N-type |
| 2701A020 | ANT-2515P-M4 - 11.5d Bi @ 2400–2500 MHz/15d Bi @ 5150–5850 MHz, dual-band directional MIMO antenna, N-type female x4, with mounting bracket, outdoor |
| 0404A08W | CAB-RF-4.5m-(2*NSM+RG8/U) - RF Cable—4.5 m—50 ohms—N50 Straight Male—(COAX-RG8/U)—N50 Straight Male |
| 0404A08X | CAB-RF-10m-(2*NSM+RG8/U) - RF Cable—10 m—50 ohms—N50 Straight Male—(COAX-RG8/U)—N50 Straight Male |
| 0404A0FM | CAB-RF-1.2m-2*N50SM - RF Cable - 1.2 m - (N50 Straight Male) - (COAX-LMR240 Black) - (N50 Straight Male) |
| 0404A0MH | CAB-RF-RG8-5m-SMA - Coaxial cable - 5m - (SMA 50 straight male) - (COAX-RG8 white) - (SMA 50 straight female) |
| 0404A0MJ | CAB-RF-RG8-10m-SMA - Coaxial cable - 10m - (SMA 50 straight male) - (COAX-RG8 white) - (SMA 50 straight female) |
| RF Connectors | |
| 14040288 | BNC-RF-N-50-KK - RF Coaxial Connector - N - 50 ohm - Straight - Female - Adapter for Cable with N-Type Connector - Dual Female Adapter, Tri-Alloy Plated Housing |
| 0235A1GQ | 0235A1GQ - MSR36 Router |
| 0235A1K6 | 0235A1K6 - MSR36 Router |
| 9801A0YD | 9801A0YD - MSR36 Router |
| 0213A03K | FSP025-1AD207A - Primary Power Supply - 0°C to 40°C - 90 VAC to 264 VAC - 48 V/0.52 A, detachable AC power cord |
| 2115A03Q | EWPA-TR-EWMK - Adjustable Wall-Mount Kit |
| 0404A02W | CAB-C13-C14-1.0m - PDU Power Supply Cable - 1.0 m - 3 × 1.0 mm² - Black - (C14 Connector (3P) Straight Male 250V 10A) - (227 IEC 53 (RVV)) - (C13 Connector (3P) Straight Female 250V 10A) - GB Standard |
| 0404A02X | CAB-C13-C14-2.0m - PDU Power Supply Cable - 2.0 m - 3 × 1.0 mm² - Black - (C14 Connector (3P) Straight Male, 250 V, 10 A) - (227 IEC 53 (RVV)) - (C13 Connector (3P) Straight Female, 250 V, 10 A) - Chinese National Standard |
| 0404A03H | CAB-RPS-1m-AR2921 - RPS Power Cable - 1m -(H2X7(4.20))-(18UL2464(14C))-(H2X7(4.20))-AR2921 |
| 0404A06Q | CAB-AC Pwr CHI-1.8m - Wall-mounted AC power cord—1.8 m—3 × 0.75 mm²—black—(GB1002 plug (3P), straight male, 250 V, 10 A)—(227 IEC 53 (RVV))—(C13 connector (3P), straight female, 250 V, 10 A)—Chinese National Standard |
| 0404A098 | CAB-C13-C14-1.5m - PDU Power Supply Cable - 1.5 m - 3 × 1.0 mm² - Black - (C14 Connector (3P) Straight Male 250 V 10 A) - (227 IEC 53 (RVV)) - (C13 Connector (3P) Straight Female 250 V 10 A) - National Standard |
| 0404A0GF | CAB-HVDC-10A-PDU-3m-Y - PDU Power Supply Cable - 3.0 m - 3 × 1.0 mm² - Yellow 121C - (C14 Connector (3P) Straight Male 250V 10A) - (227 IEC 53 (RVV)) - (C13 Connector (3P) Straight Female 250V 10A) - National Standard |
| 0404A0K4 | CAB-PDU-2.0m-C14-C13-MUL-50598 - PDU Power Supply Cable - 2.0 m - 1.0 mm² - Black - (C14 Connector (3P) Straight Male 250V 10A) - (227 IEC 53 (RVV) & H05VV-F & SJT) - (C13) - Chinese Standard + U.S. Standard + European Standard + Korean Standard |
| 0404A0U5 | CAB-HVDC PWR-2m-PDU - PDU Power Supply Cable - 2.0 m - 3 × 1.0 mm² - Yellow 121C - (C14 Connector (3P) Straight Male 250V 10A) - (227 IEC 53 (RVV)) - (C13 Connector (3P) Straight Female 250V 10A) - Chinese Standard |
| 0404A0W5 | CAB-PDU PWR-5m-C13/C14 - PDU Power Supply Cable - 5.0 m - 3 × 1.0 mm² - Black - (C14 Connector (3P) Straight Male 250 V 10 A) - (227 IEC 53 (RVV)) - (C13 Connector (3P) Straight Female 250 V 10 A) - Chinese Standard |
| 0404A19E | 0404A19E - H3C WA5320 built-in antennadual-band4-stream802.11ac/n Wave 2wireless access point-FIT |
| 0404A19M | CAB-HVDC-10A-PDU-3m-Y-HZ - PDU Power Supply Cable - 3.0 m - 3 × 1.0 mm² - Yellow 121C - (C14 Connector (3P) Straight Male 250V 10A) - (227 IEC 53 (RVV)) - (C13 Connector (3P) Straight Female 250V 10A) - National Standard |
| 0404A1A8 | 0404A1A8 - H3C WA5320 built-in antennadual-band4-stream802.11ac/n Wave 2wireless access point-FIT |
| 0404A1GY | Cab-PDU-C14-3m-C13-CHN - PDU Power Supply Cable - 3.0 m - 3 × 1.0 mm² - Black - (C14 Connector (3P) Straight Male, 250 V, 10 A) - (227 IEC 53 (RVV)) - (C13 Connector (3P) Straight Female, 250 V, 10 A) - Chinese National Standard |
| 0404A1W1 | CAB-AC PWR-3m-CHN-50905 - PDU Power Supply Cable - 3.0 m - 3 × 1.5 mm² - Black - (C20 Connector (3P) Straight Male 250 V 16 A) - (227 IEC 53 (RVV)) - (C13 Connector (3P) Straight Female 250 V 10 A) - National Standard |
| 9801A0YE | 9801A0YE - MSR36 Router |
| 2701A022 | ANT-2503C-S4 - 2.4 GHz (3d Bi) & 5.150–5.850 GHz (5d Bi), Smart Dual-Band MIMO Omnidirectional Ceiling Antenna, RP-SMA-J ×4, Indoor, Ceiling |
| 2701A023 | ANT-5014P-M2 - 5150–5850 MHz (14 d Bi), Directional MIMO Antenna, N Female x 2, Outdoor |
| Cables | |
| 0404A0FL | CAB-RF-1.2m-(N50SM+RSMA50SF) - RF Cable - 1.2 m - (N50 Male Straight) - (COAX-LMR240 Black) - (RSMA50 Female Straight) |
| 0404A19E | 0404A19E - H3C WA5320E external antennadual-band4-stream802.11ac/n Wave 2wireless access point-FIT |
| 0404A1A8 | 0404A1A8 - H3C WA5320E external antennadual-band4-stream802.11ac/n Wave 2wireless access point-FIT |
| 9801A0YC | 9801A0YC - MSR36 Router |
| 2115A03N | EWPA-TR-WMK-WA5300 - Wall Mount Bracket - WA5300 |
| 9801A0YF | 9801A0YF - MSR36 Router |
| 0231A4QB | ADP040-54V - 54V 40Whigh-power adapter Power Module |
| 9801A1BW | EWP-WA5530-SI-FIT - H3C WA5530-SI built-in antennatri-band6-stream802.11ac/n Wave 2wireless access point-FIT |
| T300 Unit | |
| 0202A2HC | PINPOINT-T300-PB-UWB-IN - Pinbo T300-PB-UWB Indoor Positioning Plug-in Card |
| 9801A19A | 9801A19A - H3C WA5530-SI built-in antennatri-band6-stream802.11ac/n Wave 2wireless access point-FIT |
| 9801A19B | 9801A19B - H3C WA5530-SI built-in antennatri-band6-stream802.11ac/n Wave 2wireless access point-FIT |
| 9801A19C | 9801A19C - H3C WA5530-SI built-in antennatri-band6-stream802.11ac/n Wave 2wireless access point-FIT |
| 9801A1FL | 9801A1FL - H3C WA5530-SI built-in antennatri-band6-stream802.11ac/n Wave 2wireless access point-FIT |
| 9801A1FM | 9801A1FM - H3C WA5530-SI built-in antennatri-band6-stream802.11ac/n Wave 2wireless access point-FIT |
| 9801A20L | IOT-T301-R - H3C T301-R IoT Module 2.4GHz Wireless IoT Access Unit, Supports RFID/Bluetooth |
| 9801A20N | 9801A20N - H3C T310M Managed IoT Gateway, Wireless IoT Access Unit with Built-in Expansion Slot |
| 9801A20P | IOT-T301-Z - H3C T301-Z IoT Module Zig Bee Wireless IoT Access Unit |
| 9801A20Q | 9801A20Q - H3C T310 IoT Gateway with Built-in Expansion Slot for Wireless IoT Access Unit |
| 9801A26L | IOTGM1T301L4 - H3C T301-L4 470 MHz Band Lo RaWAN Wireless IoT Access Unit |
| 9801A26P | 9801A26P - H3C T320-ZR Zigbee & 2.4 GHz (RFID or BLE) Dual-Band Wireless IoT Access Unit |
| 9801A26R | IOT-T320 - H3C T320 Wireless IoT Access Unit with Built-in 2.4 GHz (RFID or BLE) & Expansion Slot |
| 9801A26S | 9801A26S - H3C T320-DR 2.4 GHz RFID & BLE Dual-Band Wireless IoT Access Unit |
| 9801A26U | IOT-T320M - H3C T320M Wireless IoT Gateway with Built-in 2.4 GHz (RFID or BLE) & Expansion Slot, Manageable, Standalone Deployable |
| IoTAccessory | |
| 0202A2HB | PINPOINT-T-B1011 - Pinbo UWB Location Terminal - T-B1011 |
| 0202A2HE | PINPOINT-HULSI - Pinbo High-Precision UWB Positioning Service Implementation (Please note the specific service location when placing an order) - 1 person-day - HULSI |
| 0202A2MD | PINPOINT-T-H2011 - Pinbo Personnel Safety Helmet Tracking Device - T-H2011 |
| 0202A2ME | PINPOINT-KT-1421-ZD - Pinbo Explosion-Proof Positioning Terminal - KT-1421-ZD |
| 0202A2MF | PINPOINT-TU-1900 - Pinbo Tamper-Proof Wristband Unlocker - TU-1900 |
| 0202A2MG | PINPOINT-TC-1500 - Pinbo Tamper-Proof Wristband Charger - TC-1500 |
| 0202A2MH | PINPOINT-TC-1311 - Pinbo Standard Wristband Charger - TC-1311 |
| 0202A2MJ | PINPOINT-T-W2511-X - Pinbo Personnel Tracking Tamper-Proof Heart Rate Monitoring Wristband - T-W2511-X |
| 0202A2MK | PINPOINT-T-W2511 - Pinbo Personnel Tracking Tamper-Proof Wristband - T-W2511 |
| 0202A2ML | PINPOINT-T-W1311-P - Pinbo Smart Location Tracking Wristband - T-W1311-P |
| 0202A2MM | PINPOINT-T-G1010 - Pinbo Asset Tracking Terminal - T-G1010 |
| 0202A2MN | PINPOINT-T-W1311 - Pinbo Personnel Tracking Wristband - T-W1311 |
| 0202A2MR | 0202A2MR - H3C WA5530-SI built-in antennatri-band6-stream802.11ac/n Wave 2wireless access point-FIT |
| 0202A2MT | 0202A2MT - H3C WA5530-SI built-in antennatri-band6-stream802.11ac/n Wave 2wireless access point-FIT |
| 0202A2MU | HSJC-MR3837C - Huashi Jingcheng 2.4 GHz Non-Tamper-Resistant Active RFID Tag - MR3837C |
| 0202A2MV | 0202A2MV - H3C WA5530-SI built-in antennatri-band6-stream802.11ac/n Wave 2wireless access point-FIT |
| 0202A2MW | HSJC-MR3848 - Huashi Jingcheng 2.4 GHz Light-Sensing Tamper-Proof Active Asset Management Tag - MR3848 |
| 0202A2N0 | 0202A2N0 - H3C WA5530-SI built-in antennatri-band6-stream802.11ac/n Wave 2wireless access point-FIT |
| 9801A280 | 9801A280 - H3C WA5530-SI built-in antennatri-band6-stream802.11ac/n Wave 2wireless access point-FIT |
| 9801A0YH | 9801A0YH - MSR36 Router |
| 0213A05R | ADP040-54 - 40W Adapter - Input 90–264 VAC - Output 54 VDC - Energy-Saving VI - Detachable AC power Cord |
| 0235A1SV | 0235A1SV - MSR36 Router |
| CF card | |
| 0231A0XG | 0231A0XG - MSR36 Router |
| 0231A0XH | 0231A0XH - MSR36 Router |
| 0231A0XF | 0231A0XF - MSR36 Router |
| Serial Cable | |
| 04042967 | CAB-CON-1.8m - Configuration Serial Cable—1.8 m—(DB9 Female to 8-pin Ethernet Port) |
| 0404A1EE | CAB-Console-1.8m-W31R - Configuration Port Cable-1.8m-(RJ45P)-(UL2725(3C28AWG))-(USB AP) |
| Product Identity | |
| Brand | H3C |
| Series | H3C MSR36 Series Router |
Reviews
No reviews yet
Be the first to review this enterprise product.
Warranty
Standard Warranty Policy
All hardware sold by ITMall includes our 3-Year Free Maintenance and 1-Year RMA Replacement Service. Please refer to our Warranty Policy for details.
- 1-Year Advance Replacement (RMA)
- 3-Year Free Repair Service
- Full coverage for functionality defects
Hassle-Free RMA Process
We streamlined the return process to minimize your network downtime. Our engineering team provides pre-return diagnostics to ensure hardware is truly defective.
- 30-Day satisfaction guarantee return window
- Automated RMA portal access for instant tracking
- Restocking fee waived for functionality issues
Certified Engineering Support
Our products are backed by CCIE-certified engineers who provide expert guidance on compatibility, configuration, and troubleshooting at no extra cost.
- Free pre-sales topology consultation
- Remote troubleshooting & firmware advice
- Simulation lab testing before dispatch
Global Logistics & Packaging
We ship to 85+ countries using premium anti-static packaging to ensure safety. Orders placed before 14:00 (GMT+8) are typically dispatched the same day.
- Double-walled boxes with customer molded foam
- Blind shipping support for channel partners
- Real-time tracking via FedEx / DHL / UPS
Resources
No downloads available for this product.
FAQ
What is the System Switching Capacity specification for RT-MSR3660?
RT-MSR3660 lists System Switching Capacity as 305Gbps. Use this value when checking datasheet requirements, quotation details, and deployment compatibility.
What is the Fixed Ports specification for RT-MSR3660?
RT-MSR3660 lists Fixed Ports as 1*GE Electric + 2*GE Combo. Use this value when checking datasheet requirements, quotation details, and deployment compatibility.
What is the Dimensions (W×D×H, mm) specification for RT-MSR3660?
RT-MSR3660 lists Dimensions (W×D×H, mm) as 440×480×130.5. Use this value when checking datasheet requirements, quotation details, and deployment compatibility.
What is the SIC Service Slot specification for RT-MSR3660?
RT-MSR3660 lists SIC Service Slot as 4. Use this value when checking datasheet requirements, quotation details, and deployment compatibility.
Is this product Brand New?
Yes, unless clearly marked as "Refurbished", all our products are Factory Sealed (Original New) sourced directly from authorized channels.
What is the warranty period?
We provide a comprehensive 3-Year Warranty on this item. This covers hardware defects and includes advanced replacement.
Do you offer volume discounts?
Yes! For bulk orders or project bids, please click "Quote | Help" to get a custom price proposal from our sales team.
How fast can you ship?
In-stock items ordered before 3 PM EST ship the same day. We offer overnight and 2-day shipping options via FedEx/DHL.
Still have questions?
