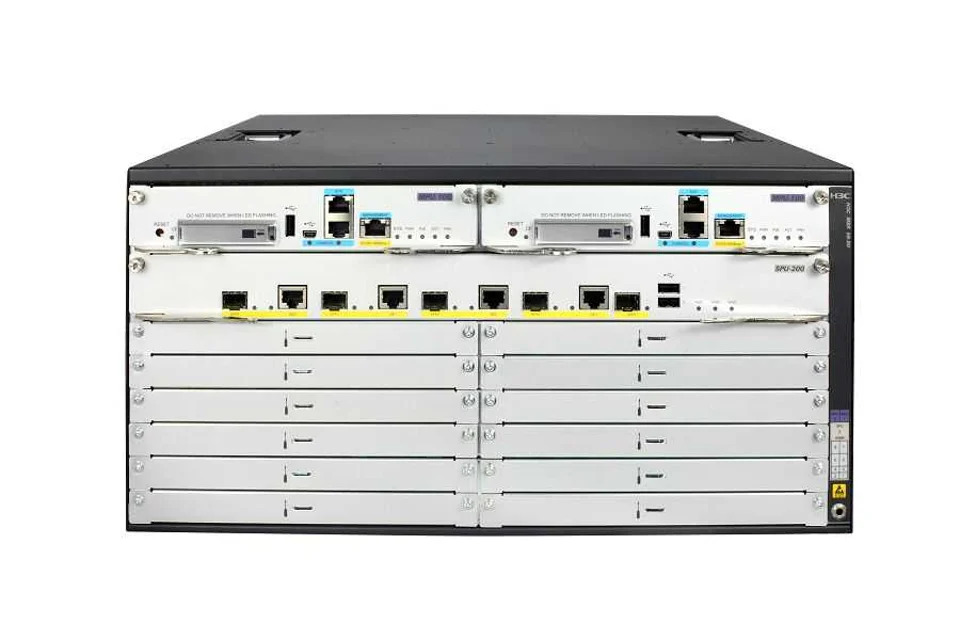

H3C RT-MSR5680 MSR 56-80 router frame
Brand H3C
N/AVerified
H3C RT-MSR5680
Model (MPN)
0235A0W1
Condition
Factory Sealed
Out of Stock
H3C RT-MSR5680 MSR 56-80 router frame. System Switching Capacity: 8Tbps~88Tbps. Fixed Ports: SPU-100-X1：10*GE（Combo）SPU-200-X1：10*GE（Combo）+ 2*SFP+SPU-300-G：4*25GE + 16*SFP+ +16*GE SPU-400-X1：10*GE（Combo）+ 4*SFP+SPU-600-X1（SPE-S1）：4*GE（Combo）+ 4*SFPSPU-600-X1（SPE-S3）：8*SFP+. Memory: MPU-100-X1：2GBMPU-100-G：4GBSPU-100/200-X1：2GBSPU-300-G：8GBSPU-400-X1：4GBSPU-600-X1（SPE-S1）：2GBSPU-600-X1（SPE-S3）：8GB
Key Specifications
DescriptionH3C MSR 56-80 router frame
System Switching Capacity8Tbps~88Tbps
Fixed PortsSPU-100-X1：10*GE（Combo）SPU-200-X1：10*GE（Combo）+ 2*SFP+SPU-300-G：4*25GE + 16*SFP+ +16*GE SPU-400-X1：10*GE（Combo）+ 4*SFP+SPU-600-X1（SPE-S1）：4*GE（Combo）+ 4*SFPSPU-600-X1（SPE-S3）：8*SFP+
Interface TypeSupports FE, GE, 10GE, 25GE Ethernet interfaces; supports 155M POS, 622M POS, and 155M CPOS interfaces Supports E1-F/E1 interfaces
Dimensions (W×D×H, mm)440×480×219.5
Maximum Power Consumption300W (single)/450W (quad)
Your Price
Best Value
$808.50
List Price: $11,550.00Save 93%
Availability Out of Stock
Quantity
Need configuration help?
Our CCIE certified engineers can help you verify compatibility.
Secure Payment
VISA
Pay
WIRE
Fast Dispatch
Global logistics network aiming for same-day handover.
48hrs
Avg. Shipping
99%
On-Time
Guaranteed Quality
Every unit undergoes rigorous 38-point inspection test.
3Year
Warranty
0.1%
RMA Rate
Global Reach
Trusted by enterprise clients across 6 continents.
85+
Countries
20k+
Clients
Expert Support
Certified network engineers ready to assist with configuration.
24/7
Assistance
CCIE
Certified
Overview
Specifications
| Catalog Description | |
|---|---|
| Description | H3C MSR 56-80 router frame |
| Key Specifications | |
| System Switching Capacity | 8Tbps~88Tbps |
| Fixed Ports | SPU-100-X1：10*GE（Combo）SPU-200-X1：10*GE（Combo）+ 2*SFP+SPU-300-G：4*25GE + 16*SFP+ +16*GE SPU-400-X1：10*GE（Combo）+ 4*SFP+SPU-600-X1（SPE-S1）：4*GE（Combo）+ 4*SFPSPU-600-X1（SPE-S3）：8*SFP+ |
| Interface Type | Supports FE, GE, 10GE, 25GE Ethernet interfaces; supports 155M POS, 622M POS, and 155M CPOS interfaces Supports E1-F/E1 interfaces |
| Dimensions (W×D×H, mm) | 440×480×219.5 |
| Maximum Power Consumption | 300W (single)/450W (quad) |
| Power Supply | AC：100V～240V、50Hz/60HzDC：-48V～-60V |
| Product Specifications | |
| Forwarding Performance | 945Mpps~13500Mpps |
| System Switching Capacity | 8Tbps~88Tbps |
| IPsec Throughput | 4.8Gbps~35Gbps |
| Supervisor Engine Module | 2,1:1 |
| Fixed Ports | SPU-100-X1：10*GE（Combo）SPU-200-X1：10*GE（Combo）+ 2*SFP+SPU-300-G：4*25GE + 16*SFP+ +16*GE SPU-400-X1：10*GE（Combo）+ 4*SFP+SPU-600-X1（SPE-S1）：4*GE（Combo）+ 4*SFPSPU-600-X1（SPE-S3）：8*SFP+ |
| HMIM Service Slot | 8 |
| DHMIM service slot | 2 |
| Memory | MPU-100-X1：2GBMPU-100-G：4GBSPU-100/200-X1：2GBSPU-300-G：8GBSPU-400-X1：4GBSPU-600-X1（SPE-S1）：2GBSPU-600-X1（SPE-S3）：8GB |
| FLASH | MPU-100-X1：8GBMPU-100-G：4GB |
| USB | 2, support 3G/4G Modem expansion |
| Console Port | 1 |
| CON(Mini-USB Type AB) | 1 |
| Maximum Power Consumption | 300W (single)/450W (quad) |
| Power Supply | AC：100V～240V、50Hz/60HzDC：-48V～-60V |
| Redundant power supplies | Built-in redundancy 4 power supplies, N+M backups |
| Device Height | 5 RU |
| Dimensions (W×D×H, mm) | 440×480×219.5 |
| Ambient temperature | -20-65℃ |
| operating temperature | -20-65℃ |
| Ambient Relative Humidity | 5 to 95% (no condensation) |
| EMC | FCC Part 15 (CFR 47) CLASS AICES-003 CLASS A VCCI-3 CLASS A VCCI-4 CLASS A CISPR 22 CLASS A EN 55022 CLASS A AS/NZS CISPR22 CLASS A CISPR 24EN 55024EN 61000-3-2EN 61000-3-3EN 61000-6-1ETSI EN 300 386EN 301 489-1EN 301 489-17 |
| Security | UL 60950-1CAN/CSA C22.2 No 60950-1IEC 60950-1EN 60950-1/A11AS/NZS 60950EN 60825-1EN 60825-2FDA 21 CFR Subchapter J GB 4943 |
| Layer 2 Protocols | Supports Ethernet, Ethernet II, VLAN (VLAN-BASED PORT VLAN, VOICE VLAN, Guest VLAN), 802.3x, 802.1p, 802.1Q, 802.1x, STP(802.1D), RSTP(802.1w), MSTP(802.1 s), PPP, PPPoE Client, PPPoE Server, HDLC, DDR, Modem, ISDN, etc. |
| Interface Type | Supports FE, GE, 10GE, 25GE Ethernet interfaces; supports 155M POS, 622M POS, and 155M CPOS interfaces Supports E1-F/E1 interfaces |
| IP Services | Support Unicast Forwarding/Multicast Forwarding, TCP, UDP, IP Option, IP Unnumber, Policy Routing, Netstream, s Flow, etc Support ECMP Support UCMP |
| IP Applications | Support Ping, Trace, ICMP, DHCP Server, DHCP Relay, DHCP Client, DHCP Snooping, DNS client, DNS Proxy, DDNS, IP Accounting, UDP Helper, NTP, SNTP, and so on. |
| IPv4 Routing | Static routing Dynamic routing protocols: RIPv1/v2, OSPFv2, BGP (Neighbor Count 512), IS-IS routing Iterative Routing Policy ECMP (Equivalent Multipath) Multicast routing protocols: IGMPV1/V2/V3, PIM-DM, PIM-SM, MBGP, MSDP |
| IPv6 | Support Ipv6 ND, Ipv6 PMTU, Ipv6 FIB, Ipv6 ACL, NAT-PT, Ipv6 Tunneling, 6PE, DS-LITE; IPv6 Tunneling Technologies: Manual Tunneling, Auto Tunneling, GRE Tunneling, 6to4, Static Routing Dynamic Routing Protocols: RIPng, OSPFv3, IS-ISv6, BGP4+ IPv6 Multicast Protocols: MLD V1/V2, PIM-DM, PIM-SM |
| QoS | Supports LR, Port-Based Mirroring, Port Trust Mode, Port Priority, etc. Supports CAR (Committed Access Rate) Supports FIFO, WFQ, CBQ, etc. Supports WRED (Weighted Randomized Prior Detection) Supports GTS (Generic Traffic Shaping) supports traffic classification supports 5-layer H-QoS (Hierarchical QoS) supports packet marking function (based on IP address, port number, 802.1P, DSCP value, etc.) supports Hierarchical QoS (H-QoS), supports PQ/WFQ/CBWFQ and other queue scheduling mechanisms supports multi-level queuing mechanism for packets (including CQ, PQ, LLQ, WFQ etc.) |
| Voice | Support FXS/FXO/E&M/E1/T1, support R2, DSS1, Q.sig, etc. Support G.711, G.723, G.726, G.729AB, etc. Support Rich Voice Services, Voice Backup, DTMF Transmission Support RFC2833, Intelligent Dial-up Router, 1:1 Binding of FXS and FXO, Power Failure Escape, SIP Sever Local survival, IVR, etc. |
| 4/5G | Acts as LNS, interfacing with 4/5G access devices |
| Security Features | PPPoE Client&Server, PORTAL, 802.1x Local Authentication, RBAC, Radius, TacacsASPF, ACL, FILTER, Connection Count Limit IKE, IPSecADVPNL2TP, NAT/NAPT, PKI, RSA, SSH v1.5/2.0. URPF, GRE (supports GRE over IPSec) Supports ARP anti-attack Supports EAD Endpoint Access Defense Supports EVI, VxLAN, Trill and other data center features Supports State Secret Encryption |
| MPLS | Protocol: LDP, Static LSPL3VPN: Cross-domain MPLS VPN (Option1/2/3), Nested MPLS VPN, Hierarchical PE (HoPE), CE Dual Attribution, MCE, Multi-Role Hosts, etc. L2VPN: Supports Martini, Kompella, PWE3, CCC, and SVC methods, MPLS TE, MPLS-TP, RSVP TE, multicast VPNs |
| Reliability | Supports IRF2 Supports NSR, GR Supports VRRP, VRRPv3 Supports load sharing and backup based on multiple links Supports NQA with routing, VRRP, and interface backup linkage function to achieve end-to-end link detection and backup function Supports master-control-master-standby inversion of BFD fast link detection, hardware BFD (minimum packet sending interval of 10ms) |
| Management and Maintenance | Support SNMP V1/V2c/V3, MIB, SYSLOG, RMON Support BiMS remote management solution, support U disk opening Support command line management, file system management, Dual ImageNQA (Network Quality Assurance) Support DHCP, FTP, HTTP, ICMP, UDP public, UDP private, TCP public, TCP private, SNMP and other protocols test support console port login, support telnet (VTY) login, support SSH login, support FTP login |
| SDN | Supports VxLAN, EVPN, intelligent routing Supports Telemetry, BGP-LS, BGP IPv4/IPv6 Flow Spec Supports NQA, iNQA, TWAMP-light, iFIT Supports Segment routing, SRv6 Supports BFD for SR/SRv6 Supports CBTS, WAAS Support for opening auto-deployment, Netconf support for channelized sub-interfaces, cloud platform connectivity |
| Ordering Information | |
| MPU | |
| 0231A5T8 | RT-MPU-100-X1 - H3C MSR56 MPU-100-X1 Supervisor Engine Module |
| TF card | |
| 9801A0KQ | 9801A0KQ - H3C MSR56 MPU-100-X1 Supervisor Engine Module |
| Hard Drive | |
| 0231AAD5 | SSD-512G-SATA-6G-MSATA - 512GB mSATA SSDHard Drive Module |
| 0231AF4R | RT-MPU-100-G - H3C MSR56 MPU-100-GSupervisor Engine Module |
| SPU | |
| 0150A18S | RT-SPU-600-X1+2SPE-S1 - H3C MSR56 SPU-600-X1 Service Processing Module (Motherboard) + Dual SPE-S1 Service Processing Engines |
| SFP Gigabit Port | |
| 02312170 | SFP-GE-LH40-SM1310 - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 40 km, LC) |
| 02312173 | SFP-GE-LH80-SM1550 - Optical Module - SFP-GE - Single-Mode Module - (1550 nm, 80 km, LC) |
| 0231A085 | SFP-GE-T - SFP GEElectrical Port Module(100m,RJ45) |
| 0231A089 | SFP-FE-LH40-SM1310 - Optical Module - SFP 100M/155M Single-Mode Module - (1310nm, 40km, LC) |
| 0231A090 | SFP-FE-LH80-SM1550 - Optical Module—SFP 100M/155M Single-Mode Long-Distance Module—(1550 nm, 80 km, LC) |
| 0231A11U | SFP-GE-LX-SM1310-BIDI - Optical Module - SFP Gigabit BIDI Optical Module - TX 1310/RX 1490, 10 km, LC |
| 0231A11V | SFP-GE-LX-SM1490-BIDI - Optical Module - SFP Gigabit BIDI Optical Module - TX 1490/RX 1310, 10 km, LC |
| 0231A12T | SFP-FE-LX-SM1310-BIDI - SFP Fast Ethernet BIDI Optical Module (TX 1310/RX 1550 nm, 15 km, LC) |
| 0231A12U | SFP-FE-LX-SM1550-BIDI - SFP Fast Ethernet BIDI Optical Module (TX 1550/RX 1310 nm, 15 km, LC) |
| 0231A320 | SFP-FE-SX-MM1310-A - Optical Module—SFP 100M/155M Multimode Module (1310 nm, 2 km, LC) |
| 0231A54T | SFP-STACK-Kit - SFP Stacking Cable—(150 cm, includes stacking module) |
| 0231A562 | SFP-GE-SX-MM850-A - Optical Module - SFP-GE - Multimode Module (850 nm, 0.55 km, LC) |
| 0231A563 | SFP-GE-LX-SM1310-A - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 10 km, LC) |
| 0231A564 | SFP-FE-LX-SM1310-A - Optical Module—SFP 100M/155M Single-Mode Module (1310 nm, 15 km, LC) |
| 0231A960 | SFP-GE-T-D - SFP GEElectrical Port Module(100m,RJ45) |
| 0231A961 | SFP-GE-SX-MM850-D - Optical Module - SFP-GE - Multimode Module (850 nm, 0.55 km, LC) |
| 0231A962 | SFP-GE-LX-SM1310-D - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 10 km, LC) |
| 0231A963 | SFP-GE-LH40-SM1310-D - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 40 km, LC) |
| 0231A964 | SFP-GE-LH80-SM1550-D - Optical Module - SFP-GE - Single-Mode Module - (1550 nm, 80 km, LC) |
| 0231A965 | SFP-FE-LX-SM1310-D - Optical Module—SFP 100M/155M Single-Mode Module (1310 nm, 15 km, LC) |
| 0231AEUN | SFP-GE-LX-SM1310-S - SFPGigabit Optical Module(1310nm,10km,LX,LC) |
| 0231AEUP | SFP-GE-SX-MM850-S - SFPGigabit Optical Module(850nm,550m,SX,LC) |
| 0150A18T | RT-SPU-600-X1+2SPE-S3 - H3C MSR56 SPU-600-X1 Service Processing Module (Motherboard) + Dual SPE-S3 Service Processing Engines |
| 10G optical module | |
| 0231ABSQ | SFP-XG-LX-SM1270-BIDI - SFP+ 10GBIDIOptical Module(TX1270nm/RX1330nm,10km,LC) |
| 0231ABSP | SFP-XG-LH40-SM1270-BIDI - SFP+ 10G BIDI Optical Module (TX 1270 nm/RX 1330 nm, 40 km, LC) |
| 0231ABSR | SFP-XG-LX-SM1330-BIDI - SFP+ 10G BIDI Optical Module (TX 1330 nm/RX 1270 nm, 10 km, LC) |
| 0231ABSS | SFP-XG-LH40-SM1330-BIDI - SFP+ 10G BIDI Optical Module (TX 1330 nm/RX 1270 nm, 40 km, LC) |
| 0231ABST | SFP-XG-LH80-SM1490-BIDI - SFP+ 10GBIDI Optical Module (TX 1490nm/RX 1550nm, 80km, LC) |
| 0231ABSU | SFP-XG-LH80-SM1550-BIDI - SFP+ 10GBIDI Optical Module (TX 1550nm/RX 1490nm, 80km, LC) |
| 0231AEUQ | SFP-XG-LX-SM1310-S - SFP+ 10G Optical Module(1310nm,10km,LX,LC) |
| 0231AEUM | SFP-XG-SX-MM850-S - SFP+ 10G Optical Module(850nm,300m,SX,LC) |
| 0231A0A8 | SFP-XG-LX-SM1310 - SFP+ 10GModule(1310nm,10km,LC) |
| 0231A1RQ | SFP-XG-LX-SM1310-D - SFP+ 10GModule(1310nm,10km,LC) |
| 0231A2L3 | SFP-XG-LX-SM1310-E - SFP+ 10GModule(1310nm,10km,LC) |
| 0231A0SP | SFP-XG-LH40-SM1550 - SFP+ 10GModule(1550nm,40km,LC) |
| 0231A1RR | SFP-XG-LH40-SM1550-D - SFP+ 10GModule(1550nm,40km,LC) |
| 0231A1PA | SFP-XG-LH80-SM1550 - SFP+ 10GModule(1550nm,80km,LC) |
| 0231A2T6 | SFP-XG-LH80-SM1550-D - SFP+ 10GModule(1550nm,80km,LC) |
| 0231A0A6 | SFP-XG-SX-MM850-A - SFP+ 10GModule(850nm,300m,LC) |
| 0231A1RP | SFP-XG-SX-MM850-D - SFP+ 10GModule(850nm,300m,LC) |
| 0231A2L4 | SFP-XG-SX-MM850-E - SFP+ 10GModule(850nm,300m,LC) |
| 0231A0AK | LSWM1STK - SFP+Cable0.65m |
| 0231A0AL | LSWM2STK - SFP+Cable1.2m |
| 0231A0AM | LSWM3STK - SFP+Cable3m |
| 0231A0G1 | LSTM1STK - SFP+Cable5m |
| Gigabit Optical Module | |
| 0231A5T9 | RT-SPU-100-X1 - H3C MSR56 SPU-100-X1 service processing module (10*GE Combo) |
| Fiber | |
| 14130098 | OP-SC/PC-SC/PC-5-S - Fiber Optic Connector - Dual SC/PC - Single-Mode - 5 m |
| 14130126 | OP-SC/PC-SC/PC-15-S - Fiber Optic Connector—Dual SC/PC—Single-Mode—15 m |
| 14130127 | OP-SC/PC-SC/PC-15-M - Fiber Optic Connector - Dual SC/PC - Multimode - 15 m |
| 14130156 | OP-SC/PC-SC/PC-5-M - Fiber Optic Connector - Dual SC/PC - Multimode - 5 m |
| 0231A5TA | RT-SPU-200-X1 - H3C MSR56 SPU-200-X1 service processing module (10*GE Combo+2SFP+) |
| 0231A2UN | SFP-GE-LH40-SM1310-BIDI - SFP Gigabit BIDI Optical Module (TX 1310/RX 1550 nm, 40 km, LC) |
| 0231A2UP | SFP-GE-LH40-SM1550-BIDI - SFPGigabitBIDI Optical Module (TX 1550/RX 1310 nm, 40 km, LC) |
| SFP+ 10G Port | |
| 0231A5TB | RT-SPU-400-X1 - H3C MSR56 SPU-400-X1 service processing module (10*GE Combo+4SFP+) |
| 0231A0BY | SFP-GE-LX10-SM1310 - SFP GEOptical Module-(-40°C~85°C,1310nm,10km,LX,SM,LC) |
| 0231A2UL | SFP-GE-LH70-SM1490-BIDI - SFPGigabitBIDI Optical Module (TX 1490/RX 1550 nm, 70 km, LC) |
| 0231A2UM | SFP-GE-LH70-SM1550-BIDI - SFPGigabitBIDI Optical Module (TX 1550/RX 1490 nm, 70 km, LC) |
| 0231ADWE | SFP-GE-LH40-SM1310-I - SFPGigabit Optical Module(-40℃～85℃,1310nm,40km,LC) |
| 0231AH0W | SFP-10GE-T - SFP+ 10GEElectrical Port Module(Cat6a/Cat7,30m,RJ45) |
| 0231A6N6 | RT-SPU-600-X1 - H3C MSR56 SPU-600-X1 service processing module (motherboard) |
| SPEModule | |
| 0231A6N7 | RT-SPE-S1 - H3C MSR56 SPE-S1 Service Processing Engine (4GE Combo + 4SFP) |
| 0231A6N8 | RT-SPE-S3 - H3C MSR56 SPE-S3 Service Processing Engine (8SFP+) |
| 0231AF4Q | RT-SPU-300-G - H3C MSR56 SPU-300-G Service Processing Unit (4*25GE(SFP28),16*10GE(SFP+),16*GE(RJ45)) |
| SFP28-Port | |
| 0231AEDQ | 0231AEDQ - H3C MSR56 SPU-300-G Service Processing Unit (4*25GE(SFP28),16*10GE(SFP+),16*GE(RJ45)) |
| 0231ABR6 | SFP-25G-LR-SM1310 - 25G SFP28Optical Module(1310nm,10km,LR,SM,LC) |
| 0231A4Y2 | SFP-25G-SR-MM850 - 25G SFP28Optical Module(850nm,100m,SR,MM,LC) |
| 0231A9X2 | SFP-XG-CPRI-IR-SM1310 - SFP+ 10GCPRIOptical Module(-40°C～85°C,1310nm,1.4km,LC) |
| 0231A9X3 | SFP-XG-CPRI-LR-SM1310 - SFP+ 10GCPRI Optical Module (-40°C to 85°C, 1310 nm, 10 km, LC) |
| 10G Port | |
| 0231ADWF | SFP-GE-LH20-SM1310-I - SFPGigabit Optical Module(-40℃~85℃,1310nm,20km,LC) |
| 0231AH26 | SFP-GE-LX-SM1310-BIDI-I - Optical Module-SFPGigabitBIDI Optical Module(-40℃~85℃,TX1310/RX1490,10km,LC) |
| 0231AH28 | SFP-GE-LX-SM1490-BIDI-I - Optical Module-SFPGigabitBIDI Optical Module(-40℃~85℃,TX1490/RX1310,10km,LC) |
| HMIM adapter module | |
| 0231A1V4 | RT-HMIM-Adapter - 0.5U HMIM adapter module |
| 0231A1V5 | 0231A1V5 - MSR56 Router |
| HMIM module | |
| 0231A1V9 | RT-HMIM-2GEE - 2-port Gigabit Ethernet electrical interfaceHMIM module |
| 0231A1VA | RT-HMIM-4GEE - 4-port Gigabit Ethernet electrical interfaceHMIM module |
| 0231A1VB | RT-HMIM-8GEE - 8-port Gigabit Ethernet electrical interfaceHMIM module |
| 0231A1VC | RT-HMIM-2GEF - 2-Port Gigabit Ethernet Optical InterfaceHMIM module |
| 0231A1VD | RT-HMIM-4GEF - 4-Port Gigabit Ethernet Optical InterfaceHMIM module |
| 0231A1VE | RT-HMIM-8GEF - 8-Port Gigabit Ethernet Optical InterfaceHMIM module |
| 0231A1VF | RT-HMIM-24GSW - 24-Port Gigabit Ethernet Layer 2 switching electrical interfaceHMIM module |
| 0231A1VH | RT-HMIM-1CPOS - 1-PortOC-3/STM-1 CPOS HMIM module |
| Fast Ethernet Optical Module | |
| 0231A1VL | 0231A1VL - MSR56 Router |
| E1Cable | |
| 04040150 | CAB-E1-120ohm-20m-RJ45 - E1 Interface Cable/1*RJ45 (120 ohms) – 20 m |
| 04026104 | CAB-E1-120ohm-3m-RJ45 - E1 Interface Cable/1*RJ45 (120 ohms) – 3 m |
| 04040151 | CAB-E1-120ohm-40m-RJ45 - E1 Interface Cable/1*RJ45 (120 ohms) – 40 m |
| 04040148 | 04040148 - 2-PortE1VoiceHMIM module |
| 04026106 | CAB-E1/2*BNC-75-3m - E1 Interface Cable/2*BNC (75 ohms) - 3 m |
| 04040149 | CAB-E1/2*BNC-75-40m - E1 Interface Cable/2*BNC (75 ohms) – 40m |
| E1 Connector | |
| 14040202 | CAB-BNC-75 - Coaxial Connector - BNC - 75Ω - Straight/Socket - Dual Female - Connects to E1 Cable BNC Male Plug |
| 0231A1VS | RT-HMIM-1POS - 1-PortOC-3c/STM-1c POS HMIM module |
| 0231A1VW | 0231A1VW - MSR56 Router |
| 04021299 | CAB-AUX - AUXInterface Cable(RJ45 to DB9/DB25) |
| 0404A048 | CAB-Tra-0.5m-RJ45 - Single Cable – Adapter Cable – 0.5 mm – (8-pin Ethernet Port – Type III) – (CC4P0.5 Gray) – (8-pin Ethernet Port – Type I) – ASE |
| Dumb Terminal Adapter | |
| 0404A01K | CAB-Tra-D25F-RJ45 - Dumb Terminal Adapter |
| 0231A1VX | 0231A1VX - MSR56 Router |
| 0231A1VY | RT-HMIM-4FXS - 4-PortFXS HMIM module |
| 0231A1W0 | RT-HMIM-4FXO - 4-PortFXO HMIM module |
| 0231A1W1 | 0231A1W1 - MSR56 Router |
| 0231A2C3 | 0231A2C3 - MSR56 Router |
| 0231A2GE | 0231A2GE - MSR56 Router |
| 0231A2MP | RT-HMIM-8GSW - 8-Port 10/100/1000BASE-T (RJ45) + 2-Port 100BASE-FX/1000BASE-X (SFP, Combo) Ethernet Layer 2 Switch HMIM Module |
| 0231A2ND | 0231A2ND - 1-PortE1 POS/DM DHMIM module |
| 0404A076 | CAB-E1-120ohm-15m-RJ45 - E1 Trunk Cable - 15 m - (RJ45P-8P8CS) - (120CC4P0.5P430U(S)) - (RJ45P-8P8CS) - 120 ohms |
| 0404A09E | CAB-E1-120ohm-2m-RJ45 - E1 trunk cable - 2.00 m - (RJ45P-8P8CS) - (120CC4P0.5P430U(S)) - (RJ45P-8P8CS) - 120 ohms |
| 0404A077 | CAB-E1-120ohm-30m-RJ45 - E1 trunk cable - 30 m - (RJ45P-8P8CS) - (120CC4P0.5P430U(S)) - (RJ45P-8P8CS) - 120 ohms |
| E1 120 ohm cable | |
| 04026813 | CAB-E1/75-120 Convert - E1 Cable 120 Ohm to 75 Ohm Adapter Box |
| 0231A2NE | RT-HMIM-1E1POS - 1-PortE1 POS HMIM module |
| 0231A3B0 | 0231A3B0 - 1-PortE1 DM DHMIM module |
| 0231A3FE | RT-HMIM-8GSWF - 8-Port 100/Gigabit Ethernet (4 Optical + 4 Optical/Electrical Combo) L2/L3 HMIM Module |
| 0231A3FJ | RT-HMIM-8E1T1 - 8-PortE1/CE1/T1/CT1/PRI HMIM module |
| Cable | |
| 0404A0KN | CAB-E1-75ohm-3m-RJ45-2*BNC - E1Cable-3m-(RJ45P-8P8CS+CORE(F5B-RH14.2*28.5*8))-(SFTP-CAT5E24(4P)P430U+2*(COAX-SYFVZ75-1-1))-(2*BNC75SM) |
| 04041054 | CAB-FE/T1 - Shielded Ethernet Cable/T1 Connection Cable |
| Extension | |
| 0404A078 | CAB-E1-10m-BNC - Single Cable—E1 Trunk Cable—75 ohms—10 m—(BNC to BNC) |
| 0404A079 | CAB-E1-15m-BNC - Single Cable—E1 Trunk Cable—75 ohms—15 m—(BNC to BNC) |
| 0404A080 | CAB-E1-20m-BNC - Single Cable - E1 Trunk Cable - 75 Ohm - 20 m - (BNC to BNC) |
| 0231A3FK | RT-HMIM-4E1T1 - 4-PortE1/CE1/T1/CT1/PRI HMIM module |
| 0231A3FL | RT-HMIM-2E1T1 - 2-PortE1/CE1/T1/CT1/PRI HMIM module |
| 0231A3FM | RT-HMIM-8E1T1-F - 8-port unchannelized E1/T1 HMIM module |
| 0231A3FN | 0231A3FN - 4-port unchannelized E1/T1 HMIM module |
| 0231A3FP | 0231A3FP - 2-port unchannelized E1/T1 HMIM module |
| 0231A6PR | RT-HMIM-8EM - 8-PortE&M HMIM module |
| 0231AAFU | RT-HMIM-CNDE-SJK - Chinese commercial cryptography encryptionHMIM module(supports SM1/2/3/4) |
| 0231ACVY | RT-HMIM-4XP - 4-Port10GEthernet Optical InterfaceHMIM module |
| 0231AGV9 | RT-HMIM-4GEE-V2 - 4-Port Gigabit Ethernet Electrical L3 Interface HMIM Module |
| 0231AGVA | RT-HMIM-8GEE-V2 - 8-Port Gigabit Ethernet Electrical L3 Interface HMIM Module |
| 0231AGVB | RT-HMIM-4GEF-V2 - 4-Port Gigabit Ethernet Optical L3 Interface HMIM Module |
| 0231AGVC | RT-HMIM-8GEF-V2 - 8-Port Gigabit Ethernet Optical L3 Interface HMIM Module |
| 0231AGVD | RT-HMIM-16ASE-V2 - 16-Port Enhanced Asynchronous Serial Port HMIM Module |
| 0231AGVE | RT-HMIM-8ASE-V2 - 8-Port Enhanced Asynchronous Serial Port HMIM Module |
| 0231AHX7 | RT-HMIM-4SAE-V2 - 4-port enhanced synchronous/asynchronous serialHMIM module |
| 04043596 | CAB-RS449DCE(DB28) - Synchronous/Asynchronous Serial (SA) RS449 DCE Cable (DB28) |
| 04043595 | CAB-RS449DTE(DB28) - Synchronous/Asynchronous (SA) RS449 DTE Cable (DB28) |
| 04043597 | CAB-RS530DTE(DB28) - Synchronous/Asynchronous (SA) RS530 DTE Cable (DB28) |
| 04043770 | CAB-RS530DCE(DB28) - Synchronous/Asynchronous (SA) RS530 DCE Cable (DB28) |
| 04043589 | CAB-V24DTE(DB28) - Synchronous/Asynchronous (SA) V.24 DTE Cable (DB28) |
| 04043590 | CAB-V24DCE(DB28) - Synchronous/Asynchronous (SA) V.24 DCE Cable (DB28) |
| 04043592 | CAB-V35DCE(DB28) - Synchronous/Asynchronous (SA) V.35 DCE Cable (DB28) |
| 04043591 | CAB-V35DTE(DB28) - Synchronous/Asynchronous (SA) V.35 DTE Cable (DB28) |
| 04043594 | CAB-X.21DCE(DB28) - Synchronous/Asynchronous (SA) X.21 DCE Cable (DB28) |
| 04043593 | CAB-X.21DTE(DB28) - Synchronous/Asynchronous (SA) X.21 DTE Cable (DB28) |
| 0231AHX8 | RT-HMIM-8SAE-V2 - 8-port enhanced synchronous/asynchronous serialHMIM module |
| 0231AJ2F | RT-HMIM-2E1-V3 - 2-Port Partially Channelized E1 (E1-F) and Channelized E1 (CE1/PRI) Combined Electrical Interface (RJ45) HMIM Module |
| 0231AJ2G | RT-HMIM-4E1-V3 - 4-Port Partially Channelized E1 (E1-F) and Channelized E1 (CE1/PRI) Combined Electrical Interface (RJ45) HMIM Module |
| 0231AJ2H | RT-HMIM-8E1-V3 - 8-Port Partially Channelized E1 (E1-F) and Channelized E1 (CE1/PRI) Combined Electrical Interface (RJ45) HMIM Module |
| 9801A267 | RT-HMIM-4POS-STM1/4 - 4-Port OC-3c/STM-1c-SFP or 4-Port OC-12c/STM-4c-SFP Interface HMIM Module |
| 622M Optical Module | |
| 0231A40B | SFP-622M-LX-SM1310 - 622M SFP Optical Module (1310 nm, 15 km, LC) |
| 9801A31P | RT-HMIM-2POS-STM1 - 2-PortOC-3c/STM-1c POS HMIM module |
| Fan Options | |
| 0231A1WG | RT-FAN-MSR5680 - H3C MSR 56-80 fan tray |
| Power Supply Options | |
| 0231A2ER | AC-PSR300-12A2 - 300W AC power Module |
| 0231A2G5 | DC-PSR300-12D2 - 300W DC power Module |
| IPPOS/IPS/ACG/VPNlicense certificate | |
| 3130A3LM | LIS-MSRB-WEBCACHE - H3C MSR 36/56 Series Web Cache Software License Agreement |
| 3130A1MB | LIS-MSR-IPPOS-256 - H3C MSR IP POS software authorization letter (supports 256-way concurrency) |
| 3130A1Y1 | LIS-MSR-SSL-200 - H3C MSR/ICG Series SSL VPN 200 x user license certificate |
| 3130A1Y0 | LIS-MSR-SSL-30 - H3C MSR/ICG Series SSL VPN 30 x user license certificate |
| 3130A1XU | LIS-MSRB-ACG-1Y - H3C MSR 26/36/56/ICG Series application identificationsignature database update service license certificate,1 year |
| 3130A1XV | LIS-MSRB-ACG-3Y - H3C MSR 26/36/56/ICG Series application identificationsignature database update service license certificate,3 years |
| 3130A1XQ | LIS-MSRC-IPS-1Y - H3C MSR 56/ICG Series IPS signature database update service license certificate,1 year |
| 3130A1XR | LIS-MSRC-IPS-3Y - H3C MSR 56/ICG Series IPS signature database update service license certificate,3 years |
| 3130A1TT | LIS-F5000-AV-1Y - H3C Sec Path F5000,AV anti-virus security license,1 year |
| 3130A1TU | LIS-F5000-AV-3Y - H3C Sec Path F5000,AV anti-virus security license,3 years |
| MSRlicense certificate | |
| 3130A1DX | LIS-MSR56-ATC - H3C MSR56 Series Router Air Traffic Control Feature Fee |
| URLlicense certificate | |
| 3130A50K | LIS-MSR-URL-3Y - H3C MSR Series URLsignature database update service license certificate,3 years |
| 3130A50L | LIS-MSR-URL-1Y - H3C MSR Series URLsignature database update service license certificate,1 year |
| Serial Cable | |
| 04042967 | CAB-CON-1.8m - Configuration Serial Cable—1.8 m—(DB9 Female to 8-pin Ethernet Port) |
| 0404A1EE | CAB-Console-1.8m-W31R - Configuration Port Cable-1.8m-(RJ45P)-(UL2725(3C28AWG))-(USB AP) |
| Product Identity | |
| Brand | H3C |
| Series | H3C MSR56 Series Router |
Reviews
No reviews yet
Be the first to review this enterprise product.
Warranty
Standard Warranty Policy
All hardware sold by ITMall includes our 3-Year Free Maintenance and 1-Year RMA Replacement Service. Please refer to our Warranty Policy for details.
- 1-Year Advance Replacement (RMA)
- 3-Year Free Repair Service
- Full coverage for functionality defects
Hassle-Free RMA Process
We streamlined the return process to minimize your network downtime. Our engineering team provides pre-return diagnostics to ensure hardware is truly defective.
- 30-Day satisfaction guarantee return window
- Automated RMA portal access for instant tracking
- Restocking fee waived for functionality issues
Certified Engineering Support
Our products are backed by CCIE-certified engineers who provide expert guidance on compatibility, configuration, and troubleshooting at no extra cost.
- Free pre-sales topology consultation
- Remote troubleshooting & firmware advice
- Simulation lab testing before dispatch
Global Logistics & Packaging
We ship to 85+ countries using premium anti-static packaging to ensure safety. Orders placed before 14:00 (GMT+8) are typically dispatched the same day.
- Double-walled boxes with customer molded foam
- Blind shipping support for channel partners
- Real-time tracking via FedEx / DHL / UPS
Resources
No downloads available for this product.
FAQ
What is the System Switching Capacity specification for RT-MSR5680?
RT-MSR5680 lists System Switching Capacity as 8Tbps~88Tbps. Use this value when checking datasheet requirements, quotation details, and deployment compatibility.
What is the Console Port specification for RT-MSR5680?
RT-MSR5680 lists Console Port as 1. Use this value when checking datasheet requirements, quotation details, and deployment compatibility.
What is the Dimensions (W×D×H, Mm) specification for RT-MSR5680?
RT-MSR5680 lists Dimensions (W×D×H, Mm) as 440×480×219.5. Use this value when checking datasheet requirements, quotation details, and deployment compatibility.
What is the HMIM Service Slot specification for RT-MSR5680?
RT-MSR5680 lists HMIM Service Slot as 8. Use this value when checking datasheet requirements, quotation details, and deployment compatibility.
Is this product Brand New?
Yes, unless clearly marked as "Refurbished", all our products are Factory Sealed (Original New) sourced directly from authorized channels.
What is the warranty period?
We provide a comprehensive 3-Year Warranty on this item. This covers hardware defects and includes advanced replacement.
Do you offer volume discounts?
Yes! For bulk orders or project bids, please click "Quote | Help" to get a custom price proposal from our sales team.
How fast can you ship?
In-stock items ordered before 3 PM EST ship the same day. We offer overnight and 2-day shipping options via FedEx/DHL.
Still have questions?
