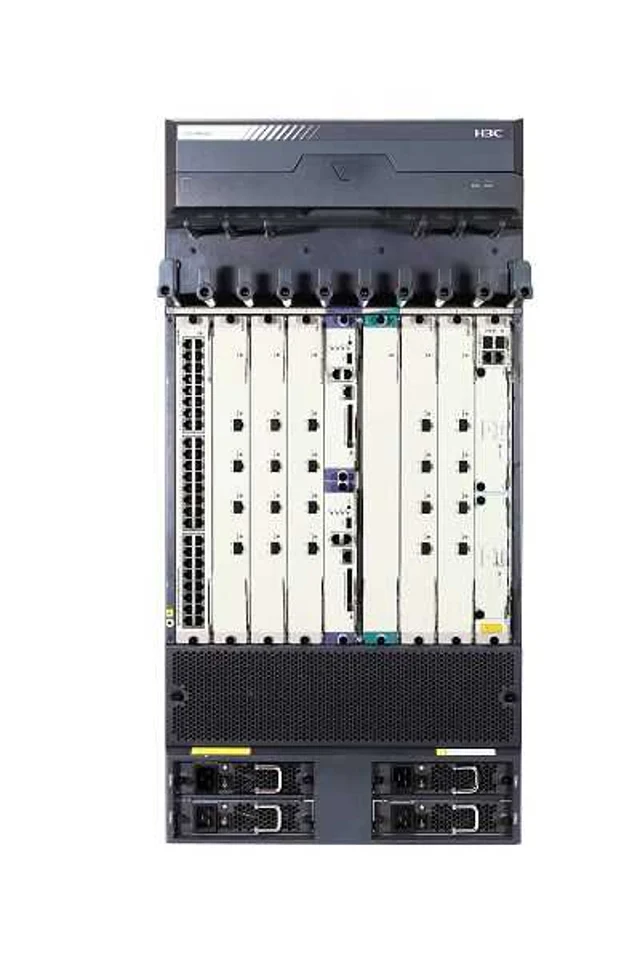

H3C RT-SR6616-X SR6616-X router chassis
Brand H3C
N/AVerified
H3C RT-SR6616-X
Model (MPN)
0235A0VG
Condition
Factory Sealed
Out of Stock
H3C RT-SR6616-X SR6616-X router chassis. Switching Capacity: 243.71Tbps. Whole Machine Packet Forwarding Rate: 24000Mpps. Interface Type: Supported WAN interfaces including E1/T1, FE, GE, 10GE, POS (155M/622M/2.5G), cPOS, synchronous serial port, etc.
Key Specifications
DescriptionH3C SR6616-X router chassis
Switching Capacity243.71Tbps
Whole Machine Packet Forwarding Rate24000Mpps
Interface TypeSupported WAN interfaces including E1/T1, FE, GE, 10GE, POS (155M/622M/2.5G), cPOS, synchronous serial port, etc.
Dimensions (W×D×H)436mm×480mm×886mm（20U）
Power SupplyQuad power supply, can be configured with a variety of flexible power backup schemes, supports intelligent power management
Your Price
Best Value
$1,715.98
List Price: $24,514.00Save 93%
Availability Out of Stock
Quantity
Need configuration help?
Our CCIE certified engineers can help you verify compatibility.
Secure Payment
VISA
Pay
WIRE
Fast Dispatch
Global logistics network aiming for same-day handover.
48hrs
Avg. Shipping
99%
On-Time
Guaranteed Quality
Every unit undergoes rigorous 38-point inspection test.
3Year
Warranty
0.1%
RMA Rate
Global Reach
Trusted by enterprise clients across 6 continents.
85+
Countries
20k+
Clients
Expert Support
Certified network engineers ready to assist with configuration.
24/7
Assistance
CCIE
Certified
Overview
Specifications
| Catalog Description | |
|---|---|
| Description | H3C SR6616-X router chassis |
| Key Specifications | |
| Switching Capacity | 243.71Tbps |
| Whole Machine Packet Forwarding Rate | 24000Mpps |
| Interface Type | Supported WAN interfaces including E1/T1, FE, GE, 10GE, POS (155M/622M/2.5G), cPOS, synchronous serial port, etc. |
| Dimensions (W×D×H) | 436mm×480mm×886mm（20U） |
| Power Supply | Quad power supply, can be configured with a variety of flexible power backup schemes, supports intelligent power management |
| Structure | Integrated chassis, installable in a standard 19-inch rack, with distributed service processing architecture |
| Product Specifications | |
| Structure | Integrated chassis, installable in a standard 19-inch rack, with distributed service processing architecture |
| Supervisor Engine Module Slot Count | 2 (1+1 redundancy backup) |
| Line Card slot count | 8 |
| Service Module Slot Count | 32 |
| Switching Architecture | Support for 2+2 switched network boards (N+M redundancy backup) |
| Switching Capacity | 243.71Tbps |
| Whole Machine Packet Forwarding Rate | 24000Mpps |
| Power Supply | Quad power supply, can be configured with a variety of flexible power backup schemes, supports intelligent power management |
| Dimensions (W×D×H) | 436mm×480mm×886mm（20U） |
| Operating altitude | -60m～5000m |
| Layer 2 Protocols | ARP: dynamic and static ARP, proxy ARP, gratuitous ARP Ethernet, sub-interface VLANPPPoE ServerPPP, software MP, hardware MPHDLCATM: IPoAQinQ termination VLAN: VLAN//Super VLAN Voice VLAN /VLAN Mapping and other port isolationDLDP/LLDPLayer2 protocol tunnel (BPDU tunnel)GARP/GVRPSTP/RSTP/MSTPIEEE802.3ad LACP Layer-2 aggregation Broadcast storm suppression ports mirroring |
| IP Services | TCP, UDP, IP Option, IP unnumber policy route, Layer 3 Ethernet interface aggregation, POS interface aggregation |
| IP Routing | Static routing dynamic routing protocol: RIPv1/v2, OSPFv2, BGP, IS-IS route iteration routing strategy ECMP (equal-cost multipath) UCMP (non-equilibrium link load balancing) BGP GTSM ISIS MTR (multi-topology routing) |
| IPv4Multicast | IGMPv1/v2/v3, PIM-DM, PIM-SM, PIM-SSM, MSDP, MBGP, multicast static routing, multicast host tracking function |
| IP Applications | DHCP Server/Relay/ClientDNS ClientNTP Server/ClientTelnet Server/ClientTFTP ClientFTP Server/ClientUDP Helper |
| IPv6 | Basic functions: IPv6 ND, IPv6 PMTU, dual-stack forwarding, IPv6 ACL, DHCPv6 Server/ProxyIPv6 tunneling technology: IPv6 manual tunnel, IPv6-over-IPv4, GRE tunnel, IPv4-compatible IPv6 automatic tunnel, 6to4 tunnel, ISATAP tunnel, 6PE6VPE (IPv6 MPLS L3VPN)NATPT static routing dynamic routing protocol: RIPng, OSPFv3, IS-ISv6, BGP4+IPv6 multicast protocol: MLDv1/v2, PIM6-DM, PIM6-SM, PIM6-SSM |
| QoS | Traffic classification: based on ports, MAC address, IP address, IP priority, DSCP priority, TCP/UDP port numbers, protocol type, etc. Traffic policing: CAR rate limiting, granularity configurable. Rate limiting based on destination address or source address (Supported subnet rate limiting)GTS traffic shaping Priority Mark/Remark various queue scheduling mechanisms: FIFO, PQ, CQ, WFQ, RTPQ, CBWFQ Congestion avoidance algorithms: Tail-Drop, WRED, LR Rate limitingMPLS QoSIPv6 QoS hierarchical QoS (H-QoS)QPPB (QoS Policy Propagation on BGP) |
| Interface Type | Supported WAN interfaces including E1/T1, FE, GE, 10GE, POS (155M/622M/2.5G), cPOS, synchronous serial port, etc. |
| Security Features | ACL access control list ACL acceleration time-based access control packet filtering firewall stateful firewall ASPF local TCP anti-attack control attack control plane rate limiting virtual fragmentation reassembly URPF Web filtering user hierarchical management and password protection AAA authentication, authorization, and accounting RADIUS TACACS Portal authentication (Supported with EAD interworking and Portal escape) PKI certificate SSH 1.5/2.0 RSA IPSec, IPSec multiple instances, IKE BGP/BGP4+ Supported GTSM Password Control attack detection and prevention SM1, SM2, SM3, SM4 encryption algorithms |
| IP Service Characteristics | NAT, NAT multiple instances, VPN NAT, NAT log connection number limit GRE tunnel (Supported point-to-multipoint application) IPSec tunnel L2TP tunnel Net Stream Supported v5/v8/v9 packet formats, Supported IPv4/IPv6/MPLS packet statistics SFlow SSL VPN ADVPN (Auto Discovery VPN) GDVPN (Group Domain VPN) Supported EVISupported SDN features Supported Openflow, Netconf, Segment routing |
| SDN Features | Supported VXLAN, EVPNSupported PEC P protocol Supported BGP-LS and other network information collection protocols Supported Netconf, YANG protocol Supported Segment routing Supported CBT Supported Openflow protocol |
| MPLS | L3VPN: inter-AS MPLS VPN (Option1/2/3), nested MPLS VPN, hierarchical PE (HoPE), CEdual-homing, MCE, multi-role hostetc.L2VPN: VPLS, Martini, Kompella, CCC and SVC modeVPLS/H-VPLSMPLS TE, RSVP TEMulticastVPN |
| Reliability | Key components Supervisor Engine Module, Fabric Module, power supply and Supported redundancy backup VRRP/VRRP v3 Virtual Router Redundancy Protocol VRRPE (enhanced VRRP) Supported FRR (Fast Re Route, fast re-routing) IGP route fast convergence Supported BFD Supported ISSU Supported IRF2 Supported GR Supported NSR Supported EA Ethernet OAM (Operations, Administration and Maintenance, operations, administration and maintenance) Supported software hot patch Supported main/standby switchover, Supported hot-swappable supervisor engine modules, Line Card modules and interface modules, power supplies, and fan tray |
| Management and Maintenance | Configured via Command Line Interface Configured via Console port Configured via Ethernet ports using Telnet Remote maintenance configured and managed via SNMP (SNMP v1/v2c/v3) Supported RMON (MIB groups 1, 2, 3, 9) Supported system logs Supported hierarchical alarms Supported 1588v2 and synchronous Ethernet Ping, Tracert NQA: Supported network quality analysis, Supported interworking with VRRP, policy routing, and static routing fan status detection, maintenance and alarms power status detection, maintenance and alarms CF card status detection, maintenance and environmental temperature change detection, alarms |
| File System | Supports FAT format file system, supports CF card, supports USB external storage device, supports Dual Image |
| Loading and Upgrade | throughXModem protocolsimplementsloading and upgradethroughFTP, TFTPimplementsloading and upgrade |
| Ordering Information | |
| Main Control Engine Board | |
| 0231A2S1 | RT-RSE-X3 - RSE-X3 Control Unit (4G DDR3/1AUX/1CON/1GE Mgt/1CF/1USB) |
| Mesh Board | |
| 0231A1U6 | 0231A1U6 - SR6600-X V7 Router |
| Business Processing Unit (Master Card) | |
| 0231A7PE | RT-FIP-260 - Flexible interface platform module 260, 4 MIC-X slots |
| Ethernetinterface daughter card Module | |
| 0231A7XH | RT-MIC-X-GT8 - 8-port Gigabit Ethernet electrical interface subcard (RJ45) (MIC-X) |
| 0231AAFT | RT-MIC-X-CNDE-SJK - Chinese commercial cryptography encryption Module(supports SM1/2/3/4)(MIC-X) |
| 0231A7PJ | RT-MIC-X-GP8 - 8-port Gigabit Ethernet Optical Interface subcard (SFP, LC) (MIC-X) |
| Fast Ethernet Optical Module | |
| 0231A090 | SFP-FE-LH80-SM1550 - Optical Module—SFP 100M/155M Single-Mode Long-Distance Module—(1550 nm, 80 km, LC) |
| 0231A12U | SFP-FE-LX-SM1550-BIDI - SFP Fast Ethernet BIDI Optical Module (TX 1550/RX 1310 nm, 15 km, LC) |
| 0231A12T | SFP-FE-LX-SM1310-BIDI - SFP Fast Ethernet BIDI Optical Module (TX 1310/RX 1550 nm, 15 km, LC) |
| 0231A564 | SFP-FE-LX-SM1310-A - Optical Module—SFP 100M/155M Single-Mode Module (1310 nm, 15 km, LC) |
| 0231A965 | SFP-FE-LX-SM1310-D - Optical Module—SFP 100M/155M Single-Mode Module (1310 nm, 15 km, LC) |
| 0231A089 | SFP-FE-LH40-SM1310 - Optical Module - SFP 100M/155M Single-Mode Module - (1310nm, 40km, LC) |
| Gigabit Optical Module | |
| 0231AEUN | SFP-GE-LX-SM1310-S - SFPGigabit Optical Module(1310nm,10km,LX,LC) |
| 0231AEUP | SFP-GE-SX-MM850-S - SFPGigabit Optical Module(850nm,550m,SX,LC) |
| 0231A085 | SFP-GE-T - SFP GEElectrical Port Module(100m,RJ45) |
| 0231A563 | SFP-GE-LX-SM1310-A - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 10 km, LC) |
| 0231A562 | SFP-GE-SX-MM850-A - Optical Module - SFP-GE - Multimode Module (850 nm, 0.55 km, LC) |
| 02312170 | SFP-GE-LH40-SM1310 - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 40 km, LC) |
| 02312173 | SFP-GE-LH80-SM1550 - Optical Module - SFP-GE - Single-Mode Module - (1550 nm, 80 km, LC) |
| 0231A960 | SFP-GE-T-D - SFP GEElectrical Port Module(100m,RJ45) |
| 0231A961 | SFP-GE-SX-MM850-D - Optical Module - SFP-GE - Multimode Module (850 nm, 0.55 km, LC) |
| 0231A962 | SFP-GE-LX-SM1310-D - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 10 km, LC) |
| 0231A963 | SFP-GE-LH40-SM1310-D - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 40 km, LC) |
| 02312172 | SFP-GE-LH40-SM1550 - Optical Module—SFP—GE—Single-Mode Module—(1550 nm, 40 km, LC) |
| 0231A964 | SFP-GE-LH80-SM1550-D - Optical Module - SFP-GE - Single-Mode Module - (1550 nm, 80 km, LC) |
| 0231A11U | SFP-GE-LX-SM1310-BIDI - Optical Module - SFP Gigabit BIDI Optical Module - TX 1310/RX 1490, 10 km, LC |
| 0231A11V | SFP-GE-LX-SM1490-BIDI - Optical Module - SFP Gigabit BIDI Optical Module - TX 1490/RX 1310, 10 km, LC |
| 0231A7PK | RT-MIC-X-XP4 - 4-Port 10 Gigabit Ethernet Optical Interface Daughter Card (SFP+,LC) (MIC-X) |
| SFP+ 10G Port | |
| 0231ABSQ | SFP-XG-LX-SM1270-BIDI - SFP+ 10GBIDIOptical Module(TX1270nm/RX1330nm,10km,LC) |
| 0231ABSP | SFP-XG-LH40-SM1270-BIDI - SFP+ 10G BIDI Optical Module (TX 1270 nm/RX 1330 nm, 40 km, LC) |
| 0231ABSR | SFP-XG-LX-SM1330-BIDI - SFP+ 10G BIDI Optical Module (TX 1330 nm/RX 1270 nm, 10 km, LC) |
| 0231ABSS | SFP-XG-LH40-SM1330-BIDI - SFP+ 10G BIDI Optical Module (TX 1330 nm/RX 1270 nm, 40 km, LC) |
| 0231ABST | SFP-XG-LH80-SM1490-BIDI - SFP+ 10GBIDI Optical Module (TX 1490nm/RX 1550nm, 80km, LC) |
| 0231ABSU | SFP-XG-LH80-SM1550-BIDI - SFP+ 10GBIDI Optical Module (TX 1550nm/RX 1490nm, 80km, LC) |
| 0231AEUQ | SFP-XG-LX-SM1310-S - SFP+ 10G Optical Module(1310nm,10km,LX,LC) |
| 0231AEUM | SFP-XG-SX-MM850-S - SFP+ 10G Optical Module(850nm,300m,SX,LC) |
| 0231A0A8 | SFP-XG-LX-SM1310 - SFP+ 10GModule(1310nm,10km,LC) |
| 0231A2L3 | SFP-XG-LX-SM1310-E - SFP+ 10GModule(1310nm,10km,LC) |
| 0231A1RQ | SFP-XG-LX-SM1310-D - SFP+ 10GModule(1310nm,10km,LC) |
| 0231A0SP | SFP-XG-LH40-SM1550 - SFP+ 10GModule(1550nm,40km,LC) |
| 0231A1RR | SFP-XG-LH40-SM1550-D - SFP+ 10GModule(1550nm,40km,LC) |
| 0231A2T6 | SFP-XG-LH80-SM1550-D - SFP+ 10GModule(1550nm,80km,LC) |
| 0231A1PA | SFP-XG-LH80-SM1550 - SFP+ 10GModule(1550nm,80km,LC) |
| 0231A0A6 | SFP-XG-SX-MM850-A - SFP+ 10GModule(850nm,300m,LC) |
| 0231A2L4 | SFP-XG-SX-MM850-E - SFP+ 10GModule(850nm,300m,LC) |
| 0231A1RP | SFP-XG-SX-MM850-D - SFP+ 10GModule(850nm,300m,LC) |
| 0231A7PL | 0231A7PL - 4-port 10G Ethernet Optical Interface subcard (SFP+, LC) (supports LAN/WAN mode) (MIC-X) |
| 0231A7PR | RT-MIC-X-GP4GT4 - 4-port Gigabit Ethernet Optical Interface + 4-port Gigabit Ethernet electrical interface subcard (SFP, LC, RJ45) (MIC-X) |
| 0231A7XF | RT-MIC-X-GP10 - 10-port Gigabit Ethernet Optical Interface subcard (SFP, LC) (MIC-X) |
| 0231A7XG | RT-MIC-X-XP2 - 2-Port 10 Gigabit Ethernet Optical Interface Daughter Card (SFP+,LC) (MIC-X) |
| POSinterface daughter card Module | |
| 0231A7XD | RT-MIC-X-SP4 - 4-port OC-3c/STM-1c POS or 1-port OC-12c/STM-4c POS Optical Interface Daughter Card (SFP,LC) (MIC-X) |
| 622M Optical Module | |
| 0231A40B | SFP-622M-LX-SM1310 - 622M SFP Optical Module (1310 nm, 15 km, LC) |
| 0231A7PM | RT-MIC-X-SP8 - 8-Port OC-3c/STM-1c POS Optical Interface Daughter Card (SFP,LC) (MIC-X) |
| CPOSinterface daughter card Module | |
| 0231A7PF | RT-MIC-X-CLP2 - 2-Port OC-3/STM-1 Channelized POS Optical Interface Daughter Card (SFP,LC) (MIC-X) |
| 0231A7PN | RT-MIC-X-CLP4 - 4-Port OC-3/STM-1 Channelized POS Optical Interface Daughter Card (SFP,LC) (MIC-X) |
| E1interface daughter card Module | |
| 0231A7PG | 0231A7PG - 16-Port E1/T1 Electrical Interface Daughter Card (HM96 Male) (MIC-X) |
| Cable | |
| 0404A1KM | CAB-E1-3.0m-40054 - E1 Cable - 3.0m - (D(96P) Female) - (SEYVP) - (16*RJ45 Plug 8/8P Shielded) |
| 0404A0WK | CAB-E1-3.0m-BNC75 - BNC 75Ω E1 Cable - 3.0m - (HD96 Female) - (SYFVZP-75-1-1 Gray) - (32*BNC Straight Male) |
| Hard Drive | |
| 0231AAD5 | SSD-512G-SATA-6G-MSATA - 512GB mSATA SSDHard Drive Module |
| 0231A7PQ | RT-FIP-380 - Flexible interface platform module 380, 2 MIC-X slots, 2-port 10G SFP+, 14-port Gigabit SFP, 8-port Gigabit RJ45 |
| SFP Gigabit Port | |
| 0231A7PH | RT-FIP-660 - Flexible interface platform module 660, 4 MIC-X slots |
| 0231A5QE | RT-FIP-680 - Business Processing Unit (680) |
| 0231A5QF | MIC-XP4L - 4-port 10G Ethernet Optical Interface subcard (SFP+, LC) |
| SFP+ Optical Module | |
| 0231A2EH | MIC-GP8L - 8-Port Gigabit Ethernet Optical Interface Card-(SFP,LC) |
| POS/ATMinterface daughter card Module | |
| 0231A2EM | MIC-SP4L - 4-port OC-3c/STM-1c POS/ATM or 1-port OC-12c/STM-4c POS/ATM Optical Interface Card-(SFP,LC) |
| 0231A3FH | MIC-SP8L - 8-PortOC-3c/STM-1c POSOptical Interface Card-(SFP,LC) |
| Service Module (integrated large card) | |
| 0231A3BC | 0231A3BC - SR6600-X V7 Router |
| 0231A320 | SFP-FE-SX-MM1310-A - Optical Module—SFP 100M/155M Multimode Module (1310 nm, 2 km, LC) |
| 0231A2UN | SFP-GE-LH40-SM1310-BIDI - SFP Gigabit BIDI Optical Module (TX 1310/RX 1550 nm, 40 km, LC) |
| 0231A2UP | SFP-GE-LH40-SM1550-BIDI - SFPGigabitBIDI Optical Module (TX 1550/RX 1310 nm, 40 km, LC) |
| Power Supply Options | |
| 0231A0BK | AC-PSR650-A-H3 - H3C PSR650A AC power Module,650W |
| 0231A0BL | DC-PSR650-D-H3 - H3C PSR650D DC power Module,650W |
| 0231A1HX | AC-PSR1200-A - H3C PSR1200A AC power Module,1200W |
| 0231A1HY | DC-PSR1200-D - H3C PSR1200D DC power Module,1200W |
| Authorization Letter Options | |
| 3130A1GX | LIS-SR6600-Standard - H3C SR6600 Chassis Software Standard Edition License Letter |
| Serial Cable | |
| 04042967 | CAB-CON-1.8m - Configuration Serial Cable—1.8 m—(DB9 Female to 8-pin Ethernet Port) |
| 0404A1EE | CAB-Console-1.8m-W31R - Configuration Port Cable-1.8m-(RJ45P)-(UL2725(3C28AWG))-(USB AP) |
| Memory | |
| 0231A0XG | 0231A0XG - SR6600-X V7 Router |
| 0231A0XH | 0231A0XH - SR6600-X V7 Router |
| 0231A0XF | 0231A0XF - SR6600-X V7 Router |
| 0231A1RL | 0231A1RL - SR6600-X V7 Router |
| Cable Spare Parts | |
| 04026104 | CAB-E1-120ohm-3m-RJ45 - E1 Interface Cable/1*RJ45 (120 ohms) – 3 m |
| 04026813 | CAB-E1/75-120 Convert - E1 Cable 120 Ohm to 75 Ohm Adapter Box |
| 14040202 | CAB-BNC-75 - Coaxial Connector - BNC - 75Ω - Straight/Socket - Dual Female - Connects to E1 Cable BNC Male Plug |
| Product Identity | |
| Brand | H3C |
| Series | H3C SR6600-X V7 Series Router |
Reviews
No reviews yet
Be the first to review this enterprise product.
Warranty
Standard Warranty Policy
All hardware sold by ITMall includes our 3-Year Free Maintenance and 1-Year RMA Replacement Service. Please refer to our Warranty Policy for details.
- 1-Year Advance Replacement (RMA)
- 3-Year Free Repair Service
- Full coverage for functionality defects
Hassle-Free RMA Process
We streamlined the return process to minimize your network downtime. Our engineering team provides pre-return diagnostics to ensure hardware is truly defective.
- 30-Day satisfaction guarantee return window
- Automated RMA portal access for instant tracking
- Restocking fee waived for functionality issues
Certified Engineering Support
Our products are backed by CCIE-certified engineers who provide expert guidance on compatibility, configuration, and troubleshooting at no extra cost.
- Free pre-sales topology consultation
- Remote troubleshooting & firmware advice
- Simulation lab testing before dispatch
Global Logistics & Packaging
We ship to 85+ countries using premium anti-static packaging to ensure safety. Orders placed before 14:00 (GMT+8) are typically dispatched the same day.
- Double-walled boxes with customer molded foam
- Blind shipping support for channel partners
- Real-time tracking via FedEx / DHL / UPS
Resources
No downloads available for this product.
FAQ
What is the Switching Capacity specification for RT-SR6616-X?
RT-SR6616-X lists Switching Capacity as 243.71Tbps. Use this value when checking datasheet requirements, quotation details, and deployment compatibility.
What is the Whole Machine Packet Forwarding Rate specification for RT-SR6616-X?
RT-SR6616-X lists Whole Machine Packet Forwarding Rate as 24000Mpps. Use this value when checking datasheet requirements, quotation details, and deployment compatibility.
What is the Dimensions (W×D×H) specification for RT-SR6616-X?
RT-SR6616-X lists Dimensions (W×D×H) as 436mm×480mm×886mm（20U）. Use this value when checking datasheet requirements, quotation details, and deployment compatibility.
What is the Supervisor Engine Module Slot Count specification for RT-SR6616-X?
RT-SR6616-X lists Supervisor Engine Module Slot Count as 2 (1+1 redundancy backup). Use this value when checking datasheet requirements, quotation details, and deployment compatibility.
Is this product Brand New?
Yes, unless clearly marked as "Refurbished", all our products are Factory Sealed (Original New) sourced directly from authorized channels.
What is the warranty period?
We provide a comprehensive 3-Year Warranty on this item. This covers hardware defects and includes advanced replacement.
Do you offer volume discounts?
Yes! For bulk orders or project bids, please click "Quote | Help" to get a custom price proposal from our sales team.
How fast can you ship?
In-stock items ordered before 3 PM EST ship the same day. We offer overnight and 2-day shipping options via FedEx/DHL.
Still have questions?
