| Basic Information | |
| Part Number |
98012269 |
|---|---|
| Model |

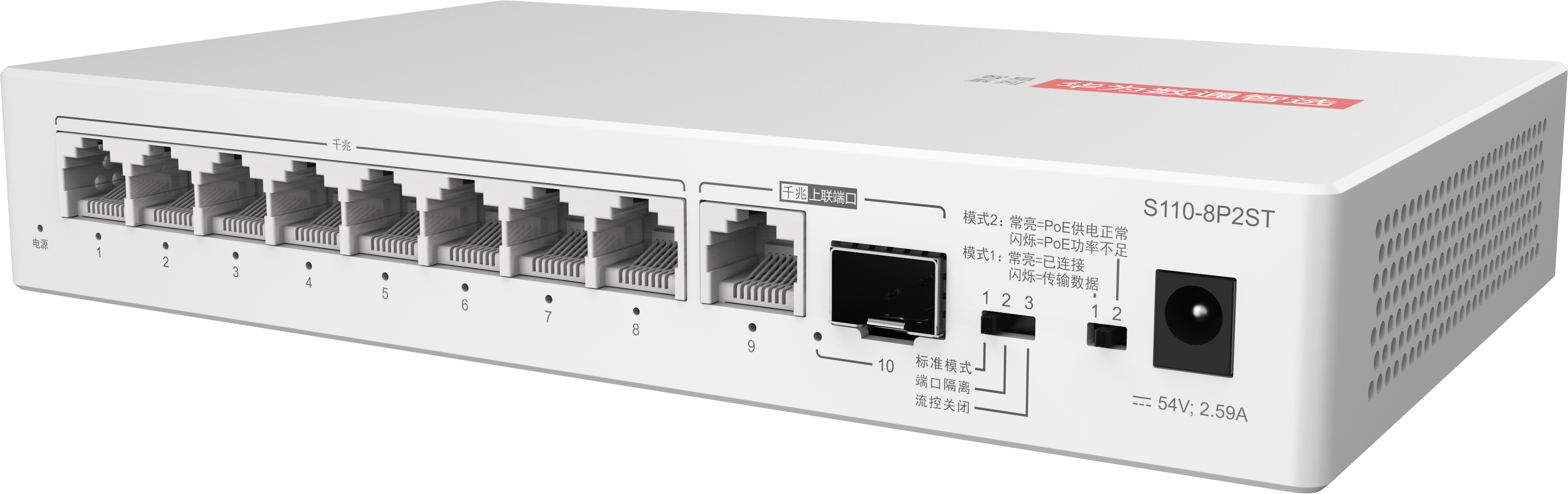

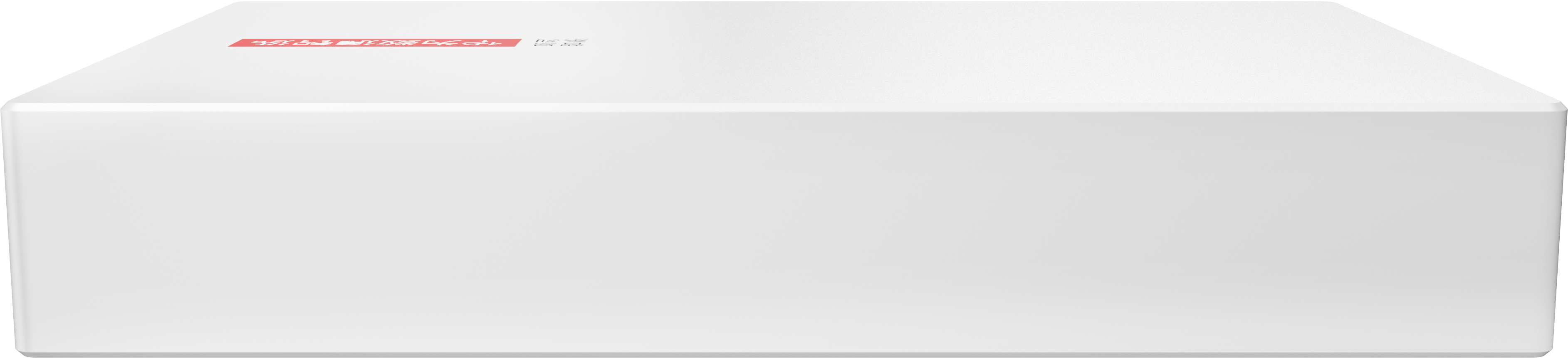

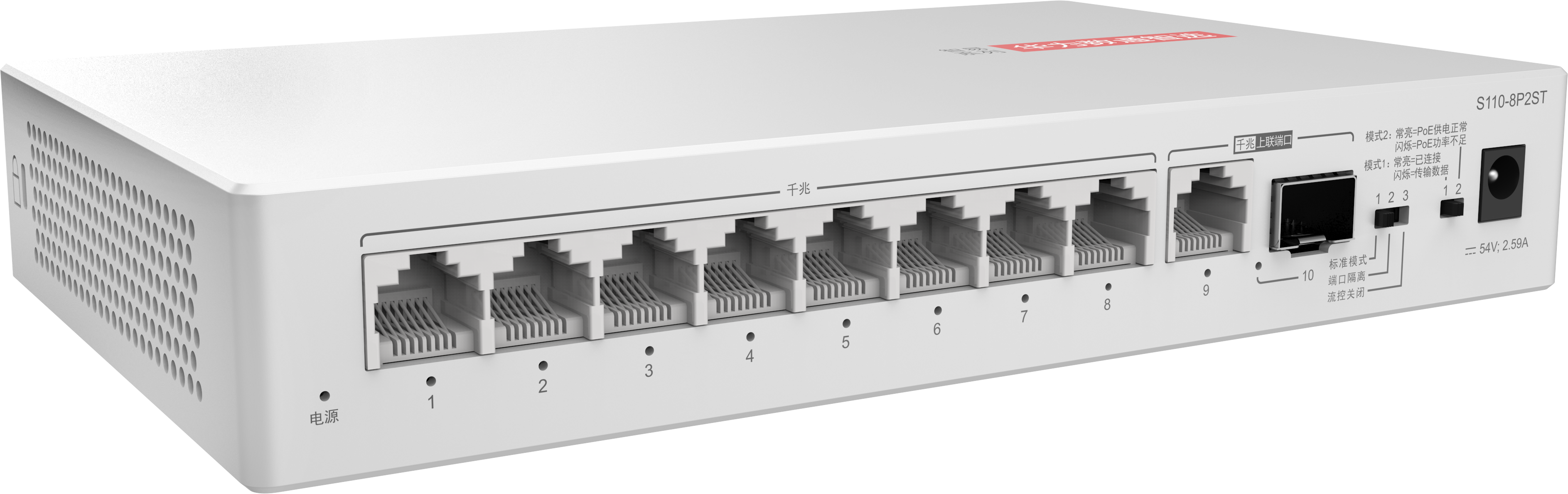

S110-8P2ST |
| Description |
S110-8P2ST (8*10/100/1000BASE-T ports, PoE+, 1*GE SFP port, 1*10/100/1000BASE-T port, AC power, power adapter) |
| Technical Specifications | |
| Chassis material |
PC+ABS |
| Height [mm] |
35 mm |
| Depth [mm] |
130.0 mm |
| Wide [mm] |
210.0 mm |
| Chassis height [U] |
0.8 |
| Weight with packaging [kg(lb)] |
1.46 (3.22) |
| Weight without packaging [kg(lb)] |
0.91 (2.01) |
| Maximum power consumption [W] |
Without PoE: 11 W Full PoE load: 155 W (PoE: 124 W) |
| Typical power consumption [W] |
11 |
| Heat dissipation mode |
Natural heat dissipation |
| Maximum heat dissipation [BTU/hour] |
- Without PoE: 37.53 - Full PoE load: 528.88 |
| Typical heat dissipation [BTU/hour] |
37.53 |
| Power supply mode |
Power adapter |
| Input voltage range [V] |
Power adapter input: 170 V AC to 264 V AC; 47 Hz to 63 Hz |
| Rated input voltage [V] |
Power adapter input: 170 V AC to 240 V AC; 50/60 Hz Power adapter output: 54 V DC |
| Maximum input current [A] |
2.78 A |
| Number of power slots |
0 |
| Number of card slots |
0 |
| Memory |
- |
| Flash memory |
- |
| Redundant power supply |
Not supported |
| Types of fans |
None |
| Noise at normal temperature (acoustic power) [dB(A)] |
Noise-free (no fans), < 30 |
| Noise at normal temperature (acoustic pressure) [dB(A)] |
Noise-free (no fans), < 20 |
| Airflow direction |
- |
| Storage temperature [°C(°F)] |
–40°C to +70°C (–40°F to +158°F) |
| Long-term operating temperature [°C(°F)] |
0°C to 40°C (32°F to 104°F) at an altitude of 0-1800 m (0-5906 ft.) |
| Restriction on the operating temperature variation rate [°C(°F)] |
When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). |
| Long-term operating relative humidity [RH] |
5% RH to 95% RH (non-condensing) |
| Storage altitude [m(ft.)] |
0-5000 m (0-16404 ft.) |
| Long-term operating altitude [m(ft.)] |
0–5000 m (0–16404 ft.) |
| MTBF [year] |
78.77 |
| MTTR [hour] |
2 |
| Availability |
> 0.99999 |
| Maximum number of physical ports on the entire device |
10 |
| Maximum number of 100GE ports |
0 |
| Maximum number of 40GE ports |
0 |
| Maximum number of 25GE ports |
0 |
| Maximum number of 10GE ports |
0 |
| Maximum number of GE ports |
10 |
| Maximum number of FE ports |
10 |
| Downlink ports |
8 x 10/100/1000BASE-T ports (124 W PoE+) |
| Uplink ports |
1 x GE SFP port and 1 x 10/100/1000BASE-T port |
| USB |
Not supported |
| Console port |
Not supported |
| Eth Management port |
Not supported |
| Working mode |
- Standard mode - Port isolation - Flow control disabling |
| MAC address entry |
2K |
| Service port surge protection [kV] |
Common mode: ±4 kV |
| Power supply surge protection |
±4 kV in differential mode and ±4 kV in common mode |
| RPS input |
Not supported |
| PoE |
Supported |
Uncategorized
4.9Verified
S110-8P2ST
Model (MPN)
S110-8P2ST
Condition
Factory Sealed
Out of Stock
8*10/100/1000BASE-T ports, PoE+, 1*GE SFP port, 1*10/100/1000BASE-T port, AC power, power adapter
