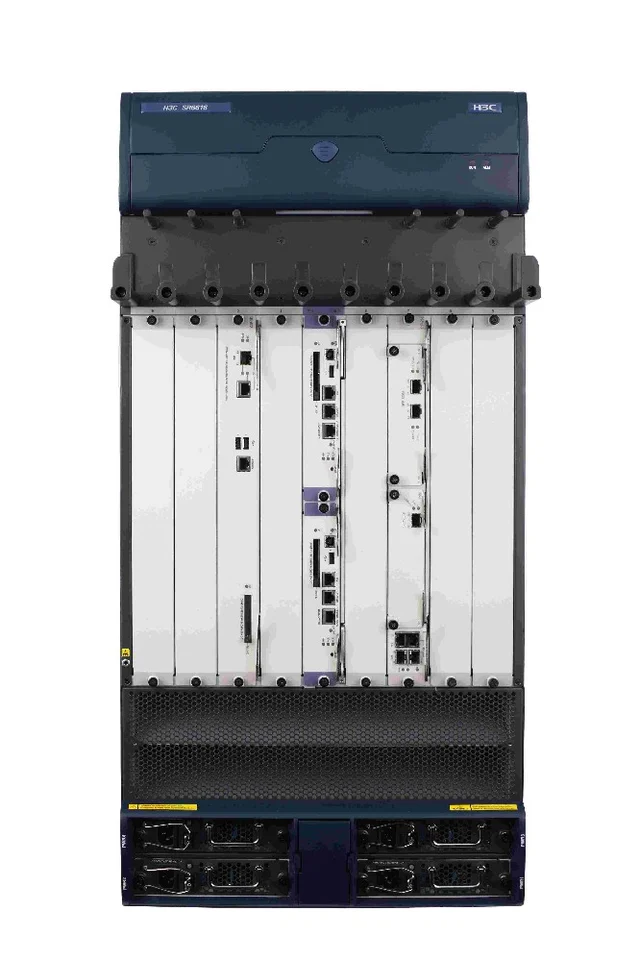

H3C SR6616+BKEE+2RPE-X5+2DC1200W Router. SR6616 Router with BKEE and Two RPE-X5 and Two DC1200W.
Our CCIE certified engineers can help you verify compatibility.
Global logistics network aiming for same-day handover.
Every unit undergoes rigorous 38-point inspection test.
Trusted by enterprise clients across 6 continents.
Certified network engineers ready to assist with configuration.
H3C SR6616+BKEE+2RPE-X5+2DC1200W Router is SR6616 Router with BKEE and Two RPE-X5 and Two DC1200W.
Compatible and optional SKUs are listed in the ordering information, including 0231ABBK RT-RPE-X5, 0231A3C5 RT-SFE-L1, 0231A6UX RT-SFE-L2, 0150A17K RT-SFU+SFE-L2, 0231A8UQ RT-SFU.
| Key Specifications | |
|---|---|
| Whole Machine Packet Forwarding Rate | 6000~12000Mpps / 14000~25000Mpps / 28000Mpps |
| Dimensions (W×D×H) | 436mm×480mm×220mm（5U） / 436mm×480mm×308mm（7U） / 436mm×480mm×886mm（20U） |
| Service Module Slot Count | 8 / 16 / 32 |
| operating temperature | -25~60℃ |
| Operating altitude | -60m～5000m |
| IP Applications | DHCP Server/Relay/ClientDNS ClientNTP Server/ClientTelnet Server/ClientTFTP ClientFTP Server/ClientUDP Helper |
| Product Specifications | |
| Whole Machine Packet Forwarding Rate | 6000~12000Mpps / 14000~25000Mpps / 28000Mpps |
| Dimensions (W×D×H) | 436mm×480mm×220mm（5U） / 436mm×480mm×308mm（7U） / 436mm×480mm×886mm（20U） |
| Service Module Slot Count | 8 / 16 / 32 |
| operating temperature | -25~60℃ |
| Operating altitude | -60m～5000m |
| IP Applications | DHCP Server/Relay/ClientDNS ClientNTP Server/ClientTelnet Server/ClientTFTP ClientFTP Server/ClientUDP Helper |
| Product Specifications | |
| Service Module Slot Count | 8 / 16 / 32 |
| Switching Capacity | 73~121.86Tbps / 121.86Tbps / 243.71Tbps |
| Whole Machine Packet Forwarding Rate | 6000~12000Mpps / 14000~25000Mpps / 28000Mpps |
| Dimensions (W×D×H) | 436mm×480mm×220mm（5U） / 436mm×480mm×308mm（7U） / 436mm×480mm×886mm（20U） |
| operating temperature | -25~60℃ |
| Operating altitude | -60m～5000m |
| IP Applications | DHCP Server/Relay/ClientDNS ClientNTP Server/ClientTelnet Server/ClientTFTP ClientFTP Server/ClientUDP Helper |
| MPLS | L3VPN: inter-AS MPLS VPN (Option1/2/3), nested MPLS VPN, hierarchical PE (HoPE), CEdual-homing, MCE, multi-role hostetc. L2VPN: VPLS, Martini, Kompella, CCC and SVC modeVPLS/H-VPLSMPLS TE, RSVP TE, LDP over TEMulticastVPN |
| Loading and Upgrade | throughXModem protocolsimplementsloading and upgradethroughFTP, TFTPimplementsloading and upgrade |
| Catalog Description | |
| Description | SR6616 Router with BKEE and Two RPE-X5 and Two DC1200W |
| Key Features | |
| Feature 1 | Industry's First Multi-Core High-End Router The SR6600 is the industry's first mid-to-high-end Router based on multi-core, multi-threaded technology architecture, featuring high performance, easy programming, and flexible Layer L4-L7 service application |
| Feature 2 | The application of multi-core and multi-threaded processors greatly improves the performance and flexibility of the network equipment, and its good programmability and ease of use make the SR6600 have a fast response capability and good adaptability to future new services, and meet the user's needs to realize multi-service expansion on Router |
| Feature 3 | The SR6600Router is designed in the system architecture to accelerate the processing of link layer services and security services using hardware, so that the multi-core processor core resources are more focused on critical L4-7 deep service processing |
| Feature 4 | New generation network operating system SR6600 control plane using multi-core and SMP (Symmetrical Multi-Processing) technology, advanced operating system Comware V7, each software module has an independent process and running space, can be dynamically loaded, upgraded individually, this fine-tuned management is more conducive to the overall stability and performance of the system. Performance |
| Feature 5 | Comware V7 ensures business-critical performance and real-time |
| Ordering Information | |
| Configuration Options | |
| 0231ABBK | RT-RPE-X5 |
| Fabric Module | |
| 0231A3C5 | RT-SFE-L1; SR6600 SFE-L1 Fabric Module; Type: Fabric Module |
| Configuration Options | |
| 0231A6UX | RT-SFE-L2; SR6600 SFE-L2Fabric Module |
| 0150A17K | RT-SFU+SFE-L2 |
| 0231A8UQ | RT-SFU |
| 0231A7XH | RT-MIC-X-GT8 |
| 0231AAFT | RT-MIC-X-CNDE-SJK |
| Fast Ethernet optical transceiver | |
| 0231A090 | SFP-FE-LH80-SM1550; Optical transceiver - SFP 100M/155M long-reach single-mode module (1550nm, 80km, LC); Type: Fast Ethernet optical transceiver |
| 0231A12U | SFP-FE-LX-SM1550-BIDI; SFP Fast EthernetBID Ioptical transceiver (TX1550/RX1310nm, 15km, LC); Type: Fast Ethernet optical transceiver |
| 0231A12T | SFP-FE-LX-SM1310-BIDI; SFP Fast EthernetBID Ioptical transceiver (TX1310/RX1550nm, 15km, LC); Type: Fast Ethernet optical transceiver |
| 0231A564 | SFP-FE-LX-SM1310-A; Optical transceiver - SFP 100M/155M single-mode module (1310nm, 15km, LC); Type: Fast Ethernet optical transceiver |
| 0231A965 | SFP-FE-LX-SM1310-D; Optical transceiver - SFP 100M/155M single-mode module (1310nm, 15km, LC); Type: Fast Ethernet optical transceiver |
| 0231A089 | SFP-FE-LH40-SM1310; Optical transceiver - SFP 100M/155M single-mode module (1310nm, 40km, LC); Type: Fast Ethernet optical transceiver |
| Gigabit optical transceiver | |
| 0231AEUN | SFP-GE-LX-SM1310-S; SFP Gigabit optical transceiver (1310nm, 10km, LX, LC); Type: Gigabit optical transceiver |
| 0231AEUP | SFP-GE-SX-MM850-S; SFP Gigabit optical transceiver (850nm, 550m, SX, LC); Type: Gigabit optical transceiver |
| 0231A085 | SFP-GE-T; SFP GE copper transceiver (100m, RJ45); Type: Gigabit optical transceiver |
| 0231A563 | SFP-GE-LX-SM1310-A; Optical transceiver - SFP-GE single-mode module (1310nm, 10km, LC); Type: Gigabit optical transceiver |
| 0231A562 | SFP-GE-SX-MM850-A; Optical transceiver - SFP-GE multimode module (850nm, 0.55km, LC); Type: Gigabit optical transceiver |
| 02312170 | SFP-GE-LH40-SM1310; Optical transceiver - SFP-GE single-mode module (1310nm, 40km, LC); Type: Gigabit optical transceiver |
| 02312173 | SFP-GE-LH80-SM1550; Optical transceiver - SFP-GE single-mode module (1550nm, 80km, LC); Type: Gigabit optical transceiver |
| 0231A960 | SFP-GE-T-D; SFP GE copper transceiver (100m, RJ45); Type: Gigabit optical transceiver |
| 0231A961 | SFP-GE-SX-MM850-D; Optical transceiver - SFP-GE multimode module (850nm, 0.55km, LC); Type: Gigabit optical transceiver |
| 0231A962 | SFP-GE-LX-SM1310-D; Optical transceiver - SFP-GE single-mode module (1310nm, 10km, LC); Type: Gigabit optical transceiver |
| 0231A963 | SFP-GE-LH40-SM1310-D; Optical transceiver - SFP-GE single-mode module (1310nm, 40km, LC); Type: Gigabit optical transceiver |
| 02312172 | SFP-GE-LH40-SM1550; Optical transceiver - SFP-GE single-mode module (1550nm, 40km, LC); Type: Gigabit optical transceiver |
| 0231A964 | SFP-GE-LH80-SM1550-D; Optical transceiver - SFP-GE single-mode module (1550nm, 80km, LC); Type: Gigabit optical transceiver |
| 0231A11U | SFP-GE-LX-SM1310-BIDI; Optical transceiver - SFP Gigabit BIDI module-TX1310/RX1490, 10km, LC; Type: Gigabit optical transceiver |
| 0231A11V | SFP-GE-LX-SM1490-BIDI; Optical transceiver - SFP Gigabit BIDI module-TX1490/RX1310, 10km, LC; Type: Gigabit optical transceiver |
| Configuration Options | |
| 0231A7PJ | RT-MIC-X-GP8 |
| SFP+ 10GbE port | |
| 0231ABSQ | SFP-XG-LX-SM1270-BIDI; SFP+ 10GbE BIDI optical transceiver (TX1270nm/RX1330nm, 10km, LC); Type: SFP+ 10GbE port |
| 0231ABSP | SFP-XG-LH40-SM1270-BIDI; SFP+ 10GbE BIDI optical transceiver (TX1270nm/RX1330nm, 40km, LC); Type: SFP+ 10GbE port |
| 0231ABSR | SFP-XG-LX-SM1330-BIDI; SFP+ 10GbE BIDI optical transceiver (TX1330nm/RX1270nm, 10km, LC); Type: SFP+ 10GbE port |
| 0231ABSS | SFP-XG-LH40-SM1330-BIDI; SFP+ 10GbE BIDI optical transceiver (TX1330nm/RX1270nm, 40km, LC); Type: SFP+ 10GbE port |
| 0231ABST | SFP-XG-LH80-SM1490-BIDI; SFP+ 10GbE BIDI optical transceiver (TX1490nm/RX1550nm, 80km, LC); Type: SFP+ 10GbE port |
| 0231ABSU | SFP-XG-LH80-SM1550-BIDI; SFP+ 10GbE BIDI optical transceiver (TX1550nm/RX1490nm, 80km, LC); Type: SFP+ 10GbE port |
| 0231AEUQ | SFP-XG-LX-SM1310-S; SFP+ 10GbE optical transceiver (1310nm, 10km, LX, LC); Type: SFP+ 10GbE port |
| 0231AEUM | SFP-XG-SX-MM850-S; SFP+ 10GbE optical transceiver (850nm, 300m, SX, LC); Type: SFP+ 10GbE port |
| 0231A0A8 | SFP-XG-LX-SM1310; SFP+ 10GbE optical transceiver (1310nm, 10km, LC); Type: SFP+ 10GbE port |
| 0231A2L3 | SFP-XG-LX-SM1310-E; SFP+ 10GbE optical transceiver (1310nm, 10km, LC); Type: SFP+ 10GbE port |
| 0231A1RQ | SFP-XG-LX-SM1310-D; SFP+ 10GbE optical transceiver (1310nm, 10km, LC); Type: SFP+ 10GbE port |
| 0231A0SP | SFP-XG-LH40-SM1550; SFP+ 10GbE optical transceiver (1550nm, 40km, LC); Type: SFP+ 10GbE port |
| 0231A1RR | SFP-XG-LH40-SM1550-D; SFP+ 10GbE optical transceiver (1550nm, 40km, LC); Type: SFP+ 10GbE port |
| 0231A2T6 | SFP-XG-LH80-SM1550-D; SFP+ 10GbE optical transceiver (1550nm, 80km, LC); Type: SFP+ 10GbE port |
| 0231A1PA | SFP-XG-LH80-SM1550; SFP+ 10GbE optical transceiver (1550nm, 80km, LC); Type: SFP+ 10GbE port |
| 0231A0A6 | SFP-XG-SX-MM850-A; SFP+ 10GbE optical transceiver (850nm, 300m, LC); Type: SFP+ 10GbE port |
| 0231A2L4 | SFP-XG-SX-MM850-E; SFP+ 10GbE optical transceiver (850nm, 300m, LC); Type: SFP+ 10GbE port |
| 0231A1RP | SFP-XG-SX-MM850-D; SFP+ 10GbE optical transceiver (850nm, 300m, LC); Type: SFP+ 10GbE port |
| Configuration Options | |
| 0231A7PK | RT-MIC-X-XP4 |
| 0231A7PR | RT-MIC-X-GP4GT4 |
| 0231A7XF | RT-MIC-X-GP10 |
| 0231A7XG | RT-MIC-X-XP2 |
| 622M optical transceiver | |
| 0231A40B | SFP-622M-LX-SM1310; 622M SF Poptical transceiver (1310nm, 15km, LC); Type: 622M optical transceiver |
| Configuration Options | |
| 0231A7XD | RT-MIC-X-SP4 |
| 0231A7PM | RT-MIC-X-SP8 |
| 0231A7PF | RT-MIC-X-CLP2 |
| 0231A7PN | RT-MIC-X-CLP4 |
| cable | |
| 0404A1KM | CAB-E1-3.0m-40054; Type: cable |
| 0404A0WK | CAB-E1-3.0m-BNC75; Type: cable |
| Configuration Options | |
| 0231AAD5 | SSD-512G-SATA-6G-MSATA |
| 0231A7PE | RT-FIP-260 |
| 0231A7PQ | RT-FIP-380 |
| 0231A7PH | RT-FIP-660 |
| 0231A5QF | MIC-XP4L |
| 0231A2EH | MIC-GP8L |
| QSFP+ port | |
| 0231A2NF | QSFP-40G-SR4-MM850; Type: QSFP+ port |
| 0231A4Q7 | QSFP-40G-BIDI-SR-MM850; QSFP+ 40G BIDI optical transceiver (850nm, 100m, SR); Type: QSFP+ port |
| 0231A2KL | QSFP-40G-CSR4-MM850; Type: QSFP+ port |
| 0231A4PB | QSFP-40G-LR4L-WDM1300; QSFP+ 40G optical transceiver (1310nm, 2km, LR4L, LC); Type: QSFP+ port |
| 0231A2E4 | QSFP-40G-LR4-WDM1300; QSFP+ 40G optical transceiver (1310nm, 10km, LR4, LC); Type: QSFP+ port |
| 0231A4UG | QSFP-40G-ER4-WDM1300; QSFP+ 40G optical transceiver (1310nm, 40km, ER4, LC); Type: QSFP+ port |
| 0231A2UQ | QSFP-40G-LR4-PSM1310; Type: QSFP+ port |
| Configuration Options | |
| 0231A6NX | MIC-QP1L |
| 0231A2EM | MIC-SP4L |
| 0231A3FH | MIC-SP8L |
| 0231A5QE | RT-FIP-680; Service Processing Unit (680) |
| 14130126 | OP-SC/PC-SC/PC-15-S |
| 14130098 | OP-SC/PC-SC/PC-5-S |
| 14130127 | OP-SC/PC-SC/PC-15-M |
| 14130156 | OP-SC/PC-SC/PC-5-M |
| 0231A7XE | RT-SAP-XP4GE32 |
| 0231ABBH | RT-BKEE |
| 0231A1HY | DC-PSR1200-D; H3C PSR1200D DC Power Supply Module, 1200W |
| License Certificate | |
| 3130A1GX | LIS-SR6600-Standard; Type: License Certificate |
| 3130A3LK | LIS-SR6600-WEBCACHE; Type: License Certificate |
| IPS/ACG/URL License Certificate | |
| 3130A2L6 | LIS-SR66-IPS-1Y; Type: IPS/ACG/URL License Certificate |
| 3130A2L7 | LIS-SR66-IPS-3Y; Type: IPS/ACG/URL License Certificate |
| 3130A2L8 | LIS-SR66-ACG-1Y; Type: IPS/ACG/URL License Certificate |
| 3130A2L9 | LIS-SR66-ACG-3Y; Type: IPS/ACG/URL License Certificate |
| 3130A50J | LIS-SR66-URL-1Y; Type: IPS/ACG/URL License Certificate |
| 3130A50M | LIS-SR66-URL-3Y; Type: IPS/ACG/URL License Certificate |
| SSL License Certificate | |
| 3130A2L4 | LIS-SR66-SSL-100; Type: SSL License Certificate |
| 3130A2L5 | LIS-SR66-SSL-500; Type: SSL License Certificate |
| Configuration Options | |
| 0231A97X | RT-FANB-20U-H3 |
| Serial Cable | |
| 04042967 | CAB-CON-1.8m; Type: Serial Cable |
| 0404A1EE | CAB-Console-1.8m-W31R; Console Cable-1.8m (RJ45P) (UL2725(3C28AWG)) (USB AP); Type: Serial Cable |
| Configuration Options | |
| 0231A4EK | LSXM1BSR; 1U Adjustable Rack Rail-630mm~900mm |
| 0231A97Y | RT-6616DUST-H3 |
| 04026104 | CAB-E1-120ohm-3m-RJ45 |
| 04026813 | CAB-E1/75-120 Convert |
| 14040202 | CAB-BNC-75 |
| Base Configuration | |
| 0150A1PN | SR6616+BKEE+2 RPE-X5+2 DC1200W |
| Product Identity | |
| Brand | H3C |
| Series | H3C SR6600 V7 Series Routers |
