SRX1500
Brand Juniper
4.9Verified

SRX1500

Model (MPN)
SRX1500
Condition
Factory Sealed
Original Packaging (NIB)
Out of Stock
  • Ports: 12x 1GbE RJ-45, 4x 1GbE SFP, 4x 10GbE SFP+
  • Firewall Throughput: 9 Gbps (1518B), 4.5 Gbps (IMIX)
  • IPsec VPN Throughput: 4 Gbps (1400B)
  • OS: Junos OS

Volume & Framework Pricing

B2B Only
QuantityUnit PriceEst. Savings
1 Unit$272.20-
2 - 9 UnitsRequest Quote5 - 10%
10+ / ProjectFramework Match Tier-1 Access
Global Framework Support AvailableGet Global Discount

Key Specifications

Full Product NameSRX1500 Firewall
OS SupportedJunos OS
Fixed/Modular Chassis?Fixed
Form Factor1 U
Chassis Height1.74 in / 4.4196 cm
Chassis Width17.28 in / 43.8912 cm
Your Price
Call for Pricing
Volume discounts available
Availability Out of Stock

Need configuration help?

Our CCIE certified engineers can help you verify compatibility.

Secure Payment
VISA
Pay
WIRE

Fast Dispatch

Global logistics network aiming for same-day handover.

48hrs
Avg. Shipping
99%
On-Time

Guaranteed Quality

Every unit undergoes rigorous 38-point inspection test.

3Year
Warranty
0.1%
RMA Rate

Global Reach

Trusted by enterprise clients across 6 continents.

85+
Countries
20k+
Clients

Expert Support

Certified network engineers ready to assist with configuration.

24/7
Assistance
CCIE
Certified

Overview

Product Overview

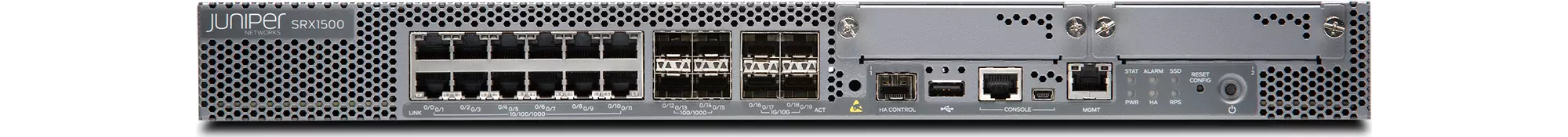

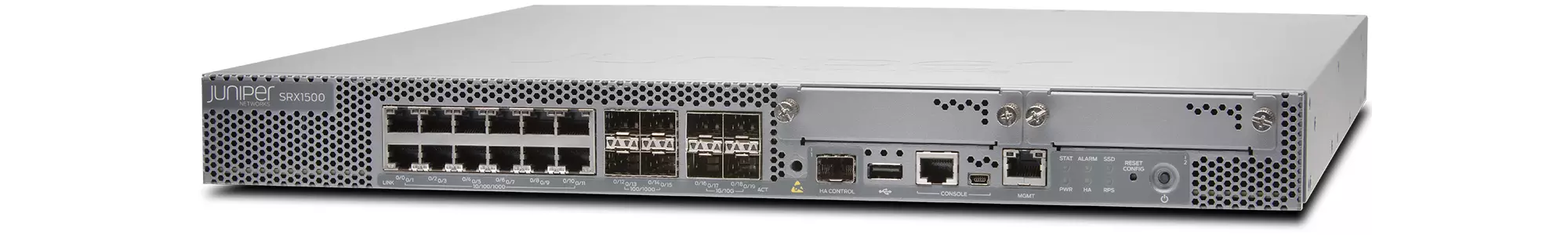

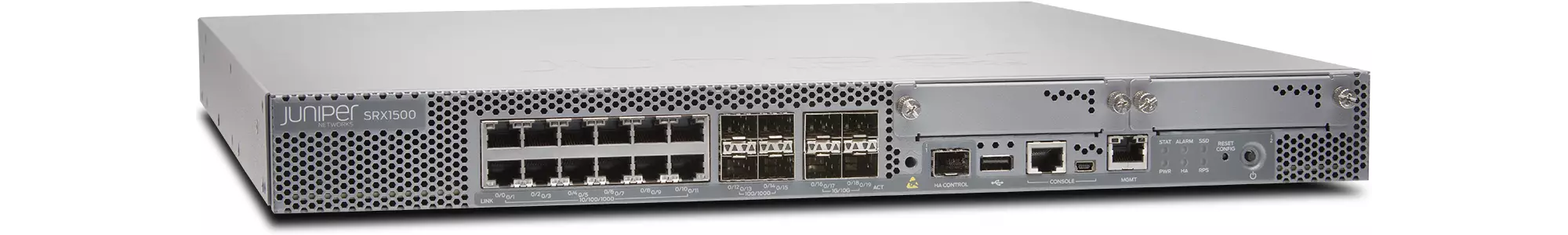

The Juniper SRX1500 Firewall is a high-performance, next-generation security device in a compact 1U fixed form factor. It delivers 9 Gbps firewall throughput and supports advanced threat protection, application security, and IPsec VPN capabilities. Ideal for enterprise branch and campus deployments requiring secure connectivity.

Ports and Interfaces

Features 12x 1GbE RJ-45 ports, 4x 1GbE SFP ports, and 4x 10GbE SFP+ ports for flexible connectivity. Additional interfaces include 1x RJ-45 console, 1x Mini USB Type B console, 1x RJ-45 management, and 1x USB Type A port. Supports extensive transceiver options for SFP and SFP+.

Performance and Scale

  • Firewall: 9 Gbps (1518B), 4.5 Gbps (IMIX)
  • IPsec VPN: 4 Gbps (1400B), 1 Gbps (IMIX)
  • NGFW: 2 Gbps (CPS), 7 Gbps (TPS)
  • Max Sessions: 2 Million (IPv4/IPv6)
  • IPv4 RIB: 2 Million, FIB: 1 Million
  • SSL CPS: 1600, IPsec Tunnels: 2000

High Availability and Architecture

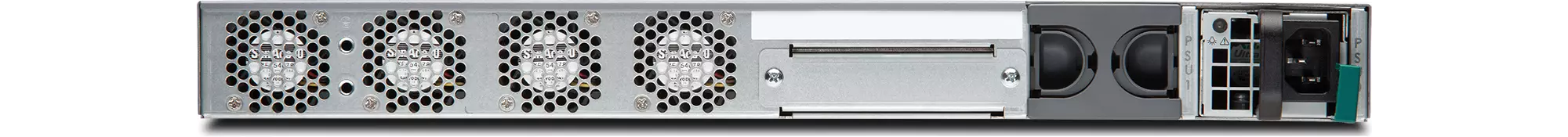

Supports Chassis Cluster with 1x SFP HA port. 16 GB DRAM, 120 GB SSD storage. Dual redundant PSUs (1+1) with front-to-back airflow. Hot-removable/hot-insertable fans and PSUs.

Environmental and Physical

1U form factor: 1.74 in H x 17.28 in W x 18.2 in D (19.9 in with FRUs). Weight: 15-16.1 lb. Operating temp: 32°-104°F. Acoustic noise: 66.5 dB max.

Power Options

AC or DC PSUs available. AC: 2.5 A max current, 512 BTU/h. DC: 6.2 A max current, 512 BTU/h.

Supported Accessories

  • PSUs: JPSU-400W-AC, JPSU-650W-DC-AFO
  • Transceivers: Multiple SFP/SFP+ options including SRX-SFP-10GE-SR, EX-SFP-10GE-LR, SRX-SFP-1GE-LX
  • Power Cords: Region-specific C13 and straight AC cords

Ordering Information

  • Main Unit: SRX1500, SRX1500 (AC), SRX1500 (DC)
  • Power Supplies: JPSU-400W-AC (AC), JPSU-650W-DC-AFO (DC)

Specifications

Overview
Full Product NameSRX1500 Firewall
OS SupportedJunos OS
Chassis
Fixed/Modular Chassis?Fixed
Form Factor1 U
Chassis Height1.74 in / 4.4196 cm
Chassis Width17.28 in / 43.8912 cm
Chassis Depth18.2 in / 46.228 cm
Chassis Depth (With FRUs)19.9 in / 50.546 cm
Chassis Weight (As Shipped)15 lb / 6.8 kg
Chassis Weight (Fully Loaded With All Components)16.1 lb / 7.3 kg
Chassis Cluster/High Availability
Chassis Cluster Port Count1
Chassis Cluster Port TypeSFP
Cooling System
Airflow DirectionFront-to-back
AFO/AFI?AFO
Fan Module - Fixed?Y
Fan Module Hot-Removable And Hot-Insertable?Y
Fan Tray Count1
Environmental Specifications
Operating Altitude10000 ft (3040 m)
Operating Temperature32° through 104° F / 0° through 40° C
Storage Temperature-40° through 158° F / -40° through 70° C
Relative Humidity, Noncondensing (Operating)10% through 90%
Relative Humidity, Noncondensing (Nonoperating)5% through 95%
Acoustic Noise Level (Max)66.5 dB
Maintenance Clearance17.4 in / 44.196 cm
Built-in Network Ports
RJ-45 Port Count12
SFP Port Count4
SFP+ Port Count4
Other Port Configuration
Console Port Count1
Console Port TypeRJ-45
Console Port 2 Count1
Console Port 2 TypeMini USB Type B
Management Port Count1
Management Port TypeRJ-45
USB Port Count1
USB Port TypeType A
Performance (General)
Route Table Size (RIB) (IPv4) (Thousands)2000
Route Table Size (FIB) (IPv4) (Thousands)1000
SSL Connections Per Second1600
Max Concurrent Sessions (IPv4/IPv6) (Thousands)2000
IPsec VPN Tunnels2000
Performance (Security)
Firewall Throughput (1518B)9 Gbps
Firewall Throughput (IMIX)4.5 Gbps
IPsec VPN Throughput (1400B)4 Gbps
IPsec VPN Throughput (IMIX)1 Gbps
Advanced Threat Protection (CPS)1 Gbps
Application Security Performance (CPS)4 Gbps
Application Security Performance (TPS)7.5 Gbps
NGFW Performance (CPS)2 Gbps
NGFW Performance (TPS)7 Gbps
Secure Web Access Firewall (CPS)2 Gbps
Processor
DRAM16 GB
Power System (AC Variant)
PSU Count2
PSU Redundancy1+1
PSU Airflow DirectionFront-to-back
PSU Hot-Removable And Hot-Insertable?Y
AC PSU Average Heat Dissipation512 BTU/h
Maximum Current Consumption (AC)2.5 A
Power System (DC Variant)
PSU Count2
PSU Redundancy1+1
PSU Airflow DirectionFront-to-back
PSU Hot-Removable And Hot-Insertable?Y
DC PSU Average Heat Dissipation512 BTU/h
Maximum Current Consumption (DC)6.2 A
Grounding
Grounding Cable Lug TypePanduit LCC6-10A-L
Grounding Cable Wire Gauge16 AWG
Routing/Switching Hardware
PIM Slots2
Storage
Internal Storage Size120 GB
Internal Storage TypeSSD
Supported Power Supplies
JPSU-400W-ACJuniper Power Supply Unit, 400W AC, Slim 1RU Form Factor
JPSU-650W-DC-AFOJuniper 650W DC Power Supply (Port Side to FRU Side Air Flow)
Supported Transceivers (Partial List)
CTP-SFP-1GE-LXSmall Form Factor Pluggable 1000Base-LX Gigabit Ethernet Optic Module, CTP1000 (740-011614)
EX-SFP-10GE-DAC-1MSFP+ 10 Gigabit Ethernet Direct Attach Copper (Twinax Copper Cable), 1M (740-030076)
EX-SFP-10GE-ERSFP+ 10GBase-ER 10 Gigabit Ethernet Optics Module, 1550nm for 40Km Transmission (740-140355)
EX-SFP-10GE-LRSmall Form Factor Pluggable 10 Gigabit Ethernet (SFP+) LR Optics (740-021309)
EX-SFP-10GE-SRSmall Form Factor Pluggable 10 Gigabit Ethernet (SFP+) SR Optics (740-021308)
SRX-SFP-1GE-LXSmall Form Factor Pluggable 1000Base-LX Gigabit Ethernet Optic Module (740-011614)
SRX-SFP-10GE-SRSmall Form Factor Pluggable 10 Gigabit Ethernet (SFP+) SR Optics (740-021308)
Power Cords/Cables (Partial List)
CBL-EX-PWR-C13-ARAC Power Cable - Argentina (10A/250V, 2.5m)
CBL-PWR-10AC-STR-USAC Power Cable, US - Straight version

Reviews

No reviews yet

Be the first to review this enterprise product.

Warranty

Standard Warranty Policy

All hardware sold by ITMall includes our 3-Year Free Maintenance and 1-Year RMA Replacement Service. Please refer to our Warranty Policy for details.

  • 1-Year Advance Replacement (RMA)
  • 3-Year Free Repair Service
  • Full coverage for functionality defects
Hassle-Free RMA Process

We streamlined the return process to minimize your network downtime. Our engineering team provides pre-return diagnostics to ensure hardware is truly defective.

  • 30-Day satisfaction guarantee return window
  • Automated RMA portal access for instant tracking
  • Restocking fee waived for functionality issues
Certified Engineering Support

Our products are backed by CCIE-certified engineers who provide expert guidance on compatibility, configuration, and troubleshooting at no extra cost.

  • Free pre-sales topology consultation
  • Remote troubleshooting & firmware advice
  • Simulation lab testing before dispatch
Global Logistics & Packaging

We ship to 85+ countries using premium anti-static packaging to ensure safety. Orders placed before 14:00 (GMT+8) are typically dispatched the same day.

  • Double-walled boxes with customer molded foam
  • Blind shipping support for channel partners
  • Real-time tracking via FedEx / DHL / UPS

Resources

No downloads available for this product.

Common Questions

What is the firewall throughput of SRX1500?
9 Gbps (1518B packet size), 4.5 Gbps IMIX.
What ports does the SRX1500 have?
12x 1GE RJ-45, 4x 1GE SFP, 4x 10GE SFP+, plus management, console, and USB ports.
Does SRX1500 support chassis clustering?
Yes, with 1x SFP chassis cluster port.
What is the maximum concurrent sessions on SRX1500?
2000 thousand (IPv4/IPv6).
What power options are available for SRX1500?
Dual redundant PSUs: AC (JPSU-400W-AC) or DC (JPSU-650W-DC-AFO), 1+1 redundancy.
Is this product Brand New?
Yes, unless clearly marked as "Refurbished", all our products are Factory Sealed (Original New) sourced directly from authorized channels.
What is the warranty period?
We provide a comprehensive 3-Year Warranty on this item. This covers hardware defects and includes advanced replacement.
Do you offer volume discounts?
Yes! For bulk orders or project bids, please click "Quote | Help" to get a custom price proposal from our sales team.
How fast can you ship?
In-stock items ordered before 3 PM EST ship the same day. We offer overnight and 2-day shipping options via FedEx/DHL.
