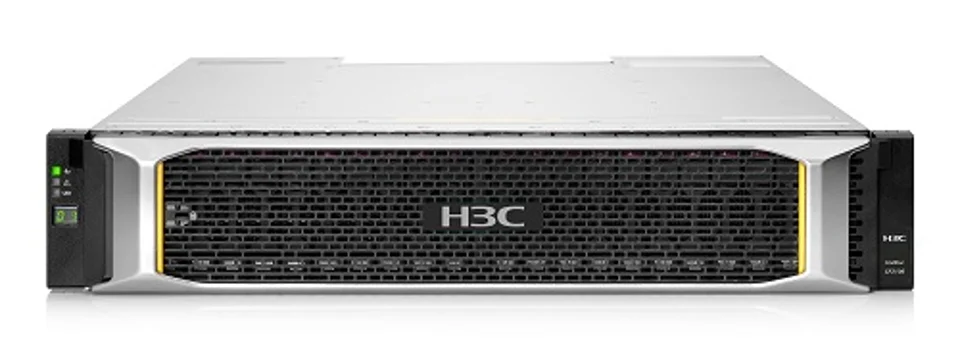

H3C ST-CF2106-12Gb-SAS-24SFF Uni Stor CF2106 12Gb SAS Dual-Controller Storage System (2U, 24SFF)
Brand H3C
N/AVerified
H3C ST-CF2106-12Gb-SAS-24SFF
Model (MPN)
0235A3Y1
Condition
Factory Sealed
Out of Stock
H3C ST-CF2106-12Gb-SAS-24SFF Uni Stor CF2106 12Gb SAS Dual-Controller Storage System (2U, 24SFF). Port Type: 16Gb FC、10GBASE-T、10Gb iSCSI、25Gb iSCSI 、12Gb SAS. Storage chip: 4 units (2 Intel high-speed storage processors and 2 ASIC storage-specific processors). Weight: Host: 12LFF: 9 kg (without HDD), 32 kg (fully configured); 24SFF: 9 kg (without HDD), 32 kg (fully configured). Expansion enclosure: 12LFF: 5 kg (with
Key Specifications
DescriptionH3C Uni Stor CF2106 12Gb SAS Dual-Controller Storage System (2U,24SFF)
Power Supply1*AC + 1*AC100-240 VAC，50/60 Hz.，4.5-1.9A；48-60 VDC，10.4A/8.3A
Ambient temperatureOperating: 5℃ to 40℃; Storage: -40℃ to 70℃
Ambient humidityOperating: 10% to 90% (non-condensing); Storage: up to 93% (non-condensing)
ControllerDual controller Dual controller Dual controller
Storage chip4 units (2 Intel high-speed storage processors and 2 ASIC storage-specific processors)
Your Price
Best Value
$5,035.00
List Price: $50,350.00Save 90%
Availability Out of Stock
Quantity
Need configuration help?
Our CCIE certified engineers can help you verify compatibility.
Secure Payment
VISA
Pay
WIRE
Fast Dispatch
Global logistics network aiming for same-day handover.
48hrs
Avg. Shipping
99%
On-Time
Guaranteed Quality
Every unit undergoes rigorous 38-point inspection test.
3Year
Warranty
0.1%
RMA Rate
Global Reach
Trusted by enterprise clients across 6 continents.
85+
Countries
20k+
Clients
Expert Support
Certified network engineers ready to assist with configuration.
24/7
Assistance
CCIE
Certified
Overview
Specifications
| Catalog Description | |
|---|---|
| Description | H3C Uni Stor CF2106 12Gb SAS Dual-Controller Storage System (2U,24SFF) |
| Key Specifications | |
| Power Supply | 1*AC + 1*AC100-240 VAC，50/60 Hz.，4.5-1.9A；48-60 VDC，10.4A/8.3A |
| Ambient temperature | Operating: 5℃ to 40℃; Storage: -40℃ to 70℃ |
| Ambient humidity | Operating: 10% to 90% (non-condensing); Storage: up to 93% (non-condensing) |
| Controller | Dual controller Dual controller Dual controller |
| Storage chip | 4 units (2 Intel high-speed storage processors and 2 ASIC storage-specific processors) |
| Cache | 24GB |
| Product Specifications | |
| Controller | Dual controller Dual controller Dual controller |
| Storage chip | 4 units (2 Intel high-speed storage processors and 2 ASIC storage-specific processors) |
| Cache | 24GB |
| Hard Drive Slot Type | 24SFF 12LFF or 24SFF 24SFF |
| Hard Drive Type | SSD、15K SAS、10K SAS 、7.2K NL-SAS |
| SSD smart cache | Optional Optional Standard 2 units 1.92TB SSD |
| RAID level | RAID0、1、5、6、10、MSA DP+ |
| Port Type | 16Gb FC、10GBASE-T、10Gb iSCSI、25Gb iSCSI 、12Gb SAS |
| Port Quantity | 4 8 8 |
| Expandable JBOD quantity | 3 9 9 |
| JBOD expansion method | Supports LFF and SFF JBOD mixed expansion, maximum supports 240 SFF or 120 LFF |
| Advanced data services | Real-time intelligent tiering 2.0 (smart write-aware), thin provisioning, space reclamation, thin rebuild, virtual tier association |
| Application integration | VMware vCenter、vStorage (VAAI)、Zerto、Arxscan |
| Managementfunctions | Web-based UI (SMU V4)、 OneView vCenter、RESTful Interface with Redfish standard |
| Power Supply | 1*AC + 1*AC100-240 VAC，50/60 Hz.，4.5-1.9A；48-60 VDC，10.4A/8.3A |
| System specifications | 12LFF/24SFF：89.0mm x 483mm x 508mm |
| Weight | Host: 12LFF: 9 kg (without HDD), 32 kg (fully configured); 24SFF: 9 kg (without HDD), 32 kg (fully configured). Expansion enclosure: 12LFF: 5 kg (without HDD), 28 kg (fully configured); 24SFF: 5 kg (without HDD), 25 kg (fully configured) |
| Ambient temperature | Operating: 5℃ to 40℃; Storage: -40℃ to 70℃ |
| Ambient humidity | Operating: 10% to 90% (non-condensing); Storage: up to 93% (non-condensing) |
| Services | Standard: 3-year 7*24-hour 4-hour response; Optional: 4 to 5-year 7*24-hour 4-hour response, HDD non-return, proactive and other advanced service levels |
| Ordering Information | |
| Disk Expansion Enclosure | |
| 0231AFXX | ST-DE-24SFF-CF2000G2 - H3C Uni Stor CF2000 G2 Dual-Controller Storage Disk Expansion Enclosure (2U,24SFF) |
| 0231AFY5 | ST-DE-12LFF-CF2000G2 - H3C Uni Stor CF2000 G2 Dual-Controller Storage Disk Expansion Enclosure (2U,12LFF) |
| Hard Drive | |
| 0231AFYA | ST-HDD-2.4T-SAS-SFF-CF2000G2 - H3C Uni Stor CF2000 G2 2.4TB 12G SAS 10K 2.5in HDDcompatible Hard Drive Module |
| 0231AFY1 | ST-SSD-1.92T-SAS-SFF-CF2000G2 - H3C Uni Stor CF2000 G2 1.92TB 12G SAS RI 2.5in SSDcompatible Hard Drive Module |
| 0231AFY2 | ST-SSD-960G-SAS-SFF-CF2000G2 - H3C Uni Stor CF2000 G2 960GB 12G SAS RI 2.5in SSDcompatible Hard Drive Module |
| 0231AFY3 | ST-HDD-600G-SAS-SFF-CF2000G2 - H3C Uni Stor CF2000 G2 600GB 12G SAS 10K 2.5in HDDcompatible Hard Drive Module |
| 0231AFYD | ST-HDD-900G-SAS-SFF-CF2000G2 - H3C Uni Stor CF2000 G2 900GB 12G SAS 15K 2.5in HDDcompatible Hard Drive Module |
| 0231AFYE | ST-HDD-1.2T-SAS-SFF-CF2000G2 - H3C Uni Stor CF2000 G2 1.2TB 12G SAS 10K 2.5in HDDcompatible Hard Drive Module |
| 0231AFY7 | ST-SSD-3.84T-SAS-SFF-CF2000G2 - H3C Uni Stor CF2000 G2 3.84TB 12G SAS RI 2.5in SSDcompatible Hard Drive Module |
| 0231AFY9 | ST-HDD-1.8T-SAS-SFF-CF2000G2 - H3C Uni Stor CF2000 G2 1.8TB 12G SAS 10K 2.5in HDDcompatible Hard Drive Module |
| Cables | |
| 0202A1VY | CAB-MiniHDSAS-1M-CF2000G2 - H3C Uni Stor CF2000 G2 1m Y-Cable Mini HD SAS to Mini HD SAS Cable |
| 0202A1W8 | CAB-MiniHD-MiniSAS-1M-CF2000G2 - H3C Uni Stor CF2000 G2 1m Y-Cable Mini HD SAS to Mini SAS Cable |
| 0202A2BJ | CAB-MiniHDSAS-2M-CF2000G2 - H3C Uni Stor CF2000 G2 2m Y-Cable Mini HD SAS to Mini HD SAS Cable |
| 0202A2BL | CAB-MiniHD-MiniSAS-2M-CF2000G2 - H3C Uni Stor CF2000 G2 2m Y-Cable Mini HD SAS to Mini SAS Cable |
| 0202A2BU | CAB-MiniHDSAS-4M-CF2000G2 - H3C Uni Stor CF2000 G2 4m Y-Cable Mini HD SAS to Mini HD SAS Cable |
| 0202A2BW | CAB-MiniHD-MiniSAS-4M-CF2000G2 - H3C Uni Stor CF2000 G2 4m Y-Cable Mini HD SAS to Mini SAS Cable |
| license certificate | |
| 0202A1WA | LIS-ADS-CF2000-G2 - H3C Uni Stor CF2000 G2 Advanced Data Service License |
| Package | |
| 0202A1W0 | ST-Bezel-KIT-CF2000G2 - H3C Uni Stor CF2000 G2 Bezel Kit |
| Installing Services | |
| 8814A0QH | 8814A0QH - H3C CF2000G2 Storage |
| 8814A0MN | SV-PS-ISVC-US-CF - H3C Uni Stor CF Storage Product Installation Service |
| Product Identity | |
| Brand | H3C |
| Series | H3C CF2000 G2Storage Products |
