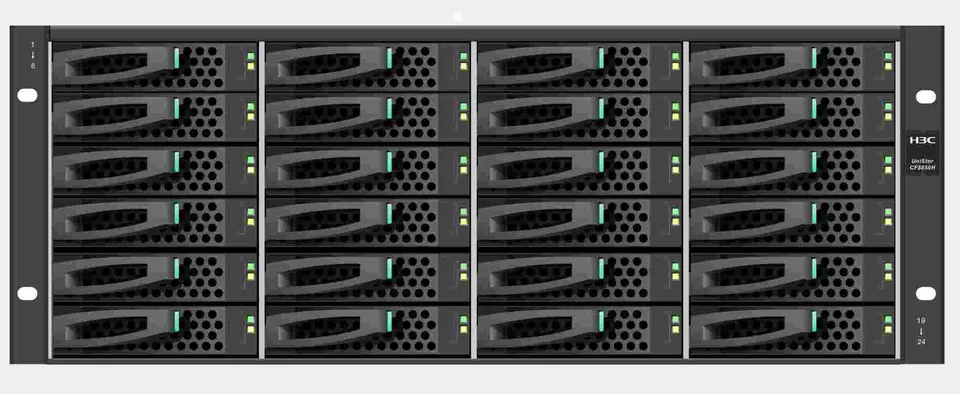

H3C ST-CF8850H-H3-24LFF-512G Uni Stor CF8850H H3 dual-controller storage BTO host (4U, 24 3.5-inch drive bays, 512GB memory)
Brand H3C
N/AVerified
H3C ST-CF8850H-H3-24LFF-512G
Model (MPN)
9801A6UE
Condition
Factory Sealed
Out of Stock
H3C ST-CF8850H-H3-24LFF-512G Uni Stor CF8850H H3 dual-controller storage BTO host (4U, 24 3.5-inch drive bays, 512GB memory). Max Host Interface Count: 416. Power Input: Input: 100V-240V±20% AC; 60Hz±2%/50Hz±2% 240V HVDC. Humidity: Operating humidity: 10%-85%, non-condensing; recommended 20%-80%, non-condensing Non-operating humidity: 10%-90%, non-condensing
Key Specifications
DescriptionH3C Uni Stor CF8850H H3 dual-controller storage BTO host (4U, 24x 3.5-inch drive bays, 512GB memory)
Max Host Interface Count416
HumidityOperating humidity: 10%-85%, non-condensing; recommended 20%-80%, non-condensing Non-operating humidity: 10%-90%, non-condensing
Product ModelCF8850H
Controller Expansion32
Cache128GB – 16TB
Your Price
Best Value
$16,557.10
List Price: $165,571.00Save 90%
Availability Out of Stock
Quantity
Need configuration help?
Our CCIE certified engineers can help you verify compatibility.
Secure Payment
VISA
Pay
WIRE
Fast Dispatch
Global logistics network aiming for same-day handover.
48hrs
Avg. Shipping
99%
On-Time
Guaranteed Quality
Every unit undergoes rigorous 38-point inspection test.
3Year
Warranty
0.1%
RMA Rate
Global Reach
Trusted by enterprise clients across 6 continents.
85+
Countries
20k+
Clients
Expert Support
Certified network engineers ready to assist with configuration.
24/7
Assistance
CCIE
Certified
Overview
Specifications
| Catalog Description | |
|---|---|
| Description | H3C Uni Stor CF8850H H3 dual-controller storage BTO host (4U, 24x 3.5-inch drive bays, 512GB memory) |
| Key Specifications | |
| Max Host Interface Count | 416 |
| Humidity | Operating humidity: 10%-85%, non-condensing; recommended 20%-80%, non-condensing Non-operating humidity: 10%-90%, non-condensing |
| Product Model | CF8850H |
| Controller Expansion | 32 |
| Cache | 128GB – 16TB |
| Front-end Port Type | 1/10/25/40/100 Gb/s Ethernet Module, 16/32 Gb/s FCModuleetc. |
| Product Specifications | |
| Product Model | CF8850H |
| Controller Expansion | 32 |
| Cache | 128GB – 16TB |
| Max Host Interface Count | 416 |
| Front-end Port Type | 1/10/25/40/100 Gb/s Ethernet Module, 16/32 Gb/s FCModuleetc. |
| RoCE Feature | Supports NVMe over RoCE and iNOF features |
| Disk Enclosure Type | 4U Disk Enclosure: 24 bays, supports 2.5/3.5 inch drive 2U Disk Enclosure: 25 bays, supports 2.5 inch drive |
| Hard Drive Type | SSD, HDD, etc. (supports mixed insertion of different drive types) |
| Max Drive Count | 51200 |
| LUNQuantity | Dual-controller LUN count ≥ 65536 |
| RAIDType | RAID 0, 1, 3, 5, 6, 10, 50, 60, X0, Triple-drive Parity |
| Operating system support | AIX, HP-UX, Solaris, Windows, Linux, Neo Kylin, Union Tech, Kylin, etc. |
| Virtualization platform support | VMware, Citrix, Hyper-V, Open Stack, KVM, XENetc. |
| Advanced features | APP symmetric active-active, heterogeneous virtualization, Quality of Service (QoS) control, online global deduplication, online compression, thin provisioning, hot data caching, intelligent data tiering, advanced performance monitoring, data snapshot, data replication, local clone, local mirror, etc. |
| NAS features | Supports CIFS, NFS, HTTP, FTP and other protocols; supports NAS active-active, multi-tenancy, directory quota and WORM and other advanced features |
| Power Input | Input: 100V-240V±20% AC; 60Hz±2%/50Hz±2% 240V HVDC |
| Temp. | Operating temperature: 0°C-40°C, recommended 10°C-35°C Non-operating temperature: -20°C-60°C |
| Humidity | Operating humidity: 10%-85%, non-condensing; recommended 20%-80%, non-condensing Non-operating humidity: 10%-90%, non-condensing |
| Ordering Information | |
| Disk Expansion Enclosure | |
| 9801A4LD | ST-CF8850H-DES-25SFF - H3C Uni Stor CF8850H DES-2725 hard disk expansion enclosure (2U, 25 x 2.5-inch drive bays) |
| 9801A4LF | ST-CF8850H-DEL-24LFF - H3C Uni Stor CF8850H DEL-2624 Hard Disk Expansion Enclosure (4U, 24 x 3.5-inch Drive Bays) |
| 2.5-inch SSD disk pack (for DES-2725) | |
| 9806A0H9 | ST-CF8850H-SSD-7.68T-SAS-SFF*4 - H3C Uni Stor CF8850H 4 x 2.5-inch SSD Kit - SAS Drive Module - 7.68TB Hard Drive Pack |
| 9806A0HV | ST-CF8850H-SSD-3.84T-SAS-SFF*4 - H3C Uni Stor CF8850H 4 x 2.5-inch SSD Kit - SAS Drive Module - 3.84TB Hard Drive Pack |
| 9806A0JF | ST-CF8850H-SSD-1.92T-SAS-SFF*4 - H3C Uni Stor CF8850H 4 x 2.5-inch SSD Kit - SAS Drive Module - 1.92TB Hard Drive Pack |
| 9806A0UM | ST-CF8850H-SSD-960G-SAS-SFF*4 - H3C Uni Stor CF8850H 4 x 2.5-inch SSD Kit - SAS Drive Module - 960GB Hard Drive Pack |
| 2.5-inch SSD (for DES-2725) | |
| 9806A0GP | ST-CF8850H-SSD-1.92T-SAS-SFF - H3C Uni Stor CF8850H 2.5-inch SSD Kit - SAS Drive Module - 1.92TB |
| 9806A0HD | ST-CF8850H-SSD-3.84T-SAS-SFF - H3C Uni Stor CF8850H 2.5-inch SSD Kit - SAS Drive Module - 3.84TB |
| 9806A0GT | ST-CF8850H-SSD-7.68T-SAS-SFF - H3C Uni Stor CF8850H 2.5-inch SSD Kit - SAS Drive Module - 7.68TB |
| 9806A0UL | ST-CF8850H-SSD-960G-SAS-SFF - H3C Uni Stor CF8850H 2.5-inch SSD Kit - SAS Drive Module - 960GB |
| 2.5-inch HDD hard disk pack (for DES-2725) | |
| 9806A0JE | 9806A0JE - H3C Uni Stor CF8850H 4*2.5-inch kit-SAS drive-10000RPM-1.2TB disk pack |
| 9806A0GG | 9806A0GG - H3C Uni Stor CF8850H 4*2.5-inch kit-SAS drive-10000RPM-1.8TB disk pack |
| 9806A0GH | 9806A0GH - H3C Uni Stor CF8850H 4*2.5-inch kit - SAS drive enclosure - 10000RPM - 2.4TB hard disk pack |
| 2.5-inch HDD (for DES-2725) | |
| 9806A0H8 | 9806A0H8 - H3C Uni Stor CF8850H 2.5-inch kit - SAS drive enclosure - 10000RPM - 1.2TB |
| 9806A0GL | 9806A0GL - H3C Uni Stor CF8850H 2.5-inch kit - SAS drive enclosure - 10000RPM - 1.8TB |
| 9806A0JM | 9806A0JM - H3C Uni Stor CF8850H 2.5-inch kit - SAS drive enclosure - 10000RPM - 2.4TB |
| 3.5-inch SSD hard disk pack (for host and DEL-2624) | |
| 9806A0J9 | ST-CF8850H-SSD-1.92T-SAS-LFF*4 - H3C Uni Stor CF8850H 4*3.5-inch SSD kit-SAS drive module-1.92TB HDD pack |
| 9806A0GY | ST-CF8850H-SSD-3.84T-SAS-LFF*4 - H3C Uni Stor CF8850H 4*3.5-inch SSD kit-SAS drive module-3.84TB HDD pack |
| 9806A0GX | ST-CF8850H-SSD-7.68T-SAS-LFF*4 - H3C Uni Stor CF8850H 4*3.5-inch SSD kit-SAS drive module-7.68TB HDD pack |
| 9806A0UK | ST-CF8850H-SSD-960G-SAS-LFF*4 - H3C Uni Stor CF8850H 4 x 3.5-inch SSD Kit - SAS Drive Module - 960G Hard Drive Pack |
| 3.5-inch SSD (for hosts and DEL-2624) | |
| 9806A0HT | ST-CF8850H-SSD-1.92T-SAS-LFF - H3C Uni Stor CF8850H 3.5-inch SSD kit-SAS drive module-1.92TB |
| 9806A0JG | ST-CF8850H-SSD-3.84T-SAS-LFF - H3C Uni Stor CF8850H 3.5-inch SSD kit-SAS drive module-3.84TB |
| 9806A0HW | ST-CF8850H-SSD-7.68T-SAS-LFF - H3C Uni Stor CF8850H 3.5-inch SSD kit-SAS drive module-7.68TB |
| 9806A0UF | ST-CF8850H-SSD-960G-SAS-LFF - H3C Uni Stor CF8850H 3.5-inch SSD kit-SAS drive module-960GB |
| 3.5-inch HDD hard drive bundle (for host and DEL-2624) | |
| 9806A0J6 | ST-CF8850H-1.2T-SAS-10K-LFF*4 - H3C Uni Stor CF8850H 4 x 3.5-inch Kit - SAS Drive Module - 10000RPM - 1.2TB Hard Drive Pack |
| 9806A0GW | 9806A0GW - H3C Uni Stor CF8850H 4*3.5-inch kit - SAS drive enclosure - 10000RPM - 1.8TB hard disk pack |
| 9806A0HN | 9806A0HN - H3C Uni Stor CF8850H 4*3.5-inch kit - SAS drive enclosure - 10000RPM - 2.4TB hard disk pack |
| 9806A0J8 | 9806A0J8 - H3C Uni Stor CF8850H 4*3.5-inch kit - SAS drive enclosure - 10000RPM - 600GB hard disk pack |
| 9806A0J2 | 9806A0J2 - H3C Uni Stor CF8850H 4*3.5-inch kit - SAS drive enclosure - 7200RPM - 10TB hard disk pack |
| 9806A0J4 | ST-CF8850H-12T-SAS-7.2K-LFF*4 - H3C Uni Stor CF8850H 4*3.5-inch kit-SAS drive module-7200RPM-12TB HDD pack |
| 9806A0UP | ST-CF8850H-16T-SAS-7.2K-LFF*4 - H3C Uni Stor CF8850H 4*3.5-inch kit-SAS drive module-7200RPM-16TB HDD pack |
| 9806A0GV | ST-CF8850H-HDD-4T-SAS-7.2K-LFF*4 - H3C Uni Stor CF8850H 4*3.5-inch kit-SAS drive module-7200RPM-4TB HDD pack |
| 9806A0HG | ST-CF8850H-HDD-6T-SAS-7.2K-LFF*4 - H3C Uni Stor CF8850H 4*3.5-inch kit-SAS drive module-7200RPM-6TB HDD pack |
| 9806A0HH | ST-CF8850H-HDD-8T-SAS-7.2K-LFF*4 - H3C Uni Stor CF8850H 4*3.5-inch kit-SAS drive module-7200RPM-8TB HDD pack |
| 3.5-inch HDD (for hosts and DEL-2624) | |
| 9806A0HR | 9806A0HR - H3C Uni Stor CF8850H 3.5-inch kit - SAS drive - 10000RPM - 1.2TB |
| 9806A0H0 | 9806A0H0 - H3C Uni Stor CF8850H 3.5-inch kit - SAS drive - 10000RPM - 1.8TB |
| 9806A0H4 | 9806A0H4 - H3C Uni Stor CF8850H 3.5-inch kit - SAS drive - 10000RPM - 2.4TB |
| 9806A0HP | 9806A0HP - H3C Uni Stor CF8850H 3.5-inch kit - SAS drive - 10000RPM - 600GB |
| 9806A0JV | 9806A0JV - H3C Uni Stor CF8850H 3.5-inch kit - SAS drive - 7200RPM - 10TB |
| 9806A0JC | ST-CF8850H-HDD-12T-SAS-7.2K-LFF - H3C Uni Stor CF8850H 3.5-inch kit-SAS drive module-7200RPM-12TB |
| 9806A0UN | ST-CF8850H-HDD-16T-SAS-7.2K-LFF - H3C Uni Stor CF8850H 3.5-inch kit-SAS drive module-7200RPM-16TB |
| 9806A0HK | ST-CF8850H-HDD-4T-SAS-7.2K-LFF - H3C Uni Stor CF8850H 3.5-inch kit-SAS drive enclosure-7200RPM-4TB |
| 9806A0HL | ST-CF8850H-HDD-6T-SAS-7.2K-LFF - H3C Uni Stor CF8850H 3.5-inch kit-SAS drive enclosure-7200RPM-6TB |
| 9806A0HM | ST-CF8850H-HDD-8T-SAS-7.2K-LFF - H3C Uni Stor CF8850H 3.5-inch kit-SAS drive enclosure-7200RPM-8TB |
| HDD carrier faceplate kit | |
| 9806A0GM | ST-CF8850H-HDD-Panel-SFF*4 - H3C Uni Stor CF8850H 4*2.5-inch HDD carrier faceplate |
| 9806A0HB | ST-CF8850H-HDD-Panel-LFF*4 - H3C Uni Stor CF8850H 4*3.5-inch HDD carrier faceplate |
| Network Adapter | |
| 9806A0JD | ST-CF8850H-NIC-32G-FC-4P - H3C Uni Stor CF8850H 4x32Gb FC network adapter with module |
| 9806A0JU | ST-CF8850H-NIC-1GE-4P - H3C Uni Stor CF8850H 4xGE Network Adapter |
| 9806A0JY | ST-CF8850H-NIC-16G-FC-4P - H3C Uni Stor CF8850H 4x16Gb FC network adapter with module |
| 9806A17T | ST-CF8850H-NIC-25GE-4P-I - H3C Uni Stor CF8850H 4x25GE network adapter without module |
| 9806A17V | ST-CF8850H-NIC-10GE-4P-M - H3C Uni Stor CF8850H 4x10GE network adapter with module |
| license certificate | |
| 9806A0GJ | ST-CF8850H-LIS-NDM - H3C Uni Stor CF8850H non-disruptive data migration (NDM) software |
| 9806A0GQ | ST-CF8850H-LIS-Duplication - H3C Uni Stor CF8850H data re-write software |
| 9806A0GS | ST-CF8850H-LIS-hotCache - H3C Uni Stor CF8850H hotspot data cache software (hot Cache) |
| 9806A0GU | ST-CF8850H-LIS-Replication - H3C Uni Stor CF8850H remote replication software |
| 9806A0H3 | ST-CF8850H-LIS-Auto-Tiering - H3C Uni Stor CF8850H automatic tiering software |
| 9806A0H5 | ST-CF8850H-LIS-Mirror - H3C Uni Stor CF8850H local mirroring software |
| 9806A0H7 | ST-CF8850H-LIS-VVOL - H3C Uni Stor CF8850H VVOL software |
| 9806A0HA | ST-CF8850H-LIS-Clone - H3C Uni Stor CF8850H local cloning software |
| 9806A0HF | ST-CF8850H-LIS-NVMf - H3C Uni Stor CF8850H NVMf software |
| 9806A0HQ | ST-CF8850H-LIS-PP - H3C Uni Stor CF8850H symmetric active-active software |
| 9806A0HS | ST-CF8850H-LIS-NAS - H3C Uni Stor CF8850H NAS software |
| 9806A0JA | ST-CF8850H-LIS-SV - H3C Uni Stor CF8850H heterogeneous storage virtualization software |
| 9806A0JN | ST-CF8850H-LIS-Compression - H3C Uni Stor CF8850H data compression software |
| 9806A0JX | ST-CF8850H-LIS-Destruction - H3C Uni Stor CF8850H data destruction function |
| 9806A0UH | ST-CF8850H-LIS-Bundle-Dual - H3C Uni Stor CF8850H dual-controller software license bundle (includes: remote replication, symmetric active-active) |
| 9806A0UJ | ST-CF8850H-LIS-Bundle-Single - H3C Uni Stor CF8850H single-controller software license bundle (includes: re-write back, compression, automatic tiering, NAS, cloning) |
| Service Options | |
| 8814A15V | SV-PS-BISS-CF8850 - H3C Uni Stor CF8850 series Storage Base installation service |
| 8814A15W | SV-PS-DIMM-CAISS-CF8850 - H3C Uni Stor CF8850 Series Memory Expansion Kit Expansion Installation Service |
| 8814A15X | SV-PS-NVMf-ISS-CF8850 - H3C Uni Stor CF8850 Series NVMf software installation and deployment service |
| 8814A15Y | SV-PS-PPSS-CF8850 - H3C Uni Stor CF8850 Series Dual-Active installation and deployment service |
| 8814A160 | SV-PS-Compression-ISS-CF8850 - H3C Uni Stor CF8850 Series Data Compression installation and deployment service |
| 8814A161 | SV-PS-DEISS-CF8850 - H3C Uni Stor CF8850 Series Disk Enclosure initial installation service (non-expansion installation) |
| 8814A162 | SV-PS-AutoTiering-ISS-CF8850 - H3C Uni Stor CF8850 Series Automatic Tiering installation and deployment service |
| 8814A163 | SV-PS-VVOL-ISS-CF8850 - H3C Uni Stor CF8850 Series VVOL software installation and deployment service |
| 8814A164 | SV-PS-hotCache-ISS-CF8850 - H3C Uni Stor CF8850 Series Hot Data Cache software (hot Cache) installation and deployment service |
| 8814A165 | SV-PS-Replication-ISS-CF8850 - H3C Uni Stor CF8850 Series Remote Replication installation and start service |
| 8814A166 | SV-PS-DECAISS-CF8850 - H3C Uni Stor CF8850 Series Disk Enclosure expansion installation service |
| 8814A167 | SV-PS-Mirror-ISS-CF8850 - H3C Uni Stor CF8850 Series Local Mirroring Installation and Deployment Service |
| 8814A168 | SV-PS-HD-ISS-CF8850 - H3C Uni Stor CF8850 Series HDD/Card Installation Service (Non-Expansion Installation) |
| 8814A169 | SV-PS-NDM-ISS-CF8850 - H3C Uni Stor CF8850 Series Non-Disruptive Data Migration (NDM) Installation and Deployment Service |
| 8814A16A | SV-PS-Duplication-ISS-CF8850 - H3C Uni Stor CF8850 Series Data Re-Ordering Installation and Deployment Service |
| 8814A16B | SV-PS-SV-ISS-CF8850 - H3C Uni Stor CF8850 Series Heterogeneous Storage Virtualization Installation and Deployment Service |
| 8814A16C | SV-PS-Destruction-ISS-CF8850 - H3C Uni Stor CF8850 Series Data Destruction Function Installation and Deployment Service |
| 8814A16D | SV-PS-Clone-ISS-CF8850 - H3C Uni Stor CF8850 Series Local Cloning Installation and Deployment Service |
| 8814A16E | SV-PS-HD-CAISS-CF8850 - H3C Uni Stor CF8850 Series HDD/Card Expansion Installation Service |
| 8814A16F | SV-PS-NAS-ISS-CF8850 - H3C Uni Stor CF8850 Series NAS Software Installation and Deployment Service |
| Product Identity | |
| Brand | H3C |
| Series | H3C CF8850H national-chip centralized storage |
Reviews
No reviews yet
Be the first to review this enterprise product.
Warranty
Standard Warranty Policy
All hardware sold by ITMall includes our 3-Year Free Maintenance and 1-Year RMA Replacement Service. Please refer to our Warranty Policy for details.
- 1-Year Advance Replacement (RMA)
- 3-Year Free Repair Service
- Full coverage for functionality defects
Hassle-Free RMA Process
We streamlined the return process to minimize your network downtime. Our engineering team provides pre-return diagnostics to ensure hardware is truly defective.
- 30-Day satisfaction guarantee return window
- Automated RMA portal access for instant tracking
- Restocking fee waived for functionality issues
Certified Engineering Support
Our products are backed by CCIE-certified engineers who provide expert guidance on compatibility, configuration, and troubleshooting at no extra cost.
- Free pre-sales topology consultation
- Remote troubleshooting & firmware advice
- Simulation lab testing before dispatch
Global Logistics & Packaging
We ship to 85+ countries using premium anti-static packaging to ensure safety. Orders placed before 14:00 (GMT+8) are typically dispatched the same day.
- Double-walled boxes with customer molded foam
- Blind shipping support for channel partners
- Real-time tracking via FedEx / DHL / UPS
Resources
No downloads available for this product.
FAQ
What is the Product Model specification for ST-CF8850H-H3-24LFF-512G?
ST-CF8850H-H3-24LFF-512G lists Product Model as CF8850H. Use this value when checking datasheet requirements, quotation details, and deployment compatibility.
What is the Model specification for ST-CF8850H-H3-24LFF-512G?
ST-CF8850H-H3-24LFF-512G lists Model as ST-CF8850H-H3-24LFF-512G. Use this value when checking datasheet requirements, quotation details, and deployment compatibility.
What is the Product Code specification for ST-CF8850H-H3-24LFF-512G?
ST-CF8850H-H3-24LFF-512G lists Product Code as 9801A6UE. Use this value when checking datasheet requirements, quotation details, and deployment compatibility.
What is the Product Type specification for ST-CF8850H-H3-24LFF-512G?
ST-CF8850H-H3-24LFF-512G lists Product Type as H3C ST-CF8850H-H3-24LFF-512G. Use this value when checking datasheet requirements, quotation details, and deployment compatibility.
Is this product Brand New?
Yes, unless clearly marked as "Refurbished", all our products are Factory Sealed (Original New) sourced directly from authorized channels.
What is the warranty period?
We provide a comprehensive 3-Year Warranty on this item. This covers hardware defects and includes advanced replacement.
Do you offer volume discounts?
Yes! For bulk orders or project bids, please click "Quote | Help" to get a custom price proposal from our sales team.
How fast can you ship?
In-stock items ordered before 3 PM EST ship the same day. We offer overnight and 2-day shipping options via FedEx/DHL.
Still have questions?
